Pelco C2234M User Manual

INSTALLATION

IS90-PW Wall Mount

Indoor Only

C2234M (2/07)

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Only use attachments/accessories specified by the manufacturer.

6. Installation should be done only by qualified personnel and conform to all local codes.

7. Use only installation methods and materials capable of supporting four times the maximum
specified load.

8. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is
designed for indoor use only and it must not be installed where exposed to rain and moisture.

9. Use only replacement parts recommended by Pelco.

Description

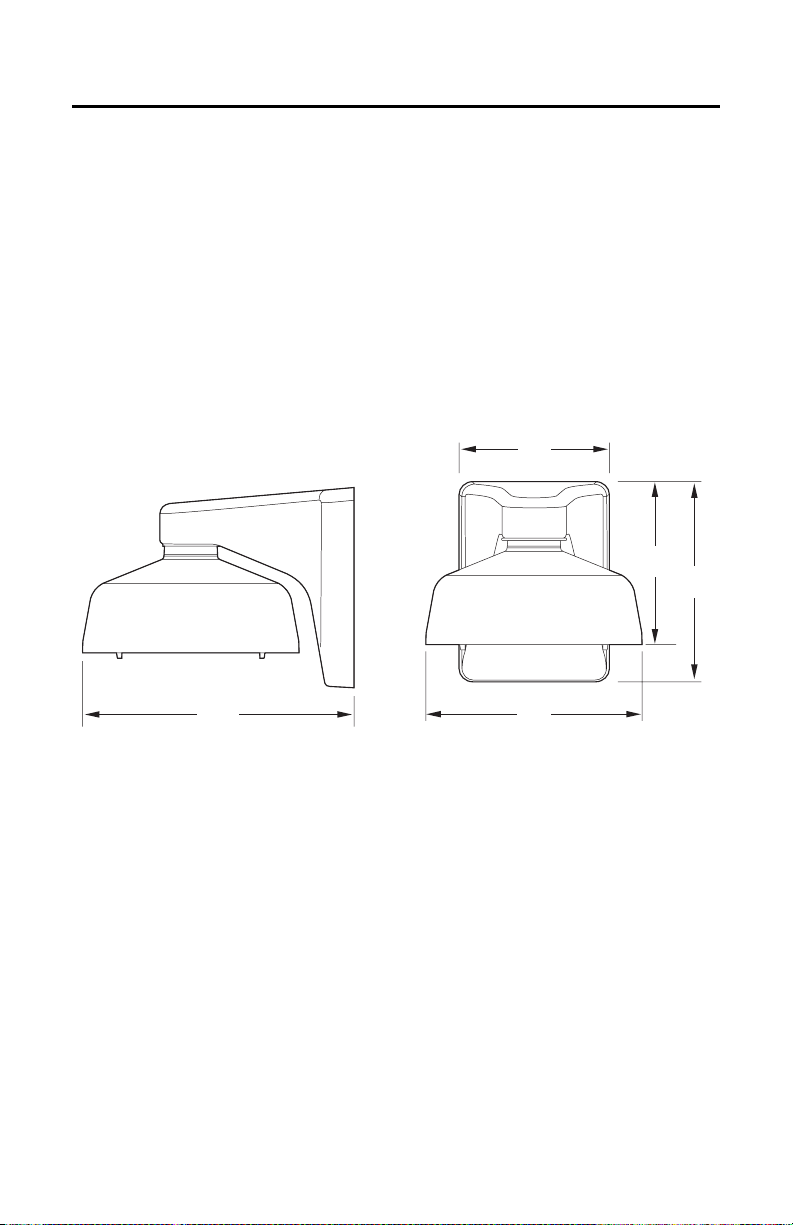

The IS90-PW pendant wall mount is specifically designed for the IS90 Camclosure® series. The mount
offers full feedthrough connections for a clean installation with no exposed wires.

The following parts are supplied:

1 Adapter plate with locking screw

1 Wall mount

2 8-32 x 0.75-inch screws

MODELS

IS90-PW Indoor white pendant mount

IS90B-PW Indoor black pendant mount

2 C2234M (2/07)

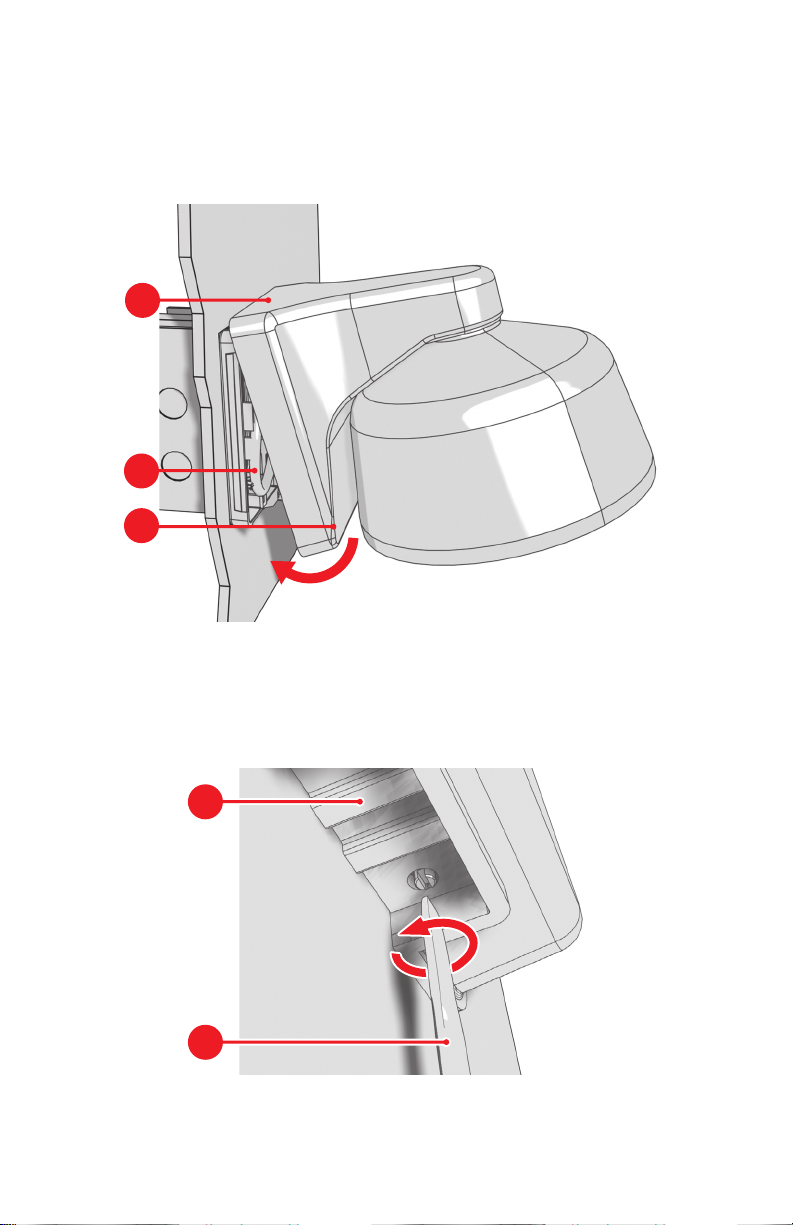

Installation

To install the IS90-PW/IS90B-PW pendant wall mount, complete the following steps:

1. Run 24 VAC power, video (coaxial or UTP), and camera control wiring to the mounting location.
If you are using coaxial video, do not attach a BNC connector to the cable until step 5.

2. Thread the 24 VAC power, video (coaxial or UTP), and control wiring through the large access
hole in the adapter plate. Then attach the adapter plate to the mounting surface using either
the top/bottom or left/right pair of mounting holes. (The top/bottom pair is shown in Figure 1.)

NOTE: If mounting to anything other than a junction box, select appropriate mounting hardware for
the mounting surface

.

Figure 1. Mounting the Adapter Plate

C2234M (2/07) 3
