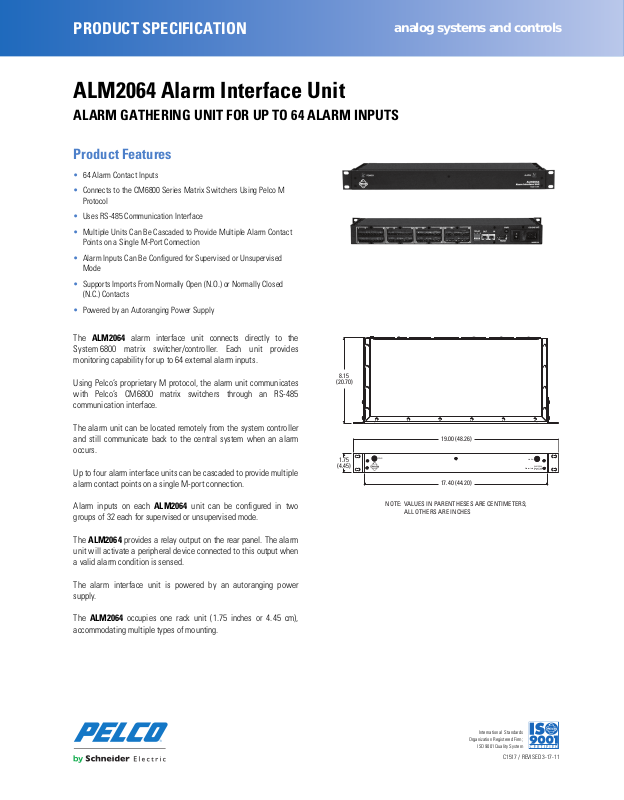

Pelco ALM2064 Specsheet

PRODUCT SPECIFICATION

19.00 (48.26)

PWR

ALARM

ALM2064

Alarm Interface Unit

Made in USA

17.40 (44.20)

1.75

(4.45)

8.15

(20.70)

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES

ALM2064 Alarm Interface Unit

ALARM GATHERING UNIT FOR UP TO 64 ALARM INPUTS

analog systems and controls

Product Features

• 64 Alarm Contact Inputs

• Connects to the CM6800 Series Matrix Switchers Using Pelco M

Protocol

• Uses RS-485 Communication Interface

• Multiple Units Can Be Cascaded to Provide Multiple Alarm Contact

Points on a Single M-Port Connection

• Alarm Inputs Can Be Configured for Supervised or Unsupervised

Mode

• Supports Imports From Normally Open (N.O.) or Normally Closed

(N.C.) Contacts

• Powered by an Autoranging Power Supply

The ALM2064 alarm interface unit connects directly to the
System 6800 matrix switcher/controller. Each unit provides
monitoring capability for up to 64 external alarm inputs.

Using Pelco’s proprietary M protocol, the alarm unit communicates
with Pelco’s CM6800 matrix switchers through an RS-485
communication interface.

The alarm unit can be located remotely from the system controller
and still communicate back to the central system when an alarm
occurs.

Up to four alarm interface units can be cascaded to provide multiple
alarm contact points on a single M-port connection.

Alarm inputs on each ALM2064 unit can be configured in two
groups of 32 each for supervised or unsupervised mode.

The ALM2064 provides a relay output on the rear panel. The alarm
unit will activate a peripheral device connected to this output when
a valid alarm condition is sensed.

The alarm interface unit is powered by an autoranging power
supply.

The ALM2064 occupies one rack unit (1.75 inches or 4.45 cm),
accommodating multiple types of mounting.

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C1517 / REVISED 3-17-11

TECHNICAL SPECIFICATIONS

Pelco, the Pelco logo, and other tradema rks associated with P elco products referred

to in this publication are trademarks of Pelco, Inc. or its affiliates. All other

product names and services are the pr operty of their respective companies.

Product specifications and availability are subject to change without notice.

©Copyright 2011, Pelco, Inc. All rights reserved.

MODELS

ALM2064

ELECTRICAL

Input Voltage 100 to 240 VAC, 50/60 Hz, autoranging
Power Consumption 30 VA (reactive consumption); 3 W (active)
Data Ports

Input RS-485, RJ-45 connector
Output RS-485, RJ-45 connector
Indicators 2 power LEDs, green

1 alarm LED, red

Fusing 500 mA, 250 V

Relay Out Load rating for relay contacts: 0.50 A at

Operating Distance 4,000 feet (1,219 m) on 24 AWG wire

MECHANICAL

Connectors

Alarm Inputs 4 dual-header, 32-input connectors with

Power 3-wire, 18 AWG
RS-485 Two RJ-45 connectors
Relay Out One 3-pin header with mating plug

GENERAL

Ambient Operating
Temperature 32° to 120°F (0° to 49°C)
Dimensions 8.15" D x 19.00" W x 1.75" H

Mounting Fits 19-inch EIA Standard rack (1 RU)
Unit Weight 7 lb (3.17 kg)
Shipping Weight 11 lb (4.90 kg)

Alarm interface unit; provides alarm monitoring
capabilities for up to 64 alarm inputs.

125 VAC, 50/60 Hz or 1 A at 24 VDC

mating plugs

(20.70 x 48.26 x 4.45 cm)

CERTIFICATIONS/RATINGS
