All cautions & notes on this refrigerator are important: please pay attention to them.

Refrigerator

Instruction Manual

Before operating the Refrigerator, please read this manual carefully and retain for future reference.

Wide Body Series

6 Series

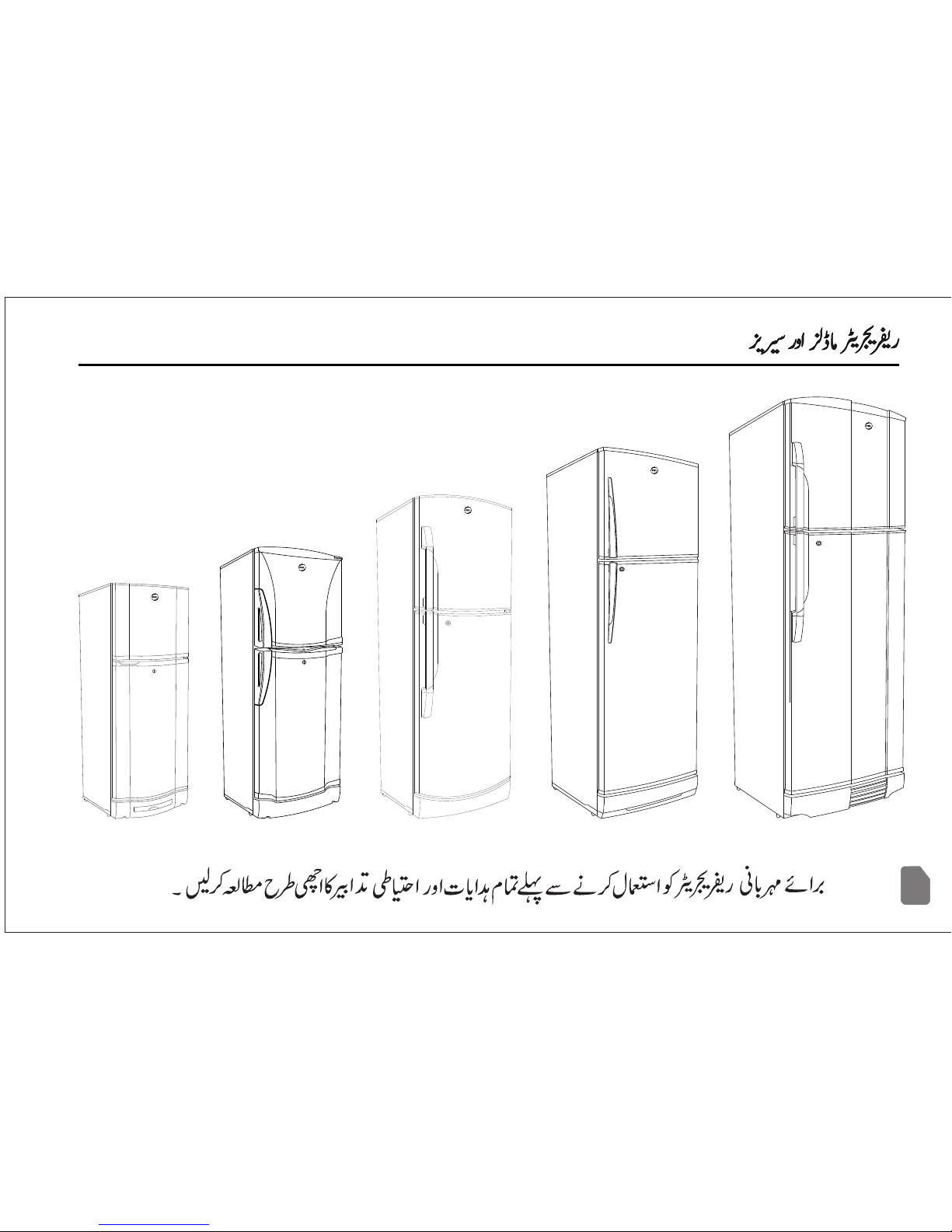

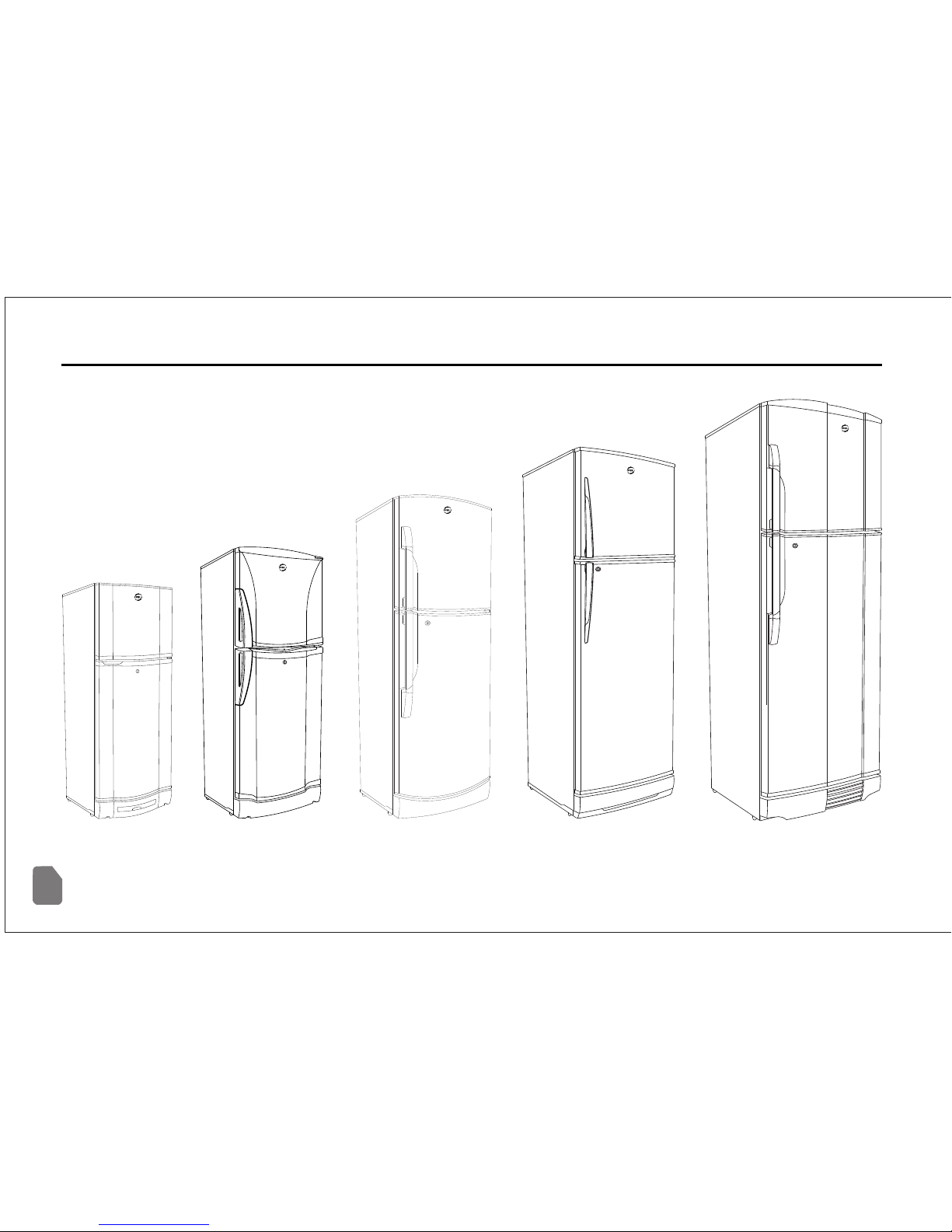

REFRIGERATOR MODELS & SERIES

WB Series

20145JF 20165 2017 20175 20185

SL Series

2009 2010 2012 2300JF 2500JF

6 Series

6200 6300 6400

Please read all safety and operating instructions before operating this appliance.

Slim Line Series

Premier

Slim Line Series

Star Plus

Slim Line Series

Crystal

REFRIGERATOR MODELS & SERIES 01

PARTS IDENTIFICATION 03

INSTALLATION 04

Leveling the Appliance Personal safety

GETTING STARTED 05

Food storage Vegetable / Fruit compartment

ICE CUBES MAKING 06

TEMPERATURE CONTROL 06

DEFROSTING 07

Single Door Refrigerator Double Door Refrigerator

GENERAL CARE AND CLEANING 09

DEODORIZER 10

TROUBLE SHOOTING TIPS 11

SAFETY PRECAUTIONS 13

INSIDE YOUR STARTER PACK

Dear Valued Customer

We congratulate you on your choice. You now are a proud owner of a PEL product having joined millions of others who are benefitting from quality PEL products for more than 50 years.

We want to assure you that each PEL product is built to last with state-of-the-art, energy efficient technology adapted to suit our local environment.

Distinctive qualities that we are proud to share with all our valued customers providing high performance, reliability, durability and most of all prompt customer care whenever and wherever you need it.

Kindly fill out the Warranty Card and send the Company's Copy to the given address for Warranty Registration.

Please read this Instruction Manual carefully as it will guide you to install, operate and maintain this appliance in its original condition for years to come.

Welcome to the PEL family, and wishing you many years of ease and comfort that come with the PEL name.

Thank you

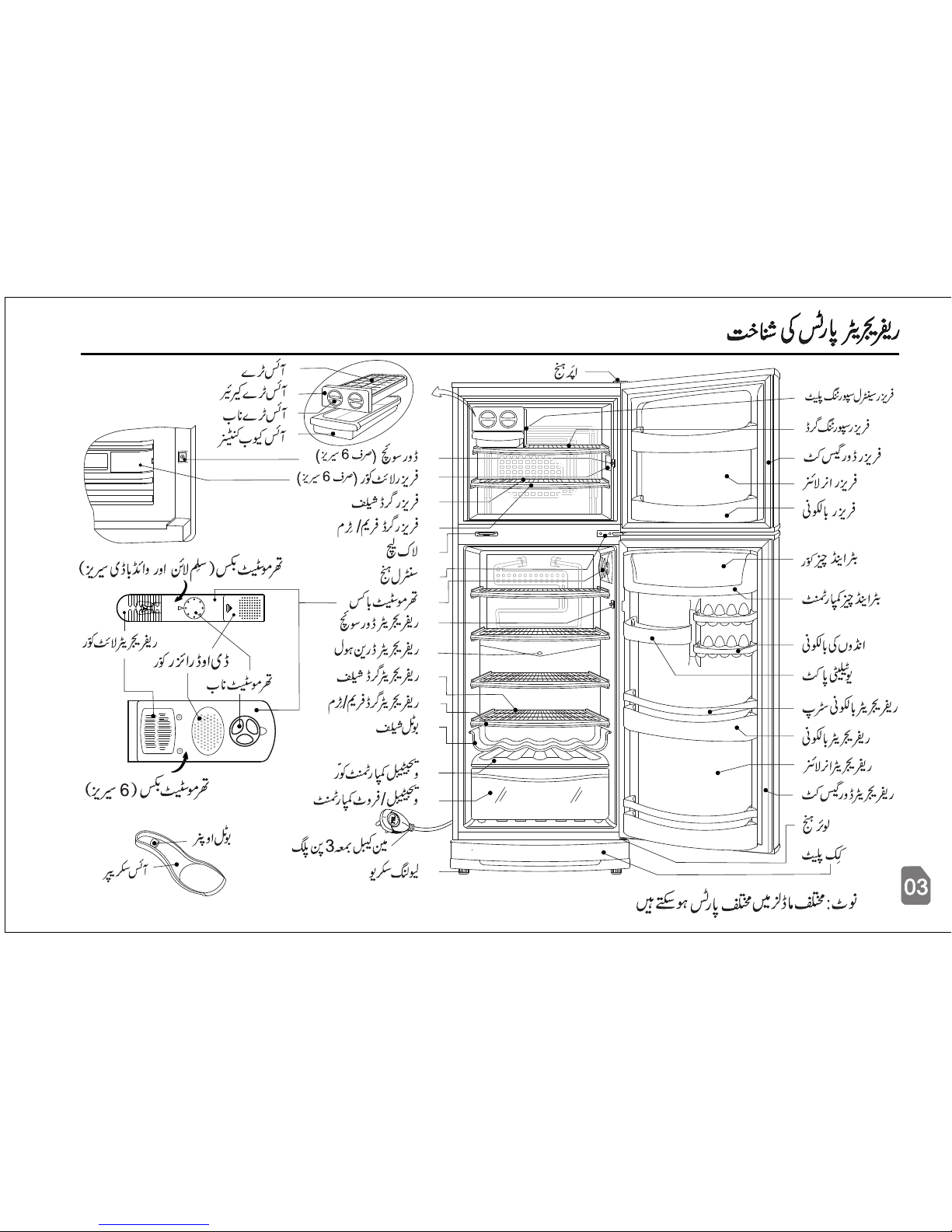

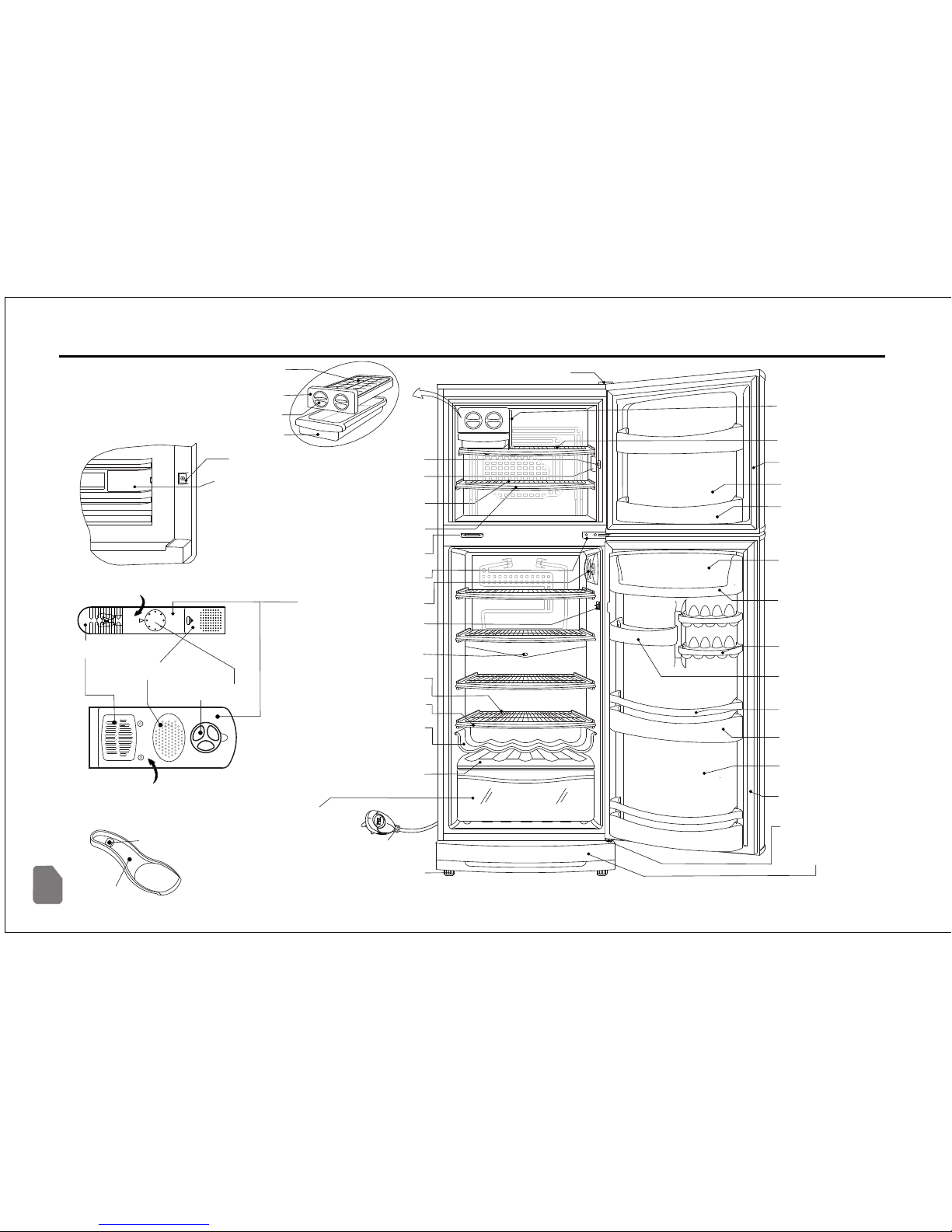

PARTS IDENTIFICATION

(For 6 Series) Door Switch

(For 6 Series) Frz. Light Cover

Thermostat Box

Door Switch

Ice Cube Container

Ice Trays

Ice Tray Knob

Ice Tray Carrier

Leveling Screw

Main Cable with 3 pin Plug

NOTE: Specifications may vary from model to model.

Kick Plate

Bottle Shelf

Lock Latch

Ref. Grid Frame/Trim

Frz. Grid Frame/Trim

Ref. Grid Shelf

Ref. Drain Hole

Central Hinge

Ref. Light Cover

Frz. Grid Shelf

Vegetable / Fruit Compartment

Veg./Fruit Cover

Upper Hinge

Ref. Inner Liner

Frz. Inner Liner

Ref. Balcony

Ref. Door Gasket

Frz. Door Gasket

Frz. Supporting Grid

Frz. Central Supporting Plate

Frz. Balcony

Eggs Balcony

Butter & Cheese Compartment

Butter & Cheese Cover

Utility Pocket

Ref. Balcony Strip

Lower Hinge

Thermostat Knob

Deodorizer Cover

Thermostat Box SL & WB Series

Thermostat Box 6 Series

Ice Scraper

Bottle Opener

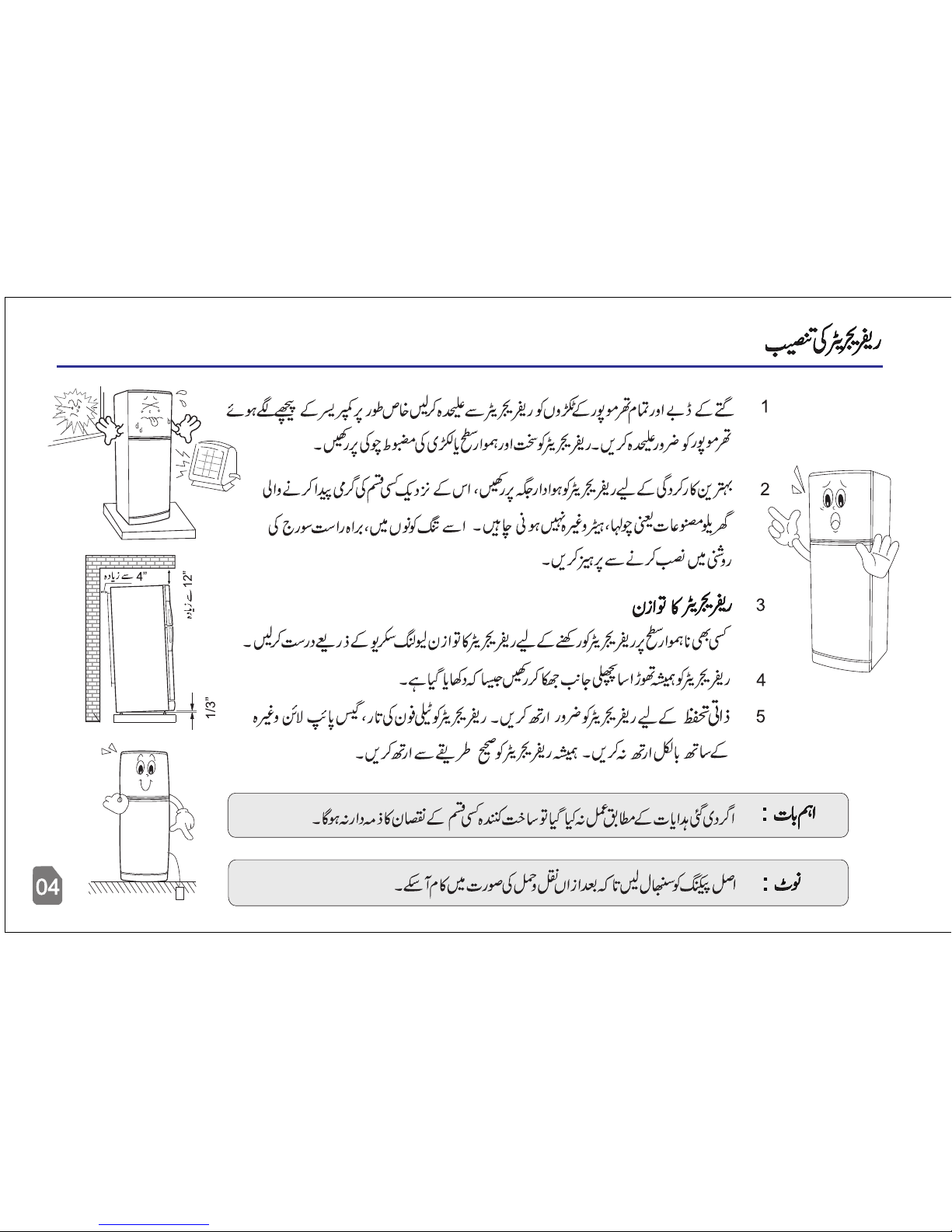

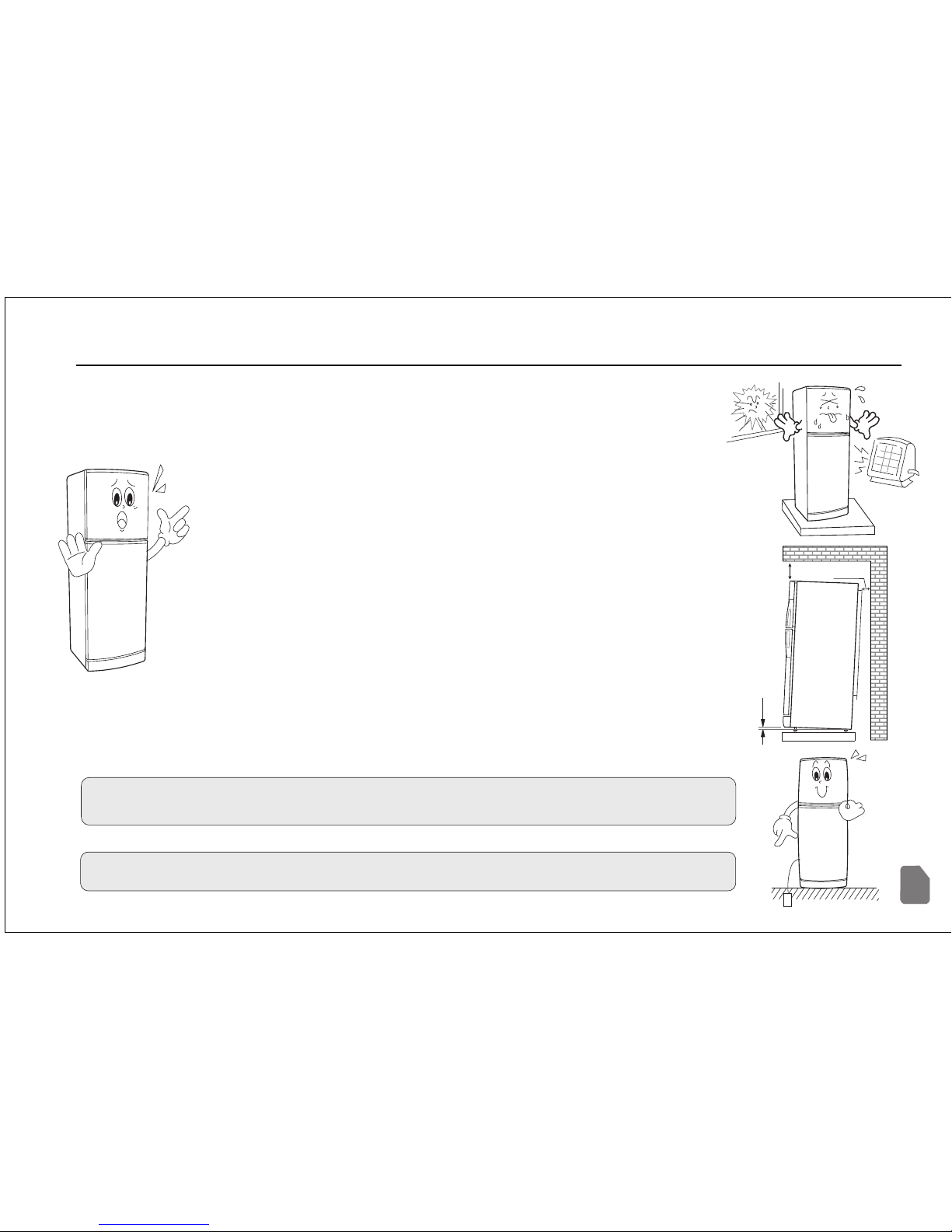

INSTALLATION

1. Remove packing carton and all thermopore pieces from the

refrigerator, specially one at the back of the compressor. Install the Appliance on a firm, flat surface or a Wooden Pedestal (Chowki).

2. For optimum performance install the refrigerator in a well ventilated place. Avoid installing the refrigerator near heat generating home

appliances such as heater, stove and in small nooks / corners, direct

sun light.

Leveling the Appliance

To compensate any floor unevenness, adjust the balance of Appliance by rotating the Leveling Screws clock wise or anti clock wise.

4. Always install your refrigerator in a tilted position as shown.

For personal safety, properly ground this Appliance.

Do not ground the refrigerator with a telephone line, gas pipe, etc. It is

necessary that refrigerator should be connected to the proper earth point.

The manufacturer will not be responsible for any loss or damage if

precaution in this regard is not observed.

IMPORTANT:

NOTE:

Retain the original packing in case you need to ship it at a later date.

above 12”

e 4”ov

”

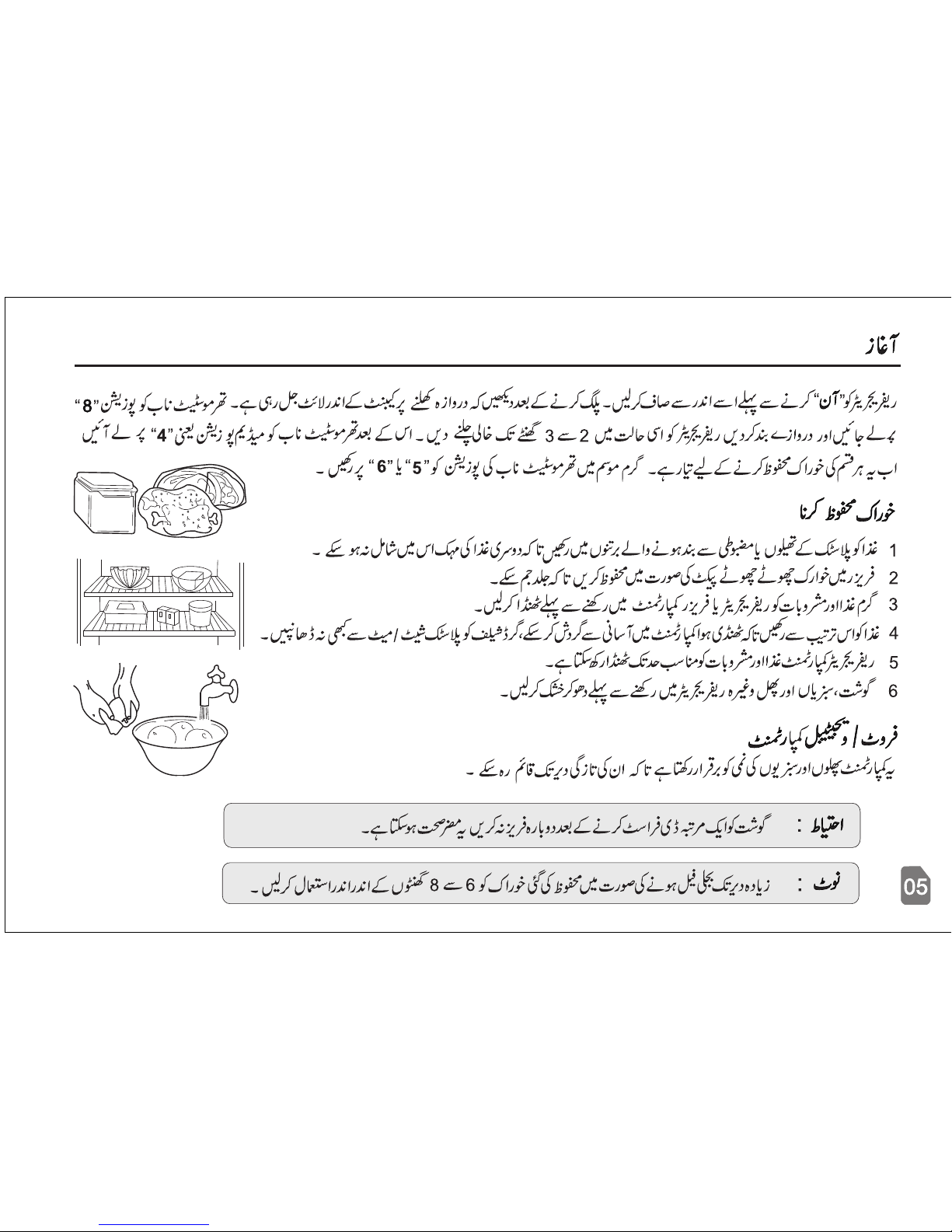

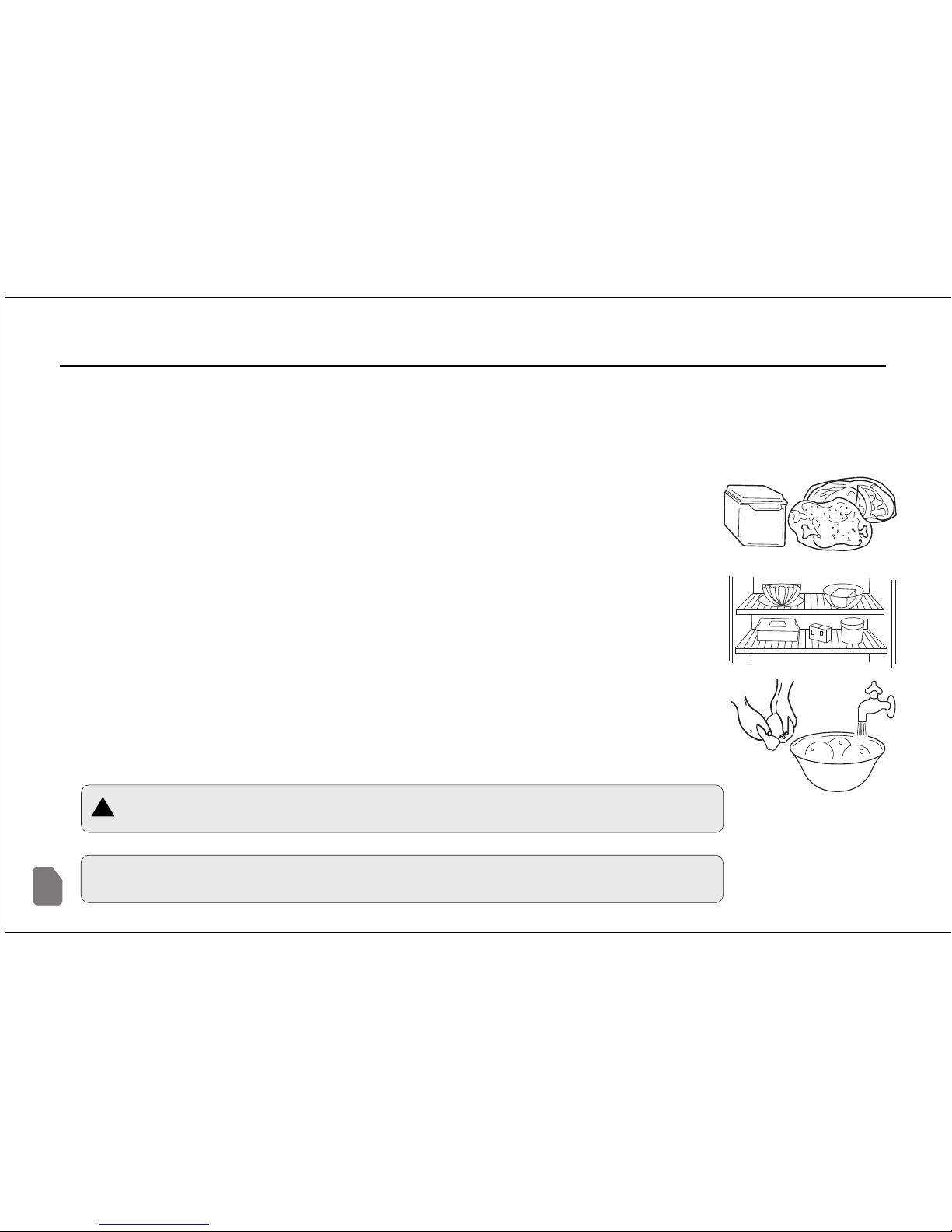

FOOD STORAGE

1. Seal food in containers with lids or in plastic bags to prevent drying and mingling of odour.

2. In Freezer compartment keep food in small quantities for quick freezing.

3. Allow hot food and drinks to cool down before placing in the refrigerator or freezer.

4. Food should be arranged so as to ensure free circulation of cool air in the compartment, never cover grid shelves with plastic mats or sheets.

5. Food stored in the refrigerator compartment can be refrigerated up to a certain limit.

6. Wash and dry meat, fruits and vegetables before placing them in the refrigerator.

VEGETABLE / FRUIT COMPARTMENT

This compartment maintains the moisture of veget & , to sustain their freshness

for longer period.

ables fruits

GETTING STARTED

Clean the refrigerator before turning it ON. After plugging check that the light inside the cabinet is ON, when the door is opened. Turn the thermostat knob to the maximum position “8”, close the refrigerator doors, let it run idle for 2 ~3 hours, then turn the thermostat knob to the medium position (4) in normal condition, now the refrigerator is ready to store food . If it is peak summer, set the thermostat position at (5 ~ 6).

Do not freeze the meat again after getting it defrosted. It can be

harmful for health.

CAUTION:

Incase of prolonged power failures, it is recommended that stored

food should be consumed within 6~8 hours.

NOTE:

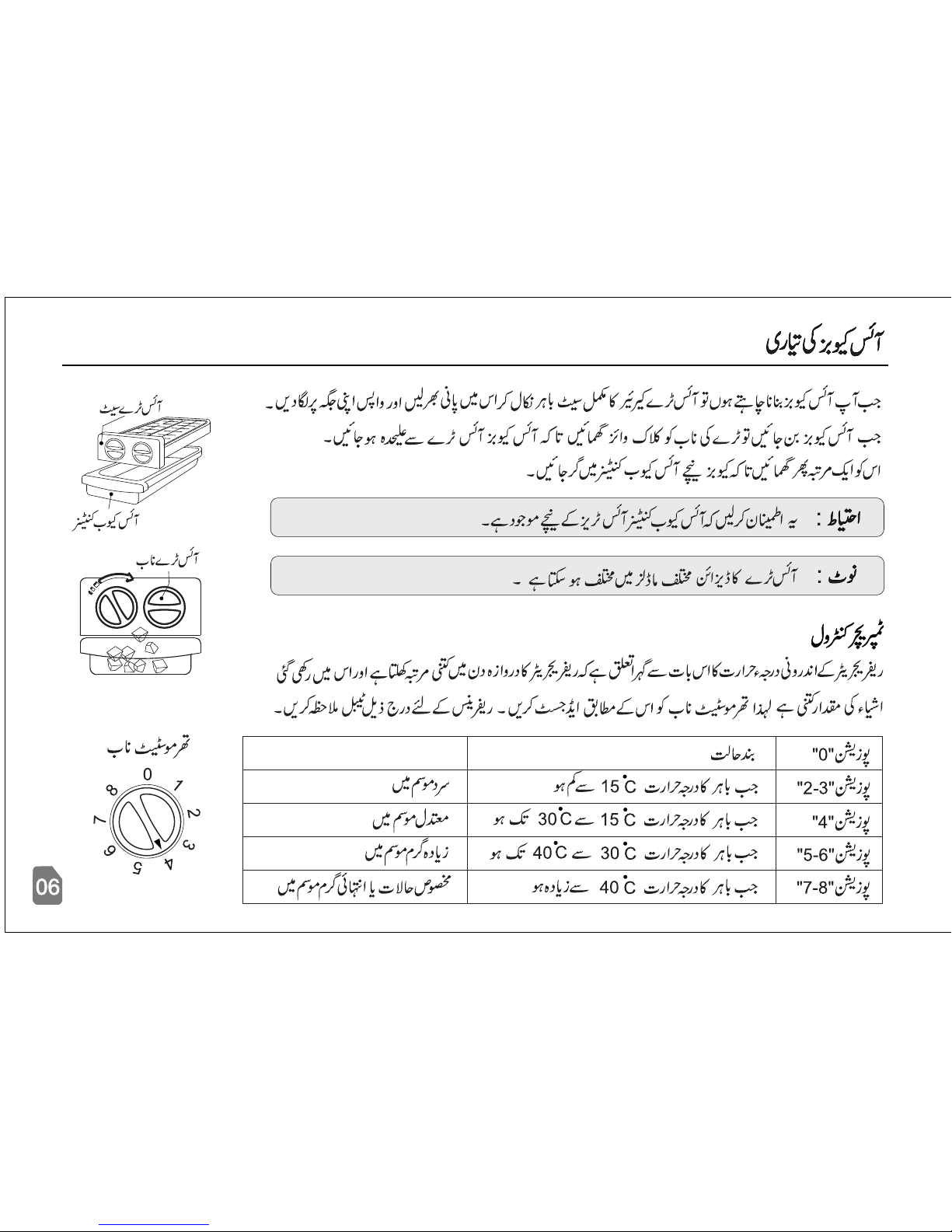

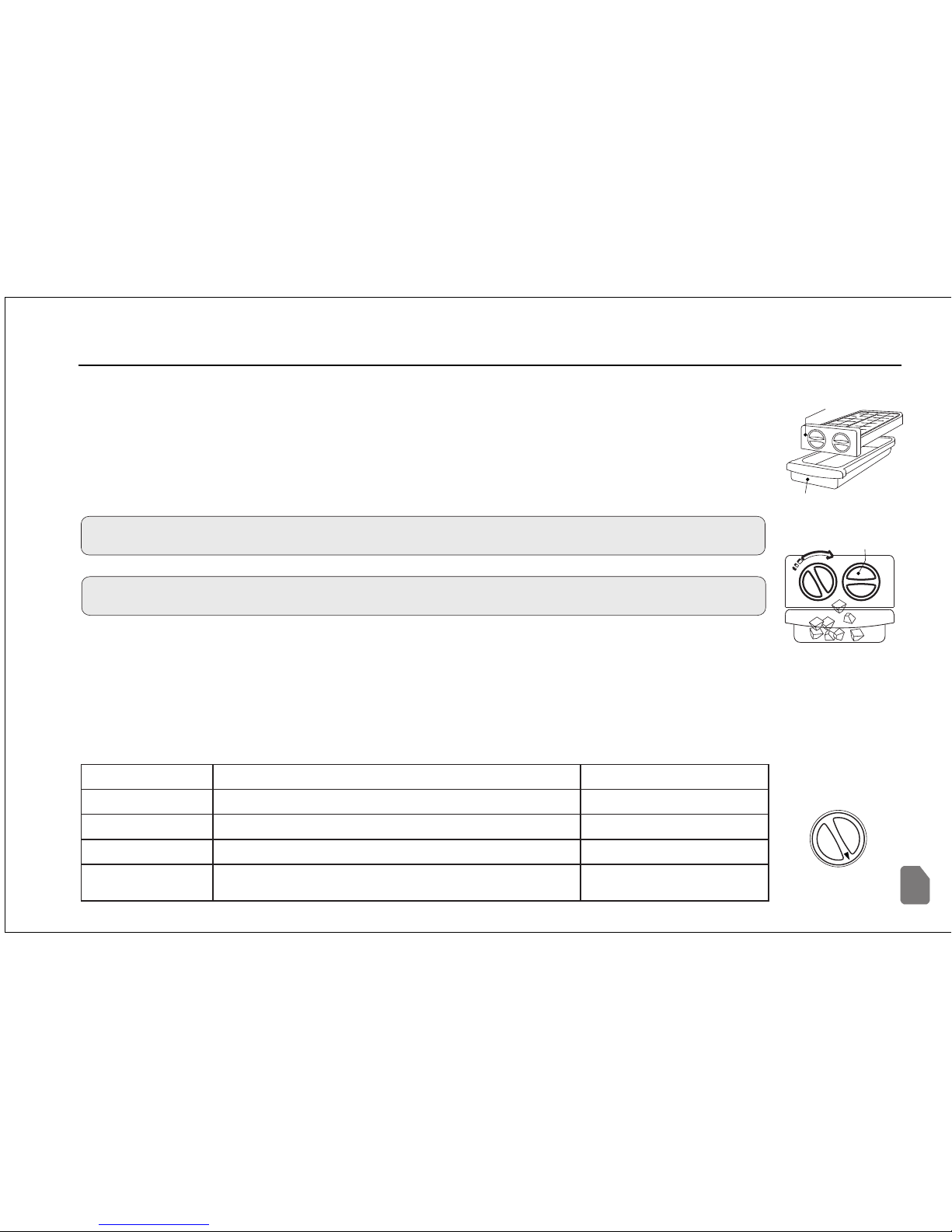

When you want to make ice cubes, take out complete set of ice tray carrier, pour water in ice trays and slide it back.

After ice cubes have been formed in the ice trays, free the ice cubes from the ice trays by turning the ice tray’s knob clockwise. Twist it again and allow ice cubes to drop into the ice cube container underneath.

PRECAUTION:

Make sure that the ice cube container is beneath the ice trays.

NOTE:

Ice tray design may differ in different models.

TEMPERATURE CONTROL

The temperature inside the refrigerator may vary according to the frequency of door opening, food status or the amount of food stored in the refrigerator. Adjust the thermostat knob to change the internal temperature according to the enviro ,nmental temperature. For reference please see

the following table:

ICE CUBES MAKING

Position “0” Off position

Position “2 ~ 3”

When environmental temperature is below 15 °C

Winter season

Position “4”

When environmental temperature is 15 °C - 30 °C

Moderate season

Position “5 ~ 6”

When environmental temperature is 30 °C - 40 °C

Summer Season

Position “7 ~ 8”

When environmental temperature is above 40 °C

In special cases, not recommended normally

Ice Tray set

Ice Cube container

Ice Tray Knob

Thermostat Knob

Do not remove frost with knife or sharp metal tools. Always use company provided Ice Scraper.

CAUTION:

Defrosting is necessary for efficient performance of the Appliance. When the layer of frost on the walls of freezer compartment becomes 5 ~ 8 millimeters or over, the Appliance needs to be defrosted.

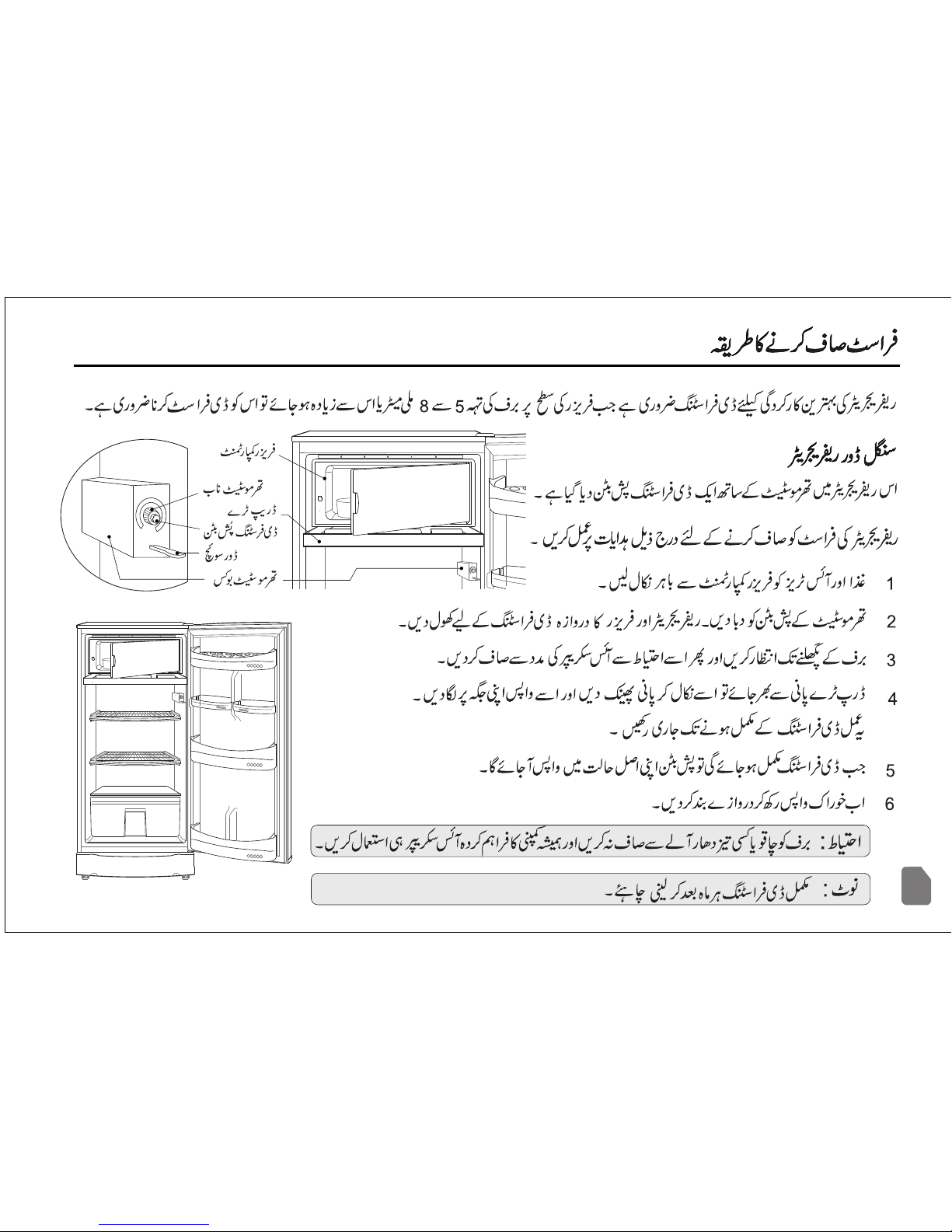

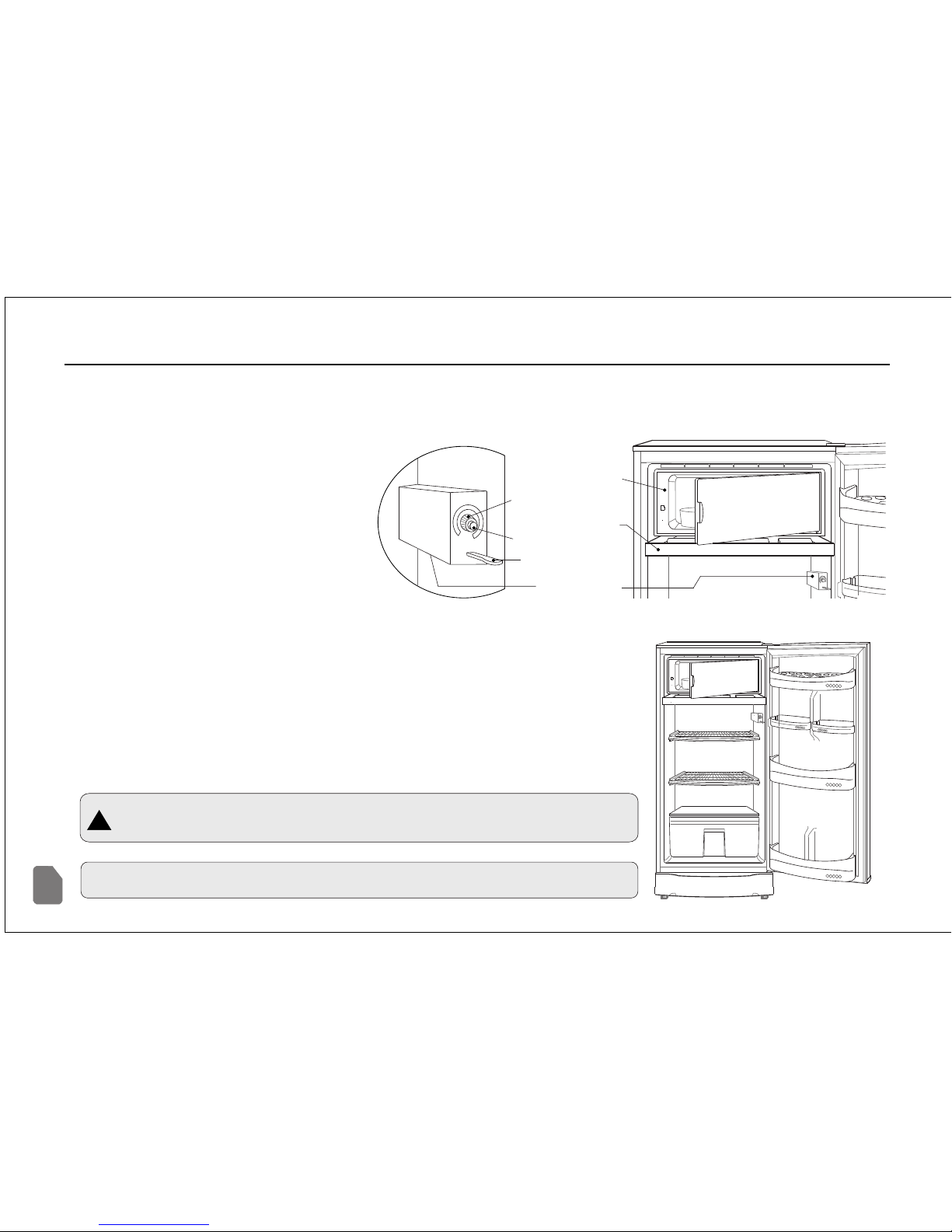

Single Door Refrigerator

To defrost the refrigerator, follow these instructions:

1. Remove food and ice trays from freezer compartment.

2. Press Push-Button of thermostat knob, let the Refrigerator & Freezer doors open for defrosting.

3. Wait till the frost melts then remove it carefully with the help of Ice scraper.

4. Take out Drip tray carefully when it is filled with water, dispose of this water and slide it back to its original position. You may repeat this action till defrosting is completed.

5. Push-Button will automatically come back to its original position

when defrosting is completed.

DEFROSTING

This refrigerator is equipped with a semi automatic defrosting thermostat with a Push-Button.

NOTE: Complete defrosting is recommended after every month.

Freezer Compartment

Defrosting Push-Button

Door Switch

Thermostat Knob

Thermostat Box

Drip Tray

Refrigerator Compartment

This compartment defrosts automatically. Manual defrosting is not required.

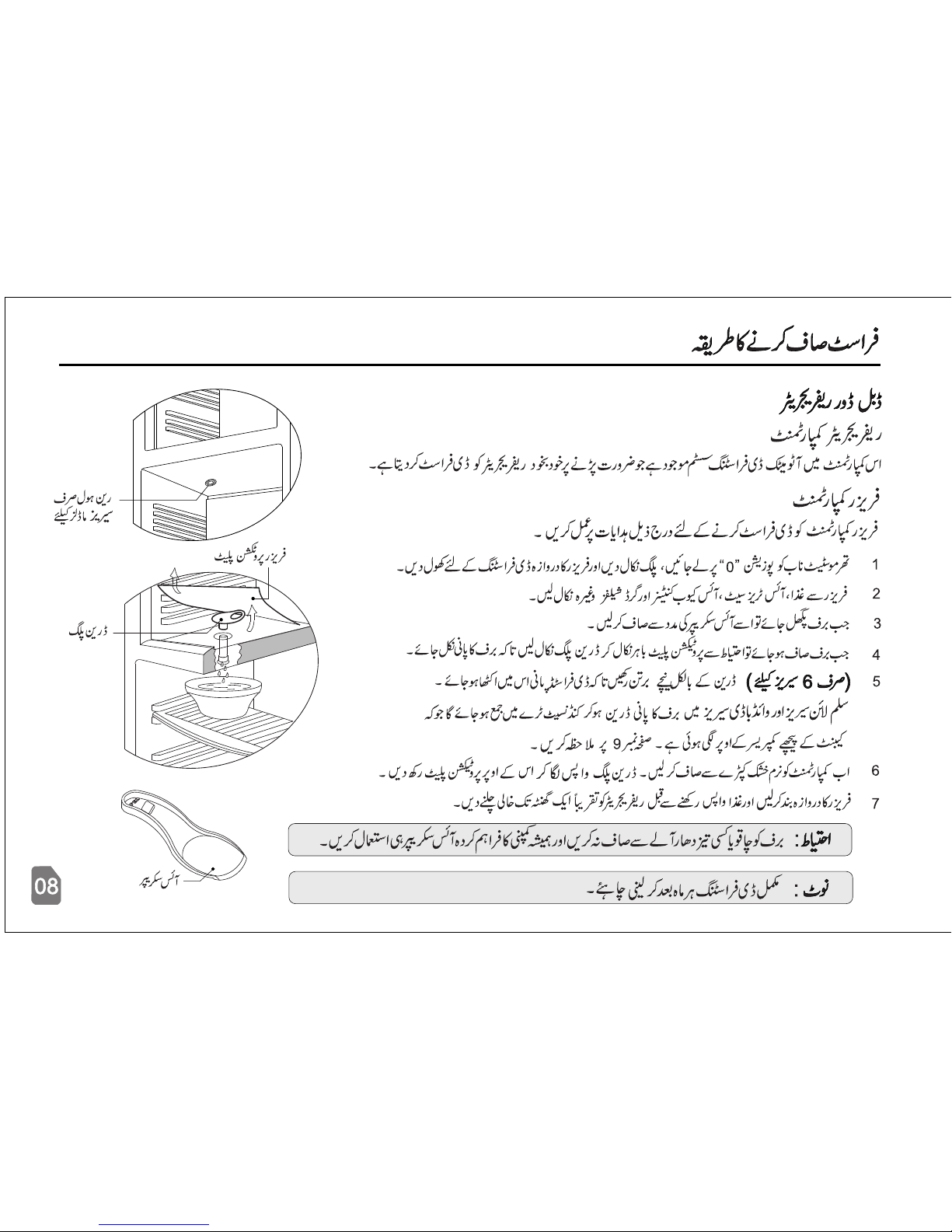

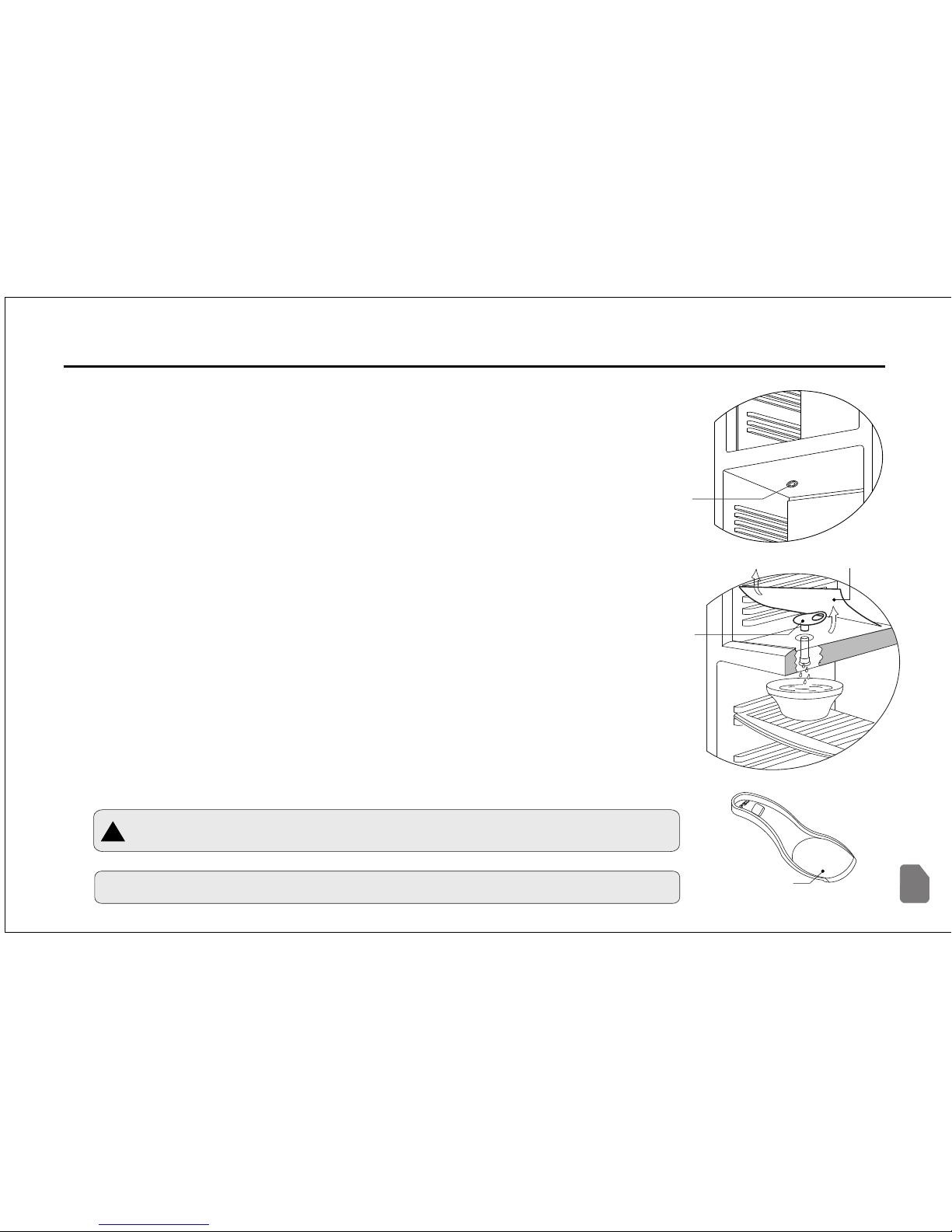

To defrost the freezer compartment, follow the instructions given below:

1. Remove food, ice trays set, ice cube container and grid shelves from Freezer compartment.

2. Turn the thermostat knob to position “0” unplug the Appliance and let the Freezer door open for defrosting.

3. Wait till the frost melts then remove it carefully with the help of Ice Scraper.

4. When frost is removed, take out protection plate care fully and detach the drain plug in order to drain out defrosted water.

5. (a) (For 6 series only) Place a container exactly under the drain to

collect defrosted water.

(b) In Slim Line series & Wide Body series defrosted water will drain

out and collect in the condensate tray provided at the back of the cabinet as shown in page # 9.

6. Now clean the whole compartment with a soft dry cloth. Insert drain plug back to its original position and place protection plate over it.

. Close the Freezer oor and let it run for about one hour befor

Freezer Compartment

7 d e reloading the food.

DEFROSTING

NOTE: Complete defrosting is recommended after every month.

Do not remove frost with knife or sharp metal tools. Always use company provided Ice Scraper.

CAUTION:

Double Door Refrigerator

Ice Scraper

Drain Plug

Frz. Protection Plate

Drain Hole 6 Series Models only

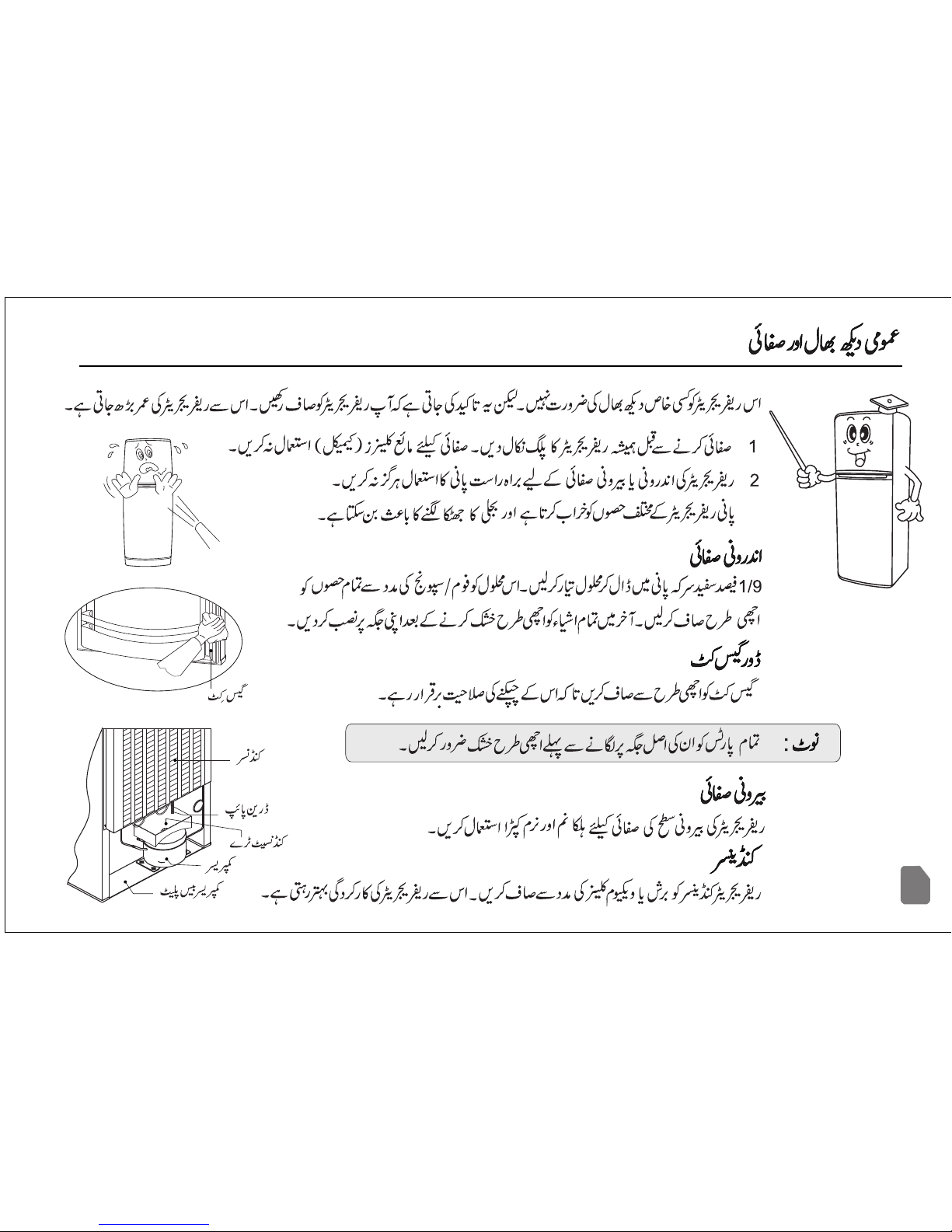

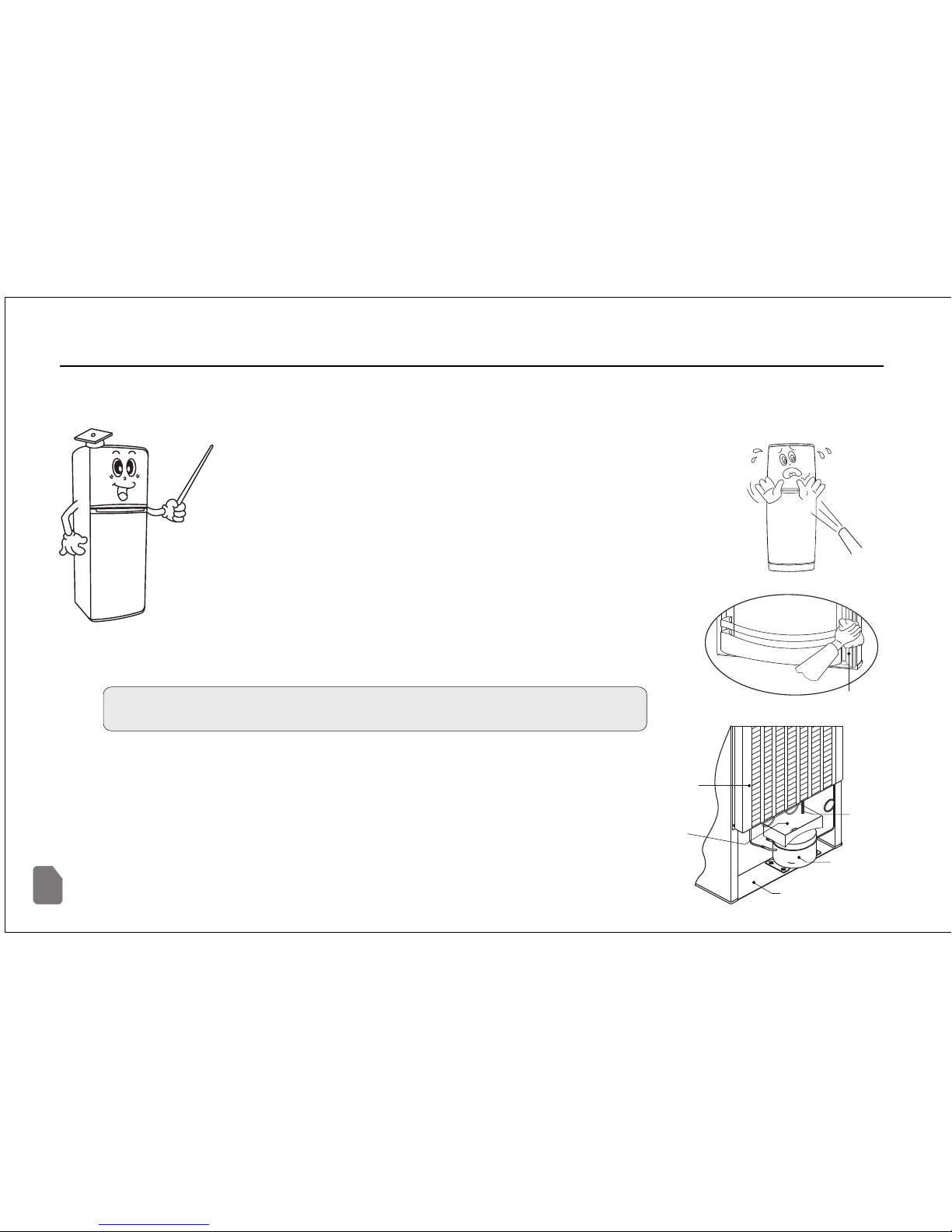

This refrigerator does not require any special maintenance. It is however advised to keep your refrigerator neat and clean, this will increase the life of your refrigerator.

1. Always unplug the refrigerator before cleaning. Do not use liquid cleaners or aerosol cleaners.

2. Never apply water directly inside or outside the refrigerator. Water spoils the insulation of electric parts and may cause electrical shock.

Interior Cleaning

For inside cleaning take out all food and accessories from refrigerator, use a solution of 9 parts water and 1 part vinegar, rinse thoroughly with a sponge and fresh water. Finally dry whole cabinet with a soft cloth.

Door Gasket

Clean the gasket thoroughly in order to maintain its sticking quality.

Exterior Cleaning

To clean the external side of the refrigerator use only a slightly damp soft cloth.

Condenser

Clean the refrigerator condenser with a brush or vacuum cleaner, this the efficiency maintains of your refrigerator.

refrigerator.

GENERAL CARE AND CLEANING

Gasket

Dry all the accessories completely before putting them

back at their original position.

NOTE:

Compressor

Condenser

Condensate tray

Drain Pipe

Compressor base plate

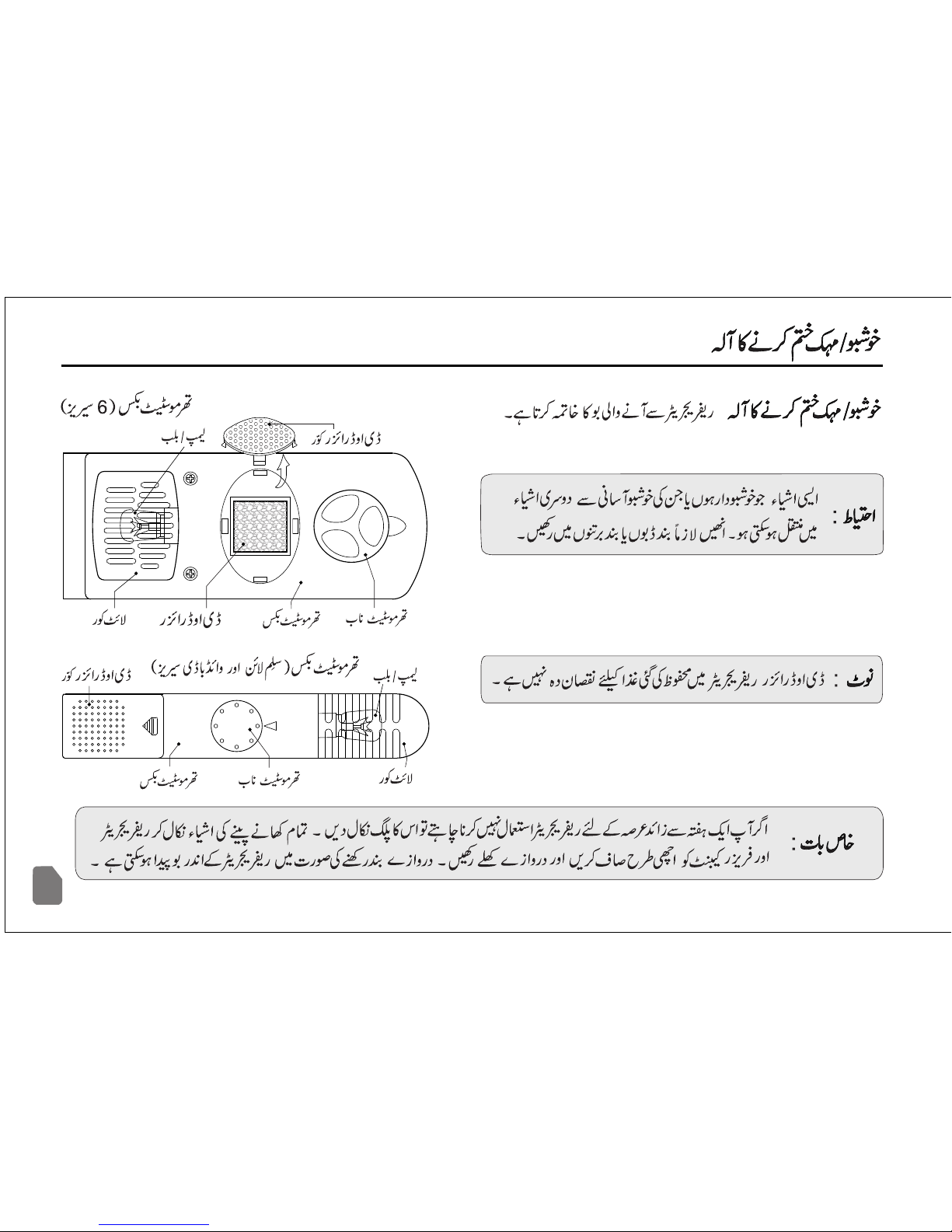

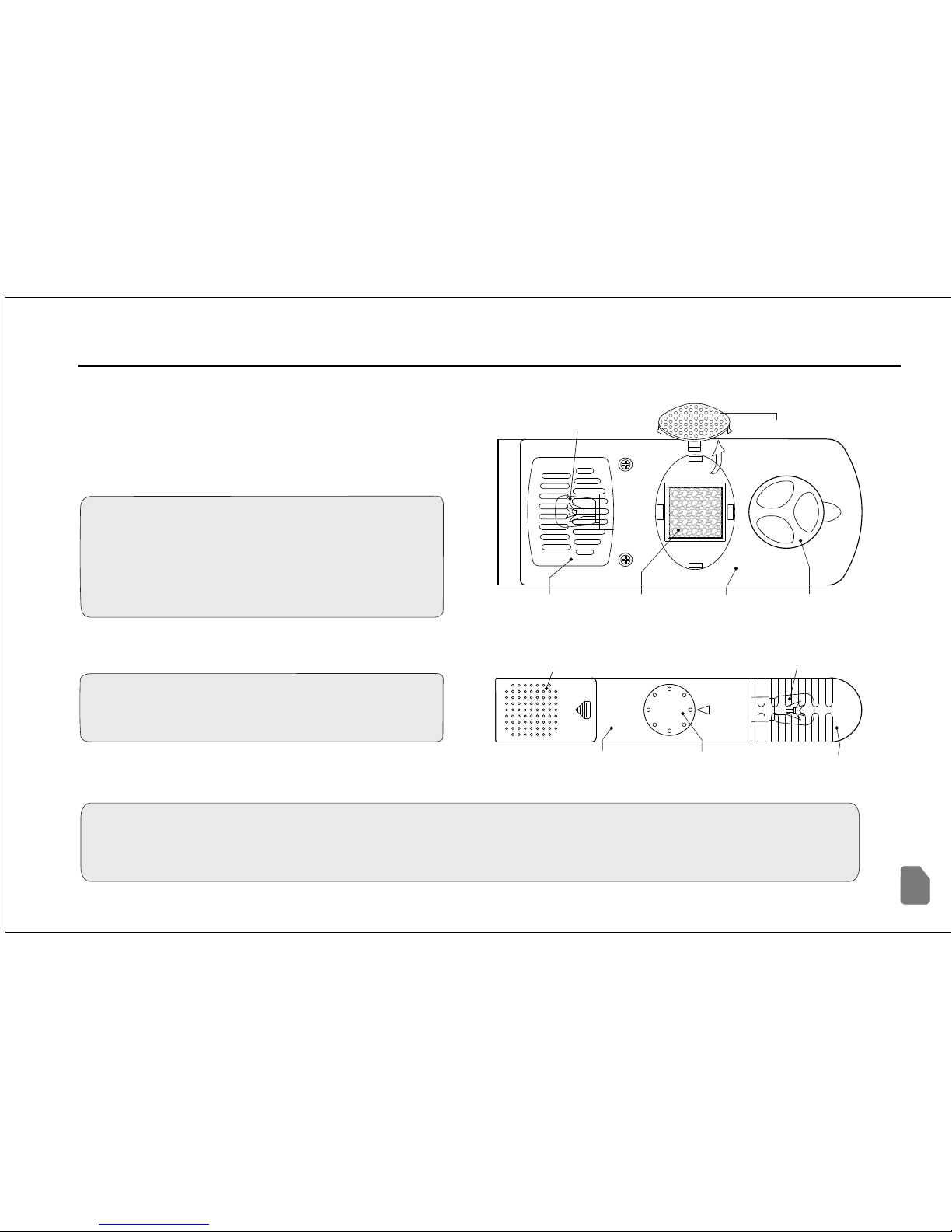

DEODORIZER

Deodorizer removes odour from the refrigerator.

DEODORIZER

If you are not using the refrigerator for more than 01 week, unplug the appliance, take out all the food stuffs, clean both Ref. & Frz. inner cabinets properly and keep the doors open. If you keep the doors in closed position, it will give foul smell.

IMPORTANT:

PRECAUTION:

NOTE:

Storing food or liquids which can pick up or transmit odour or flavors easily, must be kept in sealed container.

The deodorizer does not

harm stored Food.

Lamp / Bulb

Light Cover

Thermostat Box

Thermostat Knob

Deodorizer Cover

SL Series & WB Series

Lamp / Bulb

Light Cover

Thermostat Box

Thermostat Knob

Deodorizer Cover

Deodorizer

6 Series

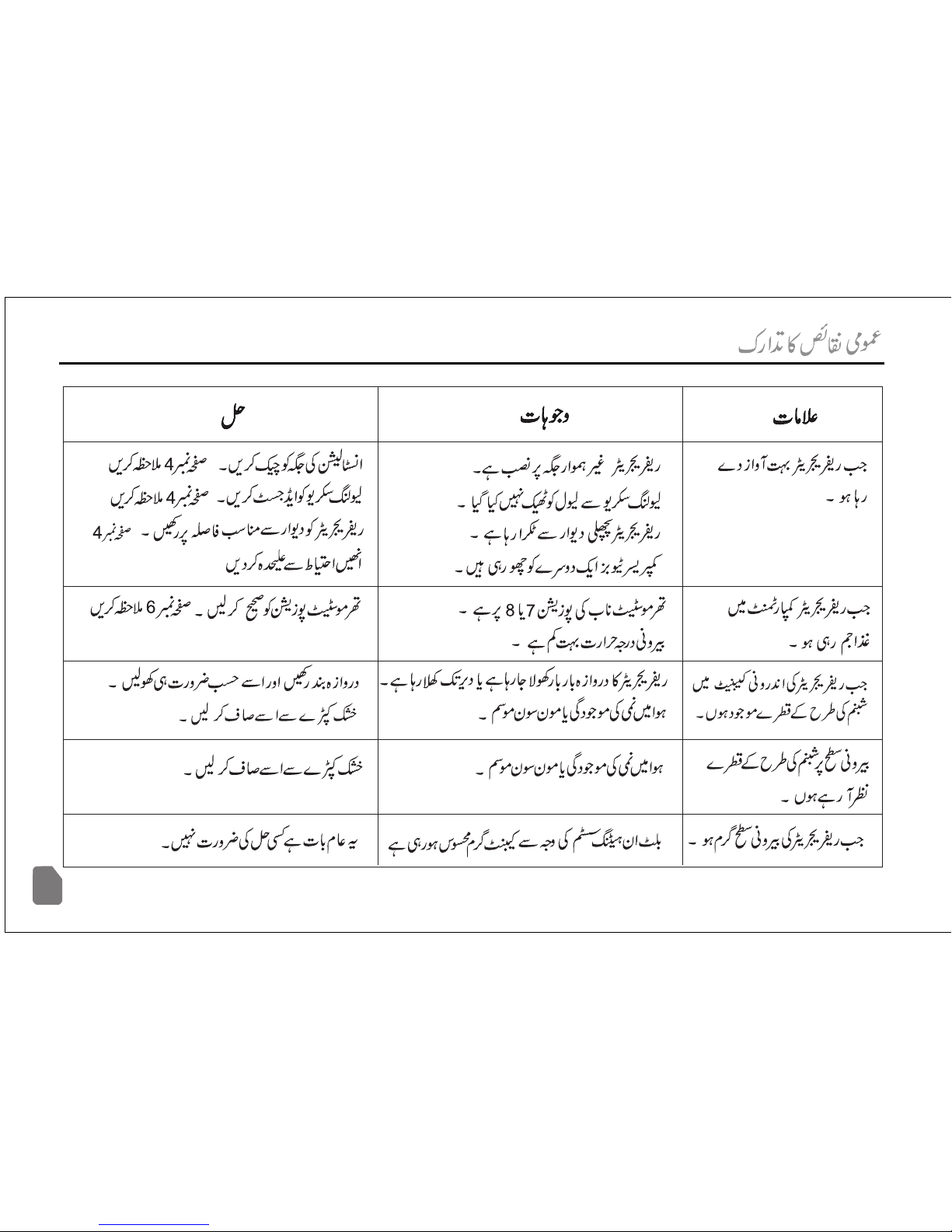

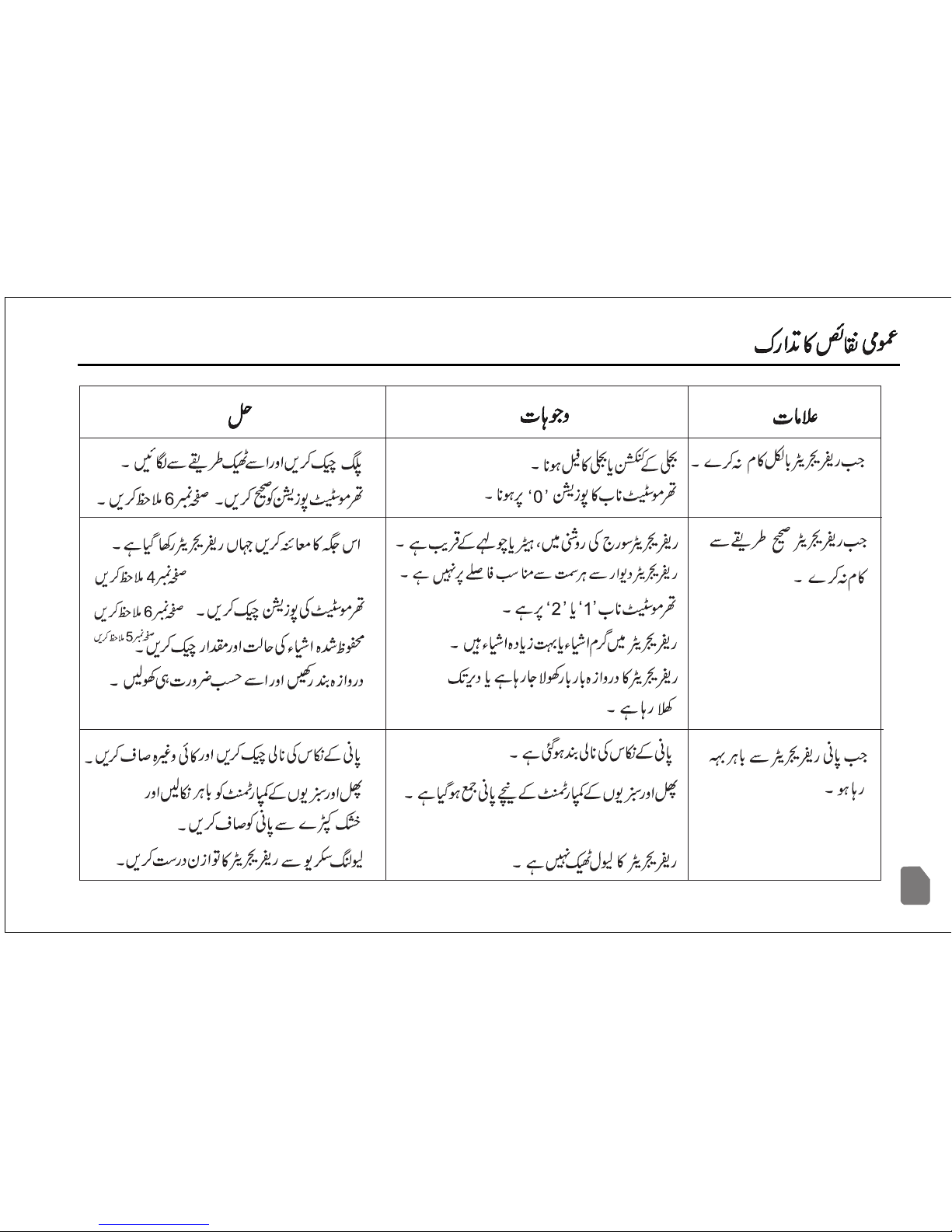

PROBLEMS CAUSES SOLUTIONS

When the refrigerator does not operate at all.

· There might be a power connection or electrical failure problem.

· The thermostat knob is at position “0”.

· Check the power cord and plug it

properly.

· Select the appropriate thermostat position. See page # 6.

When the refrigerator does not operate well.

· The refrigerator is exposed to direct sunlight or installed near a heating device. The appliance does not have enough clearance from the wall in all directions.

· The thermostat knob is at position 1or 2.

· The refrigerator contains hot food or too

much food?

· The refrigerator door opening is frequent or left open for long time.

· Check the installation place. See page # 4.

· Set the thermostat position appropriately. See page # 6.

· Check the condition and quantity of stored food. See page # 5.

· Close the door and avoid opening it frequently.

When water comes out of the refrigerator.

· The drain passage is blocked.

· Water accumulates under Fruit &

Vegetable compartment.

· Refrigerator level is improper.

· Check the drain passage and

remove sludge.

· Take out Fruit & Vegetable compartment, remove water with a soft dry cloth.

· Adjust the level through Leveling Screws.

TROUBLE SHOOTING TIPS

PROBLEMS CAUSES SOLUTIONS

When there is a severe noise.

· The refrigerator is installed on an uneven floor.

· The Leveling Screws are set incorrectly.

· The refrigerator is touching back wall.

· Compressor tubes are touching one

another.

· Check the installation place. See page # 4.

· Adjust the Leveling Screws. See page # 4.

· Give sufficient space as described on page # 4.

· Separate them softly.

When food freezes in the refrigerator compartment.

· The thermostat knob is at its maximum position 7 or 8.

· The ambient temperature is too low.

· Set the thermostat position

appropriately. See page # 6.

When there are dewdrops in the Refrigerator interior.

· The refrigerator door is being opened frequently or left open for longtime.

· High moisture air or humidity during monsoon season.

· Keep the door closed and avoid frequent opening of door.

· Clean the interior with soft dry cloth.

When there are dewdrops on the Refrigerator exterior.

· High moisture air or humidity during monsoon season.

· Wipe with a soft dry cloth.

When outer cabinet gets warm.

· Built-in heating system is used. · No remedial action required.

TROUBLE SHOOTING TIPS

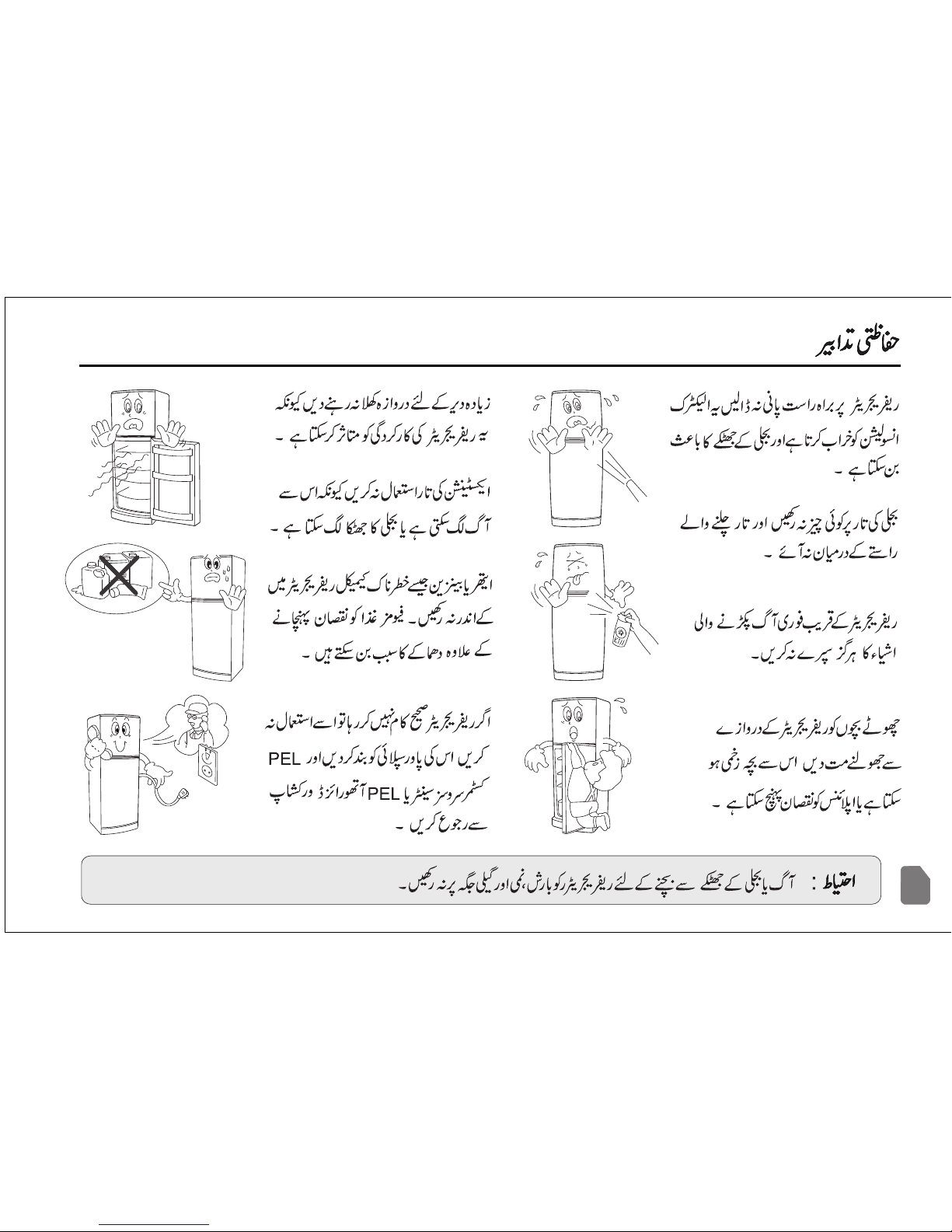

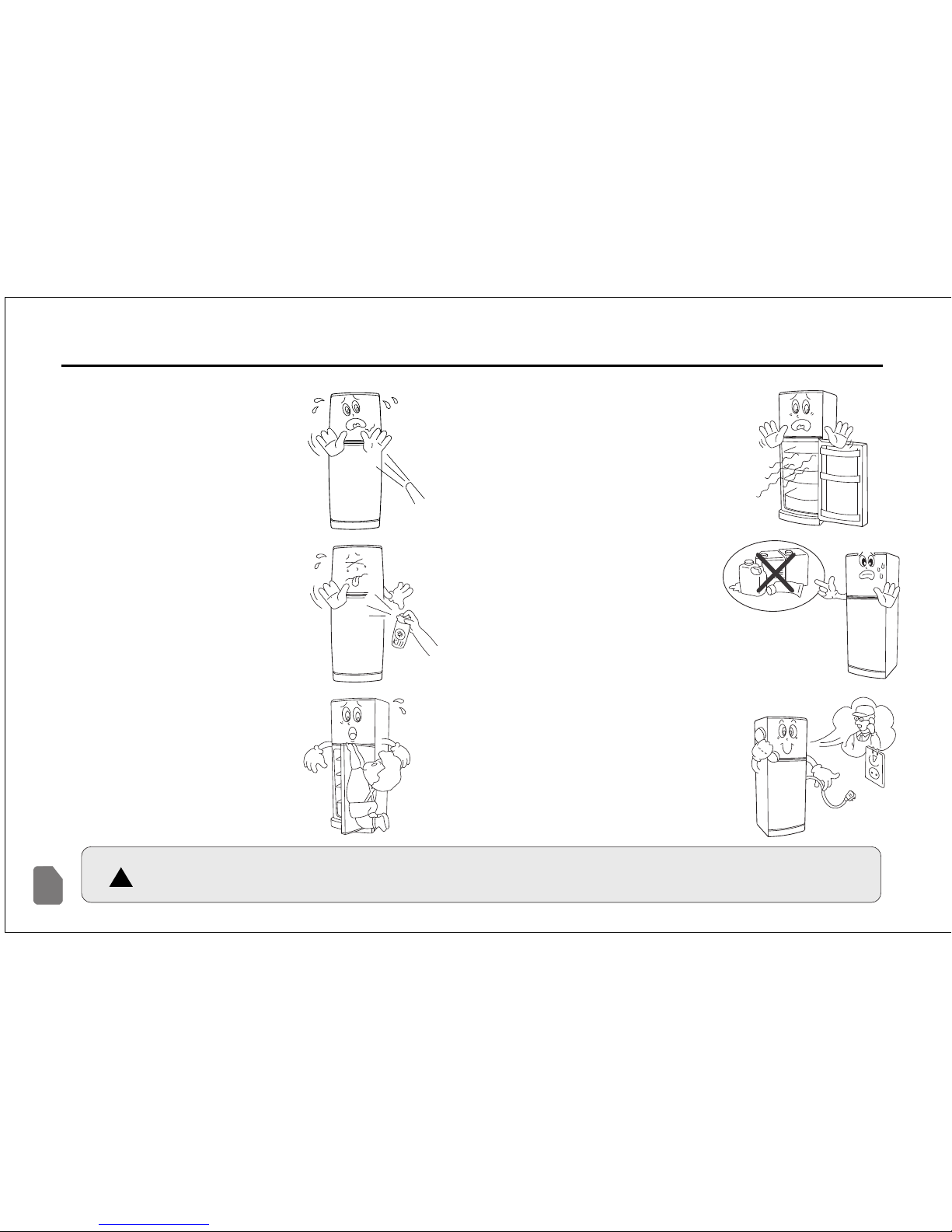

Do not splash water directly on the refrigerator. Water impairs the insulation of electric parts and may cause an electric shock or a shock hazard

Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it.

Avoid using flammable sprays such as lacquer and paint near the refrigerator.

Do not allow infants to hang on the door, they may get hurt or could damage the appliance.

BENZENE

ETHER

ADHESIVE

GASOLENE

Do not leave the doors open for longer period because it can affect the efficiency of the refrigerator.

Do not store volatile chemicals such as ether and benzene in the refrigerator. The fumes besides damaging food can buildup and cause an explosion.

Do not use the refrigerator if it is not operating correctly or has been damaged. Disconnect it from the power supply and call PEL Customers Service Center or PEL authorised work shops.

Do not use extension cords as this can result in the risk of fire or electric shock.

To prevent fire or electrical shock hazard do not expose this product to

rain/moisture or wet locations.

CAUTION:

SAFETY PRECAUTIONS

Ref. Serial No._____________________ Compressor Serial No. _______________

Model No. ________________________ Date of Purchase ___________________

Buyer’s Name _______________________________ Phone No. _______________

Buyer’s Address _____________________________________________________

___________________________________________________________________

E-mail _____________________ Authorized dealer stamp ____________________

This non-transferable warranty applies to the original buyer only and the unit must have been purchased from PEL or one of its authorised dealers to avail the warranty coverage.

PEL Refrigerator Warranty

PAK ELEKTRON LTD.

Customer Services Department

14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan. Ph: 042- 5811951- 59, Fax: 042-5810156, 5822682 www.pel.com.pk

(To be filled in by the customer & sent back to PEL for necessary registration.)

Sr. No.

(Company’s copy)

mpr

e sor

Pa ts

are

WARRANTY CERTIFICATE

WARRANTY FOR PEL REFRIGERATOR

PEL refrigerators are made par excellence and are free from all workmanship and material defects.

A. Compressor Warranty:

This warranty covers free replacement of a faulty COMPRESSOR with a new or functionally operative compressor only once within five years from the date of its production*.

B. Cabinet & Parts Warranty:

PEL refrigerators are also backed by a 1-year warranty against rust on cabinet, by either repair or replacement. Other parts of PEL refrigerator, which if found defective in material or workmanship within 1- year from the date of purchase, will be replaced or repaired free of cost, however, this does not cover bulbs, grid shelves, plastic and rubber accessories.

C. Terms and conditions:

1. * The Warranty period will commence from the date of production, which will be considered as date of purchase . However 06 months relaxation will be given from actual production date irrespective of the date of purchase.

2. Customer has to pay Rs. 150/- as visit fee in case of complaint after one month of date of purchase.

3. Transp ort ati on w ill be charged from the cus tom ers in c ase compla int is registere d after one month of date of purchase.

4. In case of c omplaint after 01 year from the date of purchase, the cost of spare part s and labour will be borne by the customer.

5 Gas charges will be payable by the buyer, after one year of date of purchase. 6 No claim will be entertained unless the warranty certificate has been registered at our following office within fifteen

days of purchase.

7. This non-transferable warranty applies to the original buyer only and the unit must have been purchased from PEL or one of its authorised dealers to avail the warranty coverage.

8. It is the obligation of the buyer to supply proper voltage and check the domestic electrical wiring before installation.

9. The warranty will become null & void in case of following: a. Any defect arising out of improper wiring, high/low voltage, short-circuiting or use of a substandard voltage

stabilizer.

b. The warranty does not cover any part of the refrigerator, which may have been subjected to misuse, neglect,

breakage or accident.

c. If the unit is given to any un-authorized dealer/workshop or tampered with or it's serial numbers are illegible,

Company’s decision regarding any warranty claim would be considered as final.

PAK ELEKTRON LTD: 14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan. Ph: 042- 5811951- 59, Fax: 042-5810156.

Customer Services Department

Ref. Serial No._____________________ Compressor Serial No. _______________

Model No. ________________________ Date of Purchase ___________________

Buyer’s Name _______________________________ Phone No. _______________

Buyer’s Address _____________________________________________________

___________________________________________________________________

E-mail ____________________ Authorized dealer stamp ____________________

This non-transferable warranty applies to the original buyer only and the unit must have been purchased from PEL or one of its authorised dealers to avail the warranty coverage.

PEL Refrigerator Warranty

PAK ELEKTRON LTD.

14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan. Ph: 042- 5811951- 59, Fax: 042-5810156, 5822682 www.pel.com.pk

Customer Services Department

(CSD’s copy)

Sr. No.

mpr

e sor

Pa ts

are

WARRANTY CERTIFICATE

WARRANTY FOR PEL REFRIGERATOR

PEL refrigerators are made par excellence and are free from all workmanship and material defects.

A. Compressor Warranty:

This warranty covers free replacement of a faulty COMPRESSOR with a new or functionally operative compressor only once within five years from the date of its production*.

B. Cabinet & Parts Warranty:

C. Terms and conditions:

1. * The Warranty period will commence from the date of production, which will be considered as date of purchase . However

06 months relaxation will be given from actual production date irrespective of the date of purchase.

2. Customer has to pay Rs. 150/- as visit fee in case of complaint after one month of date of purchase.

3. Transp ort ati on w ill be charged from the cus tom ers in c ase compla int is registere d after one

month of date of purchase.

4. In case of c omplaint after 01 year from the date of purchase, the cost of spare part s and

labour will be borne by the customer.

days of purchase.

7. This non-transferable warranty applies to the original buyer only and the unit must have been purchased from PEL or

one of its authorised dealers to avail the warranty coverage.

8. It is the obligation of the buyer to supply proper voltage and check the domestic electrical wiring before installation.

9. The warranty will become null & void in case of following:

a. Any defect arising out of improper wiring, high/low voltage, short-circuiting or use of a substandard voltage

stabilizer.

b. The warranty does not cover any part of the refrigerator, which may have been subjected to misuse, neglect,

breakage or accident.

c. If the unit is given to any un-authorized dealer/workshop or tampered with or it's serial numbers are illegible,

Company’s decision regarding any warranty claim would be considered as final.

PAK ELEKTRON LTD: 14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan. Ph: 042- 5811951- 59, Fax: 042-5810156.

Customer Services Department

Ref. Serial No._____________________ Compressor Serial No. _______________

Model No. ________________________ Date of Purchase ___________________

Buyer’s Name _______________________________ Phone No. _______________

Buyer’s Address _____________________________________________________

___________________________________________________________________

E-mail _____________________ Authorized dealer stamp ____________________

This non-transferable warranty applies to the original buyer only and the unit must have been purchased from PEL or one of its authorised dealers to avail the warranty coverage.

PEL Refrigerator Warranty

PAK ELEKTRON LTD.

14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan. Ph: 042- 5811951- 59, Fax: 042-5810156, 5822682 www.pel.com.pk

Customer Services Department

(Customer’s copy)

Sr. No.

mpr

e sor

Pa ts

are

150

Bahawalpur 062- 2731281 2/2 Adil Town , Dubai Mehal road, Near City school, Bahawalpur. D. G. Khan 064- 2467277 H. No. 43, St. No. 1, Model Town, X-Block, D.G. Khan. D. I. Khan 0966- 730707 Madina tul Latif Colony, Near Grid Station, Sheikh Yousaf road, D.I. Khan. Faisalabad 111-102-103 8-Z-1, Near Bank Morr, Madina Town, Faisalabad.

041-8732485, 8546991

Gujar Khan 0513-516214 Jinnah Shopping Center, Near TMA Office, GT Road, Gujar Khan. Gujranwala 055-3846635 H. No. 2-C-1 St. No. 1, Session Court Road, Civil Line, Gujranwala. Gujrat 053-3028140, 2111993 Kuchery Road, Near Malik Hotel Gujrat. Hyderabad 111-102-103 H. No. 224, Block C, Unit No. 2, Latifabad, Hyderabad.

0223-868571, 817547

Karachi 111-102-103 189-E, Block II, P.E.C.H.S, Near Govt. Girls College, Karachi.

021-4538217, 4538230 021-4986751 A- 120, Block No. 5, Behind Hamdani Hospital, Gulshan-e-Iqbal, Karachi. 021-6027471, 6027472 33- Sector P, Near Chinot Hospital, Karachi.

Lahore 111-102-103 99- Shah Jamal, Near Shah Jamal Market, Opp. Takoni Park, Lahore.

042-7552149, 7552643 042-6816336, 6816515 146-Crown Park, Behind Shell Petrol Pump, Baghbanpura G.T Rd Lahore.

Mandi Bahauddin 0546-520508 H. No. B-11/364, St. No.4, Usmania Muhalla, Kachari Rd, Mandi Bahauddin Multan 111-102-103 11- A/1, Gulgusht Colony, Opp. Pizza Hut, Multan. Peshawar 091-5853398 H. No. 44, St. No. 6, Gulshan-e-Iqbal Town, University road, Peshawar. Quetta 081-2839944 141/B, Shahbaz Town, Phase 1, Quetta Cantt. Rahim Yar Khan 068-5889837 12- Factory road, Near Sukkur Adda, Rahim Yar Khan. Rawalpindi 111-102-103 223- Block B, Zumarrud Plaza , Sattelite Town, Near Chandni Chowk,

051-4454757, 4456077 Rawalpindi.

Sahiwal 040-4467575 538- Jail Road, Sahiwal. Sargodha 048-3725110 Rehmat Center, Main Rd, Shaheen Park, Gate No. 2, Plot No.4, Sargodha. Sialkot 0523-254455 H. No. 2, Defence road, Opp. Azam CNG Station, Sialkot. Sukkur 071-5620832 H. No. C-447-2-5-6, Opp. Attma Ram Clinic, Wallice Rd, Gari Ahata, Sukkur Wah Cantt. 051-4542242 Chachi Mohalla, Near Barrier # 2, Near G T Road, Wah Cantt.

HEAD OFFICE: 14-Km, Ferozepur Road, Lahore. Ph: 042-5811952-59, 5822853, Fax: 042-5822682, 5810156

CUSTOMER CARE CENTERS
