Pegler Waterfall 4S4528, Waterfall 4S4530, Waterfall 4S4529 Manual To The Installation, Care And Maintenance

Your Guide to the installation, care

and maintenance of

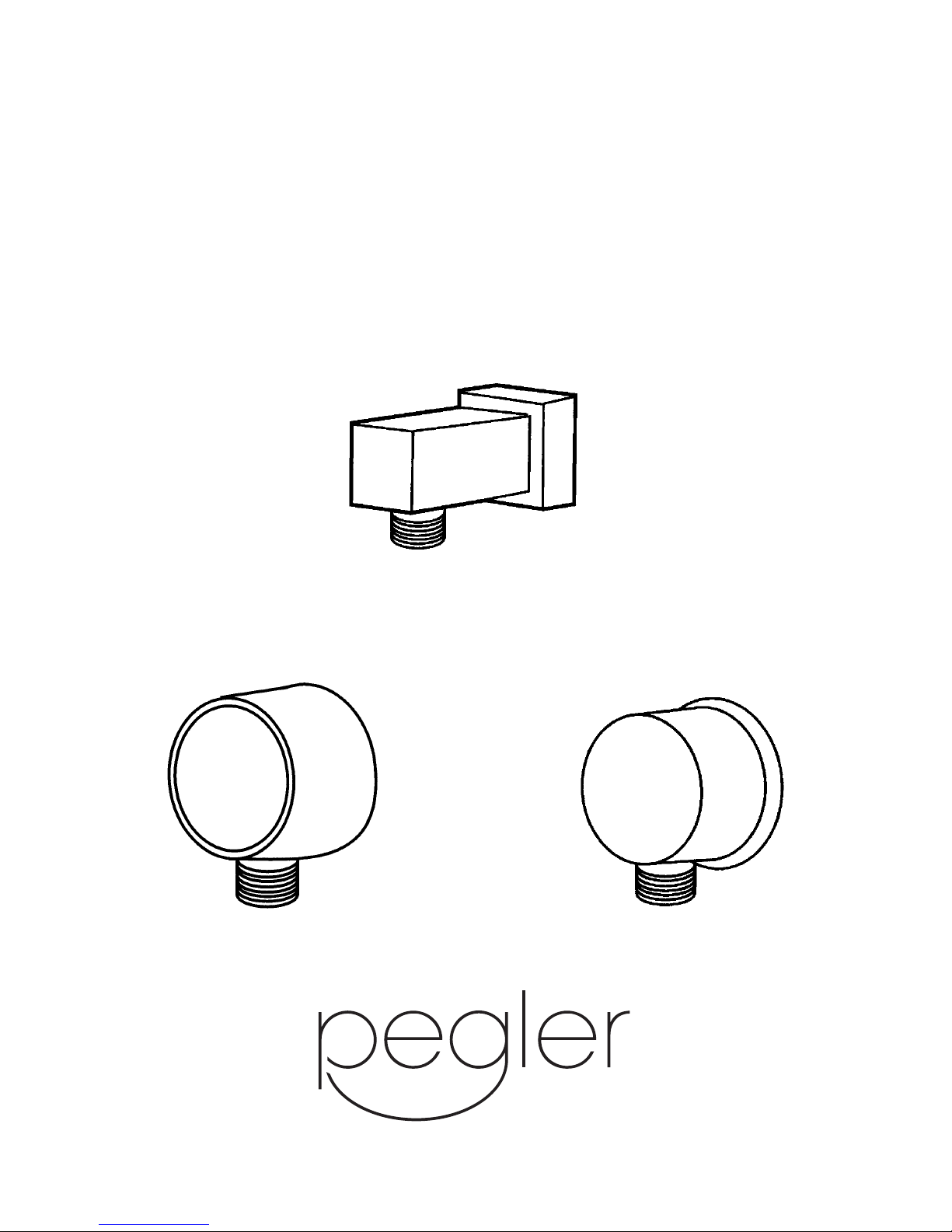

Waterfall

Wall Union

4S4528 4S4529 4S4530

Pegler Limited, St. Catherine’s Avenue, Doncaster, South Yorkshire. DN4 8DF

Telephone: [phone] Fax: [phone]

4S4528

4S4529

4S4530

Assembling instructions (4S4528) Waterfall Square Wall Union

1) Screw the nipple to the connection of the wall.

2) Insert the wall union on the nipple.

3) Use the allen key for fixing the wall union.

4) Connect shower hose to wall union.

1.

2.

3.

Overall Dimensions

Water Regulations Requirements:

It is important to ensure that the water supplies to your shower are connected in accordance with the water
regulations (WRAS) requirements and good plumbing practice.

Bylaw 17 (2) B

The shower head of any shower hose pipe should be fitted by a fixed or sliding attachment so that it can only be
discharged at a point not less than 25mm above the spill-over level of bath tray or fixed appliance.

PLEASE NOTE:

The correct type of wall fittings are used to ensure ridgity of the slider rail, ridged riser, fixed head shower or
wall union. The correct plumbing fittings and connections must be used to install the ridgid riser rails, shower heads
and wall unions.

Slider Rails are not safety grab rails. Special safety grab rails can be purchased form Pegler ref: No: 4S4531 / 4S4532.

Assembling instructions (4S4529)

1) Remove cover from wall union.

2) Insert the wall union into concealed fitting until
flush to wall.

3) Tighten screw to wall union.

4) Replace cover.

5) Connect hose to wall union.

Assembling instructions (4S4530)

1) Slide flange onto wall union.

2) Screw in wall union until flush to wall

3) Connect hose to wall union.

Care and Maintenance

To maintain the surface finishes, simply wipe occasionally with a mild detergent on soft damp cloth. Dry using soft
cloth, never use abrasive cleaners or chemical household cleaners avoid contact with concentrated bleach.

Pegler products are manufactured to the highest standards and should require little or no maintenance. In the unlikely
event of any spare part being required, please visit our web site: www.pegler.co.uk or contact your nearest stockist
or the Pegler Technical Office on telephone number 0870 1200285.

Showers are guaranteed for 5 years from the date of purchase.
Full guarantee details are available on request.
