PEGATRON WL266N22BGN Users Manual

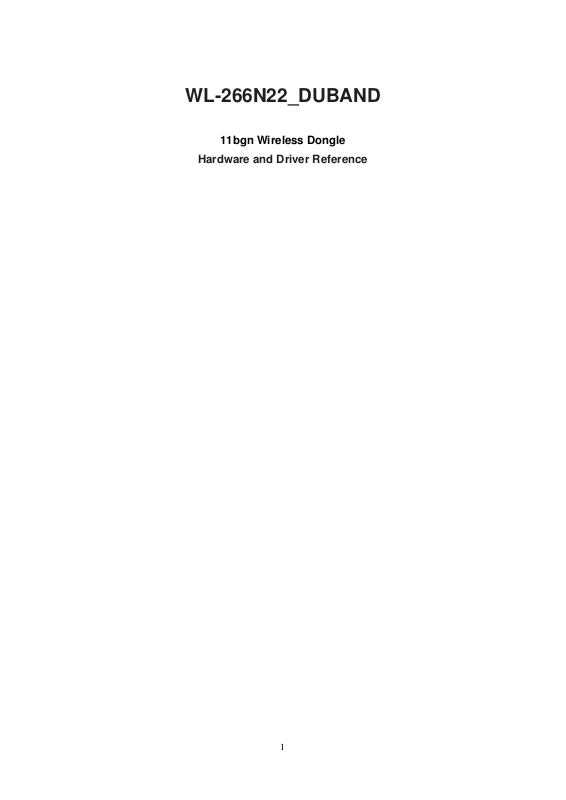

WL-266N22_DUBAND

11bgn Wireless Dongle

Hardware and Driver Reference

1

CONTENTS

INTRODUCTION.................................................................................................................................. 3

SCOPE ......................................................................................................................................... 3

ACRONYMS AND DEFINITIONS................................................................................................. 3

GENERAL FEATURES................................................................................................................. 3

HARDWARE INFORMATION....................................................................................................... 4

DRIVER INSTALLATION STEPS ................................................................................................. 5

DEVICE AND DRIVER DETAILS.................................................................................................. 7

SAFETY STATAMENTS ...................................................................................................................... 8

FCC Radio Frequency (R F) Exposure Caution Statement...................................................... 8

2

INTRODUCTION

SCOPE

The primary purpose of this documentation is to describe the WL-266N22_DUBAND product specifications, features, and

requirements. The WL-266N22_DUBAND is an IEEE802.11 b/g/n USB dongle. It allows you to easily upgrade your

PC-Platform or Laptop to 802.11n (final n). It provides an access speed of 150Mbps with IEEE802.11n (final n)protocol. It

is also officially recommended by Xlink Kai, which is a software that allows PSP or Nintendo DS users to play online games

all over the world. Optimized RF architecture and baseband algorithms provide superb performance and low power

consumption. Intelligent MAC design deploys a high efficient USB engine and hardware data processing accelerators

without overloading the host processor. WL-266N22_DUBAND is designed to support standard based features in the

areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any

circumstance.

ACRONYMS AND DEFINITIONS

Acronym Description

BPSK Binary Phase Shift Keying

QAM Quadrature Amplitude Modulation

QPSK Quadrature Phase Shift Keying

WEP Wired Equivalent Privacy

WPA WiFi Protected Access

GENERAL FEATURES

USB dongle that supports IEEE 802.11b/g/n (final n).

BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK modulation schemes

WEP, TKIP, AES, WPA, WPA2 security support•

3
