PEGATRON VPNFC User Manual

VP-NFC

1. Introduction

PN65OEV1 combines in a single package a Near Field Communication (NFC)
controller . It is optimized for low power consumption with fully host controllable
power states.

2. Features

Host Interface: UART
UART Baud Rates: 9600、28800、115200、230400、460800
Transmission modes: ISO/IEC 14443 A、ISO/IEC 14443 B、MIFARE、Sony

FeliCa

Operating ambient Temperature: -25。C ~+85。C

Input Voltage: +1.8V
RF Clock: 13.56M Hz
Oscillator: 27.12M Hz
PCB:4 Layer

Weight: Approx. 3g

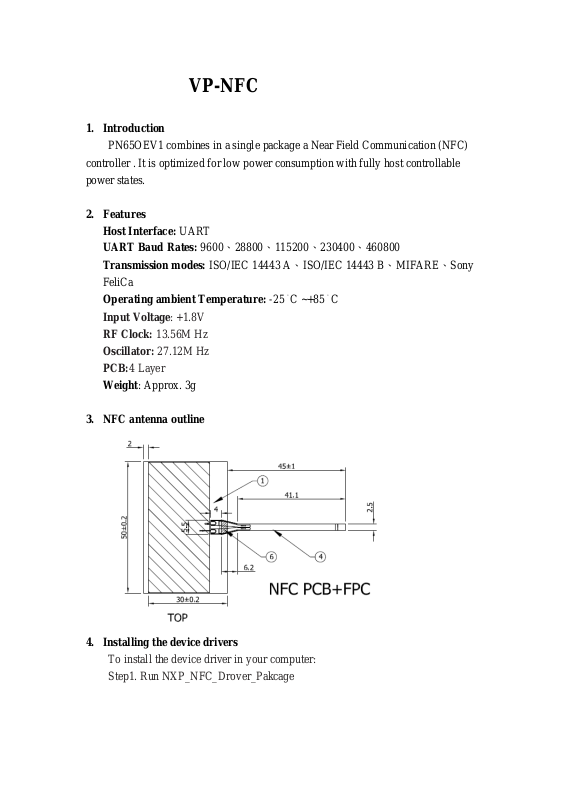

3. NFC antenna outline

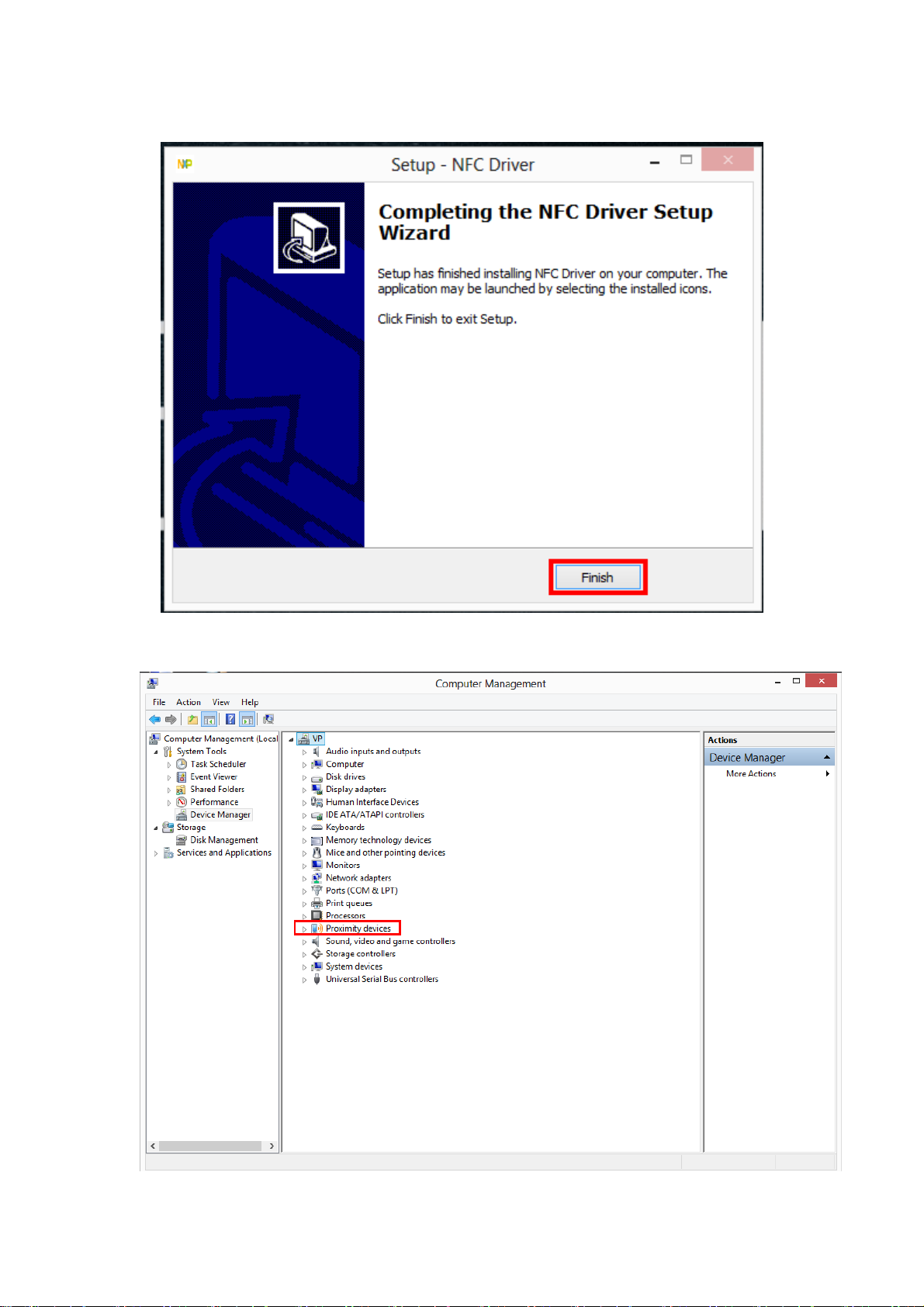

4. Installing the device drivers
To install the device driver in your computer:
Step1. Run NXP_NFC_Drover_Pakcage

Step2. Choose “Next”

Step3. Choose “Next”

Step4. Choose “Install”
