Page 1
Manual
PEGATRON UPW L6 0 6 0
Page 2
1 .Gene ral D e scr ipt ion
The UPWL60 60 w ir eless modu le is a fully assem bled and t ested
gen eral- pu rpose m odule using the BCM4360 w ir eless Syst em - on- Chip( SoC) .
The m odule con tains BCM4360 chip an d all ot her necessary com ponent s t o
operat e t he UPWL606 0.
For detailed inform at ion on the UPWL606 0 com ponent it self, refer t o the
UPWL6060 dat ash eet .
2 . Fe atur es
Features Description
Network Standard
Chipset
Input Voltage
Data Rate
Modulation
IEEE 802.11 a/n/ac (final n)
BCM4360
3.3V,5V
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n-20 MHz: MCS0~MCS23
802.11n-40 MHz: MCS0~MCS23(450Mbps)
802.11ac-80 MHz: MCS0~MCS29(1299Mbps)
802.11a:BPSK(6Mbps,9Mbps),QPSK(12Mbps,18Mbps),
16QAM(24Mbps,36Mbps),64QAM(48Mbps,54Mbps)
802.11n:BPSK(MCS0,MCS8, MCS16),
QPSK(MCS1,MCS2,MCS9,MCS10, MCS17, MCS18),
16QAM(MCS3,MCS4,MCS11,MCS12, MCS19, MCS20),
64QAM(MCS5,MCS6,MCS7,MCS13,MCS14,MCS15, MCS21,
MCS22, MCS23)
802.11ac: BPSK(MCS0,MCS10, MCS20),
QPSK(MCS1,MCS2,MCS11,MCS12, MCS21, MCS22),
16QAM(MCS3,MCS4,MCS13,MCS14, MCS23, MCS24),
Operating Frequency
Operating Channel
Transceiver/Receiver
Mode
64QAM(MCS5,MCS6,MCS7,MCS15,MCS16,MCS17, MCS25,
MCS26, MCS27)
256QAM(MCS8,MCS9,MCS18,MCS19, MCS28, MCS29)
802.11a/n/ac (5.18~ 5.24 GHz, 5 .74 5 ~ 5.82 5 GHz)
CH36~CH48,CH149~CH165 for North America,
3T3R Mode
Page 3
Antenna list:
Set. Ant. Brand Holder Model Name P/N Antenna Type Connector
HONGLIN
1 1
2
Note 1: The EUT has two sets of antenna and there are three antennas for each set.
TECHNOLOGY CO.,
LTD
HONGLIN
2
TECHNOLOGY CO.,
LTD
HONGLIN
3
TECHNOLOGY CO.,
LTD
HONGLIN
4
TECHNOLOGY CO.,
LTD
5G Antenna - PCB Antenna I-PEX 2.92
EPC-3940L 290-30151 PCB Antenna I-PEX 2.4
EPC-3940L 290-30153 PCB Antenna I-PEX 2.1
EPC-3940L 290-30154 PCB Antenna I-PEX 2.2
Gain
(dBi)
3 . Be nef it s
Sm all, self- cont ained SMT m odule.
3X3 MI MO funct ion suppor t
Com ply w it h 8 02 .11ac cr it er ia
FCC Statement:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
Page 4
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This device and its antenna(s) must not be co-located with any other transmitters
except in accordance with FCC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be
operated simultaneously without C2P.
This device is restricted for indoor use.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module is
integrated.
Additional testing and certification may be necessary when multiple modules are used.
20cm minimum distance has to be able to be maintained between the antenna and the
users for the host this module is integrated into. Under such configuration, the FCC
radiation exposure limits set forth for an population/uncontrolled environment can be
satisfied.
Any changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate this equipment.
Page 5
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least
20cm separation with the antenna while this end product is installed and operated. The
end user has to be informed that the FCC radio-frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that
any changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate this equipment. If the size of the end product is smaller
than 8x10cm, then additional FCC part 15.19 statement is required to be available in
the users manual: This device complies with Part 15 of FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX
FCC ID:
following FCC part 15.19 statement has to also be available on the label: This device
complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.
VUIUPWL6060 ". If the size of the end product is larger than 8x10cm, then the
Abo ut t h is gu ide
This user guide con tain s t h e in form at ion y our PEGATRON WI FI Module.
Syst em requ ire m e nt s
Bef or e in st allin g t he PEGATRON WI FI module, m ak e sur e t hat your syst em m eet s t he
following r equirem ent s:
Int el® Pent ium ® 4 or AMD K7 / K8 sy stem
Minim um 64MB syst em m em or y
Win d ow s® XP/ VI STA oper at ing syst em
Page 6
I nst allin g t he de vice driv er s
To inst all t he device driver in y our com pu ter :
I nser t t he su pport CD t o t he opt ical dr iv e and follow the f ollow ing pr ocedur e.
St ep 1
Page 7
St ep 2
Page 8
St ep 3 St ep 4
Page 9
Page 10

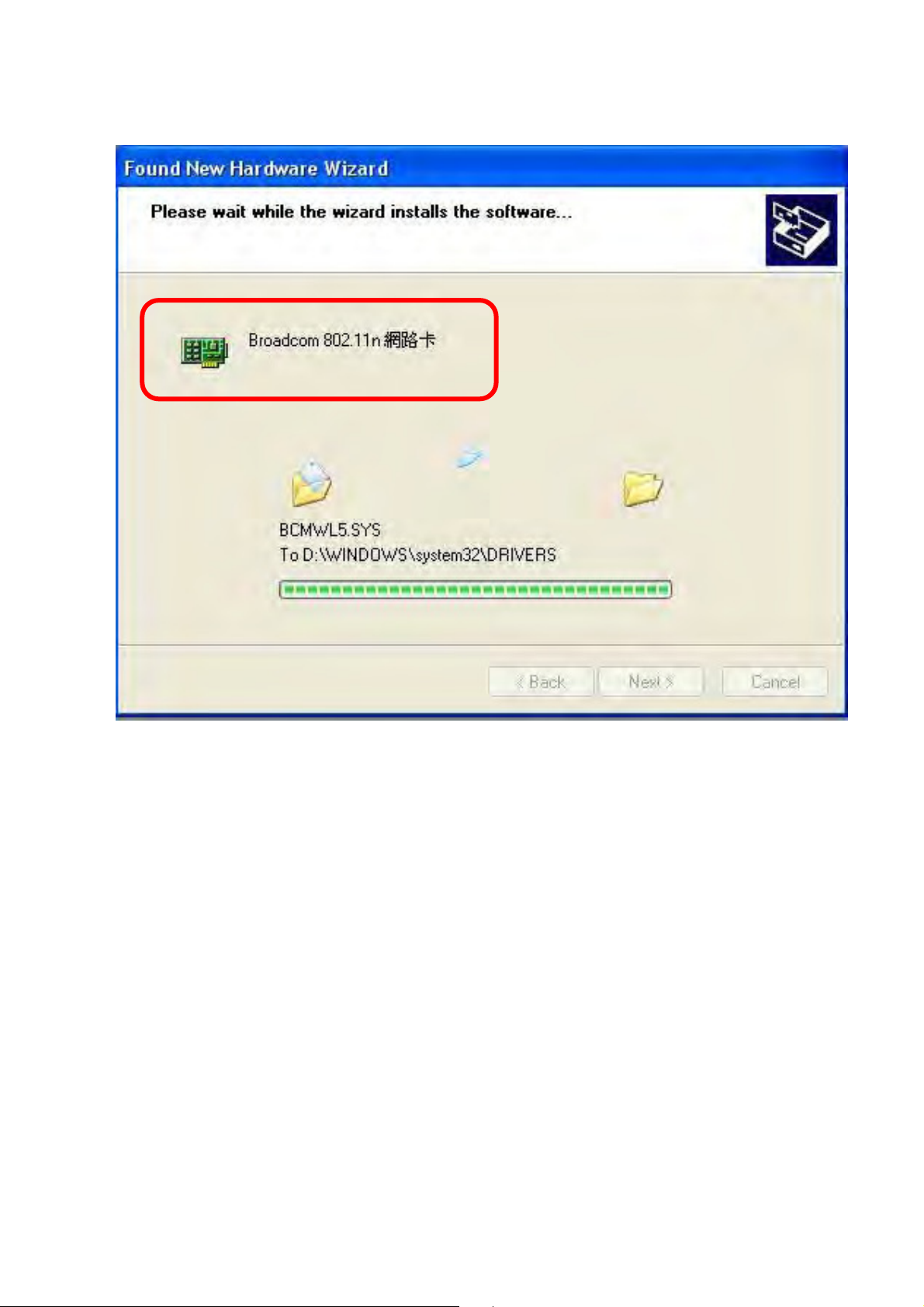

St ep 5
