PEGATRON UPWL6017SH2 Users Manual

Manual

Unihan UPWL6017SH2

1.General Description

The UPWL6017SH2 wireless module is a fully assembled and tested general-purpose
module using the BCM43217KMLG wireless System-on-Chip(SoC). The module
contains BCM43217KMLG chip and all other necessary components to operate the
UPWL6017SH2.

For detailed information on the UPWL6017SH2 component itself, refer to the
UPWL6017SH2 datasheet.

2. Features

Features Description

Network Standard

Chipset

Input Voltage

Data Rate

Modulation

Operating Frequency

Operating Channel

Transceiver/Receiver

Mode

IEEE 802.11 b/g/n (final n)

BCM43217KMLG

3.3V,5V

802.11b: 1, 2, 5.5, 11Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11n-20 MHz: MCS0~MCS15

802.11n-40 MHz: MCS0~MCS15(300Mbps)

802.11b:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5Mbps,11Mbps)

802.11g:BPSK(6Mbps,9Mbps),QPSK(12Mbps,18Mbps),

16QAM(24Mbps,36Mbps),64QAM(48Mbps,54Mbps)

802.11n:BPSK(MCS0,MCS8),

QPSK(MCS1,MCS2,MCS9,MCS10),

16QAM(MCS3,MCS4,MCS11,MCS12),

64QAM(MCS5,MCS6,MCS7,MCS13,MCS14,MCS15)

802.11b/g/n (2412 ~ 2462 MHz)

1~11 for North America,

2T2R Mode

3. Benefits



Small, self-contained SMT module.



2X2 MIMO function support



High power solution support high speed transmittance

For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.

4. FCC Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one of the following

measures:

●

Reorient or relocate the receiving antenna.

●

Increase the separation between the equipment and receiver.

●

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

●

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection

of other channels is not possible.

This device and it's antennas(s) must not be co-located or operating in conjunction
with any other antenna or transmitter except in accordance with FCC

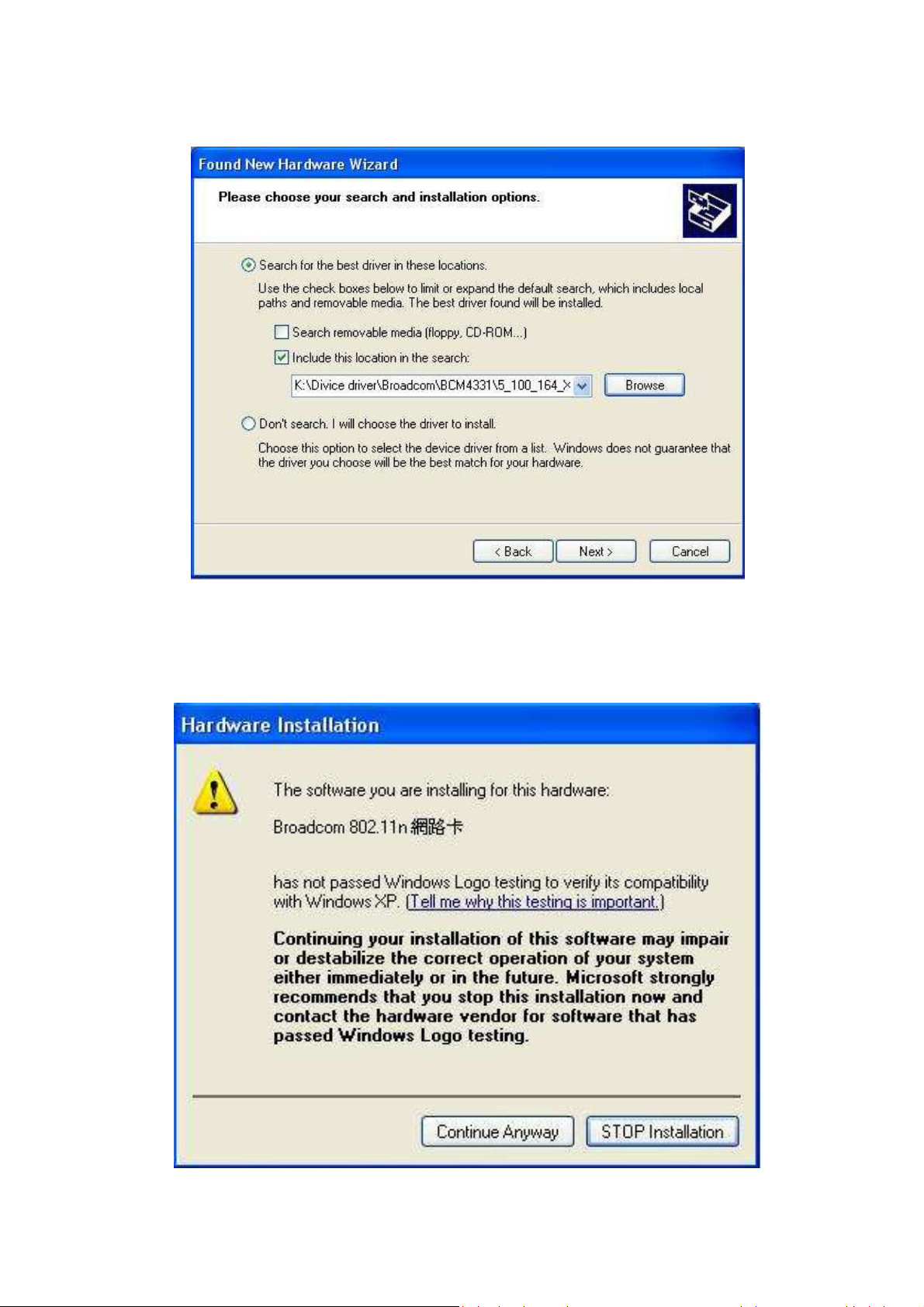

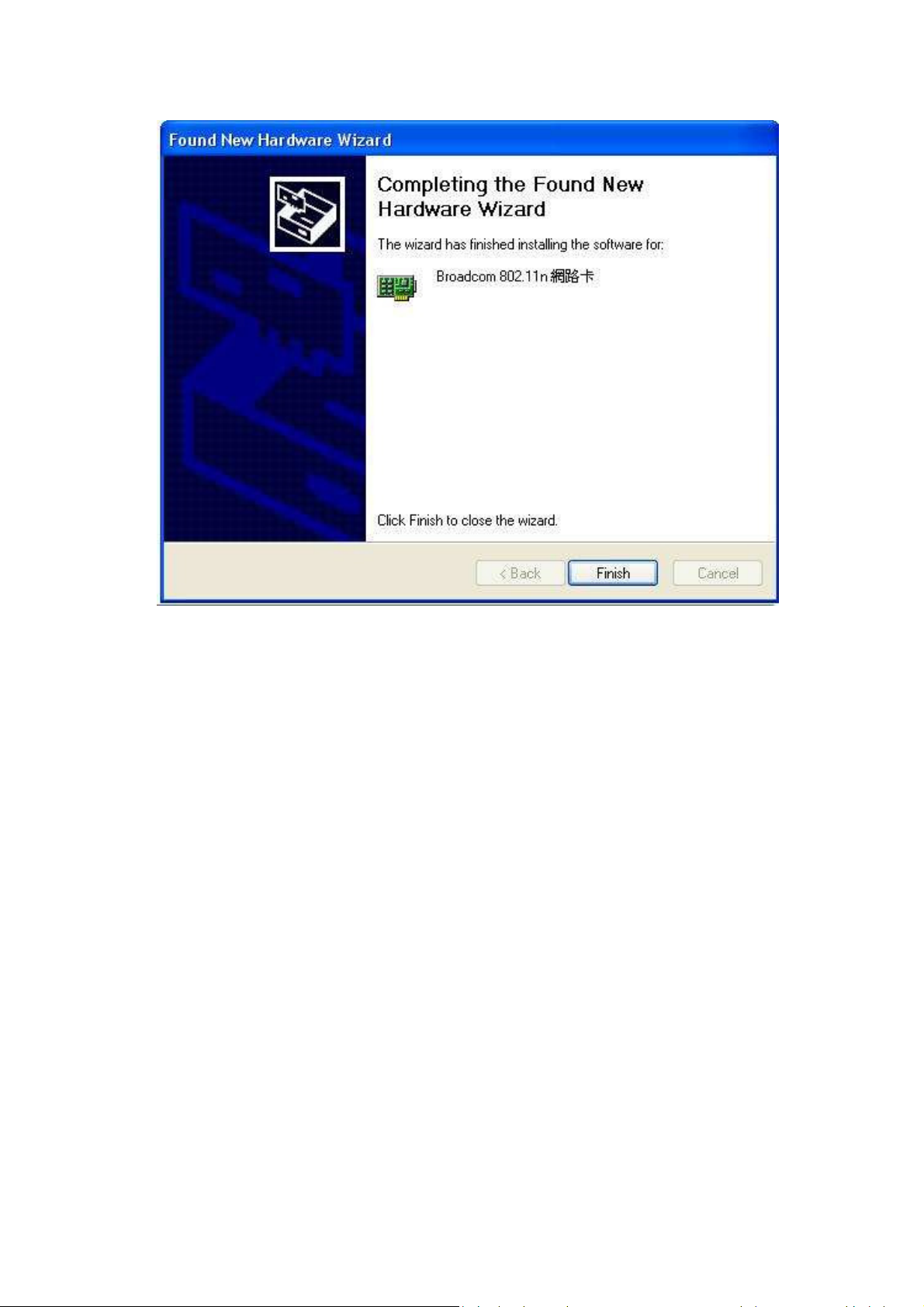

multi-transmitter product procedures.
