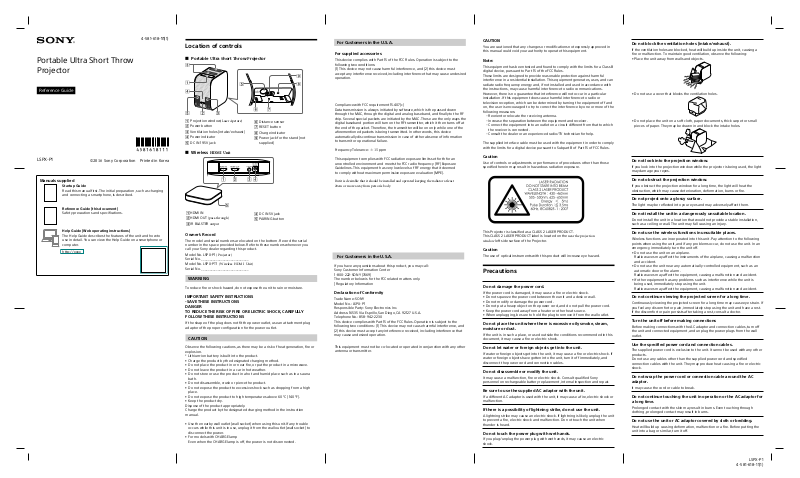

PEGATRON LSPX PT1 User Manual
LSPX-P1
4-581-618-11(1)
4-581-618-11(1)
Portable Ultra Short Throw
Projector
Reference Guide
LSPX-P1
Manuals supplied
Startup Guide
Read this manual first. The initial preparation, such as charging
and connecting a smartphone, is described.
Reference Guide (this document)
Safety precautions and specifications.
Help Guide (Web operating instructions)
The Help Guide describes the features of the unit and how to
use in detail. You can view the Help Guide on a smartphone or
computer.
http://xxxx
Location of controls
Distance sensor
RESET button
Charge indicator
Power jack for the stand (not
supplied)
DC IN 5V jack
PAIRING button
Owner’s Record
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug
adaptor of the proper configuration for the power outlet.
CAUTION
* Lithium-ion battery is built into the product.
• Charge the product by the designated charging method.
• Do not place the product in or near fire, or put the product in a microwave.
• Do not leave the product in a car in hot weather.
• Do not store or use the product in a hot and humid place such as in a sauna
bath.
• Do not disassemble, crush or pierce the product.
• Do not expose the product to excessive shock such as dropping from a high
place.
• Do not expose the product to high temperatures above 60 °C (140 °F).
• Keep the product dry.
Dispose of the product appropriately.
Charge the product by the designated charging method in the instruction
manual.
• Use the nearby wall outlet (wall socket) when using this unit. If any trouble
occurs while this unit is in use, unplug it from the wall outlet (wall socket) to
disconnect the power.
• For models with CHARGE lamp
Even when the CHARGE lamp is off, the power is not disconnected.
CAUTION
You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The supplied interface cable must be used with the equipment in order to comply
with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
Caution
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Do not block the ventilation holes (intake/exhaust).
If the ventilation holes are blocked, heat will build up inside the unit, causing a
fire or malfunction. To maintain good ventilation, observe the following:
• Place the unit away from walls and objects.
• Do not use a cover that blocks the ventilation holes.
• Do not place the unit on a soft cloth, paper documents, thick carpet or small
pieces of paper. They may be drawn in and block the intake holes.
Do not look into the projection window.
If you look into the projection window while the projector is being used, the light
may damage your eyes.
Do not obstruct the projection window.
If you obstruct the projection window for a long time, the light will heat the
obstruction, which may cause deterioration, deformation, burns or fire.
Do not project onto a glossy surface.
The light may be reflected into your eyes and may adversely affect them.
Do not install the unit in a dangerously unsuitable location.
Do not install the unit in a location that would not provide a stable installation,
such as a ceiling or wall. The unit may fall causing an injury.
Do not use the wireless functions in unsuitable places.
Wireless functions are incorporated into this unit. Pay attention to the following
points when using the unit, and if any problems occur, do not use the unit. In an
emergency, immediately turn the unit off.
• Do not use the unit on an airplane.
Radio waves may affect the instruments of the airplane, causing a malfunction
and accident.
• Do not use the unit near any automatically-controlled equipment, such as an
automatic door or fire alarm.
Radio waves may affect the equipment, causing a malfunction and accident.
• If other equipment has any problems such as interference while the unit is
being used, immediately stop using the unit.
Radio waves may affect the equipment, causing a malfunction and accident.
Do not continue viewing the projected screen for a long time.
Continuously viewing the projected screen for a long time may cause eye strain. If
you feel any discomfort or pain, immediately stop using the unit and have a rest.
If the discomfort or pain persists after taking a rest, consult a doctor.
Turn the unit off before making connections
Before making connections with the AC adaptor and connection cables, turn off
the unit and connected equipment, and unplug the power plugs from the wall
outlet.
Use the specified power cord and connection cables.
The supplied power cord is exclusive to the unit. It cannot be used with any other
products.
Do not use any cables other than the supplied power cord and specified
connection cables with the unit. They may produce heat causing a fire or electric
shock.
Do not wrap the power cord or connection cable around the AC
adaptor.
It may cause the cord or cable to break.
Do not continue touching the unit in operation or the AC adaptor for
a long time.
Prolonged contact with the skin may result in burns. Even touching through
clothing, prolonged contact may result in burns.
Do not use the unit or AC adaptor covered by cloth or bedding.
Heat will build up causing deformation, malfunction or a fire. Before putting the
unit into a bag or similar, turn it off.
©2016 Sony Corporation Printed in Korea
Portable Ultra Short Throw Projector
Projection window(Laser Apeture)
Power button
Ventilation holes (intake/exhaust)
Power indicator
DC IN 19.5V jack
Wireless HDMI Unit
HDMI IN
HDMI OUT (pass-through)
IR BLASTER output
The model and serial numbers are located on the bottom. Record the serial
number in the space provided below. Refer to these numbers whenever you
call your Sony dealer regarding this product.
Model No. LSPX-P1 (Projector)
Serial No. _____________________________
Model No. LSPX-PT1 (Wireless HDMI Unit)
Serial No. _____________________________
Observe the following cautions, as there may be a risk of heat generation, fire or
explosion.
For Customers in the U.S.A.
For supplied accessories
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Compliance with FCC requirement 15.407(c)
Data transmission is always initiated by software, which is the passed down
through the MAC, through the digital and analog baseband, and finally to the RF
chip. Several special packets are initiated by the MAC. These are the only ways the
digital baseband portion will turn on the RF transmitter, which it then turns off at
the end of the packet. Therefore, the transmitter will be on only while one of the
aforementioned packets is being transmitted. In other words, this device
automatically discontinue transmission in case of either absence of information
to transmit or operational failure.
Frequency Tolerance: ±15 ppm
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low levels of RF energy that it deemed
to comply without maximum permissive exposure evaluation (MPE).
But it is desirable that it should be installed and operated keeping the radiator at least
20cm or more away from person's body.
For Customers in the U.S.A.
If you have any questions about this product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
The number below is for the FCC related matters only.
[ Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: LSPX-P1
Responsible Party: Sony Electronics Inc.
Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment must not be co-located or operated in conjunction with any other
antenna or tr
ansmitter.
This Projector is classified as a CLASS 2 LASER PRODUCT.
This CLASS 2 LASER PRODUCT label is located on the near the projection
window left side surface of the Projector.
Caution
The use of optical instruments with this product will increase eye hazard.
Precautions
Do not damage the power cord.
If the power cord is damaged, it may cause a fire or electric shock.
• Do not squeeze the power cord between the unit and a desk or wall.
• Do not modify or damage the power cord.
• Do not put a heavy object on the power cord, and do not pull the power cord.
• Keep the power cord away from a heater or other heat source.
• When unplugging, be sure to hold the plug to remove it from the wall outlet.
Do not place the unit where there is excessive oily smoke, steam,
moisture or dust.
If the unit is in such a place, or used outside the conditions recommended in this
document, it may cause a fire or electric shock.
Do not let water or foreign objects get into the unit.
If water or foreign objects get into the unit, it may cause a fire or electric shock. If
water or foreign objects have gotten into the unit, turn it off immediately, and
disconnect the power cord and connection cables.
Do not disassemble or modify the unit.
It may cause a malfunction, fire or electric shock. Consult qualified Sony
personnel on rechargeable battery replacement, internal inspection and repair.
Be sure to use the supplied AC adaptor with the unit.
If a different AC adaptor is used with the unit, it may cause a fire, electric shock or
malfunction.
If there is a possibility of lightning strike, do not use the unit.
A lightning strike may cause an electric shock. If lightning is likely, unplug the unit
to prevent a fire, electric shock and malfunction. Do not touch the unit when
thunder is heard.
Do not touch the power plug with wet hands.
If you plug/unplug the power plug with wet hands, it may cause an electric
shock.
LSPX-P1
4-581-618-11(1)
Do not place the unit on an unstable surface.
Do not place the unit on an unsteady stand or inclined plane. Otherwise, the unit
may fall or topple over resulting in injuries.
Do not place the unit where there is water.
If water gets into the unit, the unit gets wet, or the unit is used in a bathroom, it
may cause a fire or electric shock. Take special care when using the unit near the
window in rainy or snowy weather, or by the shore or waterfront.
Before moving the unit, disconnect the power cord and connection
cables.
If you move the unit with the power cord and connection cables connected, they
may be damaged resulting in a fire or electric shock, or connected equipment
may fall or topple over causing injuries.
Also, take care not to drop the unit.
Insert the connector straight.
Insert the connector straight to make a connection. If it is inserted at an angle,
pins may make a short circuit causing a fire.
If the unit is not to be used for a long time, unplug it.
For safety, unplug the unit if it will not be used for a long time.
Do not place/store the unit in a place exposed to direct sunlight or
close to a heater.
Heat may build up in the unit causing a fire.
Do not subject the unit to a strong impact.
• If you apply a strong force to the unit, such as putting a heavy object on it, drop
it, or step on it, it may cause injuries or a malfunction.
• Although the projection window is made of tempered glass, if it is strongly
pushed or struck, it may break causing injuries.
Take care not to drop the unit when moving it.
If the unit falls, it may break or cause injuries.
Do not bring your hand or object close to the exhaust holes.
If you bring your hand or an easily-deformable object close to the exhaust holes,
it may cause burns or deformation.
Keep the unit away from children.
If a cable becomes wrapped around the neck or similar misuse, it may cause an
accident or injury.
Do not dispose of the unit as municipal solid waste.
A lithium-ion rechargeable battery is incorporated in the unit, and if an impact or
pressure is applied during garbage collection, there is a danger of battery leak,
heat generation, ignition, explosion or the like.
Safety precautions for batteries
To avoid serious injuries and blindness caused by battery leak/explosion/heat
generation/ignition, be sure to observe the following precautions.
If a battery leak occurs
If a battery leak occurs, do not touch the leakage with bare hands.
Leakage may remain inside the unit, therefore consult qualified Sony
personnel.
If the leakage gets into the eyes, it may cause blindness; do not rub the eyes,
immediately and thoroughly wash the eyes with clean water such as tap
water, then consult a doctor.
If the leakage spills on the skin or clothes, it may burn or cause injury;
immediately wash out the leakage with clean water. If there is inflammation or
an injury, consult a doctor.
• Do not burn, disassemble or heat batteries.
• Do not use/store/leave batteries in a hot place, such as close to fire, direct
sunlight, or inside a car in strong sunshine.
On handling
• Do not drop, hit, compress, or put a heavy object on the unit.
•
• Do not place the unit in any places where there is excessive dust or cigarette
smoke. Dust and cigarette tar adheres to components inside the unit (such as
the projection window) causing a malfunction.
• Do not place the unit in any places where the temperature is extremely hot or
cold, or the humidity is extremely high. Especially when there is strong sunshine
or during the summer, the inside of a car can get quite hot, and a unit left in the
car may deform or malfunction.
•
On fan noise
A fan is incorporated inside the projector to prevent overheating, and this makes
a slight noise while turned on. This noise is not a malfunction. However, if there
are any abnormal noises, consult qualified Sony personnel.
On light source maintenance
This unit uses a laser, therefore special caution and facilities are necessary for the
inspection and maintenance of light source components. Be sure to consult
qualified Sony personnel.
On projector
• Although this unit is manufactured using very high precision technology, there
may be some permanent black or white pixels on the projected screen. Also,
there may be striped unevenness in color or brightness. This is a result of the
projector structure and is not a malfunction. The color balance of each projector
unit varies; therefore, when multiple LCD projectors are used, the color
reproduction among projectors may vary, even if they are of the same model.
• Depending on viewed content, primary colors such as red, blue, or green are
visible when you move your eyes or under certain conditions; this is not a
malfunction. It is caused by a “color breakup” phenomenon which is specific to
the field-sequential color system adopted into the unit for displaying images.
This phenomenon can be subdued by diminishing the contrast between the
image and the backdrop, such as decreasing the brightness of the unit or
increasing the brightness of the room.
On condensation
If the room temperature changes rapidly, or if the projector is moved suddenly
from a cold to a warm place, condensation in the projector may occur. As
condensation can cause a malfunction, be careful in adjusting temperature
settings of the air conditioner. If condensation occurs, leave the projector turned
on for about two hours before use.
Cautions about heat generation of the unit
• While using or charging the unit, the unit or AC adaptor may become hot; this is
not a malfunction. If the unit temperature becomes excessively hot, it may
automatically turn off for safety. In such a case, use it in a cooler place after the
unit has cooled down.
• If the unit or AC adaptor becomes unusually hot, it may malfunction.
Immediately turn the unit off and unplug the AC adaptor from the wall outlet,
then consult qualified Sony personnel.
On charging
•
• While charging or using the unit, the temperature of the unit may rise; this is
not a malfunction.
• If you do not use the unit for a long time, charge it every six months to prevent
battery degradation.
• When the unit has been left unused for a long time, the charging time may be
longer.
• When the battery usage time drops to half of its original time, it may have
reached the end of its life span. Consult qualified Sony personnel about the
rechargeable battery replacement.
On AC power interruption
When the unit is turned off using the power button, the power supply to the unit
is not completely stopped.
To completely stop the power supply to the unit, unplug it from the wall outlet.
Place the AC adaptor close to the wall outlet so that you can quickly unplug it
when becoming aware of a problem.
• Sony is not liable for any loss or damage caused by security problems resulted
from failing to take security countermeasures, or unavoidable circumstances
due to specifications of the wireless LAN.
Specifications
Projector
Display device
0.37 inch SXRD × 1
1366 × 768 pixels
Input/output
Video
HDMI IN × 1
HDMI OUT (pass-through) × 1
IR blaster output
Mini jack
Wireless communication
Wireless LAN
IEEE 802.11a/n (5 GHz band), MIMO compatible
Others
Supplied accessories
Optional accessories
Floor stand LSPX-PS1
Design and specifications are subject to change without notice.
Trademarks
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
• The BLUETOOTH SMART word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under
license.
• Wi-Fi, Wi-Fi Direct, Miracast, and Wi-Fi Protected Setup are trademarks or
registered trademarks of Wi-Fi Alliance.
• Google, Google logo, Android, Google Play, and YouTube are trademarks or
registered trademarks of Google Inc.
• Apple, Apple logo, iPhone, and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries. App Store is a service mark of Apple
Inc.
• All other names of systems, products, and services are trademarks or registered
trademarks of their respective owners. In this manual, the ™ or ® marks are not
specified. All rights which are not explicitly written in this document belong to
their respective owners.
Model name: LSPX-P1
*** The wireless function of the unit is designed for use in the U.S.A. only.
Each country/region has its own regulations for radio wave use, therefore if
you use the wireless function of the unit abroad, you may be penalized. ***
If you have questions or problems, read this document, Start Guide, and Help
Guide (Web operating instructions) thoroughly again. If the answer is not found,
consult qualified Sony personnel.
On cleaning
• Be sure to unplug the unit from the wall outlet before cleaning.
• If the unit is rubbed hard with a dirty cloth, the unit may be scratched.
• If volatile liquids such as insecticide are sprinkled on the unit, or an item made
of rubber or vinyl stays in physical contact with the unit for a long time, the unit
may be affected or the surface color may fade.
• Do not touch the projection window with bare hands.
• To clean the surface of the projection window:
Gently wipe it with a soft cloth such as an eyeglass cleaning cloth. If there are
stubborn stains, wipe them up with a cloth moistened with water. Never use
alcohol, benzene, thinner, acidic cleaning agents, alkaline cleaning agents,
abrasive cleaning agents, chemical dust cloths, and so on.
• To cleaning the exterior:
Gently wipe it with a soft cloth. If there are stubborn stains, wipe up the stains
with a soft cloth which has been soaked in diluted neutral detergent and
thoroughly wrung out, then wipe the exterior again with a dry cloth. Do not use
alcohol, benzene, thinner, and so on.
Notes on wireless LAN
Sony is not liable for any loss or damage caused by loss or theft of the unit
resulting in unauthorized accesses to or abuse of the equipment which is
incorporated into the unit.
Notes on wireless LAN security
• Always make sure that you are using a wireless LAN that is secured against
hacking, access from malicious third parties, and other vulnerabilities.
• Proper security setting for a wireless LAN is very important.
Portable Ultra Short Throw Projector (LSPX-P1)
Display system
SXRD/three primary colors liquid crystal shutter projection syst
Projection image size
22 inch
50 inch
to
Light source
Laser diode
Light output
100 lm
Audio
Speakers
Approx. 25 mm diameter × 2 (monaural) bass reflex system
Amplifier
2 W × 2 W monaural (total harmonic distortion 10%, 1 kHz, 4 ohms)
Wireless communication
Wireless LAN
IEEE 802.11a/b/g/n (2.4 GHz band, 5 GHz band), MIMO compatible
Bluetooth
Bluetooth 4.0 (Bluetooth Low Energy)
Others
Operating temperature
5 °C to 35 °C (41 °F to 95°F)
Built-in battery
Lithium-ion battery
Dimensions
Approx. 81 mm × 131 mm × 131 mm (3.19
× depth)
Mass
Approx. 930 g (2 lb 0.80 oz)
inches × 5.26 inches × 5.16 inches) (width × height
em
(Only as for projection)
Safety precautions
The operating temperature range of the unit is 5 °C to 35 °C (41 °F to 95 °F). If
the unit is used in an extremely cold or hot place outside the operating
ature range, it may cause a malfunction.
temper
Charge the unit in the ambient temperature of 5 °C to 35 °C (41 °F to 95 °F).
The unit may not charge sufficiently outside this temperature range.
Wireless HDMI Unit (LSPX-PT1)
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Dimensions
Approx. 135 mm × 32 mm × 135 mm (5.32 inches × 1.38 inches × 5.32 inches) (width × height
× depth)
Mass
Approx.200g (0lb 7.06oz)
AC adaptor VGP-AC19V77 (1)
AC adaptor LSPX-AC5V2 (1)
Power cord (2)
IR Blaster (1)
Startup Guide (1)
Reference Guide (this document) (1)
Warranty (1)
Loading...
