PEGATRON AAM6KVIT2 Users Manual

Zhone 6388-A2 4-Port Wi-Fi

with In-Line Filter

User Manual

Version Date: September 18, 2008
Document #: BD-ZU0042-10

Version 1.0

Table of Contents

GENERAL INFORMATION ..................................................................................... 3

Package Contents ..................................................................................... 3

Safety Instructions .................................................................................... 3

Front Panel View ....................................................................................... 4

Back Panel View ....................................................................................... 5

INSTALLING THE ROUTER .................................................................................... 6

INSTALLATION DIAGRAM ..................................................................................... 7

MOUNTING THE ROUTER ..................................................................................... 8

CONFIGURING YOUR COMPUTER............................................................................ 9

Windows 2000 .......................................................................................... 9

Windows XP ........................................................................................... 10

LOG IN TO THE ROUTER.................................................................................... 11

HOME ......................................................................................................... 12

Quick Start ............................................................................................. 13

SETUP ......................................................................................................... 15

LAN Configuration ................................................................................... 15

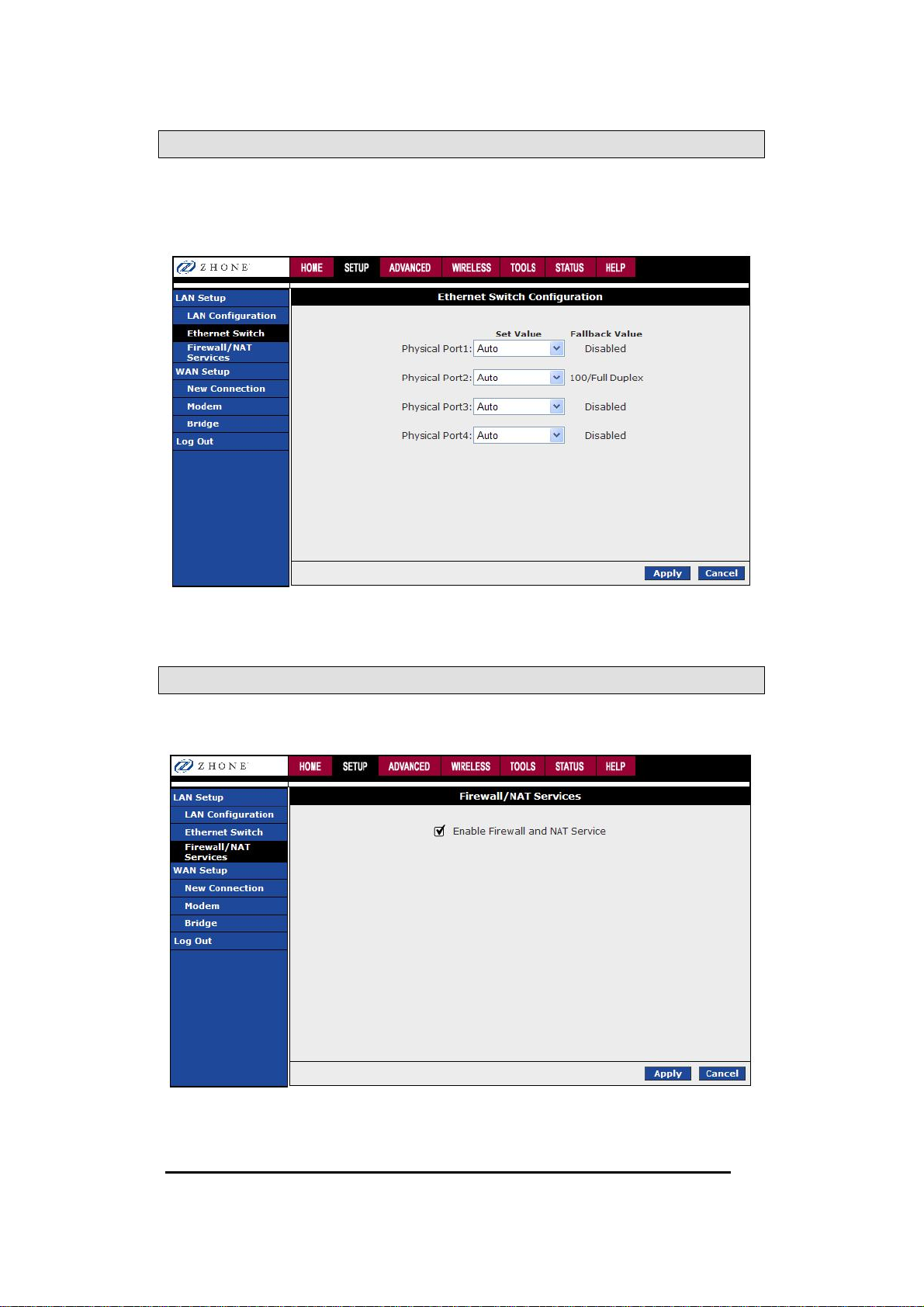

Ethernet Switch ...................................................................................... 16

Firewall / NAT Services ............................................................................ 16

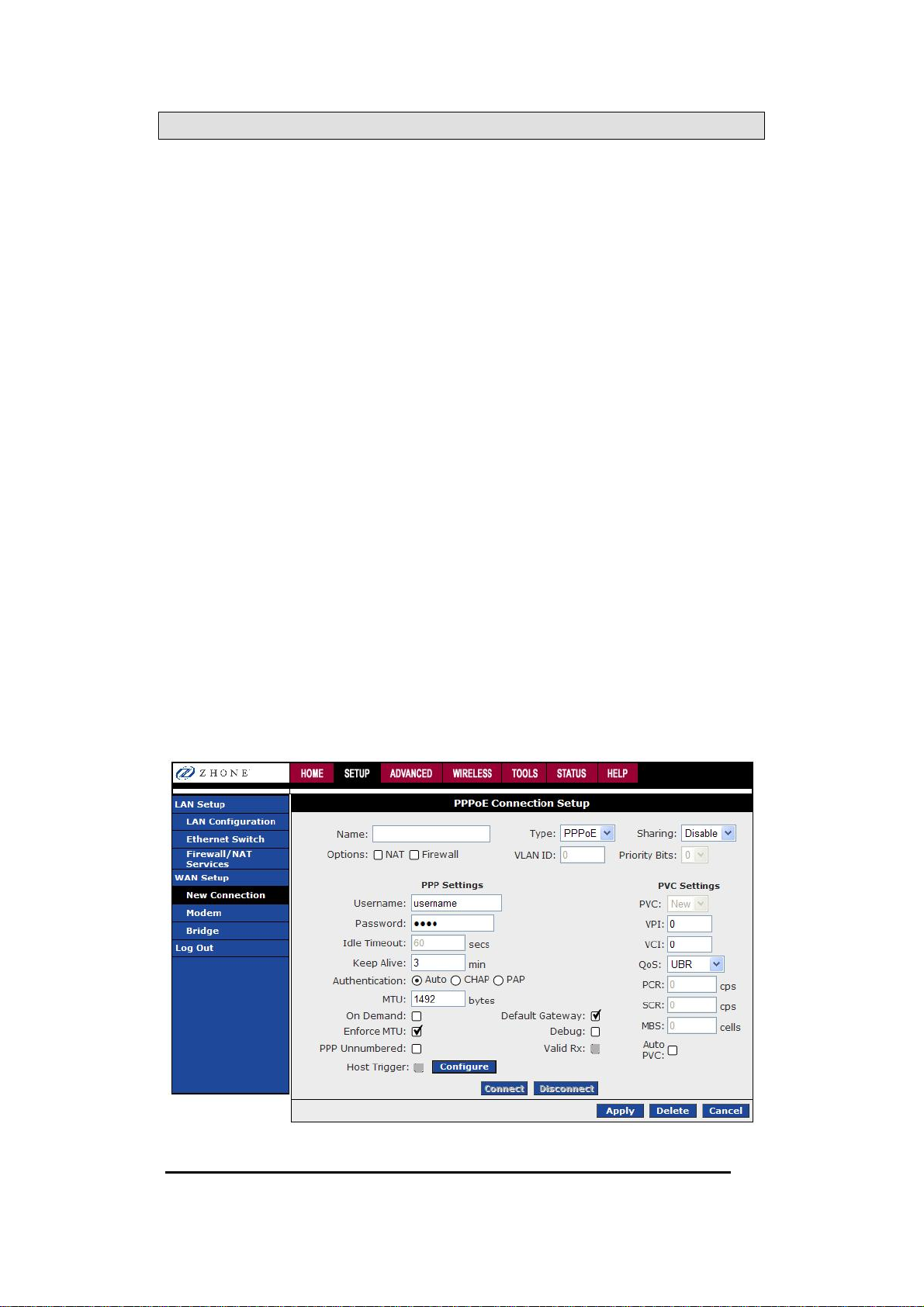

New Connection ..................................................................................... 17

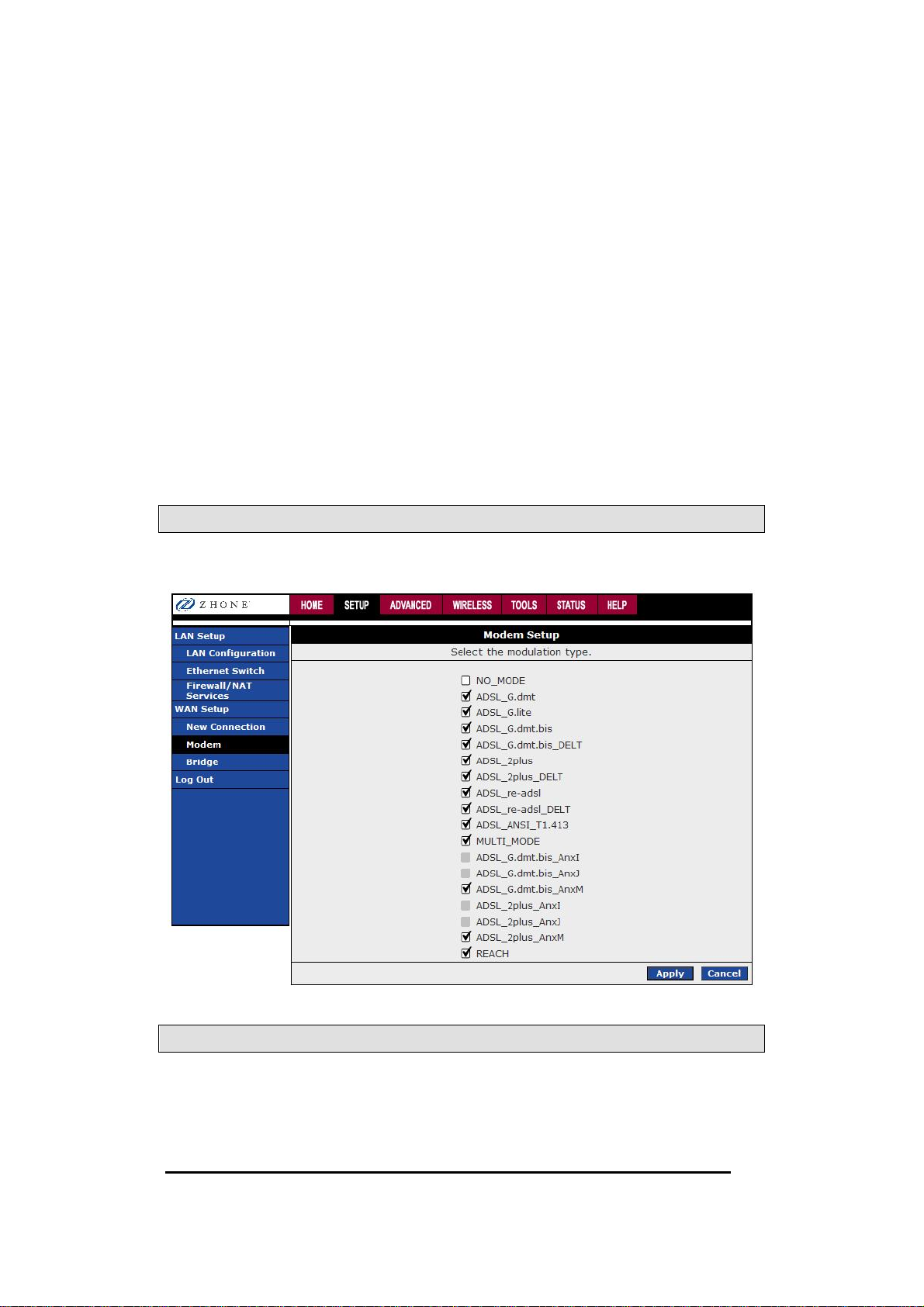

Modem .................................................................................................. 18

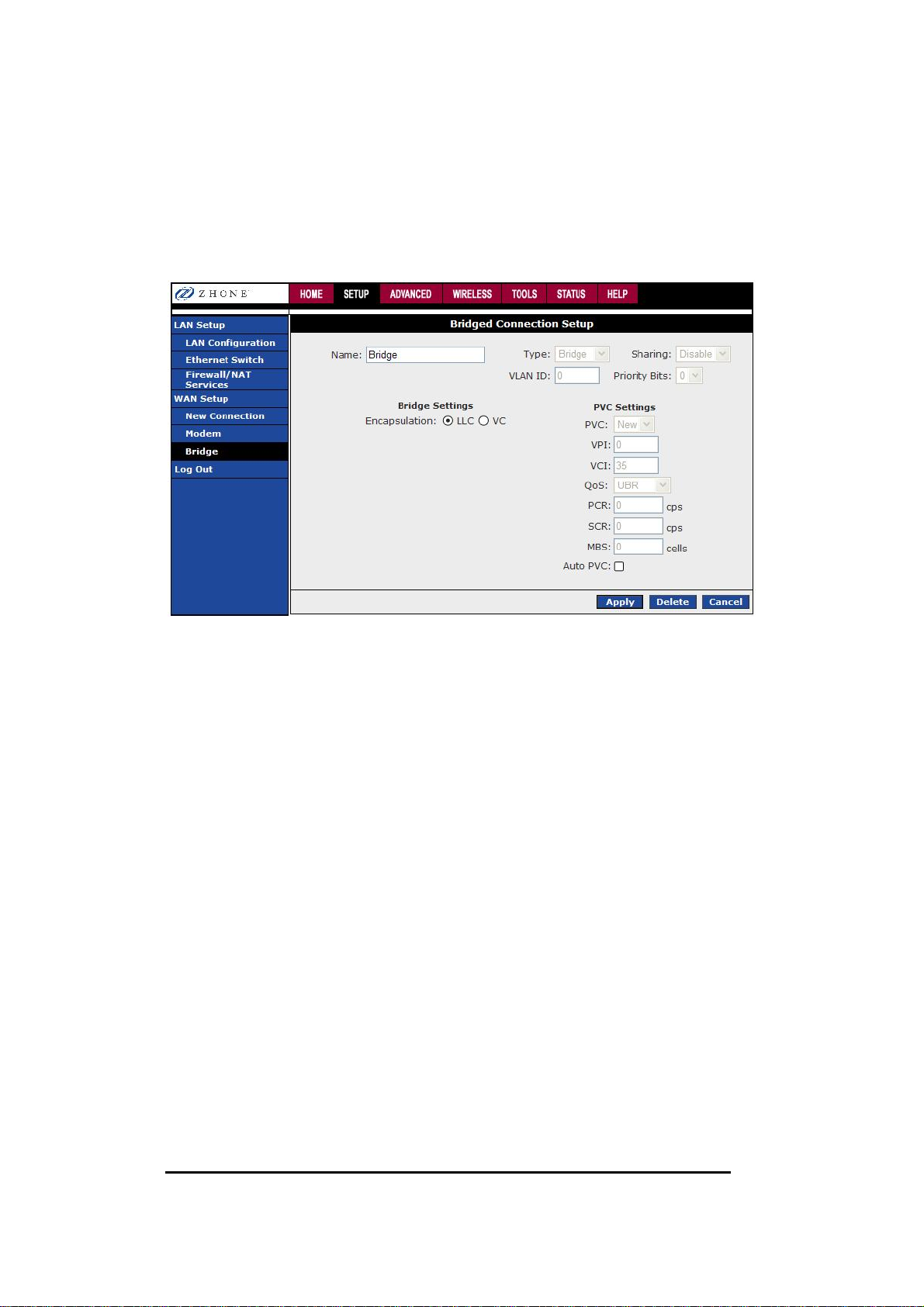

Bridge ................................................................................................... 18

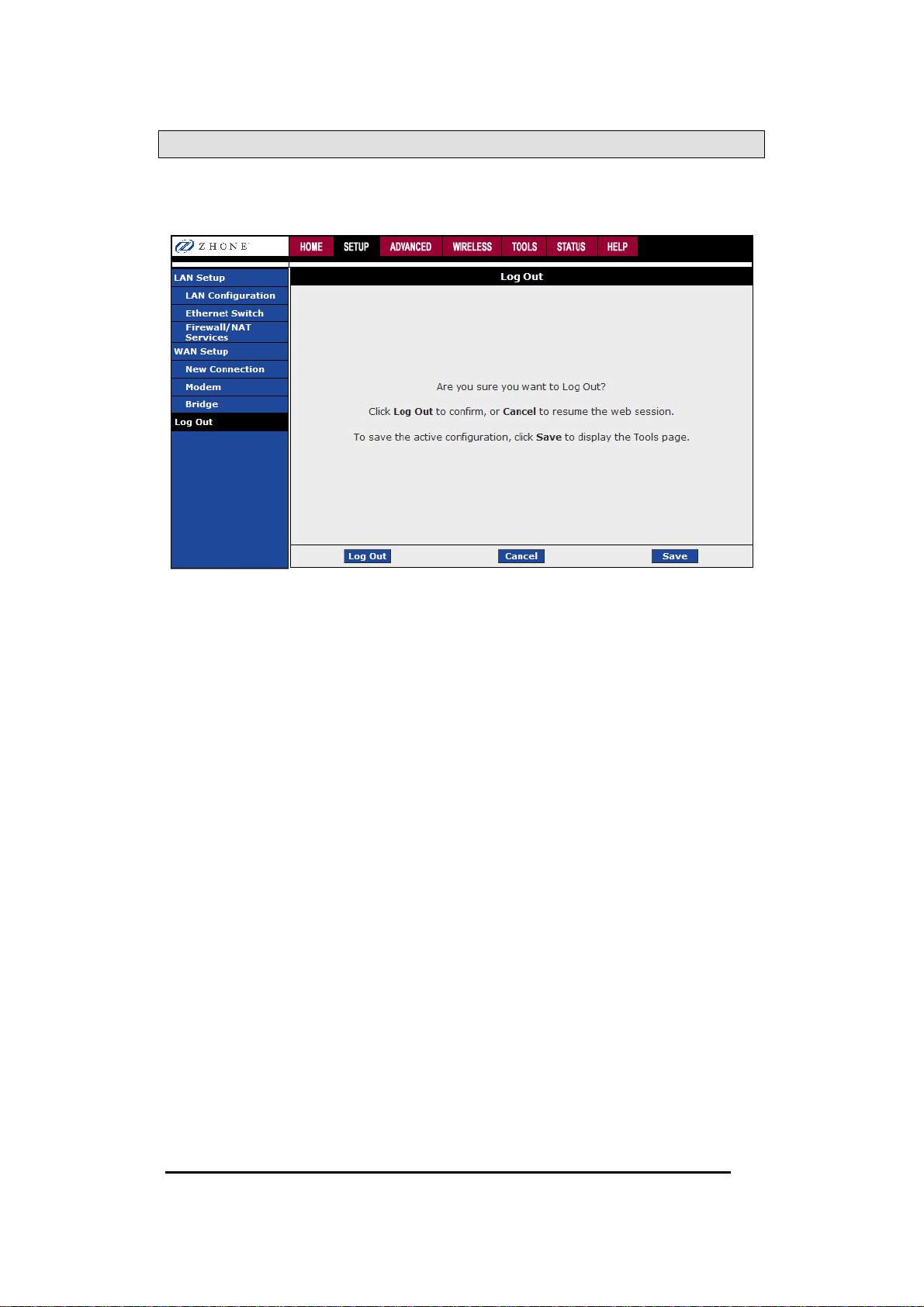

Log Out ................................................................................................. 20

ADVANCED ................................................................................................... 21

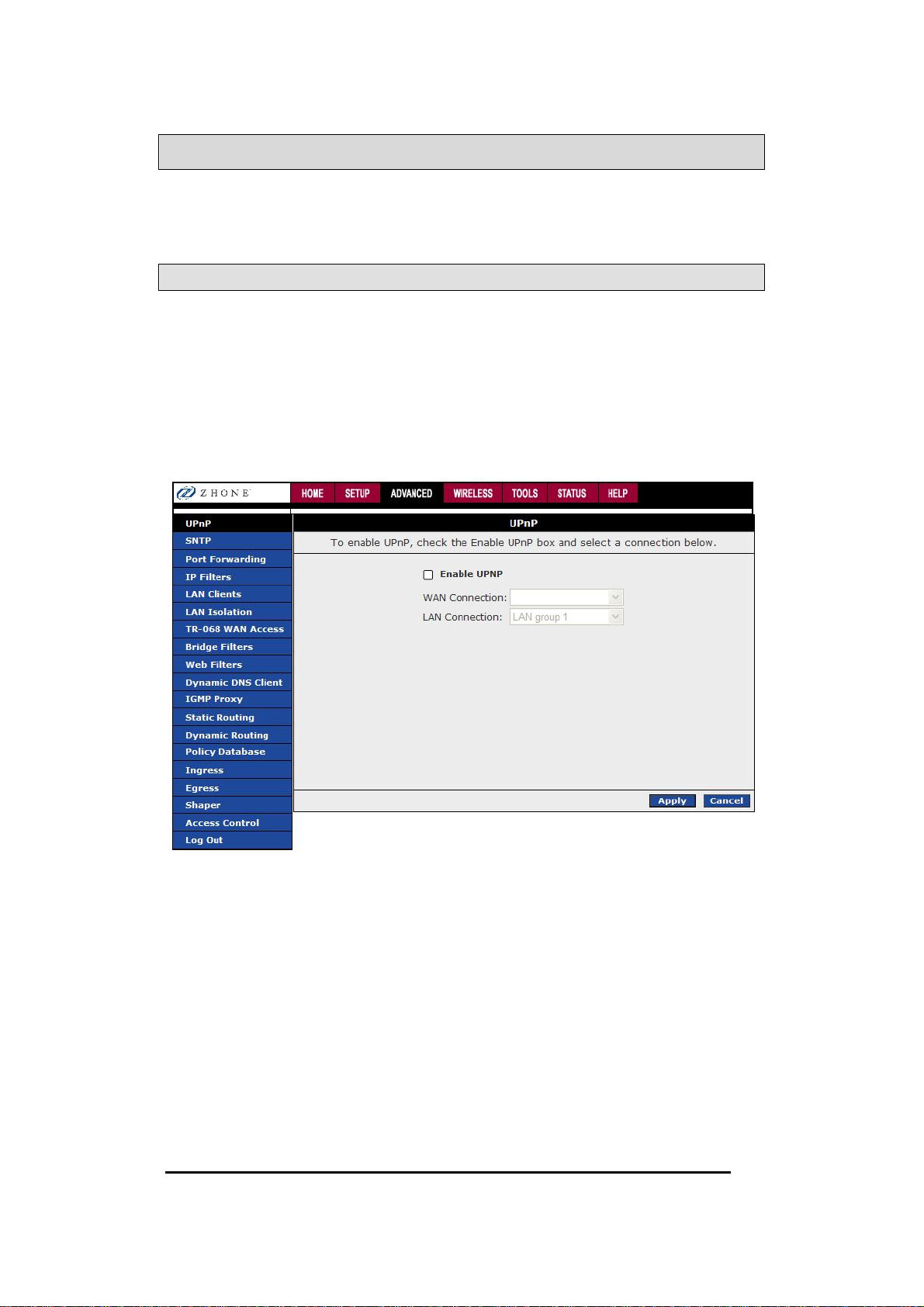

UPnp ..................................................................................................... 21

SNTP ..................................................................................................... 22

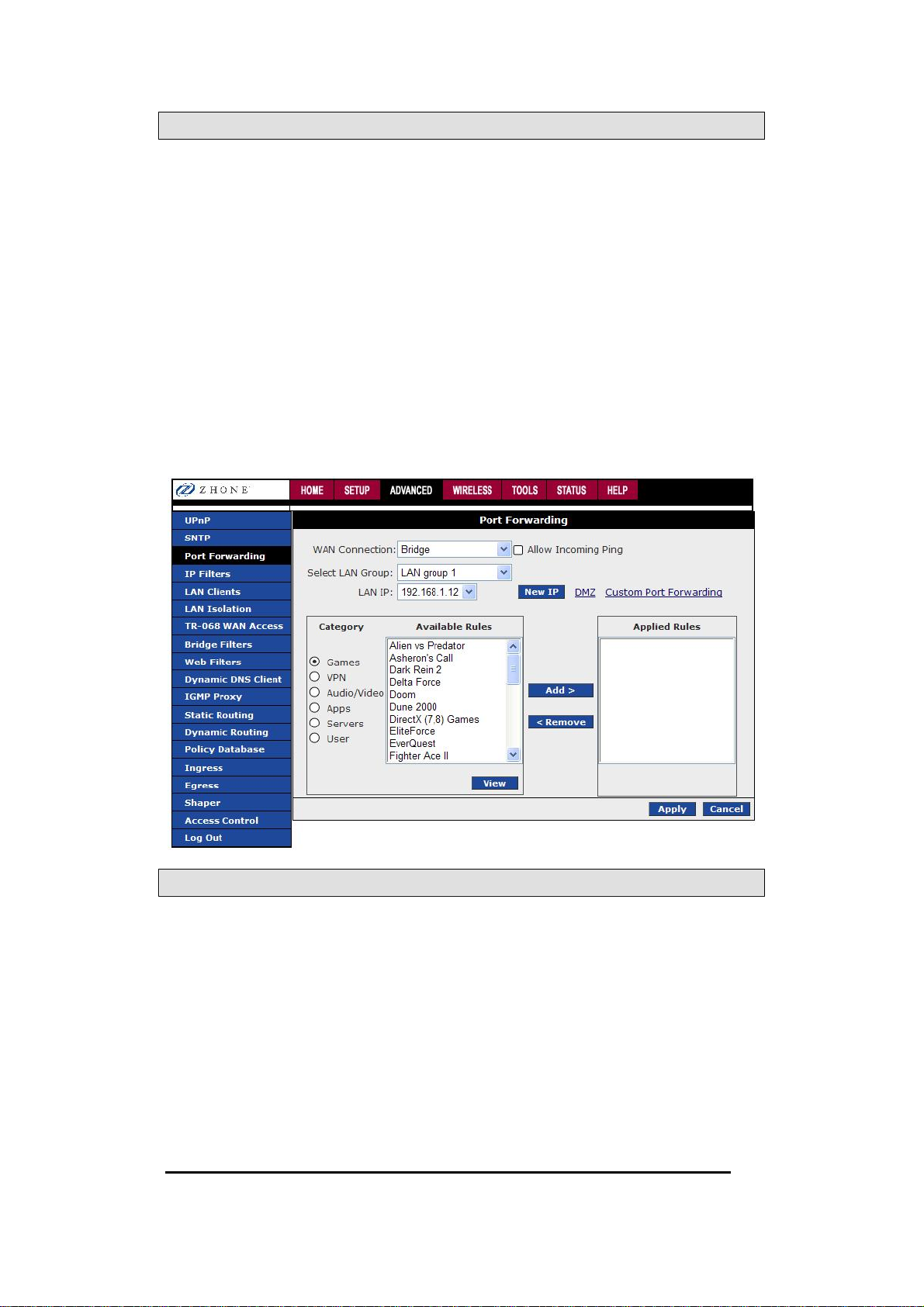

Port Forwarding ...................................................................................... 23

IP Filters ................................................................................................ 23

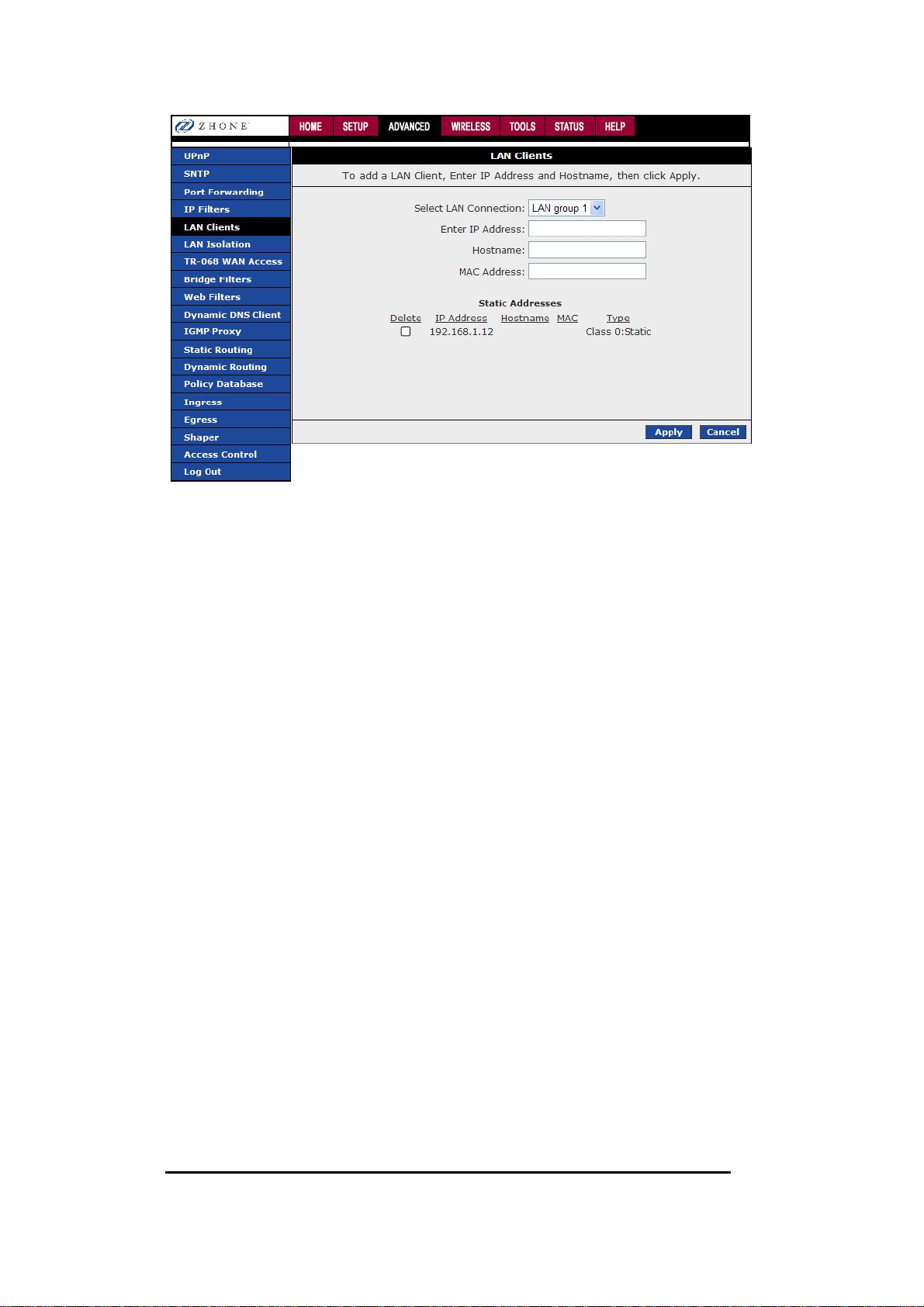

LAN Clients ............................................................................................ 24

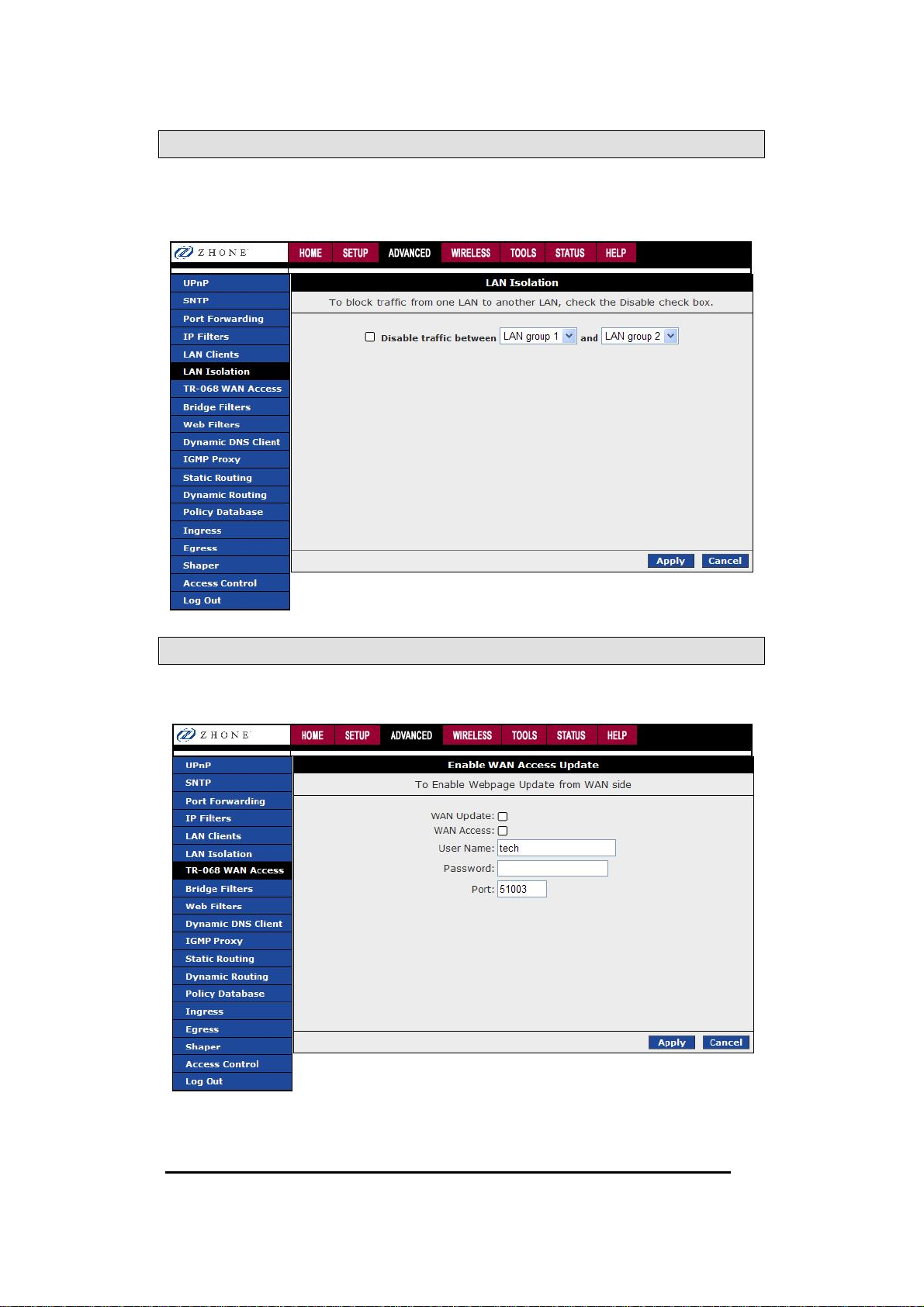

LAN Isolation .......................................................................................... 26

TR-068 WAN Access ................................................................................ 26

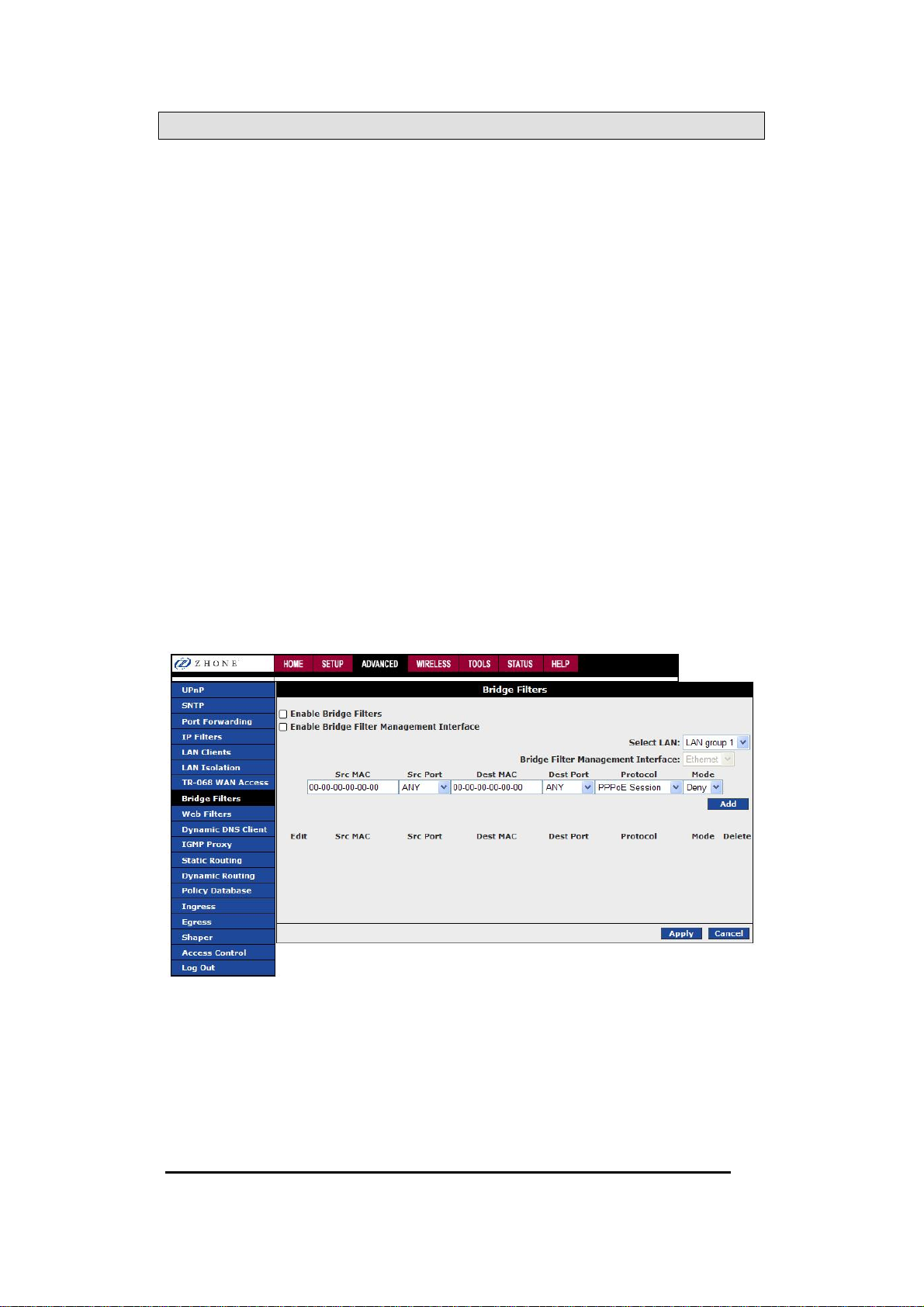

Bridge Filters .......................................................................................... 27

Web Filters............................................................................................. 28

Dynamic DNS Client ................................................................................ 28

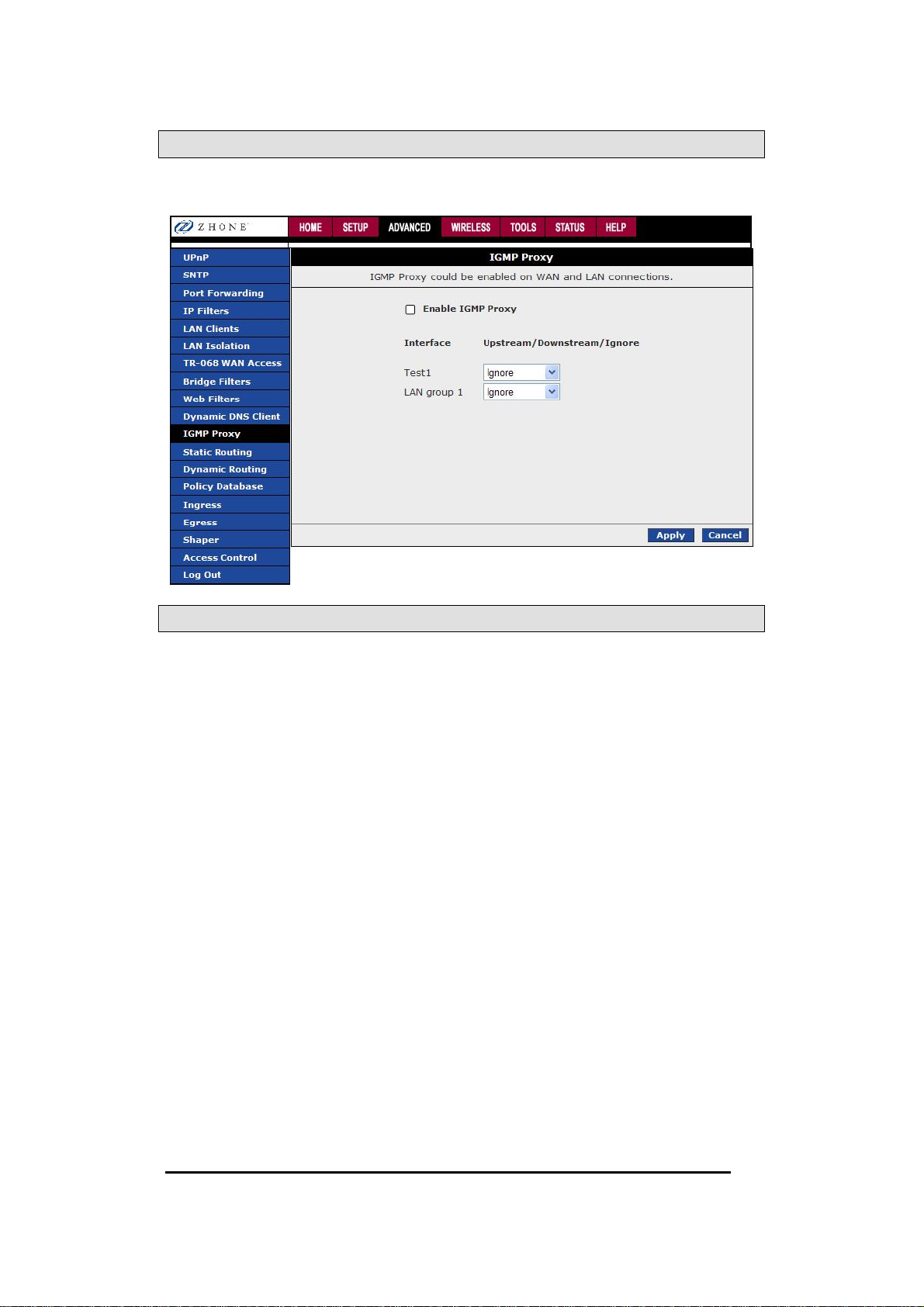

IGMP Proxy ............................................................................................ 29

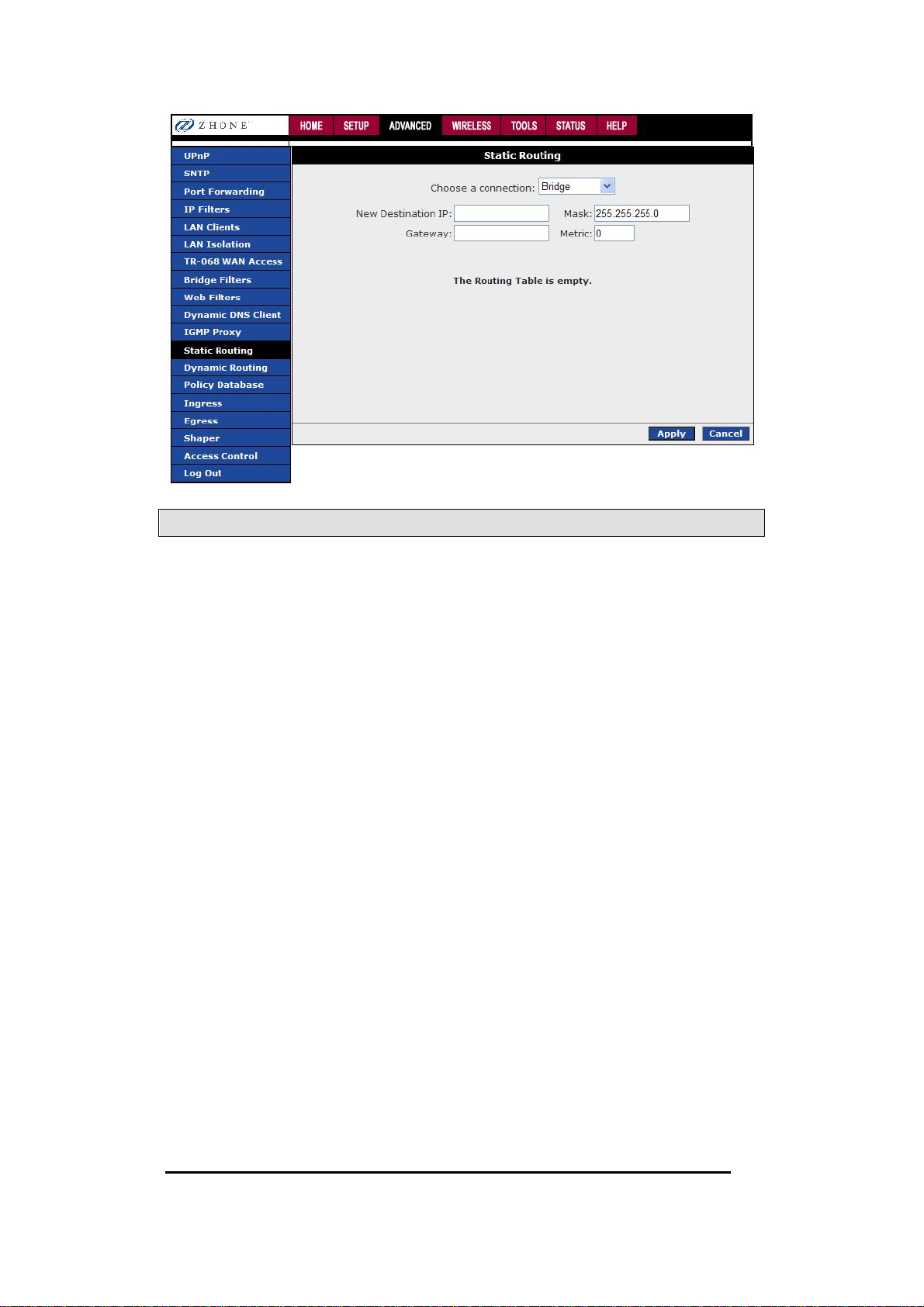

Static Routing ......................................................................................... 29

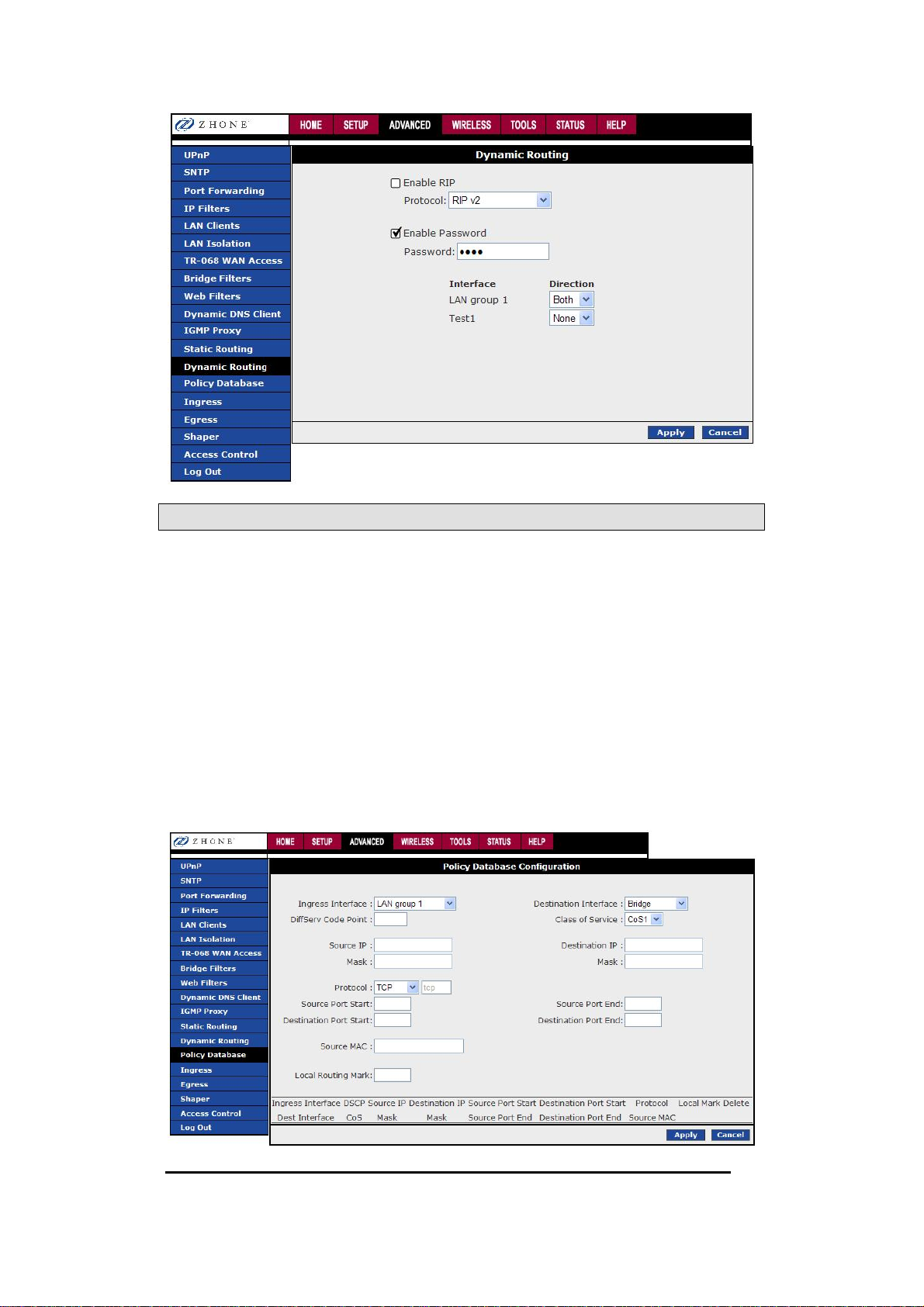

Dynamic Routing .................................................................................... 30

Policy Database ...................................................................................... 31

Ingress .................................................................................................. 32

Egress ................................................................................................... 32

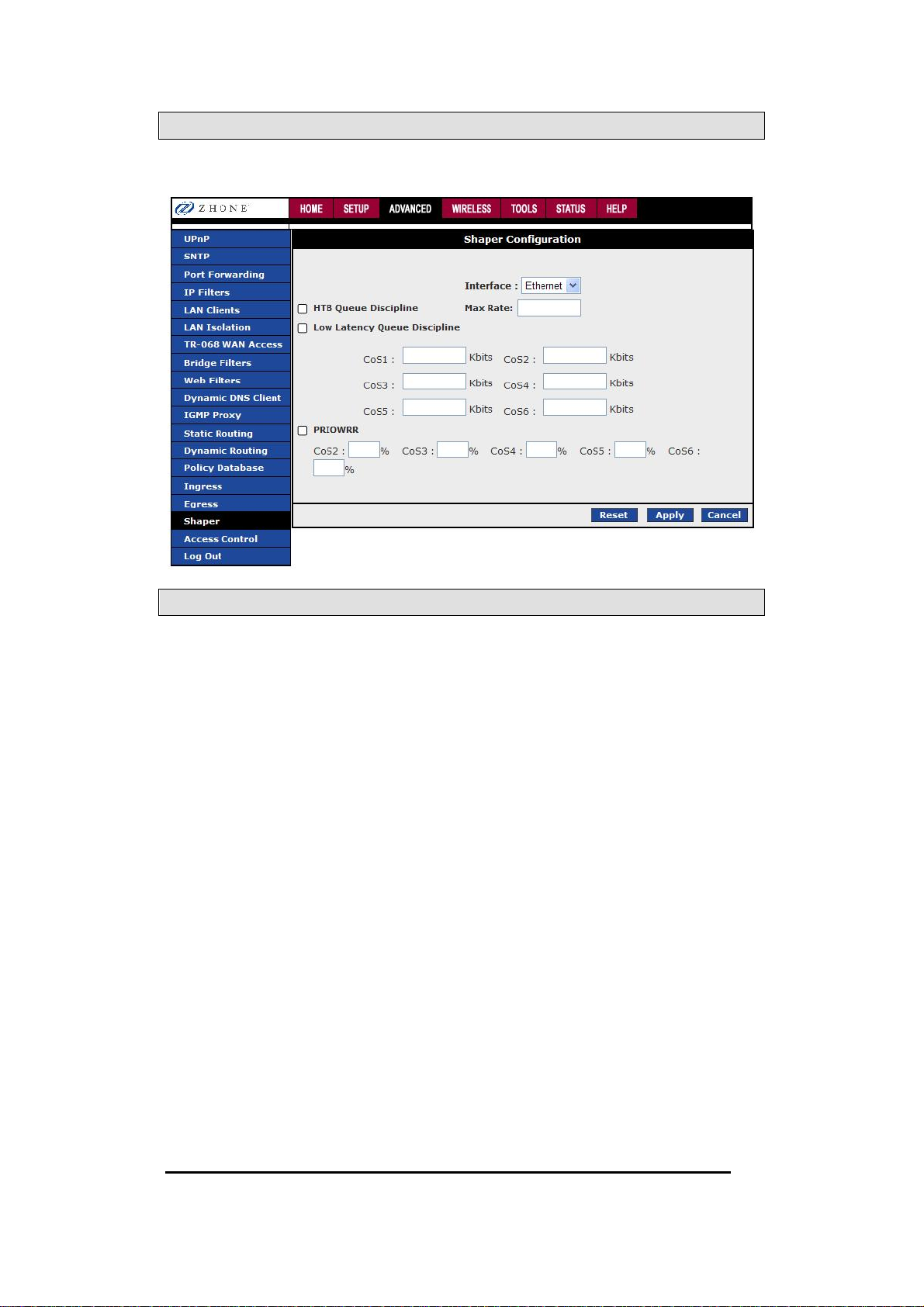

Shaper................................................................................................... 33

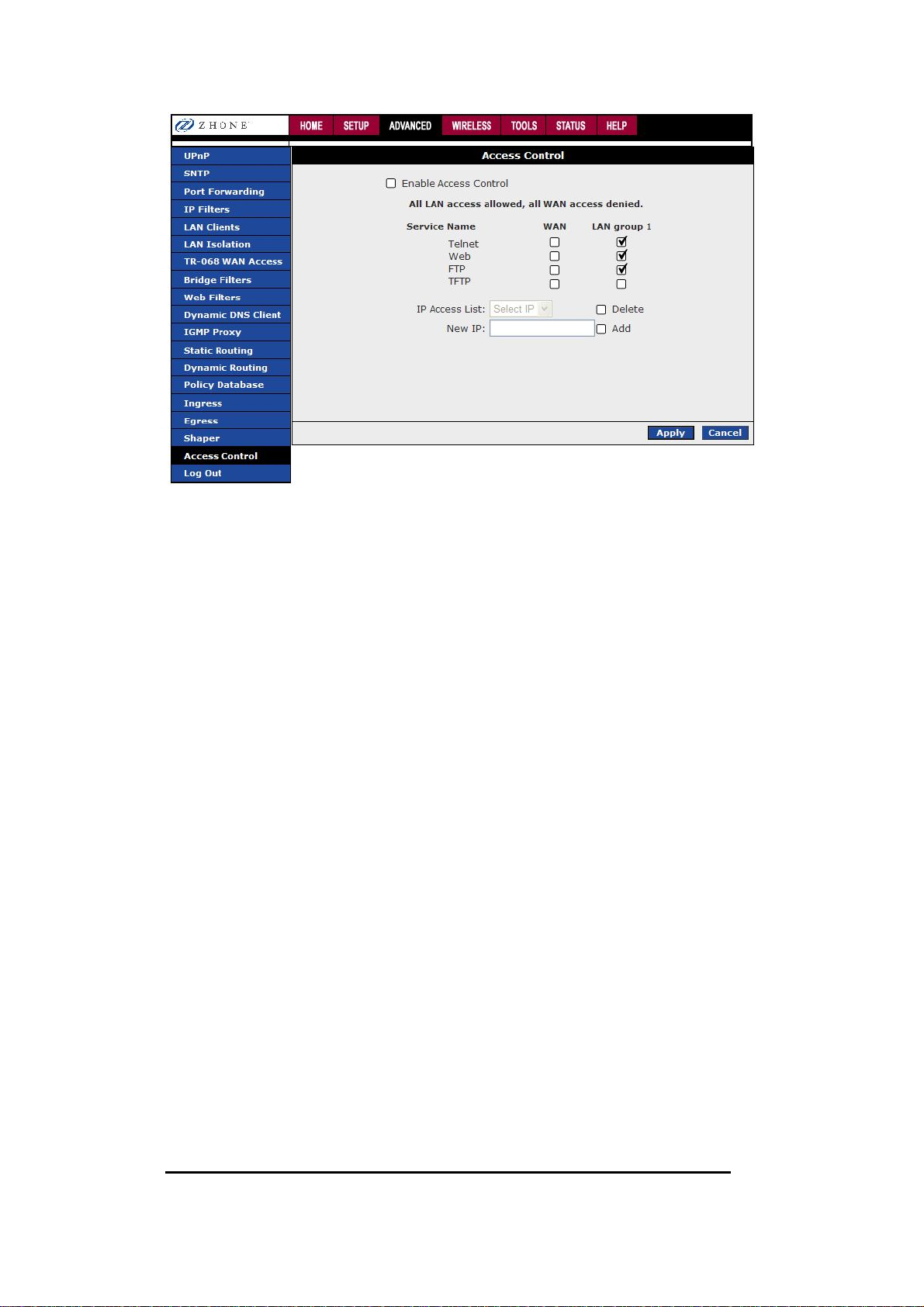

Access Control ........................................................................................ 33

WIRELESS .................................................................................................... 35

Setup .................................................................................................... 35

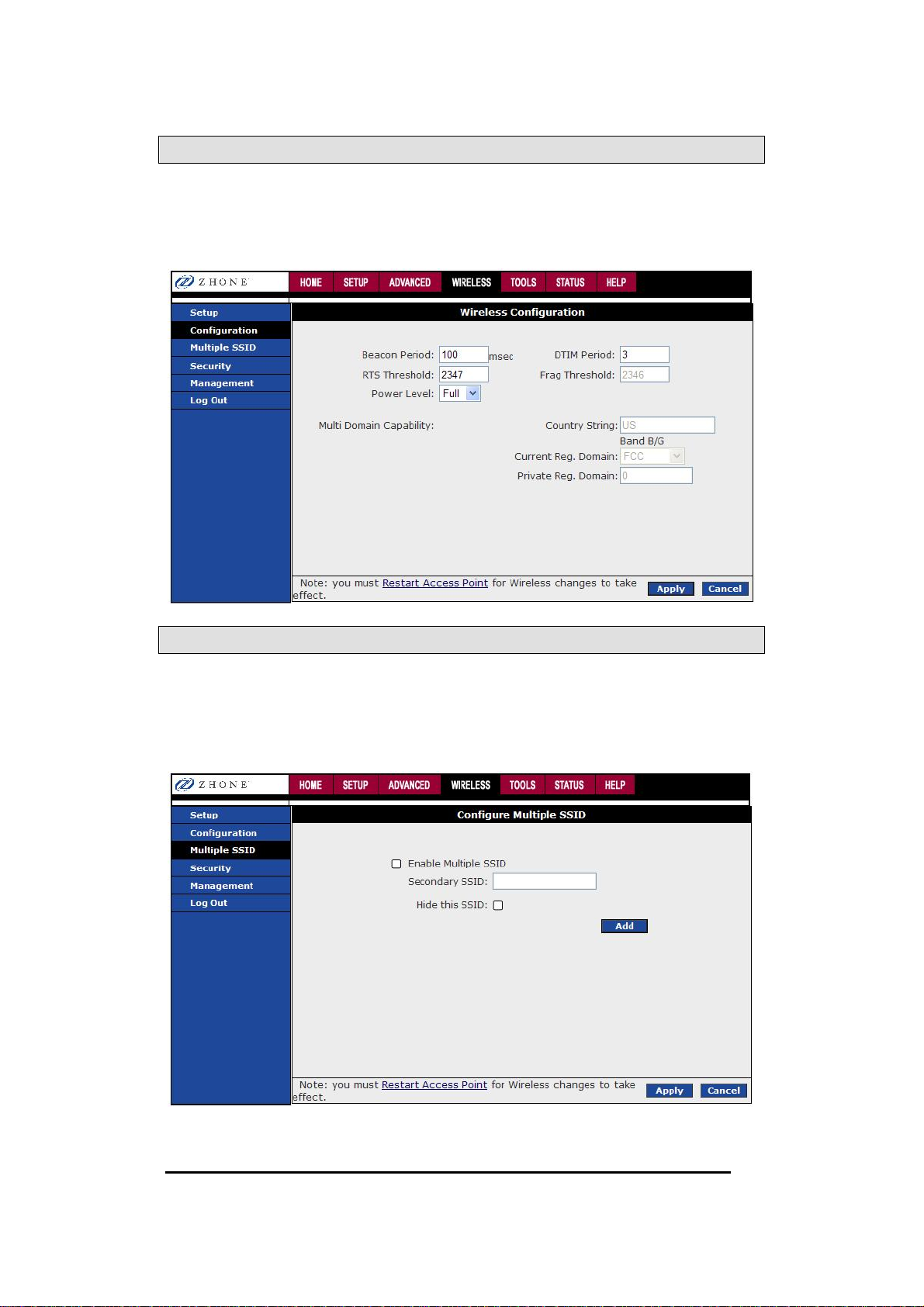

Configuration ......................................................................................... 36

Multiple SSID ......................................................................................... 36

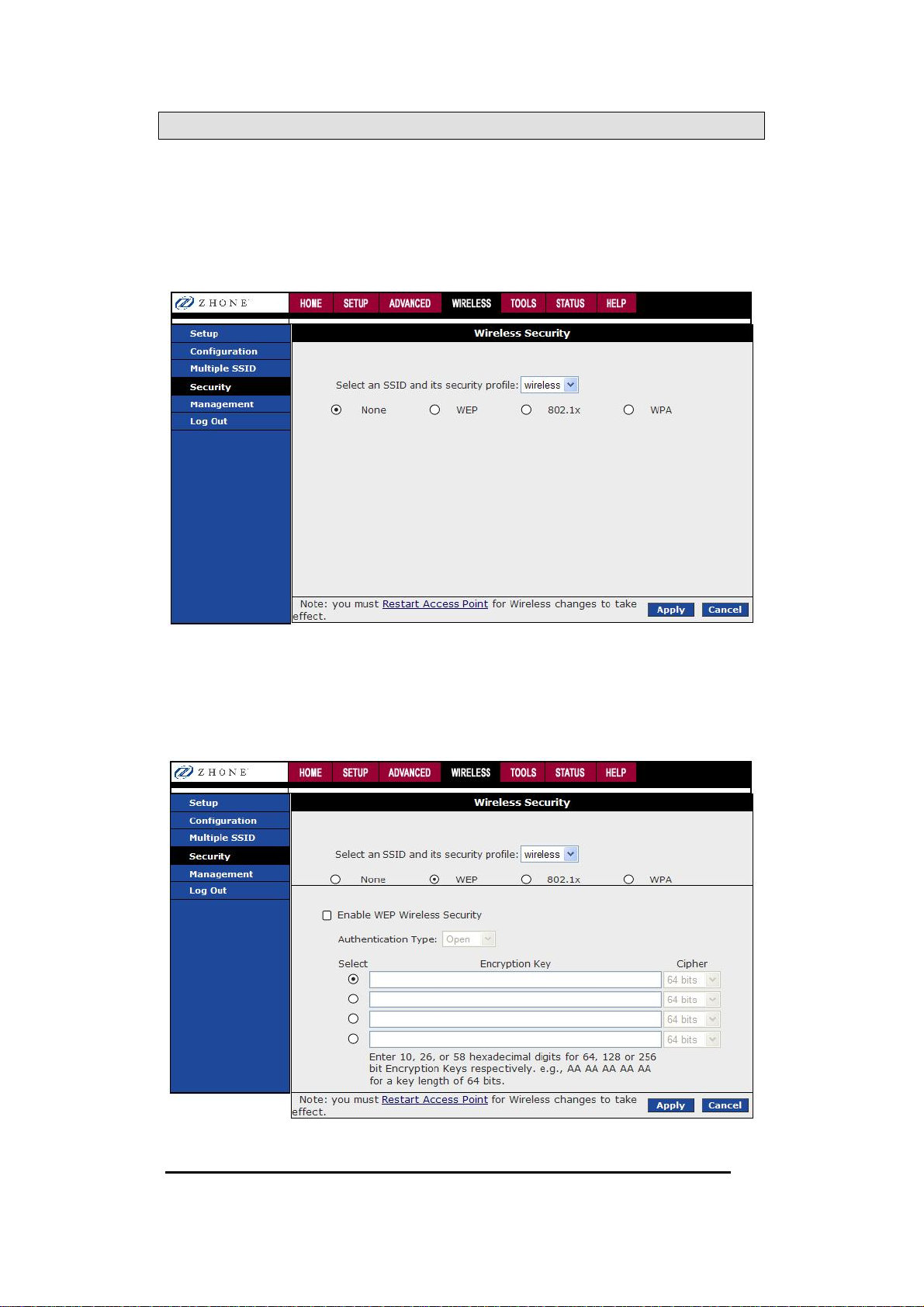

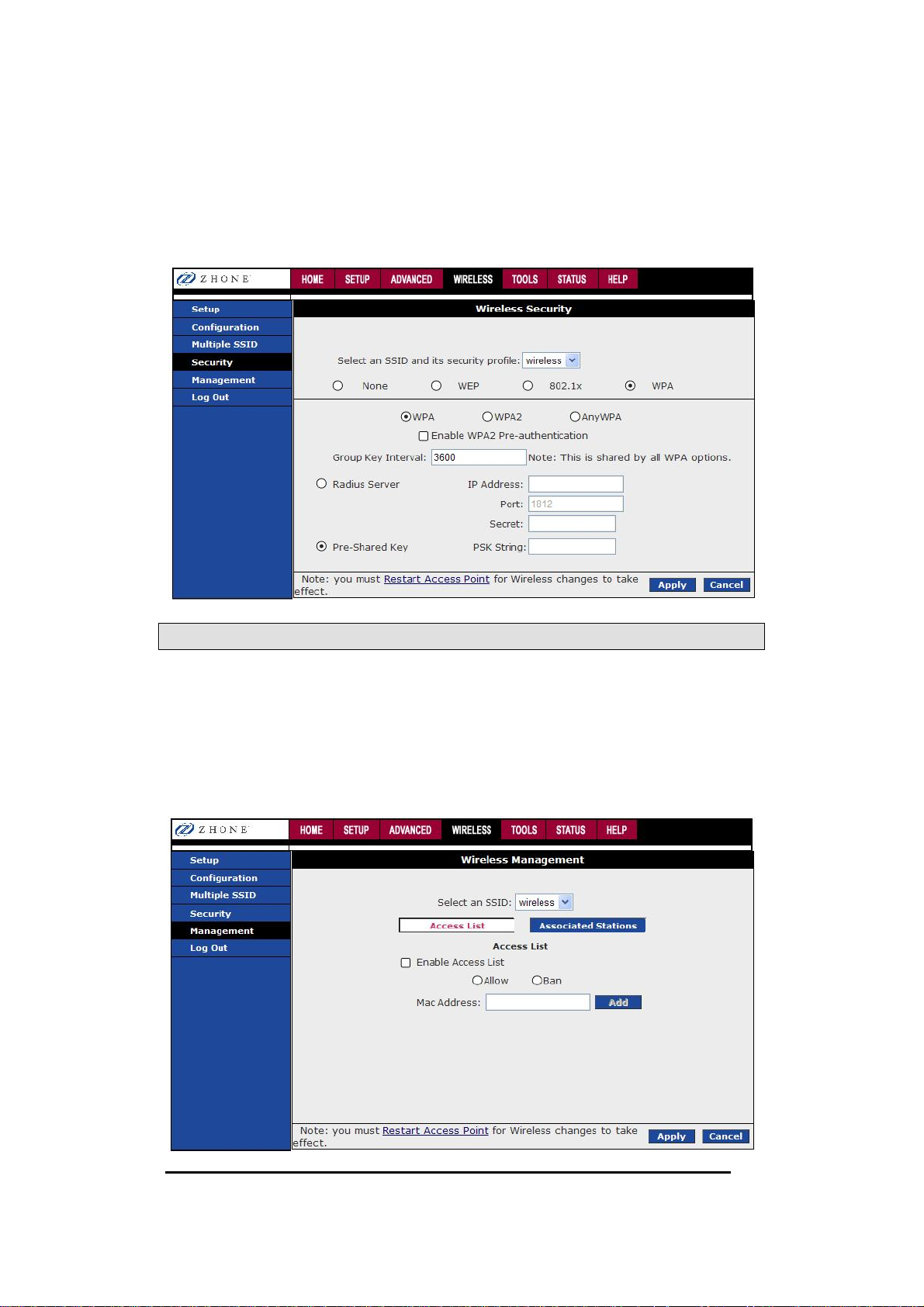

Security ................................................................................................. 37

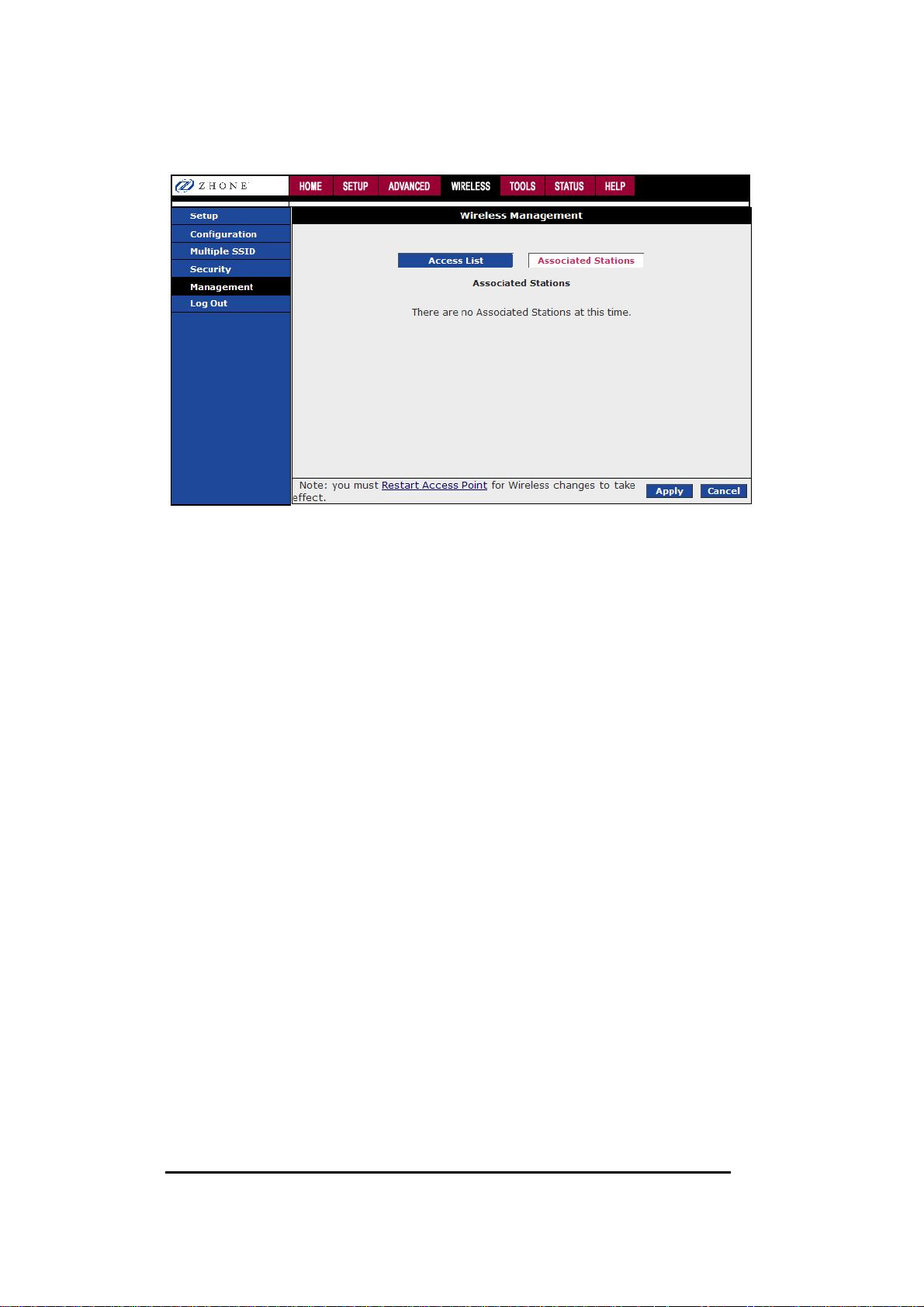

Management .......................................................................................... 38

TOOLS ........................................................................................................ 40

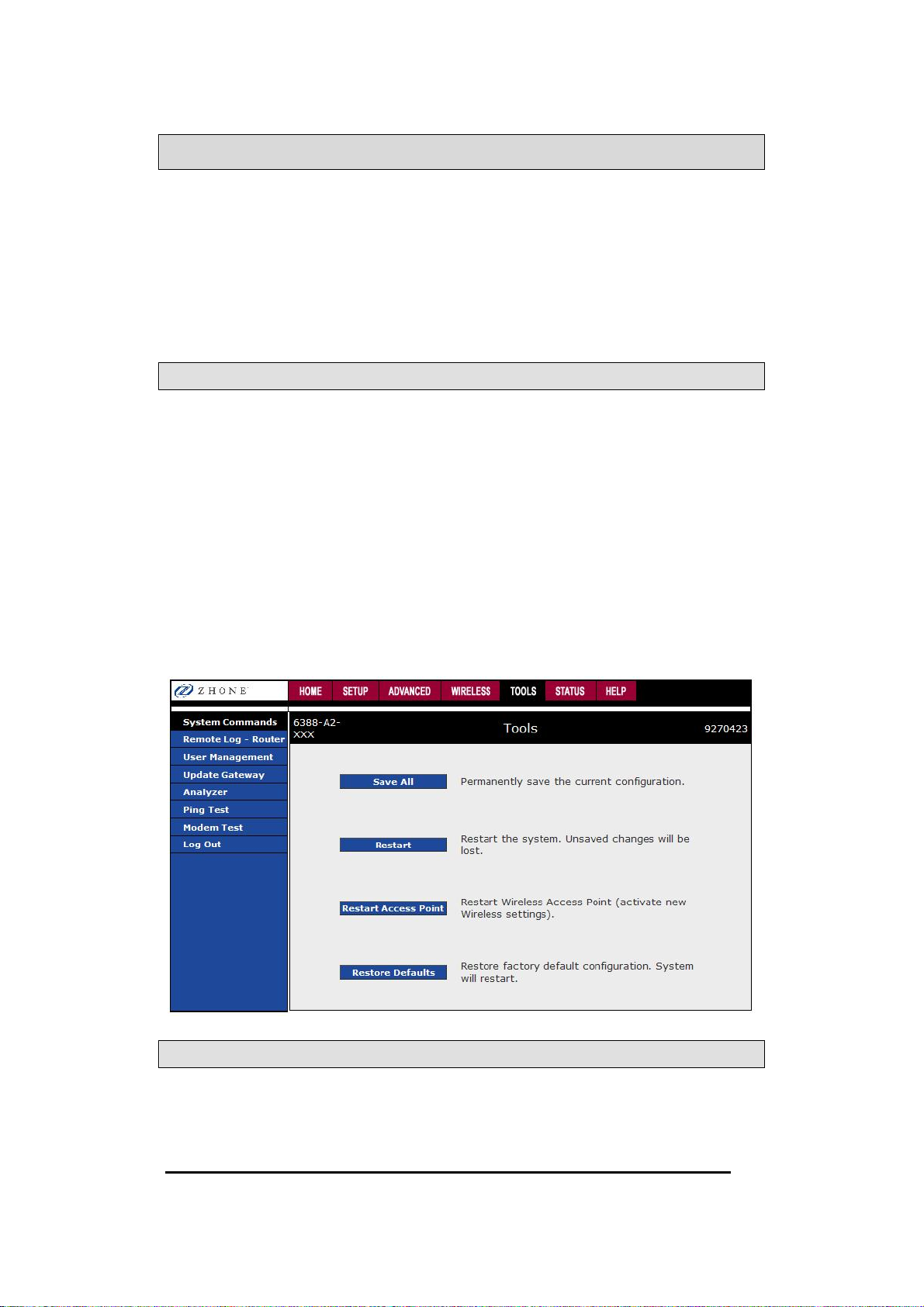

System Commands ................................................................................. 40

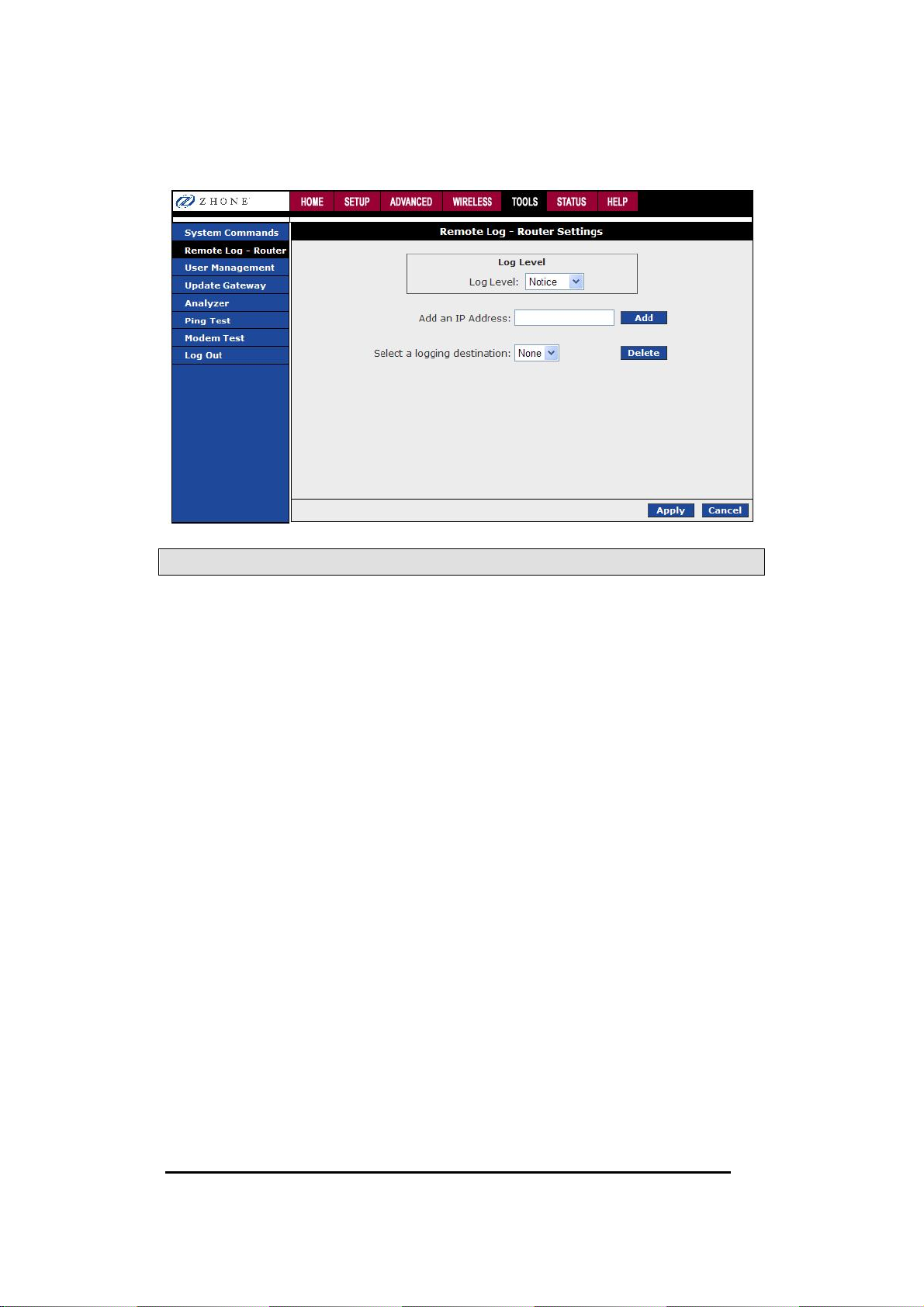

Remote Log - Router ............................................................................... 40

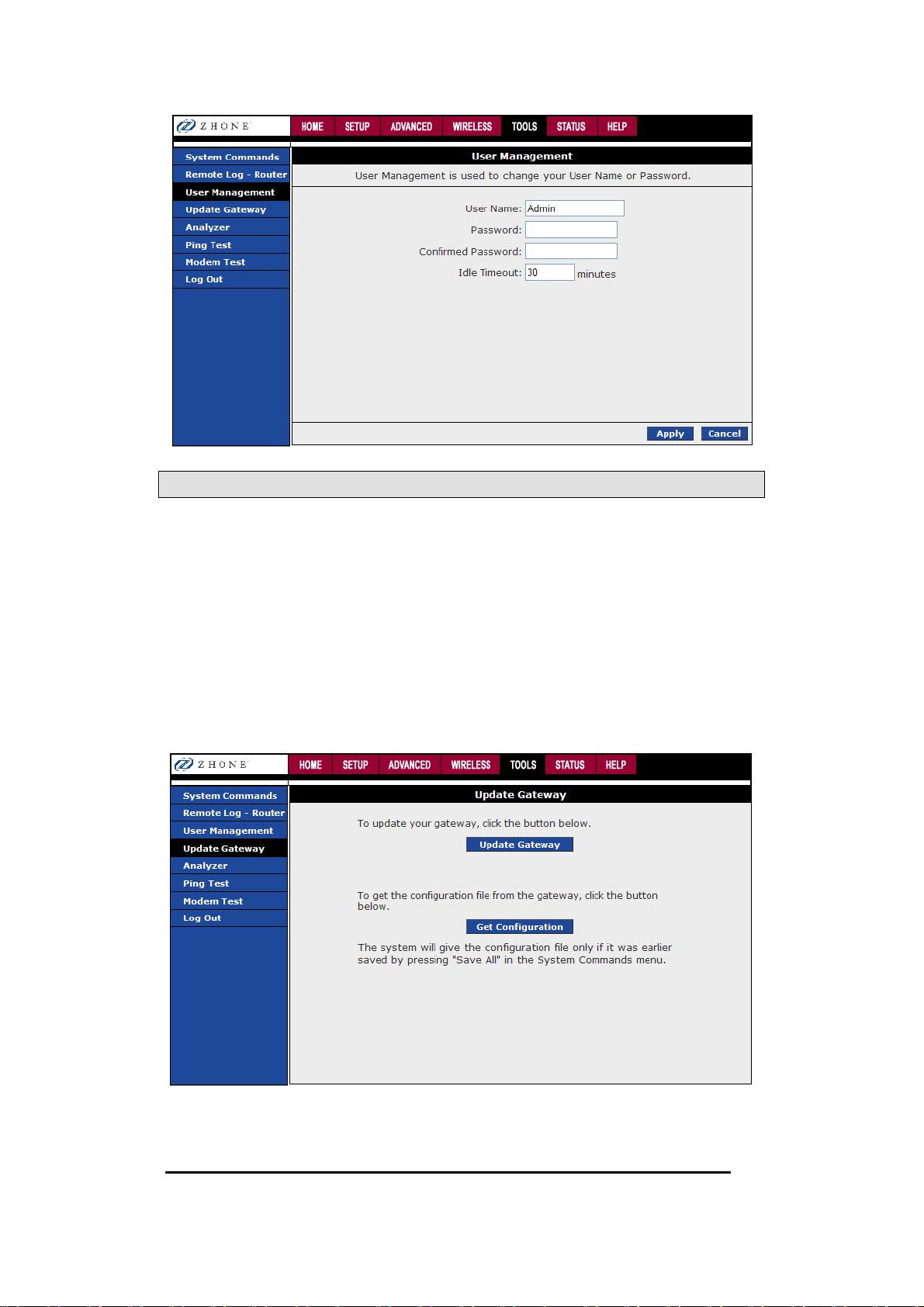

User Management ................................................................................... 41

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 1

Version 1.0
Document #: BD-ZU0042-10

Update Gateway ..................................................................................... 42

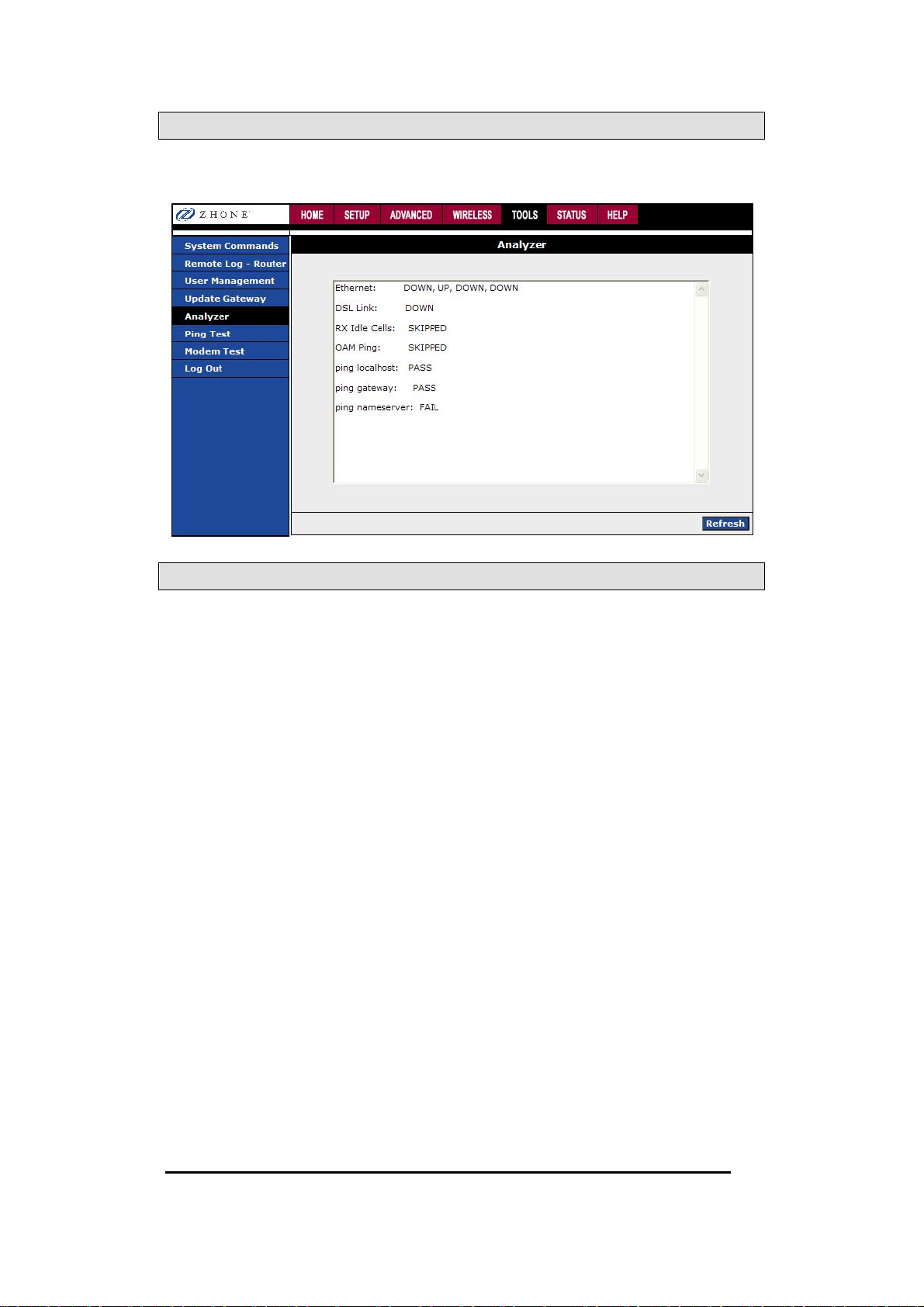

Analyzer ................................................................................................ 43

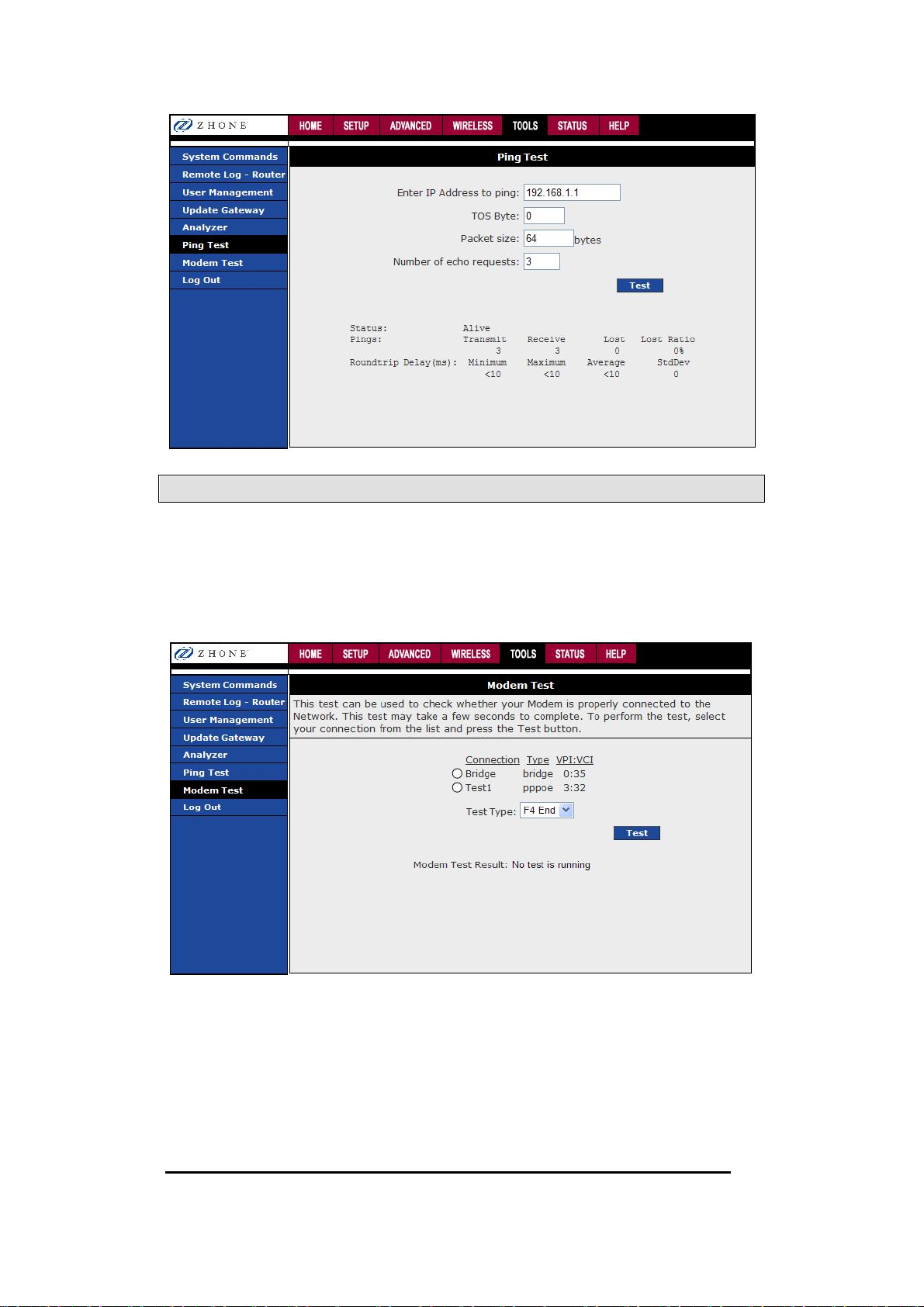

Ping Test ............................................................................................... 43

Modem Test ........................................................................................... 44

STATUS ....................................................................................................... 45

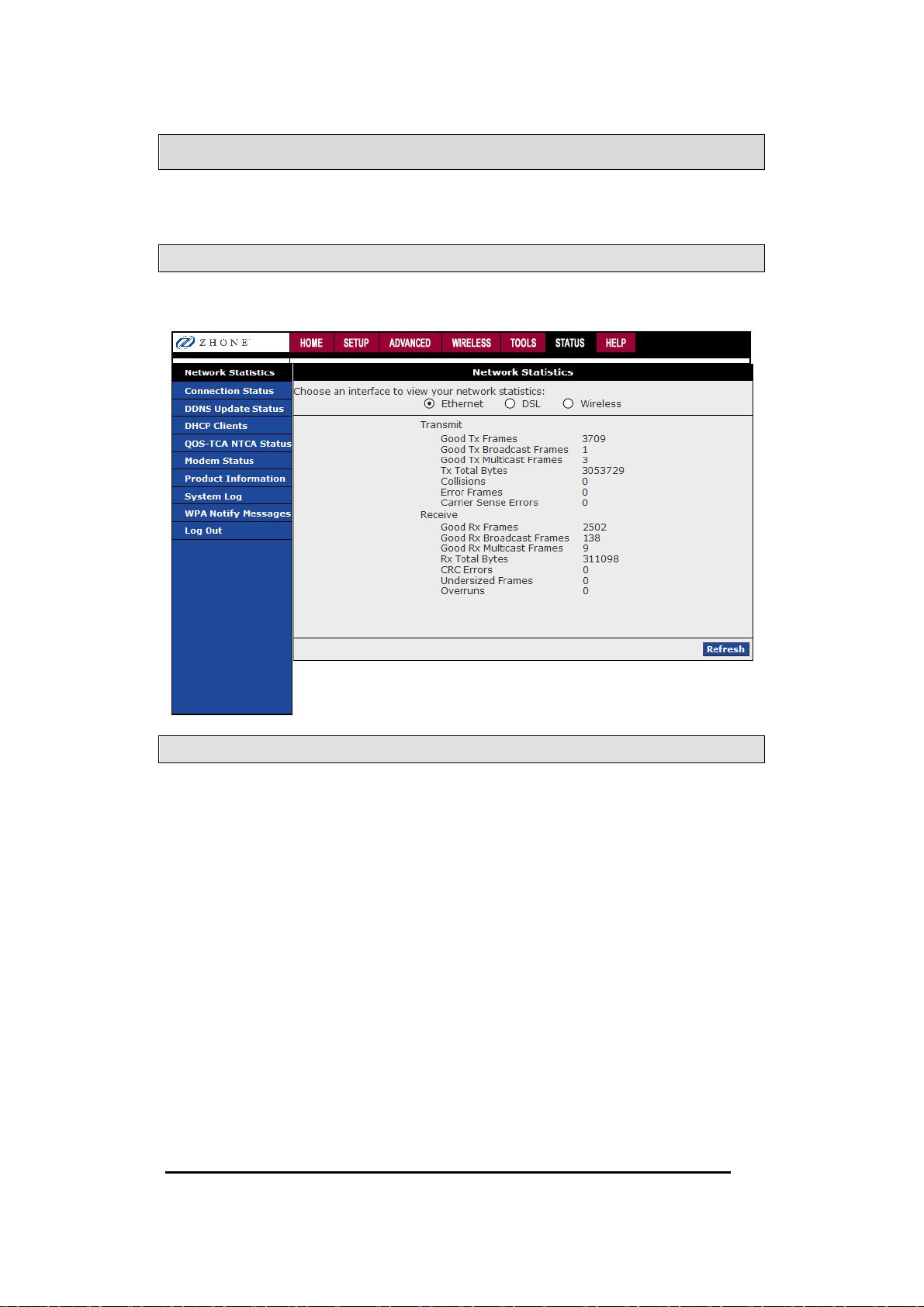

Network Statistics ................................................................................... 45

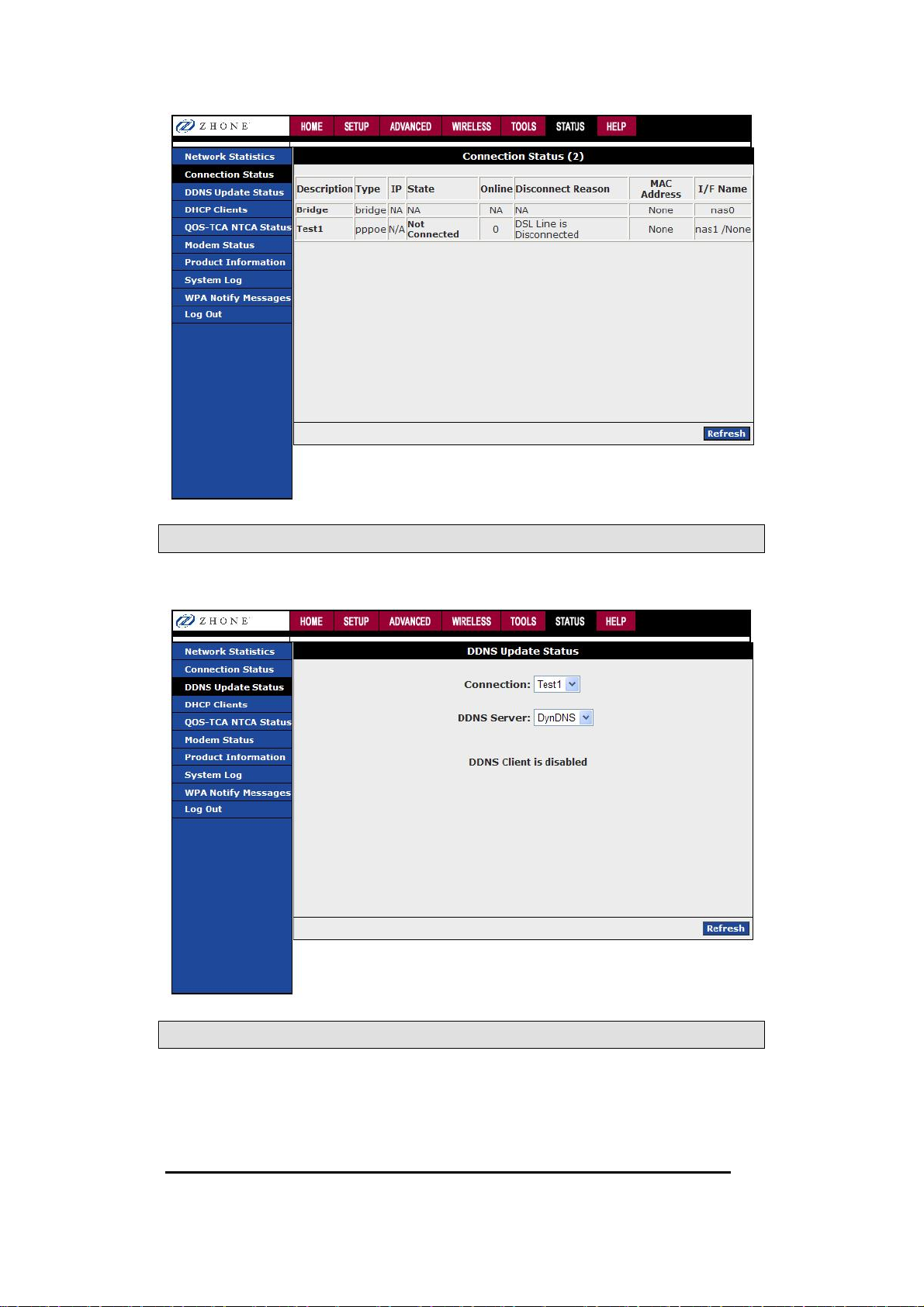

Connection Status ................................................................................... 45

DDNS Update Status ............................................................................... 46

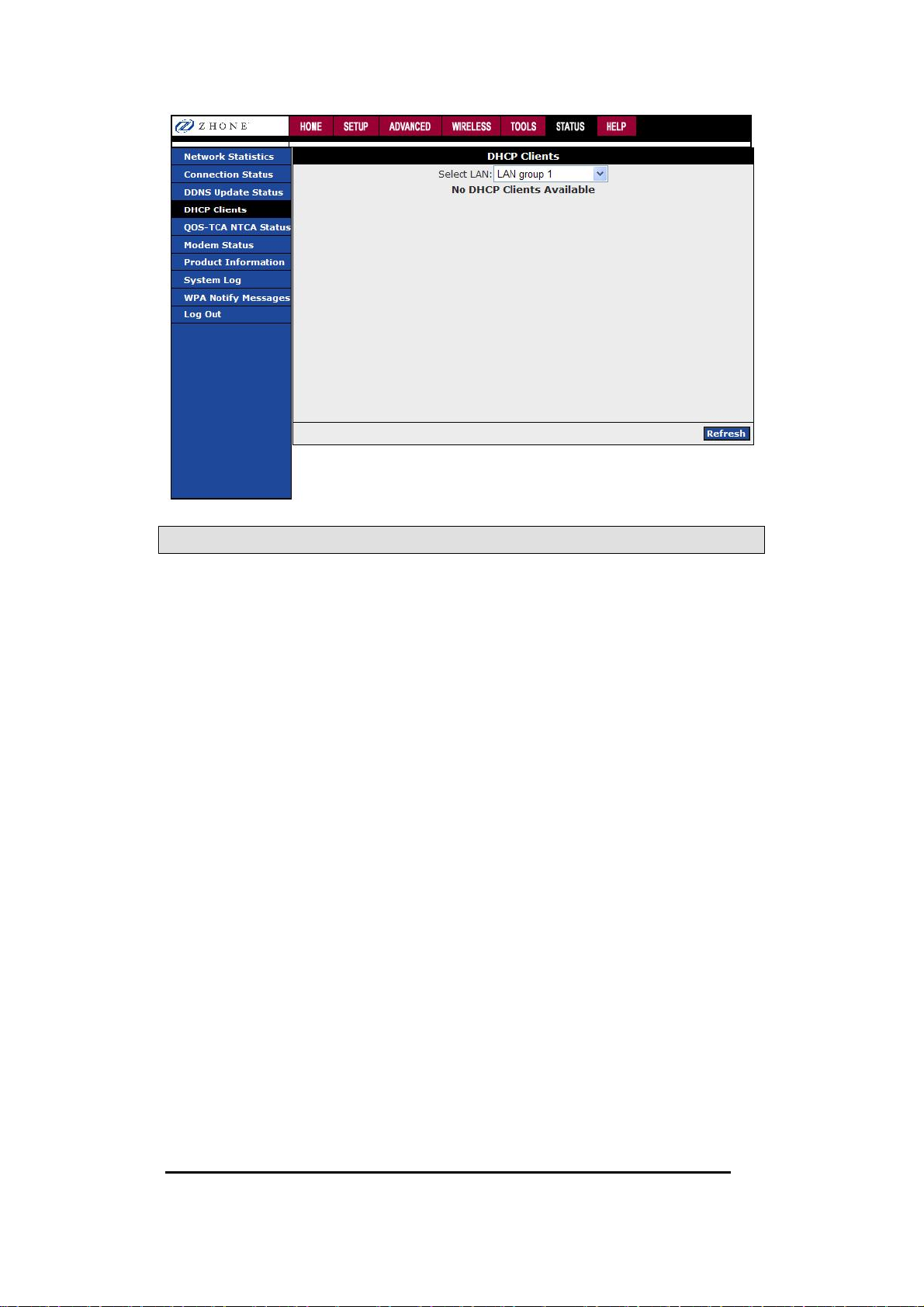

DHCP Clients .......................................................................................... 46

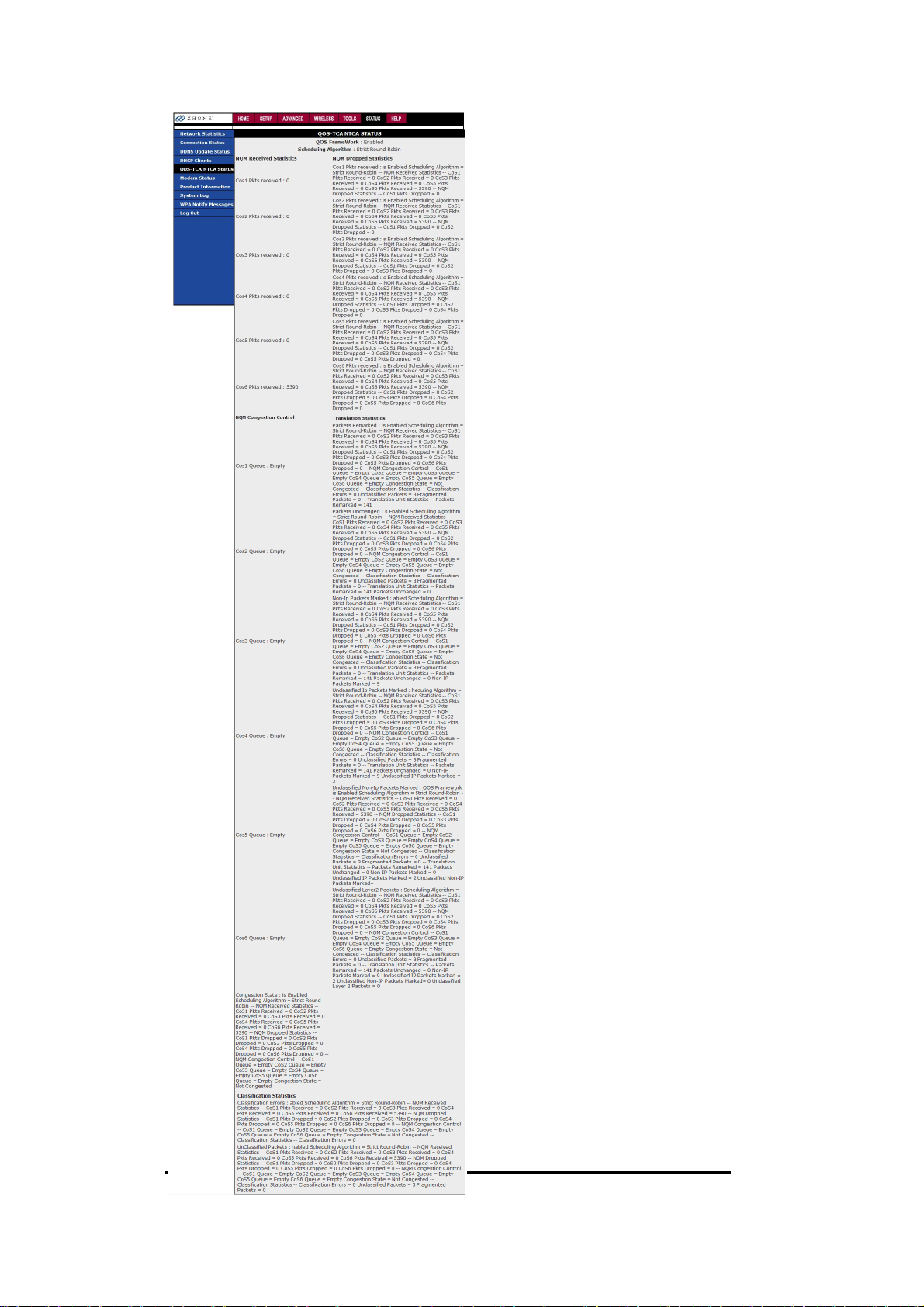

QOS-TCA NTCA Status ............................................................................ 47

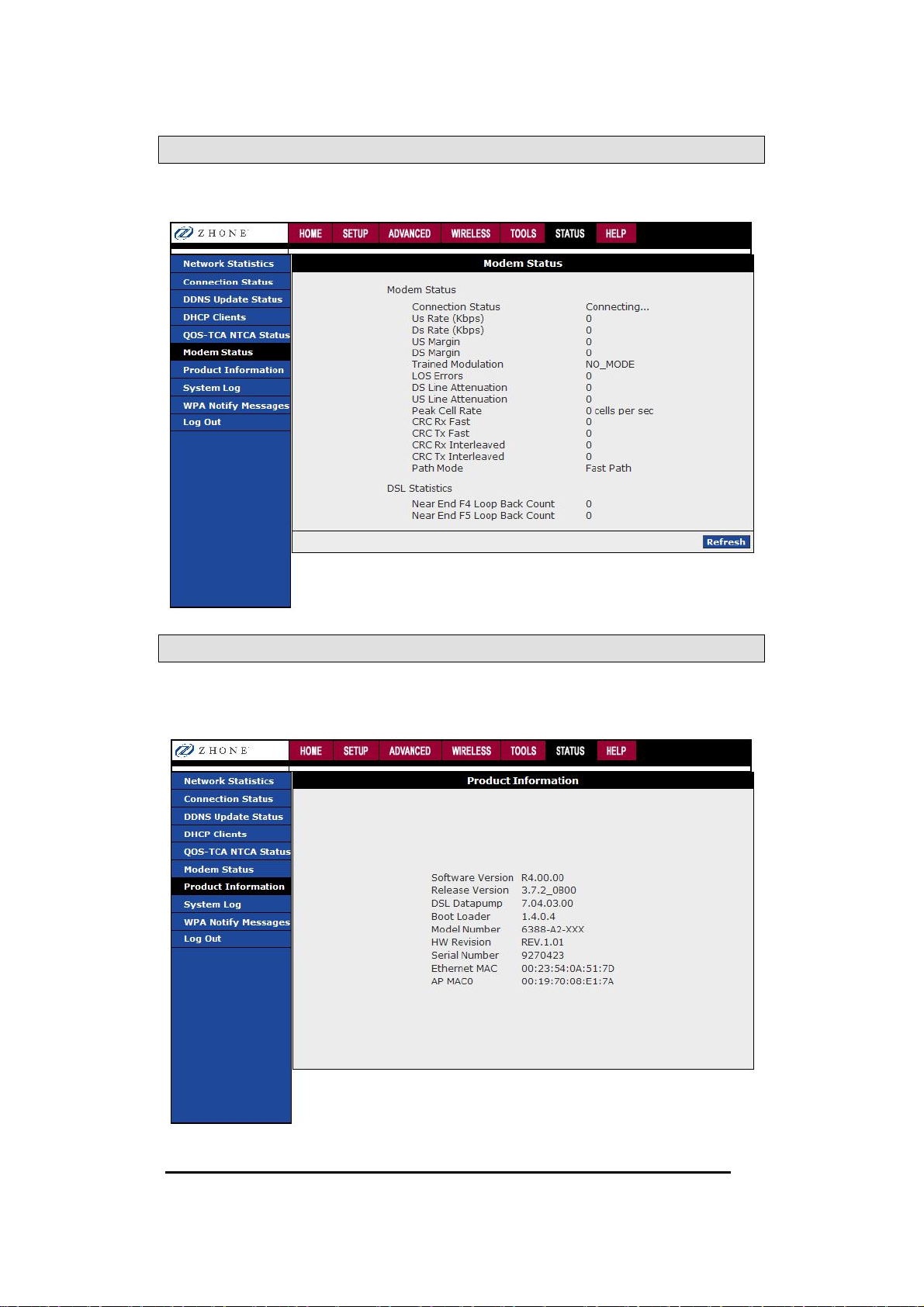

Modem Status ........................................................................................ 49

Product Information ................................................................................ 49

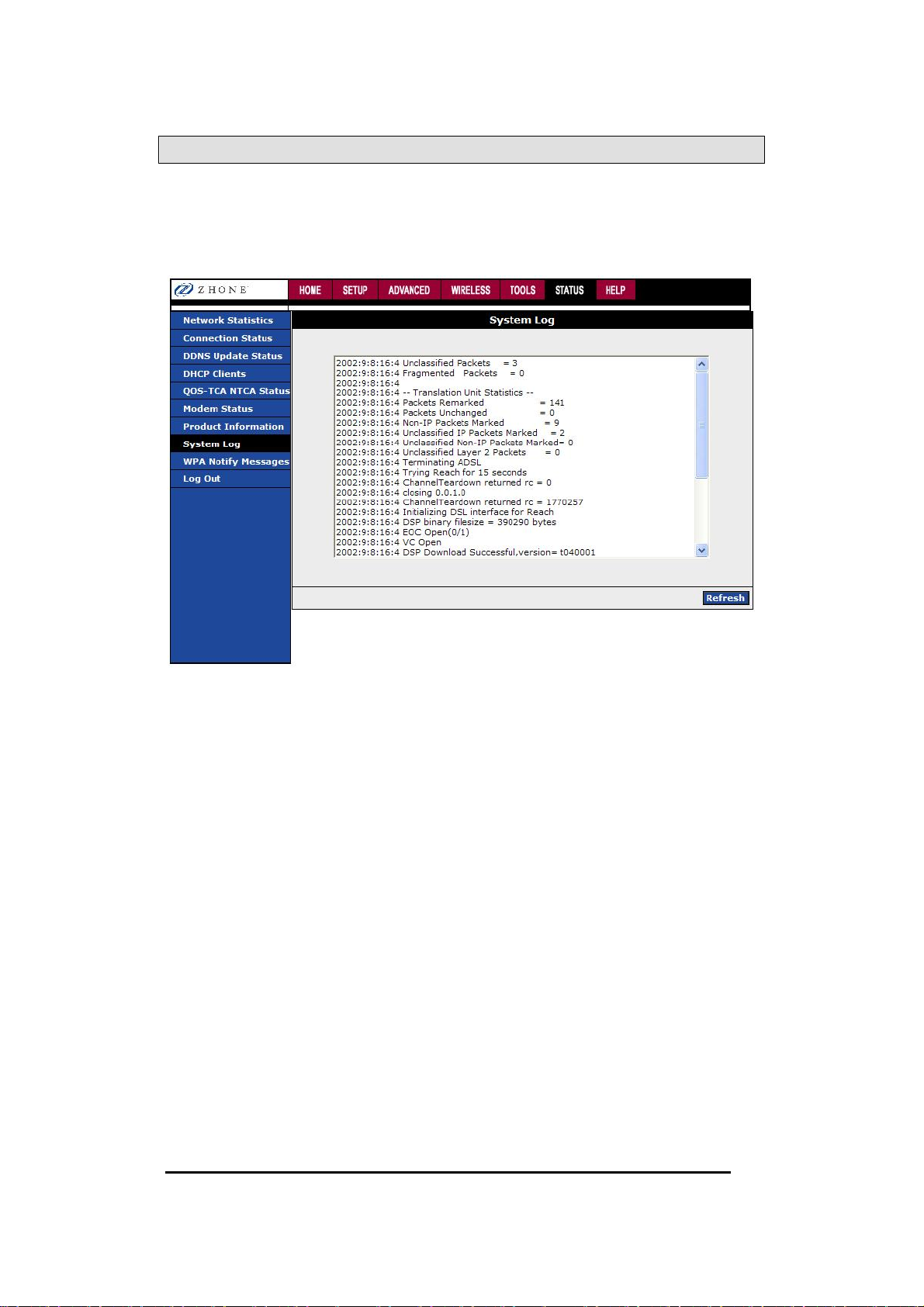

System Log ............................................................................................ 50

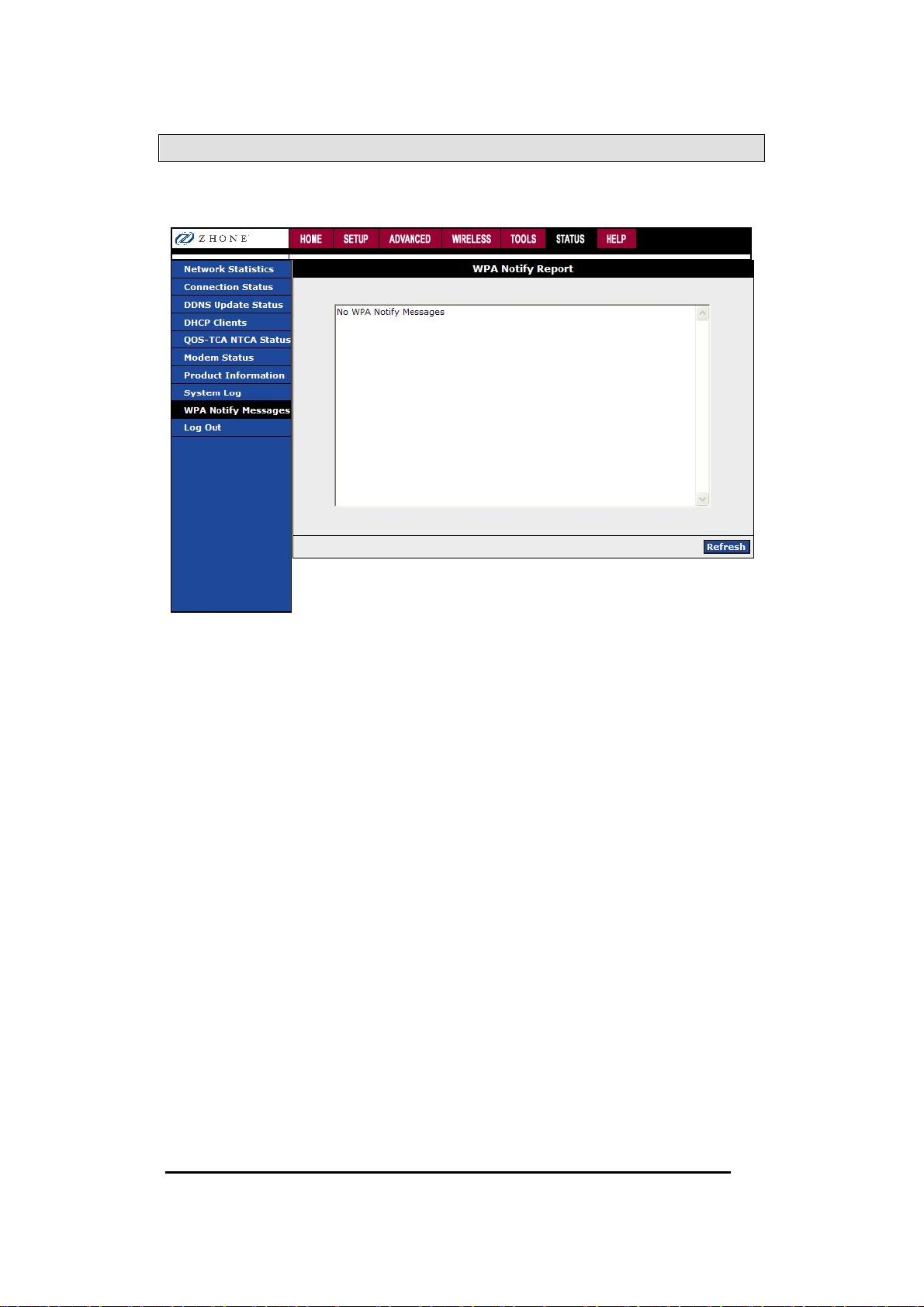

WPA Notify Messages .............................................................................. 51

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 2

Version 1.0
Document #: BD-ZU0042-10

Safety Instructions

General Information

The 4-Port Wi-Fi Router with In-Line Filter presents convenient networking for the
entire home or office environment providing wireless function and completely
configurable interface for specific settings.

Package Contents

Included in the package is one of each of the following—

• 4-Port Wi-Fi Router with In-Line Filter

• Power adapter

• USB cable

• RJ-11 telephone cable

• RJ-45 Ethernet cable

• User Manual / Quick Guide

• Place your router on a flat surface close to the cables in a location with

sufficient ventilation.

• To prevent overheating, do not obstruct the ventilation openings of this
equipment.

• Plug this equipment into a surge protector to reduce the risk of damage from
power surges and lightning strikes.

• Operate this equipment only from an electrical outlet with the correct power
source as indicated on the adapter.

• Do not open the cover of this equipment. Opening the cover will void any
warranties on the equipment.

• Unplug equipment first before cleaning. A damp cloth can be used to clean the
equipment. Do not use liquid / aerosol cleaners or magnetic / static cleaning
devices.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 3

Version 1.0
Document #: BD-ZU0042-10

Solid

Boot

-

up successful.

The router may not be turned on. Check if the AC

Solid

ADSL is connected.

No light

ADSL is not connected

. Blinking

The router is connected to ADSL.

Connection established. The router is able to

Flashing

The router is trying to connect to your ISP.

Solid

Router is connected to the LAN.

No connection to the LAN. Check if the LAN cable is

Blinking

LAN traffic

Solid

Wireless is enabled.

No light

Wireless is disabled.

Front Panel View

LED Mode Indication

Power

Status

Link Solid

LAN1-4

WLAN

No light

No light

power adapter is connected to the router and
plugged in.

communicate with your ISP via ADSL.

connected to the router.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 4

Version 1.0
Document #: BD-ZU0042-10

RJ-11 cable connects between telephone and the LINE port

RJ-11 cable connects to telephone (no external splitter

P

ress the button for 7 seconds or longer to revert to factory

RJ-45 connects the unit to an Ethernet device

such as a PC or

Power

Connects to power adapter.

On/Off

Press to turn the router on and off.

Back Panel View

Port Description

Line

Phone

Reset / Default

LAN1-4

using a splitter (not included) if needed.
necessary; unit has internal splitter).
default settings.
a switch.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 5

Version 1.0
Document #: BD-ZU0042-10

Installing the Router

Connect the ADSL Line and Telephone

• Connect one end of an RJ-11 cable from your ADSL connection and the other
end to the LINE port of the router. Use a second RJ-11 cable to connect
between a telephone and the PHONE port of the router.

Connect the PC to the Router

• To use the Ethernet connection, connect the Ethernet cable from the computer
directly to the router. Connect one end of the Ethernet cable to the port
labeled LAN on the back of the router and attach the other end to the Ethernet
port of your computer.

• Or, you can use the supplied USB cable to connect your computer directly to
the router. Connect one end of the USB cable to the USB port on the back of
the router and connect the other end to a free USB port on your PC. The Found
New Hardware Wizard will open on your PC. See USB Driver Installation below.

• If your LAN has more than one computer, you can attach one end of an
Ethernet cable to a hub or a switch and the other to the Ethernet port (labeled
LAN) on the router. Note that either a crossover or straight-through Ethernet
cable can be used. The router automatically recognizes the type of connection
that is required.

Connect the Power Adapter

• Complete the process by connecting the AC power adapter to the POWER
connector on the back of the device and plug the adapter into a wall outlet or
power strip. Then turn on and boot up your PC and any LAN devices, such as
hubs or switches, and any computers connected to them.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 6

Version 1.0
Document #: BD-ZU0042-10

Installation Diagram

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 7

Version 1.0
Document #: BD-ZU0042-10

Mounting the Router

The router can be mounted on the wall with two screws. Mounting can be done on wall
material including concrete, wood, or drywall. Select an appropriate location free from
obstructions or any possible interference. Make sure the cables can be easily attached
to the router without strain. The illustration below shows how to mount the router
horizontally on a wall.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 8

Version 1.0
Document #: BD-ZU0042-10

Configuring Your Computer

Prior to accessing the router through the LAN or the USB port, note the following
necessary configurations—

• Your PC’s TCP/IP address: 192.168.1.__( the last number is any number
between 2 and 254)

• The router’s default IP address: 192.168.1.1

• Subnet mask: 255.255.255.0

Below are the procedures for configuring your computer. Follow the instructions for the
operating system that you are using.

Windows 2000

1. In the Windows taskbar, click on the Start button and point to Settings, Control
Panel, and Network and Dial-up Connections (in that order).

2. Click on Local Area Connection. When you have the Local Area Connection
Status window open, click on Properties.

3. Listed in the window are the installed network components. If the list includes
Internet Protocol (TCP/IP), then the protocol has already been enabled, and
you can skip to Step 10.

4. If Internet Protocol (TCP/IP) does not appear as an installed component, then
click on Install.

5. In the Select Network Component Type window, click on protocol and then the
Add button.

6. Select Internet Protocol (TCP/IP) from the list and then click on OK.

7. If prompted to restart your computer with the new settings, click OK.

8. After your computer restarts, click on the Network and Dial-up Connections
icon again, and right click on the Local Area Connection icon and then select
Properties.

9. In the Local Area Connection Properties dialog box, select Internet Protocol
(TCP/IP) and then click on Properties.

10. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio
button labeled Use the following IP address and type 192.168.1.x (where
x is any number between 2 and 254) and 255.255.255.0 in the IP address field
and Subnet Mask field.

11. Click on OK twice to save your changes and then close the Control Panel.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 9

Version 1.0
Document #: BD-ZU0042-10

Windows XP

1. In the Windows taskbar, click on the Start button and point to Settings and
then click Network Connections.

2. In the Network Connections window, right click on the Local Area Connection
icon and click on properties.

3. Listed in the Local Area Connection window are the installed network
components. Make sure the box for Internet Protocol (TCP/IP) is checked and
then click on Properties.

4. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio
button labeled Use the following IP address and type 192.168.1.x (where
x is any number between 2 and 254) and 255.255.255.0 in the IP address field
and Subnet Mask field.

5. Click on OK twice to save your changes and then close the Control Panel.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 10

Version 1.0
Document #: BD-ZU0042-10

Log in to the Router

This section will explain how to log in to your router using the following steps—

1. Launch your web browser.

2. Enter the URL http://192.168.1.1 in the address bar and press Enter.

A login screen like the one below will be displayed after you connect to the user
interface.

3. Enter your user name and password, and then click on OK to display the

user interface.

NOTE: The user name / password are Admin / Admin and case sensitive.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 11

Version 1.0
Document #: BD-ZU0042-10

Home

The Home section provides a summary of the system information such as system
uptime, DSL status / speed, wireless RF status, Ethernet connection,
software version, temporary access update and SSID.

On this page you can also perform the following functions—

LOG OUT—click to log out of the router’s Internet user interface.
QUICK START—click to proceed to the setup of the WAN setup on the Setup page.
REFRESH—click to refresh the information on this page.

In addition, the connection status can also be seen along with the type of connection
and its status.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 12

Version 1.0
Document #: BD-ZU0042-10

Quick Start

When you click on the Quick Start button, you will notice that you are at the Setup
page under WAN Setup.

Select from the three connection types—DHCP, PPPoE, and Static.
Below is a PPPoE example. NAT and firewall can be enabled on the page.

If a DHCP connection type is selected, only the NAT and firewall options are shown.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 13

Version 1.0
Document #: BD-ZU0042-10

If Static connection is selected, the settings for connection need to be entered.
Enter the IP address, subnet mask, gateway, default gateway, and DNS1-3.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 14

Version 1.0
Document #: BD-ZU0042-10

Setup

To set up your router with a basic configuration, from the Home page, select Setup.
The page is divided into two subsections—LAN configuration and WAN configuration.

LAN Configuration

On one side of your router, you have your own Local Area network (LAN) connections.
This is where you plug in your local computers to the router. The router is normally
configured to automatically provide all PCs on your network with Internet addresses.

Zhone 6388-A2 4-Port Wi-Fi with In-Line Filter
User Manual 15

Version 1.0
Document #: BD-ZU0042-10
