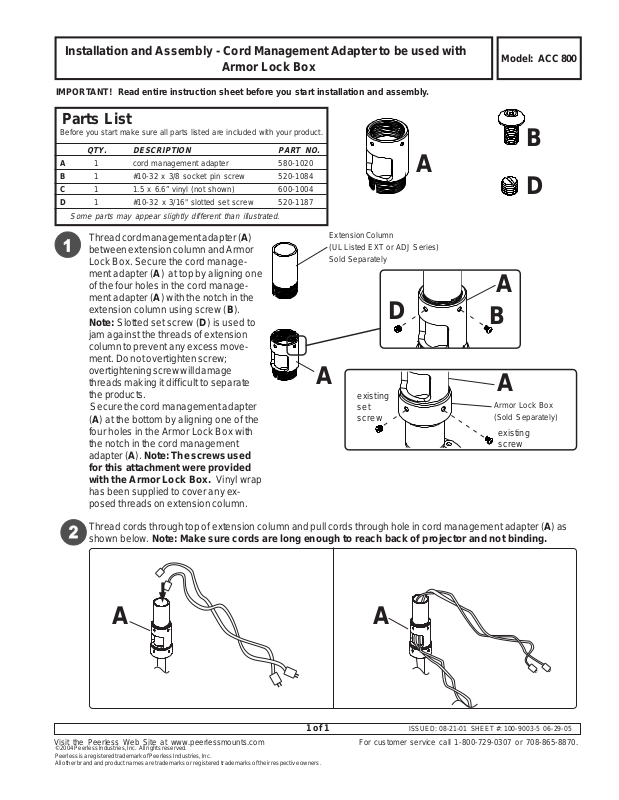

Peerless-Premier ACC 800 User Manual
Installation and Assembly - Cord Management Adapter to be used with
Armor Lock Box
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
Parts List
Before you start make sure all parts listed are included with your product.
QTY. DESCRIPTION PART NO.
A 1 cord management adapter 580-1020
B 1 #10-32 x 3/8 socket pin screw 520-1084
C 1 1.5 x 6.6” vinyl (not shown) 600-1004
D 1 #10-32 x 3/16" slotted set screw 520-1187
Some parts may appear slightly different than illustrated.
A
Model: ACC 800
B
D
Thread cord management adapter (A)
between extension column and Armor
Lock Box. Secure the cord management adapter (A) at top by aligning one
of the four holes in the cord management adapter (A) with the notch in the
extension column using screw (B).
Note: Slotted set screw (D) is used to
jam against the threads of extension
column to prevent any excess movement. Do not overtighten screw;
overtightening screw will damage
threads making it difficult to separate
the products.
Secure the cord management adapter
(A) at the bottom by aligning one of the
four holes in the Armor Lock Box with
the notch in the cord management
adapter (A). Note: The screws used
for this attachment were provided
with the Armor Lock Box. Vinyl wrap
has been supplied to cover any exposed threads on extension column.
Thread cords through top of extension column and pull cords through hole in cord management adapter (A) as
shown below. Note: Make sure cords are long enough to reach back of projector and not binding.
Extension Column
(UL Listed EXT or ADJ Series)
Sold Separately
D
A
existing
set
screw
A
B
A
Armor Lock Box
(Sold Separately)
existing
screw
AA
1 of 1
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
© 2004 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
ISSUED: 08-21-01 SHEET #: 100-9003-5 06-29-05
