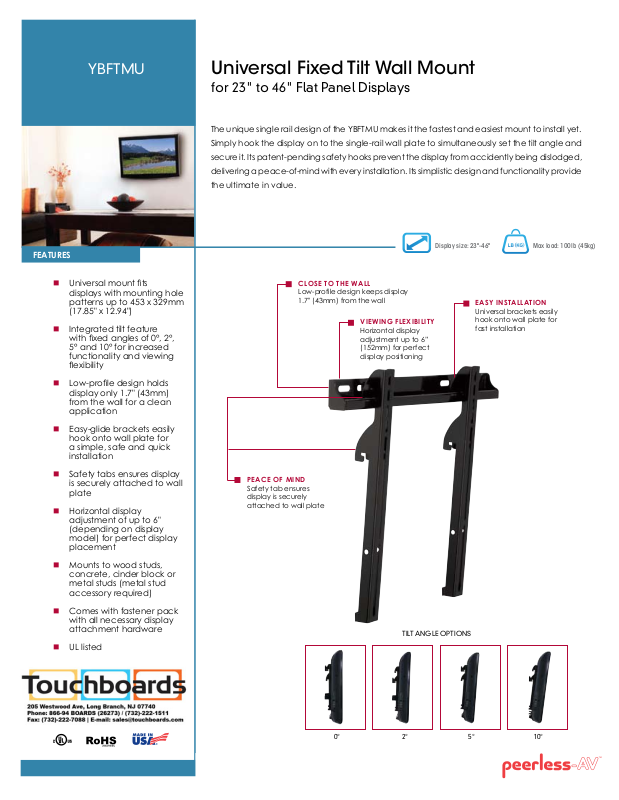

Peerless-AV YBFTMU Specsheet

YBFTMU

Universal Fixed Tilt Wall Mount

for 23" to 46" Flat Panel Displays

The unique single rail design of the YBFTMU makes it the fastest and easiest mount to install yet.

Simply hook the display on to the single-rail wall plate to simultaneously set the tilt angle and

secure it. Its patent-pending safety hooks prevent the display from accidently being dislodged,

delivering a peace-of-mind with every installation. Its simplistic design and functionality provide

the ultimate in value.

FEATURES

 Universal mount ts

displays with mounting hole

patterns up to 453 x 329mm
(17.85" x 12.94")

 Integrated tilt feature

with xed angles of 0°, 2°,
5° and 10° for increased

functionality and viewing

exibility

 Low-prole design holds

display only 1.7" (43mm)
from the wall for a clean
application

 Easy-glide brackets easily

hook onto wall plate for
a simple, safe and quick
installation

 Safety tabs ensures display

is securely attached to wall
plate

 Horizontal display

adjustment of up to 6"
(depending on display
model) for perfect display
placement

CLOSE TO THE WALL

Low-prole design keeps display

1.7" (43mm) from the wall

PEACE OF MIND

Safety tab ensures
display is securely
attached to wall plate

VIEWING FLEXIBILITY

Horizontal display
adjustment up to 6”
(152mm) for perfect
display positioning

Display size: 23"-46" Max load: 100lb (45kg)

EASY INSTALLATION

Universal brackets easily
hook onto wall plate for
fast installation

 Mounts to wood studs,

concrete, cinder block or
metal studs (metal stud
accessory required)

 Comes with fastener pack

with all necessary display
attachment hardware

 UL listed

TILT ANGLE OPTIONS

5°2°0°

CLICK: www.peerless-av.com CALL: 800.865.2112 FAX: [phone]

10°

Model Numbers

YBFTMU Universal Fixed Tilt Wall Mount for 23" to 46" Flat Panel Displays

Product Specifications

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

WARRANTY: Limited 5-year

YBFTMU

19.25" x 13.76" x 1.70"-2.68"
(489 x 350 x 43-68mm)

Package Specifications

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

YBFTMU

4.5" x 2" x 20.5"

(114 x 51 x 521mm)

Accessories

ACC215: 2-pack Metal Stud Fastener Kit

19.25"

(489mm)

0.51"

(13mm)

1.00"

(25mm)

16.00"

(406mm)

WALL PLATE

3.40lb (1.54kg) 100lb (45kg)

3.80lb (1.72kg) 735029284369

1.57"

(40mm)

0.76"

(19mm)

(21mm)

1.25"

(32mm)

0.82"

Powder

Coat

Wall plate, universal

brackets, mounting and

display attachment

hardware

13.76"

(350mm)

Black

1

All dimensions = inch (mm)

ISOMETRIC VIEW

17.85"

(453mm)

MAX.

FRONT VIEW

12.94"

(329mm)

MAX.

SIDE VIEW

VERTICAL ADAPTER

1.70"

(43mm)

10°

SIDE VIEW

10° TILT

2.68"

(68mm)

A R C H I T E C T S S P E C I F I C A T I O N S

The Universal Fixed Tilt Wall Mount shall be a Peerless-AV model YBFTMU and shall be located where indicated on the plans.

Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  [phone]  [phone]  Fax: [phone]  www.peerless-av.com

Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.

© 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved.

Assembly and installation shall be done according to instructions provided by the manufacturer.

LIT-0890
