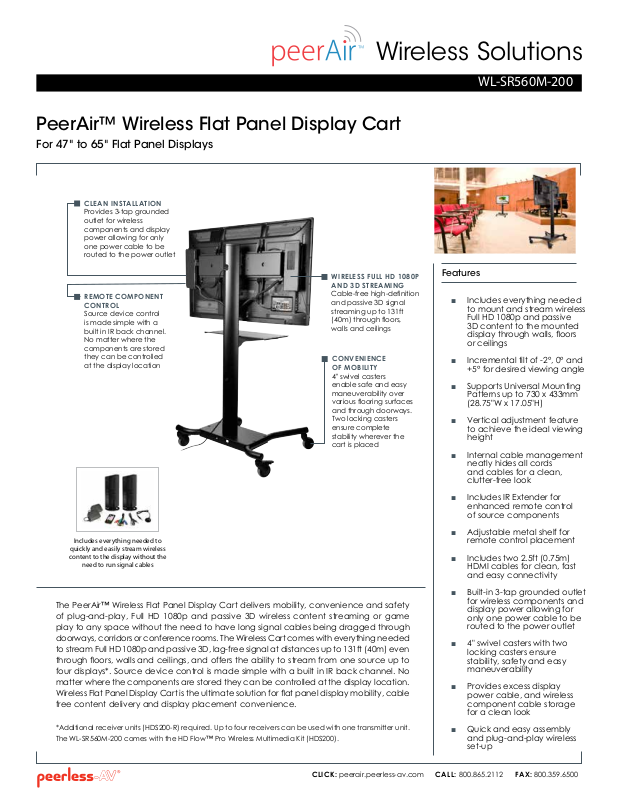

Peerless-AV WBK100 Sell Sheet

Wireless Solutions

PeerAir™ Wireless Flat Panel Display Cart

For 47" to 65" Flat Panel Displays

CLEAN INSTALLATION

Provides 3-tap grounded
outlet for wireless
components and display
power allowing for only
one power cable to be
routed to the power outlet

WL-SR560M-200

WIRELESS FULL HD 1080P
AND 3D STREAMING

REMOTE COMPONENT
CONTROL

Source device control
is made simple with a
built in IR back channel.
No matter where the
components are stored
they can be controlled
at the display location

Includes everything needed to

quickly and easily stream wireless

content to the display without the

need to run signal cables

Cable-free high-denition

and passive 3D signal
streaming up to 131ft

(40m) through oors,

walls and ceilings

CONVENIENCE
OF MOBILITY

4" swivel casters
enable safe and easy
maneuverability over

various ooring surfaces

and through doorways.
Two locking casters
ensure complete
stability wherever the
cart is placed

The PeerAir™ Wireless Flat Panel Display Cart delivers mobility, convenience and safety
of plug-and-play, Full HD 1080p and passive 3D wireless content streaming or game
play to any space without the need to have long signal cables being dragged through
doorways, corridors or conference rooms. The Wireless Cart comes with everything needed
to stream Full HD 1080p and passive 3D, lag-free signal at distances up to 131ft (40m) even

through oors, walls and ceilings, and offers the ability to stream from one source up to

four displays*. Source device control is made simple with a built in IR back channel. No
matter where the components are stored they can be controlled at the display location.

Wireless Flat Panel Display Cart is the ultimate solution for at panel display mobility, cable

free content delivery and display placement convenience.

*Additional receiver units (HDS200-R) required. Up to four receivers can be used with one transmitter unit.

The WL-SR560M-200 comes with the HD Flow™ Pro Wireless Multimedia Kit (HDS200).

Features

■ Includes everything needed

to mount and stream wireless
Full HD 1080p and passive
3D content to the mounted

display through walls, oors

or ceilings

■ Incremental tilt of -2°, 0° and

+5° for desired viewing angle

■ Supports Universal Mounting

Patterns up to 730 x 433mm
(28.75"W x 17.05"H)

■ Vertical adjustment feature

to achieve the ideal viewing
height

■ Internal cable management

neatly hides all cords
and cables for a clean,
clutter-free look

■ Includes IR Extender for

enhanced remote control

of source components

■ Adjustable metal shelf for

remote control placement

■ Includes two 2.5ft (0.75m)

HDMI cables for clean, fast
and easy connectivity

■ Built-in 3-tap grounded outlet

for wireless components and
display power allowing for
only one power cable to be
routed to the power outlet

■ 4" swivel casters with two

locking casters ensure
stability, safety and easy
maneuverability

■ Provides excess display

power cable, and wireless
component cable storage
for a clean look

■ Quick and easy assembly

and plug-and-play wireless
set-up

CALL: 800.865.2112 FAX: [phone]CLICK: peerair.peerless-av.com

Wireless Solutions

WL-SR560M-200 PeerAir™ Wireless Flat Panel Display Cart for 47" to 65" Flat Panel Displays

Product Specifications

Part Number WL-SR560M-200

Display Size 47" to 65"

Universal Mounting Pattern (W x H) 730 x 433mm (28.75" x 17.05")

Tilt +5°, -2°, 0°

Product Weight 81.15lb (36.81kg)

Max Load 250lb (113kg)

150lb (68kg) display
50lb (22kg) shelf

Finish Scratch resistant fused epoxy (mount),
High Gloss Polycarbonate (Wireless Integration Modules)

Color Black cart with metal shelf

Package Specifications

PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

WL-SR560M-200

56.938" x 19.000" x 7.625"
(1446 x 483 x 194mm)

87.65lb (39.76kg) 735029292869

Wireless Range 131ft (40m)

Audio 2 Ch. Linear PCM, Analog, 48kHz 16-bit ADC

Audio Input 1 x 3.5mm Audio Jack (Transmitter)

Audio Output 1 x 3.5mm Audio Jack (Receiver)

WiFi Frequency 5.15-5.25GHz

Latency < 30ms

Power Voltage 120 VAC, Consumption: 12V 2A

Video Input (Transmitter) 2 x HDMI up to 1080p (60Hz), 1920x1080

1 x Composite
1 x YPbPr Component

Video Output (Receiver) 1 x HDMI up to 1080p (60Hz), 1920x1080
1 x Composite
1 x YPbPr Component

· Flat Panel Cart

· Wireless Transmitter unit with stand

· Wireless Receiver unit

· Remote control

· 2 x 12V 2A power supply

· IR Flasher

· IR Extender

· 15-Pin D-Sub to RCA female component
video breakout cable

· 2 x 2.5ft (.75m) HDMI cable

· 4 x Mounting brackets (2 short, 2 long)

· 4ft (1.22m) Cable management sheath

· 3-tap grounded outlet

· Mounting hardware

· Instruction manual

1

Accessories

68.43"

(1738mm)

DE-HD0075B:

Delta 2.5ft (.75m)
High Speed HDMI
Cable with Ethernet

HDS200-R:

TM

HD Flow
Multimedia Receiver

Pro Wireless

44.56"

(1132mm)

DE-HD01B:

Delta 3ft (1m)
High Speed HDMI
Cable with Ethernet

(707mm)

HDS-ASE:

Wireless Tx/Rx Security
Enclosure for use with HD
Flow and HD Flow Pro Models

27.83"

12.34"

(313mm)

EC-HD015F:

1.5ft (.5m) High
Speed HDMI Cable
with Ethernet

28.75"

(730mm)

EC-HD025F:

2.5ft (.75m) High
Speed HDMI Cable
with Ethernet

HDS-IRE:

IR Extender
for use with

HDS200-R

EC-HD03F:

3ft (1m) High
Speed HDMI Cable
with Ethernet

CL-SCG200:

Screen
Cleaning Gel

All dimensions = inch (mm)

17.05"

(433mm)

ADAPTER PLATE

FRONT VIEW

SIDE VIEW

ISOMETRIC VIEW

A R C H I T E C T S S P E C I F I C A T I O N S

The Wireless Flat Panel Display Cart shall be a Peerless-AV model WL-SR560M-200 and shall be located where indicated on the plans.

Assembly and installation shall be done according to instructions provided by the manufacturer.
