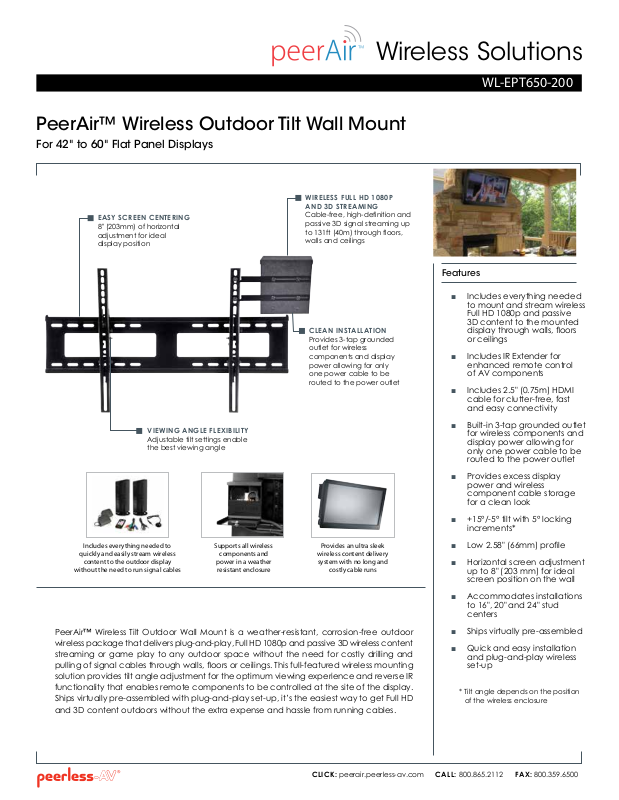

Wireless Solutions
PeerAir™ Wireless Outdoor Tilt Wall Mount
For 42" to 60" Flat Panel Displays
WIRELESS FULL HD 1080P
AND 3D STREAMING
EASY SCREEN CENTERING
8" (203mm) of horizontal
adjustment for ideal
display position
VIEWING ANGLE FLEXIBILITY
Adjustable tilt settings enable
the best viewing angle
Includes everything needed to
quickly and easily stream wireless
content to the outdoor display
without the need to run signal cables
Supports all wireless
components and
power in a weather
resistant enclosure
PeerAir™ Wireless Tilt Outdoor Wall Mount is a weather-resistant, corrosion-free outdoor
wireless package that delivers plug-and-play, Full HD 1080p and passive 3D wireless content
streaming or game play to any outdoor space without the need for costly drilling and
pulling of signal cables through walls, oors or ceilings. This full-featured wireless mounting
solution provides tilt angle adjustment for the optimum viewing experience and reverse IR
functionality that enables remote components to be controlled at the site of the display.
Ships virtually pre-assembled with plug-and-play set-up, it’s the easiest way to get Full HD
and 3D content outdoors without the extra expense and hassle from running cables.
Cable-free, high-denition and
passive 3D signal streaming up
to 131ft (40m) through oors,
walls and ceilings
CLEAN INSTALLATION
Provides 3-tap grounded
outlet for wireless
components and display
power allowing for only
one power cable to be
routed to the power outlet
Provides an ultra sleek
wireless content delivery
system with no long and
costly cable runs
WL-EPT650-200
Features
■ Includes everything needed
to mount and stream wireless
Full HD 1080p and passive
3D content to the mounted
display through walls, oors
or ceilings
■ Includes IR Extender for
enhanced remote control
of AV components
■ Includes 2.5" (0.75m) HDMI
cable for clutter-free, fast
and easy connectivity
■ Built-in 3-tap grounded outlet
for wireless components and
display power allowing for
only one power cable to be
routed to the power outlet
■ Provides excess display
power and wireless
component cable storage
for a clean look
■ +15°/-5° tilt with 5° locking
increments*
■ Low 2.58" (66mm) prole
■ Horizontal screen adjustment
up to 8" (203 mm) for ideal
screen position on the wall
■ Accommodates installations
to 16", 20" and 24" stud
centers
■ Ships virtually pre-assembled
■ Quick and easy installation
and plug-and-play wireless
set-up
* Tilt angle depends on the position
of the wireless enclosure
CALL: 800.865.2112 FAX: 800.359.6500CLICK: peerair.peerless-av.com
Page 2
Wireless Solutions
WL-EPT650-200: PeerAir™ Wireless Outdoor Tilt Wall Mount for 42" to 60" Flat Panel Displays
Product Specifications
Part Number WL-EPT650-200
Display Size 42" to 60"
Max Load 175lb (79kg)
Universal Mounting Pattern (W x H) 738 x 449mm (29.055" x 17.677")
®
Mounting Pattern 600 x 400mm
VESA
Distance from wall 2.598" (66mm)
Tilt +15/-5° with 5° lock increments (tilt angle depends
on placement of the wireless components)
Product Weight 15.35lb (6.96kg)
Finish Outdoor powder paint (mount),
Textured ABS plastic, UL 94HB (Wireless Integration Module)
Color Black
Package Specifications
PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
WL-EPT650-200
35.250" x 21.188" x 5.438"
(895.35 x 538.23 x 138.18mm)
21.50lb (9.72kg) 735029292821
Wireless Range 131ft (40m)
Video Input (Transmitter) 2 x HDMI up to 1080p (60Hz), 1920x1080
1 x Composite
1 x YPbPr Component
Video Output (Receiver) 1 x HDMI up to 1080p (60Hz), 1920x1080
1 x Composite
1 x YPbPr Component
Audio 2 Ch. Linear PCM, Analog, 48kHz 16-bit ADC
Audio Input 1 x 3.5mm Audio Jack (Transmitter)
Audio Output 1 x 3.5mm Audio Jack (Receiver)
WiFi Frequency 5.15-5.25GHz
Latency < 30ms
Power Voltage 120 VAC, Consumption: 12V 2A
· Outdoor Tilt Wall Mount
· Outdoor Weather Resistant Enclosure
· Wireless Transmitter with stand
· Wireless Receiver
· Remote control
· 2 x 12V 2A power supply
· IR Flasher
· IR Extender
· 15-Pin D-Sub to RCA female component
video breakout cable
· 2.5ft (.75m) HDMI cable
· 4 x Mounting brackets (2 short, 2 long)
· 4ft (1.2m) Cable management sheath
· 3-tap grounded outlet
· Removable sub-panel
· Mounting hardware
· Instruction manual
1
Accessories
21.34"
(542mm)
DE-HD0075B:
Delta 2.5ft (.75m)
High Speed HDMI
Cable with Ethernet
HDS200-R:
TM
HD Flow
Multimedia Receiver
9.12"
(232mm)
Pro Wireless
DE-HD01B:
Delta 3ft (1m)
High Speed HDMI
Cable with Ethernet
HDS-ASE:
Wireless Tx/Rx Security
Enclosure for use with HD
Flow and HD Flow Pro Models
39.13"
(994mm)
(738mm)
FRONT VIEW
29.04"
EC-HD015F:
1.5ft (.5m) High
Speed HDMI Cable
with Ethernet
6.20"
(158mm)
17.67"
(449mm)
EC-HD025F:
2.5ft (.75m) High
Speed HDMI Cable
with Ethernet
HDS-IRE:
IR Extender
for use with
HDS200-R
SIDE VIEW
EC-HD03F:
3ft (1m) High
Speed HDMI Cable
with Ethernet
CL-SCG200:
Screen
Cleaning Gel
All dimensions = inch (mm)
ISOMETRIC VIEW
A R C H I T E C T S S P E C I F I C A T I O N S
The Wireless Outdoor Tilt Wall Mount shall be a Peerless-AV model WL-EPT650-200 and shall be located where indicated on the plans.
Peerless-AV 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500 peerless-av.com peerair.peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including wireless devices, interactive devices, at panel mounts, projector mounts, carts/stands, furniture, cables, screen
cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. All rights reserved. Peerless-AV® is a registered trademark and PeerAirTM is trademark
of Peerless Industries, Inc. HD Flow™ is a trademark of I Do It, LTD. Other parties’ marks are the property of their respective owners.
Assembly and installation shall be done according to instructions provided by the manufacturer.
LIT-0781 rev.1
