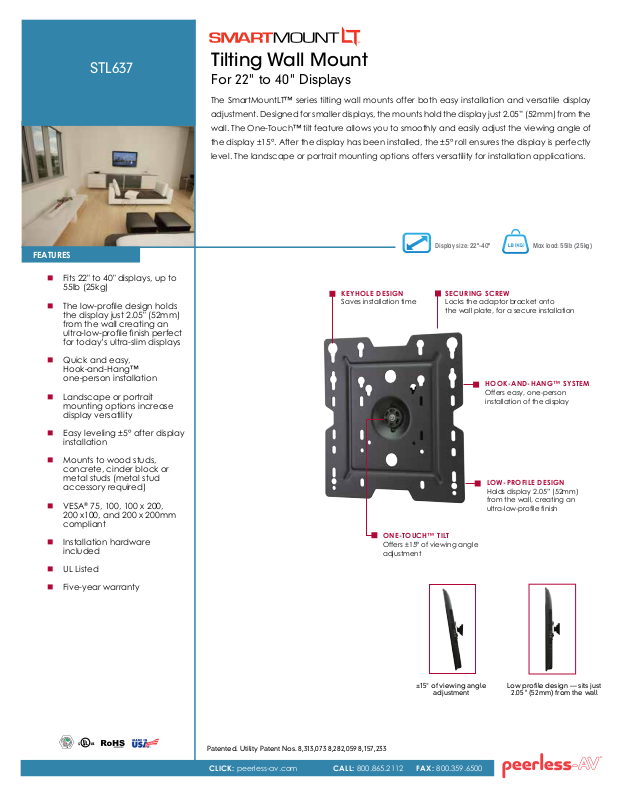

Peerless-AV STL637 Specsheet

STL637

Tilting Wall Mount

For 22" to 40" Displays

The SmartMountLT™ series tilting wall mounts offer both easy installation and versatile display

adjustment. Designed for smaller displays, the mounts hold the display just 2.05” (52mm) from the

wall. The One-Touch™ tilt feature allows you to smoothly and easily adjust the viewing angle of

the display ±15°. After the display has been installed, the ±5° roll ensures the display is perfectly

level. The landscape or portrait mounting options offers versatility for installation applications.

FEATURES

 Fits 22" to 40" displays, up to

55lb (25kg)

 The low-prole design holds

the display just 2.05" (52mm)
from the wall creating an

ultra-low-prole nish perfect

for today’s ultra-slim displays

 Quick and easy,

Hook-and-Hang™
one-person installation

 Landscape or portrait

mounting options increase
display versatility

 Easy leveling ±5° after display

installation

 Mounts to wood studs,

concrete, cinder block or
metal studs (metal stud
accessory required)

®

 VESA

75, 100, 100 x 200,
200 x100, and 200 x 200mm
compliant

 Installation hardware

included

 UL Listed

KEYHOLE DESIGN

Saves installation time

ONE-TOUCH™ TILT

Offers ±15° of viewing angle
adjustment

Display size: 22"-40" Max load: 55lb (25kg)

SECURING SCREW

Locks the adaptor bracket onto
the wall plate, for a secure installation

HOOK-AND-HANG™ SYSTEM

Offers easy, one-person
installation of the display

LOW-PROFILE DESIGN

Holds display 2.05” (52mm)
from the wall, creating an

ultra-low-prole nish

 Five-year warranty

±15° of viewing angle

adjustment

Patented. Utility Patent Nos. 8,313,073 8,282,059 8,157,233

CLICK: peerless-av.com CALL: 800.865.2112 FAX: [phone]

Low prole design — sits just

2.05" (52mm) from the wall

Model Numbers

STL637 SmartMountLT™ Tilting Wall Mount for 22" to 40" Displays

Product Specifications

DIMENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITY FINISH AVAILABLE COLORS

WARRANTY: Limited 5-year

STL637

9.00" x 9.70" x 2.05"-3.38"
(229 x 246 x 52-86mm)

Package Specifications

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

STL637

10.80" x 9.60" x 2.50"
(274 x 244 x 64mm)

Accessories

ACC973: VESA® 400 x 400mm Adaptor Plates

ESHV10: Single AV Wall Shelf

ESHV20: Single AV Wall Shelf with Glass
ESHV30: Dual AV Wall Shelf with Glass

2.41lb (1.09kg) 55lb (25kg) Matte Black

3.30lb (1.50kg) 735029292692

ACC215: Metal Stud Fastener Kit

3.12"

(79mm)

Wall mount,
attachment

hardware and

installation

instructions

1

3.00"

(76mm)

3.90"

(99mm)

WALL PLATE

9.00"

(229mm)

9.70"

(246mm)

7.87"

3.94"

(100mm)

7.87"

(200mm)

3.94"

(100mm)

(75mm)

(75mm)

2.95"

2.95"

(86mm)

(52mm)

3.38"

2.05"

(200mm)

FRONT VIEW

SIDE VIEW

TILT

+/-15

A R C H I T E C T S S P E C I F I C A T I O N S

The Tilting Wall Mount shall be a Peerless-AV model STL637 and shall be located where indicated on the plans. Assembly and installation shall be done according to

instructions provided by the manufacturer.
