Peerless-AV SS560DPS Installation

Installation and Assembly:

Dedicated Tilt Wall Mount

Model: ST16D

Max Load Capacity: 200 lb (91 kg)

2300 White Oak Circle • Aurora, Il 60502 • [phone] • Fax: [phone] • www.peerlessmounts.com

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Note: Read entire instruction sheet before you start installation and assembly.

WARNING

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer care at 1-800-865-2112.

• This product should only be installed by a qualifi ed professional.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.

• Never exceed the Maximum Load Capacity of 200 lb (91 kg).

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud fi nder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.

Tools Needed for Assembly

• stud fi nder ("edge to edge" stud fi nder is recommended)

• phillips screwdriver

• drill

• 5/16" bit for concrete and cinder block wall

• 5/32" bit for wood stud wall

• level

• 6 mm allen wrench

Accessories

• Metal Stud Fastener Kit (ACC 415)

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Single Stud Wall ...............................................................................................................................................4

Installation to Double Wood Stud Wall ...................................................................................................................................5

Installation to Solid Concrete or Cinder Block ........................................................................................................................6

Attaching PLP Adapter Plate to Tilt Bracket Assembly ...........................................................................................................7

Attaching LC Adapter Plate to Tilt Bracket Assembly .............................................................................................................8

Mounting and Removing Flat Panel Screen ...........................................................................................................................9

Adjusting the Tilt Angle of the Flat Panel Screen................................................................................................................. 10

2 of 11

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

A

Before you begin, make sure all parts shown are included with your product.

Parts List

Description Qty Part #

tilt bracket assemby 1 200-0936
wall plate 1 200-1797

B

#14 x 2.5" wood screw 4 5S1-015-C03

C

concrete anchor 4 590-0320

D

M10 x 15 mm socket head screw 4 520-9262

E

4 mm security allen wrench 1 560-1146

F

Parts may appear slightly different than illustrated.

B

A

C

D

E

3 of 11

F

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Installation to Single Wood Stud Wall

WARNING

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.

• Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud fi nder
is highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs.
Installers are responsible to provide hardware for other types of mounting situations.

Use a stud fi nder to locate the edges of the stud. Use of an edge-to-edge stud fi nder is highly recommended.

1

Based on its edges, draw a vertical line down the stud’s center. Place wall plate (B) on wall as a template, making
sure that the three mounting holes are over the stud centerline. The top mounting hole should be 2.5" above the
desired screen center as shown in fi gure 1.1. Level plate, and mark the center of the three holes. Drill three 5/32"
(4 mm) dia. holes 2-1/2" (64 mm) deep. Make sure that the wall plate is level, secure it using three #14 x 2.5" wood
screws (C) as shown in fi gure 1.2.

Skip to step 2 on page 7.

CS = center of screen

2.5"

(64 mm)

CS

fi g. 1.1

B

C

4 of 11

fi g. 1.2

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Installation to Double Wood Stud Wall

WARNING

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.

• Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud fi nder
is highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs.
Installers are responsible to provide hardware for other types of mounting situations.

Wall plate (B) can be mounted to two studs that are 16" apart. Use a stud fi nder to locate the edges of the studs.

1

Use of an edge-to-edge stud fi nder is highly recommended. Based on their edges, draw a vertical line down each
stud’s center. Place wall plate on wall as a template. The top mounting slots should be 2.5" above the desired
screen center as shown in fi gure 1.3. Level plate, and mark the center of the four mounting holes. Make sure that
the mounting holes are on the stud centerlines. Drill four 5/32" (4 mm) dia. holes 2-1/2" (64 mm) deep. Make sure
that the wall plate is level, secure it using four #14 x 2.5" wood screws (C) as shown in fi gure 1.4.

Skip to step 2 on page 7.

CS = center of screen

2.5"

(64 mm)

CS

fi g. 1.3

B

C

5 of 11

fi g. 1.4

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Installation to Solid Concrete or Cinder Block

WARNING

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a
solid part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90
specifi cations. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a
hammer drill to avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.

Make sure that wall plate (B) is level, use it as a

1

template to mark four mounting holes. The top
mounting hole should be 2.5" above the desired
screen center as shown in fi gure 1.1 on page 4. Drill
four 5/16" (8 mm) dia. holes to a minimum depth of

2.5" (64 mm). Insert anchors (D) in holes fl ush with
wall as shown (right). Place wall plate over anchors
and secure with #14 x 2.5" screws (C). Level, then
tighten all fasteners.

1

Drill holes and insert anchors (D).

2

B

concrete
surface

D

WARNING

• Tighten screws so that wall plate is fi rmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Always attach concrete expansion anchors directly
to load-bearing concrete.

• Never attach concrete expansion anchors to
concrete covered with plaster, drywall, or other
fi nishing material. If mounting to concrete surfaces
covered with a fi nishing surface is unavoidable,
the fi nishing surface must be counterbored as
shown below. Be sure concrete anchors do not
pull away from concrete when tightening screws. If
plaster/drywall is thicker than 5/8" (16 mm), custom
fasteners must be supplied by installer.

INCORRECT CORRECT

wall

plate

concrete

wall

plate

concrete

C

Place plate (B) over anchors (C) and secure with screws (D).

3

Tighten all fasteners.

solid concrete

D

cinder block

D

CUTAWAY VIEW

plaster/
dry wall

plaster/
dry wall

6 of 11

B

C

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2.

Attaching PLP Adapter Plate to Tilt Bracket Assembly

Attach adapter bracket to interface bracket of tilt bracket assembly (A) using four M10 screws (E).

2

Note: Full tilt bracket assembly not shown for clarity.

Skip to step 3.

A

(NOTE: INTERFACE
BRACKET SHOWN
WITHOUT FULL TILT
BRACKET ASSEMBLY
FOR CLARITY)

ADAPTER PLATE

E

7 of 11

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2.

Attaching LC Adapter Plate to Tilt Bracket Assembly

To prevent scratching the screen, set a cloth on a fl at, level surface that will support the weight of the screen.

2

Place screen face side down. Attach the interface bracket of tilt bracket assembly (A) to the LC adapter plate (sold
separately) using four M5 screws provided with plate as shown.

WARNING

• Tighten screws so interface bracket is fi rmly attached. Do not tighten with excessive force. Overtightening can
cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

GENERIC LC ADAPTER PLATE

A

(NOTE: INTERFACE
BRACKET SHOWN
WITHOUT FULL TILT
BRACKET ASSEMBLY
FOR CLARITY)

8 of 11

M5 SCREWS

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Mounting and Removing Flat Panel Screen

Hook tilt bracket assembly (A) onto wall plate (B). Then slowly swing screen in as shown. To lock the screen down,

3

tighten security screw to wall plate using security allen wrench (F) as shown in detail 1.

If mount is attached to double wood stud, solid concrete, or cinder block wall, screen can be adjusted horizontally if
desired. If mount is attached to single wood stud wall, screen must be centered on wall plate (B).

To remove screen from mount, loosen security screws, swing screen away from mount, and lift screen off of mount.

WARNING

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

B

SECURITY

SCREWS

A

B

A

DETAIL 1

9 of 11

ISSUED: 09-15-05 SHEET #: 202-9031-3 08-18-11

Adjusting the Tilt Angle of the Flat Panel Screen

Adjust tension knob on right side of mount shown in

4

detail 2 to desired tension to balance your screen
size and weight.

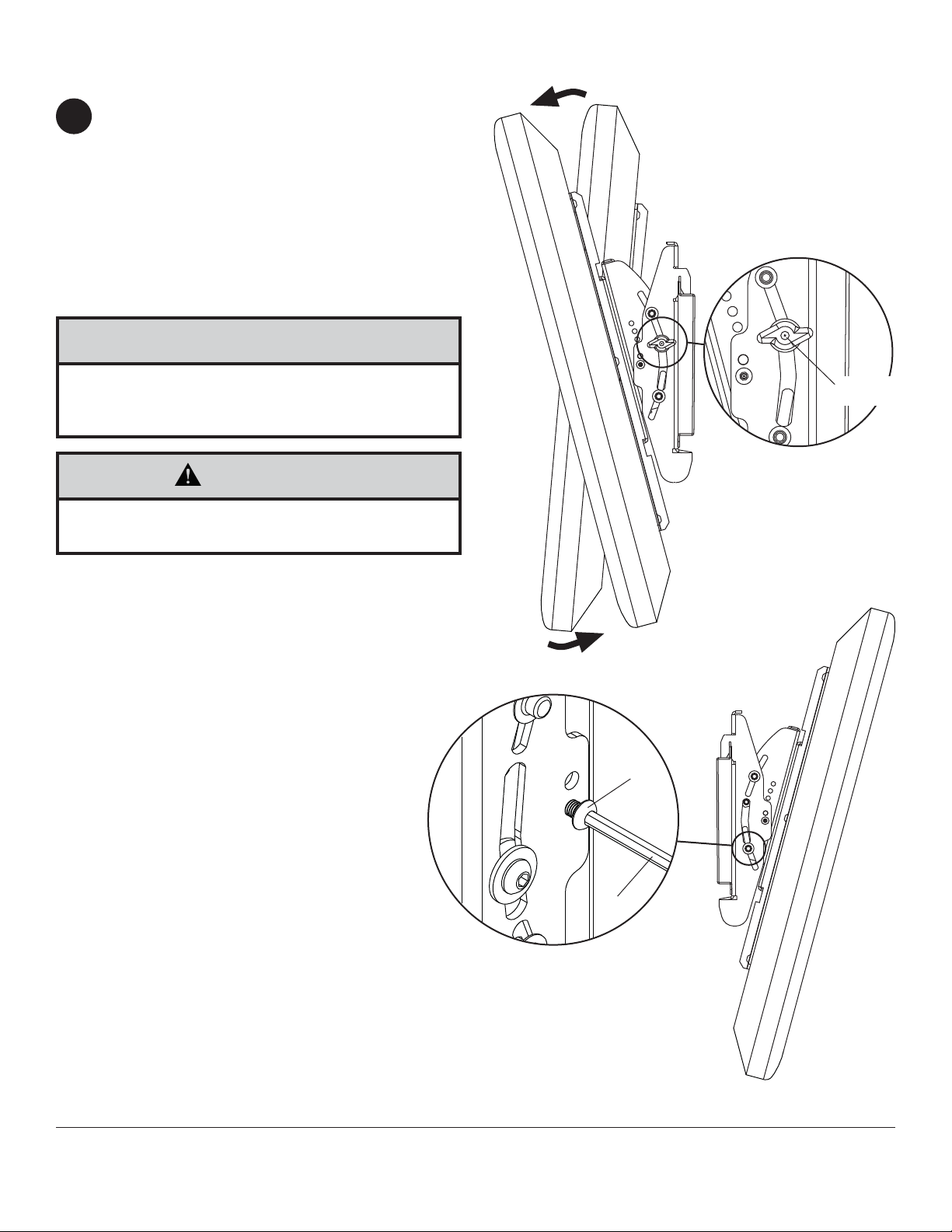

Push or pull from top or bottom of screen to adjust
tilt as shown in fi gure 4.1. The tilt can be adjusted to
a maximum of 15° forward or 5° backward.

Note: To lock the screen into the desired tilt
position, tighten tension screws on both sides of
mount shown in fi gure 4.2 and detail 3 using wrench
(F).

CAUTION

• Do not tighten screws with excessive force.
Overtightening can cause damage to mount. Tighten
screws to 40 in. • lb (4.5 N.M.) maximum torque.

CAUTION

• Be careful not to pinch fi ngers when pushing screen
from the bottom.

fi g 4.1

TENSION
KNOB

DETAIL 2

fi g 4.2

DETAIL 3

TENSION

SCREW

F

10 of 11
