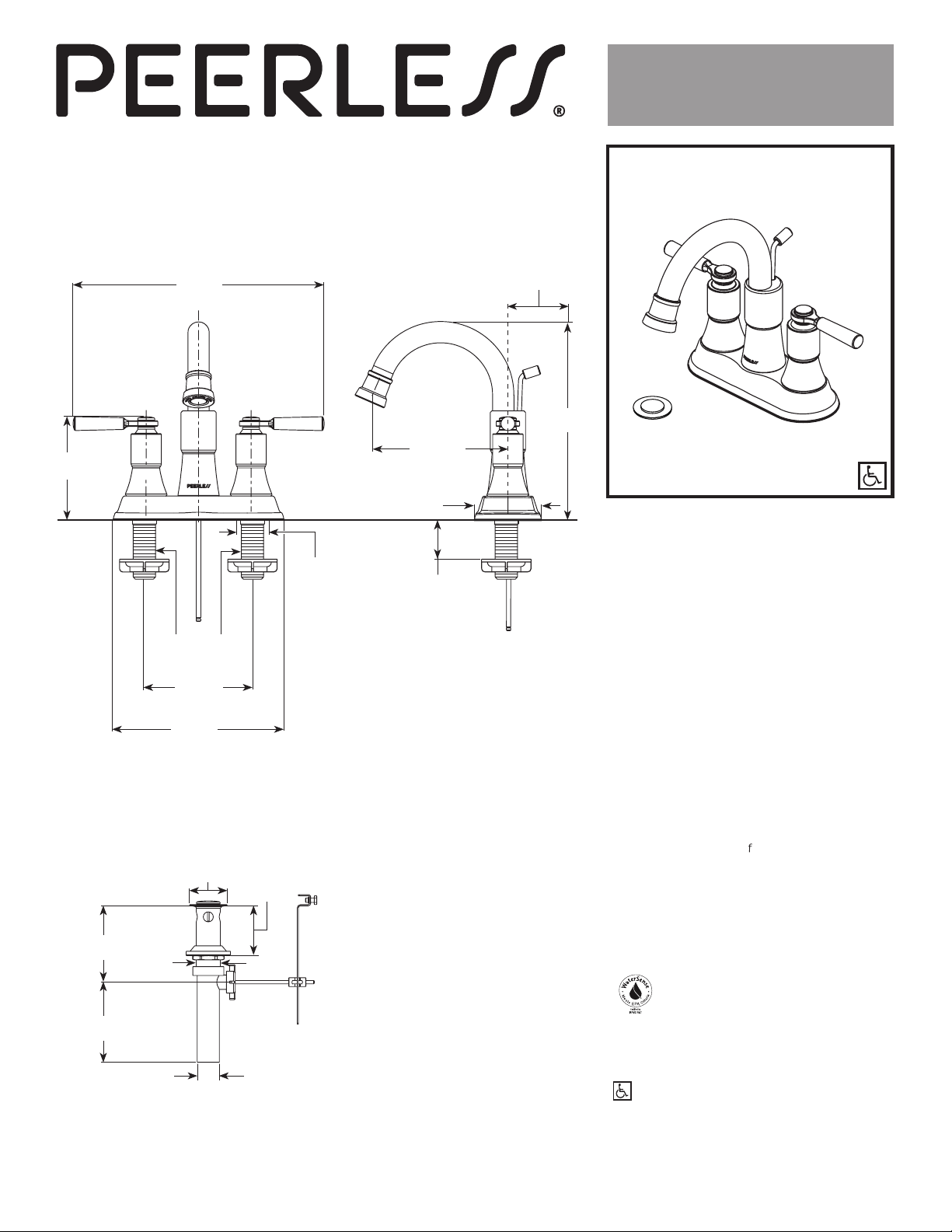

3 15/16"
(100 mm)
9 9/16"
(243 mm)
P2523LF▲
Min.2 1/2" (64 mm)
Clearance to Back
Splash Recommended
7 1/2"
(192 mm)
5 1/4"
(134 mm)
2 1/2"
(65 mm)
BATHROOM FAUCET:
4 5/16
(110 mm)
"
1 3/8"
(35 mm)
Dia.
1/2"-14 NPSM
4"
(102 mm)
Centers
6 5/16"
(160 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 1/8"~1 1/2"
(29~38 mm)
Hole Size
1 3/16"
(30 mm)
Max. Deck
Thickness
■ Westchester™ Collection
Two Handle Centerset
■
4 Inch 3 Hole
■
STANDARD SPECIFICATIONS:
• Maximum 1.0 gpm @ 60 psi, 3.8 L/min @ 414 kPa
• Three hole mount
• 1/4 turn handle stops
• 1/2"-14 NPSM threaded male inlet shanks
• Ceramic cartridge
• Red/Blue indicator markings
• Model have drain with pop-up type fitting with
plated flange and stopper
WARRANTY:
• Lifetime limited warranty on parts (other than electronic
parts and batteries) and inishes; or, for commercial
users, for 5 years from the date of purchase.
• 5 year limited warranty on electronic parts (other than
batteries); or for commercial users, for 1 year from the
date of purchase. No warranty is provided on batteries.
Sink Applications
"
4 1/8
(105 mm)
▲ Designate proper nish sufx
PSP-L-P2523LF Rev. A
1 1/4"
(32 mm)
Dia.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC / ANSI A117.1
• EPA WaterSense
®
