PTT14265
p
PTT14265p-LHD
PTT14465
p
PTT14465p-LHD
2 1/2"
(64 mm)
RP101638▲-1.5
1.5 GPM
7"
(ø178 mm)
8" (203 mm)
min.
18"(457 mm)
max.
Full Body
Spray
9 1/16"
(230 mm)
4 1/8"
(105 mm)
Face of plasterguard
should be flush with
nish wall line
2"
(51 mm)
RP71609
▲
Supply
2 7/16"
(62 mm)
PTT14265
PTT14265▲-LHD PTT14465▲-LHD
▲
PTT14465
▲

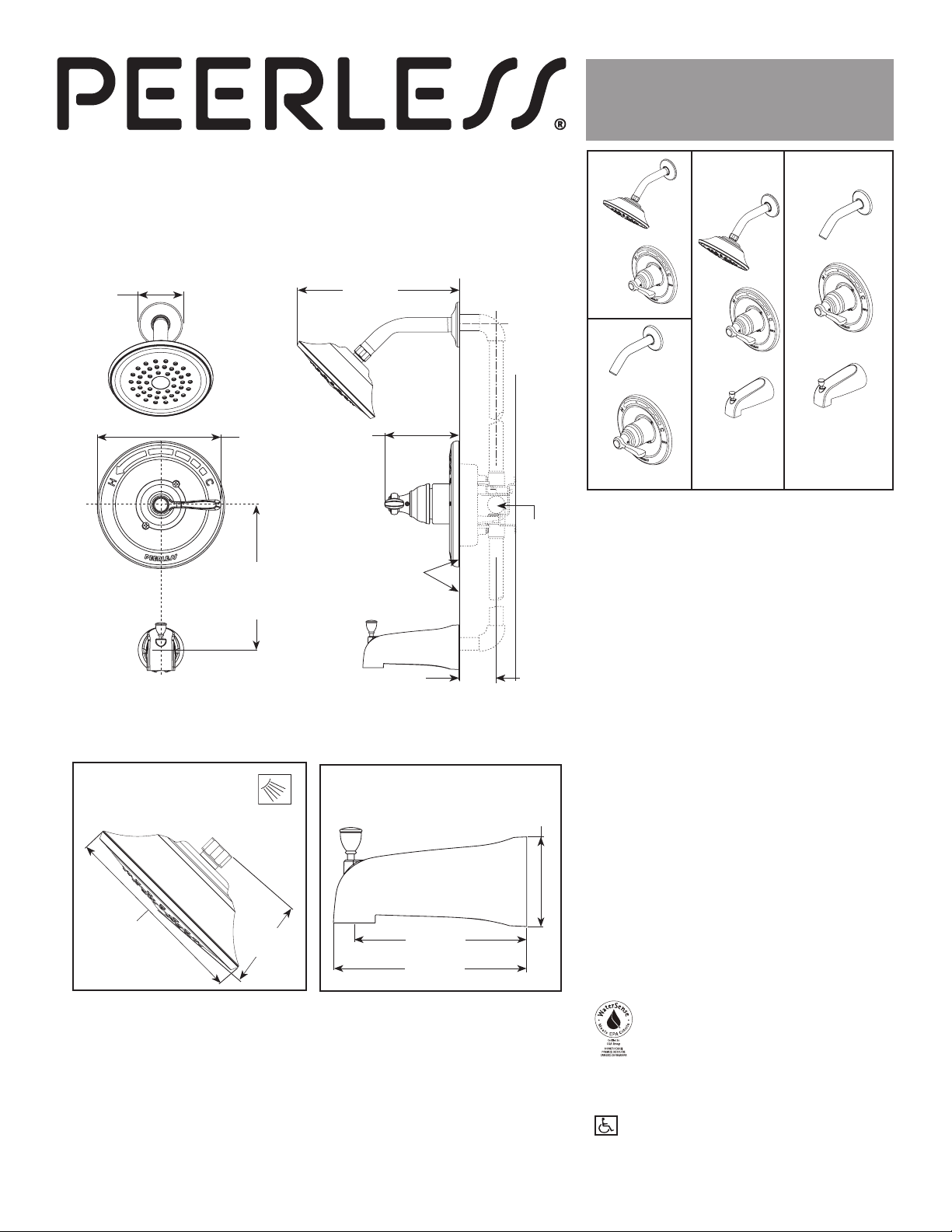

TUB AND SHOWER FAUCET TRIM
■ Elmhurst™ Collection
■ Shower Only (PTT14265▲ & PTT14265▲-LHD)
■ Tub/Shower (PTT14465▲ & PTT14465▲-LHD)
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice
(R10000 Series); not included.
• Back-to-back installation capability.
• Temperature only controlled with handle rotating a maximum
of 120° from full cold to the full hot.
• Cartridge utilise integral check valve to prevent the cross flow
of water within the valve.
• Shower head maximum flow rate 1.5 gpm @ 80 psi,
5.7 L/min @ 550 kPa.
• Single setting shower head.
• Slip-on tub spout.
®
Universal rough valve body
5 15/16"
(152 mm)
Designate proper nish sufx
▲
PSP-B-PTT14265 Rev. A
2 3/4"
(70 mm)
4 7/8"
( 123 mm)
5 3/8"
( 136 mm)
WARRANTY:
• Parts and Finish - Lifetime limited warranty;
or for commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and 5 years
for all other commercial uses, in each case from the
date of purchase.
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
• EPA WaterSense® - Applies to PTT14265 & PTT14465 only
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
