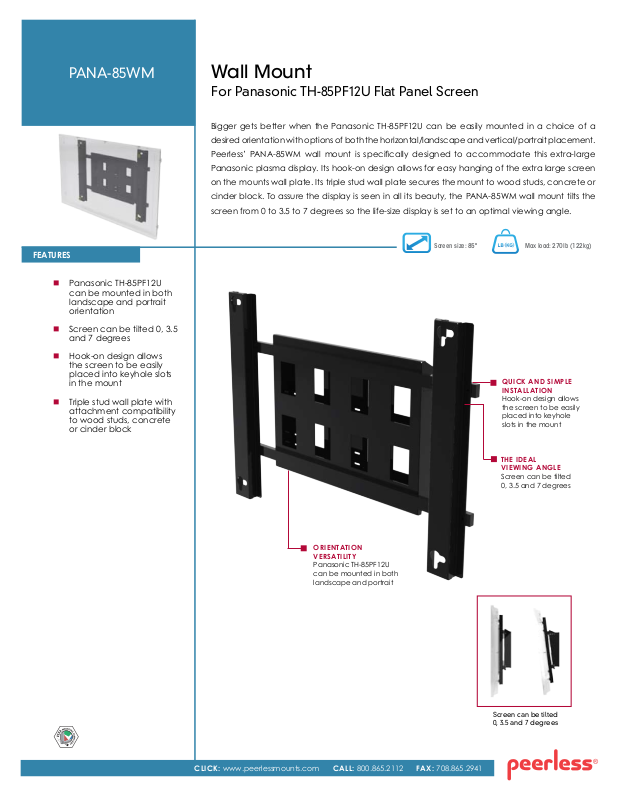

Peerless-AV PANA-85WM Specsheet

PANA-85WM

Wall Mount

For Panasonic TH-85PF12U Flat Panel Screen

Bigger gets better when the Panasonic TH-85PF12U can be easily mounted in a choice of a

desired orientation with options of both the horizontal/landscape and vertical/portrait placement.

Peerless’ PANA-85WM wall mount is specically designed to accommodate this extra-large

Panasonic plasma display. Its hook-on design allows for easy hanging of the extra large screen

on the mounts wall plate. Its triple stud wall plate secures the mount to wood studs, concrete or

cinder block. To assure the display is seen in all its beauty, the PANA-85WM wall mount tilts the

screen from 0 to 3.5 to 7 degrees so the life-size display is set to an optimal viewing angle.

FEATURES

 Panasonic TH-85PF12U

can be mounted in both
landscape and portrait
orientation

 Screen can be tilted 0, 3.5

and 7 degrees

 Hook-on design allows

the screen to be easily
placed into keyhole slots
in the mount

 Triple stud wall plate with

attachment compatibility
to wood studs, concrete
or cinder block

Screen size: 85" Max load: 270lb (122kg)

QUICK AND SI MPL E
INSTALLATION

Hook-on design allows
the screen to be easily
placed into keyhole
slots in the mount

THE IDEAL
VIEWING ANGLE

Screen can be tilted
0, 3.5 and 7 degrees

ORIENTATI ON
VERSATILITY

Panasonic TH-85PF12U
can be mounted in both
landscape and portrait

CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: [phone]

Screen can be tilted
0, 3.5 and 7 degrees

Model Numbers

PANA-85WM: Wall Mount for Panasonic TH-85PF12U Flat Panel Screen

Product Specifications

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

WARRANTY: Limited 5-year

PANA-85WM

39.8" x 57" x 7.7"

(1011 x 1448 x 196mm)

Package Specifications

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

37" x 30" x 9.13"

PANA-85WM

(940 x 762 x 232mm)

67.4" x 17.1" x 4.7"

(1712 x 434 x 119mm)

100lb (45kg) 270lb (122kg)

110lb (50kg) 735029268154

35"

(889 mm)

48.5"

(1232 mm )

57.2"

(1453 mm )

Powder

coat

Wall plate, tilt plate,

support tubes, adapter

brackets and mounting

hardware

11.56"

(294 mm)

27.54"

(699 mm)

Matte black

1

All dimensions = inch (mm)

7°

2.16"

(55 mm)

(407 mm)

2"

(51 mm)

16"

32"

(813 mm)

35.21"

(894 mm)

Rear View

6"

(152 mm)

25.33"

(643 mm)

35"

(889 mm)

39.83"

(1012 mm )

Front View

PORTRAIT

48.5"

(1232 mm )

Front View

LANDSCAPE

39.83"

(1012 mm )

0° Side View

PORTRAIT

0° Side View

LANDSCAPE

(195 mm)

11.56"

(294 mm)

11.64"

(296 mm)

7.66"

1.98"

(50 mm)

3.5° - 7° Side View
PORTRAIT

7°

(103 mm )

3.5° - 7° Side View
LANDSCAPE

A R C H I T E C T S S P E C I F I C A T I O N S

The Panasonic Wall Mount shall be a Peerless model PANA-85WM and shall be located where indicated on the plans. It shall be constructed of heavy gaugecold

rolled steel. It shall feature up to 7° of tilt adjustment. Assembly and installation shall be done according to instructions provided by the manufaturer.

4.04"

Peerless Industries, Inc.  3215 W. North Avenue  Melrose Park, IL 60160  [phone]  [phone]  Fax: [phone]  www.peerlessmounts.com

Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.

LIT-0538
