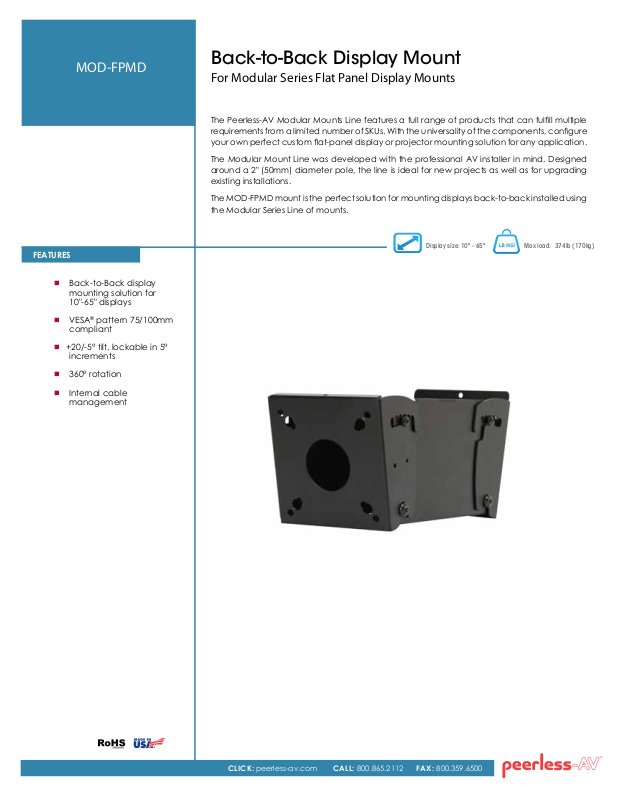

Peerless-AV MOD-FCSKIT300-B User Manual

MOD-FPMD

Back-to-Back Display Mount

For Modular Series Flat Panel Display Mounts

The Peerless-AV Modular Mounts Line features a full range of products that can fulll multiple
requirements from a limited number of SKUs. With the universality of the components, congure
your own perfect custom at-panel display or projector mounting solution for any application.

The Modular Mount Line was developed with the professional AV installer in mind. Designed
around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading
existing installations.

The MOD-FPMD mount is the perfect solution for mounting displays back-to-back installed using
the Modular Series Line of mounts.

FEATURES

 Back-to-Back display

mounting solution for

10"-65" displays

®

 VESA

 +20/-5° tilt, lockable in 5°

 360° rotation

 Internal cable

management

pattern 75/100mm

compliant

increments

Display size: 10" - 65" Max load: 374lb (170kg)

CLICK: peerless-av.com CALL: 800.865.2112 FAX: [phone]

Model Numbers

MOD-FPMD Back-to-Back Display Mount for Modular Series Flat Panel Display Mounts

Product Specifications

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

WARRANTY: Limited 5-year

MOD-FPMD

8.81" x 5.11" x 5.11"

(224 x 130 x 130mm)

Package Specifications

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

MOD-FPMD

6.25" x 9.62" x 6.00"

(158 x 244 x 152mm)

Accessories

MOD-ACF(-W): Accessory Cover for MOD-CPF Ceiling Plate
MOD-APC: Accessory Pole Coupler

MOD-APRG(-W): Accessory Projector Adaptor, PRG Mount

MOD-APRS(-W): Accessory Projector Adaptor, PRS Mount
MOD-ADF: Pole Drill Fixture
MOD-ATD-W: Accessory Trim Disc

2.03"

(52mm)

4.50lb (2.0kg) 374.0lb (170kg) Power coat Black

5.95lb (2.7kg) 73502926998

MOD-AUB: Accessory U-Bolt Adaptor
MOD-CPC(-W): Ceiling Plate, Cathedral
MOD-CPF: Square Ceiling Plate, Flat (7.4" x 6.8")

MOD-CPI: I-Beam Ceiling Plate, Flat

MOD-ASC: Display-Stacking Clamp
MOD-FPMS(-W): Flat Panel Mount, Single

MOD-P100(-B): 50mm Extension Pole - 39" (1.0m)
MOD-P150(-B): 50mm Extension Pole - 59" (1.5m)
MOD-P200(-B): 50mm Extension Pole - 78" (2.0m)
MOD-P300(-B): 50mm Extension Pole - 118" (3.0m)
MOD-UNL: Universal Display Adaptor, Large
MOD-UNM: Universal Display Adaptor, Medium

Display mount,

(2) pole clamp,

mounting hardware

1

All dimensions = inch (mm)

ISOMETRIC VIEW

20°

2.50"

(64mm)

2.01"

(51mm)

5.11"

(130mm)

3.25"

(83mm)

FRONT VIEW

5.52"

(140mm)

3.94"

(100mm)

TOP VIEW

8.82"

(224mm)

SIDE VIEW SIDE VIEW

20 ° TILT

A R C H I T E C T S S P E C I F I C A T I O N S

The Back-to-Back Display Mount shall be a Peerless-AV model MOD-FPMD and shall be located where indicated on the plans.

Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  [phone]  [phone]  Fax: [phone]  peerless-av.com

Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.

© 2012 Peerless Industries, Inc. Peerless-AV

Assembly and installation shall be done according to instructions provided by the manufacturer.

®

is a registered trademark of Peerless Industries, Inc. All rights reserved.

LIT-0953
