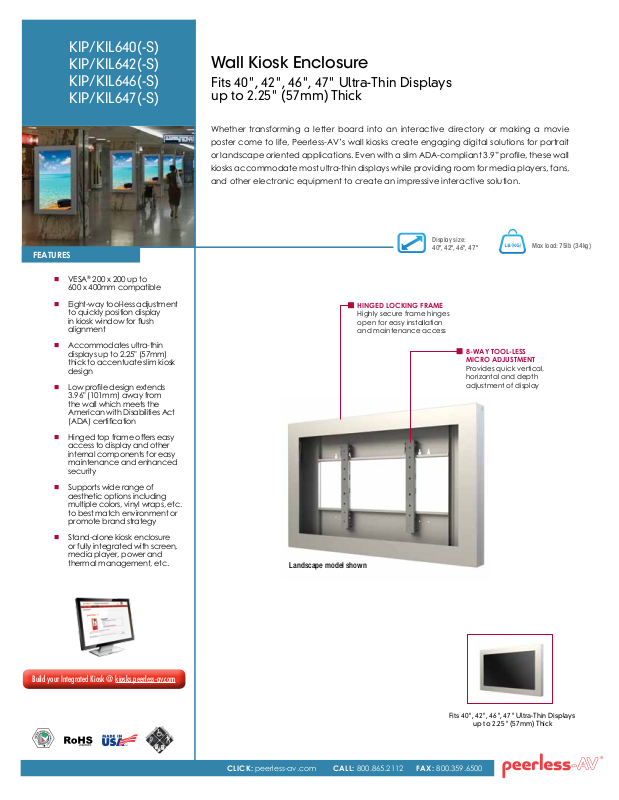

KIP/KIL640(-S) KIP/KIL642(-S) KIP/KIL646(-S) KIP/KIL647(-S)

Wall Kiosk Enclosure

Fits 40", 42", 46", 47" Ultra-Thin Displays up to 2.25" (57mm) Thick

Whether transforming a letter board into an interactive directory or making a movie

poster come to life, Peerless-AV’s wall kiosks create engaging digital solutions for portrait

or landscape oriented applications. Even with a slim ADA-compliant 3.9” prole, these wall

kiosks accommodate most ultra-thin displays while providing room for media players, fans,

and other electronic equipment to create an impressive interactive solution.

FEATURES

 VESA® 200 x 200 up to

600 x 400mm compatible

 Eight-way tool-less adjustment

to quickly position display

in kiosk window for ush

alignment

 Accommodates ultra-thin

displays up to 2.25" (57mm) thick to accentuate slim kiosk design

 Low prole design extends

3.96" (101mm) away from the wall which meets the American with Disabilities Act

(ADA) certication

 Hinged top frame offers easy

access to display and other internal components for easy maintenance and enhanced security

 Supports wide range of

aesthetic options including multiple colors, vinyl wraps, etc. to best match environment or promote brand strategy

 Stand-alone kiosk enclosure

or fully integrated with screen, media player, power and thermal management, etc.

HINGED LOCKING FRAME

Highly secure frame hinges open for easy installation and maintenance access

Landscape model shown

Display size: 40", 42", 46", 47"

8-WAY TOOL-LESS MICRO ADJUSTMENT

Provides quick vertical, horizontal and depth adjustment of display

Max load: 75lb (34kg)

Build your Integrated Kiosk @ kiosks.peerless-av.com

Fits 40", 42", 46", 47" Ultra-Thin Displays

up to 2.25" (57mm) Thick

CLICK: peerless-av.com CALL: 800.865.2112 FAX: 800.359.6500

Model Numbers

LANDSCAPE MODELS

Portrait Models:

KIP640(-S) Wall Kiosk Enclosure Fits 40" Ultra-Thin Displays up to 2.25" (57mm) Thick KIP642(-S) Wall Kiosk Enclosure Fits 42" Ultra-Thin Displays up to 2.25" (57mm) Thick KIP646(-S) Wall Kiosk Enclosure Fits 46" Ultra-Thin Displays up to 2.25" (57mm) Thick KIP647(-S) Wall Kiosk Enclosure Fits 47" Ultra-Thin Displays up to 2.25" (57mm) Thick

Product Speciﬁcations

DImENSIONS (W x H x D) LOAD CAPACITy FINISH AVAILABLE COLORS

WARRANTY: 5 years on metal components,

1 year on electronic components

Landscape Models:

KIL640(-S) Wall Kiosk Enclosure Fits 40" Ultra-Thin Displays up to 2.25" (57mm) Thick KIL642(-S) Wall Kiosk Enclosure Fits 42" Ultra-Thin Displays up to 2.25" (57mm) Thick KIL646(-S) Wall Kiosk Enclosure Fits 46" Ultra-Thin Displays up to 2.25" (57mm) Thick KIL647(-S) Wall Kiosk Enclosure Fits 47" Ultra-Thin Displays up to 2.25" (57mm) Thick

KIP640/642(-S) KIL640/642(-S) KIP646/647(-S) KIL646/647(-S)

27.93" x 43.28" x 3.96" (709 x 1099 x 101mm)

43.28" x 27.93" x 3.96" (1099 x 709 x 101mm)

29.68" x 47.28" x 3.96" (754 x 1201 x 101mm)

47.28" x 29.68" x 3.96" (1201 x 754 x 101mm)

Package Speciﬁcations

PACKAGE SIZE

(L x W x H)

KIP/KIL640/642(-S)

KIP/KIL646/647(-S)

28.93" x 44.28" x 4.96" (734 x 1124 x 125mm)

30.68" x 48.28" x 4.96" (779 x 1226 x 125mm)

Accessories

KioskBuilder™: Build your own Integrated Kiosk @

kiosks.peerless-av.com including

integration services, at panel display,

media player, content management software, power protection, thermal management, display protection, vinyl graphics, etc.

75lb (34kg) Powder Coat

PACKAGE

SHIP WEIGHT

KIP640: KIP642:

85lb (39kg)

95lb (43kg)

KIP646: KIP647: KIL640: KIL642: KIL646: KIL647:

ACC415: 4-pack Metal Stud Fastener Kit

Antimicrobial Protection: Agion® antimicrobial* nish available to assist

in controlling the spread of infections.

Nature’s antimicrobial

PACKAGE

735029296874 735029297451 735029296881 735029296898 735029296904 735029297444 735029296911 735029296928

KIP/KIL640/642/646/647 models: Gloss black

KIP/KIL640-S/642-S/646-S/647-S models: Silver

UPC

KIP640-S: KIP642-S: KIP646-S: KIP647-S: KIL640-S: KIL642-S: KIL646-S: KIL647-S:

Contact Peerless-AV Customer Care for more information.

*Antimicrobial protection is limited to the treated article and does not protect a user against disease causing bacteria. Always clean products thoroughly after each use.

735029296935 735029297468 735029296942 735029296966 735029296959 735029297437 735029296973 735029296980

CONTENTS

Kiosk

with

display mounting hardware

All dimensions = inch (mm)

PACKAGE

UNITS IN

PACKAGE

One (1)

C A

FRONT VIEW SIDE VIEW

MODEL

KIL640 KIL642 KIL646 KIL647

43.28" (1099mm)

47.28" (1201mm)

27.93" (709mm)

29.68" (754mm)

3.96" (101mm)

19.97" (499mm)

20.65" (524mm)

22.61" (574mm)

23.10" (587mm)

34.97" (888mm)

36.72" (932mm)

40.20" (1021mm)

41.07" (1043mm)

PORTRAIT MODELS

MODEL

KIP640 KIP642 KIP646 KIP647

43.28" (1099mm)

47.28" (1201mm)

27.93" (709mm)

29.68" (754mm)

3.96" (101mm)

19.97" (499mm)

20.65" (524mm)

22.61" (574mm)

23.10" (587mm)

34.97" (888mm)

36.72" (932mm)

40.20" (1021mm)

41.07" (1043mm)

A R C H I T E C T S S P E C I F I C A T I O N S

The Wall Kiosk Enclosure shall be a Peerless-AV model KIP/KIL640/642/646/647(-S) and shall be located where indicated on the plans.

Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  peerless-av.com

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.

Assembly and installation shall be done according to instructions provided by the manufacturer.
