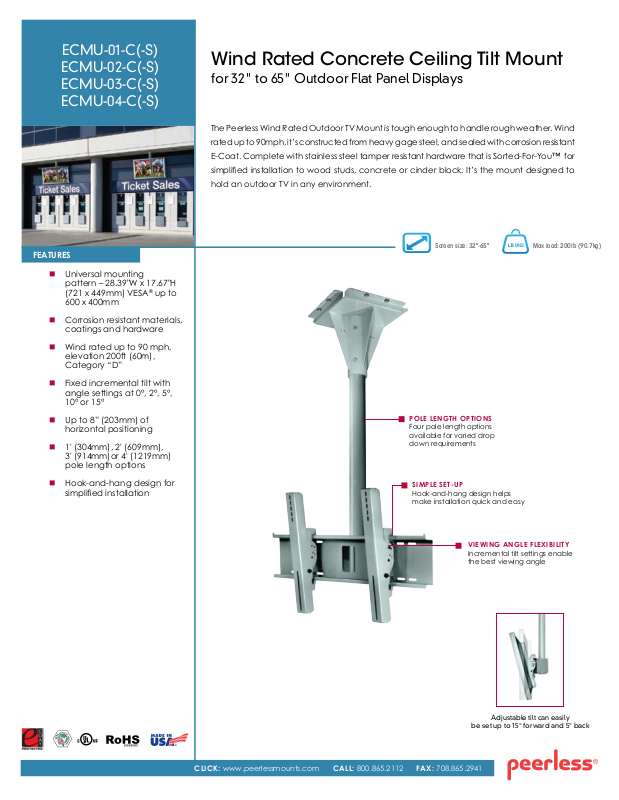

Peerless-AV ECMU-03-C, ECMU-03-C-S, ECMU-04-C, ECMU-02-C, ECMU-02-C-S Specsheet

...

ECMU-01-C(-S) ECMU-02-C(-S) ECMU-03-C(-S) ECMU-04-C(-S)

Wind Rated Concrete Ceiling Tilt Mount

for 32" to 65" Outdoor Flat Panel Displays

The Peerless Wind Rated Outdoor TV Mount is tough enough to handle rough weather. Wind

rated up to 90mph, it’s constructed from heavy gage steel, and sealed with corrosion resistant

E-Coat. Complete with stainless steel tamper resistant hardware that is Sorted-For-You™ for

simplied installation to wood studs, concrete or cinder block. It’s the mount designed to

hold an outdoor TV in any environment.

FEATURES

 Universal mounting

pattern – 28.39"W x 17.67"H

(721 x 449mm) VESA 600 x 400mm

 Corrosion resistant materials,

coatings and hardware

 Wind rated up to 90 mph,

elevation 200ft (60m), Category “D”

 Fixed incremental tilt with

angle settings at 0°, 2°, 5°, 10° or 15°

 Up to 8” (203mm) of

horizontal positioning

 1' (304mm), 2' (609mm),

3' (914mm)or 4' (1219mm) pole length options

 Hook-and-hang design for

simplied installation

up to

Screen size: 32"-65" Max load: 200lb (90.7kg)

POLE LENGTH OPTIONS

Four pole length options

available for varied drop down requirements

SIMPLE SET-UP

Hook-and-hang design helps make installation quick and easy

VIEWING ANGLE FLEXIBILITY

Incremental tilt settings enable the best viewing angle

be set up to 15° forward and 5° back

CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: 708.865.2941

Adjustable tilt can easily

Model Numbers

ECMU-01-C(-S): 1' Wind Rated Concrete Ceiling Tilt Mount for 32" to 65" Outdoor Flat Panel Displays

ECMU-02-C(-S): 2' Wind Rated Concrete Ceiling Tilt Mount for 32" to 65" Outdoor Flat Panel Displays ECMU-03-C(-S): 3' Wind Rated Concrete Ceiling Tilt Mount for 32" to 65" Outdoor Flat Panel Displays ECMU-04-C(-S): 4' Wind Rated Concrete Ceiling Tilt Mount for 32" to 65" Outdoor Flat Panel Displays

Product Speciﬁcations

Dimensions (W x H x D) PRoDUCT WeiGHT LoaD CaPaCiTy FinisH aVaiLaBLe CoLoRs

ECMU-01-C(-S) ECMU-02-C(-S) ECMU-03-C(-S) ECMU-04-C(-S)

19.63" x 30.75" x 14.75"

31.63" x 30.75" x 14.75"

43.63" x 30.75" x 14.75"

55.63" x 30.75" x 14.75"

(498 x 781 x 375mm) (803 x 781 x 375mm) (1108 x 781 x 375mm) (1413 x 781 x 375mm)

64lb (29kg) 66lb (30kg) 68lb (31kg) 70lb (32kg)

200lb (90.7kg)

Package Speciﬁcations

PaCKaGe siZe (W x H x D) PaCKaGe sHiP WeiGHT PaCKaGe UPC CoDe PaCKaGe ConTenTs UniTs in PaCKaGe

WARRANTY: Limited 5-year on mount Limited 1 Year Warranty on corrosion

Outdoor

ECMU-C models:

Black

powder

paint

ECMU-C-S models:

Stone Gray

ECMU-01-C ECMU-01-C-S ECMU-02-C ECMU-02-C-S ECMU-03-C ECMU-03-C-S ECMU-04-C ECMU-04-C-S

NOTE:

Each product is shipped in 4 separate boxes. 3 boxes are the same size while the pole is shipped in a various sized tubes. Pole tubes are listed above. The 3 same sized boxes are: Concrete adapter base – 16" x 16" x 16" (406 x 406 x 406mm) Wall plate w/vertical brackets - 34.25" x 10.18" x 3.12" (870 x 258 x 79mm) Wall plate pole adapter box – 33.5" x 12.5" x 5.12" (850 x 317 x 130mm) Product ships via fright on a dedicated skid.

14.75"

(375mm)

5"D x 20"L 5"D x 20"L 5"D x 32"L 5"D x 32"L 5"D x 44"L 5"D x 44"L 5"D x 56"L 5"D x 56"L

(127 x 508mm) (127 x 508mm) (127 x 812mm) (127 x 812mm) (127 x 1117mm) (127 x 1117mm) (127 x 1422mm) (127 x 1422mm)

70.5lb

76.5lb

81.5lb

81.5lb 87lb 87lb

0.91"

(23mm)

(32kg) (32kg) (35kg) (35kg) (37kg) (37kg) (39.5kg) (39.5kg)

735029272472 735029272519 735029272489 735029272526 735029272496 735029272533 735029272502 735029272540

2.00"

(51mm)

0.85"

(22mm)

14.75"

(375mm)

18.83"

(478mm)

CEILING PLATE

VERTICAL ADAPTER

Mount, hardware,

concrete fasteners,

security fasteners

All dimensions = inch (mm)

12.25"

(311mm)

ISOMETRIC VIEW

"A"

6.83"

(173mm)

"B"

DIMENSION "A"

15.02"

(382mm)

27.02"

(686mm)

39.02"

(991mm)

(1296mm)

51.02"

DIMENSION "B"

19.63"

(498mm)

31.63"

(803mm)

43.63"

(1108mm)

(1413mm)

55.63"

28.39"

(721mm)

MAX

30.75"

(781mm)

3.75"

(95mm)

SIDE VIEW

15° TILT

MODEL NO.

ECMU-01-C

ECMU-02-C

ECMU-03-C

ECMU-04-C

FRONT VIEW

A R C H I T E C T S S P E C I F I C A T I O N S

The Peerless Wind Rated Concrete Ceiling Tilt Mount for Outdoor Flat Panel Displays shall be a Peerless model number _______________ and located

Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (708) 865-8870  Fax: (708) 865-2941  www.peerlessmounts.com

where indicated on the plans. Assembly and installation shall be done according to instructions provided by the manufacturer.

Mount is made of heavy gauge cold rolled steel. Mount is nished with textured black or gloss ASA-70 gray protective paint.

LIT-0640
