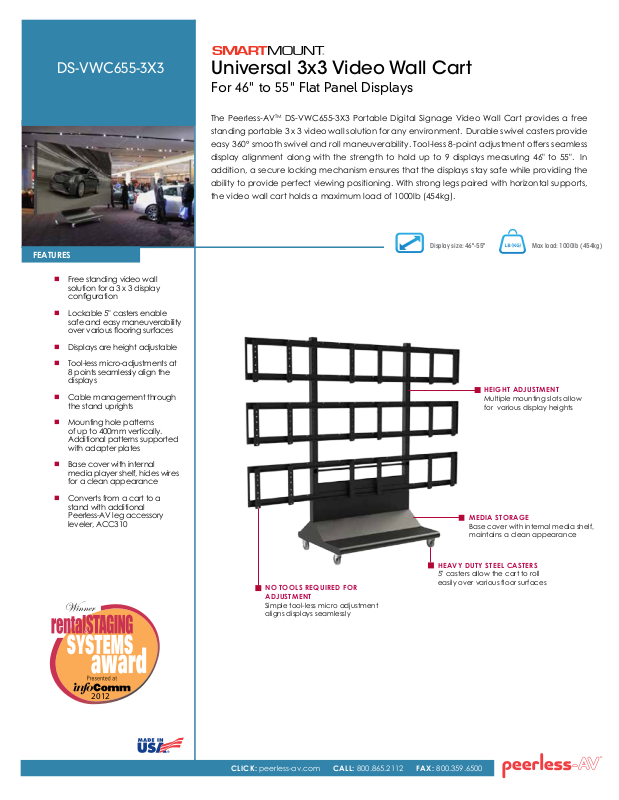

Peerless-AV DS-VWC655-3X3 Specsheet

DS-VWC655-3X3

Universal 3x3 Video Wall Cart

For 46" to 55" Flat Panel Displays

The Peerless-AVTM DS-VWC655-3X3 Portable Digital Signage Video Wall Cart provides a free

standing portable 3 x 3 video wall solution for any environment. Durable swivel casters provide

easy 360° smooth swivel and roll maneuverability. Tool-less 8-point adjustment offers seamless

display alignment along with the strength to hold up to 9 displays measuring 46" to 55". In

addition, a secure locking mechanism ensures that the displays stay safe while providing the

ability to provide perfect viewing positioning. With strong legs paired with horizontal supports,

the video wall cart holds a maximum load of 1000lb (454kg).

FEATURES

 Free standing video wall

solution for a 3 x 3 display

conguration

 Lockable 5" casters enable

safe and easy maneuverability

over various ooring surfaces

 Displays are height adjustable

 Tool-less micro-adjustments at

8 points seamlessly align the
displays

 Cable management through

the stand uprights

 Mounting hole patterns

of up to 400mm vertically.
Additional patterns supported
with adapter plates

 Base cover with internal

media player shelf, hides wires

for a clean appearance

 Converts from a cart to a

stand with additional

Peerless-AV leg accessory

leveler, ACC310

Display size: 46"-55" Max load: 1000lb (454kg)

HEIGHT ADJUSTMENT

Multiple mounting slots allow
for various display heights

MEDIA STORAGE

Base cover with internal media shelf,
maintains a clean appearance

Winner

2012

HEAVY DUTY STEEL CASTERS

5" casters allow the cart to roll

NO TOOLS REQUIRED FOR
ADJUSTMENT

Simple tool-less micro adjustment
aligns displays seamlessly

CLICK: peerless-av.com CALL: 800.865.2112 FAX: [phone]

easily over various oor surfaces

Model Numbers

DS-VWC655-3X3 Universal 3 x 3 Video Wall Cart for 46" to 55" Flat Panel Displays

Product Specifications

DIMENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITY FINISH AVAILABLE COLORS

WARRANTY: Limited 5-year

DS-VWC655-3X3

119.21" x 99.52" x 39.28"
(3028 x 2528 x 998mm)

Package Specifications

PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS

Box 1: 101" x 37.5" x 12.5"

(2565 x 952 x 317mm)

DS-VWC655-3X3

Box 2: 121" x 4" x 4"

(3073 x 102 x 102mm)

Box 3: 121" x 4" x 4"

(3073 x 102 x 102mm)

119.21"

(3028mm)

114.66"

(2912mm)

MAX

370lb (168kg) 1000lb (454kg) Powder Coat Black

Cart frame, 5" casters,

385lb (175kg) 735029282648

adapter brackets,

cart base cover and

mounting hardware

All dimensions = inch (mm)

COMPATIBILITY FORMULA

PLP

ADAPTER

71.12"

(1806mm)

MAX

15.75"

(400mm)

(300mm)

11.81"

PLATE

5.91"

(150mm)

7.87"

(200mm)

13.78"

(350mm)

(16mm)

0.63"

UNITS IN

PACKAGE

1

0.63"

(16mm)

ADAPTER BRACKET

SIDE VIEW

± 0.63” (16mm)

99.52"

(2528mm)

FRONT VIEW

39.28"

(998mm)

12.14"

(308mm)

Height and Tilt

Adjustment

SIDE VIEW

A R C H I T E C T S S P E C I F I C A T I O N S

The Universal 3 x 3 Video Wall Cart shall be Peerless-AV model DS-VWC655-3X3 and shall be located where indicated on the plans. It shall be constructed of heavy

gauge steel. The nish shall be scratch resistant black fused epoxy. Assembly and installation shall be done according to instructions provided by the manufacturer.

Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  [phone]  [phone]  Fax: [phone]  peerless-av.com

Visitpeerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.

© 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved.
