Installation and Assembly: 3 x 3 Cart
Model: DS-VWC655-3x3
Maximum Load Capacity 1000 Ibs (454 kg)
1 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
PARTS LIST
A
V
X
Y
A
Description Qty. Part #
vertical support 2 145-1543
B adapter brackets 18 145-1711
C horizontal support 3 145-1382
D shelf 1 145-1361
E 5" caster 4 600-0026
F 1/4" flat washer 48 540-9440
G M8 x 25 mm phillips screw 16 520-1031
H 5/16 flat washer 16 540-9406
I 5/16 split washer 16 540-9405
J 1/4-20 x 3.5" hex head screw 48 520-1656
K 1/4-20 nylock nut 48 530-9413
L .38 OD x .06 LG nylon washer 36 590-2233
M 18" mesh sleeve 9 600-1014
N M8 x 16 mm phillips screw 36 520-9257
O M6 x 12 mm phillips screw 36 520-1128
P 4 mm allen wrench 9 560-9646
Q cable tie 18 560-9711
R tube cap 2 590-1289
S M5 x 10 mm socket pin screw (not used) 18 520-1164
T #14 fender washer (not used) 36 540-1008
U lower front cover 1 145-1505
lower back cover 1 145-1384
W upper cover 2 145-1450
rail connection bracket 6 145-1503
horizontal rail 6 145-1447
Z side cover 2 145-1362
M5 x 10 mm phillips screw 40 520-1233
A
BB flat washer 40 540-9400
CC lock washer 40 540-1035
DD decorative screw 14 520-2326
EE spacer 4 590-1136
FF self-drilling screw 3 520-1320
GG connection bracket 4
HH M6 x 16 mm phillips screw 36 520-9274
145-1504
BA
C
G
D
E
J
IH
F
K
N O P Q
R
L M
S T
2 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
U
V
W
X
GG
Y
Z
AA BB CC
DD EE FF
HH
3 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
Assembling Cart
Attach two horizontal supports (C) to vertical support (A) using eight 1/4-20 x 3.5" hex head screws (J),
1
1/4" SAE washers (F) and 1/4-20 nylock nuts (K).
C
Attach horizontal supports (C) to second
2
vertical support (A) using eight 1/4-20 x 3.5" hex
head screws (J), 1/4" SAE washers (F) and 1/4-20
nylock nuts (K).
K
F
J
A
Attach horizontal support (C) to vertical supports (A)
3
using eight 1/4-20 x 3.5" hex head screws (J),
1/4" SAE washers (F) and 1/4-20 nylock nuts (K).
J
C
A
A
K
F
K
F
C
J
A
4 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13

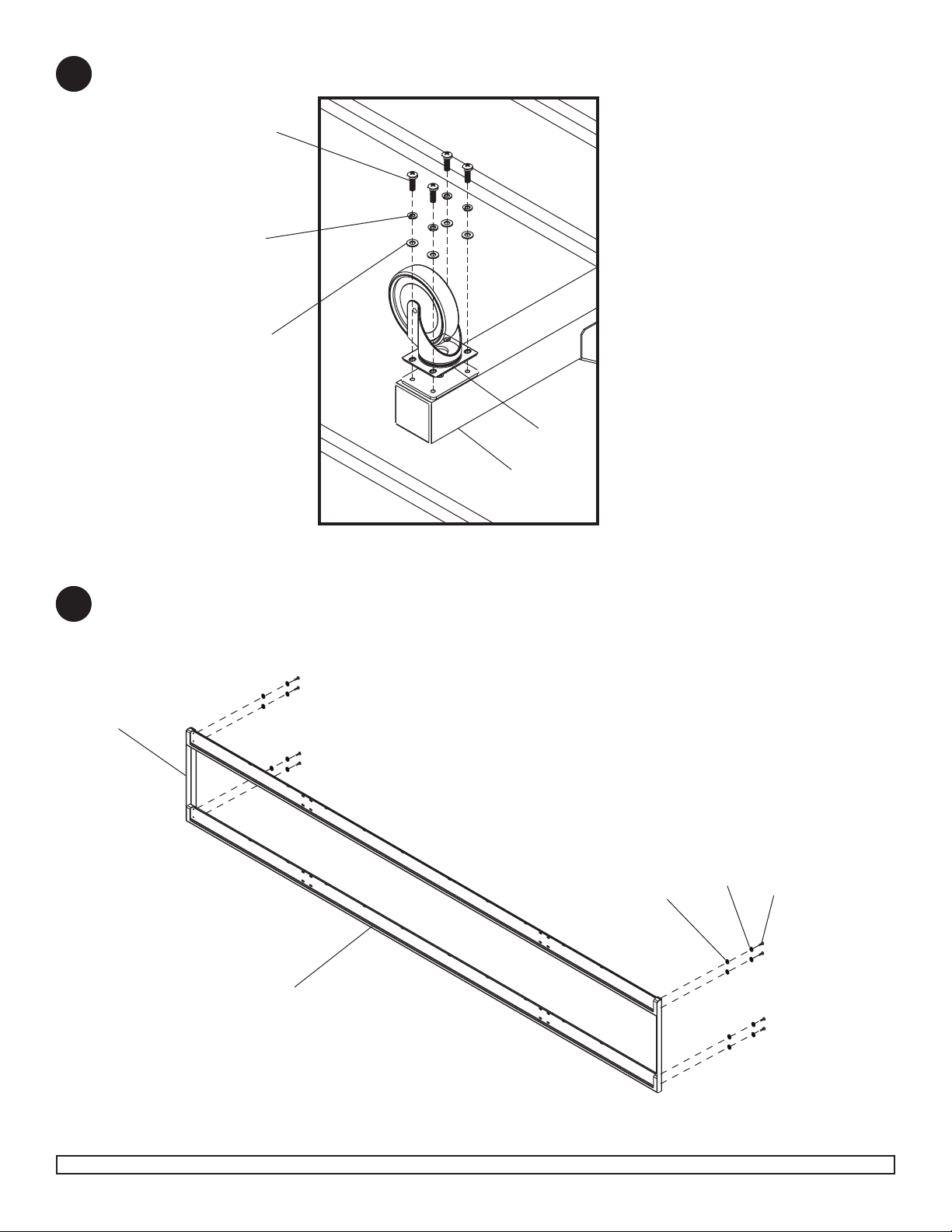

Attach four swivel casters (E) to vertical supports (A) using sixteen M8 x 25 mm pan phillips screws (G),
4
split washers (I) and 5/16" SAE at washers (H).
G
I
H
E
A
Attach two rail brackets (Y) together using two rail connection brackets (X) with eight M5 x 10 mm pan phillips
5
screws (AA), lock washers (CC), and at washers (BB).
X
BB
CC
AA
Y
5 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13

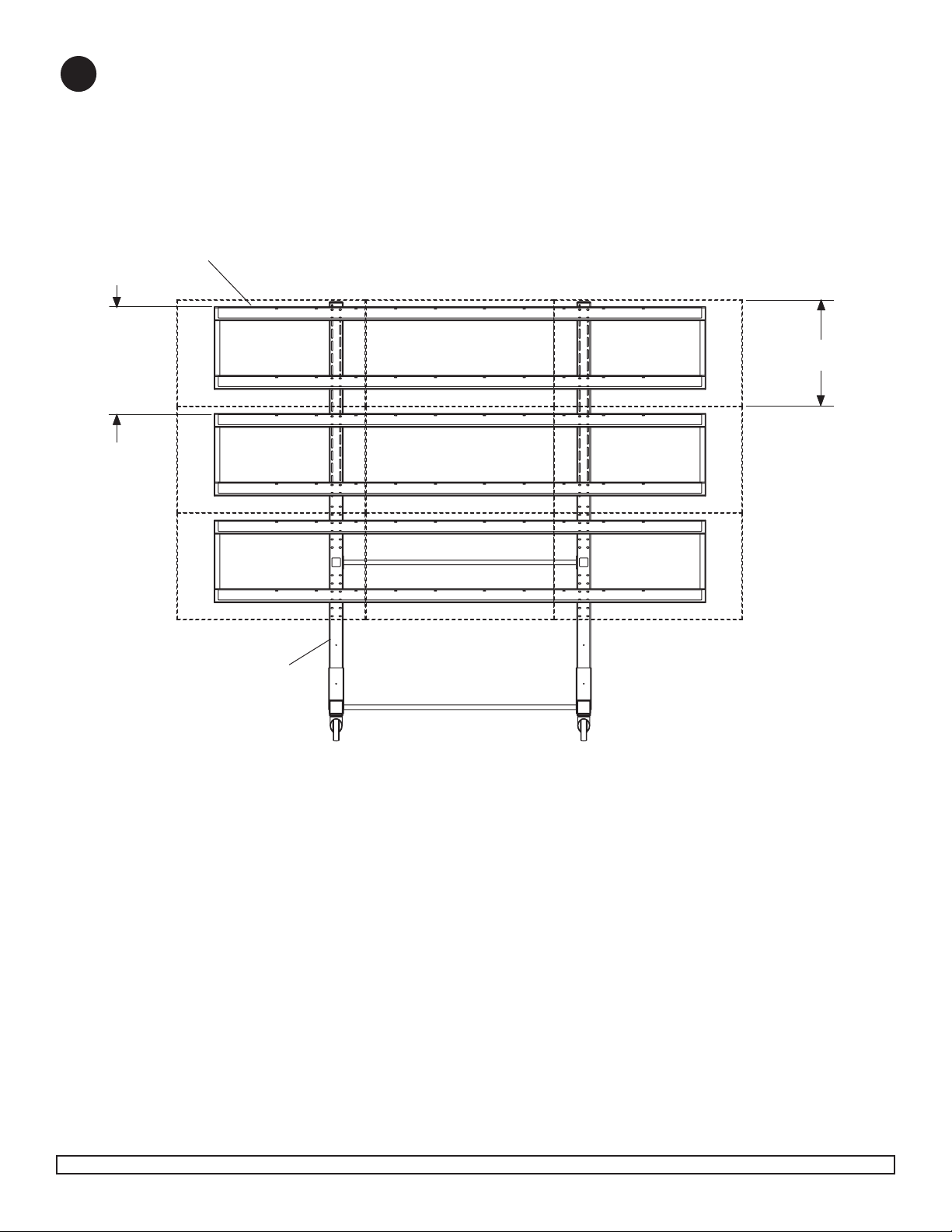

Determine position of horizontal rails assemblies using the formula below.
6
1. Locate the position of the lower horizontal rail assemblies and attach to vertical supports (A).
2. Use display height to determine location of upper horizontal rail assemblies,
NOTE: Horizontal rail assemblies must be secured using twenty-four 1/4-20 x 3.5" hex head screws (J).
X = HEIGHT OF DISPLAY
HORIZONTAL RAIL ASSEMBLY
X
DISTANCE
EQUALS
DISPLAY
HEIGHT
UPPER HORIZONTAL RAIL
DISPLAY HEIGHT
LOWER HORIZONTAL RAIL
A
6 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
Attach three horizontal rails assemblies onto vertical supports (A) using twenty-four 1/4-20 x 3.5" hex head screws
7
(J), 1/4" SAE washers (F) and 1/4-20 nylock nuts (K) as shown in detail 2. Make sure that horizontal rail
assemblies are level then tighten all 1/4-20 x 3.5" hex head screws (J). Place two tube caps (R) into tops of vertical
supports (A) as shown in detail 2. NOTE: horizontal rails must be secured using twenty-four 1/4-20 x 3.5” hex head
screws (J).
K
J
CABLE MANAGEMENT
Run display cables though top and bottom
8
openings in vertical supports (A) as shown.
NOTE: Display cables can be covered using
18" mesh sleeve (M) before securing.
F
A
Y
A
R
J
J
DETAIL 2
Display cables can be secured to horizontal
rails assemblies using cable ties (Q) as needed
through slots in horizontal rails (Y).
M
Q
TOP
OPENING
BOTTOM
OPENING
SLOT
Y
A
Y
DISPLAY CABLES
7 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13

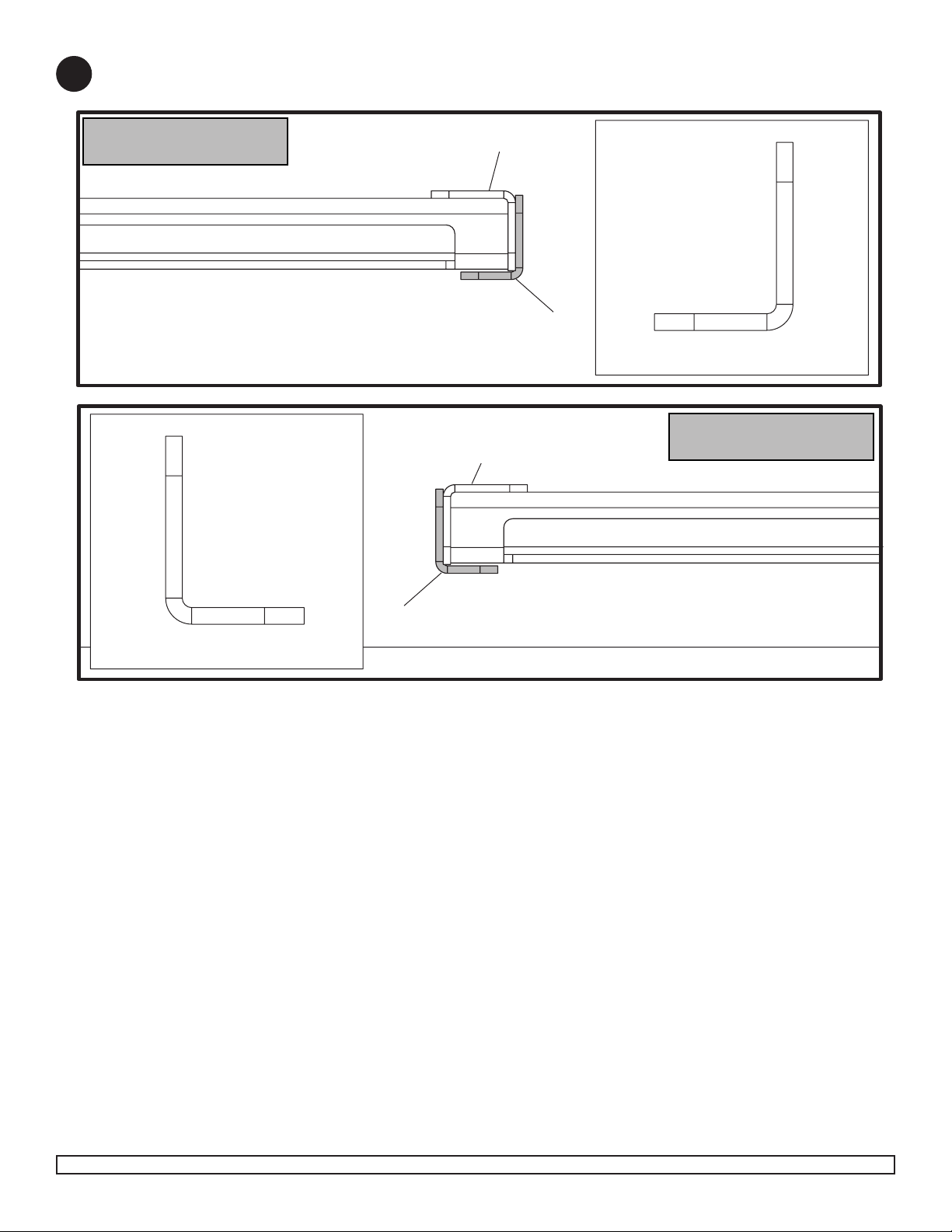

NOTE: Connection brackets (GG) orientation.
9
Place connection brackets (GG) onto rail connection brackets (X) as shown below.
RIGHT SIDE
FRONT OF DISPLAY CART
X
X
GG
LEFT SIDE
GG
FRONT OF DISPLAY CART
8 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
Attach connection brackets (GG) onto rail connection brackets (X) as shown below.
9-1
Secure one connection brackets (GG) with four M5 x 10 mm phillips screws (AA), lock washers (CC), and
at washers (BB) as shown below. Repeat step for remaining three connection brackets (GG).
GG
BB
CC
AA
X
RIGHT SIDE SHOWN ABOVE
9 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
10
Attach adapter brackets (B) to back of display using four M6 x 12 mm phillips screws (O) or M6 x 16 mm Phillips
screw (HH) with nylon shoulder washer (L), or four M8 x 15 mm phillips screws (N) as shown below.
Adapter Bracket Mounting Patterns
B
200 mm MIN
600 mm MAX
L
DISPLAY
PLP PLATE
N or O,HH
Hook display and adapter brackets (B) onto horizontal rail assemblies as shown below.
11
NOTE: Start with bottom display.
NOTE: Once display is located in desired position, tighten security screws as shown in detail 4.
DISPLAY NOT SHOWN FOR CLARITY
200 mm
400 mm
300 mm
DETAIL 4
D
B
TIGHTEN
SECURITY
SCREW
10 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
Fasten shelf (D) onto horizontal support (C) using three self-drilling screws (FF) as shown below.
12
D
C
FF
11 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
Adapter Bracket Adjustment
13Use legend below to determine position of display.
NOTE: Each knob can be adjusted independently for ne tuning angle adjustments.
Turn knobs CLOCKWISE to raise display height. Turn knobs CLOCKWISE to push out display.
Turn knobs COUNTER-CLOCKWISE to lower display height. Turn knob COUNTER-CLOCKWISE to pull in display.
UP DOWN IN OUT
KNOB
12 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
Attaching Covers
NOTE: Position bottom front and back covers rst
14
Position front bottom cover (U). Secure covers in place using four decorative screws (DD) as shown below.
Position back bottom cover (V). Secure covers in place using four decorative screws (DD) as shown below.
Position upper cover (W) on front of vertical supports (A). Secure covers in place using four decorative screws
(DD) as shown below. Position upper cover (W) on back of vertical supports (A). Secure covers in place using four
decorative screws (DD) as shown below.
DD
U
W
W
Z
V
BACK VIEW
A
Attach two retaining spacers (EE), and decorative screws (DD) to side
15
cover (Z) as shown to right. Attach side cover to vertical support (A) so
that it goes inside the lower front and back covers (U and V).
13 of 13
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
ISSUED: 11-16-11 SHEET #: 125-9265-2 11-21-13
EE
DD
