DST940-BTB
37" - 46"
(94 - 117 cm)
MAX
75 lb x4
(34 kg) x4
1
2016-09-13 #:126-9148-2 2017-05-15
WARNING
ENG - Before installing make sure the supporting surface will support the combined load of the equipment and
hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift
and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to
product failure or personal injury. For support please call customer care at 1-800-865-2112.
ENG
Symbols
ESP
Símbolos
FRN
Symboles
DEU
Symbole
NEL
Symbolen
Simboli
ITL
Symboly
ČEŠ
Symboly
SLK
Símbolos
POR
Semboller
TÜR
ENG
Do not overtighten screws.
ESP
No apriete de más los tornillos.
FRN
Ne pas trop serrer les vis.
DEU
Ziehen Sie die Schrauben nicht zu
fest an.
NEL
Draai de schroeven niet te strak aan.
ITL
Non stringere troppo le viti.
ČEŠ
Šrouby neutahujte příliš silně.
Skrutky neuťahujte príliš silno.
SLK
Não apertar demasiado os parafusos.
POR
Vidaları gereğinden fazla sıkmayın.
TÜR
ENG
WARNING
ESP
ADVERTENCIA
FRN
ADVERTISSEMENT
DEU
ACHTUNG
NEL
WAARSCHUWING
AVVERTENZA
ITL
VÝSTRAHA
ČEŠ
VÝSTRAHA
SLK
AVISO
POR
UYARI
TÜR
ENG
ESP
FRN
DEU
NEL
ITL
ČEŠ
SLK
POR
TÜR
#
Skip to step.
Continúe con el
paso.
Passez à l’étape.
Weiter mit Schritt.
Ga door naar stap.
Vai al passo.
Přeskočte na krok.
Preskočte na krok.
Saltar para o
passo.
Su adıma geç.
x3
Screws must get at least three
ENG
full turns and fi t snug.
ESP
Los tornillos tienen que dar,
por lo menos, tres vueltas
completas y quedar ajustados.
Il faut effectuer au moins trois
FRN
tours de vis complets et bien
serrer les vis.
Schrauben sind mindestens drei
DEU
volle Umdrehungen einzudrehen
und müssen fest anliegen.
NEL
De schroeven moeten ten
minste drie hele slagen worden
aangedraaid en stevig vastzitten.
ITL
Girare tre volte le viti che
devono risultare aderenti.
ČEŠ
Šrouby se musí otočit minimálně
tři plné otáčky a plně dosednout.
SLK
Skrutky sa musia otočiť aspoň
tri celé otáčky a tesne dosadnúť.
POR
Os parafusos devem completar,
no mínimo, três voltas
completas e ajustar-se no local.
Vidalar en az üç tam dönüş
TÜR
yapmalı ve sıkı oturmalıdır.
2
2016-09-13 #:126-9148-2 2017-05-15
Parts List
A tilt box 2 100-1128
B tilt plate 4 100-1047
C M5 x 12mm socket pin screw 8 520-1064
D washer 2 540-9432
E retaining collar 3 1800-375
F M4 x 12mm socket pin serrated washer screw 16 520-1079
G M4 x 25mm socket pin serrated washer screw 16 520-1082
H M6 x 12mm socket pin screw 16 520-1050
I M6 x 25mm socket pin screw 16 520-1211
J #10 washer 16 540-9400
K M8 x 25mm socket pin screw 16 520-1101
L M8 x 12mm socket pin screw 16 520-1724
M 5/16 SAE washer 32 540-9406
N spacer 32 600-1215
O 4mm allen wrench 1 560-9646
P 6" extension column 2 026-1014
Q dual cross support 1 139-1015
R 4.5" hex bolt 1 520-9548
S 3/8"-16 nylock nut 1 530-9310
T M10 x 15mm penta pin screw 16 520-9263
U adapter bracket 8 202-1655
V M10 x 2" tool driver penta pin 1 520-9260
W adapter plate 2 125-1545
X fi ber washer 1 540-9431
Y M5 x 10mm phillips screw 1 520-9250
Z M8 x 50mm socket pin screw 16 521-1013
PLB-1
Part #Description Qty
(2)
A
tilt box
(1)
S
nylock nut
(8)
C
M5 x 12mm screw
B
tilt plate
(1)
X
Fiber washer
(2)
D
washer
(4)
3
(2)
P
extension column
(1)
O
4mm allen wrench
(3)
E
retaining collar
2016-09-13 #:126-9148-2 2017-05-15
(1)
Q
cross support
(16)
F
M4 x 12mm
(16)
K
M8 x 25mm
(16)
T
M10 x 15mm
(16)
G
M4 x 25mm
(16)
L
M8 x 12mm
(16)
J
#10 washer
(16)
Z
M8 x 50mm
(16)
H
M6 x 12mm
(32)
M
5/16 SAE washer
(16)
I
M6 x 25mm
(32)
N
spacer
(1)
Y
M5 x 10mm
V
(2)
W
adapter plate
(1)
(8)
U
adapter bracket
R
hex boltM10 penta pin tool
(1)
4
2016-09-13 #:126-9148-2 2017-05-15
1
Q
Drill hole in
extension pipe
through existing
hole in dual
cross support
R
S
X
E
Y
5
2016-09-13 #:126-9148-2 2017-05-15
2
x2
3-1
C
P
x2
A
D
x5
E
6
2016-09-13 #:126-9148-2 2017-05-15
3-2
O
4mm wrench
C (3)
7
2016-09-13 #:126-9148-2 2017-05-15
4
x2
B
T
5
8
2016-09-13 #:126-9148-2 2017-05-15

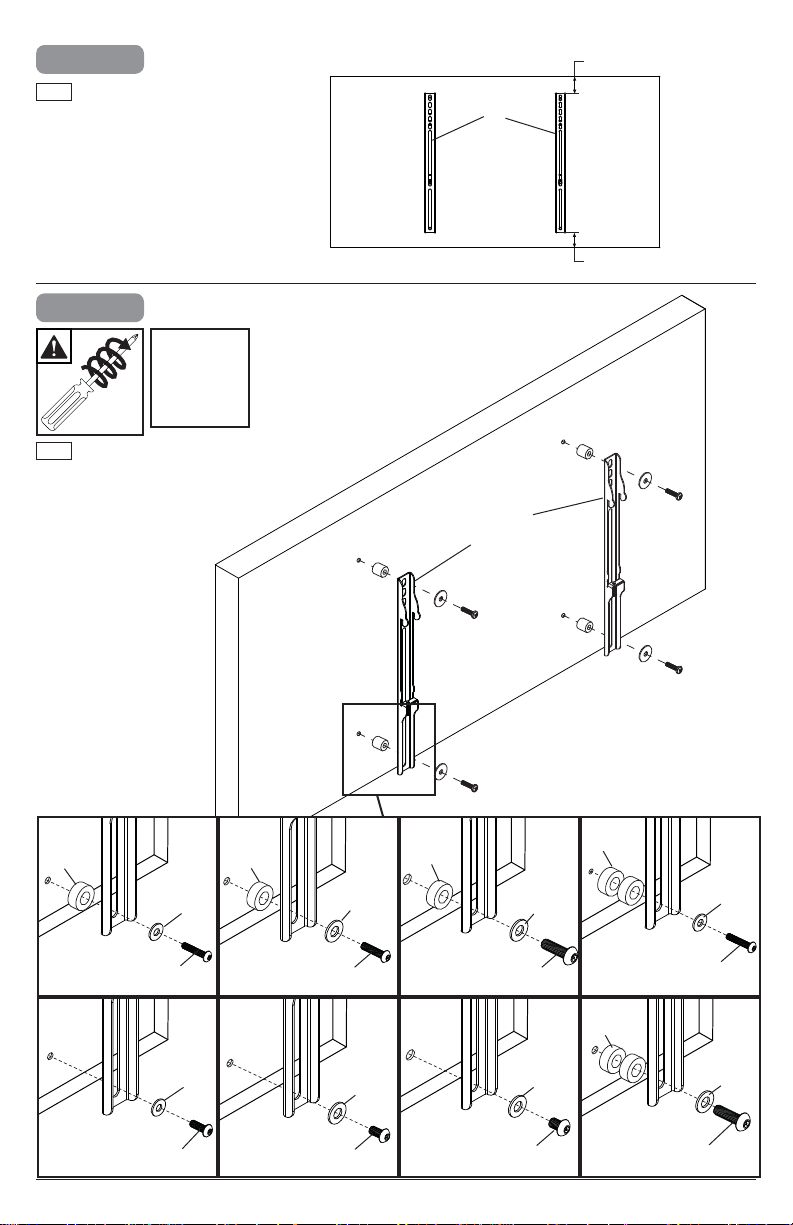

6
ENG
Center adaptor brackets
vertically on back of screen.
7
x3
ENG
Use of spacers is OPTIONAL.
X
U
X
x4
U
U
N
G
F
N
J
M
I
N
K
M
J
G
N (2)
N (2)
J
M
H
9
M
L,Z
2016-09-13 #:126-9148-2 2017-05-15
M
I,K
8
x4
9
10
2016-09-13 #:126-9148-2 2017-05-15
10
x4
ENG
Tighten.
11-1 11-2
+20°/-5°
O
4mm wrench
11
2016-09-13 #:126-9148-2 2017-05-15
ENG
Tighten.
Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and
LIMITED FIVE-YEAR WARRANTY
workmanship, under normal use, for a period of fi ve years from the date of purchase by the original end-user (but in no case longer than
six years after the date of the product's manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any
product which fails to conform with this warranty.
In no event shall the duration of any implied warranty of merchantability or fi tness for a particular purpose be longer than the
period of the applicable express warranty set forth above. Some states do not allow limitations on how long a implied warranty lasts,
so the above limitation may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service
or repairs by Peerless, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow
Peerless' instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including
in cases of third party actions and force majeure.
In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product,
whether or not secured by a security device which may be included with the Peerless
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer,
distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in
connection with the sale of any Peerless
This warranty gives specifi c legal rights, and you may also have other rights which vary from state to state.
®
product.
®
product. Some states do not allow the
