DS-S560-2X2
46" - 55"
(117 -140 cm)
MAX
500 lb
(227 kg)
ENG
1
2014-07-29 #:009-9087-3 (2015-05-12)
WARNING
ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete
installation. Before installing make sure the supporting surface will support the combined load of the equipment
and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product
may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to
safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could
lead to product failure or personal injury. Be careful not to pinch fi ngers when operating the mount. For support
please call customer care at 1-800-865-2112.
ENG
ENG
ENG
Symbols
WARNING
ENG
Display center.
Tools Needed for Assembly.
x3
Screws must get at
ENG
least three full turns
Heavy
To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
1
and fi t snug.
3/8"
(10mm)
2
3
4
ENG
Do not overtighten screws.
+1/2
3/8"
(10mm)
2
2014-07-29 #:009-9087-3 (2015-05-12)
Parts (Before beginning, make sure you have all parts shown below).
Parts List
(4)
Part #Description Qty
F
right adaptor
A pedestal 2 146-T1132
B column 2 146-T1131
C cover 2 145-T1809
D vertical support bracket 4 145-T1806
E left adaptor bracket 4 146-1609
F right adaptor bracket 4 146-1608
G computer cover 1 145-T1930
H computer shelf 1 145-T1931
I dual cross support 2 145-T1924
J cord bracket 4 146-T1321
K knurled knob 4 560-1160
L M8 x 16mm socket button screw 40 520-9527
M M8 square nut 16 530-1066
N cover clip 8 590-0317
O M5 x 10mm type-f, socket pin screw 6 520-1164
P 1/4" power bit 1 560-0263
Q 5mm allen wrench 1 560-9640
R nylon shoulder washer 16 590-2233
S M6 x 12mm socket pin screw 16 520-1050
T 4mm allen wrench 1 560-9646
U M6 x 35mm screw 8 520-0717
V rawl bolt #6913 8 5M9-381-H03
(2)
A
pedestal
C
(2)
cover
(4)
D
vertical support
bracket
E
left adaptor
bracket
(4)
bracket
B
column
(2)
3
2014-07-29 #:009-9087-3 (2015-05-12)
(2)
I
dual cross
support
(1)
G
computer cover
(1)
H
computer shelf
(40)
L
M8 x 16mm
(16)
M
M8 square nut
(1)
Q
5mm allen
wrench
(8)
N
cover clip
(10)
O
M5 x 10mm
(16)
R
nylon shoulder
washer
J
cord
bracket
(4)
S
M6 x 12mm
K
knurled
knob
(1)
P
1/4" power bit
(16)
(4)
(8)
U
M6 x 35mm
(1)
T
4mm allen
wrench
(8)
V
rawl bolt
4
2014-07-29 #:009-9087-3 (2015-05-12)
1
x2
A
U (4)
B
5
2014-07-29 #:009-9087-3 (2015-05-12)
2
x4
L (2)
DISPLAY
HEIGHT
M (4)
D
L (4)
TIGHTEN
1/8"
(3mm)
TIGHTEN
CONNECTING
HARDWARE
1/8"
(3mm)
TIGHTEN
6
2014-07-29 #:009-9087-3 (2015-05-12)
3-1 3-2
x2
N (4)
C
J
K
TIGHTEN
CONNECTING
HARDWARE
J
7
2014-07-29 #:009-9087-3 (2015-05-12)
K
TOP VIEW
4
4-1
ENG
Align base. Mark mounting holes.
4-2
ENG
Drill mounting holes into
supporting surface
(3" (76mm) minimum
depth required).
3/8"
(10mm)
55.00"
(1397mm)
4-3
3/8"
(10mm)
ENG
Align base. Install using concrete anchors
provided.
3/8"
(10mm)
3"
(76mm)
V (8)
ENG
Maximum 35 ft • lb (47 N.M.).
ENG
Tighten.
55.00"
(1397mm)
8
2014-07-29 #:009-9087-3 (2015-05-12)

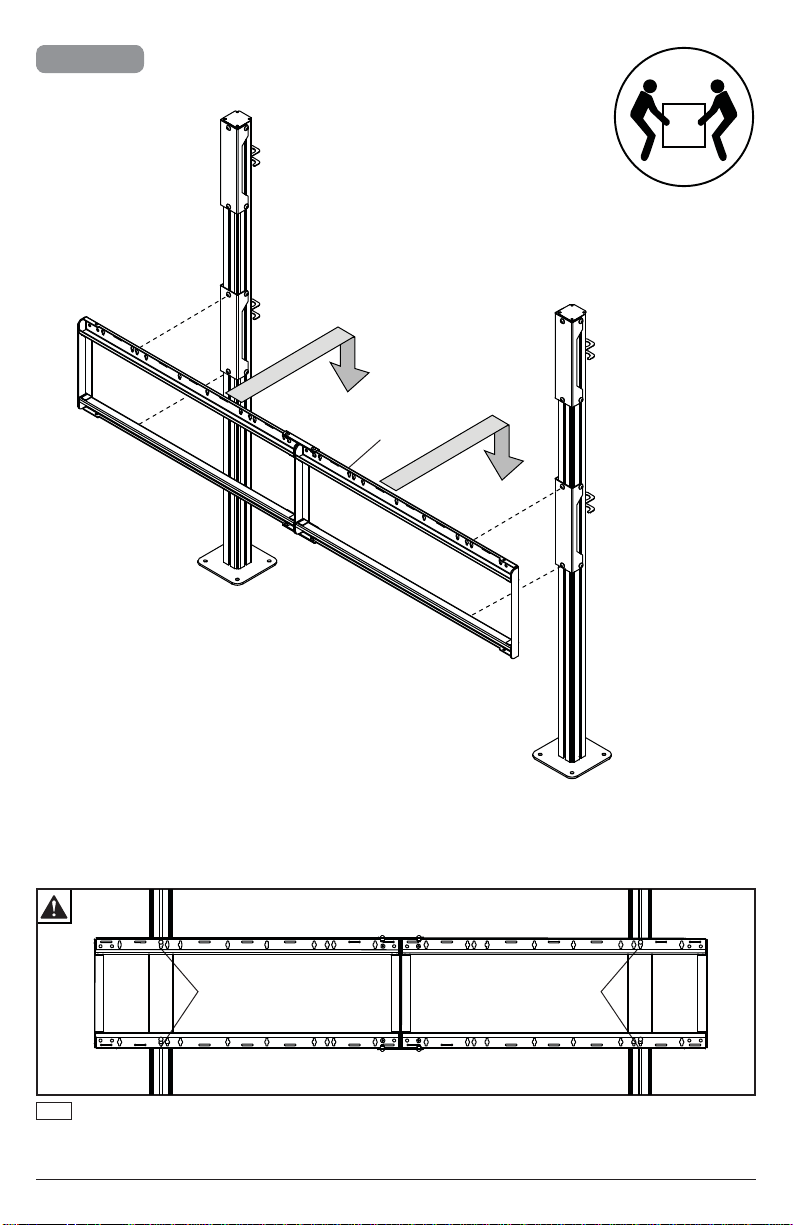

5-1
I
TIGHTEN
HARDWARE
(X2)
ENG
Cross supports must center on columns.
TIGHTEN
HARDWARE
(X2)
9
2014-07-29 #:009-9087-3 (2015-05-12)
5-2
TIGHTEN
CONNECTING
HARDWARE (X4)
10
2014-07-29 #:009-9087-3 (2015-05-12)
6-1
ENG
Center adapter brackets
vertically on back of screen.
X
6-2
E
F
E
RS
F
X
OPTIONAL: Use (L) to lock
mechanism on adaptor bracket
L
OR
x3
11
2014-07-29 #:009-9087-3 (2015-05-12)

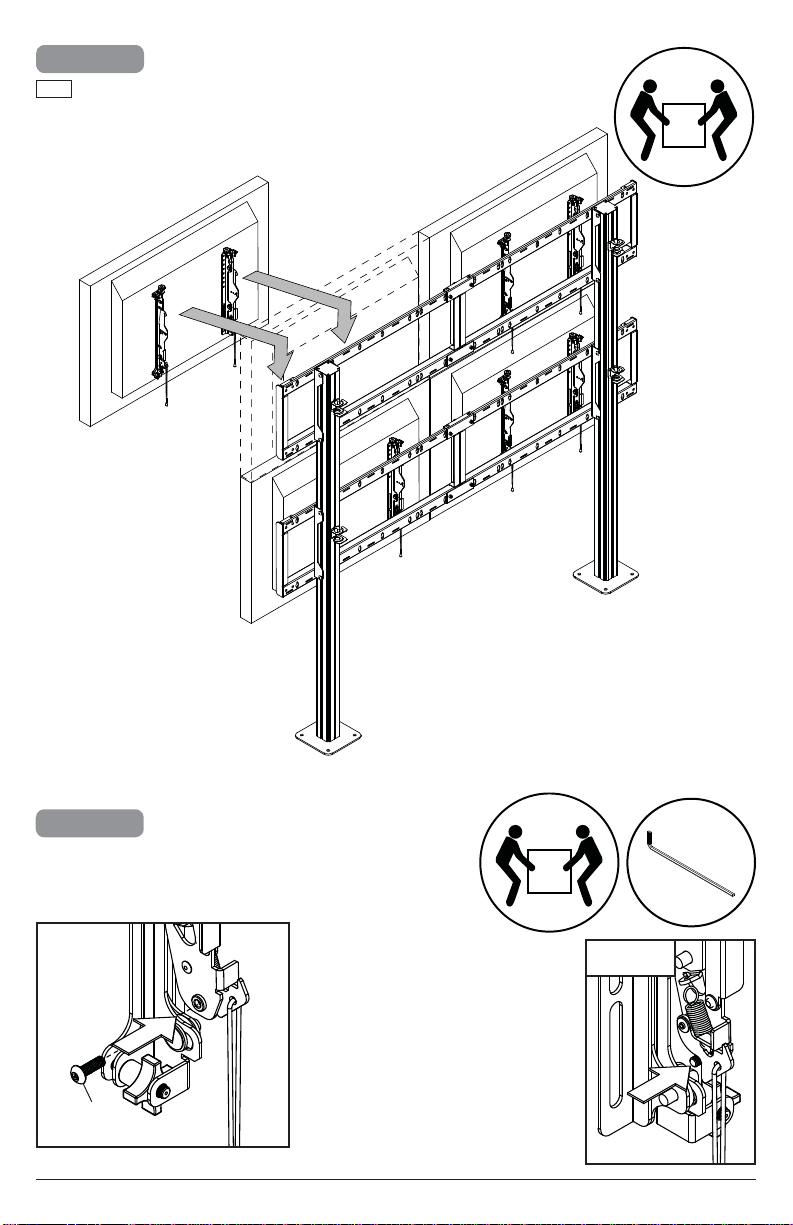

7-1
ENG
Hook on displays and secure pin in "locked" position.
7-2
Must hang displays on top row second; Secure pin
in "locked" position.
OPTIONAL: Insert M5 x 10mm type-F socket pin screws
(T) to lock latches.
O
12
T
"LOCKED"
POSITION
2014-07-29 #:009-9087-3 (2015-05-12)
Display Adjustment
IN
OUT
TILT FORWARD
SIDE
TILT BACKWARD
SIDE
SIDE
TILT RIGHT
TOP
SIDE
TILT LEFT
TOP
UP DOWN
ROTATE LEFT ROTATE RIGHT
13
2014-07-29 #:009-9087-3 (2015-05-12)

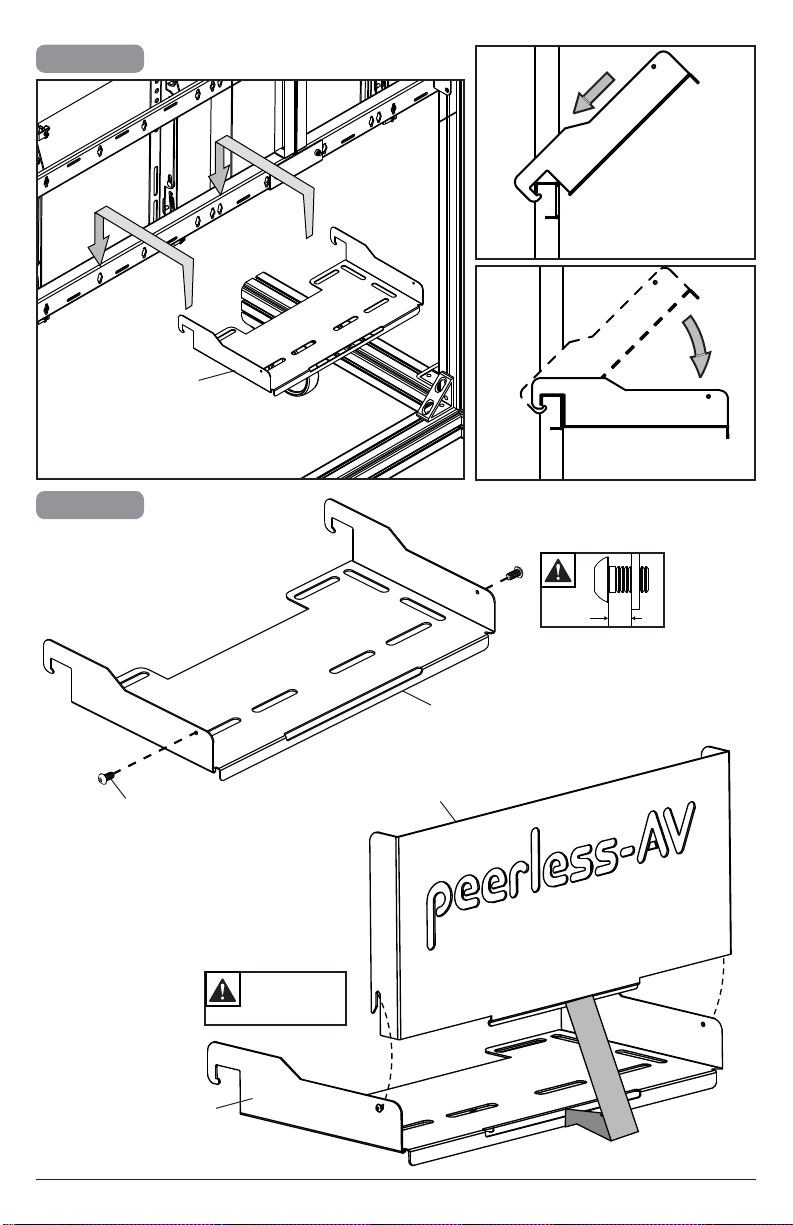

8
9
H
1/8"
(3mm)
O (2)
H
TIGHTEN
CONNECTING
HARDWARE
14
H
G
2014-07-29 #:009-9087-3 (2015-05-12)
10
ENG
Route cables through cord brackets.
J
J
15
2014-07-29 #:009-9087-3 (2015-05-12)
