Peerless-AV DS-C555-4X3 User Manual

DS-C555-4X3
46" - 55"
(117 - 140 cm)
1200 lb
(545 kg)
ENG
1
2015-06-24 #:009-9118-2 (2015-10-15)
This page intentionally left blank.
2
2015-06-24 #:009-9118-2 (2015-10-15)
WARNING
Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product must be installed onto fl at, hard, level surface to prevent tipping. The cart or stand is not affi xed or secured to the fl oor, and may therefore tip over and/or fall if screen and/or stand is shaken or hit. Displays must be removed before moving cart. Not recommended for use in areas with heavy traffi c. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Be careful not to pinch fi ngers when operating the mount. For support please call customer care at 1-800-865-2112.
ENG
Symbols
To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws.
1
ENG
WARNING
Screws must get at
ENG
least three full turns and fi t snug.
x3
2
ENG
Heavy
Display center.
ENG
Do not overtighten screws.
ENG
Tools Needed for Assembly.
3
+1/2
4
(13mm)
3
2015-06-24 #:009-9118-2 (2015-10-15)
Parts (Before beginning, make sure you have all parts shown below).
Parts List
Description Qty
A caster, 5" swivel 6 600-0026 B caster support 6 145-T1799 C cover 9 145-T1809 D base leg 3 145-T1767 E horizontal leg support 2 145-T1785 F base support tube 3 145-T1812 G base support 14 560-T1261 H vertical leg support 3 145-T1777
I extension 3 145-T1778 J adaptor bracket 24 145-T1792 K side support bracket 4 145-T1807 L vertical support bracket 6 145-T1806 M dual cross support 3 145-T1924 N computer cover 1 145-T1930 O computer shelf 1 145-T1931 P extension adaptor 3 145-T1935 Q cord bracket 6 146-T1321 R bracket, 4x2 con guration 3 145-T1858 S knurled knob 6 560-1160 T M8 x 16mm socket button screw 244 520-9527 U M8 square nut 80 530-1066 V cover clip 36 590-0317
W M5 x 10mm type-F, socket pin screw 26 520-1164
X bar nut 34 146-1319 Y 1/4" power bit 1 560-0263 Z 5mm allen wrench 1 560-9640
AA nylon shoulder washer 48 590-2233 BB M6 x 12mm socket pin screw 48 520-1050 CC 4mm allen wrench 1 560-9646
Part #
A
caster
(6)
D
(3)
H
vertical leg
support
(6)
B
caster support
(3)
base leg
I
extension
(3)
(9)
C
cover
(2)
E
horizontal leg
support
(3)
F
base
support tube
4
(14)
G
base support
(6)
L
vertical support
bracket
2015-06-24 #:009-9118-2 (2015-10-15)
(24)
J
adaptor bracket
side support
K
bracket
(4)
(3)
P
extension
adaptor
(6)
S
knurled
knob
(6)
M
dual cross
support
Q
cord
bracket
(
244
T
M8 x 16mm
(6)
)
(80)
U
M8 square
nut
(36)
V
cover clip
(1)
N
computer cover
(26)
W
M5 x 10mm
X
(34)
bar nut
(1)
O
computer shelf
(3)
R
bracket, 4x2
confi guration
(1)
Y
1/4" power
bit
(1)
Z
5mm allen
wrench
AA (48)
nylon shoulder
washer
BB (48)
M6 x 12mm
5
CC (1)
4mm allen
wrench
2015-06-24 #:009-9118-2 (2015-10-15)
1-1
B
x6
T (4)
1-2
Z
A
(5mm)
Do not fully tighten hardware
x6
T (2)
U (2)
SIDE VIEW
6
2015-06-24 #:009-9118-2 (2015-10-15)
2
x3
T (4)
F
Z
(5mm)
U (2)
D
U (2)
U (4)
U (2)
F
T (4)
7
2015-06-24 #:009-9118-2 (2015-10-15)
3
x3
TIGHTEN CONNECTING HARDWARE
ENG
FLUSH EDGES
Casters must be fl ush to end of horizontal leg support.
ENG
4
x14
T (4)
X (2)
G
SIDE VIEW
Do not fully tighten hardware
8
2015-06-24 #:009-9118-2 (2015-10-15)

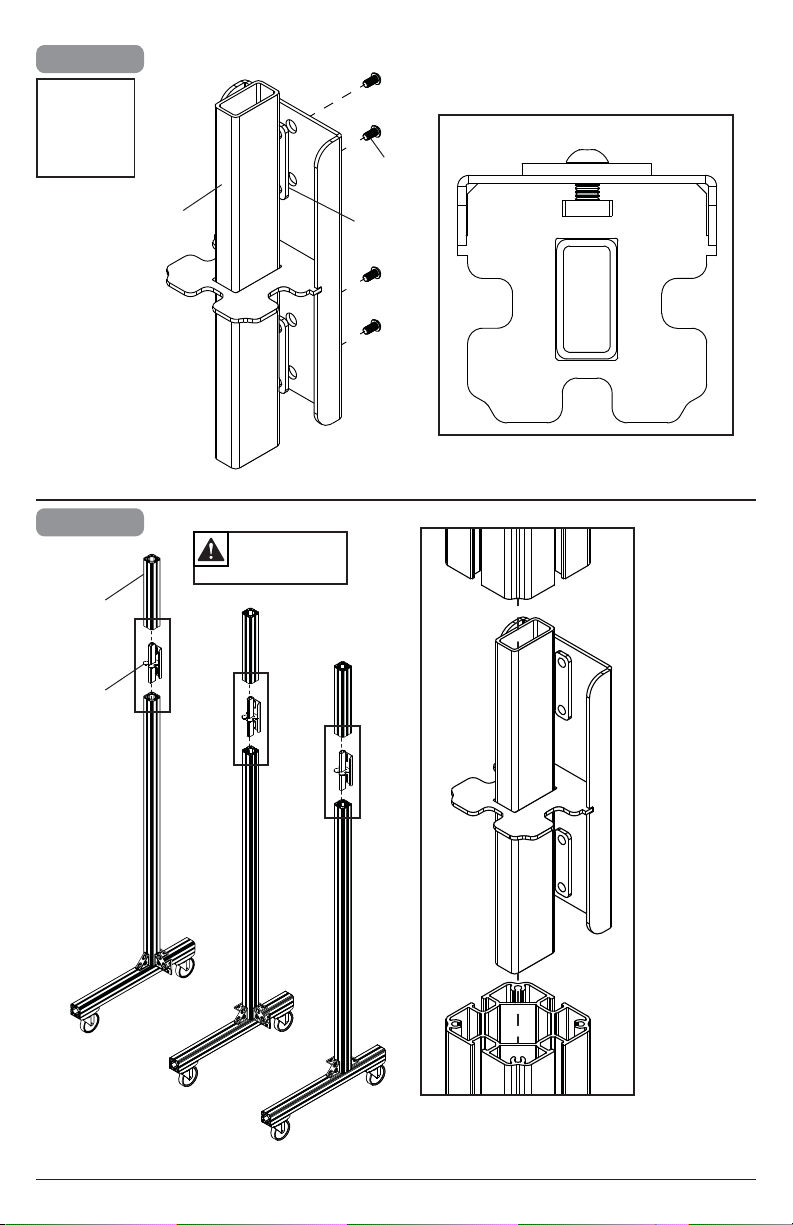

5-1
x2
TIGHTEN CONNECTING HARDWARE
H
5-2
Assemble middle support bracket.
H
TIGHTEN CONNECTING HARDWARE
9
2015-06-24 #:009-9118-2 (2015-10-15)
6-1
x3
6-2
I (3)
P (3)
P
Do not fully tighten hardware
T (4)
X (2)
TIGHTEN CONNECTING HARDWARE
10
2015-06-24 #:009-9118-2 (2015-10-15)

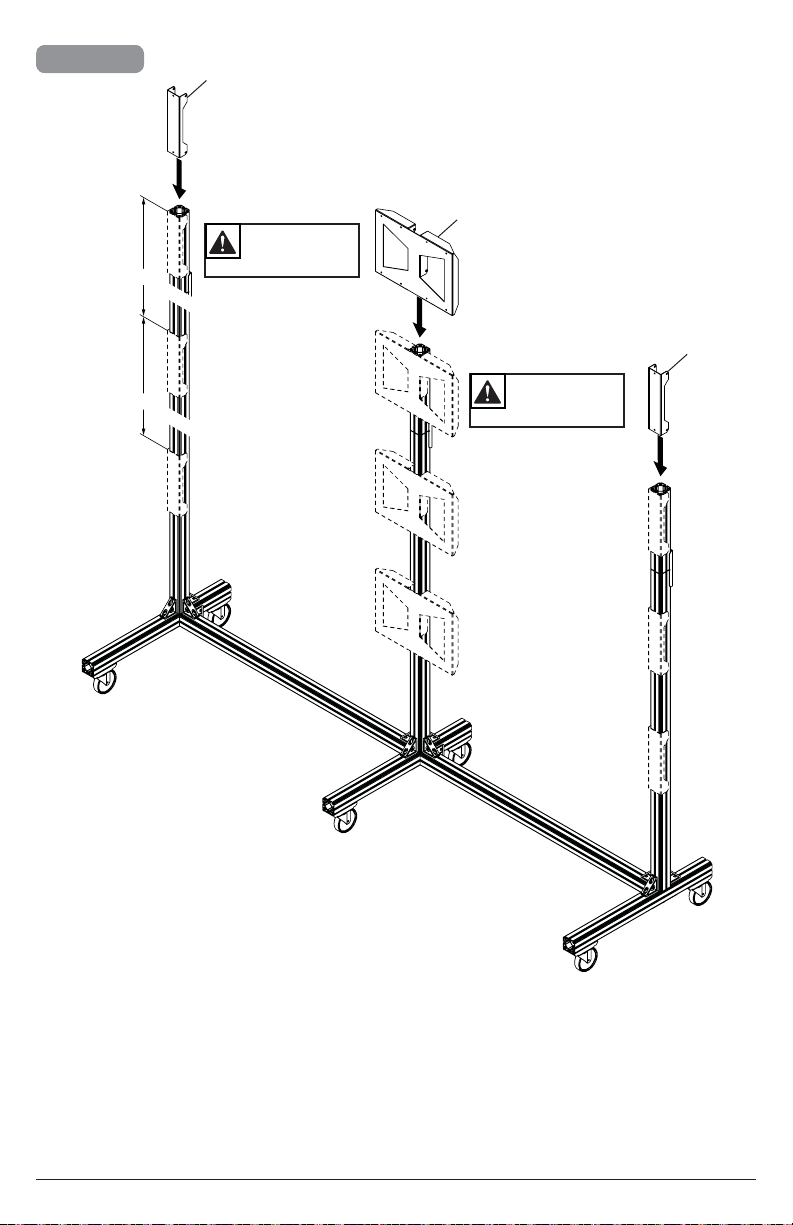

7
LOCK WHEELS
TIGHTEN CONNECTING HARDWARE
E
E
8
x6
T (6)
U (4)
L
11
1/8"
(3mm)
2015-06-24 #:009-9118-2 (2015-10-15)
1/8"
(3mm)
9

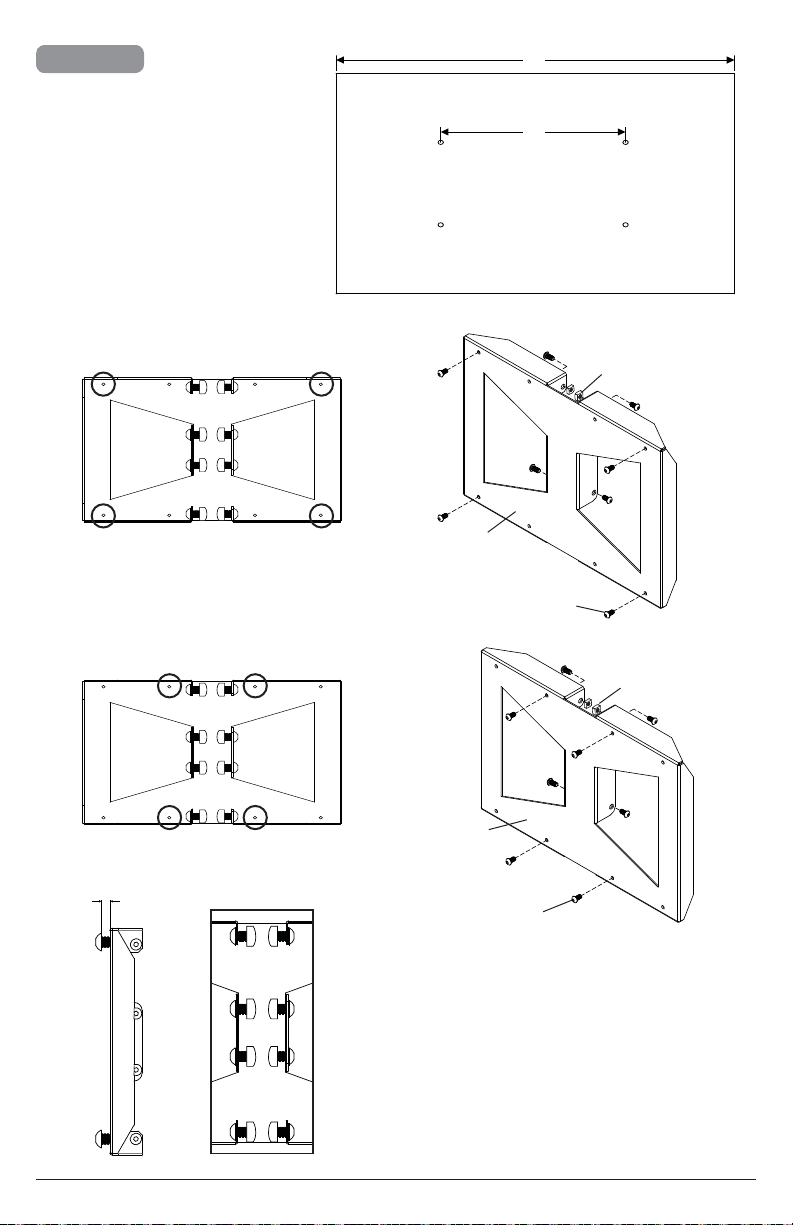

Use metric formula below and diagram to right to determine hole pattern required for center vertical support bracket. Repeat (x2).
All dimensions are metric.
Use the outside mounting holes when…
a x 4 > 4368mm and a x 3 + b < 4318mm
Use the inside mounting holes when…
a x 4 > 4098mm and a x 3 + b < 4064mm
a
b
BACK OF DISPLAY
U (8)
R
T (12)
U (8)
(3mm)
SIDE
1/8"
BACK
12
R
T (12)
2015-06-24 #:009-9118-2 (2015-10-15)
10
DISPLAY HEIGHT
DISPLAY HEIGHT
L (3)
R (3)
TIGHTEN CONNECTING HARDWARE
L (3)
TIGHTEN CONNECTING HARDWARE
13
2015-06-24 #:009-9118-2 (2015-10-15)
11-1
M (2)
TIGHTEN CONNECTING HARDWARE
14
2015-06-24 #:009-9118-2 (2015-10-15)
11-2
TIGHTEN CONNECTING HARDWARE
M (2)
15
2015-06-24 #:009-9118-2 (2015-10-15)

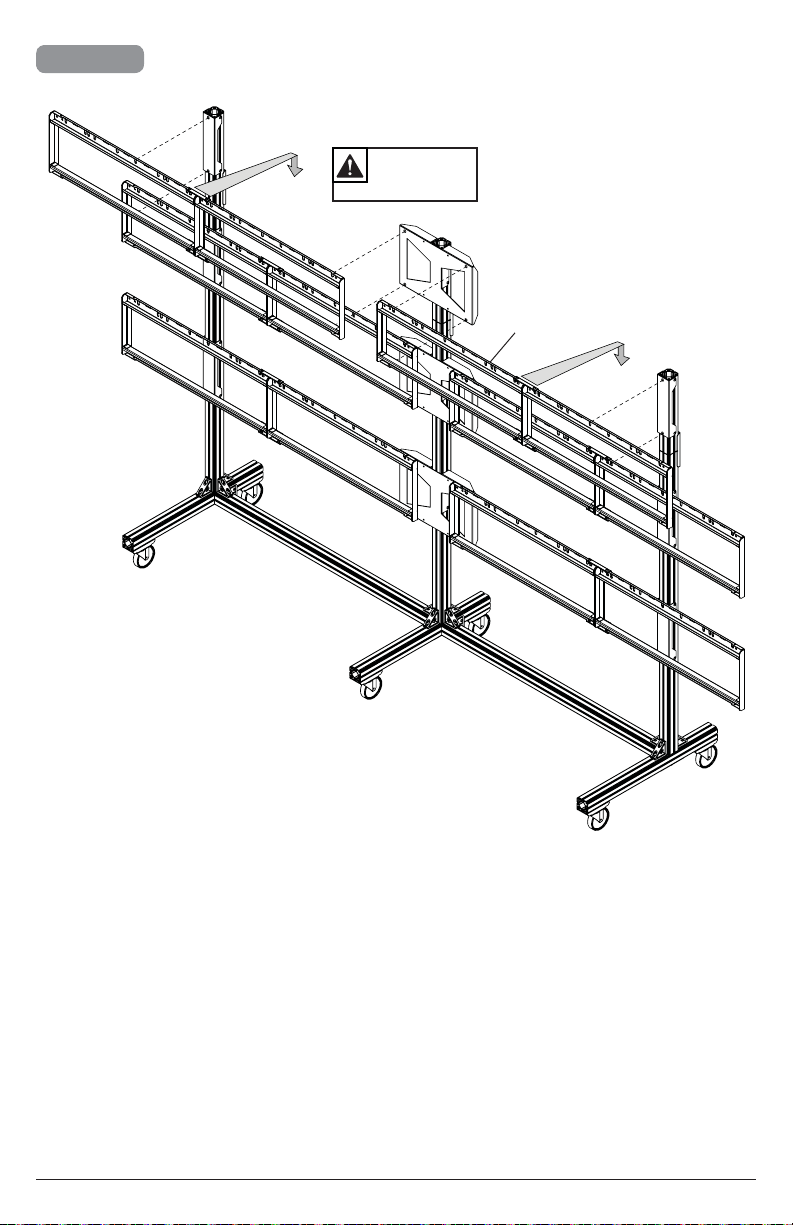

11-3
TIGHTEN CONNECTING HARDWARE
M (2)
16
2015-06-24 #:009-9118-2 (2015-10-15)
12
TIGHTEN CONNECTING HARDWARE
T (2)
K
U (2)
17
2015-06-24 #:009-9118-2 (2015-10-15)
13
Center adaptor brackets vertically on back of screen.
X
.98"
(25mm)
7.87"
(200mm)
3.94"
(100mm)
CC
(4mm)
X
2.50"
(63mm)
0.91"
(23mm)
15.75"
(400mm)
2.50"
(63mm)
18
AA BB T
OR
x3
2015-06-24 #:009-9118-2 (2015-10-15)
14-1

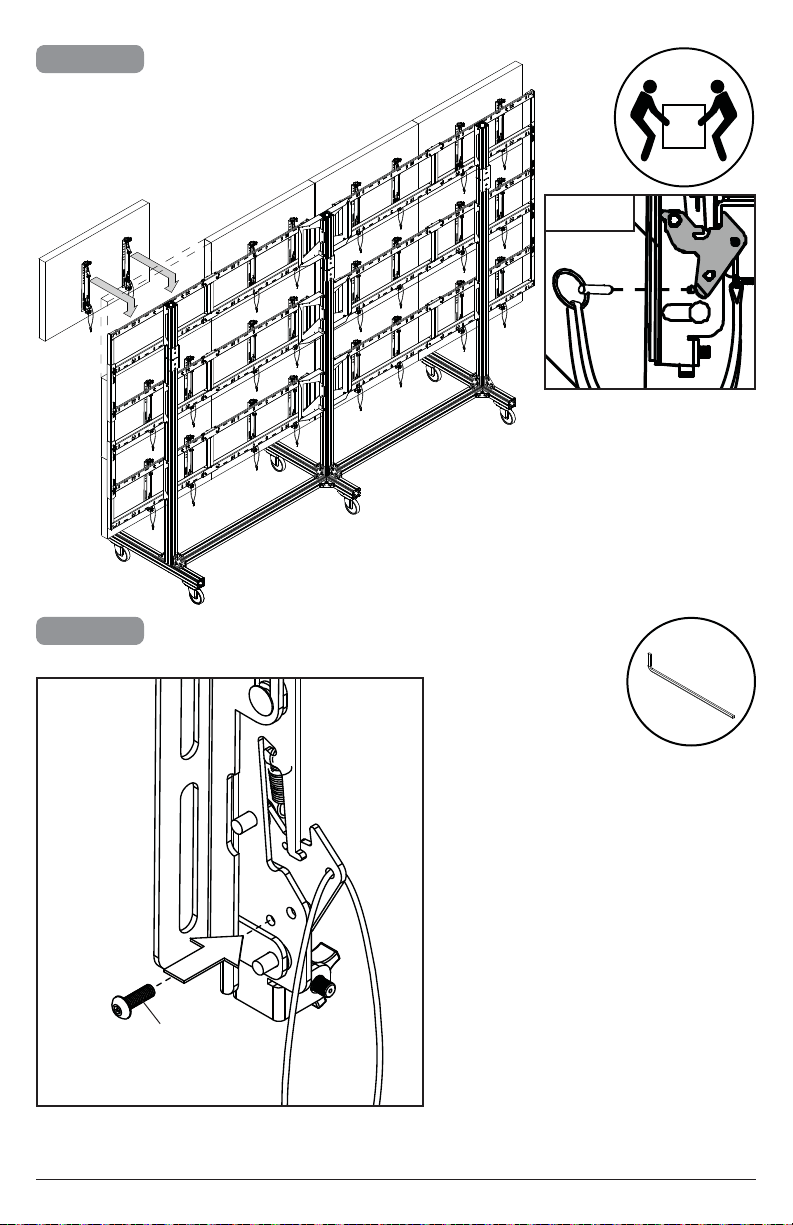

Must hang displays to bottom row fi rst; Secure pin in "locked" position.
14-2
Must hang displays on top row last; Secure pin in "locked" position.
"LOCKED" POSITION
19
"LOCKED" POSITION
2015-06-24 #:009-9118-2 (2015-10-15)
14-3
Must hang displays on top row last; Secure pin in "locked" position.
"LOCKED" POSITION
11-4
OPTIONAL: Insert M5 x 10mm type-F socket pin screws to lock latches.
W
20
CC
2015-06-24 #:009-9118-2 (2015-10-15)
Display Adjustment
IN
OUT
TILT FORWARD
SIDE
TILT BACKWARD
SIDE
SIDE
TILT RIGHT
TOP
SIDE
TILT LEFT
TOP
UP DOWN
ROTATE LEFT ROTATE RIGHT
21
2015-06-24 #:009-9118-2 (2015-10-15)
12

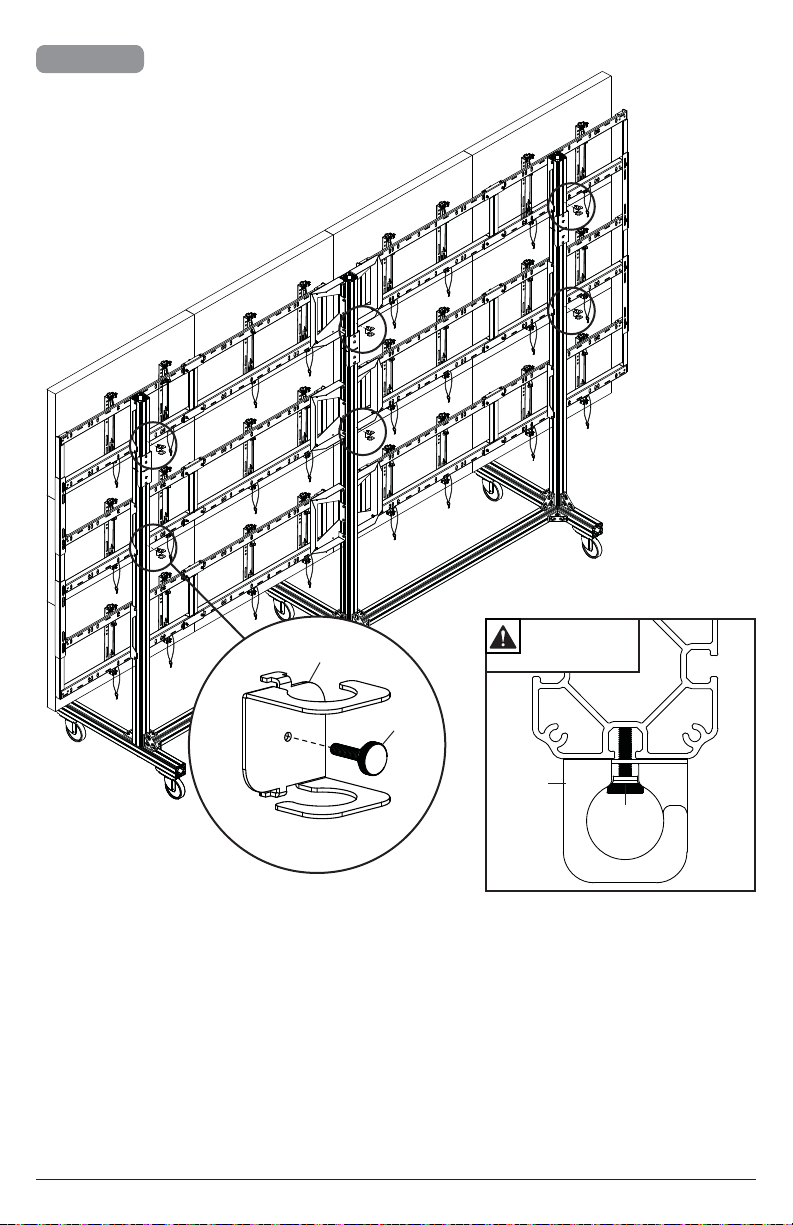

Q
TIGHTEN CONNECTING HARDWARE
22
S
Q
S
TOP VIEW
2015-06-24 #:009-9118-2 (2015-10-15)
12
13
I
1/8"
(3mm)
W (2)
O
TIGHTEN CONNECTING HARDWARE
23
O
N
2015-06-24 #:009-9118-2 (2015-10-15)
14
Route cables through cord brackets.
Q
Q
24
2015-06-24 #:009-9118-2 (2015-10-15)
22

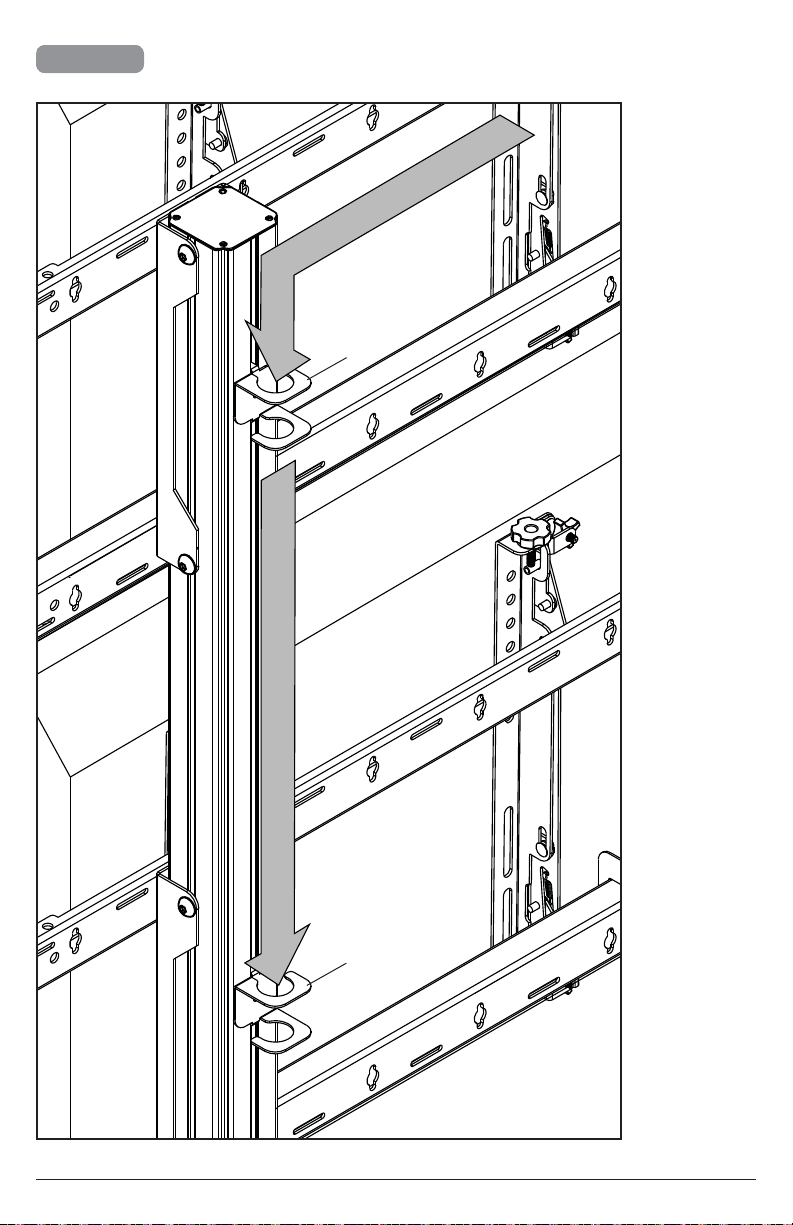

Pull down on bracket cords and hold. Swing screen away from cart and lift to remove.
Display Removal
23
Remove displays from top row fi rst.
25
"UNLOCKED"
POSITION
2015-06-24 #:009-9118-2 (2015-10-15)
24
Repeat step 22 to remove displays from middle row second.
25
Repeat step 22 to remove displays from bottom row last.
"UNLOCKED"
POSITION
26
"UNLOCKED"
POSITION
2015-06-24 #:009-9118-2 (2015-10-15)
