DS496
Apple® Mac® mini PC Holder
Installation and Assembly
10 lb
MAX
(4.5 kg)
NOTE:
APPLE MAC MINI 2010 MODELS AND LATER.
ENG
APPLE MAC MINI NOT INCLUDED.
1
2013-03-11 #:125-9413-1
Parts List
Part Description Quantity Part Number
A computer box 1 125-1458
B box cover 1 124-1459
C alternate support bracket 4 124-1141
D M4 X 10mm socket pin 4 520-1060
E M4 X 10mm serrated washer head socket pin screw 2 510-1060
F M5 X 10mm type-F socket pin screw 8 520-1164
G #10 x 1/2" TEK phillips screw 4 520-1320
H cable tie 6 560-9711
I 4mm security allen wrench 1 560-9646
(1)
A
computer box
(4)
D
M4 X 10MM
socket pin
(1)
B
box cover
(2)
E
M4 X 10mm serrated
washer head socket
pin screw
(8)
F
M5 X 10mm type-F
socket pin screw
(4)
C
alternate support bracket
(4)
G
#10 X 1/2" TEK
phillips screw
(6)
H
cable tie
(1)
I
4mm security
allen wrench
2
2013-03-11 #:125-9413-1
Mounting patterns using alternate support brackets (C)
and M5 X 10mm type-F socket pin screws (F).
(4)
C
alternate support bracket
1
DS496
(8)
F
M5 X 10mm type-F
socket pin screw
F
F
C
F
2
DS496
C
F
F
C
C
F
3
2013-03-11 #:125-9413-1
Mounting DS496 to MOD-FPSKIT100-B, MOD-FPSKIT150-B, MOD-FPSKIT100,
and MOD-FPSKIT150 using four M4 X 10MM socket pins (D).
(4)
D
M4 X 10MM
socket pin
1

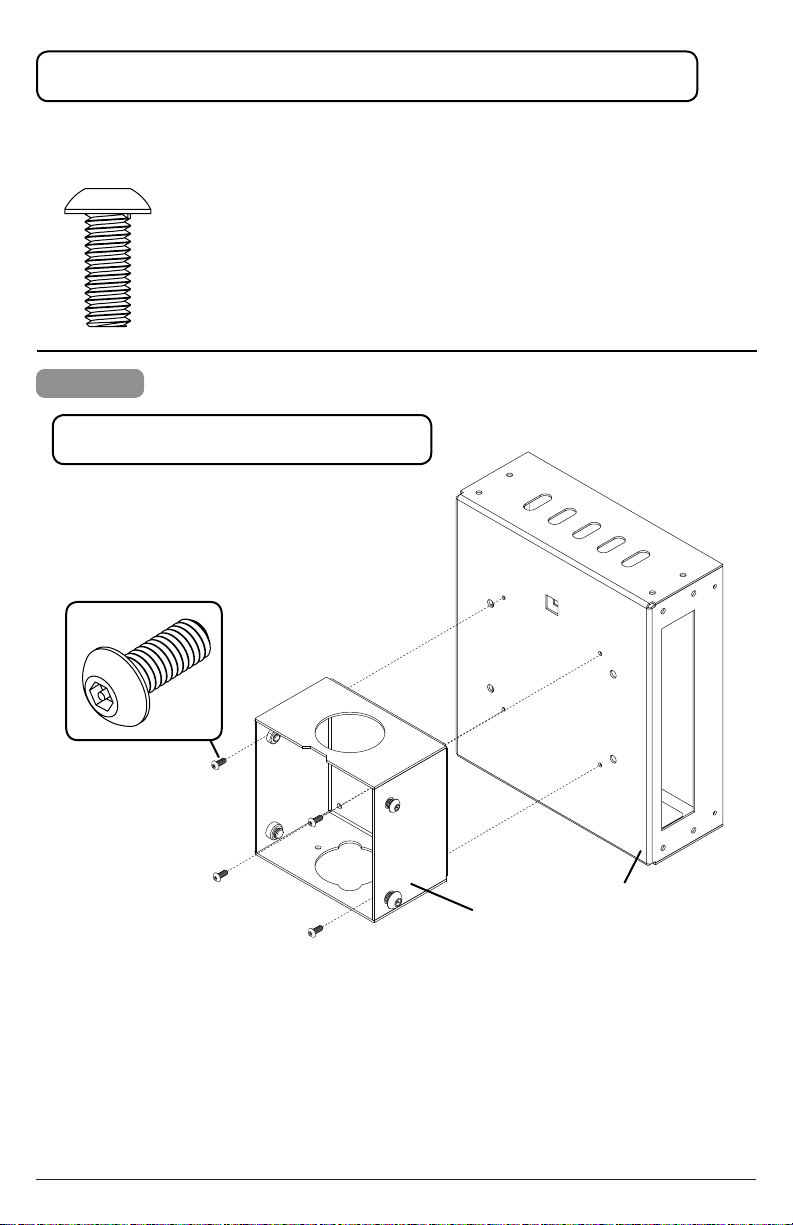

Secure tilt box (NOT INCLUDED) to computer
box (A) with four M4 X 10MM socket pins (D).
D
TILT BOX
A
NOT INCLUDED
4
2013-03-11 #:125-9413-1

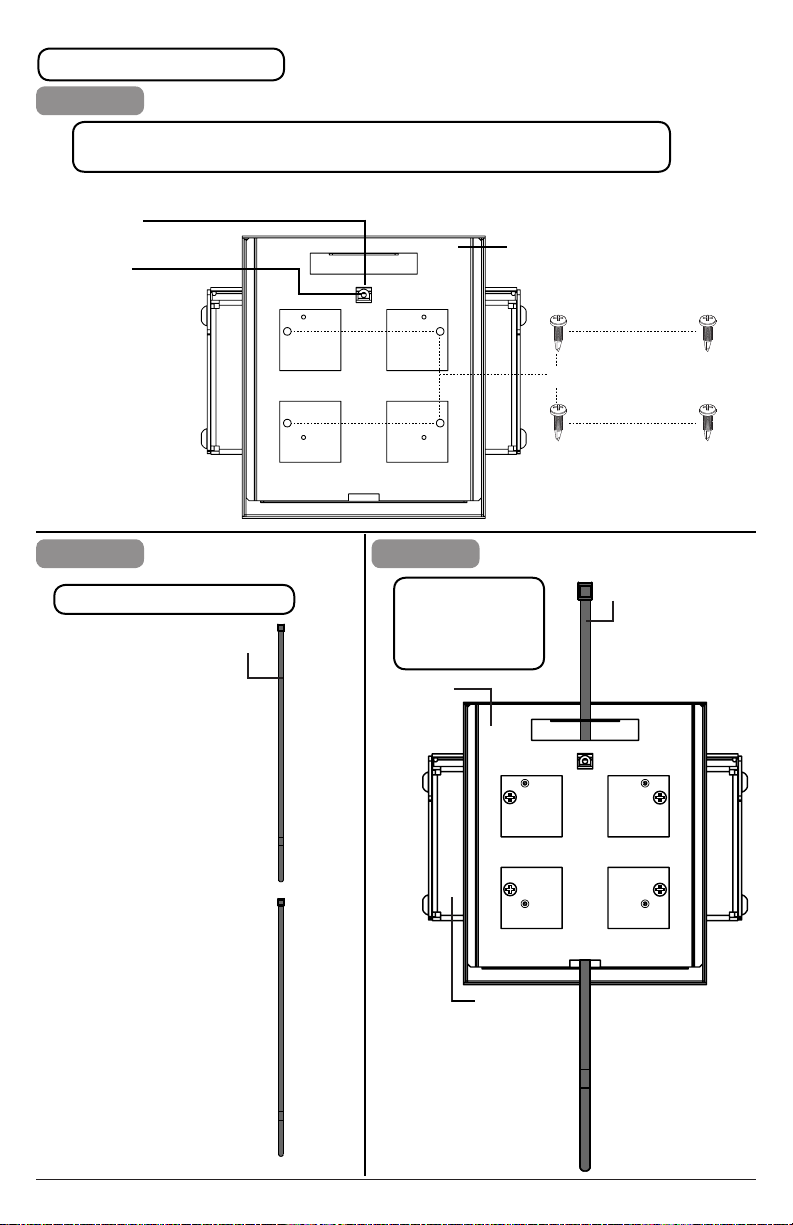

Mounting DS496 to PLCM-2.
1
Center computer box (A) adjustment opening with PLCM-2 holding
screw. Secure computer box with four #10 x 1/2" TEK phillips screws (G).
ADJUSTMENT
OPENING
PLCM-2 HOLDING
SCREW
A
G
2 3
Assemble two cable ties (H).
H
Feed cable tie
assembly (H)
through computer
box (A).
H
5
A
PLCM 2
NOT INCLUDED
2013-03-11 #:125-9413-1
3

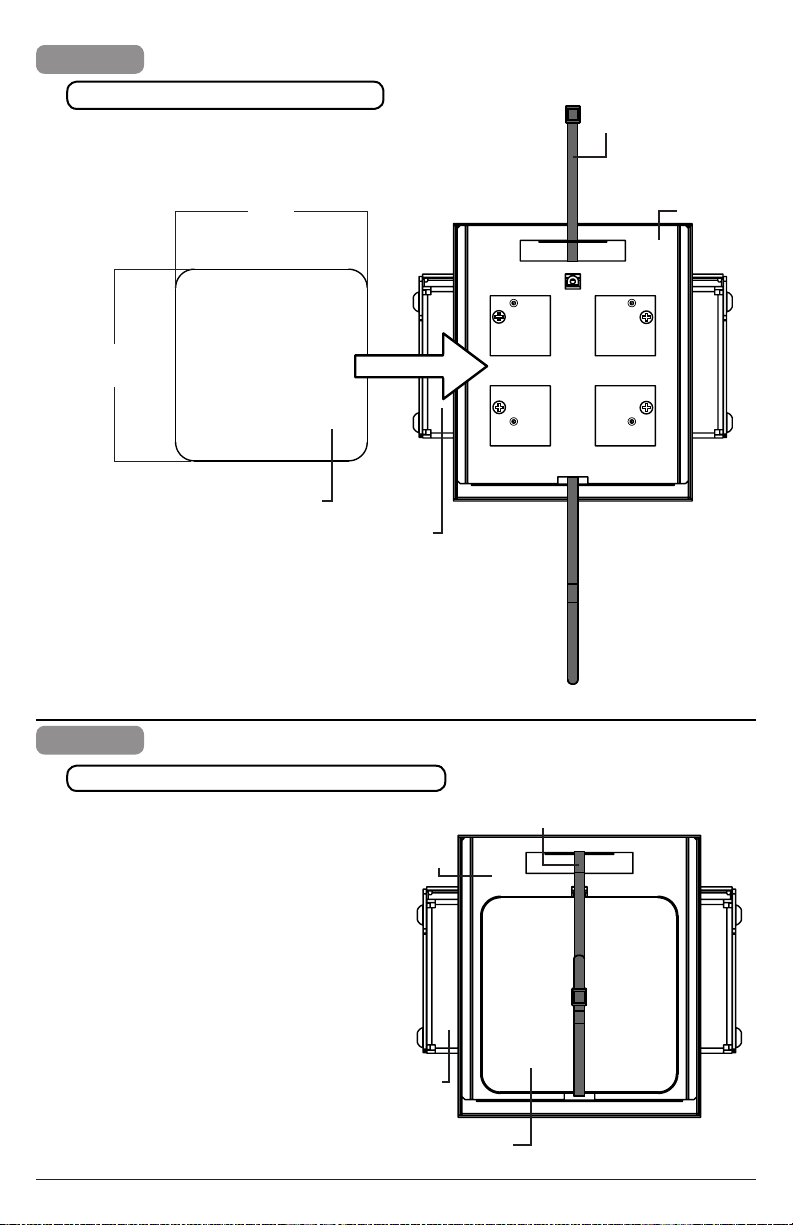

Place Mac mini into computer box (A).
H
7.7"
7.7"
MAC MINI
NOT INCLUDED
PLCM 2
NOT INCLUDED
4
Secure Mac mini with cable tie assembly (H).
A
PLCM 2
NOT INCLUDED
NOT INCLUDED
6
H
A
MAC MINI
2013-03-11 #:125-9413-1
5

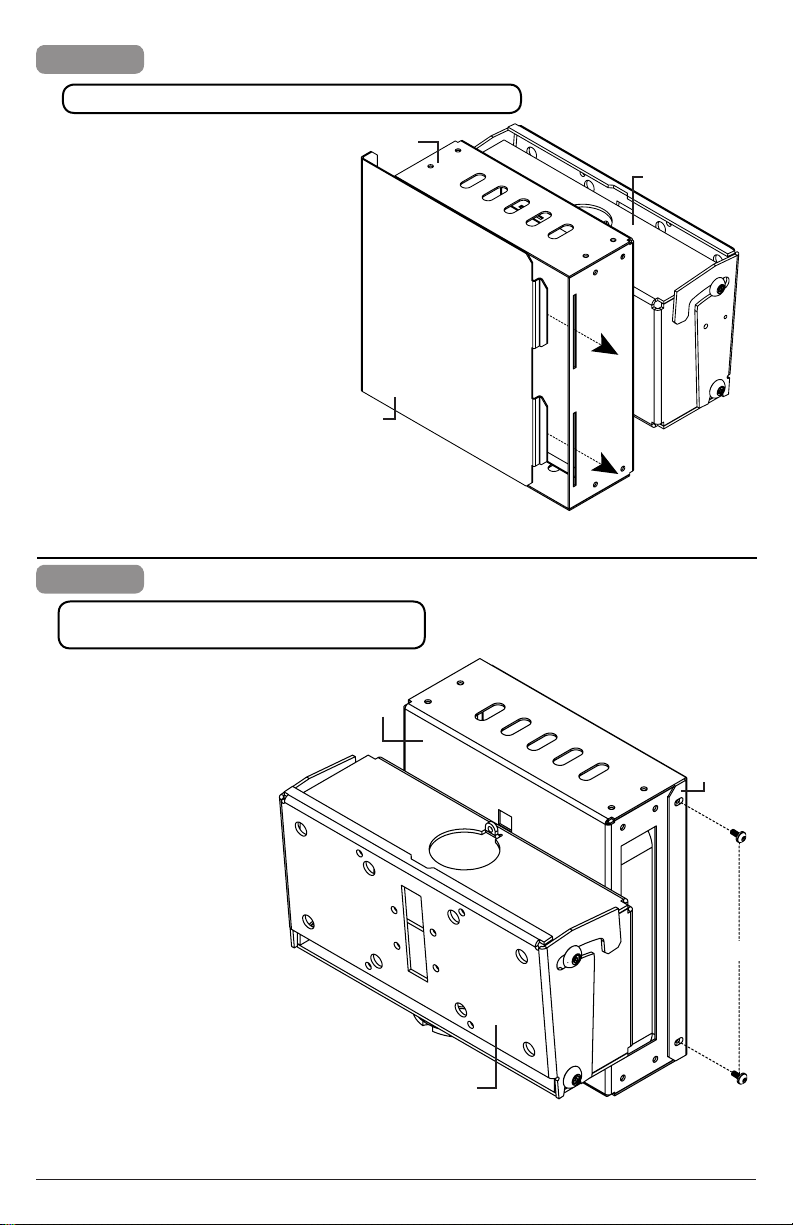

Slide box cover (B) over opening of computer box (A).
A
B
6
Secure box cover (B) with two M4 X 10mm
serrated washer head socket pin screws (E).
A
PLCM 2
NOT INCLUDED
PLCM 2
NOT INCLUDED
7
B
E
2013-03-11 #:125-9413-1
Apple and Mac are trademarks or registered
trademarks of Apple Inc. in the U.S. and/
or other countries. Mention of third-party
products is for informational purposes only
and constitutes neither an endorsement nor
a recommendation. Peerless Industries, Inc.
assumes no responsibility with regard to the
performance or use of these products. All
understandings, agreements, or warranties, if
any, take place directly between the vendors
and the prospective users. Every effort has
been made to ensure that the information in
this manual is accurate. Peerless Industries,
Inc. is not responsible for printing or clerical
errors.
