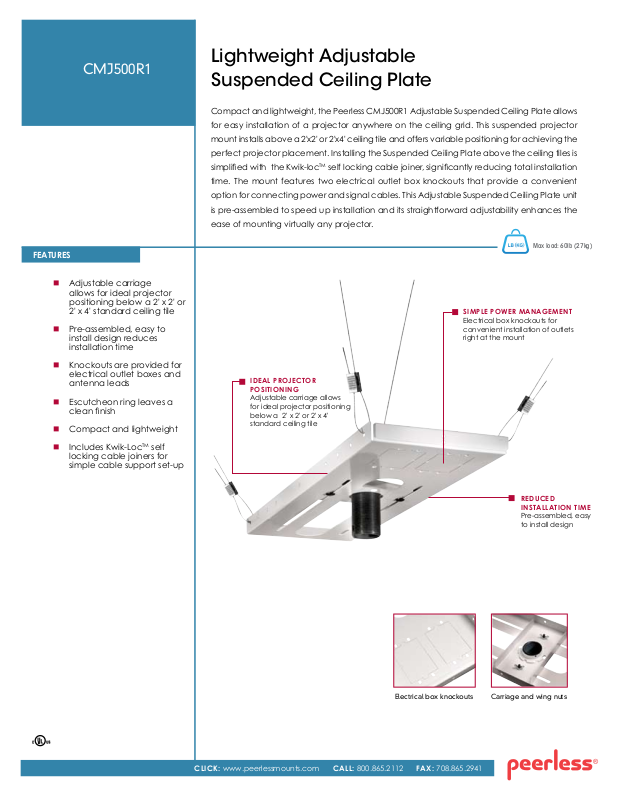

Peerless-AV CMJ490 Sell Sheet
CMJ500R1
Lightweight Adjustable
Suspended Ceiling Plate
Compact and lightweight, the Peerless CMJ500R1 Adjustable Suspended Ceiling Plate allows
for easy installation of a projector anywhere on the ceiling grid. This suspended projector
mount installs above a 2'x2' or 2'x4' ceiling tile and offers variable positioning for achieving the
perfect projector placement. Installing the Suspended Ceiling Plate above the ceiling tiles is
TM
simplied with the Kwik-loc
time. The mount features two electrical outlet box knockouts that provide a convenient
option for connecting power and signal cables. This Adjustable Suspended Ceiling Plate unit
is pre-assembled to speed up installation and its straightforward adjustability enhances the
ease of mounting virtually any projector.
self locking cable joiner, signicantly reducing total installation
FEATURES
Adjustable carriage
allows for ideal projector
positioning below a 2' x 2' or
2' x 4' standard ceiling tile
Pre-assembled, easy to
install design reduces
installation time
Knockouts are provided for
electrical outlet boxes and
antenna leads
Escutcheon ring leaves a
clean nish
Compact and lightweight
Includes Kwik-Loc
locking cable joiners for
simple cable support set-up
TM
Max load: 60lb (27kg)
SIMPLE POWER MANAGEMENT
Electrical box knockouts for
convenient installation of outlets
right at the mount
IDEAL PROJ ECTOR
POSITI ONIN G
Adjustable carriage allows
for ideal projector positioning
below a 2' x 2' or 2' x 4'
standard ceiling tile
self
REDUCED
INSTALLATION TIME
Pre-assembled, easy
to install design
CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: 708.865.2941
Carriage and wing nutsElectrical box knockouts
Model Numbers
CMJ500R1 Adjustable Shelf for A/V Components
Product Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
WARRANTY: Limited 5-year
CMJ500R1
24.50" x 8.25" x 1.125"
Package Specifications
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
CMJ500R1
26.25" x 13.50" x 1.875"
(666 x 343 x 48mm)
(622 x 209 x 28mm)
24.59"
(625mm)
13.90" (353mm)
5.2lb (2.4kg) 60lb (27kg) Powder Coat White
Ceiling tray, support
7.7lb (3.5kg) 735029220626
cables and associated
hardware
1
All dimensions = inch (mm)
ISOMETRIC VIEW
8.22"
TOP VIEW
FRONT VIEW
1-1/2" x 11.5 NPS
(209mm)
(30mm)
1.17"
1.13"
(29mm)
3.78"
(96mm)
3.25"
(82mm)
KNOCKOUTS
2.25"
(57mm)
A R C H I T E C T S S P E C I F I C A T I O N S
The Lightweight Adjustable Suspended Ceiling Plate shall be a Peerless model CMJ500R1 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge cold rolled steel and feature scratch resistant white fused epoxy nish.
Assembly and installation shall be done according to instructions provided by the manufacturer.
Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (708) 865-8870 Fax: (708) 865-2941 www.peerlessmounts.com
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.
LIT-0608
