Peerless-AV CMJ450 Installation
Installation & Assembly -
r
Two Piece Suspended Ceiling Plate
for Jumbo Mounts
Model: CMJ453
This product is intended for use with UL
U
©
Max. Load Capacity : 250 lb (113.4 kg)
Listed products and must be installed by a
qualifi ed professional installer.
L
USC

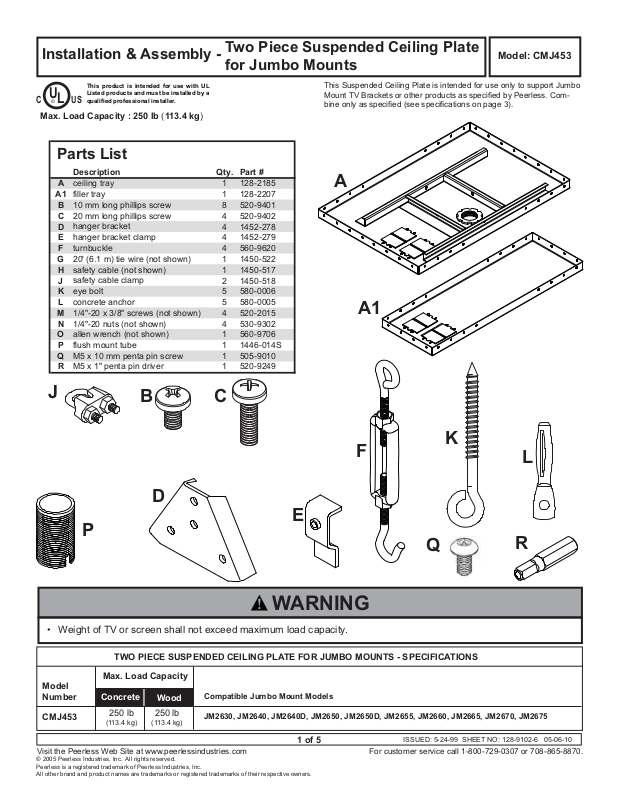

Parts List
Description Qty. Part #
ceiling tray
A
filler tray
A1
10 mm long phillips screw
B
20 mm long phillips screw
C
hanger bracket
D
hanger bracket clamp
E
turnbuckle
F
20' (6.1 m) tie wire (not shown)
G
safety cable (not shown)
H
safety cable clamp
J
eye bolt
K
concrete anchor 5 580-0005
L
M 1/4"-20 x 3/8" screws (not shown) 4 520-2015
N 1/4"-20 nuts (not shown) 4 530-9302
O allen wrench (not shown) 1 560-9706
P flush mount tube 1 1446-014S
Q M5 x 10 mm penta pin screw 1 505-9010
R M5 x 1" penta pin drive
1 128-2185
1 128-2207
8 520-9401
4 520-9402
4 1452-278
4 1452-279
4 560-9620
1 1450-522
1 1450-517
2 1450-518
5
1 520-9249
This Suspended Ceiling Plate is intended for use only to support Jumbo
Mount TV Brackets or other products as specifi ed by Peerless. Combine only as specifi ed (see specifi cations on page 3).
A
580-0006
A1
J
B
C
K
F
L
D
E
P
Q
R
WARNING
• Weight of TV or screen shall not exceed maximum load capacity.
TWO PIECE SUSPENDED CEILING PLATE FOR JUMBO MOUNTS - SPECIFICATIONS
Model
Number
CMJ453
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
© 2005 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Max. Load Capacity
Concrete
250 lb
(113.4 kg) (113.4 kg)
Wood
250 lb
Compatible Jumbo Mount Models
JM2630, JM2640, JM2640D, JM2650, JM2650D, JM2655, JM2660, JM2665, JM2670, JM2675
1 of 5
ISSUED: 5-24-99 SHEET NO: 128-9102-6 05-06-10
IMPORTANT PRE-ASSEMBLY INFORMATION:
Ceiling Trays (A), and (A1) are designed to fi t within a 24" (610 mm) x 24" (610 mm) section of a conventional sus-
pended ceiling system. Ceiling runners (see DETAIL 1, page 4) should have a "T" cross section and a minimum
height of 1.5" (38 mm). In cases where 24" (610 mm) x 48" (1219 mm) ceiling tiles are used, cut one tile in half and
add another 24" (610 mm) ceiling runner in order to make a 24" (610 mm) x 24" (610 mm) section.
For certain installations it may be best to install ceiling anchors (step 4) before installing the ceiling tray (step 3).
For FLUSH MOUNT TUBE Installation: From
1 2
the top, thread the Flush Mount Tube (P) through
retaining collar in Ceiling Tray (A).
Skip to step 3.
P
A
For EXTENSION COLUMN Installation: From
the bottom up, thread extension column (not
included) up through retaining collar in adjustable
collar mount plate. Align notch in extension column with hole in collar and fasten using M5 x 10
mm penta pin screw (Q) with M5 penta pin driver
(R) as shown below.
A
Q
1 1/2" EXTENSION COLUMN
(SOLD SEPARATELY)
(UL LISTED EXT OR AEC SERIES)
2 of 5
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 5-24-99 SHEET NO: 128-9102-6 05-06-10
