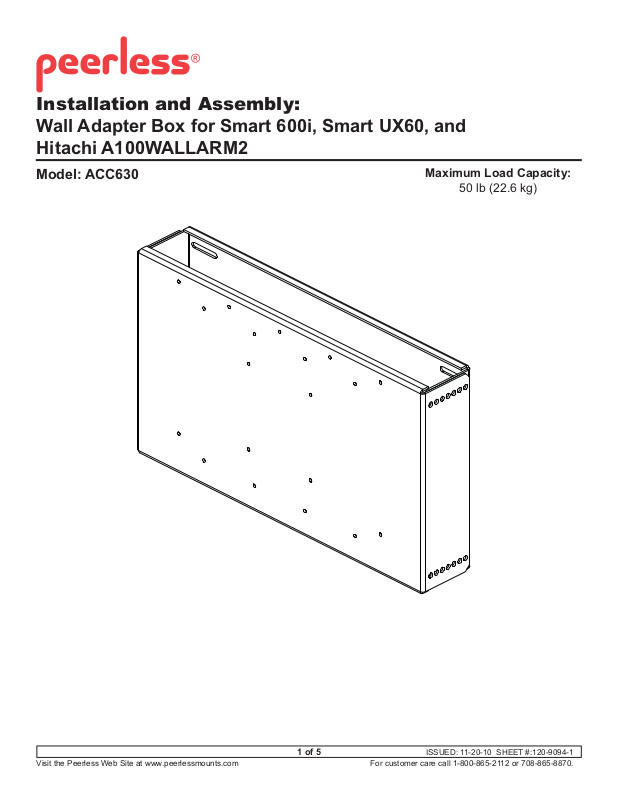

Peerless-AV ACC630 Installation
Installation and Assembly:
Wall Adapter Box for Smart 600i, Smart UX60, and
Hitachi A100WALLARM2
Model: ACC630
Maximum Load Capacity:
50 lb (22.6 kg)
1 of 5
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
ISSUED: 11-20-10 SHEET #:120-9094-1
IMPORTANT! Read instruction sheet before you start installation and assembly.
A
WARNING
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity. See page one.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud fi nder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION HARDWARE REQUIRED
• Wood Stud Included
• Wood Beam Included
• Solid Concrete Do not attach except with Peerless Concrete Anchor Pack - ACC204;
• Cinder Block Do not attach except with Peerless Concrete Anchor Pack - ACC204;
• Metal Stud Do not attach except with Peerless Metal Stud Accessory Kit - ACC415;
• Brick Contact Qualifi ed Professional
• Other or unsure? Contact Qualifi ed Professional
Before you begin, make sure all parts shown are included with your product.
Parts List
Description Qty. Part #
wall plate 1 201-1773
front plate 1 201-1772
B
C wood screw 4 5S1-015-C03
D 1/4-20 self-tapping screw 4 520-1592
E 10-32 self-tapping screw 8 520-1627
Tools Needed for Assembly
• stud fi nder ("edge to edge" stud fi nder is recommended)
• #2 phillips screwdriver, #3 phillips screwdriver,
3/8" socket wrench
• drill
• 5/32" (4 mm) bit for wood stud wall
• level
A
C
B
DE
Parts may appear slightly different than illustrated.
2 of 5
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
ISSUED: 11-20-10 SHEET #:120-9094-1
