Pedigo P-2110, P-2120, P-2130 User Manual

Download

manual

P-2110

P-2120

P-2130

operation & care

P-2110

P-2120

P-2130

120V

Fluid Warmers

MM-1065 (MN-29614) • Rev 4 • 06/16Printed in the U.S.A.

Table of Contents

Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Transportation Damage and Claims . . . . . . . . . . . . . . . . 1

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical Information . . . . . . . . . . . . . . . . . . . . . . . . 8

Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . 9

Cleaning and Preventative Maintenance . . . . . . . . . . . . 12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

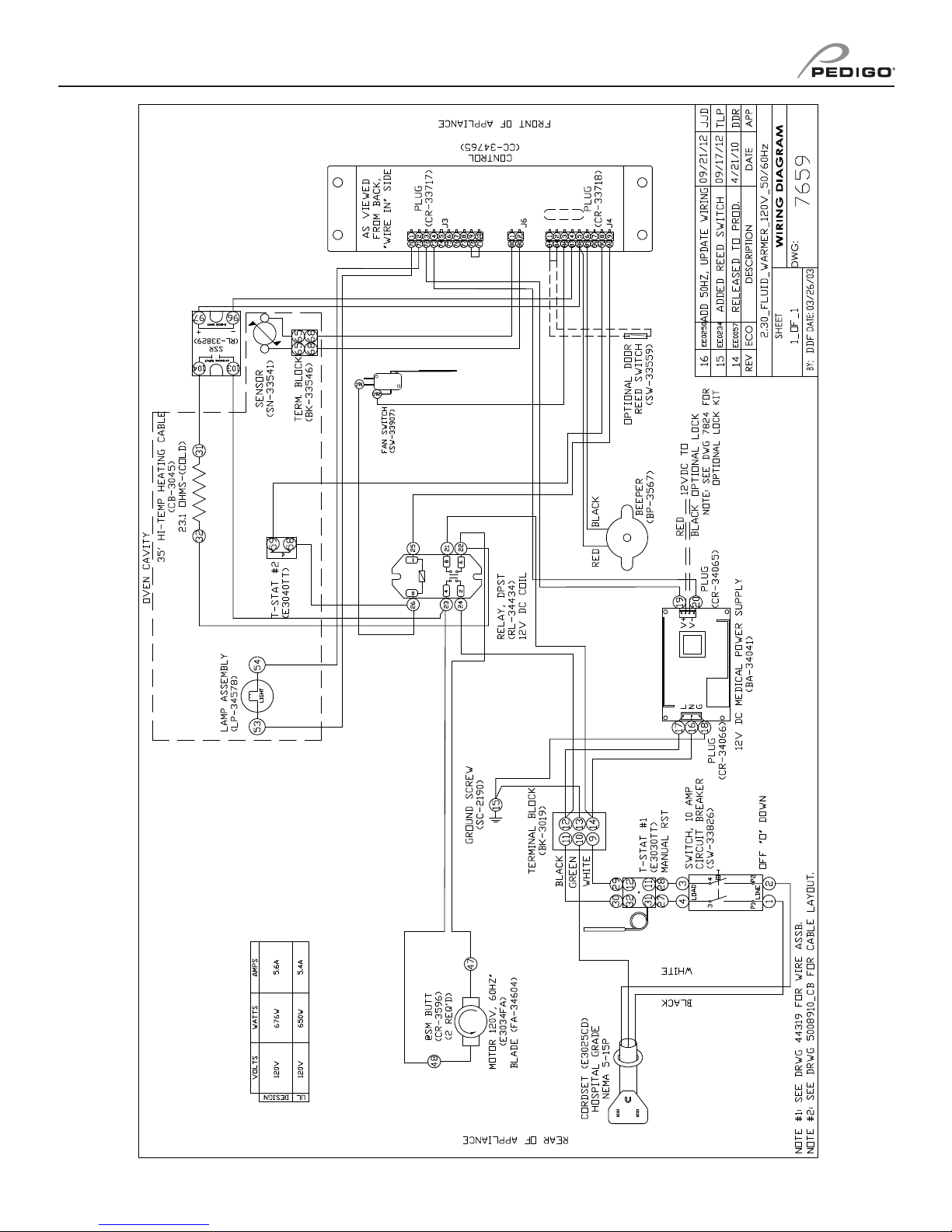

Wiring Diagrams . . . .Refer to the wire diagram included with the appliance.

Limited Warranty . . . . . . . . . . . . . . . . . . . . back cover

Pedigo Products, Inc. • 4000 S.E. Columbia Way • Vancouver, WA 98661 • U.S.A.

Phone: 800.822.3501 • Fax: 360.696.1700 • www.pedigo-usa.com

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Delivery

Environmental Conditions

Transport and storage environmental conditions (not to exceed 15 days)

• Ambient temperature range of -40°C to +70°C (-40°F to +159°F)

• Relative humidity range of 10% to 95%, non-condensing

• Atmospheric pressure range of 50KPa to 106KPa

Operational environmental conditions

• Appliance must acclimate to room temperature in the environment it will be placed. 24 hours is recommended.

• Recommended environmental temperature range is 15°C to 32°C (60°F to 90°F).

• Recommended relative humidity is above 20%, non-condensing.

Receipt of Appliance

The appliance has been thoroughly tested and inspected to insure only the highest quality appliance is provided. Upon receipt, check for any possible shipping damage and report it at once to the delivering carrier. See Transportation Damage and Claims section located below.

This appliance, complete with unattached items and accessories, may be delivered in one or more packages. Con rm that all standard items and options have been received with each appliance as ordered. Save all the information packed with the appliance.

This manual must be read and understood by all people using or installing the appliance. Contact the service department if there are any questions concerning installation, operation, or maintenance.

Transportation Damage and Claims

All Pedigo Products, Inc. appliances are sold F.O.B. shipping point, and when accepted by the carrier, such shipments become the property of the consignee.

Should damage occur in shipment, do not put the appliance into service until the damage has been inspected by an authorized service provider.

Should damage occur in shipment, it is a matter between the carrier and the consignee. In such cases, the carrier is assumed to be responsible for the safe delivery of the merchandise, unless negligence can be established on the part of the shipper.

1. Make an immediate inspection while the appliance is still in the truck or immediately a er it is moved to the receiving area. Do not wait until a er the appliance is moved to a storage area.

2. Do not sign a delivery receipt or a freight bill until a proper count has been made and inspection of all appliances are received.

3. Note all damage to packages directly on the carrier’s delivery receipt.

Serial number is required for all inquiries.

Always include both model and serial number(s) in any correspondence regarding the appliance.

Model: ______________________________________________

Serial Number: ______________________________________________

Purchased From: ______________________________________________

Date Installed: ____________________ Voltage: _____________

4. Have the driver sign the delivery receipt. If he refuses to sign, make a notation of this refusal on the receipt.

5. If the driver refuses to allow inspection, write the following on the delivery receipt: Driver refuses to

allow inspection of containers for visible damage.

6. Telephone the carrier’s of ce immediately upon  nding damage, and request an inspection. Mail a written con rmation of the time, date, and the person called.

7. Save any packages and packing material for further inspection by the carrier.

8. Promptly  le a written claim with the carrier and attach copies of all supporting paperwork.

Pedigo will continue our policy of assisting our customers in collecting claims which have been properly  led and actively pursued. Pedigo cannot, however,  le any damage claims, assume the responsibility of any claims, or accept deductions in payment for such claims.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Unpacking

1. Carefully remove the appliance from the carton or crate.

NOTE: Do not discard the carton and other packaging material

until the appliance has been inspected for hidden damage and tested for proper operation.

2. Read all instructions in this manual carefully before initiating the installation of this appliance, using the appliance or performing routine maintenance. Following procedures other than those indicated in this guide to use and clean the appliance is considered inappropriate and may cause damage, injury or fatal accidents, in addition to invalidating the guarantee and relieving the manufacturer of all liability.

3. Do not discard this manual. This manual is considered to be part of the appliance and is to be provided to the owner or manager of the business or to the person responsible for training operators. Additional manuals are available from the service department.

4. Remove all protective plastic  lm, packaging materials, and accessories from the appliance before connecting electrical power. Store any accessories in a convenient place for future use.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Safety Procedures

Knowledge of proper procedures is essential to the

following hazard signal words and symbols may be used

• Fluid warmers are only intended for warming medical

and labels must remain with the appliance if it is sold or moved to another location.

CAUTION

WARNING

NOTICE: A temporary odor may be noticeable upon initial

continuous use.

CAUTION

safe operation of electrically energized appliances. The

throughout this manual.

DANGER

Used to indicate the presence of a hazard that will cause severe personal injury, death, or substantial property damage if the warning included with this symbol is ignored.

WARNING

Used to indicate the presence of a hazard that CAN cause personal injury, possible death, or major property damage if the warning included with this symbol is ignored.

CAUTION

Used to indicate the presence of a hazard that can or will cause minor or moderate personal injury or property damage if the warning included with this symbol is ignored.

solutions for irrigation and injection prior to their use. Please refer to the labeling of the manufacturer of the products to be warmed regarding the recommended temperature and the duration of warming. No other use for this appliance is authorized or recommended.

• This warmer is intended for use in commercial

establishments where all operators are familiar with the purpose, limitations, and associated hazards of this device. The warmer can be used wherever there is appropriate space and electrical source including patient support areas, ER, ICU, PACU, surgical suites, patient rooms, and nursing stations.

• Operating instructions and warnings must be read and

understood by all operators and users.

• Any troubleshooting guides, component views, and

parts lists included in this manual are for general reference only and are intended for use by quali ed technical personnel.

• This manual should be considered a permanent

part of the appliance. This manual and all supplied instructions, diagrams, schematics, parts lists, notices,

CAUTION

Used to indicate the presence of a hazard that can or will cause minor personal injury, property damage, or a potential unsafe practice if the warning included with this symbol is ignored.

Used to indicate that referral to operating

NOTICE: Used to notify personnel of installation,

instructions is a mandatory action. If not followed, the operator or patient could su er personal injury.

Used to indicate that referral to operating instructions is recommended to understand operation of the appliance.

operation, or maintenance information that is important but not hazard related.

start-up of the appliance. Contact manufacturer if the odor persists a er a day or more of

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Appliance and accessories may be heavy. To prevent serious injury, always use a su icient number of trained and experienced workers when moving or leveling appliance and handling accessories.

The door may swing during transport. Only transport the appliance when the door is closed and secure.

This unit is not approved for

warming of blood or blood products.

NOTICE: For appliances delivered for use

in any location regulated by the following directive (

Do not dispose of electrical or electronic appliances with other municipal waste.

2012/19/EU -WEEE):

Installation

DANGER

use water jet toclean. Failure

DANGER

Not category AP or APG equipment

Fluid warming chamber:

The warming appliance can be programmed to warm either irrigation  uids (IRR) or injection  uids (INJ), with separate temperature ranges provided depending on the choice selected.

This warming appliance is designed to safely warm and store either irrigation  uids or injection  uids.

The single-chambered warming appliance is constructed with stainless steel exterior casing and door with handle and hinges designed to withstand heavy usage. A door with window allows observation of inventory. The cabinet is warmed using a low-heat-density electrothermal cable array. The electrothermal cable is positioned in the  oor and two sides of the warming cabinet, providing even heating of the interior chamber.

The interior chamber temperature is regulated by an electronic control consisting of a 4 digit LED display, on/off button, increase and decrease buttons, integrated lock-out control feature, and a series of prompt sequence indicators.

The electronic control can be set to operate in fahrenheit or celsius. A er a power failure, the appliance will remember its programming and begin to operate as before. The on/off indicator will blink to indicate a failure occurred; pressing the on/off button once will eliminate this blinking. A thermal shut-off system, separate from the electronic control, is included as an additional safety feature.

The electronic control will display temperature in whole degrees.

Fluid warming chamber:

The warming appliance can be programmed to warm either irrigation  uids (IRR) or injection  uids (INJ), with separate temperature ranges provided depending on the choice selected.

• IRR temperature range: 37°C to 66°C (98°F to 150°F),

• INJ temperature range: 37°C to 40°C (98°F to 104°F).

A fan located inside the chamber mixes the air to prevent temperature strati cation and to ensure an accurate chamber temperature for each mode.

An alarm will sound if temperatures exceed 6°C (10°F) over the set-point temperature, and an overtemp indicator will blink indicating an over-temperature condition.

The appliance is equipped with three (3) white, epoxycoated wire baskets to accommodate  uids packaged in bags or bottles, mounted on basket rail supports. Each basket has a capacity of 18 1-liter bottles (54 total) or 24 1-liter bags (72 total). The appliance is furnished with a full perimeter rubber bumper assembly and one set of 5" (127mm) heavy-duty casters – two (2) rigid and two (2) swivel with locking brake.

The appliance is equipped with two (2) white, epoxycoated wire baskets to accommodate  uids packaged in bags or bottles, mounted on basket rail supports. Each basket has a capacity of 9 1-liter bottles (18 total) or 15 1-liter bags (30 total). The appliance is furnished with a full perimeter rubber bumper assembly and one set of 5" (127mm) heavy-duty casters – two (2) rigid and two (2) swivel with locking brake.

The appliance is equipped with one (1) white, epoxycoated wire basket to accommodate  uids packaged in bags or bottles, mounted on basket rail supports. The basket has a capacity of 11 1-liter bottles or 16 1-liter bags. The appliance is furnished with four (4) 1-1/4" (31mm) non-skid rubber feet.

To prevent serious personal injury, death, or property damage:

Do not steam clean, hose down or flood the interior or exterior with water or liquid solution of any kind. Do not to observe this precaution will void the warranty.

Preparation

Before operating the appliance, clean both the interior and exterior with a damp cloth and mild soap solution. Wipe with an appropriate disinfectant. Wipe dry with a clean cloth or air dry.

General Information

To prevent serious injury, death, or property damage:

Do not use this warming appliance in the presence of flammable anesthetic mixtures (with air or with oxygen or nitrous oxide).

• Within +0/-1.12°C (+0/-2ºF) for set points of 37°C to 40°C (98°F to 104°F).

• Within +0/-1.67°C (+0/-3ºF) for set points of 43°C to 66°C (110°F to 150°F)

• IRR temperature range: 37°C to 66°C (98°F to 150°F),

• INJ temperature range: 37°C to 40°C (98°F to 104°F).

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

P-2110 Information:

P-2120 Information:

P-2130 Information:

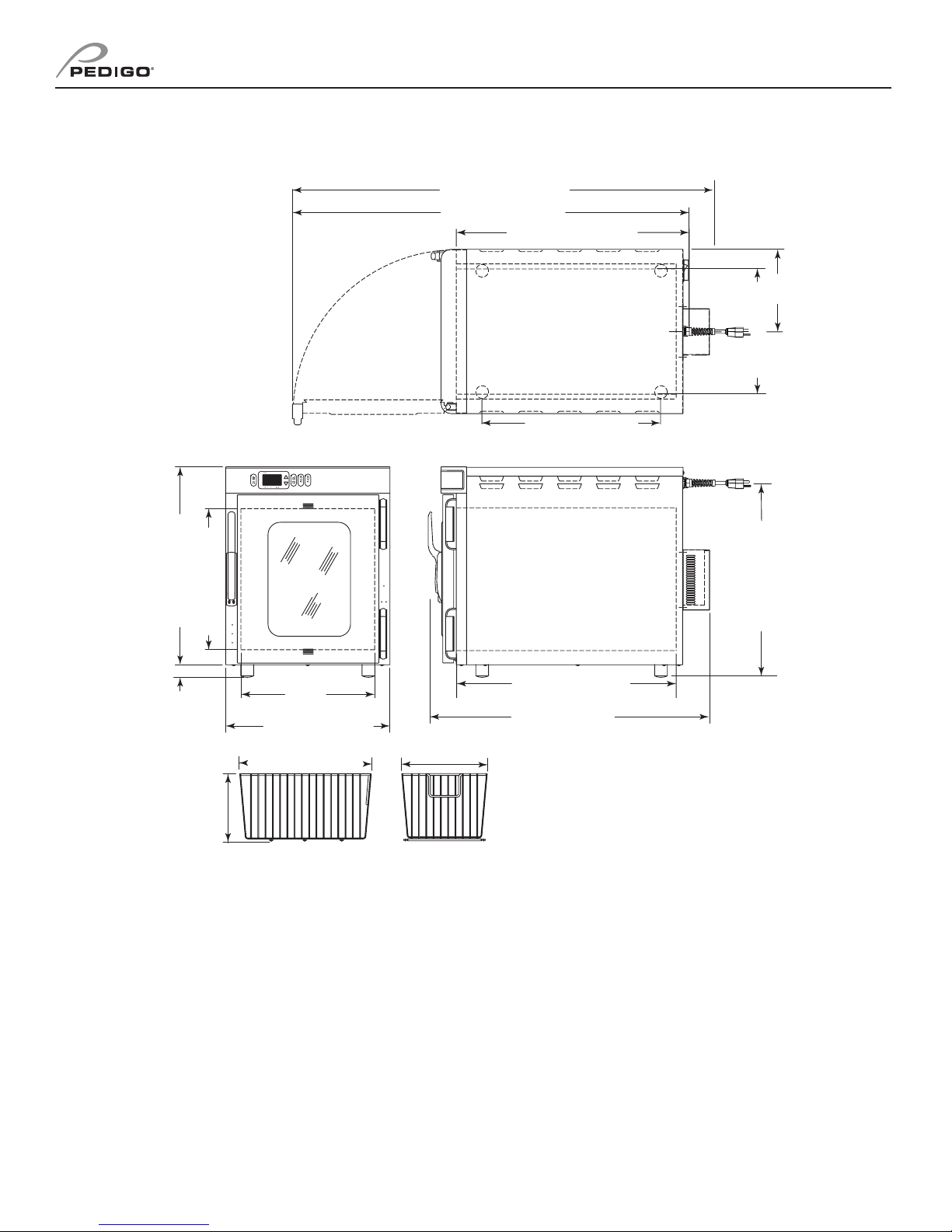

P-2110

43.0" (1092mm)

38.9" (987mm)

22.8" (580mm)

17.5" (445mm)

CORD LENGTH (est.)

8' (2,438mm)

Dimensions

8.07" (205mm)

11.9" (302mm)

19.4" (493mm)

1.2"

(31mm)

CAVITY

13.8" (351mm)

13.1" (333mm)

16.2" (410.4mm)

17.9" (453mm)

9.2" (233mm)

CAVITY

11.5" (292mm)

21.5" (547mm)

CAVITY

28.0" (711mm)

19.0" (475mm)

ELECTRICAL CONNECTION

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Dimensions

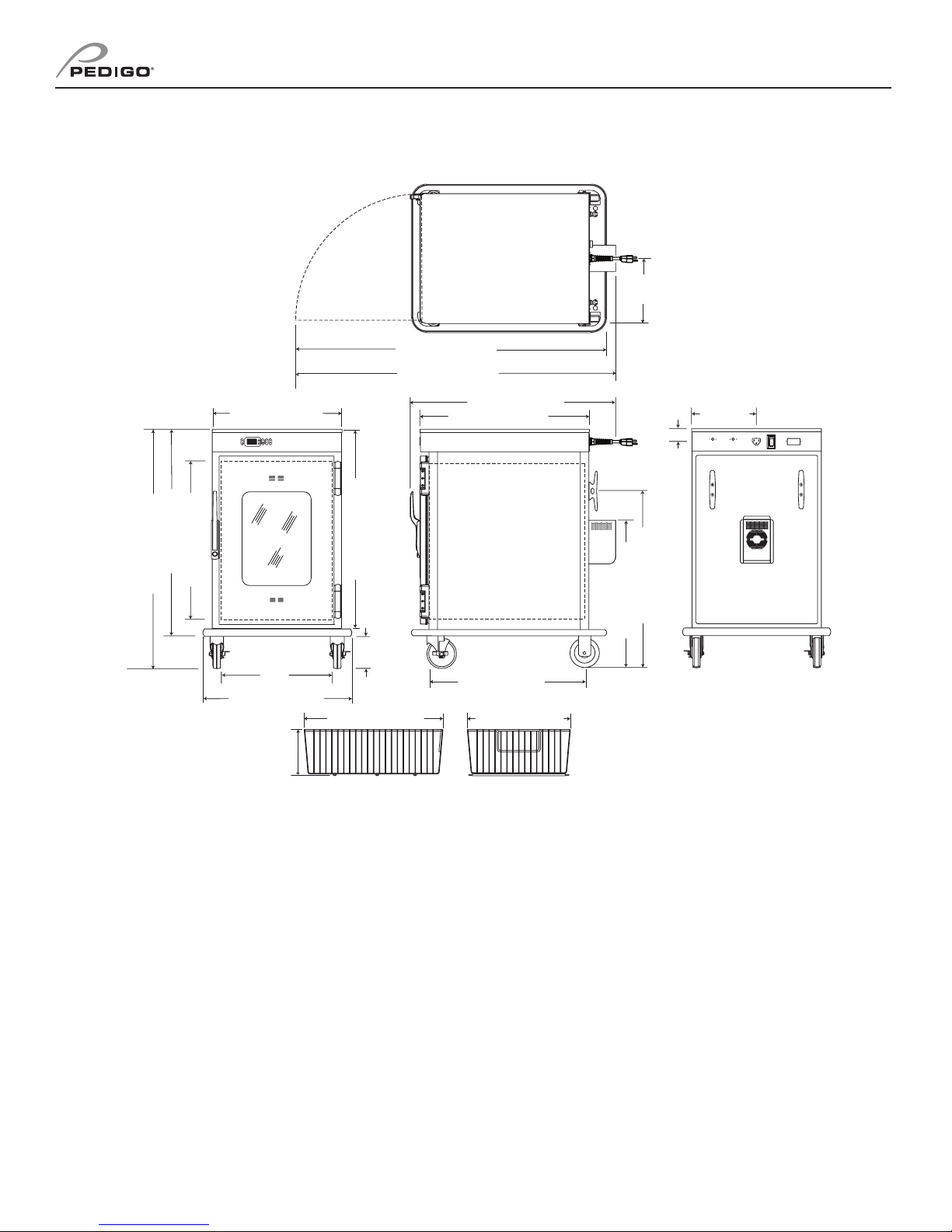

P-2120

45.0" (1143mm)

28.5" (725mm)

24.3" (613mm)

CORD LENGTH (est.)

8' (2,438mm)

8.7" (221mm)

17.4" (441mm)

20.7" (525mm)

CAVITY

27.0" (685mm)

20.0" (508mm)

33.4" (849mm)

7.7

14.1" (359mm)

(195mm)

CAVITY

16.3

" (413mm)

21.6" (549mm)

CAVITY

12.3

(312mm)

1.5" (37mm)

Electrical Connection

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

P-2130

52.8" (1341mm)

54.0" (1372mm)

CORD LENGTH (est.)

8' (2,438mm)

11.0" (280mm)

Dimensions

35.1" (892mm)

26.9" (684mm)

40.8" (1036mm)

Cavity

22.3" (566mm)

18.9" (480mm)

Cavity

25.2" (639mm)

7.7" (195mm)

33.876" (860.5mm)

5.5" (140mm)

22.1" (561mm)

35.0" (890mm)

28.0" (731mm)

26.6" (676mm)

Cavity

17.1" (434mm)

2.20" (55.6mm)

30.10" (764mm)

25.10" (638mm)

11.0"

(280mm)

OFF

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Electrical Information

CAUTION

DANGER

Not category AP or APG equipment

Safety Class I

Equipment

120 V.A.C. — 50/60 Hz, 1 ph

0.65 kW, 5.4 Amps

Mode of Operation: Continuous

NEMA 5-15P

120 V.A.C. — 50/60 Hz, 1 ph

0.78 kW, 6.4 Amps

NEMA 5-15P

120 V.A.C. — 50/60 Hz, 1 ph

1.06 kW, 8.8 Amps

Mode of Operation: Continuous

NEMA 5-15P

To prevent serious injury, death, or property damage:

Do not use this warming appliance in the presence of flammable anesthetic mixtures (with air or with oxygen or nitrous oxide).

Rating Tag

The power speci cation is located on the appliance identi cation rating tag. This tag is permanently attached to the appliance and must be located to verify power requirements.

Power Requirements

P-2110

Safety Class I Equipment No Applied Parts

15A - 125V Plug Hospital Grade

Power source must match voltage identified on appliance rating tag. The rating tag provides essential technical information required for any appliance installation, maintenance or repairs. Do not remove, damage or modify the rating tag.

Hazardous

Voltage Present

IPX-0

P-2120

15A - 125V Plug

Safety Class I Equipment No Applied Parts Mode of Operation: Continuous

Hospital Grade

P-2130

15A - 125V Plug

Safety Class I Equipment No Applied Parts

Wire diagram is located under top lid of warmer.

Grounding reliability can only be achieved when appliance is

connected to an equivalent receptacle marked “Hospital Grade.”

Medical Equipment classied by Underwriters Laboratories with Respect to Electrical Shock,

Protective Earth

Ground Symbol

Fire and Mechanical Hazards only, in Accordance with UL 60601-1 and CAN/CSA C22.2 No. 601.1.

Hospital Grade

IPX-0

UL File No.

E201645

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Operation Instructions

Control panel buttons

NOTE:

Fluid Electronic Control Features

The following refers to features that are available when the electronic control is powered on.

Electronic Control and LED Display

Status

indicator LED

On/off button

Error

Main display

set-point temperature

LockOvertemp

Down arrow

Up arrow

Overtemp

alarm

Status

indicator LED

Irrigation

mode

LED display status indicators

On/Off Button

Press the On/Off button to power on the electronic control. Press and hold the on/off button for 2 seconds to turn the electronic control off. The status indicator LED will illuminate in the power ON state. NOTE: The IRR or INJ must be selected to turn on the heating circuit.

Up Arrow / Down Arrow Buttons

Used to increase or decrease the temperature set-point as desired. Continuous pressure to a button increases the increments in which the values will change.

Overtemp Alarm Button

Used to display the current over-temperature trippoint. The alarm trip-point is always 6°C (10°F) above the temperature setting. When the green overtemp indicator is blinking, the warmer has entered an overtemperature condition.

IRR Button

Used to select the Irrigation Fluids mode and to display the IRR set-point temperature. The temperature range is 37°C to 66°C (98°F to 150°F). The green IRR indicator and the yellow indicator below the IRR button illuminates when the IRR set-point temperature is being displayed.

INJ button

Used to select the Injection Fluids mode and to display the INJ set-point temperature. The temperature range is 37°C to 40°C (98°F to 104°F). The green INJ indicator and the yellow indicator below the INJ button illuminates when the INJ set-point temperature is being displayed.

When the electronic control is powered on, IRR or INJ must be selected to turn on the heating circuit. To switch between the irrigation and the injection mode, turn the electronic control o and then back on. Be careful to cool the cavity down prior to switching from a high temperature to a lower temperature or the electronic control will display an unwanted overtemp alarm.

Overtemp When the electronic control senses a temperature

6°C (10°F) greater than the set point, this indicator illuminates, the audible alarm sounds and the on/ off button indicator blinks. The green indicator of the overtemp button will stop blinking once the warmer temperature drops back to the set point temperature range. To silence the alarm and extinguish the error indicator a er the temperature has dropped into the selected temperature range, use the on/off button to reset the electronic control. Inspection of the product in the cavity may be necessary.

Error

This illuminates when an over-temperature condition is detected. The error indicator will remain illuminated, even a er the over-temperature condition is cleared, until the warmer is turned off. This will alert the operator that the electronic control has indicated an overtemp and the product in the cavity should be inspected.

Lock

This illuminates when the lock feature is engaged.

Power Fail Detection

If the power were to fail for any reason while electronic control is powered on, the warmer will retain in memory its current operating state. When the power is restored, the electronic control will alarm once and resume operating in its previously set mode, but will alert the operator that such an event has occurred. The on/off status indicator will blink.

Press the on/off button once to acknowledge that the power has been restored. The on/off status indicator will stop blinking. When pressing the on/off button, the display will indicate the time period of the outage in hours and minutes (hh:mm), then return to the normal display and previously set mode. Inspection of the product in the cavity may be necessary.

Injection

mode

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Operation Instructions

Temperature Format Selection

While the electronic control is in the off state, press and hold the up arrow button for  ve (5) seconds to display the current temperature scale. Press again to switch between °F (fahrenheit) or °C (celsius).

Cavity Temperature Display

To reference the cavity air temperature, push and hold the overtemp and up arrow buttons. While holding both buttons, the value in the display refers to the temperature at the cavity sensor.

Operational Sound Selection

While the electronic control is in the off state, press and hold the down arrow button for  ve (5) seconds. Press again to turn the sound on or off.

Fluid Electronic Control Features (continued)

Electronic Control and LED Display

Status indicator

LED

Error

Main display

set-point temperature

arrow

Status

indicator LED

On/Off button

LockOvertemp

Down arrow

Overtemp

alarm

Irrigation

mode

Injection

mode

Electronic Control Lock

The electronic control can be locked so that no changes can be made to the temperature set-point or the mode selection. Press and hold the on/off button and the up arrow button at the same time. The lock indicator will illuminate. Attempts to operate the on/off button, or to change the temperature set-point will be unsuccessful. To unlock the electronic control, press and hold the on/off button and the down arrow button at the same time. The electronic control will unlock, and the lock indicator will go out.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

WARNING

CAUTION

Fluid Chamber Operation Procedures

SWITCH

CAUTION

Check fluid temperature prior to using the fluid. Refer to fluid manufacturer’s labeling for recommended warming procedures.

Injection fluid manufacturer suggests not to warm injection fluids above 40°C (104°F). If fluids are warmed above suggested temperature, they should be discarded.

The door may swing during transport. Only transport the appliance when the door is closed and secure.

The unit may tip over if more than one basket is extended simultaneously. Open only one basket at a time when loading or unloading fluids.

Verify that the fan is rotating freely. If it is not working, discard the fluid inventory, contact a service representative, and discontinue use of appliance until it is repaired.

If the warmer control has failed, or if error messages are displayed, it is recommended that the fluid inventory be discarded. Refer to the troubleshooting guide for error descriptions and action required.

NOTICE: The appliance is designed to warm fluids to the

appropriate temperature recommended by the fluid manufacturer. The warm-up stabilization time will vary depending on the warmer load. Exercise judgment to determine inventory rotation protocols and warm-up time for the fluids used.

Operation Instructions

Electronic Control and LED Display

Status Indicator

LED

On/Off Button

1. The appliance must be plugged into an appropriate hospital grade receptacle as speci ed on the electrical information page.

2. Push the power circuit breaker switch to the on (I) position. The rocker-type switch is located at the back of the appliance.

3. Activate the control by pressing the On/Off button on the control panel once. The On/Off indicator will illuminate and remain lit until the appliance is off. The digital display indicates the last temperature set-point of compartment.

4. Select desired mode of operation. Press the IRR button to select the irrigation  uids mode or the INJ button to choose the injection  uids mode. The last set-point temperature for that mode of operation will appear in the display.

NOTE: In order to switch between the irrigation and

5. Set desired temperature. To set the  uid warming temperature, press and hold the Up or Down Arrow buttons to change the value shown in the display. The irrigation  uids set-point temperature range is 37°C to 66°C (98°F to 150°F) and the injection  uids set-point temperature range is 37°C to 40°C (98°F to 104°F).

NOTE: Switching from a higher temperature setting to

NOTICE: Do not load the basket beyond the

Error

injection modes, first turn the power to the electronic control o and then back on.

a lower setting may cause an unwanted alarm.

recommended maximum capacity. Overloading may cause lower or uneven temperatures of product and damage to basket and basket rail supports. Baskets that are overloaded may slip o rail supports, resulting in possible damage to product and equipment, as well as causing possible injury.

Main Display

Set-point Remperature

Down

LockOvertemp

Arrow

Overtemp

Alarm

Status

Indicator LED

Irrigation

Mode

Injection

Mode

POWER

CIRCUIT BREAKER

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Cleaning and Preventative Maintenance

clean warm water. Remove excess water with sponge

Clean any window glass with a standard commercial

door button, and door gaskets thoroughly since these

DANGER

use water jet toclean. Failure

WARNING

Cleaning Agents

Use non-abrasive cleaning products designed for

To prevent serious personal injury, death, or property damage:

Do not steam clean, hose down or flood the interior or exterior with water or liquid solution of any kind. Do not to observe this precaution will void the warranty.

(IPX-0 - Listed as Ordinary)

use on stainless steel surfaces. Cleaning agents must be chloride-free compounds and must not contain quaternary salts. Never use hydrochloric acid (muriatic acid) on stainless steel surfaces. Failure to observe this voids the warranty. Always use the proper cleaning agent at the manufacturer’s recommended strength. Contact a local cleaning supplier for product recommendations.

Cleaning Materials

Cleaning can usually be accomplished with the proper cleaning agent and a so , clean cloth. When more aggressive methods are needed, use a non-abrasive

To prevent serious injury, death, or property damage, always disconnect appliance from power source before cleaning or servicing.

scouring pad on dif cult areas and make certain to scrub with the visible grain of surface metal to avoid surface scratches.

Cleaning the Appliance

1. Disconnect the appliance from the power source.

NOTICE: To protect surfaces, never use abrasive cleaning

compounds, chloride based cleaners, or cleaners containing quaternary salts. Never use hydrochloric acid (muriatic acid) on stainless steel. Never use wire brushes, metal scouring pads or scrapers. Failure to observe this precaution will void the warranty.

Protecting Stainless Steel, Epoxy Coated and Plastic Surfaces

It is important to guard against corrosion in the care of stainless steel surfaces. Harsh, corrosive, or inappropriate chemicals can completely destroy the protective surface layer of stainless steel, epoxy or plastic. Abrasive pads, steel wool, or metal implements abrade surfaces causing damage to this protective coating and eventually result in areas of corrosion. Even water, particularly hard water that contains high to moderate concentrations of chloride, causes oxidation and pitting that results in rust and corrosion. In addition, many acidic spills le to remain on metal surfaces are contributing factors in corroded surfaces.

Proper cleaning agents, materials, and methods are vital to maintaining the appearance and life of this appliance. Spilled items should be removed and the area wiped as soon as possible but at the very least, a minimum of once per day. Always thoroughly rinse surfaces a er using a cleaning agent and wipe standing water as quickly as possible.

2. Remove all detachable items such as the insert assembly. Clean these items separately.

3. Clean the interior metal surfaces of the appliance with a damp cloth and any mild commercial detergent. Rinse surfaces by wiping with sponge and

and wipe dry with a clean cloth or air dry. Leave the door open until the interior is completely dry.

4. Wipe the interior with a sanitizing solution a er cleaning and rinsing. This solution must be approved for use on stainless steel surfaces. Replace the support assembly.

5. Wipe down the exterior of the appliance with an appropriate cleaner recommended for the surface material.

6. glass cleaner.

7. Wipe the control panel, door vents, door handle or

areas can harbor debris.

8. Wipe dry with a clean, so cloth.

Always follow appropriate state or local health (hygiene) regulations regarding all applicable cleaning and sanitation requirements.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Preventative Maintenance Checklist

Daily Checklist:

❏ Is the operation and care manual available?

❏ Has everyone been properly trained in the operation and safety

instructions of this appliance?

❏ Do not overload the appliance.

P-2110 = 11 1-liter bottles/basket or 16 1-liter bags/basket

EC230L = 11 1-liter bottles/basket or 16 1-liter bags/basket

P-2120 = 9 1-liter bottles/basket (18 total) or 15 1-liter bags

EC340L = 9 1-liter bottles/basket (18 total) or 15 1-liter bags

per/basket (30 total)

P-2130 = 18 1-liter bottles/basket (54 total) or 24 1-liter bags

EC770L = 18 1-liter bottles/basket (54 total) or 24 1-liter bags

per/basket (72 total)

Weekly Checklist:

❏ Inspect the condition of the plug and cord and replace if damaged.

❏ Remove the inserts and wash separately, set aside to dry before placing in

the appliance.

❏ Blow dust from the interior, the outer vents and around the top of bonnet.

❏ Wipe down the interior.

❏ Check that the electronic control LEDs illuminate.*

❏ Check that the interior LED illuminates (if applicable).*

❏ Check the insert assembly. Check the condition of the basket and the side

rail. Do the baskets move smoothly and freely?*

Cleaning and Preventative Maintenance

Monthly Checklist:

❏ Check the integrity of the door gasket. Are there any tears? Is the gasket

worn or loose? Ensure that the seal is tight to the body. Replace the gasket if the integrity is compromised.*

❏ Check the air temperature sensor mounted in the interior of chamber. Is

the guard in place and is it fully secured to the appliance?

❏ Check the condition of the casters or feet. Are the components secure and

tightly threaded?

❏ Check the control panel overlay condition. Are there any tears or

excessive wear on the graphic? Does the control work properly when the buttons are pushed?*

❏ Is the set-point temperature comparable to the actual temperature

displayed? Check cavity air temperature with a quality thermocouple placed 1" (25mm) from the cavity sensor – not allowing it to touch any surface. Monitor for approximately one hour in an empty interior.

Note: Fluid warmer temperature may fluctuate from the set point. The set

point will be within +0/-1.12°C (+0/-2ºF) for injection fluids and within +0/-1.67°C (+0/-3ºF) for irrigation fluids.

❏ Check the condition of the stacking hardware (if applicable), making sure

the mounting bolts and the hardware are secure.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

*Contact service for immediate repair.

Troubleshooting

Troubleshooting Guide

NOTE:

NOTE: All error codes must be cleared using the circuit breaker

Serial number is required for all inquiries.

This section is provided for the assistance of qualified and trained service technicians only and is not intended for use by untrained or unauthorized service personnel. Failure to observe this precaution may void the warranty.

If the appliance is not operating properly, check the following before calling an authorized service agent:

• Check the power applied to the appliance. Verify

female end of plug is securely seated in appliance and that the male end of plug is in an appropriate, functioning outlet.

• Is the power circuit breaker in the rear of the

appliance ok?

• Has the high limit manual reset tripped? If so, reset

using manual reset instructions.

• If a temperature calibration adjustment is required,

call service for proper instructions.

switch or power switch on the rear of the appliance.

Do not attempt to repair or service beyond this point. Contact manufacturer for nearest authorized service agent. Repairs made by any other service agent without prior authorization by manufacturer will void the warranty on the appliance.

Manual Reset Instructions:

Locate the manual reset button on back of the appliance. (Location may vary slightly from diagram.) Using a pen, screwdriver or other long, thin implement,  rmly push reset button. The button will click when reset. If reset button trips again while the appliance is running, contact a quali ed service technician.

Manual reset button

Circuit

breaker

Code Description Action Required

door Door le open for

more than 3 minutes

E-10 Cavity Air

Sensor Shorted

E-11 Cavity Air

Sensor Open

E-30 Under Temperature

(Blanket warmers only)

E-31 Over Temperature • Appliance may be overloaded. Redistribute inventory. Do not exceed height of insert.

• Close the door.

• Verify door switch operation and replace if necessary.

• Detach the sensor from the terminal block. Use an Ohm meter to measure the resistance of the sensor. Check sensor at 32°F (0°C) using a container of ice water. Ohm reading should be 100. If Ohm reading is +/- 10, replace sensor.

• Check wires for integrity. Check for proper and secure connections at the electronic control and terminal block. If necessary, re-secure the faulty connections.

• If error continues call service

• Check wires for integrity. Check for proper and secure connections at the electronic control and terminal block. If necessary, re-secure the faulty connections.

• If error continues call service.

• Blanket chamber temperature has been lower than the set temperature for 90 minutes or longer.

• Check that door is closed.

• Not preheated due to an overloaded cavity.

• Check sensor at 32°F (0°C) using a container of ice water. Ohm reading should be 100. If Ohm reading is +/- 10, replace sensor.

• Check wires for integrity. Check for proper and secure connections at the electronic control and terminal block. If necessary, re-secure the faulty connections.

• Relay may be defective.

• If error continues, call service.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Code Description Action Required

door Door le open for

more than 3 minutes

• Close the door.

• Verify door switch operation and replace if necessary.

E-10 Cavity Air

Sensor Shorted

• Check wires for integrity. Check for proper and secure connections at the electronic control and terminal block. If necessary, re-secure the faulty connections.

• If error continues call service

E-11 Cavity Air

Sensor Open

• Check wires for integrity. Check for proper and secure connections at the electronic control and terminal block. If necessary, re-secure the faulty connections.

• If error continues call service.

E-30 Under Temperature

(Blanket warmers only)

• Blanket chamber temperature has been lower than the set temperature for 90 minutes or longer.

• Check that door is closed.

• Not preheated due to an overloaded cavity.

E-31 Over Temperature • Appliance may be overloaded. Redistribute inventory. Do not exceed height of insert.

• Check sensor at 32°F (0°C) using a container of ice water. Ohm reading should be 100. If Ohm reading is +/- 10, replace sensor.

• Check wires for integrity. Check for proper and secure connections at the electronic control and terminal block. If necessary, re-secure the faulty connections.

• Relay may be defective.

• If error continues, call service.

Troubleshooting Guide

Serial number is required for all inquiries.

Code Description Action Required

E-50 Temp. Measurement

Error

E-60 Real-Time

Clock Error

E-61 Real-Time

Clock Error

E-80 EEPROM Error • Ensure that all temperature and times are properly set.

E-81 EEPROM Error • Call service.

E-82 EEPROM Error • Call service. E-83 EEPROM Error • Call service. E-87 EEPROM Error • Stored offsets corrupted. Offsets reset to 0. Control may need a recalibration. Possible

E-90 Button Stuck • A button has been held down for >60 seconds. Adjust electronic control. Error will

E-99 Hardware

Over Temp

• Call service.

• Appliance may have been unplugged for an extended period of time.

• To resolve, turn circuit breaker switch to on position for 1 minute, then turn circuit breaker switch to the off position for 5 seconds, and then back to ON. The error message should no longer appear in the display.

• In order for the appliance to fully recharge, it should remain plugged in and power circuit breaker switch turned on for at least 24 hours a er resetting.

• Upon resolving an E-60 error, check that the date and time are correct.

• Call service.

• If error continues, call service.

bad EEPROM.

• If error continues, call service.

reset when the problem has been resolved.

• Inspect connections and condition of high limit bimetal thermostat and the fan switch ( uid warmers only). Adjust if necessary.

• Check operation of cavity fan motor ( uid warmers only). Air movement from the cavity fan should move the safety sail switch to the closed position. Adjustment to the fan may be needed or replacement of the fan motor.

• If error continues, call service.

Troubleshooting

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Service

Serial number is required for all inquiries.

Part numbers and drawings are subject to change without notice.

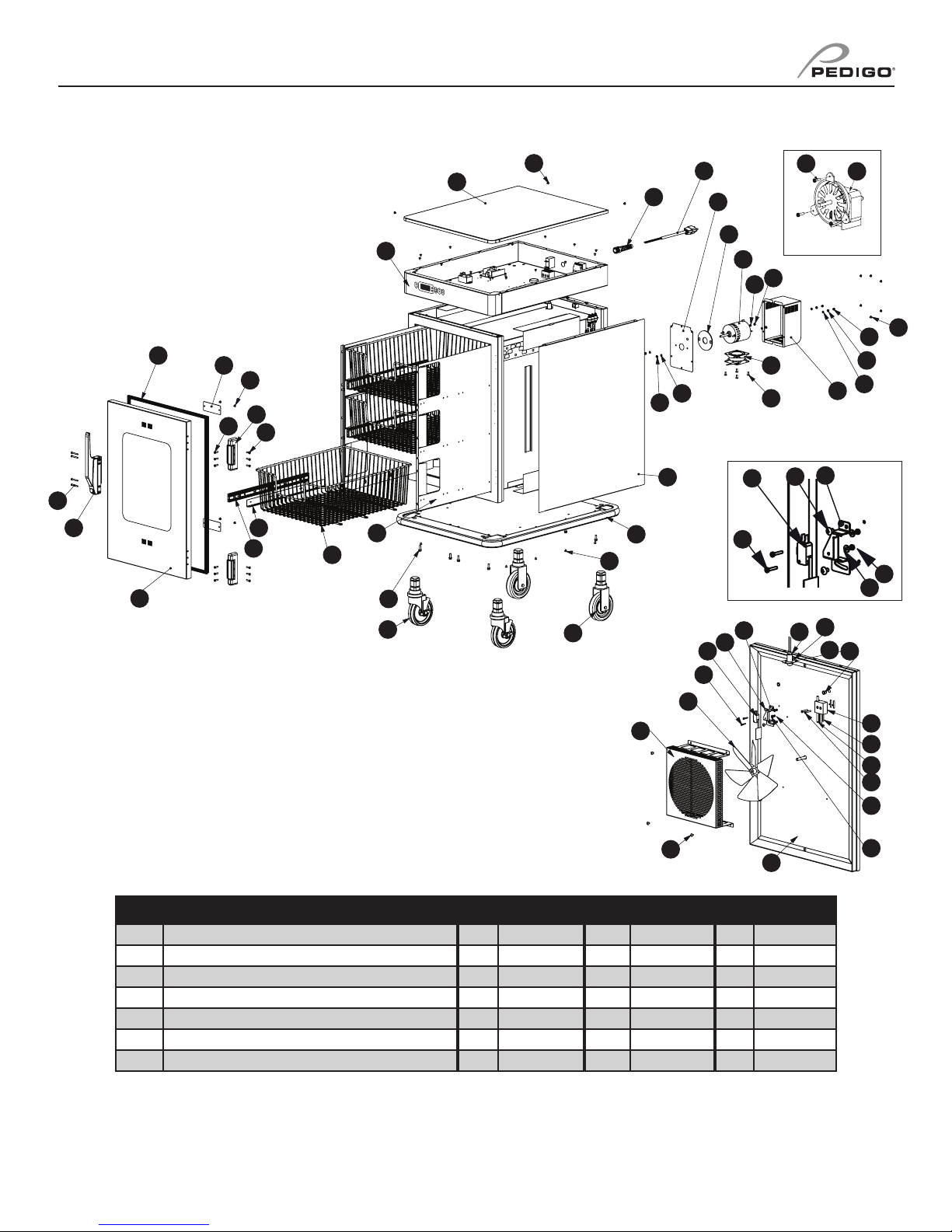

Full Assembly Service List (P-2130 Shown)

30a

P-2110 & P-2120

Loc Description Qty P-2110** Qty P-2120** Qty P-2130

Top 1 5000730 1 5010831 1 5003367

Screws, 8-32 x 1/4" * SC-2459 * SC-2459 * SC-2459

Strain relief bushing 1 BU-34836 1 BU-34836 1 BU-34836

Cordset, hospital grade 1 E3025CD 1 E3025CD 1 E3025CD

Plate, motor mount — — — — 1 1004300

Motor spacer — — — — 1 1004303

Fan motor† 1 E3034FA 1 E3034FA 1 E3044FA

* Quantity varies **Not shown † Note: The cavity fan motor has a one year life expectancy. The cavity fan

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

motor parts warranty remains in eect one (1) year from installation or fieen (15) months from the shipping date, whichever occurs first.

Service

Serial number is required for all inquiries.

Part numbers and drawings are subject to change without notice.

Loc Description Qty P-2110** Qty P-2120** Qty P-2130

Washer, #10 at nylon — — — — 2 WS-2420

Nut, 8-32, NC hex — — — — 2 NU-2296

Nut, 8-21, NC acorn — — — — 2 NU-2455

Motor box 1 1009331 1 1009331 2 5003358

Box fan — — — — 1 FA-3973

Screw, 10-32 x 1/2", motor mount — — — — 4 SC-2661

Screw, 8-32 x 5/8", motor mount 3 SC-2077 3 SC-2077 — —

Nut, 8-32 — — — — 2 NU-26526

Sides 1 1009697 2 1010721 2 1010744

Full perimeter rubber bumper — — 1 5010798 1 5010873

Casters, 5" (127mm) rigid — — 2 CS-24874 2 CS-24874

Casters, 5" (127mm) swivel w/ brake — — 2 CS-24875 2 CS-24875

Screws, 1/4 - 20 x 3/4" hex — — 8 SC-25286 8 SC-25286

Basket support assembly 1 5014017 1 5014018 1 5014019

Basket 1 BS-28518 2 BS-28517 3 BS-28516

Basket support rail 2 1002305 4 1002302 6 1002304

Basket slide guide (1 set of 2) 1 GI-25941 2 GI-25941 3 GI-25942

Window door assembly, right hinge 1 5009043 1 5010808 1 5001253

Door handle 1 HD-24171 1 HD-24171 1 HD-24171

Screw, 10-32 x 1-1/2" at 4 SC-35259 4 SC-35259 4 SC-35259

Door gasket 1 E2132GS 1 GS-22950 1 GS-23794

Plate, cover, vent — — 2 1010827 2 1010827

Hinge set (1 set of 2 hinges) 1 HG-2015 1 HG-22338 1 HG-22338

Screw, 10-32 x 3/4" at 6 SC-2072 — — — —

Screw, 10-32 x 1" at — — 6 SC-2713 6 SC-2713

30a

Screw, M5 x 0.8 x 20mm at 6 SC-23868 6 SC-23868 6 SC-23868 Fan guard

Fan blade

Screw, M3 x 0.5 x 16mm pan 2 SC-22270 2 SC-22270 2 SC-22270 Fan switch

Fan switch bracket

Led lamp assembly

Plate access, LED lamp 1 1009718 1 1009718 1 1009718

Bushings, snap 2 BU-3419 2 BU-3419 2 BU-3419 Sensor block

Sensor

Thermostat, manual reset

Screw, 8-32 x 1" at 2 SC-22138 2 SC-22138 2 SC-22138

Nut, M3 - 0.5 hex 2 NU-22285 2 NU-22285 2 NU-22285

Washer, M3 x 9mm at 2 WS-22293 2 WS-22293 2 WS-22293 Rear cover

Bottom assembly

Control panel overlay

Bumper feet

1 1012553 1 1012555 1 1012557

1 FA-34604 1 FA-34602 1 FA-34603

1 SW-33907 1 SW-33907 1 SW-33907

1 1011007 1 1011008 1 1011008

1 LP-34578 1 LP-34578 1 LP-34578

1 BK-28344 1 BK-28344 1 BK-28344

1 SN-33541 1 SN-33541 1 SN-33541

1 E3030TT 1 E3030TT 1 E3030TT

— — 1 1010720 1 1010741

1 E4042 — — — —

1 PE-28487 1 PE-28489 1 PE-28389

4 BM-22606 — — — —

**Not shown

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Service

Serial number is required for all inquiries.

Part numbers and drawings are subject to change without notice.

Electrical Service List (P-2130 Shown)

located under the bonnet

Loc Description Qty P-2110* Qty P-2120* Qty P-2130

Control panel overlay 1 PE-28487 1 PE-28489 1 PE-28389

Screw, 6-32 x 1/2" 2 SC-2472 2 SC-2472 2 SC-2472

Beeper, solid state 1 BP-3567 1 BP-3567 1 BP-3567

Relay, 12v dc, coil 1 RL-34434 1 RL-34434 1 RL-34434

Screw, 8-32 x 3/8" pan 2 SC-29631 2 SC-29631 2 SC-29631

Power supply board 1 BA-34041 1 BA-34041 1 BA-34041

Screw, 6-32 x 1-1/4" pan 2 SC-2365 2 SC-2365 2 SC-2365

Terminal block, 3 form compress 1 BK-3019 1 BK-3019 1 BK-3019

Circuit breaker switch 1 SW-33826 1 SW-33826 1 SW-33858

Terminal block, porcelain 1 BK-33546 1 BK-33546 1 BK-33546

Screw, M4 x 0.7 x 6mm pan 2 SC-22271 2 SC-22271 2 SC-22271

Cover, hi-limit 1 1009751 1 1009751 1 1009751

Thermostat, manual reset 1 E3030TT 1 E3030TT 1 E3030TT

Ground screw 1 SC-2190 1 SC-2190 1 SC-2190

Washer, #10 lock 1 WS-2467 1 WS-2467 1 WS-2467

Screw, 8-32 x 3/8" 2 SC-29631 2 SC-29631 2 SC-29631

Relay, 25a, zero crossing 1 RL-33829 1 RL-33829 1 RL-33829

Control assembly 1 CC-34765 1 CC-34765 1 CC-34765

Connectors 1 CR-33718 1 CR-33718 1 CR-33718

Connectors 1 CR-33717 1 CR-33717 1 CR-33717

Nut, 8-32 4 NU-26526 4 NU-26526 4 NU-26526

Thermostat, hi-limit 1 E3040TT 1 E3040TT 1 E3040TT

Wire diagram* 1 7659 1 7749 1 7784

*Not shown

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Part numbers and drawings are subject to change without notice.

Serial number is required for all inquiries.

Service

Options and Accessories Parts List*

Description P-2110 P-2120 P-2130

Built-in trim kit, reach-in — — Contact factory

Caster upgrade kit, 3.5" (89mm) Contact factory — —

Casters, 3.5" (89mm) Plate, rigid CS-23731 — —

Plate, swivel w/ brake CS-23730 — —

Screw (4 required for each caster) SC-2351 — —

Caster upgrade kit, 5" (127mm) Contact factory Contact factory —

Casters, 5" (127mm) Plate, rigid CS-2025 CS-2025 —

Plate, swivel w/ brake CS-2026 CS-2026 —

Screw (4 required for each caster) SC-2351 SC-2351 —

Combination lock Refer to combination lock manual MN-28753

Leg kit upgrade kit, 6" (152mm) Contact factory Contact factory Contact factory

Lock for door handle LK-22567 LK-22567 LK-22567

Solid door assembly 5009920 5012610 5012572

Stacking hardware

EC230L over EC230L 5012145 — —

EC340L over EC340L — 5012153 —

EC770L over EC770L — — 5011588

*Not shown

Heating Cable Replacement Kits*

Cable replacement kit number 4877 4880 4881

Service kit includes:

CB-3045 Cable heating element 37  (11m) 134  (41m) 210  (64m)

BU-3106 Cup bushing 2 8 12

TA-3540 Electrical tape 1 Roll 1 Roll 1 Roll

NU-2215 Hex nut 4 32 24

IN-3488 Insulation corner 8  (2m) 8  (2m) 8  (2m)

SL-3063 Insulating sleeve 2 8 12

CR-3226 Ring connector 2 8 12

BU-3105 Shoulder bushing 2 8 12

ST-2439 Stud, 10-32 2 8 12

*Not shown

P-2110 P-2120 P-2130

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Wiring Diagrams

Refer to wire diagram included with the appliance.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Refer to wire diagram included with the appliance.

Wiring Diagrams

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Wiring Diagrams

Refer to wire diagram included with the appliance.

MM-1065 (MN-29614) • Rev 4 • 06/16 • Pedigo Fluid Warmer

Limited Warranty

Pedigo Products, Inc. warrants to the original purchaser that any original part that is found to be defective in material or workmanship will, at our option, subject to provisions hereina er stated, be replaced with a new or rebuilt part.

The labor warranty remains in effect one (1) year from installation or   een (15) months from the shipping date, whichever occurs  rst.

The original parts warranty for the cavity fan motor remains in effect one (1) year from installation of appliance or   een (15) months from the shipping date, whichever occurs  rst. The original parts warranty on all other parts remains in effect three (3) years from installation of appliance or thirty-nine (39) months from the shipping date, whichever occurs  rst.

This warranty does not apply to:

1. Calibration

2. Equipment damage caused by accident, shipping, improper installation or alteration.

3. Equipment used under conditions of abuse, misuse, carelessness or abnormal conditions including equipment subjected to harsh or inappropriate chemicals including but not limited to compounds containing chloride or quaternary salts, poor water quality, or equipment with missing or altered serial numbers.

4. Any losses or damage resulting from malfunction, including loss of contents or consequential or incidental damages of any kind.

5. Equipment modi ed in any manner from original model, substitution of parts other than factory authorized parts, removal of any parts including legs, or addition of any parts.

6. Collateral or incidental damage as a direct result of servicing equipment built into a wall structure is not covered under warranty. It is the responsibility of the owner to bear all expense related to structural repairs including, but not limited to, external electrical connections and wiring, and the removal or replacement of caulk, grout, tile, or wall covering of any kind. A service access panel for built-in equipment installations is strongly recommended.

This warranty is exclusive and is in lieu of all other warranties, expressed or implied, including the implied warranties of merchantability and  tness for purpose. In no event shall the Company be liable for loss of use, loss of revenue, or loss of contents or revenue, or for indirect or consequential damages. This warranty is in lieu of all other warranties expressed or implied and Pedigo Products, Inc. neither assumes or authorizes any persons to assume for it any other obligation or liability in connection with Pedigo Products, Inc. equipment.

Serial number is required for all inquiries.

Always include both model and serial number(s) in any correspondence regarding the appliance.

Model: ______________________________________________

Serial Number: ______________________________________________

Purchased From: ______________________________________________

Date Installed: ____________________ Voltage: _____________

Warranty Effective November 1, 2012

Pedigo Products, Inc. • 4000 S.E. Columbia Way • Vancouver, WA 98661 • U.S.A.

Phone: 800.822.3501 • Fax: 360.696.1700 • www.pedigo-usa.com

Pedigo P-2110, P-2120, P-2130 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
