PECO AUTOMAT I O N A N D C O N T R O L S
T168 P R O P O RTIONAL THERMOSTAT
SMART ENERGY M ANA G E M E NT
HIGHL IGHTS
• Microprocessor Control
• 0-10 VDC or 4-20 mA Outputs
• Low Voltage Fan Cycling Capability
• Three-Speed Fan Switching Available
• 2-pipe/4-pipe Configuration
• Auto Changeover Capability
• Setback Capability
• Staged/Auxillary Heat Capability
• Operates at 50 or 60 Hz
• Fahrenheit or Celsius Display
• Local or Remote Sensing
Preci sion Zone Cont rol
The T168 microprocessor thermostat is a stand-alone digital controller that
supplies 0-10 VDC or 4-20 mA output control of valves and dampers. The use
of an advanced proportional integral (PI) algorithm allows precise control of
zone comfort under varying operational and environmental conditions.
Easy- to-Use Di splay
The digital display, with easy-to-use adjustment buttons, allows convenient
access to current zone temperature, setpoint temperature and operating
mode.
Optimal Flexibility
This flexible control offers auto changeover, setback and staged/auxiliary heat
for adapting to application requirements.
Page 2

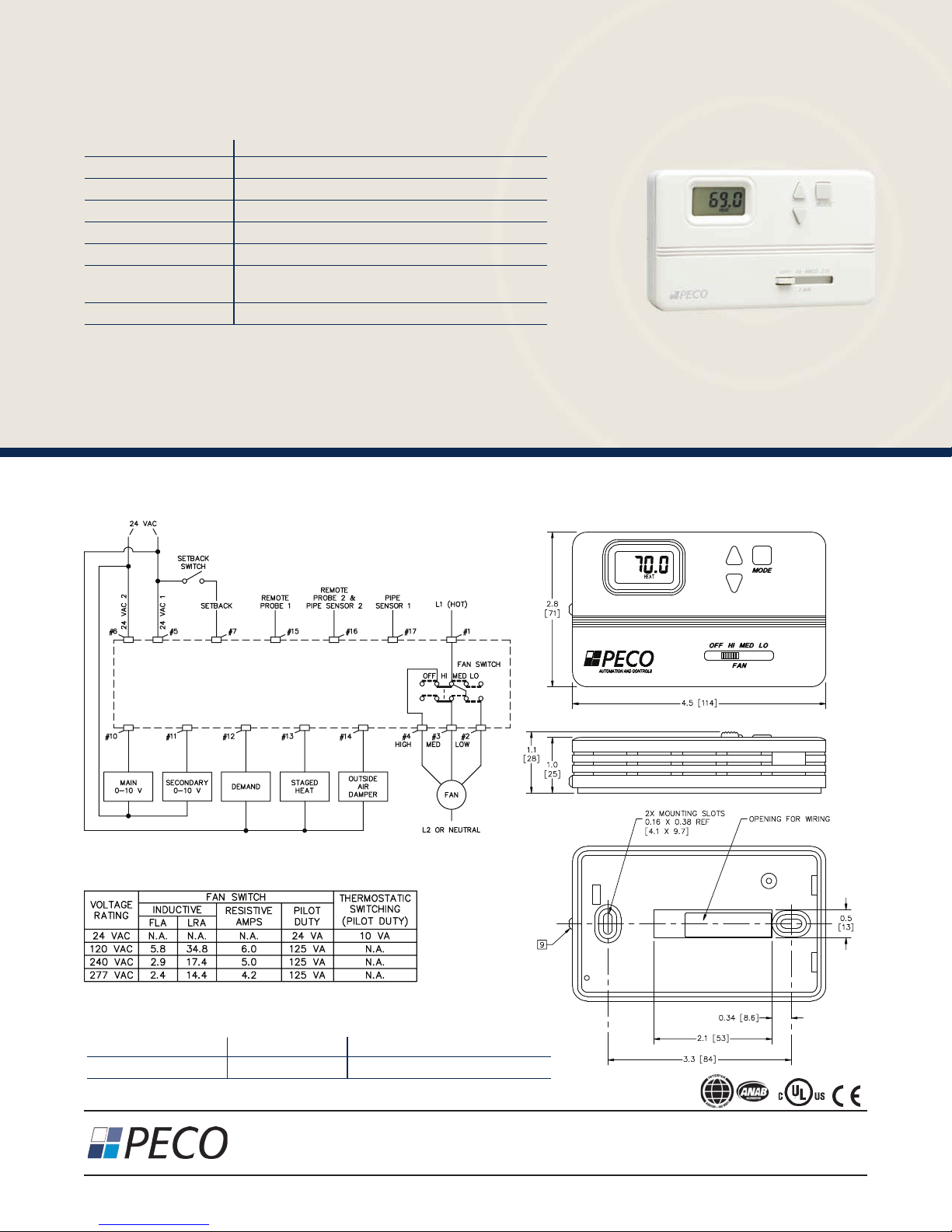

TECHN ICAL SPE CIFICATIONS
Supply Voltage 20-30VAC, 24VAC nom.
Control Signal, Voltage 0-10VDC, min 1k Ω
Control Signal, Current 4-20mA, between 100 Ω and 600 Ω
Proportional Bandwidth 2°F / 1°C
Temperature Range 50 to 90°F / 10 to 32°C
Maximum Ambient 130°F / 54°C
Mounting Installs on a standard 2" x 4" (50.8mm x 101.6mm)
device box
Agency Approvals UL, UL Canada, CE
T168 P R O P O RTIONAL T H E R M O S TAT
WIRIN G DIAGRAM
RATINGS
MOUNT ING INSTR UCTI ONS
MODEL SELECTIO N GUI DE
Model Part Number Description
TA168-100 68734 T168 Proportional Thermostat
Automation and Controls
Division of PECO, Inc.
PO Box 82189, Portland, OR 97282
Phone: 800-874-8547 / 503-233-6401
Email: [email protected]
www.pecomanufacturing.com
PECO is a registered trademark of PECO, Inc. The PECO logo is a trademark and/or service mark of PECO, Inc.
© Copyright 2008. PECO Inc. All Rights Reserved. P/N 69267 3220-2074 Rev 0 LCT168D0908
