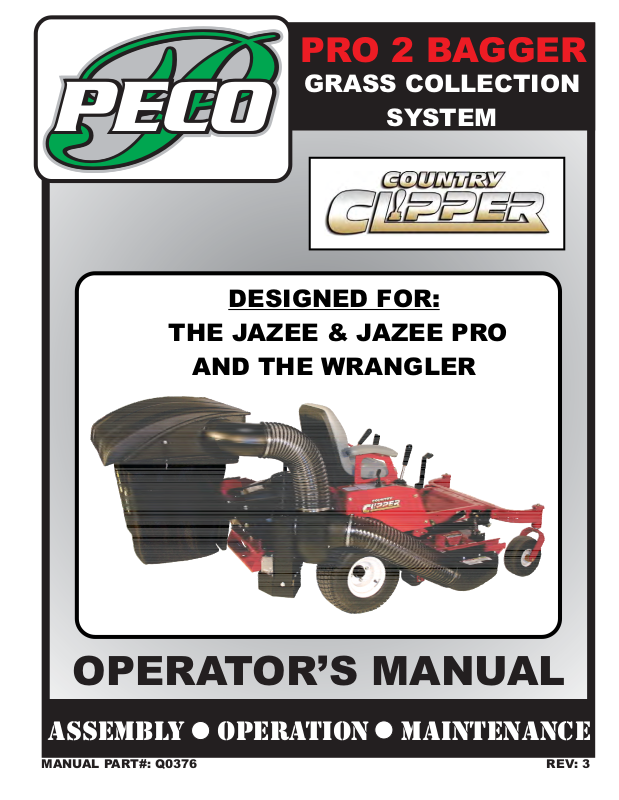

Peco PRO 2 BAGGER Operator's Manual

PRO 2 BAGGER

GRASS COLLECTION

PECOPECO

PECOPECOPECO

P

PPPP

SYSTEM

DESIGNED FOR:

THE JAZEE & JAZEE PRO

AND THE WRANGLER

OPERATOR’S MANUAL

ASSEMBLY OPERATION MAINTENANCE

MANUAL PART#: Q0376 REV: 3

RESIDENTIAL BAGGING SYSTEM

TABLE OF CONTENTS

SECTION PAGE

Safety ------------------------------2
Safety Alert Symbols----------------------3
Warranty -----------------------------4

I INTRODUCTION AND DESCRIPTION- - ------------5

1-1 Introduction - ------------------------5
1-2 Description - ------------------------5

II INSTALLATION FOR USE ----------------------5

2-1 Preparation Of Mower ------------------5
2-2 Removing The Rear Panel Guard

and The Muffler Guard ------------------6
2-3 Right Frame Mount Assembly Installation------6
2-4 Left Frame Bracket Installation- ------------6
2-5 Lower Frame Assembly Installation----------6
2-6 PTO Assembly Installation - - - ------------7
2-7 Belt Installation/Removal/Adjustment - - - - - - - 7-8
2-8 Exhaust Deflector Installation - ------------8
2-9 Upper Frame Assembly Installation
2-10 Top Assembly To Upper Frame

Assembly Installation ------------------8

2-11 Blower Cone Installation/Removal----------9

SAFETY

SECTION PAGE

2-12 Impeller Blade Removal/Replacement - ------9
2-13 Boot To Mower Deck Installation ------ - - - -9-10
2-14 Length of Hose Adjustment - - ------------10
2-15 Upper Hose Installation ----------------10
2-16 Lower Hose To Blower Cone Installation------10
2-17 Lower Hose To Boot Installation -----------11
2-18 Front Weight Installation ----------------11
2-19 Installation/Removal Of Collection Bags ------12

III OPERATING INSTRUCTIONS - ------------------13

3-1 General Safety -----------------------13
3-2 Operation & Tips On Mowing- - ------------13
3-3 Disengagement Of The PTO Assembly - ------13
3-4 Unloading The Collection System -----------13

IV MAINTENANCE----------------------------13

4-1 Maintenance Checklist ------------- - - - --13
4-2 Lubrication- - ------------------------14

V PARTS AND SERVICE -----------------------14

5-1 Parts And Service Information - ------------14
Exploded Views And Parts List - - - ------- - - - 15-21
Safety Decals - - ------------------------22
Torque Specifications - - - ------------------23

1.

Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do
not allow anyone who is not acquainted with the Safety Instructions to use your attachment.

2.

Know the controls and how to stop quickly. READ THE OPERATOR’S MANUAL!

3.

Do not allow children to operate the mower. Do not allow adults to operate the mower or grass collection
system without proper instruction.

4.

Be especially watchful of children and pets darting into the area while operating.

5.

Keep your eyes and mind on your unit while mowing or operating your attachment. Don’t let others
distract you.

6.

Do not attempt to operate your unit or mower when not in the driver’s seat.

7.

Always stop unit when emptying the container.

8.

Stop unit, shut off deck attachment, set parking brake, shut off mower engine and remove spark plug wire
before removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.

9.

If a slope must be ascended, back up the slope; drive forward when descending.

10.

It is recommended that the container be kept only half full when negotiating any slopes. Start mowing on
slopes when the container is empty and never mow slopes greater than 15 degrees.

11.

Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower
across any foreign object.

Wear ear protection if the noise level is offensive.

12.

Wear eye protection to prevent debris from damaging your eyes.

13.

2

SAFETY

WARNING!

vacuum collector adapter are fastened securely in place.

WARNING!

blades and the blower impeller have stopped rotating.

WARNING!

STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP.

WARNING!

excessively steep slopes, and use caution when turning on any slope.

NEVER

Do not work around the mower deck boot or the blower area until you are certain that the mower

To avoid serious injury, perform maintenance on the vacuum collector;

Set the parking brake. Always remove the ignition key before beginning maintenance.

For your own personal safety, back up the face of slopes. attempt to mow

operate the mower unless the discharge guard and either the deflector assembly or the

ONLY AFTER

ALWAYS NEVER

Safety Alert Symbol

“

ATTENTION! BECOME

!

This Safety Alert Symbol means:

ALERT! YOUR SAFETY IS INVOLVED!”

This symbol is used to call attention to safety precautions that
should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.

Safety Signs

The signal words and are used on the equipment safety signs. These words are
intended to alert the viewer to the existence and the degree of hazard seriousness.

!

!

Black letters on ORANGE

!

Black letters on YELLOW

DANGER, WARNING, AUTION

DANGER

White letters on RED

WARNING

CAUTION

C

This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.

This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

It may also be used to alert against unsafe practices.

This signal word indicates a potentially hazardous situation exist which, if
not avoided, will result in minor or moderate injury.

It may also be used to alert against unsafe practices.

3

COUNTRY CLIPPER LIMITED WARRANTY FOR NEW PRODUCTS

A. WHAT IS WARRANTED?

Country Clipper extends the following warranties to the original purchaser of each new Country Clipper
consumer product subject to the following limitations:

1. PRODUCT WARRANTY:

delivered to the purchaser will be repaired or replaced, as Country Clipper elects, without charge for parts or
labor, if the defect appears within 12 months (90 days for commercial use) from the date of delivery of the

product to the original purchaser.

CLIPPER FOR INSPECTION TO DETERMINE VALIDITY OF WARRANTY CLAIMS.

mailing will be borne by the customer.

2. PARTS REPLACED DURING WARRANTY:

this warranty and is defective in material or workmanship as delivered to the purchaser will be repaired or
replaced, as Country Clipper elects, without charge if the defect appears within 90 days from the date of
installation of such part or before the expiration of the original warranty period, whichever is later.

B. SECURING WARRANTY ADJUSTMENTS.

Call Country Clipper for Return Authorization. Damaged or broken parts, other than engines, batteries, and
gearboxes must be returned to Country Clipper Division of Shivvers Manufacturing Inc., 613 W. English,
Corydon, IA, 50060 before any warranty adjustment can be
authorized. At the time of requesting warranty adjustment, the purchaser must present evidence for date of
delivery of the product. The purchaser shall pay any charge for the product to and from Arden, NC.

C. ITEMS NOT COVERED BY COUNTRY CLIPPER WARRANTY.

Engines, batteries and, gearboxes attached to Country Clipper products are covered under a separate
warranty by the respective manufacturer.

Any part of any consumer product, which is defective in material or workmanship as

ALL DEFECTIVE PARTS MUST BE RETURNED TO COUNTRY

Any new Country Clipper part which is furnished in performance of

Freight and

D. UNAPPROVED ALTERATION OR MODIFICATION.

All obligations of Country Clipper, under this warranty, shall be terminated if products are altered or modified in
ways not approved by Country Clipper.

E. ACCIDENTS AND NORMAL MAINTENANCE.

The warranty covers only defective material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper use or abuse of products. The cost of normal maintenance and
normal replacement of service items such as belts, cutting blades, hoses, etc., which are not defective shall be
paid for by the purchaser.

F. NO REPRESENTATIONS ADDITIONAL WARRANTIES, DISCLAIMER.

Neither Country Clipper nor any company affiliated with it makes any warranties, representations or promises
as to the quality of performance of its products other than those set forth herein. Except as described above,

Country Clipper makes no other warranties

IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.

G. ANY MACHINE USED FOR RENTAL PURPOSES ARE GUARANTEED FOR 45 DAYS FROM DATE

OF ORIGINAL SALE ONLY.

H. REMEDIED EXCLUSIVE.

The only remedies the purchaser has in connection with the breach or performance of any warranty on Country
Clipper consumer products are set forth above. In no event will Country Clipper be liable for special incidental
or consequential damages.

1. NO SERVICE CENTER WARRANTY.

The selling Service Center makes no warranty on his own on any item warranted by Country Clipper unless he
delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no
authority to make any representation or promise on behalf of Country Clipper or to modify the terms of this
warranty in any way.

AND SPECIFICALLY DISCLAIMS ANY AND ALL

4

Section I
INTRODUCTION &DESCRIPTION

1-1 Introduction

Your grass collection system has been designed to give
you a low maintenance, simple, and effective way to
collect the grass clippings from your mower. This manual
is provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.

NOTE:

or bottom are as viewed from the normal operator’s
position on the mower.

all references made to right, left, front, rear, top

1-2 Description

The grass collection system is designed for turf
maintenance where there is a need to collect the grass
clippings as the mower cuts the turf. It is also used for
picking up leaves in pre-season and post-season clean­up. The blower, mounted on the right side of the unit,
uses a belt and gearbox system from the engine PTO
shaft. Drive train protection comes through belt slippage.
The blower draws grass clippings from the discharge
area of the cutting deck back to the (2) - 2.9 cubic foot
collection bags P#(G0004) at the rear portion of the
mower frame. The operator can engage the blower with
a spring-lock engagement handle on the right side of the
unit. Once the bags are full with clippings, they can be
easily released for dumping.

Section II

INSTALLATION FOR USE

NOTE:

pin upon re-installation of the clutch, and that the wiring
harness is re-connected.

For the 24HP & 27HP Kohler Engines, 22HP & 21HP
Kawasaki Engines and 23HP Briggs and Stratton
Engines:
pulley assembly number 15 P#(A1038) and secure the
pulley assembly to the clutch using (1) 7/16”-20 x 3-3/4”
HHCS P#(K0350) and (1) 7/16” lock washer P#(K0140).

For the 18.5HP, 22HP & 26 HP Briggs and Stratton
Engines and the 19HP Kawasaki Engine and 20HP
Kohler:
pulley assembly number 12 P#(A0728) and secure the
pulley assembly to the clutch using (1) 7/16”-20 x 3-3/4”
HHCS P#(K0350) and (1) 7/16” lock washer P#(K0140).
The added pulley will power the collection system.
Torque the bolt to 55 ft./lbs.
engine pulley.

Make sure that the clutch stop is inline with the

1-1/8” DIAMETER CRANKSHAFT

Replace the bushing and hardware with engine

1” DIAMETER CRANKSHAFT

Replace the bushing and hardware with engine

Reattach the drive belt to the

Electric Clutch

Assembly

Remove

Hardware

Figure 2-1

From Engine Pulley

Clutch

Stop

Disconnect

Wiring Harness

Remove Drive Belt

2-1 Preparation Of Mower

Carefully open the shipping box. The grass collection
system will have various parts located inside. Remove
and sort all parts for easy identification.

NOTE:

the exploded drawings and part views on pages

Refer to your Country Clipper owners manual for
instructions on how to properly remove the drive belt
from the engine pulley. After removing the drive belt from
the engine pulley, disconnect the wiring harness on the
clutch assembly. Remove the hardware that secures the
clutch assembly to the engine shaft. Remove the clutch
assembly from the engine shaft. Remove the bushing
from the underside of the clutch assembly, where the
pulley is located. Refer to Figure 2-1.

Before each step of assembly, it will help to study

14-19.

Clutch

Pin

Added

Engine Pulley

5

Remove
Bushing

(1) 7/16” Lock Washer

(1) 7/16”-20 x 3-3/4” HHCS

2-2 Removing the Rear Panel Guard
and the Muffler Guard

Remove the rear panel guard from the rear frame of the
mower. You will use this existing hardware later in the
assembly procedure. Refer to figure 2-2.

NOTE:

engines, the muffler guard will need to be replaced.
Contact Country Clipper for the replacement muffler
guard, part number 700-059P.

On certain Jazee units with single cylinder

Figure 2-2

Remove The

Rear Panel

Guard

2-4 Left Frame Bracket Installation

Disconnect the deck tension spring from the left engine
side panel and remove the hardware. Attach the left
frame bracket to the left engine side panel using the
existing hardware from the rear panel guard and deck
tension spring. Also use (2) 3/8”-16 x 3/4” HHCS
P#(K1190) and (2) 3/8”-16 nyloc nuts P#(K1216) to
secure the left frame bracket Refer to Figure 2-4.

NOTE:

tension spring. Use (1)1/2”-13 x 1-1/4” HHCS P#(K1232)
and (1) 1/2”-13 nyloc nut P#(K1247) instead of existing
hardware.

The Wrangler series does not have a deck

Figure 2-4

Deck Tension

Spring

Left Frame

Bracket

2-3 Right Frame Mount Assembly
Installation

Fasten the right frame mount assembly P#(A1008) to the
right engine side panel using (2) 3/8”-16 x 3/4” HHCS
P#(K1190) and (2) 3/8”-16 nyloc nut P#(K1216). Also
use (2) 1/2”-13 x 1-1/4” HHCS P#(K1232) and (2) 1/2”­13 nyloc nut P#(K1247). Refer to Figure 2-3.

Figure 2-3

(2) 3/8”-16 x 3/4” HHCS

(2) 3/8”-16 Nyloc Nut

Wrangler Series

(1) 1/2-13 x 1-1/4” HHCS

(1) 1/2”-13 Nyloc Nut

Jazee Series

Use Existing Hardware

(2) 3/8”-16 x 3/4” HHCS

(2) 3/8”-16 Nyloc Nut

2-5 Lower Frame Assembly
Installation

Fasten the lower frame assembly P#(A1091) to the left
frame bracket P#(B0452) and the right frame mount
assembly P#(A1008) using (4) 5/16”-18 x 3/4” HHCS
P#(K1153), (4) 5/16” flat washer P#(K0042)and (4)
5/16”-18 nyloc nut P#(K1180). Refer to Figure 2-5.

NOTE:

different mower frames, so use the hole pattern shown in
Figure 2-5.

The lower frame assembly is designed to fit

Front View

Figure 2-5

(2) 1/2”-13 x 1-1/4” HHCS

(2) 1/2”-13 Nyloc Nut

Lower Frame

Assembly

6

(4) 5/16”-18 x 3/4” HHCS

(4) 5/16” Flat Washer

(4) 5/16”-18 Nyloc Nut

2-6 PTO Assembly Installation

Insert the pivot rod on the PTO assembly P#(A1111) into
the mounting slots on the right frame mount assembly
P#(A1008) as shown in Figure 2-6. You will secure the
PTO assembly in Section 2-7, after the belt has been
installed.

Figure 2-6

PTO

Assembly

Mounting

Slot

Pivot Rod

2-7 Belt Installation/Removal and
Adjustment

Remove (3) 1/4”-20 x ½” HHSTS P#(K0353) from the
belt guard located on the bottom of the PTO assembly
as shown in Figure 2-7a.

Figure 2-7b

Belt Tension

Adjustment

Bolt

Figure 2-7c

After loosening the hardware in Figure 2-7b and 2-7c,
slide the gearbox to the farthest left position (towards the
engine). Wrap one end of the kevlar belt P#(M0268)
around the engine pulley. Wrap the other end of the belt
around the pulley on the gearbox. Refer to Figure 2-7d
for reference.

(2) 5/16”-18 x 3/4” HHCS

Loosen (1) 3/8”-16 x 2” HHCS

Loosen

Loosen

(2) 5/16”-18 x 3/4” HHCS

Figure 2-7a

Remove The

Belt Guard

Loosen the (4) 5/16”-18 x 3/4” HHCS P#(K1153) that
secure the gearbox to the PTO assembly. Loosen the
belt tension adjustment bolt: (1) 3/8”-16 x 2” HHCS
P#(K1208). Refer to Figure 2-7b and 2-7c.

Figure 2-7d

Slide

Gearbox

Gearbox

Pulley

Engine

Pulley

With the kevlar belt wrapped around both pulleys, tilt the
PTO assembly towards the engine, aligning the PTO
mount pin holes on the PTO assembly with the mounting
holes on the right frame mount assembly. Insert the PTO
mount pin P#(B0274) in the mounting holes and fasten
with (1) 1/8” x 2-3/8” hair pin clip P#(K0086). Refer to
Figure 2-7e for reference.

Wrap Belt Around

Both Pulleys

7

2-7 Belt Installation/Removal and
Adjustment Continued...

Fasten With

Figure 2-7e

(1) Hair Pin Clip

Tilt PTO

Assembly

2-9 Upper Frame Assembly
Installation

Slide the upper frame assembly P#(A0871) onto the
vertical mount tube located on the lower frame assembly
P#(A1091) as shown in Figure 2-9.

Upper Frame

Assembly

Figure 2-9

Insert PTO

Mount Pin

To adjust the belt tension, turn the belt tension
adjustment bolt clockwise until there is 1” of deflection
with 10-11 pounds of pressure applied to the center of
the kevlar belt. When the belt has the proper tension,
tighten the (4) 5/16”-18 x 3/4” HHCS P#(K1153) from
Figure 2-7b and 2-7c that secure the gearbox to the PTO
assembly. Replace the belt guard and (3) 1/4”-20 x ½”
HHSTS P#(K0353).

2-8 Exhaust Deflector Installation

NOTE:

hand side of the tractor will not require an exhaust
deflector, or removal of existing exhaust deflector.)

Remove any existing exhaust deflector and hardware
from the muffler. Attach the exhaust deflector P#(J0282)
to the muffler and fasten with the exhaust clamp
P#(X1064). Rotate the exhaust deflector downward
before tightening the exhaust clamp, as shown in Figure
2-8. This will prevent the exhaust from damaging the
collection bags. For the Briggs and Stratton

18.5HP engine, simply remove the existing exhaust
diverter. For any engines with the exhaust on the left
side of the engine, the exhaust deflector is not required.

Figure 2-8

(All units where the muffler deflects out the left

For Right Hand Deflecting Mufflers

NOTE:

Exhaust

Clamp

Vertical

Mount Tube

Lower Frame

Assembly

2-10 Top Assembly To Upper Frame
Assembly Installation

Lift the top assembly P#(A1028) into position as shown
in Figure 2-10. Fasten the top assembly to the upper
frame assembly using (2) 5/16”-18 x 2-1/2” tap bolt
P#(K0125), (2) 1/4” flat washer P#(K0037), and (2) 5/16”
nyloc nut P#(K1180). When fastening, leave the nyloc
nuts slightly loose so that the top assembly can pivot
freely.

To p

Figure 2-10

Assembly

Exhaust

Deflector

Rotate Deflector

Downward

Before Clamping

(1) 5/16”

Nyloc Nut

(1) 5/16”-18 x 2-1/2”

Tap Bolt

1/4” Flat

Washer

8

2-11 Blower Cone
Installation/Removal

Fasten the blower cone P#V0016) to the blower housing
located on the PTO assembly. Use (3) 1/4”-20 x ½”
HHCS P#(K1105) and (3) 1/4” flat washers P#(K0037) to
secure the blower cone to the blower housing.

Figure 2-11

1/4”-20 x ½”

HHCS

Blower

Cone

1/4” Flat

Washer

Blower

Housing

Remove the (2) 3/8”-16 x 1/4” HHCS P#(K0049), and (2)
3/8”-16 flange nut P#(K1215) that secure the impeller
blades tot he PTO shaft P#(B0460). Inspect the impeller
blades and replace if necessary. When replacing the
impeller blades, run the blades to the shoulder of the
PTO shaft before tightening the hardware. Refer to the
figures

Figure 2-12b

PTO

Shaft

Shoulder

3/8”-16 x 1-1/4”

HHCS

3/8”-16

Flange

Nut

3/8” I.T.

Lock

Washer

Impeller

Blade

Impeller

Blade

2-13 Boot To Mower Deck Installation

2-12 Impeller Blade
Removal/Replacement

WARNING

!

BEFORE REMOVING/REPLACING THE IMPELLER
BLADES, BE SURE THE MOWER IS TURNED OFF,
THE PTO ASSEMBLY IS DISENGAGED AND THE
NEGATIVE CABLE IS REMOVED FROM THE
BATTERY. FAILURE TO DO SO MAY RESULT IN
SEVERE INJURY OR DEATH.

Remove the blower cone P#(V0016) from the blower
housing located on the PTO assembly P#(A1111). With
the blower cone removed, you will have access to the
impeller blades P#(E7003). Refer to Figure 2-12a

Figure 2-12a

PTO

Shaft

Remove any existing grass deflector from the mower
deck. Follow the instructions that correspond to your
bagger boot adapter kit.

KIT#: 629FP-001A Jazee and Jazee Pro 2011

Fasten the boot plate P#(B0627) to the plastic boot
P#(V1162) using (3) 5/16”-18 x 3/4” carriage bolt
P#(K1142), (3) 5/16” flat washer P#(K0042) , and (3)
5/16”-18 nyloc nut P#(K1180). Insert the carriage bolts
from the inside of the boot so the threads are on the
outside of the boot. This will prevent grass clippings from
collecting on the bolt threads. Secure the boot plate to
the mower deck with (1) boot rod P#(B0348) and (1) hair
pin clip P#(K0099) as shown in Figure 2-13a.

Figure 2-13a KIT#: 629FP-001A

Hair Pin

Clip

Boot

Rod

Boot

Plate

Impeller

Blades

9

Boot

(3) 5/16”-18 x 3/4”

Carriage Bolt

(3) 5/16” Flat Washer

(3) 5/16”-18 Nyloc Nut

2-13 Boot To Mower Deck Installation
Continued..

KIT#: 629FQ-001A Jazee & Jazee Pro 2009 & Below

Fasten the boot plate P#(B0468) to the plastic boot
P#(V1162) using (3) 5/16”-18 x 3/4” carriage bolt
P#(K1142), (3) 5/16” flat washer P#(K0042) , and (3)
5/16”-18 nyloc nut P#(K1180). Insert the carriage bolts
from the inside of the boot so the threads are on the
outside of the boot. This will prevent grass clippings from
collecting on the bolt threads. Secure the boot plate to
the mower deck with (1) boot rod P#(B0244) and (1) hair
pin clip P#(K0099) as shown in Figure 2-13b.

Figure 2-13b KIT#: 629FQ-001A

KIT#: 629EO-001A Jazee and Jazee Pro 2010

Rotate the stop clockwise and slide the chute forward
and up to remove. Insert the bagger mount into the
same keyholes on the deck. Rotate the stop counter
clockwise to lock into place. Fasten the boot to the boot
mount bracket with (2) carriage bolts and (2) flange nuts.
Insert the carriage bolts from the inside of the boot so
the nuts fasten on the top of the boot bracket. This will
prevent grass clippings from collecting on the bolts.
Position the boot mount over the tabs of the deck mount
and slide the boot rod through the holes on both of the
mounts and secure with (1) hair pin clip.

Hair Pin

Clip

Boot

Plate

Boot

KIT#: 629FL-001A Wrangler Series

Fasten the boot plate P#(B0648) to the plastic boot
P#(V1166) using (3) 5/16”-18 x 3/4” carriage bolt
P#(K1142), (3) 5/16” flat washer P#(K0042) , and (3)
5/16”-18 nyloc nut P#(K1180). Insert the carriage bolts
from the inside of the boot so the threads are on the
outside of the boot. This will prevent grass clippings from
collecting on the bolt threads. Secure the boot plate to
the mower deck with (1) boot rod P#(B0658) and (1) hair
pin clip P#(K0099) as shown in Figure 2-13b.

Figure 2-13c KIT#: 629FL-001A

Hair Pin

Clip

Boot
Rod

(3) 5/16”-18 x 3/4”

Carriage Bolt

(3) 5/16” Flat Washer

(3) 5/16”-18 Nyloc Nut

Boot

Rod

Boot

Plate

Figure 2-13d KIT#: 629EO-001A

2-14 Length of Hose Adjustment

The hoses in sections 2-15 and 2-16 must be cut to fit
your machine. Follow steps 2-15 and 2-16. Do not cut
the hoses until you have tried to fit them on your
machine. Remember that the hoses have to be long
enough to adjust for the blower assembly’s movement
as well as allow enough for clamping surface between
the inlet, blower assembly and the deck boot.

2-15 Upper Hose Installation

Fasten the inlet to the plastic top by sliding the inlet from
the inside of the top assembly and lock the inlet into
place. Slide a hose clamp P#(J1000) over both ends of
the 6” upper hose P#(F0001). Then slide one end of the
upper hose onto the inlet. Make sure there is about a
two-inch overlap between the hose end and the inlet.
Slide the opposite of the upper hose onto the outlet of
the PTO assembly. Make sure there is a two-inch over
lap between the hose end and the outlet on the PTO
assembly. Make sure both ends of the hose are clearly
attached to the inlet and the PTO assembly. Tighten both
hose clamps at this time. Refer to Figure 2-15.

Figure 2-15

Hose

Clamp

Boot

(3) 5/16”-18 x 3/4”

Carriage Bolt

(3) 5/16” Flat Washer

(3) 5/16”-18 Nyloc Nut

10

Inlet

Outlet

Upper

Hose

Hose

Clamp

2-16 Lower Hose To Blower Cone Installation

Slide a hose clamp P#(J1000) over both ends of the
lower hose. Then proceed to slide the lower hose
P#(F0001) onto the blower cone. Tighten the lower hose.

Hose

Clamp

Blower

Cone

Figure 2-16

Lower

Hose

2-17 Lower Hose To Boot Installation

Take the unattached end of the lower hose and slide it
over the circular end of the boot. Use the hose clamp to
secure the hose to the boot. Before you tighten
the hose clamp, rotate the lower hose counter clockwise
approximately 1” and then tighten the clamp. This will
help hold the bottom edge of the boot tight to the mower
deck.

Lower

Hose

NOTE:

Figure 2-17

2-18 Front Weight Installation

Remove the deck step and hardware from the mower.
Fasten the weight brackets P#(B0479) and the weight
mount plates P#(B0419) to the front casters using (4)
3/8”-16 x 3” carriage bolts P#(K1187) and (4) 3/8”-16
nyloc nuts P#(K1216). Tighten the bolts only finger tight
at this point. Insert (1) weight assembly P#(A0852) into
the weight mount brackets. Secure the weight assembly
using (2) clevis pins P#(K1625) and (2) hair pin clips
P#(K0086) T
Wrangler series mower, use weight assembly
P#(A1113).

ighten all hardware. For the

Remove

Step

Hair Pin

Clip

Weight

Bracket

NOTE:

Remove

Hardware

Clevis

Pin

Weight

Assembly

Hose

Clamp

Inlet

Boot

Upper

Hose

Hose

Clamps

3/8”-16

Nyloc Nut

Hose

Clamps

3/8”-16 x 3”

Carriage Bolt

Weight Mount

Plate

Blower

Cone

11

Lower

Hose

Boot

2-19 Installation/Removal Of
Collection Bags

Plastic Top

Figure 2-19b

To install the bag onto the bag ring
P#(B0227), first make sure the bag ring end caps
P#(J0274) are fastened to the bag ring. Place the seam
openings of the bag onto the bag ring openings and turn
the bag until the slot bracket in the bag ring is protruding
from the opening in the bag (Figure 2-19a). Do this for
both bags.

Install the completed assemblies onto the support frame
and close the plastic top. To secure the plastic top while
in use, fasten the rubber strap with S hook to the right
pivot side rail as shown in Figure 2-19b.

To empty the bag, remove the bag and bag ring by
sliding the bag rearward. Grasp the loop on the bottom
of the bag, turn it upside down and empty the collected
debris (Figure 2-19c). Repeat for the other bag. Reinstall
both bags, line with plastic bags if desired, close the
plastic top and reattach the rubber strap with ‘S’ hook.

Plastic lawn and leaf bags, 33 gallon size, may be used
inside the cloth bags. Be sure to leave enough plastic
bag hanging over the frame so the plastic bags can be
twist tied before emptying (Figure 2-19d).

P#(G0004)

Figure 2-19c

Figure 2-19a

Bag Ring

Bag Ring

End Caps

Seam
Opening

Cloth Bag

Figure 2-19d

Plastic Bag

Grasp Bag

Here

12

Cloth Bag

SECTION III

OPERATING INSTRUCTIONS

3-3 Disengagement Of The PTO
Assembly

3-1 General Safety

Only qualified people familiar with this operator’s manual
and the mower’s operator’s manual should operate this
machine.

3-2 Operation And Tips On Mowing

A. Perform BEFORE EACH USE the maintenance list in

paragraph 4-1.

B. Start mower.

C. With the mower at high idle speed, engage the mower

deck.

While seated in the operator’s seat, pull the

D.

engagement handle of the PTO assembly towards
the operator’s seat until the handle slides into
position in the retaining slot. With the PTO assembly
engaged, you can proceed to operate the control
levers of the mower.

NOTE:

collecting the grass clippings, disengage the deck
and PTO assembly (Section 3-3), then, engage the
parking brake and turn the mower off. Check upper and
lower hoses for any clogs.

To obtain the maximum effectiveness from your
collection system, the tips listed below should be
followed:

If the collection system does not appear to be

A. To disengage the PTO assembly, slide the
engagement handle out of the retaining slot and push
the engagement handle away from the operator’s seat.

WARNING:

spin. DO NOT TOUCH the PTO assembly, pulleys, or
the belt until the tractor is turned off. DO NOT adjust the
belt tension until the mower is turned off. Refer to
section 2-4 of the manual.

The PTO assembly blades will continue to

3-4 Unloading The Collection System

NOTE:

follow the following steps:

A. Stop the forward movement of the mower.

B. Disengage the mower deck.

C. Disengage the PTO assembly.

D. Engage the parking brake.

E. Once the parking brake has been engaged, then and

F. To remove the bags from the frame slide bags out and

To determine when the collection bags are full,

only then, walk behind the mower and check the
collection bags by first unhooking the rubber strap
with S hook that secures the plastic top, then lift the
plastic hood. Load in bags should not exceed the
height of the installed bag.

turn bags over to deposit clippings.

* Watch your speed- Normal conditions will allow a

speed of up to approximately 4 mph, but thick, heavy

damp conditions will require reduced ground speed.

* Mow with sharp blades- A sharp blade cuts cleaner.

* Wet grass and leaves will decrease effectiveness and

will increase horsepower requirements.

* Mow at higher cutting heights- Remove and mulch no

more than 2” of grass length with each mowing.

(Experts recommend not cutting off more than 1/3 of

the grass blade length at any given time.)

* Mow twice, at different height settings, (high, then low),

if grass is extra tall.

* Remember that horsepower requirements will vary with

the mowing conditions such as type and height of turf

grass, moisture content, amount of leaves, whether the

terrain is flat or hilly, etc.

G. Slide empty bags back onto the frame and secure

plastic top with the rubber strap with ‘S’ hook.

NOTE:

Do not allow collection bags to become over­filled as potential damage may occur to your
equipment. Also, be sure to clean the hood screen as
needed.

SECTION IV

MAINTENANCE

4-1 Maintenance Checklist

Before each use:

1. Check blades and spindles to be sure that no foreign
objects, such as wire or steel strapping bands, are
wrapped around them.

2. Inspect blades for wear. Replace if necessary. If it is
necessary to sharpen the blades, remove the blades
from the spindles before sharpening. DO NOT
sharpen blades while still attached to the mower.

13

3. Make sure all shields are in place and in good
condition. Repair or replace any missing or damaged
shields.

4. Perform lubrication per paragraph 4-2.

4-2 Lubrication

NOTE: Use only white lithium based grease for

lubrication of the shaft on the blower assembly.

5. Listen for abnormal sounds, which might indicate
loose parts, damaged bearings, or other damage.
Correct any deficiency before continuing operation.

6. With the engine off, engage the blower assembly.
Check the belt tension and inspect the pulley belt for
cracks or tears.

7. Check for wear or deterioration of the upper or lower
hoses. If there are any portions of the hose that have
been torn or worn through, replace immediately.

After Each Use:

1. Clean all debris from machine especially from the
container, underneath the belt shields, and safety
decals. Replace any missing or illegible decals.

2. Inspect the unit for worn or damaged components.
Repair or replace before the next use. Any
replacement component installed during repair shall
include the component’s current safety decal specified
by the manufacturers to be affixed to the component.

3. Check belt for proper tension.

1. On initial use: Grease the fitting on the blower shaft.

2. Every 25 hours of use: Re-grease the grease fitting.

3. Every 200 hours of use: Check oil levels in gear box.
Oil in gear box should cover the gears. If not, fill using
an EP90 weight oil. 6oz. will fill the gear box from
empty.

SECTION V

PARTS AND SERVICE

5-1 Parts And Service Information

Collection system owners should record the name and
telephone number of their Service Center. Your Service
Center will be happy to supply replacement parts,
accessories, and do any service or repairs to your
collection system. If for any reason your Service Center
is unable to service your collection system or supply
replacement parts, contact PECO Inc. and include the
following information on the chart below.

THE SERIAL NUMBER PLATE

IS LOCATED ON THE TOP

ASSEMBLY

Unit Model Number:
Unit Engine Size:
Unit Serial Number:
Date of purchase:
Dealer/Distributor Name:
Address: State:
Phone Number:

_____________________________________ __________ Zip:__________

____________________________

_____________________________

_____________________________

_____________________________

_____/_____/_________

________________________________________

Country Clipper Division OF Shivvers Mfg. Inc.

613 W. English / Corydon, IA / 50060

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

WRITE THE MODEL AND

SERIAL NUMBER IN THE

BOX TO THE LEFT

FOR FUTURE REFERENCE.

14

MODEL#: 49020901

MOWER NAME: COUNTRY CLIPPER
MOWER MODEL: JAZEE & JAZEE PRO

MOWER DECK SIZE: 42” THRU 52”

VAC NAME: 9 CUBIC FOOT PRO BAGGER

SHIVVERS PART#: 629EA-001A

**REQUIRES AUXILIARY BOOT ADAPTER KIT**

RESIDENTIAL

BAGGING

SYSTEM

FOR YEAR: 2008-2009

REVISED:

A1034 UNIT ASSEMBLY

(1)

A1028

TOP

ASSEMBLY

(1)

A0871

UPPER FRAME

ASSEMBLY

V0019
INLET

(1)

(1)

B0452

LT. FRAME

BRACKET

(1)

6” x 32”

LOWER HOSE

(1)

J0282

EXHAUST

DIVERTER

(1)

6” x 25”

UPPER HOSE

(4)

J1000

HOSE

CLAMPS

(1)

V1162

BOOT

(1)

M0268

A47K KEVLAR

BELT

(1)

A0872

LOWER FRAME

ASSEMBLY

(1)

HB0351

HARDWARE

BAG

(1)
HB0352
ENGINE
PULLEY

HARDWARE

BAG

(2)

B0227

BAG RING

A1035 WEIGHT KIT

PECO

(1)

HB0353

HARDWARE

BAG

(2)

G0004

2.9 CU. FT.

COLLECTION

BAGS

(2)

B0419

WEIGHT

MNT. PL.

(1)

A1008

RT. FRAME

MNT. ASSY.

(1LT. & 1RT.)

15

6” BLOWER

B0479

WEIGHT

BRACKET

(1)

V0016

CONE

(1)

A1041

PTO

ASSEMBLY

(1)

A0852

WEIGHT

ASSY.

MODEL#: 49020902

MOWER NAME: COUNTRY CLIPPER

MOWER MODEL: JAZEE & JAZEE PRO
MOWER DECK SIZE: 42” THRU 52”
VAC NAME: 9 CUBIC FOOT PRO BAGGER

SHIVVERS PART#: 629FM-001A
**REQUIRES AUXILIARY BOOT ADAPTER KIT**
A1034 UNIT ASSEMBLY

V0019

(1)

A1028

TOP

ASSEMBLY

(1)

A0871

UPPER FRAME

ASSEMBLY

INLET

(1)

B0452

LT. FRAME

BRACKET

(1)

6” x 32”

LOWER HOSE

(1)

UPPER HOSE

(4)

J1000

HOSE

CLAMPS

(1)

V1162

BOOT

(1)

6” x 25”

(1)

A1091

LOWER FRAME

ASSEMBLY

RESIDENTIAL

BAGGING

SYSTEM

FOR YEAR: 2011 - BELOW

REVISED: 3-02-2011

PECO

(1)

M0268

A47K KEVLAR

BELT

(1)

A1111

PTO

ASSEMBLY

(1)

HB0351

HARDWARE

BAG

PECO

(1)
HB0352
ENGINE
PULLEY

HARDWARE

BAG

(2)

B0227

BAG RING

A1035 WEIGHT KIT

PECO

(1)

HB0353

HARDWARE

BAG

(2)

G0004

2.9 CU. FT.

COLLECTION

BAGS

(2)

B0419

WEIGHT

MNT. PL.

(1)

A1008

RT. FRAME

MNT. ASSY.

16

(1)

V0016
BLOWER
CONE 6”

(1LT. & 1RT.)

B0479

WEIGHT

BRACKET

(1)

J0282

EXHAUST

DIVERTER

(1)

A0852

WEIGHT

ASSY.

MODEL#: 49020903

MOWER NAME: COUNTRY CLIPPER
MOWER MODEL: WRANGLER

MOWER DECK SIZE: 42” THRU 52”

VAC NAME: 9 CUBIC FOOT PRO BAGGER

SHIVVERS PART#: 629FL-001A

FITS MODEL SR125

A1034 UNIT ASSEMBLY

V0019

(1)

A1028

TOP

ASSEMBLY

(1)

A0871

UPPER FRAME

ASSEMBLY

INLET

(1)

(1)

6” x 34”

LOWER HOSE

CLAMPS

(1)

B0452

LT. FRAME

BRACKET

(4)
J1000
HOSE

(1)

6” x 25”

UPPER HOSE

(1)

A1091

LOWER FRAME

ASSEMBLY

RESIDENTIAL

BAGGING

SYSTEM

FOR YEAR: 2011

REVISED: 3-02-2011

(1)

M0268

A47K KEVLAR

BELT

A1111

PTO

ASSEMBLY

HARDWARE

HB0352
ENGINE
PULLEY

HARDWARE

(1)

PECO

(1)

HB0351

BAG

PECO

(1)

BAG

(2)

B0227

BAG RING

A1129 WEIGHT KIT

PECO

(1)

HB0353

HARDWARE

BAG

(2)

B0419

WEIGHT

MNT. PL.

(2)

G0004

2.9 CU. FT.

COLLECTION

BAGS

(1LT. & 1RT.)

B0479

WEIGHT

BRACKET

RT. FRAME

MNT. ASSY.

(2)

A1113

WEIGHT

ASSY.

(1)

A1008

HARDWARE

17

(1)

(1)

V0016
BLOWER
CONE 6”

J0282

EXHAUST

DIVERTER

A1118 BOOT KIT

PECO

(1)

HB0349

BAG

(1)

B0648

BOOT

PLATE

(1)

V1167

BOOT

(1)

B0348

BOOT ROD

A1037PART#:

BAGGER

MOWER MODEL: JAZEE & JAZEE PRO

ADAPTS SR210 & EARLIER DECKS TO
629EA-001A & 629FM-001A GRASS BAGGERS

629FQ-001A BOOT KIT ASSEMBLY

PECO

(1)

HB0349

HARDWARE

BAG

(1)

B0468

BOOT

PLATE

(1)

B0244

BOOT ROD

A1126PART#:

MOWER MODEL: JAZEE & JAZEE PRO

ADAPTS SR215 & SR365 DECKS TO
629EA-001A & 629FM-001A GRASS BAGGERS

629EO-001A BOOT KIT ASSEMBLY

BOOT

ADAPTER

KIT

2009-BELOW

BAGGER

BOOT

ADAPTER

KIT

2010

PECO

(1)

HB0436

HARDWARE

BAG

(1)

B0655

BOOT

MOUNT

(1)

B0656

DECK

MOUNT

A1124PART#:

MOWER MODEL: JAZEE & JAZEE PRO

ADAPTS SR220 & SR370 TO
629EA-001A & 629FM-001A GRASS BAGGERS

629FP-001A BOOT KIT ASSEMBLY

PECO

(1)

HB0349

HARDWARE

BAG

(1)

B0627

BOOT

PLATE

(1)

B0348

BOOT ROD

(1)

B0348

BOOT ROD

BAGGER

BOOT

ADAPTER

KIT

2011

18

TOP/UPPER FRAME ASSEMBLY

EXPLODED VIEW

AND PARTS LIST

Item
Number

1 B0451 RT. PIVOT SIDE RAIL 1

2 B0448 RT. CENTER RAIL 1

3 B0459 RAIL MNT. TUBE 1

4 B0450 LT. PIVOT SIDE RAIL 1

5 B0449 VERT. MNT. TUBE 1

6 B0470 LT. CENTER RAIL 1

7 V0017 BAGGER TOP 1

8 V0018 SCREEN 1

9 J4009 SHORT RUBBER STRAP W/ S HOOK 1

10 K1030 1/4"-20 x 1-1/4" CARRIAGE BOLT 1

11 K0037 1/4" FLAT WASHER .75 OD x .314 ID x .060 T 3

12 K1128 1/4"-20 NYLOC NUT 1

13 B0227 BAG RING 2

14 J0274 BAG RING END CAP 4

15 K0125 5/16"-18 x 2-1/2" ALL THREAD HHCS 2

16 K1180 5/16"-18 NYLOC NUT 2

17 V0019 INLET 1

Document
Number

Title Quantity

19

A1111 PTO ASSEMBLY
EXPLODED PARTS VIEW

20

A1041 PTO ASSEMBLY

Item

Number

Document

Number

Title Quantity

1 M0266 'A' PULLEY FOR DECK DRIVE PTO 1

2 K1446 1.187 OD x .380 ID x .187 WASHER 1

3 K1190 3/8"-16 x 3/4" HHCS 1

4 V0015 BLOWER HSG. 1

5 A0431 GEAR BOX 1

6 M0229 'A' PULLEY FOR DECK DRIVE PTO 2

7 S0183 GEAR BOX PULLEY BUSHING 2

8 K0360 7/8" SNAP RING 2

9 J0272 #9 WOODRUFF KEY 2

10 K0035 5/16-18 SET SCREW 2

11 E0015 PTO SHAFT HOUSING 1

12 N0147 BEAR ING 2.0472 OD, 0.9843 ID, 0.5906 W (6205RS PEER) 1

13 B0460 PTO SHAFT 1

14 N0165 BEAR ING 1

15 J0801 1/4"-28 ZIRC FITTING 1

16 K1 215 3/8"-16 FLANGE N UT 9

17 B0466 BASE PL. 1

18 B0478 GEAR BOX PULLEY GUARD 1

19 K1153 5/16"-18 x 3/4" HHCS 4

20 K1178 5/16"-18 FLANGE NUT 4

21 K1 191 3/8" -16 x 1" HHCS 2

22 K0037 1/4" FLAT WASHER .75 OD x .314 ID x .060 T 4

23 K1 150 1/4" -20 x 2-1/4" HHC S 2

24 K1 126 1/4"-20 FLANGE N UT 4

25 K1 202 3/8" -16 x 4-1/2" HHC S G5 2

26 K1216 3/8"-16 NYLOC NUT 2

27 K0 348 3/8" -16 x 2" ALL T HREAD H HCS 1

28 K0 042 5/16" FLAT WASHE R .875 OD x .380 ID x .075 T 5

29 K0 353 1/4" -20 x 1/2" HH STS 3

30 J0303 SPRING 2

31 E7003 IMPELLER BLADE 2

32 K1 192 3/8" -16 x 1-1/4" HHC S 6

33 K0049 3/8" INTERNAL LOCK WASHER 2

34 M0267 A28K KEVLAR BELT 1

35 V1151 5/8" ID x 4-3/4" BLACK HANDLE GRIP 1

36 K0048 3/8" LOCK WASHER 1

37 B0505 PTO ARM MNT. ROD 1

38 B0506 LT. PTO ARM 1

39 B0642 BLWR. MNT. BRKT. 1

40 B0643 RT PT O ARM 1

41 B0509 PTO HANDLE 1

42 J0005 PTO HANDLE PIN 1

43 S0001 ROLLER BUSHING 1

44 B0510 SPACER BUSHING 1

45 B0511 SPACER BUSHING 1

46 K0403 WASHER 1-1/2" OD x 3/8" ID 3

EXPLODED PARTS VIEW DESCRIPTION

21

SAFETY DECALS

To promote safe operation, Country Clipper Inc. supplies safety decals on all products manufactured. Damage can occur to
safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals.

DANGERDANGER

!

TO CLEAR DEBRIS WITH BLOWER

PELIGROPELIGRO

!

PARA LINPIAR BASURA CON LA

R2007R2007

Part #: R2007

Never Use Hands Label

RUNNING!

HOJA EN MARCHA!

PUSH HANDLE

DISENGAGEDISENGAGE

PULL HANDLE

ENGAGEENGAGE

Part #: R1100

Engage-Disengage Label

NEVER USE HANDS

NUNCA USE MANOS

R1100

!

!

R2008R2008

Part #: R4037

Warning: Hot Surface Label

DANGERDANGER

FINGERS, HANDS, & BODY PARTS

PELIGROPELIGRO

DEDOS, MANOS Y PARTES DEL

CUERPO PUEDAN SER CORTADOS!

ROTATING BLADES!

CAN BE SEVERED!

HOJA ROTANTE!

Part #: R2008

Rotating Blades Label

Part #: R1052

Small Warning: Turn Off Blower Label

Part #: R1054

Important Label

Part #: R4015

Danger: Rotating Blades Label

MADE IN

MADE IN

AMERICA

AMERICA

Part #: R1065

Made In America Label

Part #: R1051

Warning: Hearing Protection Label

Part #: R4028

Danger Keep Hands & Clothes Clear Label

Part #: R1069

Warning: Turn Off Blower Label

Part #: R4008

Caution: Rotating Blades Label

22

TORQUE SPECIFICATIONS

rench W

ze -A·

5i

AMERICAN

Bolt Head Markings

SAE

Grade

2

(No Dashes)

~~,-,

(3

Dashes)

#\

,e'

\l~#

+

'\7

.btl

"\

'\

SAE Grade 8

(6

Dashes)

SI

~tS

WRENCH

ZE

t

Recommended Torque

BOLT

(IN.)

7/16
7/16

1/2
1/2

9/16

9/16

5/6
5/

6

31

4

3/4

7/6
716

15/16

15116

1-1/B

1-1/8

1-5/16
1-5/16

1-1

/2

1-1

12

H /2

1-11116
1-11/

16

'-

718

\-

7/8

2-1 /

16

2-11

16

2-114

Z-l

f4

"A"

(IN.) "8" A

THREAD SI

1/4 -

1/4 -

5116-18UNC

5116·24

318 -16

3/8·24

7/

16

7/

16·20

l12·,aUNC

1/2 .

9/1

9116 - 18 UNF

5/8 -

5/8 · 18 UNF

3/

3/

7/8 - 9

7/8-

1 ­1 - 1

1-1

1-1

1-1

\-1/4 -

1-3/8 - 6

1-318

J-112

1-1/2-

DIAMETER

NO

ZE

20

UNC

28 UNF

UNF

UNC

UNF

- 14

UNC

UNF

20

UNF

6·12

UNC

11

UNC

4 -

10

UNC

4 -

16

UNF

UNC

14UNF

1 -

8UNC

12

UNF

4U

NF

/8 - 7

UNC

/8 - 12UNF

/4 - 7

UNC

12

UNF

UNC

- 12

UN

- 6

UNC

lZU

NF

F

In

Foot Poun

SA'

GR

ADE

6 (7) 8 (11) 12 (16)

6 (8)

11

(15)

13 (17

20

(27) 31 (42)

23

(31) 35 (47) 4

32

(43)

36

(49)

49 (66\

55

(75)

70

(95)

79

(107)

97

(13

110 (149)

144 (1
192 (

260
166 (225)
1

64 (249
250 (339)
274

(371)

260

(379)

354

(480)

3

97

(538)

500

(678)
553(749)
6SS(887}

740

(101

870

(1179)

979

(1327)

ds

(Newton Meiers)."

2

) 19 (26)

1)

95)
)

)

1)

SA' SA'

GRA

10

17

49 (66)

55 (75)

76 (103

85

(l15)

1

09 (148 )

122 (165) 172 (233)
150 (203) 2 12 (287)

17

0 (230) 240(325)

266(360)
297(402)
430
474
644
705
721

795

(1077)

890 (1206

1120

12

41 (1682

1470 (1992)

1672

1950

219

4

DE

5

(13)

(23)

) 106 ( 144)

(583)
(642)
(873)
(955)
(977)

) 1444 (1957)

(1518) 1

)

(2266

)

(2642

)

(29n

) 3:)57 (4820)

GRAD

E 8

14 (18

)

25

(33)

27

(37)

44

(60)

9(66)

70

(95)

78

(106)

120

(163)

153 (

207)

376

(509)

4

20 (569

606

(821}

668(905)
909 (1232)
995 (1348

1019 (1381 )

1288(1745)

817

(2462)

2013

(2726)

2382

(3228)

2712

(3675J

316

1 (

4283)

)

)

METRIC

t

Wrench
Size

"A"

+

Numbers
indicate

·Use

75%

fasteners.

values

for

appearing

ASTM

of

the

specified
Use 85% of
lubricated

fasteners.

class.

torque

the

specified

on

bolt

heads

value

torque

for

ASTM

plated

23

Country Clipper Division of Shivvers Mfg. Inc

613 W. English | Corydon, IA | 50060

Phone: [phone] | 641-872-2544

Fax: [phone]

E-Mail: [e-mail]
