OPERATING
MANUAL
T12000
T12500
Performance PRO
• Touchscreen technology
• Large 12 square inch blue display
• 7 available outputs, including economizer
• SD memory card interface
• 365-day, 20 holiday programmability
• 7-day, 5-1-1, 5-2 programming
Non-Programmable Models
Programmable Models
™
Series
T12000
Oil
Electric
Gas
Heat Pump
1
Series
Thank you for choosing a PECO® Performance PRO™ thermostat. The Performance PRO
THE PECO PERFORMANCE PRO T12000 SERIESTHE PECO PERFORMANCE PRO T12000 SERIESTHE PECO PERFORMANCE PRO T12000 SERIES
T12000 Series is intended for use in residential and commercial environments. It is designed for
and can support up to 3-HEAT/ 2-COOL configurations in conventional systems and heat pump
applications. The Performance PRO also provides the capability to meet the requirements for
ASHRAE 90.1-2004 and California Building Code Title 24 (2008 edition).
The Performance PRO T12000 Series is comprised of the T12000 non-programmable thermostat
models and the T12500 programmable thermostat models. The T12500 model features a 12
square inch blue backlit display with dynamic menus, accessed using touchscreen keys.
All Performance PRO T12000 Series offer the following standard features: auto-changeover,
optional remote sensors, occupancy sensors, three levels of keypad lockout, a PIN access code,
and filter replacement reminder. The T12500 programmable models contain: up to four scheduled
events per day, a 365-day calendar, 20 holidays, holiday override, temporary override, a Power
Harvesting feature (also known as “power stealing”) to preserve battery life, Secure Digital (SD)
card capability (card not included), and optional humidity control (T12532-IAQ only).
The T12000 Series can be powered by 24 VAC or batteries or both (recommended). The T12000
Series can control up to 7 outputs and monitor three external sensors. The T12000 Series mounts
onto any PECO Performance PRO Series wallplate.
2
Table of Contents
T12000 Thermostat
The PECO Performance PRO T12000 Series .....................................................................................2
Quick reference: Default Display mode ............................................................................................... 5
Quick reference: Home Display mode & navigation ............................................................................6
Quick reference: T12000 Home Display screen .................................................................................7
Key operation .......................................................................................................................................8
Set the clock, month, and day ...........................................................................................................11
Select Fahrenheit or Celsius temperature ......................................................................................... 12
Select the fan mode ........................................................................................................................... 13
Select system mode ..........................................................................................................................14
Reset lter timer .................................................................................................................................15
T12500 Thermostat
Program the thermostat (T12500 models only) .................................................................................16
Program scheduled events ................................................................................................................17
Program override ...............................................................................................................................19
Select humidity setpoints ..................................................................................................................20
Program a holiday .............................................................................................................................21
Load SD card settings .......................................................................................................................22
PECO compatible sensors .................................................................................................................23
T12000 Series Product Specifications ....................................................................................24
3
!
CAUTION!
• READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO OPERATE THIS THERMOSTAT.
• FOLLOW THE PERFORMANCE PRO INSTALLATION INSTRUCTIONS BEFORE PROCEEDING.
• Failure to observe safety information and comply with instructions could result in PERSONAL INJURY,
DEATH AND/OR PROPERTY DAMAGE.
• Use this thermostat only as described in this manual.
• This is a 24 VAC low-voltage thermostat. Do not install on voltages higher than 30 VAC.
• Contact a qualied service person if at any time the thermostat does not operate properly.
• Use care to avoid static discharge to the thermostat.
• To avoid electrical shock or damage to equipment, disconnect power before installing or servicing and use
only wiring with insulation rated for full thermostat operating voltage.
• To avoid potential re and/or explosion, do not use in potentially ammable or explosive atmospheres.
• This product, when installed, will be part of an engineered system whose specications and performance
characteristics are not designed nor controlled by PECO.
• All wiring and applications must conform to local and national building codes and ordinances. Applications
and national codes must be reviewed prior to installation to assure the installation is functional and safe.
IMPORTANT NOTE: This thermostat was shipped with factory default settings. The thermostat’s installer
may have congured the thermostat differently from the factory-default settings, and may have modied
or disabled certain features. Contact the installer or a service technician if there are questions about the
thermostat’s conguration.
4
QUICK REFERENCE: DEFAULT DISPLAY MODEQUICK REFERENCE: DEFAULT DISPLAY MODEQUICK REFERENCE: DEFAULT DISPLAY MODE

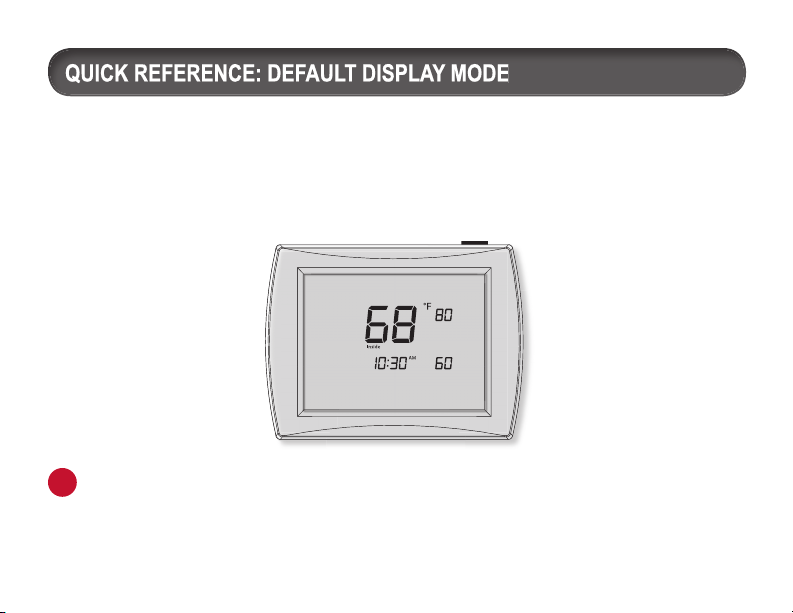

Default Display
The factory programmed settings show the time, temperature, and setpoint. This is called
the Default Display. The Default Display appears after a short period of inactivity. The Default
Display can be custom configured to show user-selected items only (see Service Menu 520 in
“Performance PRO T12000 Series Installation Guide”).
Note: The Battery Indicator, Service Indicator, Filter Indicator, and Secure Digital (SD)
i
icons appear at bottom of digital display if user action is required.
5
QUICK REFERENCE: HOME DISPLAY MODE & NAVIGATIONQUICK REFERENCE: HOME DISPLAY MODE & NAVIGATIONQUICK REFERENCE: HOME DISPLAY MODE & NAVIGATION
Home Display
The Performance PRO T12000 Series has a touchscreen digital display, with variable menu keys
(shown below). To make a selection from a multiple-option key, press the key continuously. Flashing
option is automatically selected. Available submenus depend on system type and menu navigation.
Digital display
Fan key
1
2
System key
Schedule key
3
Holiday key
4
5
Clock key
Cool Setpoint
&
Heat Setpoint
Override key
Screen key
Press blank area of touchscreen to enter Home Display from Default Display. Navigate
submenu options to customize thermostat settings. Available options are:
Edit - Allows user to edit variable settings (e.g., Cool/Heat Setpoints) within submenus.
Done - Saves settings and reverts to the Home Display.
Cancel - Discards changes and reverts to the Home Display.
SD card slot
6
7
8
6
QUICK REFERENCE: T12000 HOME DISPLAY SCREEN QUICK REFERENCE: T12000 HOME DISPLAY SCREEN QUICK REFERENCE: T12000 HOME DISPLAY SCREEN
Fan key
Press to enter
fan display
(see pp. 8, 13)
Current temperature
(see p. 12)
Current day
(see p. 11)
Temperature
format
(see p. 12)
System key
Press to enter
system settings:
Off/Heat/Cool/
Auto (see pp. 8, 14)
Program
scheduled
events
(see p. 17 )
Current time
(see p. 11)
Keypad
Lockout
(see p. 10)
Battery Indicator
Appears when
battery is low
(see p. 10)
Service
Indicator
(see p. 10)
Screen
key
(see p. 10)
SD Card
(see p. 10)
Cool Setpoint
temperature
(see pp. 16-19)
Heat Setpoint
temperature
(see pp. 16-19)
Override key
Press to override
scheduled events
(see pp. 9, 19)
7
TEXTTEXTTEXTTEXTTEXT
PRESS ANY KEY TO BEGIN
1
Fan key
Used to select among two fan menu options:
ON - Continuous fan operation.
AUTO - Fan is activated only when there is demand for heat or cool, with some exceptions.
Note: Several Service Menu options affect the fan operation (See Advanced
Con guration in the “Performance PRO T12000 Series Installation Guide.”)
2

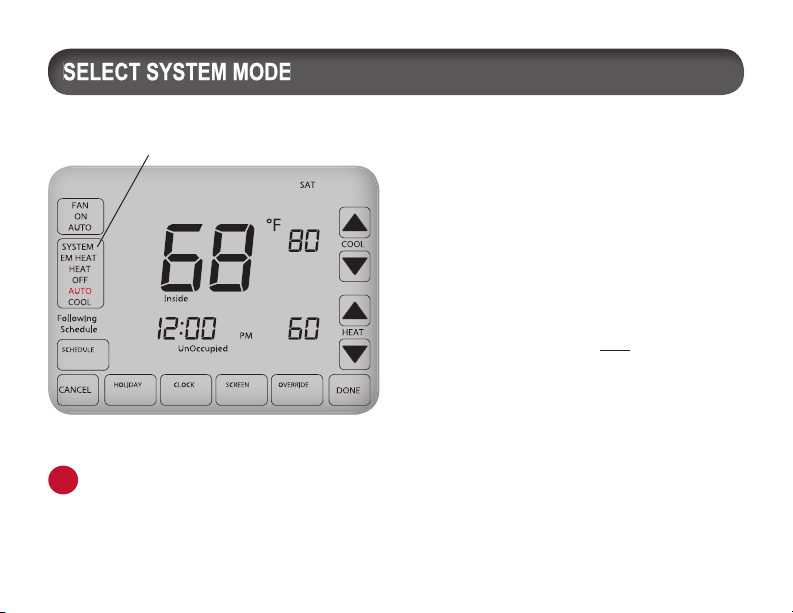

System key
Used to control operating mode of Performance PRO T12000 Series thermostats. Available
options are dependent on system type selected (see Advanced Configuration in “Performance
PRO T12000 Series Installation Guide”). System modes:
HEAT – Select for the system to operate in heating mode only. Only one setpoint is displayed.
COOL - Select for system to operate in cooling mode only. Only one setpoint is displayed.
AUTO – Allows system to control to both the Heat and Cool setpoints. The system will
automatically change over between heating and cooling modes as room temperature
varies. Cool Setpoint must always be greater than Heat Setpoint by the deadband value.
OFF – Disables all thermostat outputs; only zone temperature and time are displayed.
EMERGENCY (Em) – Emergency heat can be used when the Heat Pump cannot keep up
with the heat load. Use Service Menu 110 (System Type 6 & 11) to enable.
8
PRESS ANY KEY TO BEGIN
Note: Deadband is the user-de ned minimum difference between the Cool Setpoint and
Heat Setpoint (see Service Menu 380).
3
Schedule key
Used to view Schedule Display and program two or four scheduled events per day (with Heat
and Cool Setpoints) including Occupied1, Occupied2, Unocc1, or Unocc2.
4
Holiday key
Used to view Holiday Display and schedule up to 20 different holidays.
5
Clock key
Used to view the clock format (12 or 24 hour) and to set the clock time.
6
Cool Setpoint & Heat Setpoint
Used to create a temporary override of current setpoint temperature. Pressing Cool Setpoint or
Heat Setpoint shows Override Display. User selects desired Heat and Cool Setpoints and “Hold
Until” time for Override, using time ▲/▼keys. (Cool Setpoint is greater than Heat Setpoint by
deadband.) Note: Available options depend on system type selected.
7
Override key
Used to view Override Display and create a temporary override of scheduled events. Heat
Setpoint, Cool Setpoint, and override time may all be adjusted from Override Display.
9
PRESS ANY KEY TO BEGIN
Temporary Override – The active setpoint is taken from setpoints de ned in the Override
menu. (In Home Display, “Override” ashes during the override time period if selected.)
Screen key
8
Press Screen key:“Clean Screen” ashes for 30 seconds, allowing cleaning with no key input.
Service Indicator
Icon appears to notify the user that the remote temperature sensors are reading out of range.
Battery Indicator
Icon shows battery’s current charge level in segments. Two AA Alkaline batteries
(2.6 – 3.1VDC) have an approximate 1-year life expectancy.
Keypad Lockout
Icon appears if any type of keypad lockout is active. Keypad lockout blocks access to certain
features of the thermostat. (See Service Menu 340 to enable key pad lockout).
Filter
Filter Indicator
Icon appears in the Default Display when the reminder timer expires (see service menu 230).
The thermostat will continue to return to the filter menu until the Done key is pressed. After the
Filter Indicator icon appears, pressing Done will restart the filter timer.
Secure Digital (SD)
Icon appears (flashes) when SD card is inserted (optional SD card not provided). SD card
functionality allows user to upload/download settings to/from a PECO-formatted SD card (see
section “Load SD card settings” ).
10
PRESS TOUCHSCREEN TO BEGIN
In Clock mode press ▲/ ▼to select clock hour.
Note:
i
At any time, press Cancel
to abort current selection and return to
Home Display, or press Done to save
changes and return to Home Display.

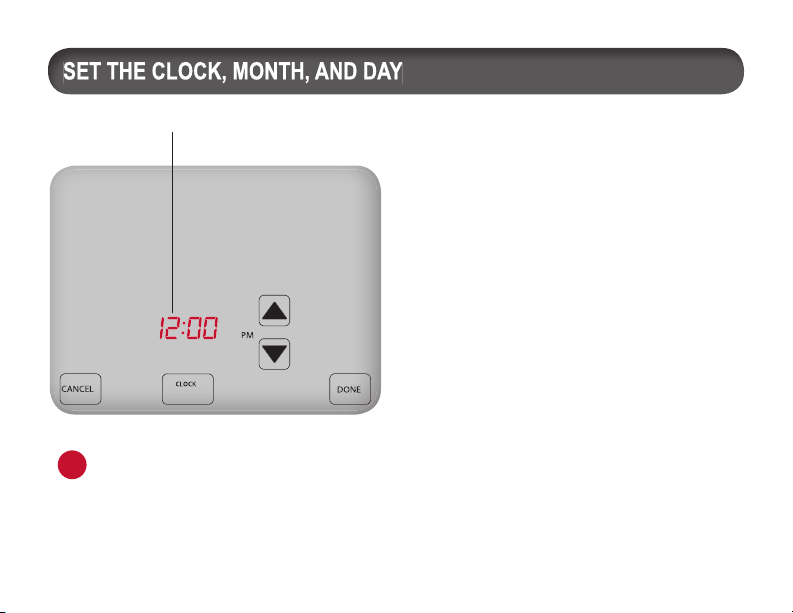

1. From the Home Display, Press Clock
key.
2. Press ▲/ ▼ to select 12 or 24 HR
format, then press Clock.
3. Press ▲/ ▼to select clock hour, then
press Clock.
4. Press ▲/▼to select clock minutes, then
press Clock.
5. Press ▲/ ▼ to select clock year, then
press Clock.
6. Press ▲/ ▼ to select current month,
then press Clock. Note: Month
appears.
7. Press ▲/ ▼to select current numerical
date. Note: Days appears.
8. Press Done to nish Clock mode.
11
After entering Service Menu mode, press
Cool ▲/ ▼continuously until menu “260” appears.
Use the ▲/ ▼keys to select Service Menu option.
Note: To custom configure thermostat
i
settings, access more Service Menus
(See Advanced Configuration in the
“Performance PRO T12000 Series
Installation Guide”).
1. Press the lower left and lower right
touchscreen areas simultaneously for
about ve seconds. Note: Service Menu
“100” appears with default value.
2. Press Cool ▲/ ▼ continuously until
Service Menu “260” appears.
3. In Service Menu 260, Press ▲/ ▼to
select the desired temperature display:
• “1” for Fahrenheit (default)
• “0” for Celsius
4. Press Done when you have completed
your selection.
Note: After you complete your selection,
i
Home Display shows the temperature in
the format selected.
12
PRESS TOUCHSCREEN TO BEGIN
In Fan mode, p
desired option.
Note:
i
current selection, or press Done to save
changes and return to Home Display.
ress Fan continuously to select
At any time, press Cancel to abort
1. Press Fan to set fan operation.
2. Press Fan to select “On,” or “Auto.”
Note: Selected option ashes.
3. Select Done to save changes.
Note: “On” mode indicates continuous
i
output. “Auto” mode indicates that fan
is activated only when there is demand
for heat or cool. Some exceptions
apply (see Advanced Con guration in
the “Performance PRO T12000 Series
Installation Guide”).
13
PRESS TOUCHSCREEN TO BEGIN
Press System continuously to select System
Mode preference. The selected option flashes.
i
1. Press System to show system
preferences.
Note: Selected option ashes.
2. Press System continuously and
select Heat, Cool, Auto, Off, or
Em (Emergency) Heat.
3. Press Done to save changes.
In “Heat” and “Cool” modes, only one setpoint
is displayed for each, and only the selected
mode (e.g.,Heat) is applied. “Auto” mode
switches automatically between Heat and
Cool. Auto controls the room’s temperature
to the programmed Heat and Cool Setpoints.
“Off” mode disables all thermostat outputs;
and only the zone temperature and clock are
displayed. If Emergency (Em) heat is enabled
in a Heat Pump system, Emergency acts as
the primary heat source.
14
When the filter expires, the Default Display on the
thermostat will automatically show a Filter Indicator
in one of the two above locations.
PRESS TOUCHSCREEN TO BEGIN
The Filter Indicator serves as a reminder to
change the furnace lter (see note below).
When the lter timer expires, a Filter Indicator
appears.
1. From the Default Display, press any key
to enter the Filter mode (FIL/Filter,
Cancel and Done appear).
2. Press Done to reset the lter timer.
Note: Pressing Done restarts lter timer
with previous time value selected.
3. Press Cancel to bypass the reminder
and return to the Home Display.
Note: The thermostat will return to the
i
Filter menu from the Default Display until
Done is selected (see Service Menu
230 in the “Performance PRO T12000
Series Installation Guide” for settings).
15
Each day has two or four scheduled events (
per day, depending on Service Menu configuration. Each event can be programmed with a
start time and Heat and Cool Setpoints. Heat Setpoint controls system heating during cold
weather. Cool Setpoint controls system cooling during hot weather. The T12000 Series is
preprogrammed with factory default settings for seven days of the week as follows:
Occupied1, Occupied2, Unocc1, and Unocc2
)
Time Period Start Time Heat Setpoint
Temperature
Occupied1
Unocc1
Occupied2
Unocc2
Note: To change the preprogrammed times and/or setpoint temperatures, follow the
i
instructions under “Program scheduled events.”
: See Service Menu 240 to enable two or four scheduled events per day.
Note
i
8:00 am 70° F (21° C) 75° F (24.0° C)
10:00 pm 55° F (10° C) 85° F (29.5° C)
— — —
— — —
Cool Setpoint
Temperature
16
Press
Edit
to assign settings for a scheduled event.
Example shows
Note: Unless Occupied1 and Unocc1
i
OCC1 settings for weekdays.
are programmed, their factory default
settings will apply.
PRESS TOUCHSCREEN TO BEGIN
Schedule two or four events per day:
Occupied1, Occupied2, Unocc1, and Unocc2.
1. Press Schedule to view options.
2. Press OCC1, UNOCC1, OCC2,
or UNOCC2 to schedule event.
Note: See Service Menu 100 to select
schedule format. See Service Menu 240
to enable two or four events per day.
3. Press Edit to create settings for an
event. Note: OK to Pick Multiple Days
appears below days.
4. Press day(s) desired. Note: Selected
day(s) shows square,e.g.:
(Optional: Select/ deselect more days to
program multiple days simultaneously.)
5. Press ▲/ ▼to schedule start time
(in 15-minute increments) for the event.
MON
17
PRESS TOUCHSCREEN TO BEGIN
Create another scheduled event after OCC1.
See Step 8.

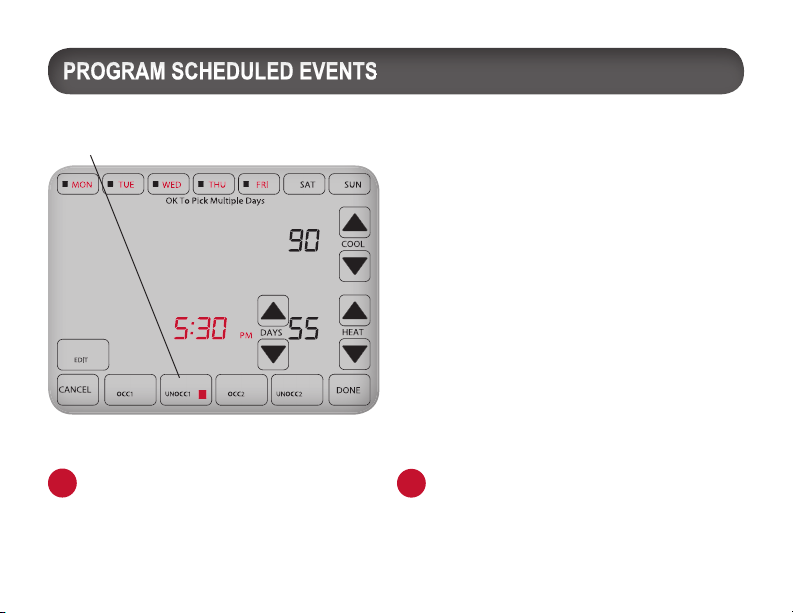

Example shows UNOCC1 settings for weekdays.
Note:
i
At any time, press Cancel to abort
current selection, or press Done to save
changes and return to Home Display.
Now select a Heat Setpoint and Cool Setpoint
for the scheduled event (available options
depend upon system type selected).
6. Press Cool ▲/ ▼to select Cool
Setpoint.
7. Press Heat ▲/ ▼to select Heat
Setpoint.
8. Schedule next event (e.g.,UNOCC1)
and repeat steps 2-7.
Note: Previously selected days remain
active for programming unless changed.
9. Press Done to exit Schedule mode.
Note: To
i
5-2 days format, see Service Menu 100
(
“Performance PRO T12000 Series
Installation Guide”).
program 5-1-1 day or
18
PRESS TOUCHSCREEN TO BEGIN
Example shows how to select a Cool Setpoint that
lasts until 12:30 pm in System Auto mode.
Note: Available setpoints are determined
i
by the system mode selected
system mode”).
Note: The installer setup can limit override
i
to 1, 2, 3, or 4 hours beyond current time.
(see “Select
Override allows temporary override of heat or
cool settings (example uses System Auto).
1. Press Override key.
Note: “Hold until” time appears and is
changed to show length of override (up
to the maximum hold time speci ed in
Service Menu 395).
2. Press Cool ▲/ ▼to select a Cool
Setpoint.
3. Press Heat ▲/ ▼to select a Heat
Setpoint.
4. Press ▲/ ▼to adjust time (in 15-minute
increments) override remains in effect.
5. Press Done to save changes and exit.
Note: Override remains ( ashing) in
effect until the time period ends.
Note: Press Cancel to exit Override.
19
PRESS TOUCHSCREEN TO BEGIN
Press the Humidity key to switch between
Dehumidification and Humidification Setpoint.
Adjust the Dehumidification Setpoint by pressing the
arrow keys.
Note: Instruction assumes humidity sensor
i
is installed and is enabled (see Service
Menu 490). Integrated sensors (not
included) must be ordered separately.
If thermostat is model T12532-IAQ, a humidity
sensor is present, which allows user to set
dehumidify and humidify control setpoints.
1. Press lower left and lower right keypad
area to activate Service Menus.
2. Press Cool ▲/ ▼for Service Menu
490.
3. Select appropriate option to enable
Dehumidify, Humidify, or both (1, 2 ,or 3).
4. Press Done to return to Home Display.
5. Press Humidity key to set Dehumidify
Setpoint. Beside “dE” Press ▲/ ▼to
select desired Dehumidify Setpoint.
6. Press Humidity key to view Humidify
Setpoint. Next to “hu” Press ▲/ ▼to
select desired Humidify Setpoint.
7. Press Done to save and exit.
20
PRESS TOUCHSCREEN TO BEGIN
20 Holidays may be programmed. System
type shown supports 1-HEAT and 1-COOL.

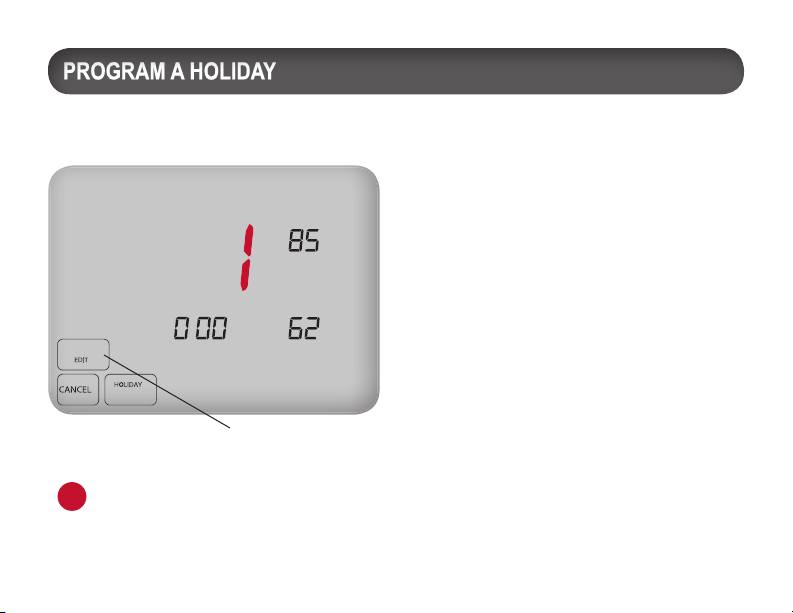

Press Edit to select the holiday month that flashes.
Note: Performance PRO supports 20
i
holidays, leap years, and daylight-saving
time.
1. Press Holiday to enter menu.
2. Press Holiday continuously to select
holiday number (1-20).
3. Press Edit to select holiday month.
Note: Month number ashes.
4. Press ▲/ ▼to select (numerical) month,
then press Holiday.
5. Press ▲/ ▼ to select (numerical) day
on which holiday starts (Days icon
appears), then press Holiday.
6. Above Days, press ▲/ ▼to set holiday
length, which is number of days that the
holiday period lasts (1-99).
Optional: To schedule additional
Holidays, wait for ashing Holiday
number, and repeat Steps 4-6.
7. Press Done to save and exit.
21
PRESS TOUCHSCREEN TO BEGIN
When the SD card is inserted, the SD icon begins
flashing. Icon appears solid when processing data.
Press Paste to copy the settings from SD card to
the thermostat.
Note: If SD card is locked, only Paste
i
appears; user may only copy from SD
card to thermostat.
Use the SD card to transfer customized
settings to or from the thermostat. Insert the
SD card into the thermostat only from Home
or Default Display.
1. Insert the SD card into the slot located
on top of the thermostat where indicated.
(SD icon begins ashing).
Note: Copy and Paste keys appear.
2. Press Paste to copy the settings from
SD card to the thermostat.
3. Press Copy to transfer the settings from
the thermostat to the SD card.
4. Press Done to complete process.
Note: The thermostat SD card display
i
remains active until the user selects
Cancel or Done and removes
SD card (or menu reverts to Default
Display).
22
PRESS ANY KEY TO BEGIN
The following T12000 Series compatible sensors are available from PECO. Using information
found on the last page of this document, contact a service representative to learn more about
PECO sensors or to place an order.
PECO PRODUCTS Model
Number
Indoor Remote Sensor SP155-017 69308 S1
Occupancy Sensor SB200-001 68375 S2
Outdoor Remote
Sensor
-- 70327 S3
Part
Number
Terminal T12000 T12500
For a complete description of sensors, terminal connections, and wiring diagrams, see the
“Performance PRO T12000 Series Installation Guide.”
23
Temperature Control Range: 50° to 90° F (10° to 32° C)
Differential: 1° F (0.5°C)
Input Power: 24 VAC (20-30 VAC) 50/60Hz (+/-10%) or AA alkaline batteries (both
recommended); 5mm terminals accept 14-24 AWG stranded or solid wire.
Output Ratings: 20-30 VAC
0.02-1.0A per terminal; W1 (B/O), W2 (AUX), G, A, E, Y1, Y2.
Note: Collectively, total current draw must not exceed 2.5A.
Operational Temperature: 0° to 120° F (-17° to 48°C)
Shipping Temperature: -20° to 130°F (-29°to 54°C)
Operating Humidity: 5% to 95% RH, non-condensing
Physical dimensions: T12000/T12500 Thermostat: 4.3” H x 5.7” W x 1.3”D
with 4” x 3” / 12 square inch viewable liquid crystal display (LCD)
Automation and Controls
Division of PECO, Inc.
PO Box 82189, Portland, OR 97282
© Copyright 2010. PECO, Inc. All Rights Reserved. P/N 70479 3220-2268 REV 00 09/10
PECO is a registered trademark of PECO, Inc. The PECO Performance PRO and the PECO logo are trademarks and/or ser vice marks of PECO, Inc.
Phone: 503-233-6401 | 800-874-8547
E-mail: sales@pecomanufacturing.com
www.pecomanufacturing.com
24
Loading...
