Thank you for choosing a PECO® Performance PRO™ thermostat. The Performance PRO

THE PECO PERFORMANCE PRO T4000 SERIESTHE PECO PERFORMANCE PRO T4000 SERIESTHE PECO PERFORMANCE PRO T4000 SERIES

T4000 Series is intended for use in residential and commercial environments. It is designed for
and can support up to 2-HEAT/ 2-COOL con gurations in conventional systems and 3-HEAT/
2-COOL con gurations in heat pump applications. The Performance PRO also provides the
capability to meet the requirements for ASHRAE 90.1-2004 and California Building Code Title
24 (2008 edition).

The Performance PRO T4000 Series is comprised of the T4000 non-programmable thermostat
models and the T4500 programmable thermostat models. The T4000 Series feature a 4 square
inch blue backlit display with dynamic menus, accessed using soft keys. All Performance PRO
T4000 Series offer the following standard features: auto-changeover, optional remote sensors,
occupancy sensors, up to  ve outputs, three levels of keypad lockout, a PIN access code,  lter
replacement reminder, and a heat/cool Demand Indicator. In addition, the T4500 programmable
models contain four scheduled events per day, temporary override, a 365-day calendar, and 20
holidays.

The T4000 Series can be powered by 24 VAC or batteries (both recommended), control a
minimum of 5 outputs, and monitor two external sensors. The T4000 Series mounts onto a
common PECO Performance PRO Series wallplate.

2

Table of Contents
T4000 Thermostat

The PECO Performance PRO T4000 Series .......................................................................................2

Quick reference: Default Display mode ...............................................................................................5

Quick reference: Home Display mode & navigation ............................................................................6

Quick reference: Home Display screen ...............................................................................................7

Key operation .......................................................................................................................................8

Set the clock, month, and day ...........................................................................................................11

Select Fahrenheit or Celsius temperature .........................................................................................12

Select the fan mode ........................................................................................................................... 13

Select system mode ..........................................................................................................................14

Reset lter timer .................................................................................................................................15

T4500 Thermostat

Program the thermostat (T4500 models only) ...................................................................................16

Program scheduled events ................................................................................................................17

Program override ...............................................................................................................................19

Program holiday ................................................................................................................................20

Set PIN access to Service Menus .....................................................................................................22

PECO compatible accessories ..........................................................................................................23

T4000 Series Product Specifications ......................................................................................24

3

!

CAUTION!

• READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO OPERATE THIS THERMOSTAT.

• FOLLOW THE PERFORMANCE PRO INSTALLATION INSTRUCTIONS BEFORE PROCEEDING.

• Failure to observe safety information and comply with instructions could result in PERSONAL INJURY,
DEATH AND/OR PROPERTY DAMAGE.

• Use this thermostat only as described in this manual.

• This is a 24 VAC low-voltage thermostat. Do not install on voltages higher than 30 VAC.

• Contact a qualied service person if at any time the thermostat does not operate properly.

• Use care to avoid static discharge to the thermostat.

• To avoid electrical shock or damage to equipment, disconnect power before installing or servicing and use
only wiring with insulation rated for full thermostat operating voltage.

• To avoid potential re and/or explosion, do not use in potentially ammable or explosive atmospheres.

• This product, when installed, will be part of an engineered system whose specications and performance
characteristics are not designed nor controlled by PECO.

• All wiring and applications must conform to local and national building codes and ordinances Applications
and national codes must be reviewed prior to installation to assure the installation is functional and safe.

IMPORTANT NOTE: This thermostat was shipped with factory default settings. The thermostat’s installer

may have congured the thermostat differently from the factory-default settings, and may have modied
or disabled certain features. Contact the installer or a service technician if there are questions about the
thermostat’s conguration.

4

QUICK REFERENCE: DEFAULT DISPLAY MODEQUICK REFERENCE: DEFAULT DISPLAY MODEQUICK REFERENCE: DEFAULT DISPLAY MODE

Default Display

The factory programmed settings show the time, temperature, and setpoint. This is called
the Default Display. The Default Display appears after a short period of inactivity. The Default
Display can be custom-con gured to show user-selected items only (see Service Menu 520 in
“Performance PRO T4000 Series Installation Guide”).

Note: The Battery Indicator, Service Indicator, and Filter Indicator icons appear at bottom

i

of the digital display if user action is required.

5

QUICK REFERENCE: HOME DISPLAY MODE & NAVIGATIONQUICK REFERENCE: HOME DISPLAY MODE & NAVIGATIONQUICK REFERENCE: HOME DISPLAY MODE & NAVIGATION

Home Display

The Performance PRO T4000 Series has two ▲/ ▼(Up and Down) keys and four soft keys (1-3;
6 below). Press any key to enter Home Display from Default Display. Press soft keys to enter
submenus. Soft keys have multiple functions; available submenus depend on menu navigation.

1

System key

2

Fan key

More key

3

4

Demand

Digital display

Indicator

Navigate submenu options to customize thermostat settings. Available options are:

Next - Advances to the next menu item in sequence; current selections are held in temporary

memory until user completes the menu sequence by pressing “Done.”

Go Back - Returns back one step in menu sequence or reverts to Home Display. Changes

are not saved if user selects “Go Back” from the first option in sequence.

Done - Saves settings and reverts to the Home Display.
Cancel - Discards changes and reverts to the Home Display.

Up and Down
keys

Override key

5

6

6

QUICK REFERENCE: HOME DISPLAY SCREENQUICK REFERENCE: HOME DISPLAY SCREENQUICK REFERENCE: HOME DISPLAY SCREEN

System key

Press to enter
system settings:
Off/Heat/Cool/
Auto (see pp. 8, 14)

Current day

(see p. 11)

Filter indicator

Appears based on
user selection
(see pp. 10, 15)

Fan key

Press to enter
fan display
(see pp. 9, 13)

More key

Press to view more
options from Home
Display (see p. 9)

Current time

(see p. 11)

Keypad
Lockout

(see p. 10)

Battery Indicator

Appears only when
battery is low
(see p. 10)

Program Scheduled
Events (see p. 17)

Service
Indicator

(see p. 10)

Fan

Displays Fan/ Auto
mode when activated
(see pp. 9, 13)

Recovery

Indicates thermostat
is in recovery mode

Setpoint

Temperature

(see pp. 16-19 )

System mode

Displays current
system mode
(see pp. 8, 14)

Override key

Press to override
scheduled events
(see p. 10)

7

PRESS ANY KEY TO BEGIN

1

System key

Used to control the operating mode of the Performance PRO T4000 Series thermostats.
The options available for the System display are speci ed in the Service Menus (see
“Performance PRO T4000 Series Installation Guide”).

System modes are:

HEAT – Select for the system to operate in heating mode only. Only one setpoint is

displayed.
COOL - Select for system to operate in cooling mode only. Only one setpoint is displayed.
AUTO – Allows system to control to both the heat and cool setpoints. The system will

automatically change over between heating and cooling modes as room temperature

varies. Cool Setpoint must always be greater than Heat Setpoint by the deadband

value.
OFF – Disables all thermostat outputs; only zone temperature and time are displayed.

Note: Deadband is the user-de ned minimum difference between the Cool Setpoint and

Heat Setpoint (see Service Menu 380).

8

PRESS ANY KEY TO BEGIN

2

Fan key

Used with two different menu options:
ON - Continuous fan operation.
AUTO - Fan is activated only when there is demand for heat or cool, with some exceptions.

Note: Several Service Menu options affect the fan operation (See Advanced

Con guration in the “Performance PRO T4000 Series Installation Guide.”)

3

More key

Used to view more menu options. From the Default Display, press More to show more menu
options that may be accessed by pressing the soft keys.

Demand Indicator

4

Light emitting diode (LED) on lower left front panel that displays red when heating and green
when cooling. Available only when 24 VAC power is connected to the thermostat.

5

Up and Down keys (▲/▼)

Used in menus to increase or decrease variable settings, or switch to the next input.
Note: Pressing ▲/▼ keys show the Override display unless Holiday mode is set.

9

PRESS ANY KEY TO BEGIN

6

Override key

Used to create a temporary override of current setpoint temperature. Pressing Override will
display the “Next” and “Done” options, and the setpoint will begin  ashing.

Temporary Override - The active setpoint is taken from setpoints de ned in the Override

menu. (Override will  ash from the Home Display for the duration of the period.)

Service Indicator

Icon appears to notify the user that the remote temperature sensors are reading out of
range.

Battery Indicator

Icon appears only when the battery level is low and  ashes when the battery level is critically
low. Two AA Alkaline batteries (2.6 – 3.1VDC) have an approximate 1-year life expectancy.

Keypad Lockout

Icon appears if any type of keypad lockout is active. Keypad Lockout blocks access to
certain features of the thermostat. (See Service Menu 340 to enable key pad lockout).

Filter Indicator

Filter

Icon appears in the Default Display when the reminder timer expires (see Service Menu

230). The thermostat will continue to return to the  lter menu until the Done key is pressed.
After the Filter icon appears, pressing Done will restart the  lter timer.

10

PRESS ANY KEY TO BEGIN

PRESS ANY KEY TO BEGIN

After selecting “More,” select “Clock” to choose time
format preference.

When hour column fl ashes, press ▲/ ▼to adjust.
Menu advances right to minutes column, fl ashing.

Note:

i

At any time, press Go Back to
return to the previous menu, Next to
advance and view more options, or Done
to save changes and return home.

1. Press More to view menu options.

2. Press Clock to access menu options.

3. Press ▲/ ▼ to select 12 or 24 HR
mode, then press Next.

4. Press ▲/ ▼to select clock hour, then
press Next.

5. Press ▲/▼to select clock minutes, then
press Next.

6. Press ▲/ ▼ to select clock year, then
press Next.

7. Press ▲/ ▼ to select current month,
then press Next.
Note: Mo (numerical month) appears

8. Press ▲/ ▼to select current date.
Note: Days (numerical day) appears.

9. Press Done to  nish clock mode.

11

After entering the Service Menu mode, press Next
continuously until menu “

Note: To custom con gure thermostat

i

settings, access more Service Menus
(See Table 2. Advanced Con guration
in the “Performance PRO T4000 Series
Installation Guide”).

260” appears.

1. Press the lower left and lower right keys
simultaneously until the Service Menu
appears (100 appears at top with default
value  ashing below it.)

2. Go Back, Next, and Done appear as
menu options.

3. Press Next continuously until menu
“260” appears.

4. Press ▲/ ▼to select the desired
temperature display:

• “1” for Fahrenheit (default)

• “0” for Celsius

5. Press Done to complete selection.

Note: After completing the instructions,

i

the Home Display shows the selected
temperature format.

12

PRESS ANY KEY TO BEGIN

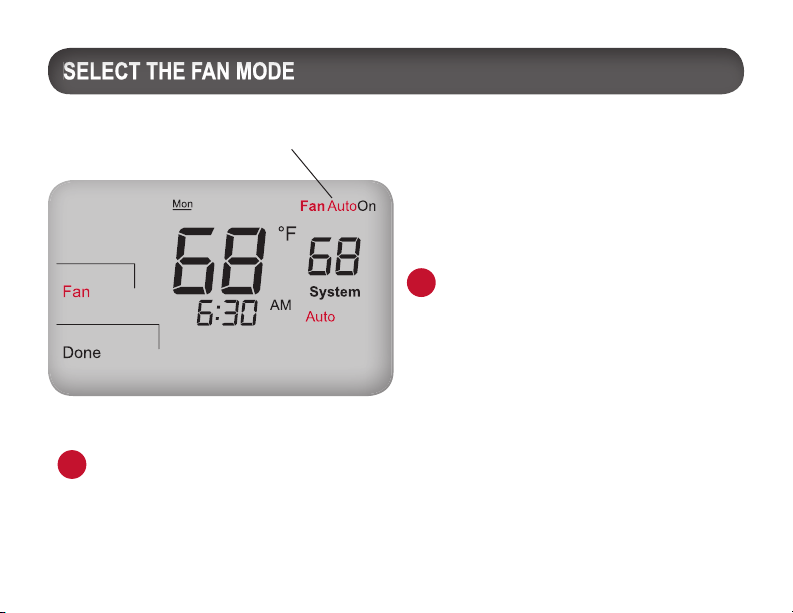

In Fan mode, p

i

ress ▲/ ▼to select desired option.

Note:

At any time, press Go Back to
return to the previous menu, Next to
advance and view more options, or Done
to save changes and return home.

1. Press Fan to set fan operation.

2. Press ▲/ ▼ to select “On,” or “Auto.”
Note: Selected option  ashes.

3. Select Done to save changes.

Note: “On” mode indicates continuous

i

output. “Auto” mode indicates that fan
is activated only when there is demand
for heat or cool. Some exceptions
apply (see Advanced Con guration in
the “Performance PRO T4000 Series
Installation Guide”).

13

PRESS ANY KEY TO BEGIN

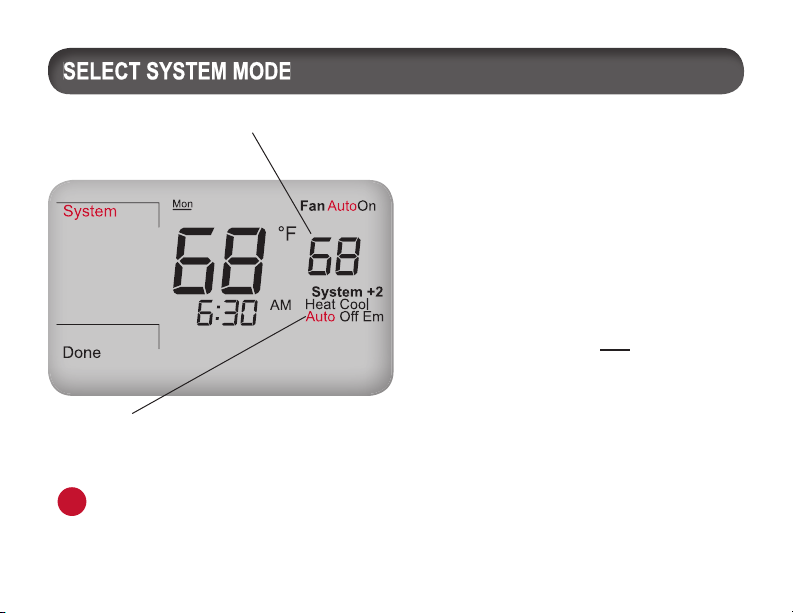

Setpoint is displayed in the upper-right area.

Press ▲/ ▼ to scroll through options for system
preferences. The selected option fl ashes.

i

1. Press System to select system
preferences.
Note: Selected option  ashes.

2. Press ▲/ ▼ and select Heat, Cool,

Auto, Off, or Em (Emergency).

3. Press Done to save changes.

In “Heat” and “Cool” modes, only one setpoint
is displayed for each, and only the selected
mode (e.g.,Heat) is applied. “Auto” mode
switches automatically between Heat and
Cool. Auto controls the room’s temperature
to the programmed Heat and Cool
Setpoints.“Off” mode disables all thermostat
outputs; and only the zone temperature
and clock are displayed. If Emergency (Em)
heat is enabled in a Heat Pump system,
Emergency acts as the primary heat source.

14

When the fi lter timer expires, the default Home
Display will automatically show the Filter icon.

PRESS ANY KEY TO BEGIN

PRESS ANY KEY TO BEGIN

PRESS ANY KEY TO BEGIN

The Filter icon serves as a reminder to
change the furnace  lter (see note below).
When the  lter timer expires, the Filter icon
will be lit continuously.

1. From the Default Display, press any
key to enter the Filter mode (Filter,

Go Back and Done appear).

2. Press Done to reset the  lter timer.
Note: Pressing Done restarts  lter timer
with previous time value selected.

3. Press Go Back to bypass the reminder
and return to the Home Display.

Note: The thermostat will return to the

i

Filter menu from the Default Display until

Done is selected (see Service Menu

230 in the “Performance PRO T4000
Series Installation Guide”).

15

Each day has two or four scheduled events (
day, depending on Service Menu con guration. Each one of these events can be programmed
with a start time and Heat and Cool Setpoints. Heat Setpoint controls system heating during
cold weather. Cool Setpoint controls the cooling system during hot weather. The T4500 is
preprogrammed with factory default settings for seven days of the week as follows:

Occupied1, Occupied2, Unocc1, and Unocc2

) per

Time Period Start Time Heat Setpoint

Temperature

Occupied1

Unocc1

Occupied2

Unocc2

Note: To change the preprogrammed times and/or setpoint temperatures, follow the

i

instructions under “Program scheduled events.”

: See Service Menu 240 to enable four scheduled events per day.

Note

i

8:00 am 70° F (21° C) 75° F (24.0° C)

10:00 pm 55° F (10° C) 85° F (29.5° C)

— — —

— — —

Cool Setpoint

Temperature

16

PRESS ANY KEY TO BEGIN

Press

Select Day

to which a scheduled event will be applied.

Note: To

i

to underline highlighted day

enter the same scheduled

events for multiple days continue pressing

Select Day (to underline highlighted

day/s) in Step 6, then select a block of
days to be programmed.

Schedule two or four events per day:
Occupied1, Occupied2, Unocc1, and Unocc2.

1. Press More to view options.

2. Press Schedule to enter main menu.

3. Press ▲/ ▼to highlight day.
Note: Selected day  ashes (Optional:
Select View to modify existing event).

4. Press Edit to apply scheduled events
for the selected day(s).

5. Press Select Day. Note: Selected day
 ashes (continue pressing ▲/ ▼and

Select Day to select multiple days).

6. Press ▲/ ▼to highlight the day(s) to be
programmed. Note: Selected day(s) for
scheduled events must be underlined.

7. Press Next to advance to event.

17

Press ▲/ ▼to select a desired Heat Setpoint for the
currently selected scheduled event.

Note:

i

i

To return to the menu of scheduled

events and continue programming, select

Next after Step 12.

Note: To
see Service Menu 100 (
T4000 Series Installation Guide”). Block­programmed days  ash as a group.

program 5-1-1 day or 5-2 days,

“Performance PRO

8. Press ▲/ ▼ to select a scheduled event
(e.g.,

Occupied1, etc.), then

9. Press ▲/ ▼to schedule start time for
event (in 15-minute periods), then Next.

Now select a Heat Setpoint and/ or Cool
Setpoint for the scheduled event (available
options depend upon system type selected).

10. Press ▲/ ▼to select desired Heat
Setpoint, then press Next.

11. Press ▲/ ▼to select desired Cool
Setpoint, then press Next.
next event (e.g., Unocc1) begins  ashing
after

Next

is selected. Complete steps

2-11 for each scheduled event.

12. Press Done to exit schedule mode.
Note: Pressing Go Back after step 11
will show Select Day on display.

Next

.

Note: The

18

PRESS ANY KEY TO BEGIN

Example shows how to select a Cool Setpoint for a
12-hour period in System Auto mode.

Note: Setpoints available depend on the

i

system mode selected
Preferences”)

can be de ned in Service Menus
Note: The installer setup can limit the

i

length of time for an override to 1, 2, 3 or
4 hours beyond the current time.

. Override display options

(see “Select System

.

Override allows application of temporary heat
or cool settings.

1. Press Override, or ▲/ ▼key.
Note: Setpoint  ashes. “Hold until” time
appears and is changed to show length
of override (up to the maximum hold time
speci ed in Service Menu 395).

2. Press ▲/ ▼to select a Cool Setpoint,
then press Next.

3. Press ▲/ ▼to select a Heat Setpoint,
then press Next.

4. Press ▲/ ▼to adjust time (in 15-minute
periods) until override remains in effect.

5. Press Done to save changes and exit.
Note: Override remains ( ashing) in
effect until the time period ends.
Note: Press Cancel to exit Override.

19

PRESS ANY KEY TO BEGIN

PRESS ANY KEY TO BEGIN

PRESS ANY KEY TO BEGIN

20 Holidays may be programmed. System
type shown supports 1-HEAT and 1-COOL.

Press ▲/ ▼to select a month (e.g., 1) for the
holiday number.

Note: Performance PRO supports

i

up to 20 holidays, leap years, and
daylight-saving time.
Note: Press Override to

i

Holiday mode.

access

1. Press More to view more options.

2. Press Holiday to enter menu.

3. Press ▲/ ▼to select holiday number
(1-20). Note: Month number and day of
month appear below in clock area.

4. Press Edit to select holiday month
(“Mo” icon will  ash).

5. Press ▲/ ▼to select a month
(numerical), then press Next.

6. Press ▲/ ▼ to select day (numerical)
that holiday starts (Days icon will  ash),
then press Next.

7. Press ▲/ ▼ to select holiday length,
which is number of days that the holiday
period lasts (1-99), then press Next.

20

Press ▲/ ▼ to select Heat Setpoint for holiday 1.

Note: After selecting the duration of days

i

that the holiday period lasts, select the
Heat Setpoint and the Cool Setpoint for
the holiday.

PRESS ANY KEY TO BEGIN

PRESS ANY KEY TO BEGIN

Now select the Heat and Cool Setpoints for
the same holiday number (e.g., “1”).

8. Press

9. Press ▲/ ▼to select the Cool Setpoint,

10. Press DONE to complete the holiday

i

▲/ ▼to select the Heat Setpoint,

then Next.

then Next.

display mode.

Note: If “Heat” or “Cool”  ashes during
process, the deadband value will be
enforced; the opposing Heat or Cool
Setpoints will be automatically adjusted
(for an explanation of deadband value,
see Key operation).

21

In Service Menu 342, press ▲/ ▼to create a three­digit PIN. Scroll to choose the desired PIN number.

Note: Creating a PIN access code

i

allows the user to restrict access to
Service Menus. PIN access must  rst
be enabled in Service Menu 341; then,
a three-digit code must be created in
Service Menu 342.

1. Press the lower left and lower right keys
simultaneously for about  ve seconds.

2. Press Next until Service Menu 341
appears. Note: Default “00” appears.

3. Press ▲to select 1 (enable), then Next.

4. In Service Menu 342, press ▲/ ▼to create
a three-digit PIN access code.

Write down/save the PIN access code.

5. Press Done when  nished.

Verifi cation of PIN Number

1. Press the lower left and lower right keys
simultaneously for about  ve seconds.

2. Enter PIN: Press ▲/ ▼to change right­hand column value, then press Next.

3. Moving right to left, change each value.

4. Press Done. Note: Display shows Service
Menu 100, default value below.

22

The following T4000 Series compatible sensors are available from PECO. Using information
found on the last page of this document, contact a service representative to learn more about
PECO sensors or to place an order.

PECO PRODUCTS Model

Number

Indoor Remote Sensor SP155-017 69308 S1

Occupancy Sensor SB200-001 68375 S2

Locking Cover for
T4000 Thermostat

N/A 70210 N/A

Part

Number

Terminal T4000 T4500

 

 

 

For a complete description of sensors, terminal connections, and wiring diagrams, see the
“Performance PRO T4000 Series Installation Guide.”

23

Temperature Control Range: 50° to 90° F (10° to 32° C)

Differential: 1° F (0.5°C)

Input Power: 24 VAC (20-30 VAC) 50/60Hz (+/-10%) or AA alkaline batteries (both

recommended); 5mm terminals accept 14-24 AWG stranded/solid wire.

Output Ratings: 20-30 VAC

0.02-1.0A per terminal; W1 (B/O), W2 (AUX), G, A, E, Y1, Y2.
Note: Collectively, total current draw must not exceed 2.5A.

Operational Temperature: 0° to 120° F (-17° to 48°C)

Shipping Temperature: -20° to 130°F (-29°to 54°C)
Operating Humidity: 5% to 95% RH, non-condensing

Physical dimensions: T4000/T4500 Thermostat: 4.3” H x 5.7” W x 1.3”D

with 2.7” x 1.5” / 4.05 square inch liquid crystal display (LCD)

Automation and Controls

Division of PECO, Inc.
PO Box 82189, Portland, OR 97282

© Copyright 2010. PECO, Inc. All Rights Reserved. P/N 70475 3220-2264 REV 00 09/10
PECO is a registered trademark of PECO, Inc. The PECO Performance PRO and the PECO logo are trademarks and/or service marks of PECO, Inc.

Phone: [phone] | 800-874-8547
E-mail: [e-mail]
www.pecomanufacturing.com

24
