GRAVELY 100 SERIES MOWERs
PTO
GRASS COLLECTION
SYSTEM
DESIGNED FOR:
MODEL 12031303
OPERATOR’S MANUAL
ASSEMBLY OPERATION MAINTENANCE
MANUAL PART#: Q0347 $4.00 REV: 0
PTO GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
SECTION PAGE
Safety - ------------------------------2
Safety Alert Symbols----------------------3
Warranty -----------------------------4
I INTRODUCTION AND DESCRIPTION- - ------------5
1-1 Introduction - ------------------------5
1-2 Description - ------------------------5
II INSTALLATION FOR USE ----------------------5
2-1 Preparation Of Mower ------------------5
2-2 Muffler Guard Installation ----------------6
2-3 Frame Mount Bracket Installation -----------6
2-4 Safety Interlock Harness Connection- - - ------7
2-5 Belt Installation -----------------------11
2-6 Cam Assembly Adjustment - - - ------------11
2-7 Lower Frame To The Frame To Frame Bracket - Installation ----------------------------11
2-8 ----------12
Upper Frame Assembly Installation
2-9 Top Assembly To The Upper Frame Assembly---12
2-10 Boot Installation - - - ------------------12
2-11 Length Of Hose Adjustment - - ------------13
Safety
SECTION PAGE
2-12 Upper Hose Installation ----------------13
2-13 Lower Hose To Blower Cone Installation------13
2-14 Lower Hose To Boot Installation -----------13
2-15 Front Weight Assembly-----------------13
2-16 Blower Cone Installation ----------------14
2-17 Impeller Blade Removal/Installation- - - ------14
2-18 Installation/Removal Of Collection Bags ------15
2-19 Final Checks -----------------------16
III OPERATING INSTRUCTIONS - ------------------16
3-1 General Safety -----------------------16
3-2 Operation & Tips On Mowing- - ------------16
3-3 Disengagement Of The Blower ------------16
3-4 Unloading The Collection System -----------16
IV MAINTENANCE ----------------------------16
4-1 Maintenance Checklist ------------------16
4-2 Lubrication- - ------------------------17
V PARTS AND SERVICE ------------------------17
5-1 Parts And Service Information - ------------17
Safety Decals - - ------------------------18
Torque Specifications - - - ------------------19
Notes- - ------------------------------20
1.
Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2.
Know the controls and how to stop quickly. READ THE OPERATOR’S MANUAL!
3.
Do not allow children to operate the vehicle. Do not allow adults to operate it without proper instruction.
4.
Be especially watchful of children and pets darting into the area while operating.
5.
Keep your eyes and mind on your unit while mowing or operating your attachment. Don’t let others distract you.
6.
Do not attempt to operate your unit or mower when not in the driver’s seat.
7.
Always stop unit when emptying the container.
8.
Stop unit, shut off deck and attachment, set parking brake, shut off mower engine and remove spark plug wire
before removing clogs or removing or replacing hose, boot, blower cone, or performing any maintenance.
9.
Mow up and down the face of slopes (not steeper than 10 degrees); never across the face of the slope.
10.
It is recommended that the container be kept only half full when negotiating any slopes. Start mowing on slopes
when the container is empty.
11.
Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12.
Wear ear protection if the noise level is offensive.
13.
Wear eye protection to prevent debris from damaging your eyes.
14.
Be alert for all other traffic when driving on public roads or highways.
15.
Moisture content in most grasses can damage mower and grass collector components. Also, dry grass and leaves
left in the bags can be a fire hazard. Always make sure the bags are completely empty and the blower and hoses are
fully cleaned before storage.
2
SAFETY
WARNING!
vacuum collector adapter are fastened securely in place.
WARNING!
blades and the blower impeller have stopped rotating.
WARNING!
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP.
WARNING!
across the face. attempt to mow excessively steep slopes, and use caution when turning on any slope.
NEVER
Do not work around the mower deck boot or the blower area until you are certain that the mower
To avoid serious injury, perform maintenance on the vacuum collector;
Set the parking brake. Always remove the ignition key before beginning maintenance.
For your own personal safety, mow and the face of slopes and
NEVER
operate the unit unless the discharge guard and either the deflector assembly or the
ONLY AFTER
ALWAYS UP DOWN NEVER
Safety Alert Symbol
“ATTENTION! BECOME
!
This Safety Alert Symbol means:
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words and are used on the equipment safety signs. These words are
intended to alert the viewer to the existence and the degree of hazard seriousness.
!
!
Black letters on ORANGE
!
Black letters on YELLOW
DANGER, WARNING, CAUTION
This signal word indicates a potentially hazardous situation which, if not
DANGER
White letters on RED
WARNING
CAUTION
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation exist which, if
not avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
3
PECO LIMITED WARRANTY FOR NEW PRODUCTS
A. WHAT IS WARRANTED?
PECO extends the following warranties to the original purchaser of each new PECO consumer product subject
to the following limitations:
1. PRODUCT WARRANTY:
delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the
defect appears within 12 months from the date of delivery of the product to the original purchaser.
DEFECTIVE PARTS MUST BE RETURNED TO PECO FOR INSPECTION TO DETERMINE
VALIDITY OF WARRANTY CLAIMS.
2. PARTS REPLACED DURING WARRANTY:
warranty and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced,
as PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or
before the expiration of the original warranty period, whichever is later.
B. SECURING WARRANTY ADJUSTMENTS.
Call PECO for Return Authorization. Damaged or broken parts, other than engines or batteries, must be
returned to PECO Inc., 100 Airport Road, Arden, NC 28704 before any warranty adjustment can be authorized.
At the time of requesting warranty adjustment, the purchaser must present evidence for date of delivery of the
product. The purchaser shall pay any charge for the product to and from Arden, NC.
C. ITEMS NOT COVERED BY PECO WARRANTY.
Engines and batteries attached to PECO products are covered under a separate warranty by the respective
manufacturer.
D. UNAPPROVED ALTERATION OR MODIFICATION.
All obligations of PECO Inc., under this warranty, shall be terminated if products are altered or modified in ways
not approved by PECO Inc..
E. ACCIDENTS AND NORMAL MAINTENANCE.
The warranty covers only defective material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper use or abuse of products. The cost of normal maintenance and
normal replacement of service items such as belts, cutting blades, hoses, etc., which are not defective shall be
paid for by the purchaser.
F. NO REPRESENTATIONS ADDITIONAL WARRANTIES, DISCLAIMER.
Neither PECO Inc. nor any company affiliated with it makes any warranties, representations or promises as to
the quality of performance of its products other than those set forth herein. Except as described above, PECO
Inc. makes no other warranties
WARRANTIES OF FITNESS AND MERCHANTABILITY.
G. ANY MACHINE USED FOR RENTAL PURPOSES ARE GUARANTEED FOR 45 DAYS FROM DATE
OF ORIGINAL SALE ONLY.
H. REMEDIED EXCLUSIVE.
The only remedies the purchaser has in connection with the breach or performance of any warranty on PECO
Inc. consumer products are set forth above. In no event will PECO be liable for special incidental or
consequential damages.
1. NO SERVICE CENTER WARRANTY.
The selling Service Center makes no warranty on his own on any item warranted by PECO Inc. unless he
delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no
authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in
any way.
Any part of any consumer product, which is defective in material or workmanship as
ALL
Freight and mailing will be borne by the customer.
Any new PECO part which is furnished in performance of this
AND SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
4
SECTION I
INTRODUCTION AND DESCRIPTION
1-1 Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.
NOTE:
or bottom are as viewed from the normal operator’s
position on the mower.
All references made to right, left, front, rear, top
1-2 Description
The collection system is designed for turf maintenance
where there is a need to collect the grass clippings as
the mower cuts the turf. It is also good for picking up
leaves and twigs in pre-season and post-season cleanup.
Section II
INSTALLATION FOR USE
2-1 Preparation Of Mower
Carefully dismantle shipping box from around the
components. Cut retaining straps and separate the
parts. The collection system will have various parts
located inside. Remove and sort all parts for easy
identification.
NOTE:
study the exploded drawings on pages 8,9 and 10.
From the underside of the mower engine remove the bolt
and bushing from the electric clutch assembly. Replace
these parts with the engine pulley assembly ,
7/16” lock washer P#(K0053) and 7/16”-20 x 4” HHCS
P#(K0359). The added pulley will power the collection
system. Note that the center of the hub that is extended
should be upward toward the engine .
Torque the bolt to 55 ft./lbs. Once pulley is secure, tie
hydraulic hoses (Figure 1-1a) away from the pulley with
(2) provided zip ties to prevent pulley from making
contact with the hose.
Before each step of assembly it will help to
P#(A0419)
(Figure 1-1a)
The blower, mounted on the right side of the unit, uses a
belt and gearbox system from the engine PTO shaft.
Drive train protection comes through belt slippage. The
blower draws grass clippings from the discharge area of
the cutter deck back to the 3 - 3.3 cubic foot collection
bags P#(G0002) at the rear portion of the mower frame.
The operator can engage the blower with a push of the
over-center linkage on the right side of the unit. Once the
bags are full with clippings, they can be released to
make for easy dumping.
Figure 1-1a.
Zip Tie Hose
Parking Brake Setting
For the added weight of the collection system, the
parking brake must be re-adjusted. To do this, first
Remove the rear wheels from the mower. Once
removed, reset the spring and the stop gap per the
dimensions in the diagram (Figure 1-1b). Replace the
wheels when completed and torque each bolt to 51-72
ft./lbs.
Figure 1-1b.
1.432”
0.0” to 0.0625
Engine Pulley
7/16”-20 x 4” HHCS
5
2-2 Muffler Guard Installation
.
Figure 2-3a.
Locate the two exhaust diverters (P#J0251 w/ 1-1/4” ID,
P#J0250 w/ 1-3/8” ID) and clamp kit P#(X1046)
provided in the hardware bag. Fasten the correct size
exhaust deflector onto the mower’s exhaust and aim the
exhaust as shown in Figure 2-2. Next, fasten the
exhaust diverter by using the clamp kit.
Figure 2-2.
Mower’s Exhaust
3 Existing
Bolts Here
NOTE:
Figure 2-3b.
Right and left views are as seen from drivers
perspective.
Right
Left
Rear Of
Mower
Left Frame
Mount Brkt.
Exhaust Diverter
2-3 Frame Mount Bracket Installation
To mount the frame brackets which support the bagger
unit, you must first remove the existing rear bumper.
This can be done by removing the three bolts and nuts
attaching the bumper to each side. Set the nuts and
bolts aside as they will be used to mount the frame
brackets. See Figure 2-3a for bracket orientation. Mount
the left frame mount bracket (Figure 2-3b) by using three
of the existing bolts and three of the existing nuts.
Tighten nuts and bolts. The right frame mount bracket
will mount along with the PTO arm assembly (Figure 23c). Align the hole pattern on the side of the PTO arm
assembly to the hole pattern on the right frame mount
bracket and mower frame. Place each of the three
remaining bolts one at a time through the PTO Arm
assembly, the right frame bracket and through the
existing holes of the mower frame. Fasten the upper
hole by using (1) 3/8”-16 x 1” HHCS P#(K1191) and (1)
3/8”-16 flange nut P#(K1215). Tighten nuts and bolts.
Figure 2-3c.
Right Frame
Mount Brkt.
Fasten Here With
3/8” x 1” HHCS
3/8” Flange Nut
Use 3 Existing Bolts To Mount
PTO Assy. Along With
Right Frame Mount Brkt.
To Tractor’s Frame.
6
PTO Arm Assembly
2-4 Safety Interlock Harness
Connection
The safety interlock harness is located inside of the right
PTO arm assembly (Figure 2-4a). To install the harness
to the mower, lift the hood of the mower for engine
compartment access. Route the harness as shown
towards the parking brake switch bracket on the mower
(Figure 2-4b). Fasten the harness to the mower’s rear
frame by using (1) zip tie P#(J0245) to prevent the
harness from rubbing the mower’s tire. Next, remove the
(2) bolts (Figure 2-4c) from the parking brake switch
bracket for access to the brown/yellow and red/violet
wires. Remove the brown/yellow wire from the parking
brake switch and connect to the brown/yellow wire of the
harness. Connect the red/violet wire to the parking brake
switch, where the brown/yellow wire was removed
(Figure 2-4d). Replace the bolts removed from the
parking brake switch.
Figure 2-4a.
Figure 2-4c.
Parking Brake
Switch Bolts
Figure 2-4d.
Free End Of
Harness For
Routing
Figure 2-4b.
Harness
Connected
Here
2-3 Attaching The Top Main Frame
2-3 Attaching The Top Main Frame
Assembly
Assembly
Place the top main frame assembly P#(00197800)
Place the top main frame assembly P#(00197800)
(Figure 9) onto the main frame legs and fasten each side
(Figure
by
by using (1) 3/4”-10 x 1-1/2” HHCS P#(05959600), (1)
3/4”-10
3/4”-10 nyloc nut P#(06540800), (1) ½”-13 x 1” HHCS
P#(05947100),
P#(05947100), and (1) pivot frame handle
P#(00194900). The
P#(00194900). The handles are used to pivot the frame
to
to the rear for mower engine access. Be sure that the
handles
handles are tight and the frame is in the upright position
before
before each use!
9) onto the main frame legs and fasten each side
using (1) 3/4”-10 x 1-1/2” HHCS P#(05959600), (1)
nyloc nut P#(06540800), (1) ½”-13 x 1” HHCS
and (1) pivot frame handle
handles are used to pivot the frame
the rear for mower engine access. Be sure that the
are tight and the frame is in the upright position
each use!
7
Exploded View Of The
A0549 - Bagger Assembly
(1) V0002 - PLASTIC TOP
(2) K1144 - 5/16”-18 x 1”
CARRIAGE BOLT
(6) K1142 - 5/16”-18 x 3/4”
CARRIAGE BOLT
(4) K1010 - 1/4”-20 x 5/8”
CARRIAGE BOLT
(2) K1126 - 1/4”-20
FLANGE NUT
(2) K0037 - 1/4” FLAT
WASHER
(1) C0048 -
LATCH MOUNT
BRACKET
(2) K1025 - 1/4”-20
x 1” CARRIAGE
BOLT
(2) J4005 - FLEXIBLE
DRAW LATCH
(2) C0047 - PIVOT
BRACE
(1 LEFT, 1 RIGHT)
B0237 - PIVOT
BRACKET
(1) V1054 - INLET
(1) B8002 - PLASTIC
SCREEN
(2) C0051 - LONG
SCREEN MOUNT
STRIP
(2) C0052 - SHORT
SCREEN MOUNT
STRIP
(2) C0049 - SCREEN
BRACE
(1) V0005 - BAG RING SEAL
(3) A0584 - BAG RING
ASSEMBLY
(6) J0274 - BAG RING END CAP
(1) A0585 - UPPER FRAME
ASSEMBLY
(8) K1178 - 5/16”-18
FLANGE NUT
(2) K1180 - 5/16”-18
NYLOC NUT
(2) K0041 - 5/16”
FENDER WASHER
(2) K1153 - 5/16”-18
x 3/4” HHCS
8
Exploded Parts View
Exploded View Of The Blower Assembly
2
3
4
1
9
11
10
Exploded View Of The
A0506 - PTO Assembly
5
6
7
13
8
24
21
38
33
32
2
12
27
26
25
40
29
23
28
19
17
30
22
39
20
37
18
31
34
14
16
15
35
36
41
9
Parts View
A0553 UNIT ASSEMBLY
(1)
A0551
TOP
ASSEMBLY
(1)
A0546
LOWER
FRAME
ASSEMBLY
(1)
V1054
INLET
(1)
6” x 20”
UPPER HOSE
(1)
8” x 31”
LOWER HOSE
(2)
J6006
7”-8”
HOSE
CLAMPS
(1)
HB0256
HARDWARE
BAG
(1)
HB0257
ENGINE PULLEY
HARDWARE
BAG
(1)
A0585
UPPER FRAME
ASSEMBLY
(3)
A0584
BAG RING
ASSEMBLY
A0515 WEIGHT KIT
(1)
B2220
WEIGHT
(1 LEFT, 1 RIGHT)
B0188
WEIGHT
BRACKETS
BAR
(1LEFT, 1 RIGHT)
B0174
FRAME MOUNT BRACKET
(1)
HB0186
HARDWARE
BAG
(3)
G0002
3.3 CU. FT.
COLLECTION
BAGS
ASSEMBLY
(1)
E6009
BLOWER
CONE 8”
A0631 BOOT KIT
(1)
B0285
BOOT PL.
(1)
#HB0236
HARDWARE
BAG
(1)
A0506
PTO
(1)
E1125
BOOT
10

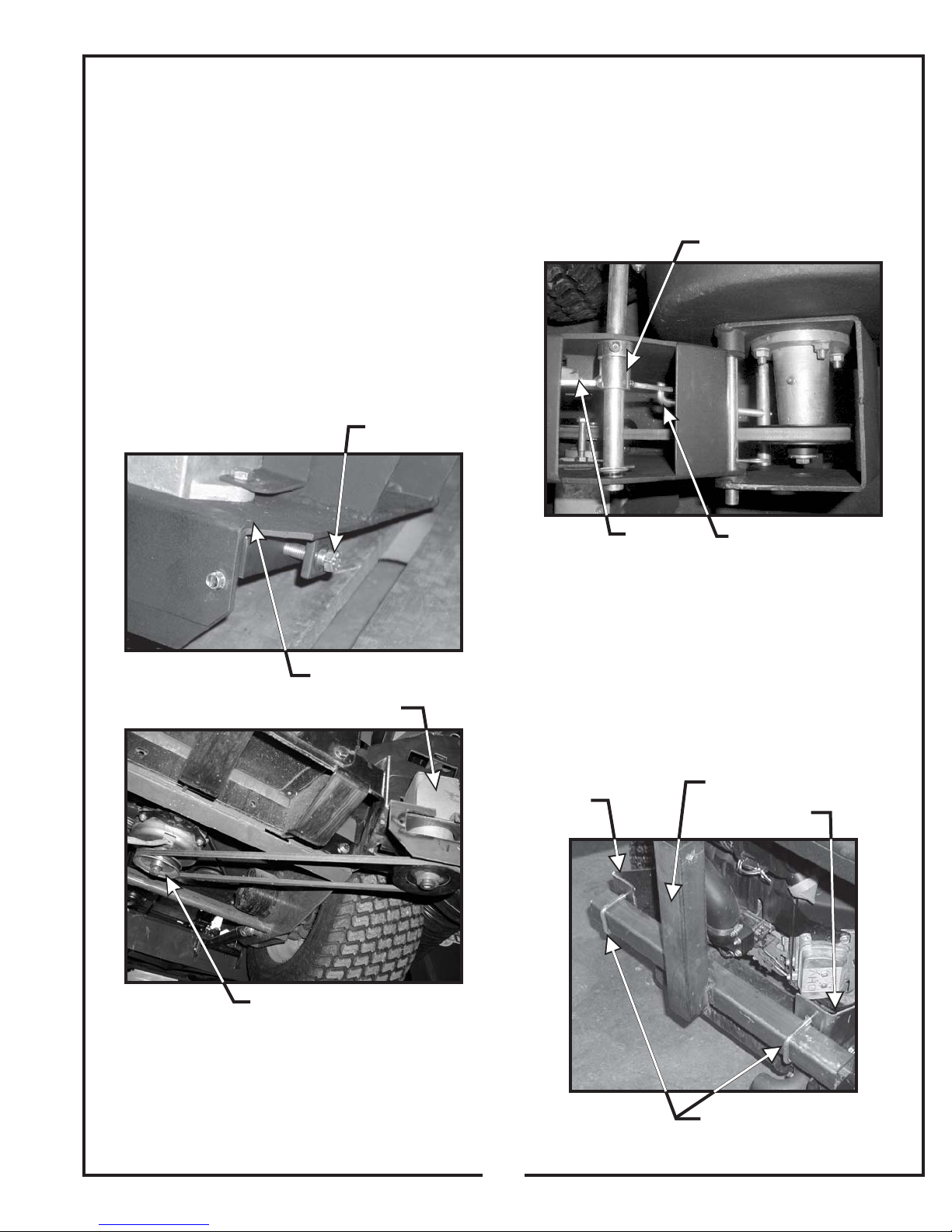

2-5 Belt Installation
Loosen the (2) bolts that secure the gear box assembly
P#(A0429) to the PTO mount plate (Figure 2-5a).
Loosen the adjustment bolt P#(K0348) until the gear box
assembly is at its far left adjustment (the gear box is
moved towards the mower’s engine pulley). Connect the
kevlar cord belt from the engine pulley to the lower gear
box pulley (Figure 2-5b).
To tension the drive belt, turn the adjustment bolt
clockwise until there is 1” of deflection, with 10-11 lbs. of
pressure between the engine pulley and the gear box
pulley.
Once the correct tension of the belt is achieved, tighten
the (2) bolts that secure the gear box assembly.
P#(K0326) and pull the “L” end of the rod out of its hole
in the cam assembly. The tension rod may then be
screwed out to tighten the belt or screwed in to loosen
the belt. Replace the “L” end into the top hole in the cam
and replace the hair pin clip. Adjust the cam stop bolt
P#(K1159) to allow the cam to rotate slightly over center
when the blower is disengaged (Figure 2-6).
Figure 2-6.
Cam Assy.
Figure 2-5a.
Figure 2-5b.
Adjustment Bolt
PTO Mount Plate
Gear Box Assy.
Cam Stop
Bolt
Tension Rod
2-7 Lower Frame To Frame Bracket
Installation
Using (2) ½”-13 u-bolts P#(K0288) and (2) ½”-13 nyloc
nuts P#(K1247) , attach lower frame to the left and right
frame mount brackets as shown in Figure 2-7. Make
sure the lower horizontal tube is centered in regards to
the lower frame mount brackets. The lower frame
stiffening bracket is to be positioned towards the engine
mower’s engine.
Figure 2-7.
Left Frame
Mount Bracket
Lower Frame
Right Frame
Mount Bracket
Engine Pulley
2-6 Cam Assembly Adjustment
The cam assembly P#(A0422), which controls the
blower belt tension, comes from the factory pre-adjusted.
If the belt is too tight or becomes too loose, remove the
hair pin clip P#(K0099) from the belt tension rod
Lower Frame Centered
In Regards To U-Bolts
Mounted To Frame Brackets
11
2-8 Upper Frame Assembly
Installation
NOTE: During this step, it is suggested that two
people install the top frame to the lower frame.
Using two people to raise the top frame, lift the top frame
above the lower frame making sure the bag frames are
located away from the engine as shown in Figure 2-8.
Slide the top frame vertical tube into the lower Frame
vertical tube aligning the holes. Insert (1) ½” x 2-1/2”
clevis pin P#(K0133) through the holes and fasten with
(1) 5/32” x 2-5/8” hair pin clip P#(K0088).
Figure 2-8.
Top Frame
2-10 Boot Installation
First, remove the deflector shield by pulling out the
locking pin and lifting the shield out of deck mount tube.
To install the boot to the mower deck, attach the boot
plate mount pin P#(B0274) to the boot plate P#(B0285)
using (1) 3/8”-16 x 3/4” HHCS P#(K1190) and (1) 3/8”-16
lock washer P#(K0048) See figure 2-10a. Next, loosely
fasten the boot P#(E1125) to boot plate using (2) 3/8”-16
x 1” carriage bolts P#(K1182) and (2) 3/8”-16 flange nuts
(P#K1215) with the head of the bolts placed from the
inside of the boot. Insert the boot plate mount pin into
the deck mount tube and slide the slot of the boot plate
over the tab at the top of the discharge opening. Place
the deflector shield in the transport position on top of the
boot plate. Replace the locking pin. Adjust the boot to fit
securely against the discharge opening and tighten the
(2) 3/8”-16 flange nuts. See figure 2-10b for clarity.
Lower Frame
½” x 2-1/2” Clevis Pin
5/32” x 2-5/8”
Hair Pin Clip
2-9 Top Assembly To The Upper
Frame Assembly Installation
Align the pivot brackets of the top assembly P#(A0551)
to the pivot point on either side of the upper frame
assembly. Place (1) P#(K0041) fender washer between
each pivot point (Figure 2-9) and fasten each side by
using (1) P#(K1153) 5/16”-18 x 3/4” HHCS and (1)
P#(K1180) 5/16”-18 nyloc nut. When fastening leave nut
slightly loose so that the top can pivot freely.
Figure 2-10a.
Figure 2-10b.
(1) 3/8”-16 x 3/8” HHCS
(1) 3/8” Lock Washer
Boot Plate
Mount Pin
Boot
Plate
(2) 3/8”-16 x 1” Carriage Bolts
(2) 3/8” Flange Nuts
Boot
Plate
Locking
Pin
Figure 2-9.
Top Assembly Here
Fasten Here With
5/16” x 3/4” HHCS
5/16” Nyloc Nut
Fender Washer
12
Boot
Ta b
Exhaust Deflector
in Transport Position
Note:
the head of the bolt is placed from the inside of the boot.
This will prevent grass from collecting on the bolts.
When bolting the boot and boot plate together,
2-13 Lower Hose To The Blower Cone
Installation
Note:
Removed In The Following Photo For Clarity. Always
have the deflector shield mounted when mowing.
The Mower’s Deflector Shield Has Been
2-11 The Length Of Hose Adjustment
The hoses in steps 2-12 and 2-13 must be cut to fit your
machine. Follow steps 2-12 and 2-13. Do not cut the
hoses until you have tried to fit them on your machine.
Remember that the hoses have to be long enough to
allow for enough clamping surface between the inlet,
blower assembly, and the deck boot.
2-12 Upper Hose Installation
Fasten the inlet to the plastic top by sliding the inlet from
the inside of the top to the outside and lock into place.
Slide a 5”-6” upper hose clamp P#(J6011) onto both
ends of the 6” upper hose (Figure 2-12). Then slide one
end of the 6” hose onto the inlet. Make sure there is
about a two-inch overlap between the hose end and the
container inlet. Proceed to slide the opposite end of the
6” hose onto the outlet of the blower assembly. See
Figure 2-12 for details. Make sure both ends of the hose
are clearly attached to the inlet and the blower assembly
inlet. Tighten the hose clamps.
Figure 2-12.
Inlet
5”-6”
Clamp
6” Upper
Hose
8” Lower
Hose
Fasten the blower cone P#(E6009) to the blower
housing by using (2) 5/16”-18 x 2-1/2” HHCS P#(K0125)
and (2) 5/16”-18 jam nuts P#(K0120). Slide a 7”-8” hose
clamp P#(J6006) over both ends of the lower hose. Then
proceed to slide the lower hose onto the blower cone.
Tighten the hose clamp. The assembly should look like
Figure 2-12.
2-14 Lower Hose To The Boot
Installation
Take the unattached end of the lower hose and slide it
over the circular end of the boot. Use the lower hose
clamp to secure the hose to the boot (Figure 2-12). Tip:
Before securing clamp rotate hose counter-clockwise
(away from yourself) approximately 1” to add in retaining
boot to mower deck.
2-15 Front Weight Assembly
Attach each weight bracket P#(B0188) to the mower’s
front casters by using (1) 3/4”-10 x 1-1/2” HHCS
P#(K0364) and (1) 3/4”-10 nyloc nut P#(K1433) (Figure
2-15). When installing the 100 lb. weight you should
have another person help position the weight onto a floor
jack. Using the floor jack will make installing the weight
much easier. Lift the weight up to the top of the weight
brackets. Fasten the weight to the weight brackets by
using (1) ½”-13 X 4-1/4” U-Bolt P#(K0331) and (2) ½”-13
flange nuts P#(K1246) per bracket. Once the weight is
secure tighten all nuts. Be sure Weight is centered in
reference to the U-Bolts.
Figure 2-15.
3/4”-10 X 1-1/2” HHCS
3/4”-10 Nylock Nut
Blower
Blower Cone
7”-8”
Clamp
Boot
13
Right
Weight
Bracket
Left
Weight
Bracket
Weight
2-16 Blower Cone Installation
Thread (1) 5/16”-18 jam nut P#(K0120) onto each end of
(2) 5/16”-18 x 2-1/2” HHCS P#(K0125). Now partially
thread the bolts into each of the two tabs located on the
blower housing. Place blower cone so the two tabs line up
with the bolts then tighten completely. See Figure 2-16.
Blower Housing Tabs
Figure 2-16.
2-17 Impeller Blade
Removal/Replacement
To Remove:
(#2) and spacer (#3) from the taper-lock bushing (#5).
See Figure 2-17. Next remove the (2) 1/4”-20 bolts (#4)
and place them into the threaded holes of the taper-lock
bushing (next to the holes they were removed from).
Gradually thread each bolt evenly into the taper-lock
bushing, forcing the blade to break-away from the taperlock bushing. If the impeller will not move, hit the base of
the impeller, between each vein, with a hammer, then try
again.
To Replace
Slide the taper-lock bushing on to the engine shaft and
into the impeller blade, aligning the holes
of the taper-lock bushing to the threaded holes of the
impeller blade. Fasten by using (2) 1/4”-20 HHCS grade
#8 bolts, (1) spacer washer and (1) HHCS bolt w/
washer. Torque to the proper specifications in the torque
chart on the back of this manual. Next, rotate the
impeller blade to insure that the blade is clear of contact
on all sides of the blower housing.
First remove the center bolt (#1), washer
:
Place impeller blade over the engine shaft.
non-threaded
Blower Cone
2
1
(2) 5/16”-18 x 2-1/2”
All Thread HHCS And
(2) 5/16” Jam Nuts
Figure 2-17.
IMPELLER BLADE
3
4
5
14
2-18 Installation/Removal Of
Collection Bags
To install the bag onto the bag ring, first make sure the
bag ring end caps are fastened to the bag ring. Place the
seam openings of the bag onto the bag ring openings
and turn the bag until the slot bracket in the bag ring is
protruding from the opening in the bag (Figure 2-18a).
Do this for each of three bags.
Install the completed assemblies onto the support frame
and close the plastic top. Fasten both draw latches to
hold the plastic top closed (Figure 2-18b).
To empty the bag, remove the bag and bag ring by lifting
and sliding rearward. Grasp the loop on the bottom of
the bag, turn it upside down and empty the collected
debris (Figure 2-18c). Repeat for the other bags.
Reinstall all bags, line with plastic bags if desired, close
the plastic top and reattach the draw latches.
Plastic lawn and leaf bags, 33 gallon size, may be used
inside the cloth bags. Be sure to leave enough plastic
bag hanging over the frame so the plastic bags can be
twist tied before emptying (Figure 2-18d).
Figure 2-18b.
Figure 2-18c.
Plastic Top
Draw Latches
Figure 2-18a.
Bag Ring
Bag Ring
End Caps
Slot
Bracket
Grasp Bag
Here
Figure 2-18d.
Plastic Bag
Cloth Bag
Cloth Bag
15
2-19 Final Checks
To check the operation of the safety interlock harness
perform the following:
A. Start mower
B. While seated in the operator’s seat, rotate the
engagement handle of the collection system away
from the mower.
C. With the blower engaged, stand up from the
operator’s seat.
which verifies proper installation of the harness.
D. Check the mower’s safety interlock, see mower’s
manual for more detail.
NOTE:
and refer to page 7 to verify proper installation of the
harness. If problem persists contact your local dealer.
If the mower does not shut off, turn off mower
This action will shut off the mower
SECTION III
OPERATING INSTRUCTIONS
* Mow twice, at different height settings, (high, then low),
if grass is extra tall.
* Remember that horsepower requirements will vary with
the mowing conditions such as type and height of turf
grass, moisture content, amount of leaves, whether the
terrain is flat or hilly, etc.
3-3 Disengagement Of The Blower
A. To disengage the blower, rotate the engagement
handle towards the mower.
WARNING:
TOUCH the blower, pulleys, or the belt until the tractor is
turned off. DO NOT adjust the belt tension until the
mower is turned off. Refer to section 2-6 of the manual.
The blower will continue to spin. DO NOT
3-4 Unloading The Collection System
NOTE:
follow the following steps:
To determine when the collection bags are full,
3-1 General Safety
Only qualified people familiar with this operator’s manual
and the mower’s operator’s manual should operate this
machine.
3-2 Operation And Tips On Mowing
A. Perform BEFORE EACH USE the maintenance list in
paragraph 4-1.
B. Start mower.
C. With the mower at high idle speed, engage the mower
deck.
D. While seated in the operator’s seat, rotate the
engagement handle of the collection system away
from the mower. Continue to rotate the handle until it
stops in an over center position. With the blower
engaged, you can proceed to operate the control
levers of the mower.
NOTE:
collecting the grass clippings, disengage the deck
and blower, then, engage the parking brake and turn the
mower off. Proceed to section 3-3, and review the
section 2-6, in this manual.
To obtain the maximum effectiveness from your
collection system the tips listed below should be
followed:
* Watch your speed- Normal conditions will allow a
* Mow with sharp blades- A sharp blade cuts cleaner.
* Wet grass and leaves will decrease effectiveness and
* Mow at higher cutting heights- Remove and mulch no
If the collection system does not appear to be
speed of up to approximately 5 mph, but thick, heavy
damp conditions will require reduced ground speed.
will increase horsepower requirements.
more than 2” of grass length with each mowing.
(Experts recommend not cutting off more than 1/3 of
the grass blade length at any given time.)
A. Stop the forward movement of the mower.
B. Disengage the mower deck.
C. Disengage the blower.
D. Engage the parking brake.
E. Once the parking brake has been engaged, then and
only then, walk behind the mower and check the
collection bags by lifting the plastic hood. Load in
bags should not exceed the height of the installed
bag.
F. To release bags from frame, lift bag ring from tab on
bagger frame, slide bag out and turn bags over to
deposit clippings.
G. Follow steps on page 14 to re-attach bags back to the
bagger.
NOTE:
Do not allow collection bags to become overfilled as potential damage may occur to your
equipment. Also, be sure to clean the hood screen as
needed.
SECTION IV
MAINTENANCE
4-1 Maintenance Checklist
Before each use:
1. Check blades and spindles to be sure that no foreign
objects, such as wire or steel strapping bands, are
wrapped around them.
2. Inspect blades for wear. Replace if necessary. If it is
necessary to sharpen the blades, remove the blades
from the spindles before sharpening. DO NOT
sharpen blades while still attached to the mower.
16
3. Make sure all shields are in place and in good
condition. Repair or replace any missing or damaged
shields.
4. Perform lubrication per paragraph 4-2.
5. Listen for abnormal sounds, which might indicate
loose parts, damaged bearings, or other damage.
Correct any deficiency before continuing operation.
6. With the engine off, engage the blower assembly.
Check the belt tension and inspect the pulley belt for
cracks or tears.
7. Check for wear or deterioration of the upper or lower
hoses. If there are any portions of the hose that have
been torn or worn through, replace with genuine
PECO parts.
After Each Use:
1. Clean all debris from machine especially from the
container, underneath the belt shields, and off of
safety decals. Replace any missing or illegible decals.
2. Inspect the unit for worn or damaged components.
Repair or replace before the next use. Any
replacement component installed during repair shall
include the component’s current safety decal specified
by the manufacturers to be affixed to the component.
3. Check belt for proper tension.
4-2 Lubrication
NOTE:
lubrication of the shaft on the blower assembly.
1. On initial use: Grease the fitting on the blower shaft.
2. Every 25 hours of use: Re-grease the grease fitting.
3. Every 200 hours of use: Check oil levels in gear box.
Use only white lithium based grease for
Oil in gear box should cover the gears. If not, fill using
an EP90 weight oil. 6oz. will fill the gear box from
empty.
SECTION V
PARTS AND SERVICE
5-1 Parts And Service Information
PECO collection system owners should record the name
and telephone number of their Service Center. Your
Service Center will be happy to supply replacement
parts, accessories, and do any service or repairs to your
collection system. If for any reason your Service Center
is unable to service your collection system or supply
replacement parts, contact PECO and include the
following information on the chart below.
THE SERIAL NUMBER PLATE IS LOCATED ON THE
LOWER FRAME ASSEMBLY P#(A0546)
PECO
OUTDOOR POWER EQUIPMENT
Model Number
Serial Number
Arden, North Carolina 28704
WRITE THE MODEL AND SERIAL NUMBER IN
THE BOX ABOVE FOR FUTURE REFERENCE.
Unit Model Number: _____________________________
Unit Engine Size: _____________________________
Unit Serial Number: _____________________________
Date of purchase: _____/_____/_________
Dealer/Distributor Name: ________________________________________
Dealer’s/Distributor’s: _______________________ State: __________ Zip: ___________
Phone Number: ____________________________
Phone #: (828) 684-1234 or Toll Free: (800) 438-5823
Address: PECO Inc.
P.O. Box 1197
Arden, NC 28704
Email: peco@lawnvac.com
17
SAFETY DECALS
To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to
safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals.
Part #: R1054
Part #:R4015
Part #: R4028
Part #: R1069
Part #:R1083
Part #:R4008
Part #: R1057
Part #: R1065
Part #:R1051
Part #: R1052
Part #: R4037
Part #: R1090
18
19
NOTES
20
NOTES
21
Turn any PECO Lawn Vac into a total
lawn grooming tool with the PECO
Wand Kit!
With your PECO Wand Attachment you will
double the ability of your PECO Lawn Vac.
Using the same powerful vacuum/blower that
makes your Lawn Vac work so well, you will be
able to get to all those hard-to-reach places
where you needed a rake or broom before.
Contact PECO Today!
PECOPECO
PECOPECOPECO
P
PPPP
ARDEN, NORTH CAROLINA 28704
(800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858
EMAIL: peco@lawnvac.com
WEBSITE: www.lawnvac.com
P.O. BOX 1197
Loading...
