Peavey TRANSTUBE 110 EFX User Manual

TransTube

®

110 EFX Operation Manual

For more information on other great Peavey products, go to your local Peavey dealer or online at www.peavey.com

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the productʼs
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!
CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer

servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before
using this appliance, read the operating guide for further warnings.

Este símbolo tiene el propósito, de alertar al usuario de la presencia de “(voltaje) peligroso” sin aisla

­miento dentro de la caja del producto y que puede tener una magnitud suficiente como para constituir
riesgo de descarga eléctrica.

Este símbolo tiene el propósito de alertar al usario de la presencia de instruccones importantes sobre la
operación y mantenimiento en la información que viene con el producto.

PRECAUCION: Riesgo de descarga eléctrica ¡NO ABRIR!
PRECAUCION: Para disminuír el riesgo de descarga eléctrica, no abra la cubierta. No hay piezas útiles dentro.

Deje todo mantenimiento en manos del personal técnico cualificado.

ADVERTENCIA: Para evitar descargas eléctricas o peligro de incendio, no deje expuesto a la lluvia o humedad
este aparato Antes de usar este aparato, Iea más advertencias en la guía de operación.

Ce symbole est utilisé dans ce manuel pour indiquer à lʼutilisateur la présence dʼune tension dangereuse
pouvant être dʼamplitude suffisante pour constituer un risque de choc électrique.

Ce symbole est utilisé dans ce manuel pour indiquer à lʼutilisateur quʼil ou quʼelle trouvera dʼimportantes
instructions concernant lʼutilisation et lʼentretien de lʼappareil dans le paragraphe signalé.

ATTENTION: Risques de choc électrique — NE PAS OUVRIR!

ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à lʼintérieur

aucune pièce pouvant être reparée par lʼutilisateur. Confiez Iʼentretien et la réparation de lʼappareil à un réparateur
Peavey agréé.

AVERTISSEMENT: Afin de prévenir les risques de décharge électrique ou de feu, nʼexposez pas cet appareil à
la pluie ou à lʼhumidité. Avant dʼutiliser cet appareil, lisez attentivement les avertissements supplémentaires de ce
manuel.

Dieses Symbol soll den Anwender vor unisolierten gefährlichen Spannungen innerhalb des Gehäuses
warnen, die von Ausreichender Stärke sind, um einen elektrischen Schlag verursachen zu können.

Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam
machen, die Handhabung und Wartung des Produkts betreffen.

VORSICHT: Risiko — Elektrischer Schlag! Nicht öffnen!
VORSICHT: Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die Abdeckung enfernen. Es befin

­den sich keine Teile darin, die vom Anwender repariert werden könnten. Reparaturen nur von qualifiziertem
Fachpersonal durchführen lassen.

ACHTUNG: Um einen elektrischen Schlag oder Feuergefahr zu vermeiden, sollte dieses Gerät nicht dem Regen
oder Feuchtigkeit ausgesetzt werden. Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen.

2

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or
third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point they exit from the apparatus.

11. Only use attachments/accessories provided by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When
a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Never break off the grounding pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a
power supply of the type marked on the unit adjacent to the power supply cord.

16. If this product is to be mounted in an equipment rack, rear support should be provided.

17. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in
susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently
intense noise for a sufficient time. The U.S. Government’s Occupational and Health Administration (OSHA) has
specified the following permissible noise level exposures:

Sound Duration Per Day In Hours Sound Level dBA, Slow Response
8 90
6 92
4 95
3 97
2 100
1 1/2 102
1 105
1/2 110
1/4 or less 115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to
the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if
exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is
recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be
protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

3

ENGLISH

®

TRANSTUBE

Combining today’s hottest effects with the killer tone of Peavey’s patented TransTube circuitry, the EFX
Series offers unbelievable replication of tube amp characteristics. Nine footswitchable digital effects
allows this two-channel amp to create a vast array of awesome sounds, without using external effects
processors. The TransTube 110 EFX is a ruggedly constructed unit representing years of research and
development in amplifier design and manufacturing. From user-friendly controls to specially voiced
speakers, these amps demonstrate Peavey’s commitment to quality performance and unsurpassed
durability. Plugging into an EFX amp puts the sound you want at your discretion, allowing you to
concentrate on the reason you play...the music!

FEATURES

TransTube 110 EFX

• 40 W into 6

• 10" Blue Marvel speaker

• Clean and lead channels with 3-band EQ and Gain/EQ voicing switches on each channel

• 9 digital effects

- Tremolo - Octaver - Rotary speaker

- Funk wah - Delay - Reverb

- Flanger - Chorus - Phaser

• Headphone jack

• Effects loop

• Can be used with PFC 3 footswitch (not included)

Ohms

110 EFX

4

Rear Panel

2

1 3 4 5

FEATURES AND CONTROLS

(1) AC POWER CORD (Under chassis)

This line cord provides the AC power to the unit. Connect the line cord to a properly grounded AC supply. Damage
to the equipment may occur if improper line voltage is used. (See voltage marking on unit.) Never remove or cut
the ground pin of the line cord plug.

Note for UK only

If the colors of the wires in the mains lead of this unit do not correspond with the colored markings identifying the
terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the
terminal that is marked by the letter E, the earth symbol, colored green, or colored green and yellow. (2) The wire
that is colored blue must be connected to the terminal that is marked with the letter N or the color black. (3) The
wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

(2) REMOTE SWITCH CONNECTOR

This 8-pin DIN connector is provided for the connection of the PFC 3 footswitch (not included). The footswitch
cable should be connected before the amp is powered up. See the FOOTSWITCH section of this manual for
explanation of switch operation.

(3) HEADPHONE JACK

This stereo jack allows signal to flow to both sides of any stereo headset. A monaural headset may be used, but it
is not recommened.

(4) EFFECTS RETURN

Input for returning signals from external low-level effects or signal processing equipment.

(5) EFFECTS SEND

Output for supplying signals to external low-level effects or signal processing equipment.

(6) INPUT

5

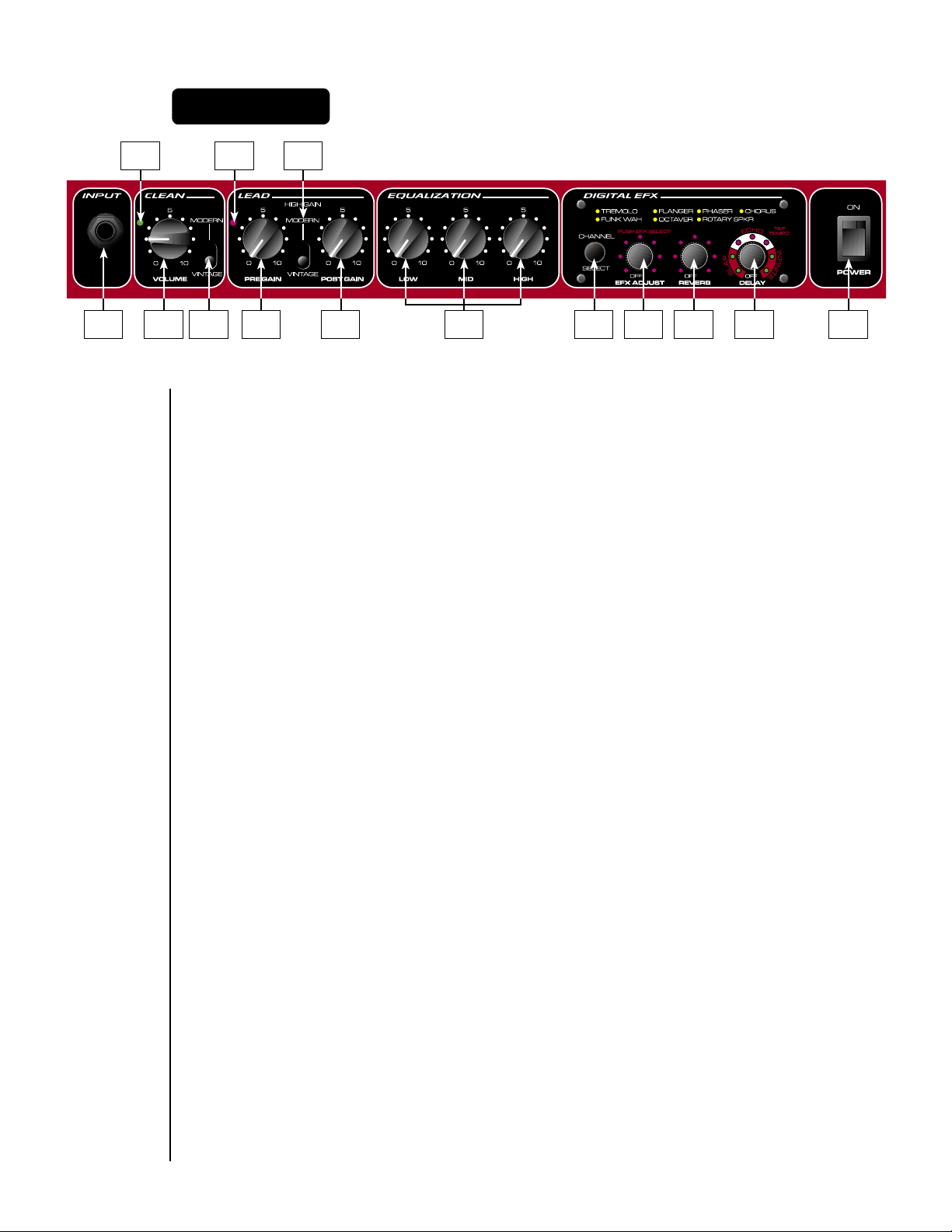

Front Panel

13 13 10

6 7

10

Input jack will accept signals from all types of guitar pickups. Be sure to use a high quality shielded instrument
cable to connect the guitar to the amplifier.

8 9 12

11

14

15

16

17

(7) VOLUME

Controls the volume level of the Clean channel and is not affected by the Lead, Pre or Post Gain controls.

(8) PRE GAIN

Controls the input volume level of the Lead channel. The Pre Gain can be used to control the distortion level in
the Lead channel. To obtain more distortion simply increase the Pre Gain and set the Post Gain (9) to the desired
volume level.

(9) POST GAIN

Controls the overall volume level of the Lead channel. The final level adjustment should be made after the desired
sound has been achieved.

(10) MODERN/VINTAGE SWITCH

This switch allows you to instantly change the voicing to reflect the tones of modern and vintage amplifiers. The
MODERN position maintains a warm, standard voicing. The VINTAGE position changes the overall function of the
EQ and adds a hint of brightness to emulate some classic amp designs. Experiment with this switch, along with
the EQ (11) adjustments, to capture your desired tone. You may refer to the Recommended Settings on page 6 for
some creative starting points.

(11) LOW, MID AND HIGH EQ

Passive tone controls that regulate the low, mid and high frequencies, respectively.

(12) CHANNEL SELECT

This switch selects the channel (Lead or Clean). The ACTIVE CHANNEL LEDs (13) indicate the active channel
— green for Clean; red for Lead.

(13 ACTIVE CHANNEL LEDs

These indicators signify the active channel. Green indicates Clean channel activation; red indicates Lead channel
activation.

(14) EFX ADJUST

Pressing this control selects the effect. A yellow LED adjacent to the effect name will illuminate to indicate the
selected effect. Rotating this control clockwise changes the parameter of the active effect according to the
descriptions below. The surrounding LED ring indicates relative value of the parameter being adjusted.

EFX ADJ PARAMETERS

Tremolo - Rate increase Funk Wah - Sensitivity increase
Octaver - Wet/Dry mix Rotary Speaker - Rate increase
Flanger - Rate increase Phaser - Rate increase
Chorus - Rate increase/depth decrease

EFX amps are built with factory settings loaded into the presets. To return to the factory settings, press
and hold both the EFX ADJUST (14) and DELAY (16) controls while turning the amp on.

(15) REVERB

6

This control adjusts the overall reverb level. The surrounding LED ring indicates level.

1

2 3

PRESET

PRESET PRESET

MODULATION

CHANNEL

DELAY

REVERB

PFC 3

DOUBLE-CLICK

TO STORE PRESET

EFX

SELECT

MODE

TM

(16) DELAY

This control adjusts delay type, time, and volume. Three types of delay are available: SLAP (1 repeat), ECHO (3

- 4 repeats), or INFINITE (5 - 6 repeats). The LEDs in each section of the control indicate which type is active and
volume level. Pressing the control twice sets the delay time to interval between presses.

(17) POWER SWITCH

Press the switch to the “ON” position to apply power to the unit.

MODE SELECT

Footswitch (not included)

18 2019 21 2322 25

The PFC 3 footswitch operates in two modes: EFX Select mode and Preset Select mode. Pressing the
MODE SWITCH (18) selects between the two modes. The active mode is indicated by the MODE LED (19).
Illumination of the LED indicates EFX Select Mode; a dark LED indicates Preset Select Mode. Controls and
indicators 20-25 perform different functions relative to the active mode.

EFX SELECT MODE

NOTE: When entering this mode, the current preset will remain active.

In this mode, PRESET 1 (20) selects between the Lead and Clean channels. The CHANNEL LED (21) will illuminate
when the Lead channel is active. PRESET 2 (23) toggles between two effects and their respective settings. This
switch may be used as an on/off switch if one of the settings has no effects active. To use the MODULATION LED
(22) as a status indicator, the “off” (or lower setting) should be made with the LED dark, and the “on” (or higher
setting) made with the LED illuminated. PRESET 3 (25) toggles between two reverb and delay settings. As with
effects settings, this switch may be used as an on/off for reverb and delay. Both functions change simultaneously
when this switch is depressed.

PRESET SELECT MODE

In this mode, all three switches control effects presets. Their corresponding LEDs indicate which preset is active.
Once desired settings are achieved utilizing the effects controls on the front panel, double-click one of the
Preset switches (15, 23, or 25) to store the settings. To return to the last saved settings for a Preset, press
the desired Preset switch once.

For a detailed explanation on creating and storing presets, refer to the TWEAK FEATURES section of this manual
on the following page.

24

7

Tweak Features

EFX amplifiers offer hidden features to further adjust the parameters of the digital effects. In addition to the
adjustments described in the EFX ADJ PARAMETERS section of this manual, additional tweaks may be made to
customize effects to user preference. Tweaks are made by pressing and holding the EFX ADJUST (14) control while
simultaneously rotating the REVERB (15) control. The EFX ADJUST control must be pressed for at least one second
to enter Tweak Mode. Reverb setting will not be affected while in Tweak Mode. The LED ring surrounding the
control will now reflect the value of the effect being tweaked. As in standard parameter changes, the effect being
tweaked will be the active effect as indicated by the LED adjacent to the effect name.

TWEAK ADJ PARAMETERS

Tremolo - Intensity Funk Wah - Decay time Phaser - Depth
Flanger - Depth Rotary Speaker - Wet/Dry mix Chorus - Wet/Dry mix

To recover the factory settings for both Standard and Tweak Modes, press the EFX ADJUST (14) control and hold
for one second to enter Tweak Mode, then press the DELAY (16) control.

CREATING AND STORING A CUSTOM PRESET

The following steps explain the creation and storage of two different effects/settings, as well as two different
settings for Delay/Reverb. The Flanger and Octaver effects were selected at random. These steps will accomplish
custom presets using any of the effects.

1. Assure the footswitch is in the EFX Select Mode by pressing the MODE SWITCH (18) if necessary. The MODE
LED (19) will illuminate.

2. Use PRESET 1 (20) to select Lead or Clean channel. The CHANNEL LED (21) will illuminate for Lead channel.

3. Select the position of PRESET 2 (23). The MODULATION LED (22) may be illuminated or dark at the discretion
of the user.

4. Select Flanger and adjust rate to preference using the EFX ADJUST (14) control on the front panel (standard
adjustment).

5. Press and hold the EFX ADJUST (14) control while adjusting Flanger depth to preference with the REVERB (15)
control on the front panel (tweak).

6. Press PRESET 2 (23) to change to the other Modulation position.The MODULATION LED (22) will illuminate or
go dark depending on its status in step 5.

7. Select Octaver and adjust wet/dry mix to preference using the EFX ADJUST (14) control on the front panel
(standard adjustment).

8. Select the position of PRESET 3 (25). The DELAY/REVERB LED (24) may be illuminated or dark at the discretion
of the user.

9. Adjust reverb to preference using the REVERB (15) control on the front panel.

10. Press PRESET 3 (25) to change to the other Delay/Reverb position. The DELAY/REVERB LED (24) will
illuminate or go dark depending on its status in step 10.

11. Adjust delay type, time, and volume to preference using the DELAY (16) control.

12. Set the position of PRESET 2 (23) and PRESET 3 (25) to the settings preferred as defaults. (Default setting is

the one that is active when the preset is selected.)

13. Press the MODE SWITCH (18) to return to the Preset Mode.

14. Double-click PRESET 1, 2, or 3 (20, 23, or 25) to store the settings in that location.

8

®

Metal

Adjust to
Taste

Adjust to
Taste

Alternative

Adjust to
Taste

Adjust to
Taste

Country

Adjust to
Taste

Adjust to
Taste

Modern

Modern

High Gain

Modern

Vintage

Vintage

TRANSTUBE

110 EFX

RECOMMENDED SETTINGS

NOTE: Tone settings given are general recommendation and will vary depending on make of
guitar and type of pickup.

9

LEAD

CLEAN

PRE

HIGH GAIN AMP

INPUT

POST

LOW MID H IGH

VOLUME

6 OHM SPEAKER

POWER

AMP

FOOTSWITCH

DIGITAL

EFFECTS

HEADPHONE

MODERN

VINTAGE

SWITCH

HIGH GAIN

MODERN

VINTAGE

SWITCH

EFFECTS

LOOP

SEND RETURN

110 EFX BLOCK DIAGRAM

®

TRANSTUBE

the unit’s functions, please study the block diagram carefully

This block diagram shows signal flow within the unit. In order to thoroughly understand

Specifications are subject to change without notice.

10
