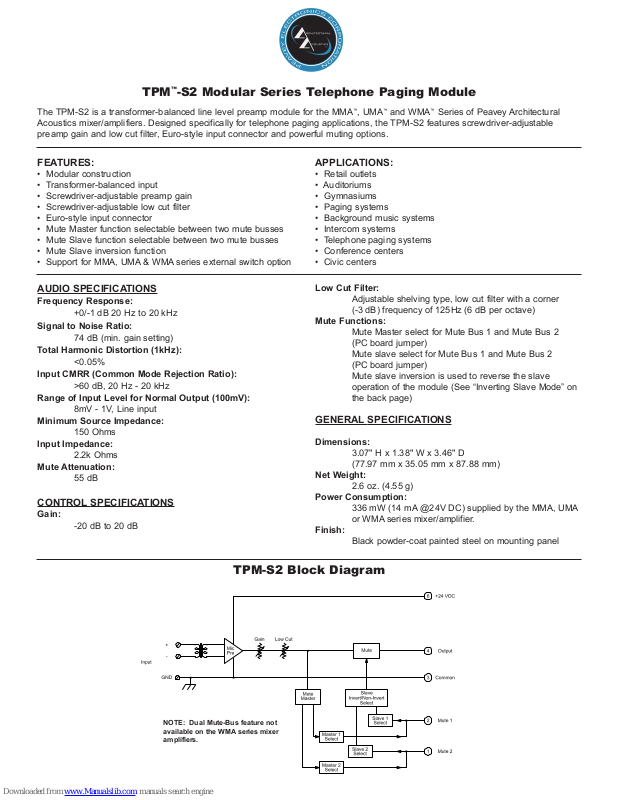

Peavey TPM-S2 Brochure & Specs

The TPM-S2 is a transformer-balanced line level preamp module for the MMA™, UMA™and WMA™Series of Peavey Architectural
Acoustics mixer/amplifiers. Designed specifically for telephone paging applications, the TPM-S2 features screwdriver-adjustable
preamp gain and low cut filter, Euro-style input connector and powerful muting options.

FEATURES:

• Modular construction

• Transformer-balanced input

• Screwdriver-adjustable preamp gain

• Screwdriver-adjustable low cut filter

• Euro-style input connector

• Mute Master function selectable between two mute busses

• Mute Slave function selectable between two mute busses

• Mute Slave inversion function

• Support for MMA, UMA & WMA series external switch option

APPLICATIONS:

• Retail outlets

• Auditoriums

• Gymnasiums

• Paging systems

• Background music systems

• Intercom systems

• Telephone paging systems

• Conference centers

• Civic centers

TPM-S2 Block Diagram

AUDIO SPECIFICATIONS

Frequency Response:

+0/-1 dB 20 Hz to 20 kHz

Signal to Noise Ratio:

74 dB (min. gain setting)

Total Harmonic Distortion (1kHz):

<0.05%

Input CMRR (Common Mode Rejection Ratio):

>60 dB, 20 Hz - 20 kHz

Range of Input Level for Normal Output (100mV):

8mV - 1V, Line input

Minimum Source Impedance:

150 Ohms

Input Impedance:

2.2k Ohms

Mute Attenuation:

55 dB

CONTROL SPECIFICATIONS

Gain:

-20 dB to 20 dB

Low Cut Filter:

Adjustable shelving type, low cut filter with a corner
(-3 dB) frequency of 125Hz (6 dB per octave)

Mute Functions:

Mute Master select for Mute Bus 1 and Mute Bus 2
(PC board jumper)
Mute slave select for Mute Bus 1 and Mute Bus 2
(PC board jumper)
Mute slave inversion is used to reverse the slave
operation of the module (See “Inverting Slave Mode” on
the back page)

GENERAL SPECIFICATIONS

Dimensions:

3.07" H x 1.38" W x 3.46" D
(77.97 mm x 35.05 mm x 87.88 mm)

Net Weight:

2.6 oz. (4.55 g)

Power Consumption:

336 mW (14 mA @24V DC) supplied by the MMA, UMA
or WMA series mixer/amplifier.

Finish:

Black powder-coat painted steel on mounting panel

TPM™-S2 Modular Series Telephone Paging Module

NOTE: Dual Mute-Bus feature not
available on the WMA series mixer
amplifiers.

TPM-S2 Jumper Settings:TPM™-S2

MUTE CONFIGURATIONS

The MMA™and UMA™Series of modular mixer/amplifiers includes a powerful dual-mute bus architecture. The TPM-S2 is designed to fully support this feature.

Master:

The TPM-S2 can be assigned as a “master” on Mute Bus 1 and/or Mute Bus 2. In the Master position, the TPM-S2 has muting control of the selected bus. For example, three
modules used for music or speech are assigned as slaves on Mute Bus 1. The TPM-S2 is assigned as Master on Mute Bus 1 as an emergency signal source. When the
emergency signal audio is present, the slave modules are muted and only the TPM-S2 is heard. To assign the TPM-S2 as master on Mute Bus 1 or Mute Bus 2, install the
supplied jumper on the two pins labeled MAS 1 or MAS 2.

Slave:

The TPM-S2 can also be assigned as a “slave” on Mute Bus 1 and/or Mute Bus 2. In the Slave position, audio from any module assigned as a Master on the corresponding
bus will mute the TPM-S2. To assign the TPM-S2 as a Slave on Mute Bus 1 and/or Mute Bus 2, install the supplied jumper on the two pins labeled SLV 1 and/or SLV 2.
Further, the TPM-S2 slave function can operate in one of two modes:

Non-Inverting Slave: (Default Mode, as above)

When a jumper is installed in this position, audio from any module assigned as a Master on the selected mute bus will mute the TPM-S2. Install a jumper on the two
pins labeled NINV to activate this mode for either mute bus (or both, if both are selected).

Inverting Slave Mode:

When a jumper is installed in this position, audio from a module assigned as a Master on the selected mute bus will un-mute the TPM-S2. Install a jumper on the two
pins labeled INV to activate this mode for either mute bus (or both, if both are selected). In this mode, no audio is possible from a slave module until a master module or
external switch has activated a mute condition.

NOTES: The module must be assigned as either inverting or non-inverting for proper operation even if it is not assigned as a slave. A module can be assigned as a
Master on one bus, and a Slave on the other bus. The WMA

™

series products have only one mute bus.

AUTOMATIC: To use the module in the Automatic mode, it must be assigned as a master and a slave on the same bus. Other modules on the bus must be assigned as non-
inverting slaves. In this mode, the master module is muted when no signal is applied, while all other modules are un-muted. When signal is applied to the master module,

the master is un-muted and all slaves are muted.

EXTERNAL SWITCH: When using an external switch for muting or PTT (Push To Talk) configurations, the settings are identical to those of the automatic mode with two
exceptions: (1) The module does not have to be assigned as a master to the bus. (2) An external switch is wired to the mute terminal of the MMA, UMA or WMA Series
Mixer/Amplifier. (See the MMA, UMA or WMA series manual for further information on this connection.) In this configuration, the external switch activates the mute condition
instead of the audio signal.

Enabled: jumper on. Disabled: jumper off.

Drawing is shown with jumpers OFF.

LOW CUT - Adjusts the range of
the low cut filter 6 dB per octave.
The filter center is at 125 Hz.

CAUTION: The TPM-S2 is not designed for direct termination to C.O. (Central Office) telephone lines. The use of a third-party interface is required to
properly interface C.O. circuits to the TPM-S2 audio input. The TPM-S2 is an AUDIO device and requires a balanced line level audio signal for proper
operation.

GAIN - Adjusts the level of the
gain amplifier output to the mix
bus. The control is after the gain
preamplifier stage.

INPUT - Removable Euro connec­tor with balanced line level audio
input.

PHANT

OM FEATURE NOT INCLUDED ON THIS MODEL

NON-INVERT MODE* (DEFAULT MUTE MODE)

INVERT MODE*

ASSIGNS MODULE AS SLAVE TO MUTE BUS 2

ASSIGNS MODULE AS MASTER TO MUTE BUS 2

ASSIGNS MODULE AS MASTER TO MUTE BUS 1

*INVERT MODE: Care must taken when setting the invert

jumper position. The module will not work properly unless
one of these jumpers is properly installed.

ASSIGNS MODULE AS SLAVE TO MUTE BUS 1

Features and specifications subject to change without notice.

Peavey Electronics Corporation, Architectural Acoustics Group • 711 “A” Street • Meridian • MS • 39301

[phone] • FAX [phone] • http://aa.peavey.com

Copyright © 2002 All Rights Reserved Printed in the USA
