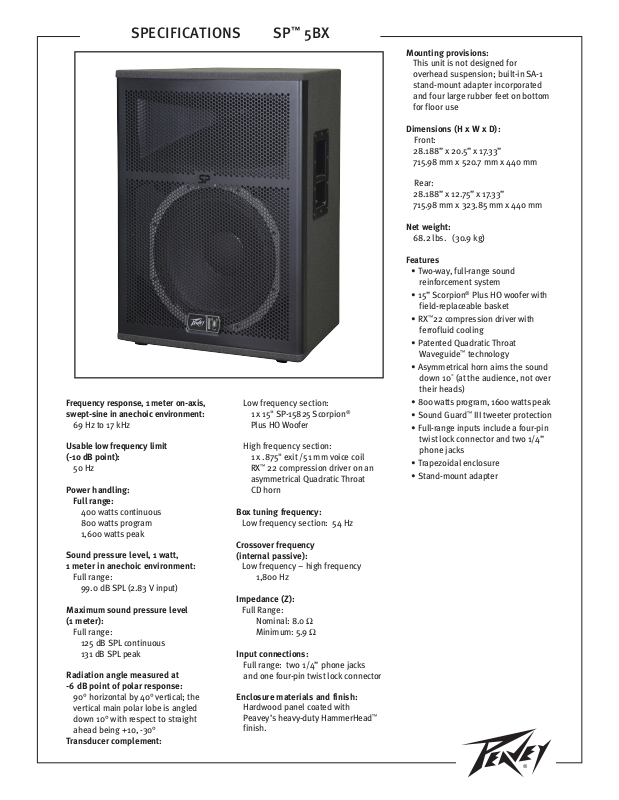

SPECIFICATIONS SP™ 5BX
Frequency response, 1 meter on-axis,
swept-sine in anechoic environment:
69 Hz to 17 kHz
Usable low frequency limit
(-10 dB point):
50 Hz
Power handling:
Full range:
400 watts continuous
800 watts program
1,600 watts peak
Sound pressure level, 1 watt,
1 meter in anechoic environment:
Full range:
99.0 dB SPL (2.83 V input)
Maximum sound pressure level
(1 meter):
Full range:
125 dB SPL continuous
131 dB SPL peak
Radiation angle measured at
-6 dB point of polar response:
90° horizontal by 40° vertical; the
vertical main polar lobe is angled
down 10° with respect to straight
ahead being +10, -30°
Transducer complement:
Low frequency section:
1 x 15" SP-15825 Scorpion
Plus HO Woofer
High frequency section:
1 x .875" exit /51 mm voice coil
RX™ 22 compression driver on an
asymmetrical Quadratic Throat
CD horn
Box tuning frequency:
Low frequency section: 54 Hz
Crossover frequency
(internal passive):
Low frequency – high frequency
1,800 Hz
Impedance (Z):
Full Range:
Nominal: 8.0 Ω
Minimum: 5.9 Ω
Input connections:
Full range: two 1/4” phone jacks
and one four-pin twist lock connector
Enclosure materials and finish:
Hardwood panel coated with
Peavey’s heavy-duty HammerHead™
finish.
®
Mounting provisions:
This unit is not designed for
overhead suspension; built-in SA-1
stand-mount adapter incorporated
and four large rubber feet on bottom
for floor use
Dimensions (H x W x D):
Front:
28.188” x 20.5” x 17.33”
715.98 mm x 520.7 mm x 440 mm
Rear:
28.188” x 12.75” x 17.33”
715.98 mm x 323.85 mm x 440 mm
Net weight:
68.2 lbs. (30.9 kg)
Features
• Two-way, full-range sound
reinforcement system
• 15” Scorpion® Plus HO woofer with
field-replaceable basket
• RX™22 compression driver with
ferrofluid cooling
• Patented Quadratic Throat
Waveguide™ technology
• Asymmetrical horn aims the sound
down 10˚ (at the audience, not over
their heads)
• 800 watts program, 1600 watts peak
• Sound Guard™ III tweeter protection
• Full-range inputs include a four-pin
twist lock connector and two 1/4”
phone jacks
• Trapezoidal enclosure
• Stand-mount adapter
SPECIFICATIONS SP™ 5BX
Description
The SP 5BX is a two-way speaker
system comprised of a high output
15” Scorpion® Plus HO woofer with
a Kevlar®-impregnated cone and an
RX™ 22 compression driver loaded
onto a patented Quadratic Throat
Waveguide™.
The SP 5BX has a trapezoidal-shaped
enclosure, which reduces the
buildup of standing waves
inside the enclosure to minimize
mid-bass and midrange coloration.
The enclosure is constructed of
a hardwood panel coated with
Peavey’s heavy-duty HammerHead™
UV stabilized polyurea finish
for increased durability and
ruggedness. A full-length,
wrap-around perforated steel grille
protects the front of the enclosure.
A built-in SA-1 stand-mount adapter
accommodates speaker stand use.
The low frequencies are supplied
by a 15” Scorpion Plus HO woofer
with a Kevlar-impregnated cone
and a highly linear suspension. The
high frequencies are handled by
a 2” RX 22 titanium diaphragm
compression driver utilizing
ferrofluid cooling. This superb driver
is coupled to a Quadratic Throat
Constant Directivity Waveguide
(U.S. Patent #6,059,069) to
provide smooth, even response,
low distortion and good high
frequency dispersion. This horn
has an asymmetrical vertical polar
response, aiming the main energy
lobe down 10 degrees so it is aimed
at the audience instead of over their
heads. This helps reduce ceiling
reflections, ensuring greater clarity
and gain before feedback. The
RX22 driver features the Radialinear
Planar Phase Correction System
(U.S. Patent #6,064,745), which
provides smooth and extended high
frequency response.
Input connection to the system is
made via two 1/4” phone jacks and
one four-pin twist lock connector
in parallel. The internal passive
crossover features Sound Guard™
III tweeter protection circuit and an
advanced topology crossover with
high-performance components to
provide high power handling and
reliability.
Sound Guard, Peavey’s proprietary
high frequency driver protection
circuitry, provides long- and
medium-term driver overload
protection without impairing musical
transients or dynamics when the
system is used full range. The
crossover provides driver roll-off
and protection as well as driver
EQ for the woofer and horn for a
clean, clear and smooth response.
High-quality, reliable crossover
components include polypropylene
capacitors and high-current
inductors. The optimal integration
of the crossover with the selected
drivers results in a smooth frequency
response from 69 Hz to 17 kHz.
Despite its compact dimensions,
this system can produce very high
sound levels and handle 800 watts
program power, resulting in clean
coverage with high articulation and
long-term reliability.
Frequency response
This measurement is useful in
determining how accurately a given
unit reproduces an input signal. The
frequency response of the SP 5BX is
measured at a distance of 1 meter
using a 1 watt (into the nominal
impedance) swept-sine input signal.
As shown in figure 1, the selected
drivers in the SP 5BX combine to
give a smooth frequency response
from 69 Hz to 17 kHz.
Power handling
There are many different approaches
to power handling ratings. Peavey
rates this loudspeaker system’s
power handling using a full-range
form of the AES Standard 2-1984.
Using audio band 20 Hz to 20 kHz
pink noise with peaks of four times
the RMS level, this strenuous test
signal assures the user that every
portion of this system can withstand
today’s high technology music.
This rating is contingent upon
having a minimum of 3 dB amplifier
headroom available.
Harmonic distortion
Second and third harmonic
distortions vs. frequency are plotted
in figures 3 & 4 for two power
levels. Ten percent (10%) of rated
input power and either one percent
(1%) of rated input power or 1 watt,
whichever is greater. Distortion
is read from the graph as the
difference between the fundamental
signal (frequency response) and the
desired harmonic. As an example, a
distortion curve that is down 40 dB
from the fundamental is equivalent
to 1% distortion.
Mounting
This unit is not designed for
overhead suspension. The SA-1
stand-mount adapter may be
incorporated, and four large rubber
feet are included on the bottom for
floor use.
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
60
70
80
90
100
110
dB SPL (re 20 Pa)
Amplitude Response (1W 1m On-Axis)
Figure 1
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
1
2
3
5
10
20
30
50
100
Impedance
Z
(
)
Figure 2
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
40
50
60
70
80
90
100
110
dB SPL (re 20 Pa)
Harmonic Distortion :1% Rated Power
Figure 3
3rd Harmonic
2nd Harmonic
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
50
60
70
80
90
100
110
120
dB SPL (re 20 Pa)
Harmonic Distortion : 10% Rated Power
Figure 4
3rd Harmonic
2nd Harmonic
SPECIFICATIONS SP™ 5BX
Architectural & Engineering
Specifications
The loudspeaker system shall have
an operating bandwidth of 69 Hz
to 17 kHz. The nominal output level
shall be 99.0 dB when measured at a
distance of one meter with an input
of 1 watt. The nominal impedance
shall be 8.0 ohms. The maximum
continuous power handling shall be
400 Watts, with maximum program
power of 800 watts, peak power
input of at least 1,600 watts and
a minimum amplifier headroom
of 3 dB. The nominal radiation
geometry shall be 90 degrees
symmetrical about the center axis
in the horizontal plane, and +10,
-30 degrees about the center axis
in the vertical plane. The outside
dimensions shall be 28.188” inches
high by 20.5 inches wide by 17.325
inches deep. The weight shall be
68.2 lbs. The loudspeaker system
shall be a Peavey model SP™5.
3 + 2 Year Limited Warranty
NOTE: For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898,
Meridian, Mississippi 39301-2898.
SPECIFICATIONS SP™ 5BX
SP 5BX Input Plate
80305762
Features and specifications are subject to change without notice.
Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305 • (601) 483-5365 • www.peavey.com
©2011 Printed in the U.S.A. 03/11
PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY
Effective Date: 11/01/2011
What This Warranty Covers
Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.
What This Warranty Does Not Cover
The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring
during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or
removed; (5) products not purchased from an Authorized Peavey Dealer.
Who This Warranty Protects
This Warranty protects only the original purchaser of the product.
How Long This Warranty Lasts
The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:
Product Category Duration
Guitars/Basses, Amplifiers, Preamplifiers, Mixers, Electronic Crossovers and Equalizers 2 years *(+ 3 years)
Drums 2 years *(+ 1 year)
Enclosures 3 years *(+ 2 years)
Digital Effect Devices and Keyboards and MIDI Controllers 1 years *(+ 1 year)
Microphones 2 years
Speaker Components 1 year
(incl. Speakers, Baskets, Drivers, Diaphragm Replacement Kits and Passive Crossovers)
Tubes and Meters 90 Days
Cables Limited Lifetime
AmpKit Link, Xport, Rockmaster Series, Strum’n Fun, RetroFire, GT & BT Series Amps 1 year
Marvel Jr. Guitar 90 Days
[* Denotes additional Warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]
What Peavey Will Do
We will repair or replace (at Peavey’s discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for
Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.
How To Get Warranty Service
(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center.
OR
(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301. Include a detailed description
of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of Warranty coverage. Also provide a complete return address.
Limitation of Implied Warranties
ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF
THIS WARRANTY.
Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.
Exclusions of Damages
PEAVEY’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY’S OPTION. IF WE ELECT TO REPLACE THE
PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS,
LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR
OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
If you have any questions about this Warranty or services received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International
Service Center at (601) 483-5365.
Features and specifications are subject to change without notice.
Logo referenced in Directive 2002/96/EC Annex IV
(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005
The bar is the symbol for marking of new waste and
is applied only to equipment manufactured after
13 August 2005
U.S. CUSTOMER WARRANTY REGISTRATION
Optional Product Extended Warranty Registration
Give us some information and put your extended warranty into effect!
9. How would you describe your level of musicianship/technical expertise?
1.
First Name Initial Last Name
Street Address
City State/Province Postal Code
( )
Telephone Number E-mail Address
( ) - Fax Number Date of birth
2.
Model Serial #
Date of Purchase Price Paid
3.
Name of store where purchased
City State
4. Top two (2) reasons why you purchased from this store/dealer:
8. Which other brands/models did you consider?
❒ Past favorable experience
❒ Best price
❒ Advertised special
❒ Convenient location
❒ Received as a gift
❒ Other
❒ Availability of product
❒ Friend/Relative’s recommendation
❒ Store credit card
❒ Knowledgeable staff
❒ Availability of lessons
❒ Technical instruction
6. What two (2) factors most influenced your purchase of this product?
❒ Peavey brand name
❒ Craftsmanship
❒ Features for price
❒ Bundled accessories
❒ Sound quality
❒ Product appearance
❒ Durability
❒ Prior experience with Peavey
❒ Packaging
❒ Other
❒ Beginner - Never played or taken less than one (1) year of lessons
❒ Intermediate - One (1) to five (5) years of lessons or playing
❒ Advanced - More than five (5) years of lessons or playing; play professionally
10. Education: (select best answer)
❒ High school
❒ Some college
❒ Completed college
❒ Graduate school
Gender ❒ M ❒ F
11. Which best describe your family income? (select best answer)
12. Which of the following is your primary source of information on musical
products: (select best answer)
Please take a few minutes to fill out this information/survey sheet to help us get to know and serve you better.
To save time, submit your warranty registration online at www.peavey.com/support/warrantyregistration
❒ Under $15,000
❒ $15,000 - $24,999
❒ $25,000 - $34,999
❒ $35,000 - $49,999
❒ $50,000 - $74,999
❒ Television
❒ Radio
❒ Internet
❒ Newspaper
❒ Magazines
❒ Mail order catalogs
❒ Direct mail
❒ Literature from manufacturer
❒ Other
❒ $75,000 - $99,999
❒ $100,000 - $149,999
❒ Over - $150,000
13. What is your main motivation for buying new equipment?
❒ Replacing old product
❒ Want new and leading edge
equipment
❒ Fullfill a specific need
❒ Supplement existing products
❒ Value
❒ Impulse
❒ Need for improved performance
❒ New technology
❒ Availability of product
❒ Other
7. How did you learn about this Peavey product? (select best answer)
❒ Magazine review
❒ Newspaper review
❒ Radio advertisement
❒ Advertised special
❒ Friend/Relative’s recommendation
❒ Salesperson’s recommendation
❒ Teacher’s recommendation
❒ Catalog or flyer
❒ Saw in store
❒ Use by professional
❒ Other
15. In your opinion, what could Peavey do to improve its products and/or service? Please use the space below to tell us your answer.
Thank you for taking the time to fill out our survey! Don’t forget to fold and tape
(with Peavey address facing out), affix postage stamp and drop in the mail!
5. Where do you most often shop for music and sound products?
❒ Independent retailer
❒ Mass market retailer
❒ Mail order magazines
❒ Newspaper ads
❒ Internet/Web sites
❒ Other
Revised 1/11
14. Please list your three most frequently visited Web sites.
1. http://__________________________________________
2. http://__________________________________________
3. http://__________________________________________
Logo referenced in Directive 2002/96/EC Annex IV
(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005
The bar is the symbol for marking of new waste and
is applied only to equipment manufactured after
13 August 2005
Peavey Electronics
Corporation
Attn: Warranty Department
P.O. Box 5108
Meridian, Ms 39302-5108
FROM:
Place
Postage
Here
Loading...
