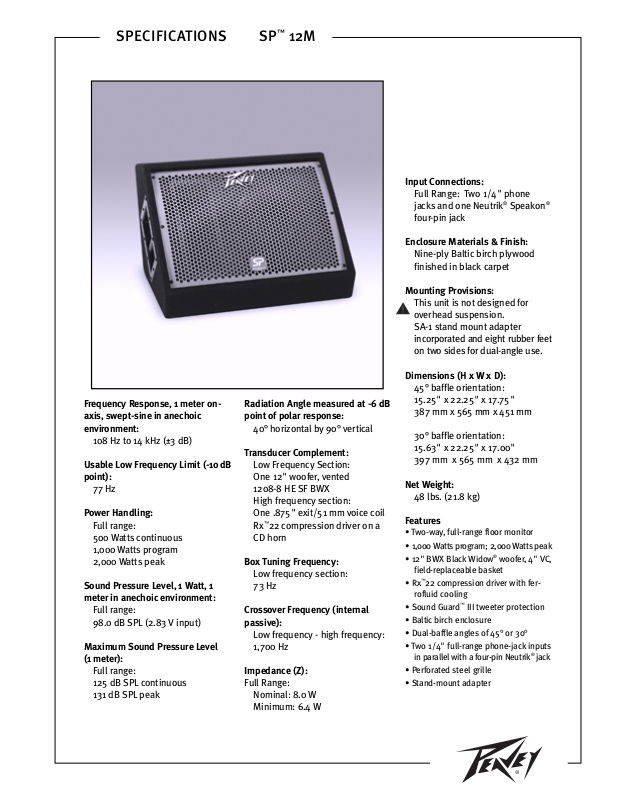

Peavey SP 12M DATASHEET
Frequency Response, 1 meter onaxis, swept-sine in anechoic
environment:
108 Hz to 14 kHz (±3 dB)
Usable Low Frequency Limit (-10dB
point):
77 Hz
Power Handling:
Full range:
500 Watts continuous
1,000 Watts program
2,000 Watts peak
Sound Pressure Level, 1 Watt, 1
meter in anechoic environment:
Full range:
98.0 dB SPL (2.83 V input)
Maximum Sound Pressure Level
(1 meter):
Full range:
125 dB SPL continuous
131 dB SPL peak
Radiation Angle measured at -6 dB
point of polar response:
40° horizontal by 90° vertical
Transducer Complement:
Low Frequency Section:
One 12" woofer, vented
1208-8 HE SF BWX
High frequency section:
One .875" exit/51 mm voice coil
Rx
™
22 compression driver on a
CD horn
Box Tuning Frequency:
Low frequency section:
73 Hz
Crossover Frequency (internal
passive):
Low frequency - high frequency:
1,700 Hz
Impedance (Z):
Full Range:
Nominal: 8.0 W
Minimum: 6.4 W

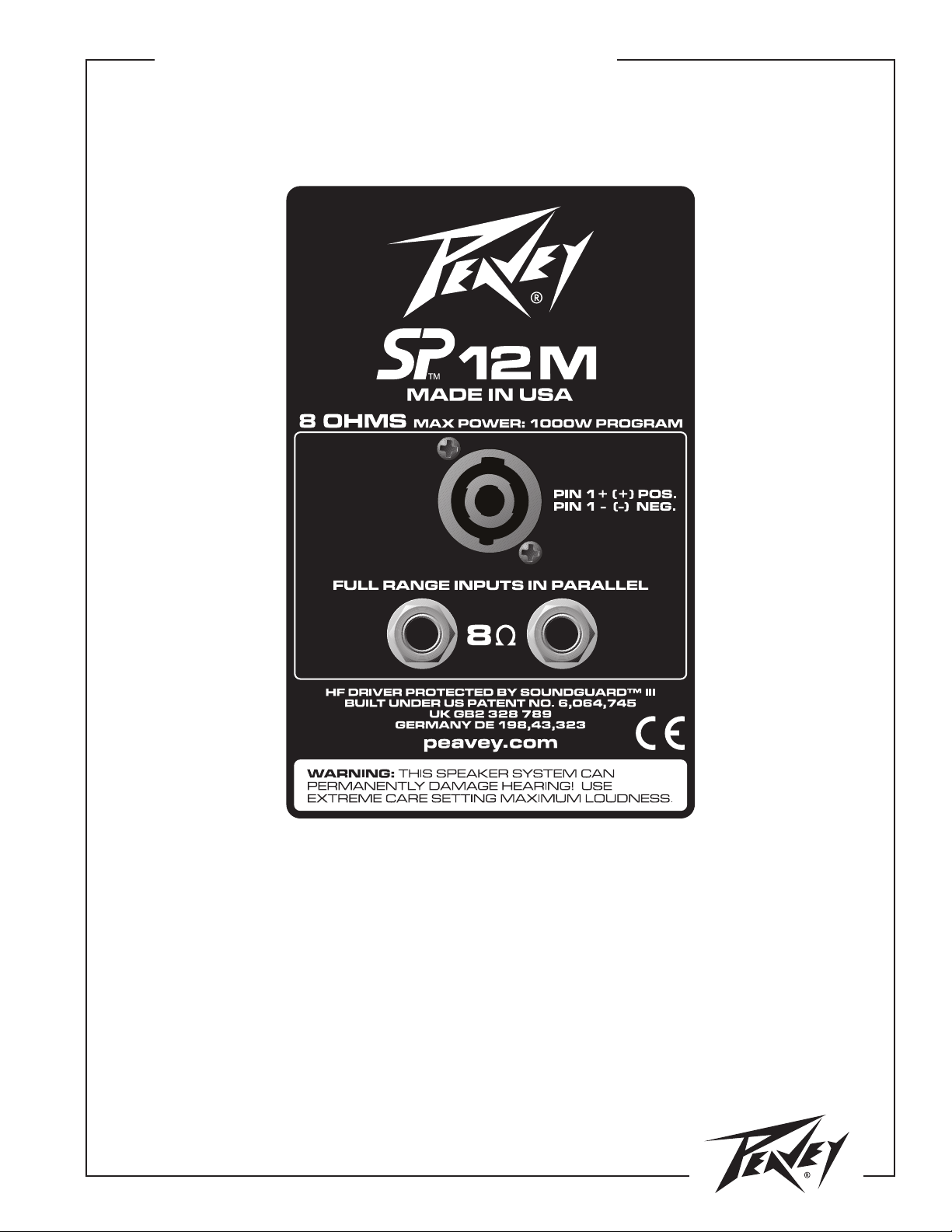

Input Connections:
Full Range: Two 1/4" phone
jacks and one Neutrik
®
Speakon
®
four-pin jack
Enclosure Materials & Finish:
Nine-ply Baltic birch plywood
finished in black carpet
Mounting Provisions:
This unit is not designed for
overhead suspension.
SA-1 stand mount adapter
incorporated and eight rubber feet
on two sides for dual-angle use.
Dimensions (H x W x D):
45° baffle orientation:
15.25" x 22.25" x 17.75"
387 mm x 565 mm x 451 mm
30° baffle orientation:
15.63" x 22.25" x 17.00"
397 mm x 565 mm x 432 mm
Net Weight:
48 lbs. (21.8 kg)
Features
• Two-way, full-range floor monitor
• 1,000 Watts program; 2,000 Watts peak
• 12" BWX Black Widow
®
woofer, 4" VC,
field-replaceable basket
• Rx™22 compression driver with ferrofluid cooling
• Sound Guard
™
III tweeter protection
• Baltic birch enclosure
• Dual-baffle angles of 45° or 30°
• Two 1/4" full-range phone-jack inputs
in parallel with a four-pin Neutrik
®
jack
• Perforated steel grille
• Stand-mount adapter
SPECIFICATIONS SP™12M
SPECIFICATIONS SP™12M
Description
The new SP 12M is a two-way
floor monitor speaker system
comprised of a 12" Black Widow
®
spider-frame BWX woofer with a
Kevlar
®
/carbon fiber-impregnated
cone and an enclosure made from
nine-ply Baltic birch. The
thoroughly braced cabinet is
covered with a durable black
carpet and provided with a heavy
duty perforated steel grille with a
dark grey powder coating. An SA1 stand mount adapter is built in
for side-fill or PA use.
The low frequencies are provided
by the 12" Black WidowBWX SF
woofer with a Kevlar
®
/carbon
fiber-impregnated cone and dust
cap. Capable of over 500 Watts of
continuous power handling (AES
Std 2-1984), the woofer can
handle a lot of power, which also
results in very low power
compression. The high
frequencies are handled by a 2"
Rx™22 titanium diaphragm
compression driver utilizing
ferrofluid cooling. This superb
driver is coupled to a constant
directivity horn with smooth,
even response and good high
frequency dispersion. The Rx™22
driver features the Radialinear
Planar Phase Correction System
(U.S. Patent 6,064,745), which
provides smoother and extended
high frequency response.
Input connection to the system is
made via two 1/4" phone jacks
and a four-pin Neutrik®in
parallel. The internal passive
crossover features the Sound
Guard™III tweeter protection
circuit and an advanced topology
crossover with high performance
components to provide high
power handling and reliability.
Sound Guard
™
,Peavey’s
proprietary high-frequency driver
protection circuitry, provides
long- and medium-term driver
overload protection without
impairing musical transients or
dynamics. The crossover
provides driver roll off and
protection as well as driver EQ for
the woofer and horn for clean,
clear, smooth response. High
quality, reliable crossover
components include
polypropylene capacitors and
high current inductors. The
optimal integration of the
crossover with the selected
drivers results in a smooth
frequency response from 108 Hz
to 14 kHz, making it highly
appropriate for monitor
applications.
Despite its compact dimensions,
this system can put out some
very high sound levels and
handle 1000 Watts of undistorted
amplifier power program,
resulting in clean monitoring with
high articulation and reliability.

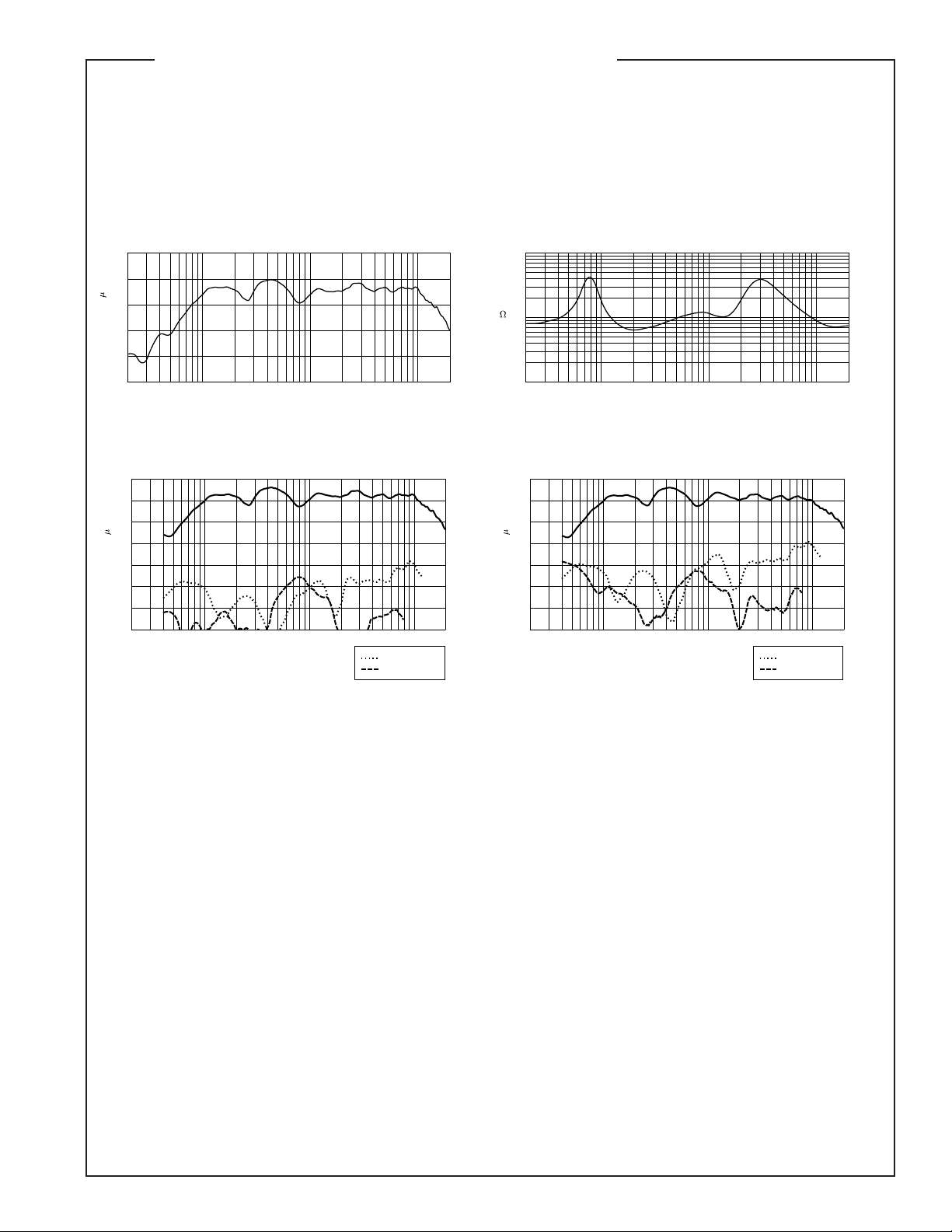

Frequency Response
This measurement is useful in
determining how accurately a
given unit reproduces an input
signal. The frequency response of
the SP 12M is measured at a
distance of 1 meter using a 1 Watt
(into the nominal impedance)
swept-sine input signal. As
shown in figure 1, the selected
drivers in the SP 12M combine to
give a smooth frequency
response from 108 Hz to 14 kHz.
Power Handling
There are many different
approaches to power handling
ratings. Peavey rates this
loudspeaker system's power
handling using a full-range form
of the AES Standard 2-1984.
Using audio band 20 Hz to 20
kHz pink noise with peaks of four
times the RMS level, this
strenuous test signal assures the
user that every portion of this
system can withstand today's
high technology music. This
rating is contingent upon having
a minimum of 3 dB available
amplifier headroom.
Harmonic Distortion
Second and third harmonic
distortions vs. frequency are
plotted in figures 3 & 4 for two
power levels. Ten percent (10%)
of rated input power and either
one percent (1%) of rated input
power or 1 watt, whichever is
greater. Distortion is read from
the graph as the difference
between the fundamental signal
(frequency response) and the
desired harmonic. As an
example, a distortion curve that
is down 40 dB from the
fundamental is equivalent to 1%
distortion.
Mounting
This unit is not designed for over
head suspension. Includes builtin SA-1 stand mount adapter.
Eight rubber feet on two sides
enable dual-angle use.
Architectural & Engineering
Specifications
The loudspeaker system shall
have an operating bandwidth of
108 Hz to 14 kHz. The nominal
output level shall be 98 dB when
measured with an input of one
Watt. The nominal impedance
shall be 8 ohms. The maximum
continuous power handling shall
be 500 Watts with maximum
program power of 1000 Watts, a
peak power input of at least
2,000 Watts and a minimum
amplifier headroom of 3 dB. The
nominal radiation geometry shall
be 40 degrees in the horizontal
plane, and 90 degrees in the
vertical plane. The outside
dimensions shall be 15.25" high
by 22.25" wide by 17.75" deep
with the unit in the 45° baffle
orientation. The weight shall be
48 lbs. The loudspeaker system
shall be a Peavey model SP 12M.
3 + 2 Year Limited Warranty
NOTE: For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898,
Meridian, Mississippi 39301-2898.
