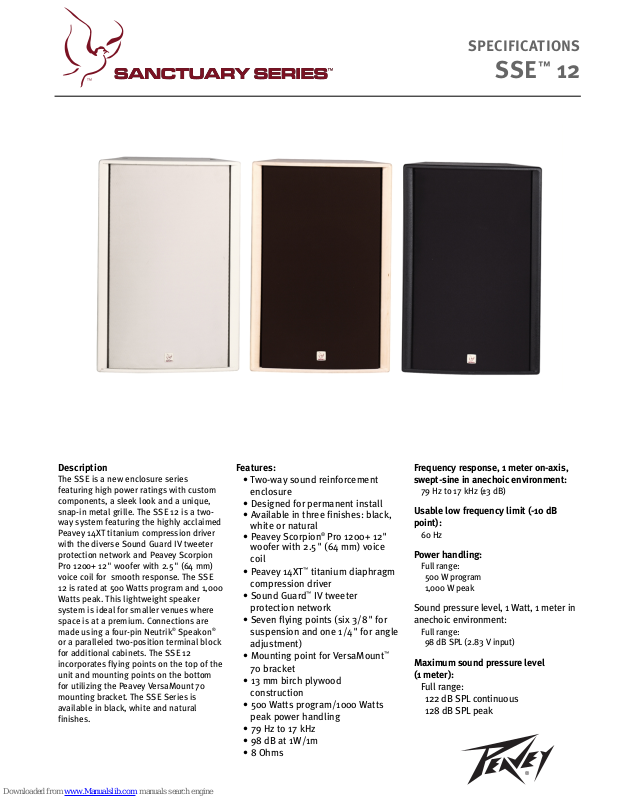

SPECIFICATIONS
SSE™12
Description
The SSE is a new enclosure series
featuring high power ratings with custom
components, a sleek look and a unique,
snap-in metal grille. The SSE 12 is a twoway system featuring the highly acclaimed
Peavey 14XT titanium compression driver
with the diverse Sound Guard IV tweeter
protection network and Peavey Scorpion
Pro 1200+ 12" woofer with 2.5" (64 mm)
voice coil for smooth response. The SSE
12 is rated at 500 Watts program and 1,000
Watts peak. This lightweight speaker
system is ideal for smaller venues where
space is at a premium. Connections are
made using a four-pin Neutrik
®
Speakon
®
or a paralleled two-position terminal block
for additional cabinets. The SSE 12
incorporates flying points on the top of the
unit and mounting points on the bottom
for utilizing the Peavey VersaMount70
mounting bracket. The SSE Series is
available in black, white and natural
finishes.
Features:
• Two-way sound reinforcement
enclosure
• Designed for permanent install
• Available in three finishes: black,
white or natural
• Peavey Scorpion
®
Pro 1200+ 12"
woofer with 2.5" (64 mm) voice
coil
• Peavey 14XT
™
titanium diaphragm
compression driver
• Sound Guard™IV tweeter
protection network
• Seven flying points (six 3/8" for
suspension and one 1/4" for angle
adjustment)
• Mounting point for VersaMount
™
70 bracket
• 13 mm birch plywood
construction
• 500 Watts program/1000 Watts
peak power handling
• 79 Hz to 17 kHz
• 98 dB at 1W/1m
• 8 Ohms
Frequency response, 1 meter on-axis,
swept-sine in anechoic environment:
79 Hz to 17 kHz (±3 dB)
Usable low frequency limit (-10 dB
point):
60 Hz
Power handling:
Full range:
500 W program
1,000 W peak
Sound pressure level, 1 Watt, 1 meter in
anechoic environment:
Full range:
98 dB SPL (2.83 V input)
Maximum sound pressure level
(1 meter):
Full range:
122 dB SPL continuous
128 dB SPL peak
2
Radiation angle measured at -6 dB
point of polar response:
500 Hz to 1.6 kHz:
Horiz. 110˚ ± 15˚
Vert. 120˚ ± 30˚
1.6 kHz to 5 kHz:
Horiz. 75˚ ± 15˚
Vert. 70˚ ± 25˚
5 kHz to 16 kHz:
Horiz. 85˚ ± 15˚
Vert. 40˚ ± 10˚
Directivity factor, Q (Mean):
10.27 ± 6.07
Directivity index, Di (Mean):
9.38 dB ± 2.57 dB
Transducer complement:
Low Frequency Section:
Peavey Scorpion
®
Pro 1200+ 12" woofer
with 2.5" (64 mm) voice coil
High Frequency Section:
Peavey 14XT
™
titanium diaphragm
compression driver on a 90° x 40°
constant directivity horn
Box tuning frequency:
Low frequency section:
74 Hz
Harmonic distortion:
1% rated power
Second harmonic:
100 Hz: 0.32%
1 kHz: 0.10%
Third harmonic:
100 Hz: 0.40%
1 kHz: 0.22%
1
0% rated power
Second harmonic:
100 Hz: 0.56%
1 kHz: 0.79%
Third harmonic:
100 Hz: 0.79%
1 kHz: 0.25%
Electro-acoustic crossover frequency
(internal passive):
2.8 kHz
Impedance (Z):
Full range:
Nominal: 8 Ω
Minimum: 5.1 Ω
Input Connection:
1 four-Pin Neutrik®Speakon®in parallel
with one 1-position terminal strip
Enclosure materials and finish
Trapezoidal, dado-joined 13 mm birch
enclosure finished with a textured acrylic
polyurethane with a full length metal
grille covered and acoustical-grade grille
cloth. Available in black, white or natural
finishes.
Mounting provisions:
(6) 3/8"-16 threaded mounting
suspension points (three each top and
one each side and back). Use only
forged shoulder machinery eye bolt,
Mil Spec MIL51937-3. (1) 1/4"-20
threaded mounting point on back
bottom for angle adjustments.
(4) 1/4"-20 threaded mounting points
on bottom to accommodate use of
VersaMount
™
70 adjustable mounting
bracket.
DO NOT suspend this unit upside
down using VersaMount system.
Dimensions (H x W x D):
Front:
24.5" x 17.43" x 13.20"
622 mm x 443 mm x 335 mm
Rear:
24.5" x 13.14" x 13.20"
622 mm x 334 mm x 335 mm
Net Weight:
40 lbs. (18.1 kg)
Frequency response
This measurement is useful in determining
how accurately a given unit reproduces an
input signal. The frequency response of
the SSE 12 is measured at a distance of 1
meter using a 1 Watt (into the nominal
impedance) swept-sine input signal. As
shown in figure 1, the selected drivers in
the SSE 12 combine to give a smooth
frequency response from 79 Hz to 17 kHz.
Directivity
Beamwidth is derived from the -6 dB
points from the polar plots (see figure 3)
which are measured in a whole space
anechoic environment. Q and Directivity
Index are plotted for the on-axis
measurement position. These
specifications provide a reference to the
coverage characteristics of the unit and
provide insight into proper placement and
installation in the chosen environment.
The blending of the components of the
SSE 12 exhibit a desirable beamwidth and
directivity (figures 3 & 4) suitable for
sound reinforcement applications.
Power handling
There are many different approaches to
power handling ratings. Peavey rates this
loudspeaker system’s power handling
using a full-range form of the AES
Standard 2-1984. Using audio band 20 Hz
to 20 kHz pink noise with peaks of four
times the RMS level, this strenuous test
signal assures the user that every portion
of this system can withstand today’s high
technology music. This rating is contingent
upon having a minimum of 3 dB of
amplifier headroom available.
Harmonic distortion
Second and third harmonic distortions vs.
frequency are plotted in figures 5 & 6 for
two power levels. Ten percent (10%) of
rated input power and either one percent
(1%) of rated input power or 1 Watt,
whichever is greater. Distortion is read
from the graph as the difference between
the fundamental signal (frequency
response) and the desired harmonic. As an
example, a distortion curve that is down
40 dB from the fundamental is equivalent
to 1% distortion.
Mounting
Caution: Before attempting to suspend or
mount this speaker, consult a certified
structural engineer. The speaker may fall
due to improper installation, resulting in
serious injury and property damage. DO
NOT suspend or mount any other product
or device from this enclosure. The
maximum enclosure angle is 45°. Use only
Grade 5 hardware or better. All associated
rigging is the responsibility of others.
Architectural and Engineering
Specifications
The loudspeaker system shall have an
operating bandwidth of 79 Hz to 17 kHz.
The nominal output level shall be 98 dB
when measured at a distance of 1 meter
with an input of 1 Watt. The nominal
impedance shall be 8 Ohms. The maximum
program power handling shall be 500
Watts with a peak power input of at least
1000 Watts and a minimum amplifier
headroom of 3 dB. The nominal radiation
geometry shall be 90˚ in the horizontal
plane and 40˚ in the vertical plane. The
outside dimensions shall be 24.5" high by
17.43" wide by 13.20" deep. The weight
shall be 40 lbs. The loudspeaker system
shall be a model SSE 12.
3 + 2 YEAR LIMITED WARRANTY
NNOOTTEE::
For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898, Meridian,
Mississippi 39301-2898.
SSPPEECCIIFFIICCAATTIIOONNSS SSSSEE™™1122
3
SPECIFICATIONS
SSE™12
3
Amplitude Response (1W 1m On-Axis)
110
100
90
80
dB SPL (re 20 Pa)
70
60
20 50 100 200 500 1k 2k 5k 10k 20k
Figure 1
100
50
30
20
Z
(
)
10
5
3
2
1
20 50 100 200 500 1k 2k 5k 10k 20k
Figure 2
Frequency (Hz)
Impedance
Frequency (Hz)
360
300
180
140
100
80
60
40
Beamwidth (Degrees)
30
20 50 100 200 500 1k 2k 5k 10k 20k
Figure 3
100
Q
10
1
20 50 100 200 500 1k 2k 5k 10k 20k
Figure 4
Horizontal
Vertical
Beamwidth
Frequency (Hz)
Q & Directivity Index
Frequency (Hz)
20
Di
10
0
4
Harmonic Distortion : 10% Rated Power
120
110
100
90
80
70
dB SPL (re 20 Pa)
60
50
20 50 100 200 500 1k 2k 5k 10k 20k
Figure 5
Frequency (Hz)
2nd Harmonic
3rd Harmonic
Harmonic Distortion : 1% Rated Power
110
100
90
80
70
60
dB SPL (re 20 Pa)
50
40
20 50 100 200 500 1k 2k 5k 10k 20k
Figure 6
Frequency (Hz)
2nd Harmonic
3rd Harmonic
