Model: Raptor® Plus

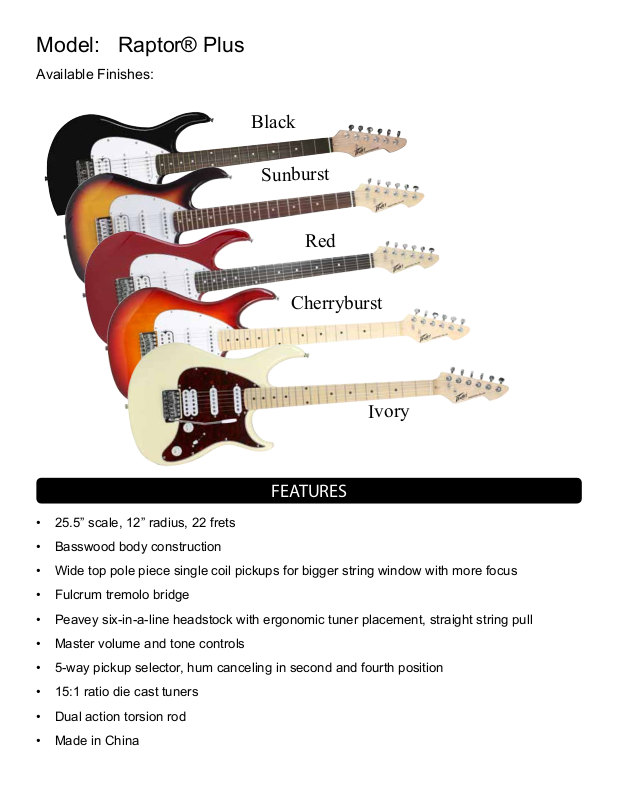

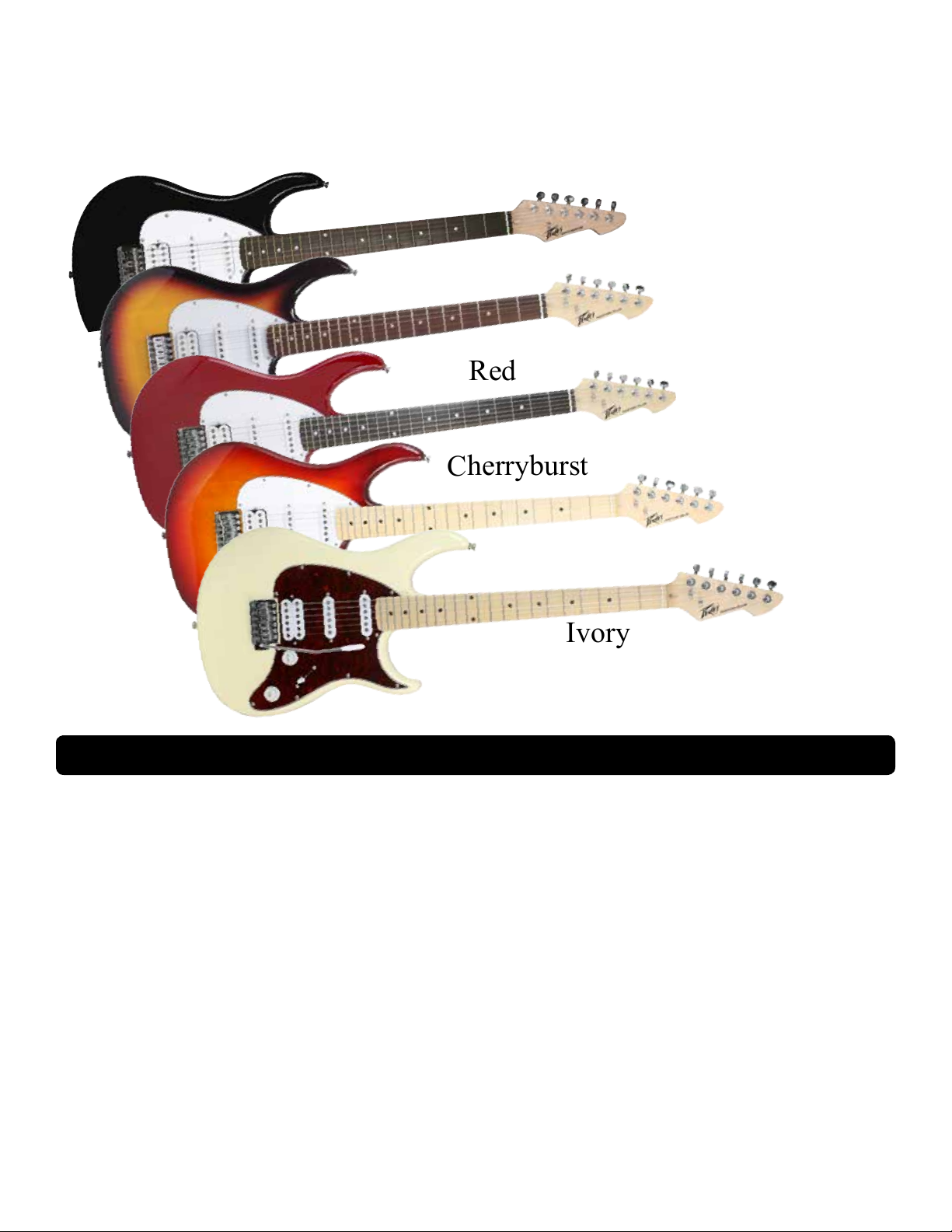

Available Finishes:
Black
Sunburst
Red
Cherryburst
Ivory
FEATURES
• 25.5” scale, 12” radius, 22 frets
• Basswood body construction
• Wide top pole piece single coil pickups for bigger string window with more focus
• Fulcrum tremolo bridge
• Peavey six-in-a-line headstock with ergonomic tuner placement, straight string pull
• Master volume and tone controls
• 5-way pickup selector, hum canceling in second and fourth position
• 15:1 ratio die cast tuners
• Dual action torsion rod
• Made in China
Page 2
SPECIFICATIONS
Neck Material: Maple
Neck Type: Bolt on
Hardware Color: Chrome
B o d y W o o d : S o l i d b a s s w o o d
Fingerboard: Rosewood
Inlays: 6mm white dots

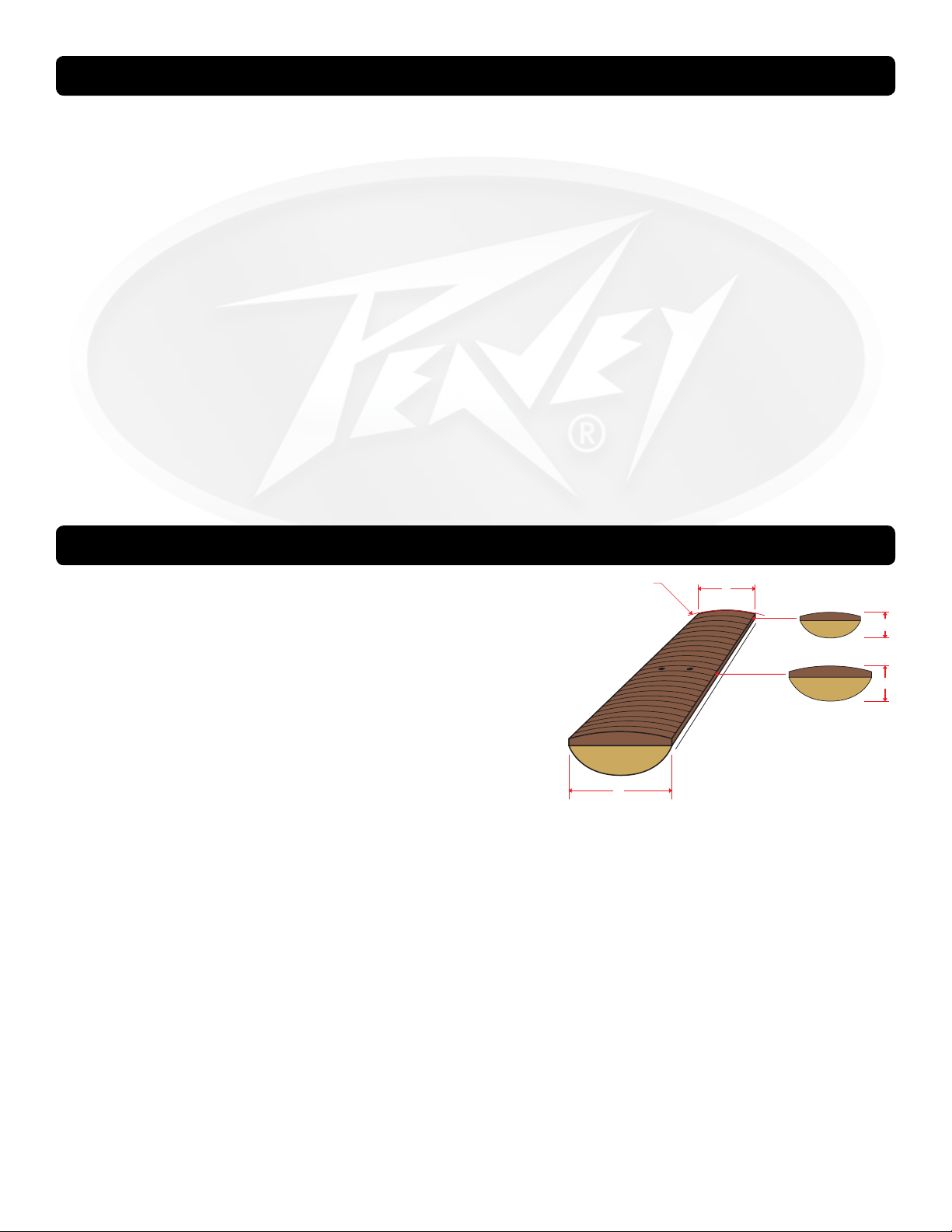

NECK DIMENSIONS
Frets: 22-frets 2.5mm wide x 1.1mm tall
Bridge: Fulcrum Tremolo
Neck Pickup: Single Coil
Middle Pickup: Single Coil
Bridge Pickup: Dual Coil Humbucker
Scale/Length: 25.5”, 22 frets
RADIUS
a. Width at Nut: 1.65” (42mm)
b. Width at Last Fret: 2.25” (57.5 mm)
c. Thickness at 1st Fret: .768” (19.5mm)
d. Thickness at 12th Fret: .846” (21.5mm)
Radius: 12”
B
A
C
D
Page 3
BRIDGE PICKUP
Peavey® USA Design
Construction: Dual exposed coil
Magnet Type: Ceramic 5 magnet, wide magnetic pole pieces
Description: 11k dc. 4 conductor shielded hookup wire. High output with enhanced presence. Cali-
brated for bridge position and harmonically placed.
MIDDLE PICKUP
Peavey USA Design
Construction: Single coil
Magnet Type: Ceramic 5 bar with wide magnetic pole pieces
Description: 9k dc. Calibrated for mid position for warmth and clarity. Adjusted inductance to
retain vintage tone with more sensitive response.
NECK PICKUP
Peavey USA Design
Construction: Single coil
Magnet Type: Ceramic 5 bar with wide magnetic pole pieces
Description: 7.5k dc. Calibrated for neck position for enhanced clarity and attack for chording as
well as solo work. Harmonically placed for neck position. Inductance adjusted to retain vintage tone.
Page 4
NECK
MIDDLE
BRIDGE

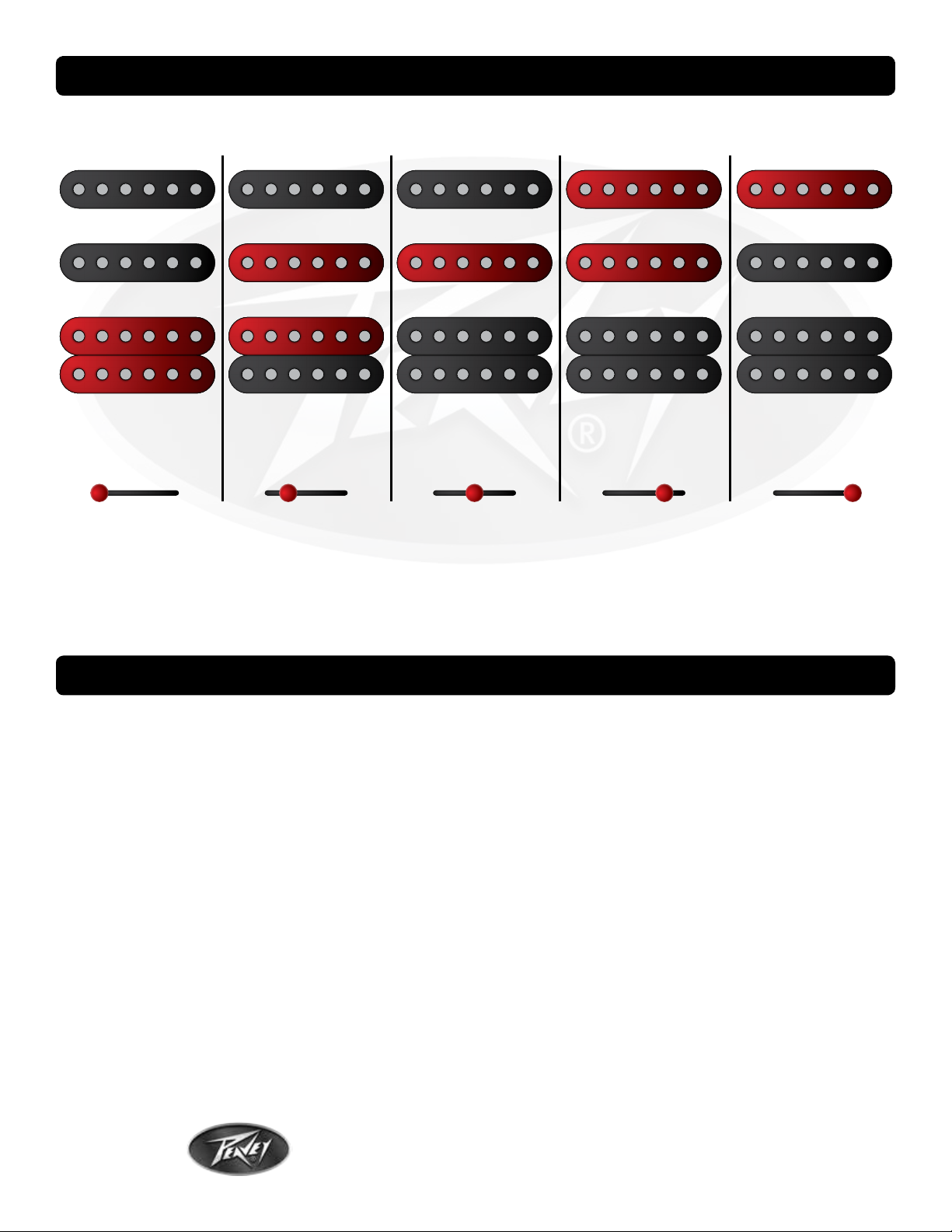

RAPTOR® PLUS PICKUP SWITCHING
B NMBM MN
SELECTOR POSITION
B NMBM MN B NMBM MN B NMBM MN B NMBM MN
AVAILABLE CASES/BAGS
Peavey Part #00444840 Rectangular Guitar Case
Peavey Part #00478950 Molded Electric Guitar Case
Peavey Part #00722780 Nylon Guitar Bag
Thank you for purchasing genuine peavey® produc Ts!
