Peavey PZS 140 User Manual

SPECIFICATIONS

FEATURES:

¥ Five input channels
¥ Four zones
¥ 35 watt output per zone
¥ Two XLR low-Z mic inputs (balanced)
¥ Detachable input connector for Low-Z

mic and High-Z line on each channel
¥ Signal LED indicator for each channel
¥ Channel level control
¥ Low and high active EQ each channel
¥ Four zone assignment switches each

channel

¥ Front panel adjustable threshold and

paging hold on channels 1 and 2

¥ Four master output level controls with

signal and clipping LED indicators

¥ Detachable preamp output/power amp

input connector for each zone

¥ Each zone output provides a 4-ohm

direct output and transformer isolated
8-ohm, 25- and 70-volt outputs

¥ Each zone has 600-ohm line level

balanced output
¥ 19" standard rack-mount package
¥ Three rack spaces
¥ Externally accessible main fuse

POWER OUTPUT:

35 W RMS per zone @ less than 1%
(60 Hz to 20 kHz with all four channels
operating)

OUTPUTS:

Speaker: 4 ½ (direct), 8 ½, 25 V and

70 V (isolated)

Line: 600 ½ balanced, 1V RMS

CHANNEL 1 and 2 INPUTS:

Mic: 2k ½, -54 dBu

(1.5 mV, balanced)

Line: >50k ½, -18 dBu

(100 mV, balanced)

XLR Mic: 2k ½, -54 dBu

(1.5 mV, balanced)

CHANNELS 3 - 5 INPUTS:

Mic: 2k ½, -54 dBu

(1.5 mV, unbalanced)

Line: >50k ½, -18 dBu

(100 mV, balanced)

RCA: >50k ½, -18 dBu

(100 mV, unbalanced)

INSERTS:

Send: 1k ½, 2.21 dBu

(1 volt, unbalanced)

Return: 10k ½, 2.21 dBu

(1 volt, unbalanced)

FREQUENCY RESPONSE:

50 Hz to 20 kHz, +0/-2 dB (transformer)

SIGNAL-TO-NOISE RATIO:

Residual: 90 dB below rated power

(channel down, master full up)

Line Inputs: 90 dB below rated

power (controls nominal,
2k ½ terminated)

Mic Inputs: 82 dB below rated

power (controls nominal,
150 ½ terminated)

TONE CONTROLS:

Low EQ: +10/-10 dB @ 100 Hz
High EQ: +10/-10 dB @ 10 kHz

CONTROLS:

Channels 1 and 2:

Level, low EQ, high EQ, four assign
switches, signal presence, LED muting

threshold and adjustable release time.

Channels 3 - 5:

Level, low EQ, high EQ, four assign
switches and signal presence LED

Masters 1 - 4:

Level, signal presence and clipping LEDs

POWER SUPPLY:

Internal, 120 V AC @ 60 Hz
375 watts all channel at full power
175 watts all channel at 1/8 power
Five-amp fuse

DIMENSIONS: (H x W x D)

5.25" x 19" x 15"
(13.3 cm x 48.3 cm x 38.1 cm)

WEIGHT:

34 pounds (15.4 kg)

SPECIFICATIONS

PZSª140

Multi-Zone

Mixer/Amplifier

ARCHITECTURAL ACOUSTICS

¨

DESCRIPTION:

The Peavey Architectural Acoustics
PZSª140 is a five-channel mixing
system with assignment capability
to four independent powered zones.
Each channel offers low and high
equalization, channel level control,
signal presence LED, 48 volt phantom
power and zone assignment
switching. Channels one and two
offer low-Z (XLR) and detachable
screw terminal microphone inputs
(high and low-Z) for paging capability
with channels three through five
offering dual (paralleled) RCA jacks
and detachable screw terminal inputs
(high and low-Z) for use with various
music sources. Additionally, channels
one and two have recessed screw­driver controls for background music
ÒduckingÓ threshold and hold time
adjustments. Each zone has a master
level control, signal presence and clip­ping LED indicator, and detachable
screw terminal connections for pre­amp out/power amp in and balanced
line output. Each zone power amp is
rated at 35 W RMS and provides a

4-ohms (direct output), 8-ohms, 25 V
and 70 V (transformer isolated
outputs).

ARCHITECTURAL AND
ENGINEERING SPECIFICATIONS

:

The mixer amplifier shall have five
input channels each with assignment
capability to four independent
powered zones. Each channel shall
contain low and high frequency equal­ization, a level control, 48 volt phan­tom power, signal presence LED and
zone assignment switches.

Channels one and two shall be config­ured for paging with balanced low-Z
XLR and detachable screw terminal
block inputs (high and low-Z). These
channels shall also have front panel
recessed screw driver controls for
background music ÒduckingÓ threshold
and hold time adjustments. Channels
three through five shall be configured
for use as background music feeds
with dual (paralleled) RCA jacks and
detachable screw terminal inputs

(high and low-Z). All five channels,
however, are capable of being used
with mic or line level sources.

Each zone shall have a master level
control, signal presence and clipping
LED indicators, and detachable screw
terminal connections for preamp out­put/power amp input and balanced
line output. Each zone power amplifier
shall be rated at 35 W RMS continu­ous and shall provide a 4 ohm direct
output and transformer isolated 8
ohm, 25 V and 70 V outputs. The unit
shall be packaged in a rugged metal
chassis 5 1/4" high, 19" wide and 15"
deep, and shall weigh 34 pounds. The
unit shall be rack mountable and will
fit in a standard 19" rack requiring
three rack spaces. The unit shall
operate from 120 V AC 60 Hz power
and consume no more than 375
watts. The unit shall meet or exceed
all the published specifications. The
unit shall be a Peavey Architectural
Acoustics Division model PZS 140
mixer/amplifier.

PZSª140 Dimensions

13.3 cm

5.25"

43.2 cm

19.00"

TOP

FRONT

13.3 cm

15.00"

SIDE

Outputs

PZS

ª

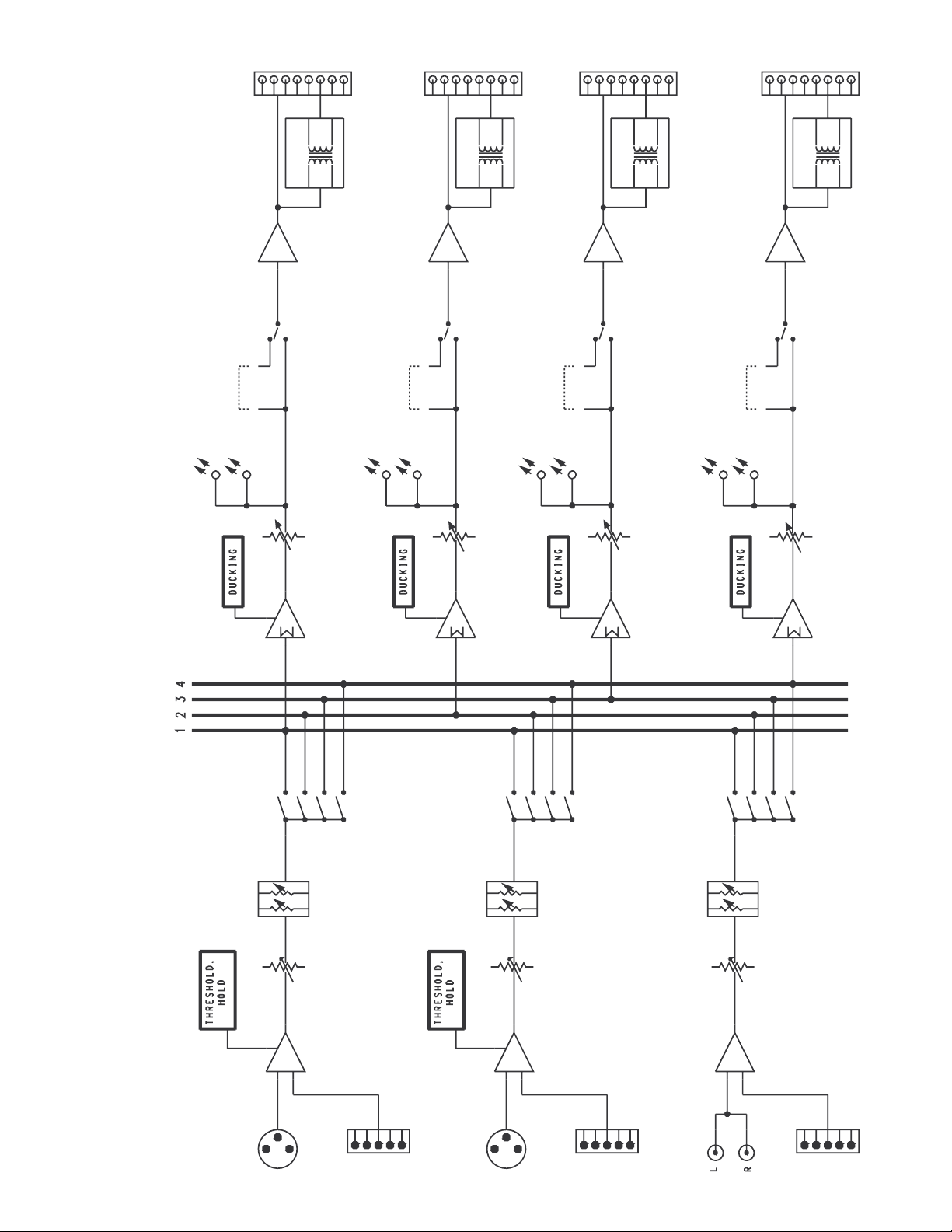

140 BLOCK DIAGRAM

Power AMP

35 Watts RMS

Outputs

X-Former

Outputs

Power AMP

35 Watts RMS

Output

X-Former

Power AMP

35 Watts RMS

Output

X-Former

Power AMP

35 Watts RMS

Output

X-Former

ZONE ONE

Effects Loop

Clip LED

Signal LED

Link Switch

ZONE TWO

Effects Loop

Clip LED

Link Switch

Signal LED

ZONE THREE

Effects Loop

Clip LED

Link Switch

Signal LED

ZONE FOUR

Link Switch

Effects Loop

Clip LED

Signal LED

Assignment

Switches

Mic Input

Two Band EQ

Level

Mic Preamp

XLR

CHANNEL ONE

Assignment

Switches

Mic Input

Two Band EQ

Level

Mic Preamp

XLR

CHANNEL TWO

Assignment

Switches

Two Band EQ

Level

CHANNEL THREE THRU FIVE

Mic Preamp

RCA

Features and specifications subject to change without notice.

A Division of Peavey Electronics Corporations ¥ 711 A Street ¥ Meridian, MS 39301

U.S.A. ¥ [phone] ¥ Fax [phone] ¥ www.peavey.com

©1998 Printed in U.S.A. 7/98

LIMITED WARRANTY

Peavey Electronics Corporation warrants to the original purchaser of this new Architectural Acoustics product that it is free from defects in material and workmanship.
If within one (1) year from date of purchase a properly installed product proves to be defective and Peavey is notified, Peavey will repair or replace it at no charge.
(Note: Batteries and patch cords not covered.) ÒOriginal purchaserÓ means the customer for whom the product is originally installed.

Damage resulting from improper installation, interconnection of a unit or system of another manufacturer, accident or unreasonable use, neglect or any other cause not
arising from defects in material and workmanship is not covered by this warranty. The warranty is valid only as to products purchased and installed in the United States.

THIS LIMITED WARRANTY IS IN LIEU OF ANY ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR USE. UNDER NO CIRCUMSTANCES WILL PEAVEY BE LIABLE FOR ANY PROFITS, LOST SAVINGS, THE PRODUCT, EVEN
IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. THIS LIMITED WARRANTY IS THE ONLY EXPRESSED WARRANTY ON THIS
PRODUCT, AND NO OTHER STATEMENT, REPRESENTATION, WARRANTY, OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING UPON PEAVEY.

PeaveyÕs liability to the original purchaser for damages for any cause whatsoever and regardless of the form of action, is limited to the actual damages up to the greater
of Five Hundred Dollars ($500) or an amount equal to the purchase price of the product that caused the damage or that is the subject of or is directly related to the cause
of action. This limitation of liability will not apply to claims for personal injury or damage to real property or warranty, call a Peavey customer service representative at
[phone].

ARCHITECTURAL ACOUSTICS

¨

PZSª140 Distortion at 35 Watts

PZSª140 Frequency Response

dBr

%

Hz

Hz
