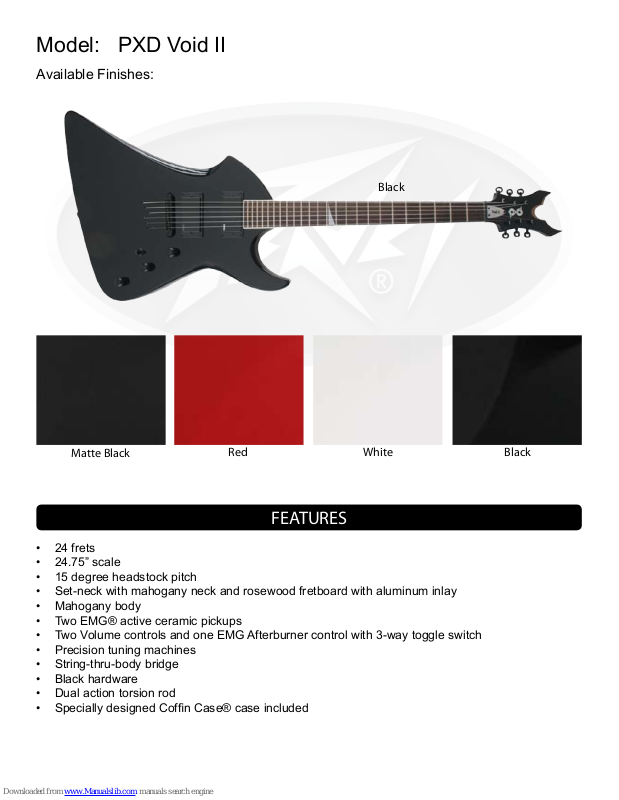

Peavey PXD Void II Specifications
Model: PXD Void II
Available Finishes:
Black
Matte Black
24 frets•
24.75” scale•
15 degree headstock pitch•
Set-neck with mahogany neck and rosewood fretboard with aluminum inlay•
Mahogany body•
Two EMG® active ceramic pickups•
Two Volume controls and one EMG Afterburner control with 3-way toggle switch•
Precision tuning machines•
String-thru-body bridge•
Black hardware•
Dual action torsion rod•
Specially designed Cofn Case® case included•
Red
White Black
FEATURES
A
C
D
B
RADIUS
SPECIFICATIONS
Neck Material: Mahogany
Neck Type: Set Neck, ultra slim, shallow oval
Hardware Color: Black
Body Wood: Mahogany
Fingerboard: Rosewood
Frets: 24-frets, 18% nickel silver, .107 w” x .046”
Bridge: Fixed Tune matic style, heavy duty die-cast
Neck Pickup: EMG 60 Active*
Bridge Pickup: EMG 81 Active*
Special electronics: EMG Afterburner boost circuit*
Inlays: Aluminum “sharkstooth”
*For full specs and information about the EMG pickups and Afterburner circuit refer to www.emginc.com
NECK DIMENSIONS
Scale/Length: 24.75”, 24 frets
a. Width at Nut: 1.69” (43mm)
b. Width at Last Fret: 2.25” (57.5mm)
c. Thickness at 1st Fret: .760” (19.5mm)
d. Thickness at 12th Fret: .840” (21.5mm)
Radius: 15”
