Peavey PXD Void I Specifications

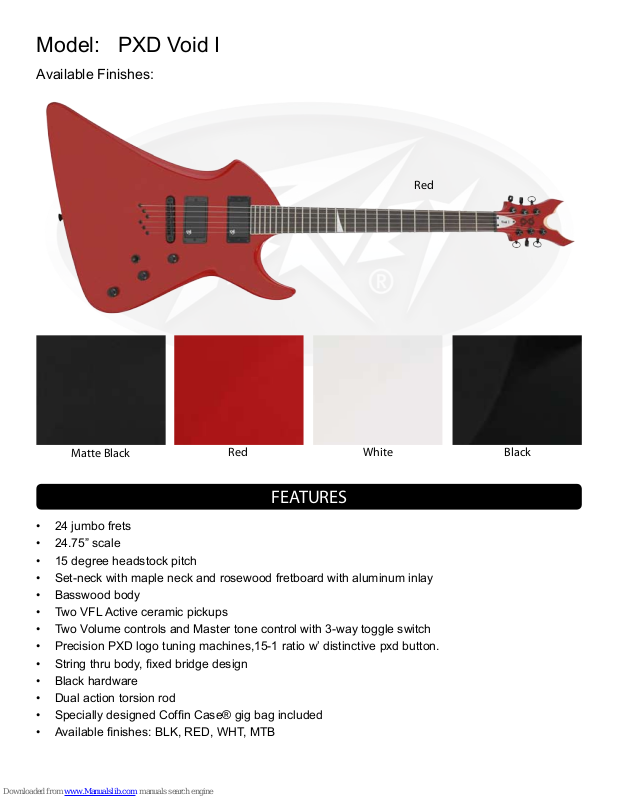

Model: PXD Void I
Available Finishes:
Red
Matte Black
24 jumbo frets•
24.75” scale•
15 degree headstock pitch•
Set-neck with maple neck and rosewood fretboard with aluminum inlay•
Basswood body•
Two VFL Active ceramic pickups•
Two Volume controls and Master tone control with 3-way toggle switch•
Precision PXD logo tuning machines,15-1 ratio w’ distinctive pxd button.•
String thru body, xed bridge design•
Black hardware•
Dual action torsion rod•
Specially designed Cofn Case® gig bag included•
Available nishes: BLK, RED, WHT, MTB•
Red
White Black
FEATURES
A
C
D
B
RADIUS
SPECIFICATIONS
Neck Material: Maple
Neck Type: Set Neck, ultra slim, shallow oval
Hardware Color: Black
Body Wood: Basswood
Fingerboard: Rosewood
NECK DIMENSIONS
Inlays: Aluminum “sharkstooth”
Frets: 18% nickel silver, .107 w” x .046”
Bridge: Fixed Tune matic style, heavy duty die-cast
Neck Pickup: Peavey VFL Active Neck Pickup
Bridge Pickup: Peavey VFL Active Bridge Pickup
Scale/Length: 24.75”, 24 frets
a. Width at Nut: 1.69” (43mm)
b. Width at Last Fret: 2.25” (57mm)
c. Thickness at 1st Fret: .760” (19.5mm)
d. Thickness at 12th Fret: .840” (21.5mm)
Radius: 15”
