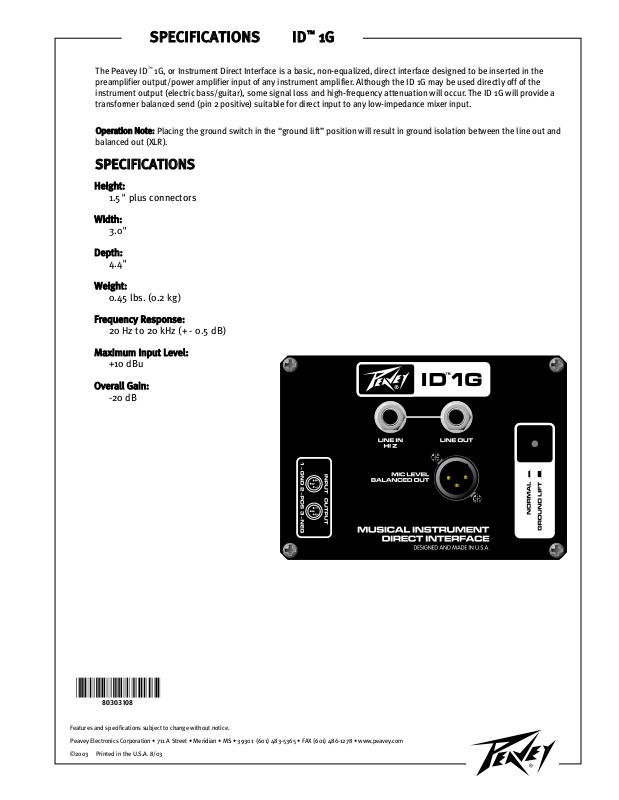

Peavey ID 1G DATASHEET

The Peavey ID™1G, or Instrument Direct Interface is a basic, non-equalized, direct interface designed to be inserted in the
preamplifier output/power amplifier input of any instrument amplifier. Although the ID 1G may be used directly off of the
instrument output (electric bass/guitar), some signal loss and high-frequency attenuation will occur. The ID 1G will provide a
transformer balanced send (pin 2 positive) suitable for direct input to any low-impedance mixer input.

OOppeerraattiioonn NNoottee::

Placing the ground switch in the “ground lift” position will result in ground isolation between the line out and

balanced out (XLR).

SSPPEECCIIFFIICCAATTIIOONNSS IIDD™™11GG

HHeeiigghhtt::

1.5" plus connectors

WWiiddtthh::

3.0"

DDeepptthh::

4.4"

WWeeiigghhtt::

0.45 lbs. (0.2 kg)

FFrreeqquueennccyy RReessppoonnssee::

20 Hz to 20 kHz (+ - 0.5 dB)

MMaaxxiimmuumm IInnppuutt LLeevveell::

+10 dBu

OOvveerraallll GGaaiinn::

-20 dB

SSPPEECCIIFFIICCAATTIIOONNSS

Features and specifications subject to change without notice.
