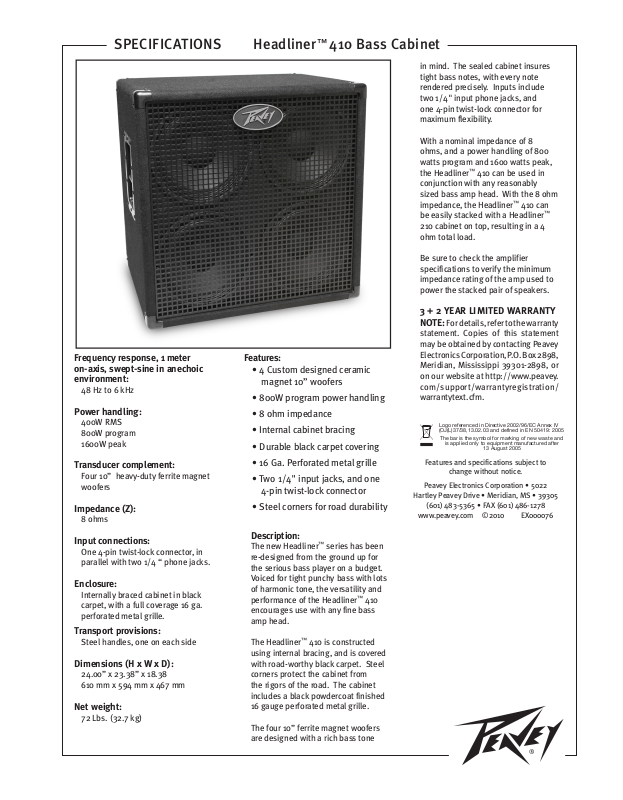

SPECIFICATIONS Headliner™ 410 Bass Cabinet
Logo referenced in Directive 2002/96/EC Annex IV
(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005
The bar is the symbol for marking of new waste and
is applied only to equipment manufactured after
13 August 2005
Frequency response, 1 meter
on-axis, swept-sine in anechoic
environment:
48 Hz to 6 kHz
Power handling:
400W RMS
800W program
1600W peak
Transducer complement:
Four 10” heavy-duty ferrite magnet
woofers
Impedance (Z):
8 ohms
Input connections:
One 4-pin twist-lock connector, in
parallel with two 1/4 “ phone jacks.
Enclosure:
Internally braced cabinet in black
carpet, with a full coverage 16 ga.
perforated metal grille.
Transport provisions:
Steel handles, one on each side
Dimensions (H x W x D):
24.00” x 23.38” x 18.38
610 mm x 594 mm x 467 mm
Net weight:
72 Lbs. (32.7 kg)
Features:
• 4 Custom designed ceramic
magnet 10” woofers
• 800W program power handling
• 8 ohm impedance
• Internal cabinet bracing
• Durable black carpet covering
• 16 Ga. Perforated metal grille
• Two 1/4" input jacks, and one
4-pin twist-lock connector
• Steel corners for road durability
Description:
The new Headliner
re-designed from the ground up for
the serious bass player on a budget.
Voiced for tight punchy bass with lots
of harmonic tone, the versatility and
performance of the Headliner™ 410
encourages use with any fine bass
amp head.
The Headliner™ 410 is constructed
using internal bracing, and is covered
with road-worthy black carpet. Steel
corners protect the cabinet from
the rigors of the road. The cabinet
includes a black powdercoat finished
16 gauge perforated metal grille.
The four 10” ferrite magnet woofers
are designed with a rich bass tone
™
series has been
in mind. The sealed cabinet insures
tight bass notes, with every note
rendered precisely. Inputs include
two 1/4" input phone jacks, and
one 4-pin twist-lock connector for
maximum flexibility.
With a nominal impedance of 8
ohms, and a power handling of 800
watts program and 1600 watts peak,
the Headliner™ 410 can be used in
conjunction with any reasonably
sized bass amp head. With the 8 ohm
impedance, the Headliner™ 410 can
be easily stacked with a Headliner™
210 cabinet on top, resulting in a 4
ohm total load.
Be sure to check the amplifier
specifications to verify the minimum
impedance rating of the amp used to
power the stacked pair of speakers.
3 + 2 YEAR LIMITED WARRANTY
NOTE: For details, refer to the warranty
statement. Copies of this statement
may be obtained by contacting Peavey
Electronics Corporation, P.O. Box 2898,
Meridian, Mississippi 39301-2898, or
on our website at http://www.peavey.
com/support/warrantyregistration/
warrantytext.cfm.
Features and specifications subject to
change without notice.
Peavey Electronics Corporation • 5022
Hartley Peavey Drive • Meridian, MS • 39305
(601) 483-5365 • FAX (601) 486-1278
www.peavey.com ©2010 EX000076
