Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute
a risk of electric shock to persons.
Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
CAUTION: Risk of electrical shock — DO NOT OPEN!
CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualied service personnel.
WARNING: To prevent electrical shock or re hazard, this apparatus should not be exposed to rain or moisture‚ and objects lled with liquids‚ such as vases‚
should not be placed on this apparatus. Before using this apparatus‚ read the operating guide for further warnings.
Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection.
SPANISHENGLISH
FINNISH
FRENCH
GERMAN
Tarkoitettu kiinnittämään käyttäjän huomio sellaiseen eristämättömään vaaralliseen jännitteeseen tuotteen kotelossa, joka saattaa olla riittävän suuri
aiheuttaakseen sähköiskuvaaran.
Tarkoitettu kiinnittämään käyttäjän huomio tärkeisiin käyttö- ja huolto-ohjeisiin tuotteen mukana seuraavassa ohjeistuksessa.
VAROITUS: Sähköiskun vaara — ÄLÄ AVAA!
VAROITUS: Sähköiskuvaaran vuoksi älä poista kantta. Ei sisällä käyttäjän huollettavissa olevia osia. Huoltaminen tulee jättää pätevän huoltohenkilöstön
tehtäväksi.
VAARA: Sähköiskun tai tulipalon vaaran estämiseksi tätä laitetta ei saa altistaa sateelle tai kosteudelle, eikä sen päälle saa asettaa nesteellä täytettyjä
esineitä, kuten maljakoita. Ennen laitteen käyttöä lue muut varoitukset käyttöohjeesta.
Suojamaadoitus terminaali. Laite tulee kytkeä sähköverkkoon suojajohtimella.
Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan.
Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur la présence d’une tension dangereuse pouvant être d’amplitude sufsante pour constituer
un risque de choc électrique.
Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur qu’il ou qu’elle trouvera d’importantes instructions concernant l’utilisation et l’entretien de
l’appareil dans le paragraphe signalé.
ATTENTION: Risques de choc électrique — NE PAS OUVRIR!
ATTENTION: An de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par
l’utilisateur. Conez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé.
AVIS: Dans le but de reduire les risques d’incendie ou de decharge electrique, cet appareil ne doit pas etre expose a la pluie ou a l’humidite et aucun objet
rempli de liquide, tel qu’un vase, ne doit etre pose sur celui-ci. Avant d’utiliser de cet appareil, lisez attentivement le guide fonctionnant pour avertissements
supplémentaires.
Borne de terre de protection. L'appareil doit être connecté à une prise secteur avec une connexion à la terre.
Dieses Symbol soll den Anwender vor unisolierten gefährlichen Spannungen innerhalb des Gehäuses warnen, die von Ausreichender Stärke sind, um einen
elektrischen Schlag verursachen zu können.
Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam machen, die Handhabung und Wartung des Produkts
betreffen.
VORSICHT: Risiko — Elektrischer Schlag! Nicht öffnen!
VORSICHT: Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die Abdeckung enfernen. Es benden sich keine Teile darin, die vom Anwender
repariert werden könnten. Reparaturen nur von qualiziertem Fachpersonal durchführen lassen.
WARNUNG: Um elektrischen Schlag oder Brandgefahr zu verhindern, sollte dieser Apparat nicht Regen oder Feuchtigkeit ausgesetzt werden und
Gegenstände mit Flüssigkeiten gefuellt, wie Vasen, nicht auf diesen Apparat gesetzt werden. Bevor dieser Apparat verwendet wird, lesen Sie bitte den
Funktionsführer für weitere Warnungen.
Schutzerdung Terminal. Das Gerät nur an Steckdose mit Schutzleiter angeschlossen werden.
Este símbolo tiene el propósito, de alertar al usuario de la presencia de “(voltaje) peligroso” sin aislamiento dentro de la caja del producto y que puede tener
una magnitud suciente como para constituir riesgo de descarga eléctrica.
Este símbolo tiene el propósito de alertar al usario de la presencia de instruccones importantes sobre la operación y mantenimiento en la información que
viene con el producto.
PRECAUCION: Riesgo de descarga eléctrica ¡NO ABRIR!
PRECAUCION: Para disminuír el riesgo de descarga eléctrica, no abra la cubierta. No hay piezas útiles dentro. Deje todo mantenimiento en manos del
personal técnico cualicado.
ADVERTENCIA: Para prevenir choque electrico o riesgo de incendios, este aparato no se debe exponer a la lluvia o a la humedad. Los objetos llenos de
liquidos, como los oreros, no se deben colocar encima de este aparato. Antes de usar este aparato, lea la guia de funcionamiento para otras advertencias.
Terminal de puesta a tierra de protección. El aparato debe estar conectado a una toma de corriente con conexión a tierra de protección.
SWEDISH
ITALIANPORTUGUESE
Är avsedd att varna användaren för förekomsten av oisolerad ”farlig spänning” inom produktens hölje som kan vara av tillräcklig nivå för att personer ska
riskera elektrisk stöt.
Är avsedd att uppmärksamma användaren på förekomsten av viktiga handhavande- och underhållsinstruktioner (service) i den litteratur som medföljer
produkten.
OBSERVERA: Risk för elektrisk stöt – ÖPPNA INTE!
OBSERVERA: För att minska risken för elektrisk stöt, avlägsna inte höljet. Inga delar inuti kan underhållas av användaren. Låt kvalicerad servicepersonal
sköta servicen.
VARNING: För att förebygga elektrisk stöt eller brandrisk bör apparaten inte utsättas för regn eller fukt, och föremål fyllda med vätskor, såsom vaser, bör
inte placeras på denna apparat. Läs bruksanvisningen för ytterligare varningar innan denna apparat används.
Skyddsjordning terminalen. Apparaten skall anslutas till ett uttag med skyddande jordanslutning.
Apparaten skall anslutas till jordat uttag.
Atto ad avvisare l’utente in merito alla presenza “voltaggio pericoloso” non isolato all’interno della scatola del prodotto che potrebbe avere una magnitudo
sufciente a costituire un rischio di scossa elettrica per le persone.
Atto ad avvisare l’utente in merito alla presenza di istruzioni operative e di assistenza importanti (manutenzione) nel libretto che accompagna il prodotto.
ATTENZIONE: Rischio di scossa elettrica — NON APRIRE!
ATTENZIONE: per ridurre il rischio di scossa elettrica, non rimuovere il coperchio. Non vi sono parti utili all’utente all’interno. Fare riferimento a personale
addetto qualicato.
AVVERTENZA: per prevenire il rischio di scossa o il rischio di incendio, questo apparecchio non dovrebbe essere esposto a pioggia o umidità, e oggetti
riempiti con liquidi, come vasi, non dovrebbero essere posizionati sopra questo apparecchio. Prima di usare questo apparecchio, leggere la guida operativa
per ulteriori informazioni.
Morsetto di terra di protezione. L'apparecchio deve essere collegato a una presa di corrente di rete con un conduttore di terra.
Destinado a alertar o usuário da presença de “voltagem perigosa” não isolada dentro do receptáculo do produto que pode ser de magnitude suciente para
constituir um risco de choque elétrico a pessoas.
Destinado a alertar o usuário da presença de instruções importantes de operação e manutenção (conserto) na literatura que acompanha o produto.
CUIDADO: Risco de choque elétrico — NÃO ABRA!
CUIDADO: Para evitar o risco de choque elétrico, não remova a cobertura. Contém peças não reparáveis pelo usuário. Entregue todos os consertos apenas
a pessoal qualicado.
ADVERTÊNCIA: Para evitar choques elétricos ou perigo de incêndio, este aparelho não deve ser exposto à chuva ou umidade e objetos cheios de líquidos,
tais como vasos, não devem ser colocados sobre ele. Antes de usar este aparelho, leia o guia de operação para mais advertências.
Terminal de aterramento de proteção. O aparelho deve ser ligado a uma tomada eléctrica com ligação à terra de proteção .
NORWEGIANDUTCH
Bedoeld om de gebruiker te attenderen op de aanwezigheid van ongeïsoleerde “gevaarlijke spanning” binnen de behuizing van het product dat van voldoende omvang kan zijn om een risico op elektrische schokken te vormen.
Bedoeld om de gebruiker te attenderen op de aanwezigheid van belangrijke gebruiks- en onderhoudsinstructies in de literatuur bij het product.
OPGELET: Risico op een elektrische schok - NIET OPENEN
OPGELET: Om het risico op elektrische schokken te verkleinen, verwijder niet het deksel. Er zijn geen voor de gebruiker bruikbare onderdelen binnenin aanwezig.
Verwijs onderhoud door naar gekwaliceerd onderhoudspersoneel.
WAARSCHUWING: Om elektrische schokken of brandgevaar te voorkomen, stel dit apparaat mag niet bloot aan regen of vocht ‘ en voorwerpen gevuld met vloei-
stoffen, zoals vazen mogen niet op dit apparaat worden geplaatst. Lees de gebruiksaanwijzingen voor nadere waarschuwingen voordat u dit apparaat gebruikt.
Beschermende aardklem. Het apparaat dient te worden aangesloten op een stopcontact met een beschermend aardcontact.
Har til hensikt å advare brukeren om tilstedeværelse av uisolert “farlig spenning” inne i produktet, som kan ha tilstrekkelig styrke til å medføre risiko for elektrisk støt for en person.
Har til hensikt å informere brukeren om tilstedeværelsen av viktige bruks- og vedlikeholds (service)-instruksjoner i litteraturen som følger med produktet.
ADVARSEL: Risiko for elektrisk støt — MÅ IKKE ÅPNES!
ADVARSEL: For å redusere risikoen for elektrisk støt må ikke dekslet fjernes. Det nnes ingen deler på innsiden som brukeren kan justere. Overlat service-
arbeidet til kvalisert servicepersonell.
ADVARSEL: For å hindre elektrisk støt eller brannfare må ikke dette apparatet utsettes for regn eller fuktighet‚ og gjenstander fylt med væske, som en vase,
må ikke settes på apparatet. Før du tar apparatet i bruk må du lese bruksanvisningen for ytterligere advarsler.
Beskyttende jordingsterminal. Apparatet må kobles til en elektrisk kontakt med et støpsel som har skjermet jordkontakt.
Apparatet må tilkoples jordet stikkontakt.
KOREANARABIC
제품의 케이스 내에 감전을 유발할 수 있는 절연되지 않은 " 위험한 전압 " 이 존재함을 사용자에게 알 립니다 . 제품과 함께 제공되는 인쇄물에 중요
한 작동 및 유지 보수 ( 서비스 ) 지침이 있음을 사용자에게 알립 니다 .
주의 : 감전 위험 — 열지 마십시오 !
주의 : 감전 위험을 낮추기 위해 덮개를 제거하지 마십시오 . 장치 내부에는 사용자가 직접 수리할 수 있는 부품이 없습니다 . 자격을 갖춘 서비스 요
원에게 서비스를 의뢰하십시오 .
경고 : 감전 또는 화재 위험을 예방하기 위해 본 기기를 비 또는 습기에 노출하거나 꽃병과 같이 액체 가 들어 있는 물체를 본 기기 위에 올려놓지 마
십시오 . 본 기기를 사용하기 전에 추가 경고 사항에 대 한 작동 설명서를 읽어 주십시오 .
WARNING: When using electrical products, basic cautions should always be followed, including the following:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit
from the apparatus.
11. Only use attachments/accessories provided by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Never break off the ground pin. Write for our free booklet “Shock Hazard and Grounding.” Connect only to a power supply of the
type marked on the unit adjacent to the power supply cord.
16. If this product is to be mounted in an equipment rack, rear support should be provided.
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚
proceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter
E‚ the earth symbol‚ colored green or colored green and yellow. b) The wire that is colored blue must be connected to the
terminal that is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal
that is marked with the letter L or the color red.
18. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects
containing liquids, such as vases, upon the apparatus.
19. The on/off switch in this unit does not break both sides of the primary mains. Hazardous energy can be present inside the
chassis when the on/off switch is in the off position. The mains plug or appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
20. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to
noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient
time. The U.S. Government’s Occupational Safety and Health Administration (OSHA) has specified the following permissible
noise level exposures:
Duration Per Day In Hours Sound Level dBA, Slow Response
8 90
6 92
4 95
3 97
2 100
1 1⁄2102
1 105
1⁄21101⁄4 or less 115
According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to
the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if
exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is
recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be
protected by hearing protectors while this unit is in operation.
SAVE THESE INSTRUCTIONS!
INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD
CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes:
1. Lea estas instrucciones.
2. Guarde estas instrucciones.
3. Haga caso de todos los consejos.
4. Siga todas las instrucciones.
5. No usar este aparato cerca del agua.
6. Limpiar solamente con una tela seca.
7. No bloquear ninguna de las salidas de ventilación. Instalar de acuerdo a las instrucciones del fabricante.
8. No instalar cerca de ninguna fuente de calor como radiadores, estufas, hornos u otros aparatos (incluyendo amplificadores) que
produzcan calor.
9. No retire la patilla protectora del enchufe polarizado o de tipo “a Tierra”. Un enchufe polarizado tiene dos puntas, una de ellas
más ancha que la otra. Un enchufe de tipo “a Tierra” tiene dos puntas y una tercera “a Tierra”. La punta ancha (la tercera ) se
proporciona para su seguridad. Si el enchufe proporcionado no encaja en su enchufe de red, consulte a un electricista para
que reemplaze su enchufe obsoleto.
10. Proteja el cable de alimentación para que no sea pisado o pinchado, particularmente en los enchufes, huecos, y los puntos que
salen del aparato.
11. Usar solamente añadidos/accesorios proporcionados por el fabricante.
12. Usar solamente un carro, pie, trípode, o soporte especificado por el fabricante, o vendido junto al aparato. Cuando se use
un carro, tenga cuidado al mover el conjunto carro/aparato para evitar que se dañe en un vuelco. No suspenda esta caja de
ninguna manera.
13. Desenchufe este aparato durante tormentas o cuando no sea usado durante largos periodos de tiempo.
14. Para cualquier reparación, acuda a personal de servicio cualificado. Se requieren reparaciones cuando el aparato ha
sido dañado de alguna manera, como cuando el cable de alimentación o el enchufe se han dañado, algún líquido ha sido
derramado o algún objeto ha caído dentro del aparato, el aparato ha sido expuesto a la lluvia o la humedad, no funciona de
manera normal, o ha sufrido una caída.
15. Nunca retire la patilla de Tierra.Escríbanos para obtener nuestro folleto gratuito “Shock Hazard and Grounding” (“Peligro de
Electrocución y Toma a Tierra”). Conecte el aparato sólo a una fuente de alimentación del tipo marcado al lado del cable de
alimentación.
16. Si este producto va a ser enracado con más equipo, use algún tipo de apoyo trasero.
17. Nota para el Reino Unido solamente: Si los colores de los cables en el enchufe principal de esta unidad no corresponden con
los terminales en su enchufe‚ proceda de la siguiente manera: a) El cable de color verde y amarillo debe ser conectado al
terminal que está marcado con la letra E‚ el símbolo de Tierra (earth)‚ coloreado en verde o en verde y amarillo. b) El cable
coloreado en azul debe ser conectado al terminal que está marcado con la letra N o el color negro. c) El cable coloreado en
marrón debe ser conectado al terminal que está marcado con la letra L o el color rojo.
18. Este aparato eléctrico no debe ser sometido a ningún tipo de goteo o salpicadura y se debe tener cuidado para no poner
objetos que contengan líquidos, como vasos, sobre el aparato.
19. El interruptor de en/lejos en esta unidad no rompe ambos lados de la red primaria. La energía peligrosa puede ser presente
dentro del chasis cuando el interruptor de en/lejos está en el de la posición. El tapón de la red o el acoplador del aparato son
utilizados como el desconecta dispositivo, el desconecta dispositivo se quedará fácilmente operable.
20. La exposición a altos niveles de ruido puede causar una pérdida permanente en la audición. La susceptibilidad a la pérdida de
audición provocada por el ruido varía según la persona, pero casi todo el mundo perderá algo de audición si se expone a un
nivel de ruido suficientemante intenso durante un tiempo determinado. El Departamento para la Salud y para la Seguridad del
Gobierno de los Estados Unidos (OSHA) ha especificado las siguientes exposiciones al ruido permisibles:
Duración por Día en Horas Nivel de Sonido dBA, Respuesta Lenta
8 90
6 92
4 95
3 97
2 100
1
1
⁄2 102
1 105
1
⁄2 110
1
⁄4 o menos 115
De acuerdo al OSHA, cualquier exposición que exceda los límites arriba indicados puede producir algún tipo de pérdida en la audición.
Protectores para los canales auditivos o tapones para los oídos deben ser usados cuando se opere con este sistema de sonido para prevenir una pérdida permanente en la audición, si la exposición excede los límites indicados más arriba. Para protegerse de una exposición
a altos niveles de sonido potencialmente peligrosa, se recomienda que todas las personas expuestas a equipamiento capaz de producir
altos niveles de presión sonora, tales como este sistema de amplificación, se encuentren protegidas por protectores auditivos mientras esta
unidad esté operando.
GUARDE ESTAS INSTRUCCIONES!
SPANISH
FRENCH
INSTRUCTIONS IMPORTANTES DE SECURITE
ATTENTION: L’utilisation de tout appareil électrique doit être soumise aux precautions d’usage incluant:
1. Lire ces instructions.
2. Gardez ce manuel pour de futures références.
3. Prétez attention aux messages de précautions de ce manuel.
4. Suivez ces instructions.
5. N’utilisez pas cette unité proche de plans d’eau.
6. N’utilisez qu’un tissu sec pour le nettoyage de votre unité.
7. N’obstruez pas les systèmes de refroidissement de votre unité et installez votre unité en fonction des instructions de ce manuel.
8. Ne positionnez pas votre unité à proximité de toute source de chaleur.
9. Connectez toujours votre unité sur une alimentation munie de prise de terre utilisant le cordon d’alimentation fourni.
10. Protégez les connecteurs de votre unité et positionnez les cablages pour éviter toutes déconnexions accidentelles.
11. N’utilisez que des fixations approuvées par le fabriquant.
12. Lors de l’utilsation sur pied ou pole de support, assurez dans le cas de déplacement de l’ensemble enceinte/support de prévenir tout
basculement intempestif de celui-ci.
13. Il est conseillé de déconnecter du secteur votre unité en cas d’orage ou de durée prolongée sans utilisation.
14. Seul un technicien agréé par le fabriquant est à même de réparer/contrôler votre unité. Celle-ci doit être contrôlée si elle a subit des
dommages de manipulation, d’utilisation ou de stockage (humidité,…).
15. Ne déconnectez jamais la prise de terre de votre unité.
16. Si votre unité est destinée a etre montée en rack, des supports arriere doivent etre utilises.
17. Note pour les Royaumes-Unis: Si les couleurs de connecteurs du cable d’alimentation ne correspond pas au guide de la prise
secteur, procédez comme suit: a) Le connecteur vert et jaune doit être connectrer au terminal noté E, indiquant la prise de terre
ou correspondant aux couleurs verte ou verte et jaune du guide. b) Le connecteur Bleu doit être connectrer au terminal noté N,
correspondnat à la couleur noire du guide. c) Le connecteur marron doit être connectrer au terminal noté L, correspondant à la
couleur rouge du guide.
18. Cet équipement électrique ne doit en aucun cas être en contact avec un quelconque liquide et aucun objet contenant un liquide, vase
ou autre ne devrait être posé sur celui-ci. 1
9. L’interrupter (on-off) dans cette unité ne casse pas les deux côtés du primaire principal. L’énergie hasardeuse peut être preésente
dans châssis quand l’interrupter (on-off) est dans le de la position. Le bouchon principal ou atelage d’appareil est utilisé comme le
20. Une exposition à de hauts niveaux sonores peut conduire à des dommages de l’écoute irréversibles. La susceptibilité au bruit varie
considérablement d’un individu à l’autre, mais une large majorité de la population expériencera une perte de l’écoute après une
exposition à une forte puissance sonore pour une durée prolongée. L’organisme de la santé américaine (OSHA) a produit le guide
ci-dessous en rapport à la perte occasionnée:
Durée par Jour (heures) Niveau sonore moyen (dBA)
8 90
6 92
4 95
3 97
2 100
1 1⁄2102
1 105
1⁄2110
1⁄4 ou inférieur 115
D’après les études menées par le OSHA, toute exposition au delà des limites décrites ce-dessus entrainera des pertes de l’écoute chez
la plupart des sujets. Le port de système de protection (casque, oreilette de filtrage,…) doit être observé lors de l’opération cette unité ou
des dommages irréversibles peuvent être occasionnés. Le port de ces systèmes doit être observé par toutes personnes susceptibles d’être
exposées à des conditions au delà des limites décrites ci-dessus.
GARDEZ CES INSTRUCTIONS!
WICHTIGE SICHERHEITSHINWEISE
SICHERHEITSHINWEISEACHTUNG: Beim Einsatz von Elektrogeräten müssen u.a. grundlegende Vorsichtsmaßnahmen befolgt werden:
1. Lesen Sie sich diese Anweisungen durch.
2. Bewahren Sie diese Anweisungen auf.
3. Beachten Sie alle Warnungen.
4. Befolgen Sie alle Anweisungen.
5. Setzen Sie dieses Gerät nicht in der Nähe von Wasser ein.
6. Reinigen Sie es nur mit einem trockenen Tuch.
7. Blockieren Sie keine der Lüftungsöffnungen. Führen Sie die Installation gemäß den Anweisungen des Herstellers durch.
8. Installieren Sie das Gerät nicht neben Wärmequellen wie Heizungen, Heizgeräten, Öfen oder anderen Geräten (auch Verstärkern),
die Wärme erzeugen.
9. Beeinträchtigen Sie nicht die Sicherheitswirkung des gepolten Steckers bzw. des Erdungssteckers. Ein gepolter Stecker weist zwei
Stifte auf, von denen einer breiter ist als der andere. Ein Erdungsstecker weist zwei Stifte und einen dritten Erdungsstift auf. Der breite
Stift bzw. der dritte Stift dient Ihrer Sicherheit. Sollte der beiliegende Stecker nicht in Ihre Steckdose passen, wenden Sie sich bitte an
einen Elektriker, um die ungeeignete Steckdose austauschen zu lassen.
10. Schützen Sie das Netzkabel, sodass niemand darauf tritt oder es geknickt wird, insbesondere an Steckern oder Buchsen und ihren
Austrittsstellen aus dem Gerät.
11. Verwenden Sie nur die vom Hersteller erhältlichen Zubehörgeräte oder Zubehörteile.
12. Verwenden Sie nur einen Wagen, Stativ, Dreifuß, Träger oder Tisch, der den Angaben des Herstellers entspricht oder zusammen
mit dem Gerät verkauft wurde. Wird ein Wagen verwendet, bewegen Sie den Wagen mit dem darauf befindlichen Gerät besonders
vorsichtig, damit er nicht umkippt und möglicherweise jemand verletzt wird.
13. Trennen Sie das Gerät während eines Gewitters oder während längerer Zeiträume, in denen es nicht benutzt wird, von der
Stromversorgung.
14. Lassen Sie sämtliche Wartungsarbeiten von qualifizierten Kundendiensttechnikern durchführen. Eine Wartung ist erforderlich, wenn
das Gerät in irgendeiner Art beschädigt wurde, etwa wenn das Netzkabel oder der Netzstecker beschädigt wurden, Flüssigkeit oder
Gegenstände in das Gerät gelangt sind, das Gerät Regen oder Feuchtigkeit ausgesetzt wurde, nicht normal arbeitet oder herunt-
ergefallen ist.
15. Der Erdungsstift darf nie entfernt werden. Auf Wunsch senden wir Ihnen gerne unsere kostenlose Broschüre „Shock Hazard and
Grounding“ (Gefahr durch elektrischen Schlag und Erdung) zu. Schließen Sie nur an die Stromversorgung der Art an, die am Gerät
neben dem Netzkabel angegeben ist.
16. Wenn dieses Produkt in ein Geräte-Rack eingebaut werden soll, muss eine Versorgung über die Rückseite eingerichtet werden.
17. Hinweis – Nur für Großbritannien: Sollte die Farbe der Drähte in der Netzleitung dieses Geräts nicht mit den Klemmen in Ihrem
Stecker übereinstimmen, gehen Sie folgendermaßen vor: a) Der grün-gelbe Draht muss an die mit E (Symbol für Erde) markierte
bzw. grüne oder grün-gelbe Klemme angeschlossen werden. b) Der blaue Draht muss an die mit N markierte bzw. schwarze Klemme
angeschlossen werden. c) Der braune Draht muss an die mit L markierte bzw. rote Klemme angeschlossen werden.
18. Dieses Gerät darf nicht ungeschützt Wassertropfen und Wasserspritzern ausgesetzt werden und es muss darauf geachtet werden,
dass keine mit Flüssigkeiten gefüllte Gegenstände, wie z. B. Blumenvasen, auf dem Gerät abgestellt werden.
19. Der Netzschalter in dieser Einheit bricht beide Seiten von den primären Haupleitungen nicht. Gerfährliche Energie kann anwesend
innerhalb des Chassis sein, wenn her Netzschalter im ab Poistion ist. Die Hauptleitungen stöpseln zu oder Gerätkupplung ist benutzt,
während das Vorrichtung abschaltet, das schaltet Vorrichtung wird bleiben sogleich hantierbar ab.
20. Belastung durch extrem hohe Lärmpegel kann zu dauerhaftem Gehörverlust führen. Die Anfälligkeit für durch Lärm bedingten
Gehörverlust ist von Mensch zu Mensch verschieden, das Gehör wird jedoch bei jedem in gewissem Maße geschädigt, der über
einen bestimmten Zeitraum ausreichend starkem Lärm ausgesetzt ist. Die US-Arbeitsschutzbehörde (Occupational and Health
Administration, OSHA) hat die folgenden zulässigen Pegel für Lärmbelastung festgelegt:
Dauer pro Tag in Stunden Geräuschpegel dBA, langsame Reaktion
8 90
6 92
4 95
3 97
2 100
1 1⁄2102
1 105
1
⁄2110
1
⁄4oderweniger115
Laut OSHA kann jede Belastung über den obenstehenden zulässigen Grenzwerten zu einem gewissen Gehörverlust führen. Sollte die Belastung
die obenstehenden Grenzwerte übersteigen, müssen beim Betrieb dieses Verstärkungssystems Ohrenstopfen oder Schutzvorrichtungen im
Gehörgang oder über den Ohren getragen werden, um einen dauerhaften Gehörverlust zu verhindern. Um sich vor einer möglicherweise
gefährlichen Belastung durch hohe Schalldruckpegel zu schützen, wird allen Personen empfohlen, die mit Geräten arbeiten, die wie dieses
Verstärkungssystem hohe Schalldruckpegel erzeugen können, beim Betrieb dieses Geräts einen Gehörschutz zu tragen.
BEWAHREN SIE DIESE SICHERHEITSHINWEISE AUF!
DEUTSCH
TÄRKEÄT TURVALLISUUSOHJEET
1. Lue nämä ohjeet.
2. Säilytä nämä ohjeet.
3. Huomioi kaikki varoitukset.
4. Noudata kaikkia ohjeita.
5. Älä käytä laitetta veden lähellä.
6. Puhdista vain kuivalla kankaalla.
7. Älä tuki mitään tuuletusaukkoja. Asenna valmistajan ohjeiden mukaisesti.
8. Älä asenna lämpölähteiden, kuten pattereiden, liesien tai muiden lämpöä tuottavien laitteiden (kuten vahvistinten) lähelle.
9. Älä poista polarisoidun tai maadoitustyyppisen tulpan suojausta. Polarisoidun tulpan toinen napa on leveämpi kuin toinen.
Maadoitustulpassa on kaksi napaa ja kolmas maadoitusnapa. Leveä napa ja maadoitusnapa on tarkoitettu turvaamaan laitteen
käyttöä. Jos mukana toimitettu tulppa ei sovi pistorasiaan, kutsu sähkömies vaihtamaan pistorasia, sillä se on vanhentunut.
10. Suojaa virtajohtoa päälle kävelemiseltä ja nipistykseltä, erityisesti pistotulppien, pistorasioiden sekä laitteen ulosvientien kohdalla.
11. Käytä vain valmistajan toimittamia lisälaitteita.
12. Käytä vain valmistajan määrittämän tai laitteen mukana myydyn vaunun, jalustan, kolmijalan, kiinnikkeen tai pöydän kanssa.
Käytettäessä vaunua liikuta vaunun ja laitteen yhdistelmää varovasti, jotta vältetään loukkaantumiset kaatumisesta johtuen.
13. Irrota laite sähköverkosta ukkosmyrskyjen aikana tai jos laitetta ei käytetä pitkään aikaan.
14. Huoltaminen tulee jättää pätevän huoltohenkilöstön tehtäväksi. Huoltoa tarvitaan, kun laite on jollakin tavoin vioittunut, esim.
virtalähteen johto tai pistoke on vioittunut, laitteen sisään on joutunut nestettä tai esineitä, laite on altistettu sateelle tai kosteudelle,
laite ei toimi normaalisti tai se on pudonnut.
15. Älä koskaan katkaise maadoitusnastaa. Ottamalla meihin yhteyttä saat kirjasen "Sähköiskuvaara ja maadoitus". Kytke vain
virtalähteeseen, joka vastaa laitteen virtajohdon viereen merkittyä tyyppiä.
16. Jos laite kiinnitetään laiteräkkiin, tulee se tukea takaosastaan.
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as
follows:
a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚
colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
18. Tätä sähkölaitetta ei tule altistaa nestetipoille tai roiskeille, eikä laitteen päälle saa asettaa nestettä sisältäviä esineitä, kuten
maljakoita.
19. Laitteen virtakytkin ei katkaise ensiövirran molempia puolia. Laitteen sisällä voi olla vaarallinen jännite, kun virtakytkin on poisasennossa. Virtajohto toimii pääkytkimenä, ja sen pitää olla aina käytettävissä.
20. Altistus erittäin korkeille äänitasoille voi aiheuttaa pysyvän kuulovaurion. Henkilöiden alttius melun aiheuttamille kuulovaurioille
vaihtelee, mutta lähes kaikkien kuulo vaurioituu altistuttaessa riittävän kovalle melulle riittävän kauan. Yhdysvaltain hallituksen
työturvallisuus- ja terveyshallinto (OSHA) on määrittänyt seuraavat hyväksyttävät melutasoaltistukset:
VAARA: Käytettäessä sähkölaitteita tulee aina huomioida mm. seuraavat turvallisuusohjeet:
OSHA:n mukaan altistus yo. tasoja korkeammalle määrälle voi aiheuttaa osittaisen kuulon menetyksen. Käytettäessä vahvistinjärjestelmää
tulee kuulovaurioiden estämiseksi käyttää korvatulppia tai kuulosuojaimia, mikäli altistus ylittää yllä asetetut rajat. Jotta vältetään mahdollisesti
vaarallinen altistus korkeille äänenpaineen tasoille, suositellaan, että kaikki korkeaa äänenpainetta tuottavien laitteiden, kuten tämän
vahvistimen, lähistöllä olevat henkilöt suojaavat kuulonsa, kun laite on käytössä.
Kesto päivää kohti tunteinaÄänitaso dBA, hidas vaste
890
692
495
397
2100
1 1⁄2102
1105
1⁄2110
1⁄4 tai alle115
SÄILYTÄ NÄMÄ OHJEET!
FINNISH
VIKTIGA SÄKERHETSINSTRUKTIONER
1. Läs dessa instruktioner.
2. Behåll dessa instruktioner.
3. Iakttag alla varningar.
4. Följ alla instruktioner.
5. Använd inte apparaten i närheten av vatten.
6. Rengör endast med en torr trasa.
7. Blockera inte ventilationsöppningarna. Installera i enlighet med tillverkarens instruktioner.
8. Installera inte i närheten av värmekällor som radiatorer, varmluftsventiler, spisar eller andra apparater (inklusive förstärkare) som ger
ifrån sig värme.
9. Motverka inte säkerhetsfunktionen hos en jordad stickkontakt. En jordad stickkontakt har två stift och metallbleck på sidorna.
Metallblecket finns där för din säkerhet. Kontakta en elektriker för utbyte av det föråldrade vägguttaget om den medföljande
stickkontakten inte passar i ditt vägguttag.
10. Skydda strömsladden från att klivas på eller klämmas, särskilt vid kontakten, grenuttag och platsen där den lämnar apparaten.
11. Använd enbart tillsatser/tillbehör som tillhandahålls av tillverkaren.
12. Använd endast med en kärra, ställ, trefot, fäste eller bord i enlighet med tillverkarens specikationer, eller som säljs tillsammans med
apparaten. Var försiktig när du använder en kärra så att inga personskador uppstår på grund av att kombinationen kärra-apparat
välter när den yttas.
13. Koppla ur apparaten vid åskväder eller när den inte används under en längre tid.
14. Låt kvalicerad servicepersonal sköta all service. Service krävs om apparaten har skadats på något vis, till exempel om strömsladden
eller stickkontakten har skadats, vätska har spillts eller föremål har fallit ner i apparaten, apparaten har utsatts för regn eller fukt, inte
fungerar normalt eller har tappats.
15. Anslut aldrig till ojordade uttag. Skriv till oss för vårt gratishäfte ”Stötrisk och jordning”. Anslut endast till en strömkälla av samma typ
som enhetens märkning anger (bredvid strömsladden).
16. Om produkten ska monteras i ett utrustningsrack bör bakre stöd användas.
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as
follows:
a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚
colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
18. Denna elektriska apparat bör inte utsättas för dropp eller stänk och försiktighet bör iakttas så att inte föremål som innehåller vätskor,
såsom vaser, placeras ovanpå apparaten.
19. Enhetens strömbrytare bryter inte båda sidor av strömkretsen. Farlig energi kan förekoma inuti höljet när strömbrytaren är i av-läget.
Stickkontakten eller apparatkontakten fungerar som bortkopplingsenhet, bortkopplingsenheten ska hållas lättillgänglig.
20. Extremt höga ljudnivåer kan orsaka permanent hörselskada. Olika personer skiljer sig åt i benägenhet att få hörselskador av
oljud, men i princip alla får hörselskador om de utsätts för tillräckligt höga ljud under tillräcklig tid. Den amerikanska regeringens
arbetsskydds- och hälsoförvaltning (OSHA) har angivit följande maxnivåer för tillåten exponering för oljud:
VARNING: När du använder elektriska produkter ska grundläggande försiktighetsåtgärder iakttas, inklusive följande:
Enligt OSHA kan exponering utöver ovanstående tillåtna gränser orsaka hörselskador. Öronproppar eller skydd för hörselgången eller
över öronen måste bäras när detta förstärkarsystem används för att förebygga permanenta hörselskador, om exponeringen överskrider
gränsvärdena enligt ovan. För att skydda mot potentiellt farlig exponering för höga ljudtrycksnivåer rekommenderas det att personer
som exponeras för utrustning som kan producera höga ljudtrycksnivåer såsom detta förstärkarsystem skyddas med hörselskydd när
enheten är i drift.
Längd per dag i timmarLjudnivå dBA, långsam svarstid
890
692
495
397
2100
1 1⁄2102
1105
1⁄2110
1⁄4 eller mindre115
SPARA DESSA INSTRUKTIONER!
SWEDISH
NORWEGIAN
VIKTIGE SIKKERHETSINSTRUKSJONER
ADVARSEL: Ved bruk av et elektrisk apparat må grunnleggende forsiktighetsregler følges, inklusive de følgende:
1. Les disse instruksjonene.
2. Ta vare på disse instruksjonene.
3. Følg alle advarslene.
4. Følg alle instruksjoner.
5. Ikke bruk apparatet i nærheten av vann.
6. Rengjør bare med en tørr klut.
7. Ikke blokker noen av ventilasjonsåpningene. Installer i henhold til produsentens instruksjoner.
8. Ikke installer i nærheten av en varmekilde som radiatorer, varmekanaler, ovn er eller andre apparater (inklusive forsterkere) som
utvikler varme.
9. Ikke reduserer sikkerhetshensiktene med polariserte eller jordede støpsler. Et polarisert støpsel har to blader, der det ene er
bredere enn det andre. Et støpsel med jording har to blader og en tredje jordingsplugg. Det brede bladet eller den tredje pluggen
er der for å gi deg beskyttelse. Hvis det medfølgende støpslet ikke passer inn i den elektriske kontakten der du bor, kontakt en
elektriker for å få støpslet skiftet.
10. Beskytt den elektriske ledningen mot å bli trådt på eller klemt, spesielt ved støpslet, stikkontakten og punktet der den kommer ut
av apparatet.
11. Bruk bare tilkoblinger/tilbehør som er levert av produsenten.
12. Bruk bare med vogn, stativ, tripod, brakett eller bord spesisert av produsenten eller solgt sammen med apparatet. Når det be-
nyttes en vogn, vis forsiktighet når vogn/apparat yttes for å unngå skade som følge av et velt.
13. Trekk ut ledningen til apparatet under tordenvær eller når det skal stå ubrukt over en lengre periode.
14. Overlat servicearbeidet til kvalisert servicepersonell. Service er påkrevet når apparatet har vært utsatt for skade, som at den
elektriske ledningen eller støpslet er skadet, væske er blitt sølt over apparatet eller en gjenstand har falt ned i apparatet, apparatet har vært utsatt for regn eller fuktighet, at det ikke virker normalt eller har falt i gulvet.
15. Bryt aldri av jordingspinnen. Skriv etter gratis hefte “Shock Hazard and Grounding” (Fare for elektrisk støt og jording). Tilkoble
bare elektriske anlegg av den typen som er angitt på enheten ved siden av den elektriske ledningen.
16. Hvis dette produktet skal plasseres i en utstyrsreol må det etableres støtte på baksiden.
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ pro-
ceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the
earth symbol‚ colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that
is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked
with the letter L or the color red.
18. Dette elektriske apparatet må ikke utsettes for drypp eller sprut fra væske, og det må utvises forsiktighet slik at det ikke plasseres
gjenstander fylt med vann - som en vase - på apparatet.
19. På/av-bryteren på denne enheten bryter ikke begge sider av den primære strømkretsen. Farlig strøm kan nnes på innsiden av
chassiset også når På/Av-bryteren er i posisjon Av. Det elektriske støpslet eller utstyrskoblingen brukes som frakoblingsutstyr,
frakoblingsutstyret skal være lett å komme til og bruke.
20. Eksponering mot ekstremt høyt støynivå kan føre til permanent tap av hørsel. Det er betydelige individuelle forskjeller hva gjelder
den enkeltes ømntlighet hva gjelder støypåført tap av hørsel, men nesten alle vil tape noe hørsel dersom de utsettes for tilstrek-
kelig intens støy over en tilstrekkelig lang periode. U.S. Governments Occupational Safety and Health Administration (OSHA) har
spesisert følgende tillatte støynivåeksponeringer:
Varighet pr. dag i timerLydnivå dBA, sakte respons
890
692
495
397
2100
1 1⁄2102
1105
1⁄2110
1⁄4 eller mindre115
I henhold til OSHA vil enhver eksponering ut over de ovenstående tillatte grensene kunne føre til noe tap av hørsel. Ørepropper eller
beskyttelse av ørekanalene eller over ørene må anvendes når dette forsterkersystemet brukes for å hindre permanent tap av hørsel
dersom eksponeringen overskrider grensene som vises ovenfor. For å beskytte mot potensielt farlig eksponering til høyt lydtrykknivåer
anbefales det at alle personer som eksponeres mot utstyr som er i stand til å produsere høye lydtrykknivåer som dette forsterkersystemet må beskyttes av hørselsvern mens denne enheten er i bruk.
OPPBEVAR DISSE INSTRUKSJONENE
DUTCH
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
WAARSCHUWING: Bij gebruik van elektrische producten, moeten elementaire voorzorgsmaatregelen altijd worden opgevolgd, waaron-
der het volgende:
1. Lees deze gebruiksaanwijzing.
2. Bewaar deze gebruiksaanwijzing.
3. Besteed aandacht aan alle waarschuwingen.
4. Volg alle instructies op.
5. Gebruik dit apparaat niet in de buurt van water.
6. Reinig het alleen met een droge doek.
7. Blokkeer geen ventilatieopeningen. Installeer volgens de instructies van de fabrikant.
8. Installeer niet in de buurt van warmtebronnen zoals radiatoren, kachels, ovens of andere apparaten (inclusief versterkers) die
warmte produceren.
9. Omzeil nooit de veiligheidsvoorziening van de gepolariseerde of geaarde stekker. Een gepolariseerde stekker heeft twee bladen,
waarvan er één breder is dan de andere. Een geaarde stekker heeft twee bladen en een derde aardingspen. Het bredere blad
of de derde pen is bedoeld voor uw veiligheid. Mocht de geleverde stekker niet in uw stopcontact passen, raadpleeg dan een
elektricien voor het vervangen van het verouderde stopcontact.
10. Bescherm het netsnoer zodat er niet over gelopen kan worden of bekneld kan raken, vooral bij stekkers, stopcontacten en het
punt waar ze het apparaat verlaten.
11. Gebruik alleen aansluitstukken/accessoires geleverd door de fabrikant.
12. Gebruik uitsluitend een wagentje, standaard, statief, beugel of tafel die door de fabrikant wordt aanbevolen of bij het apparaat
wordt verkocht. Wanneer u een wagentje gebruikt, wees dan voorzichtig bij het verplaatsen van de combinatie wagen/apparaat
en voorkom letsel door omvallen.
13. Haal de stekker van dit apparaat uit het stopcontact tijdens bliksem of wanneer het apparaat gedurende lange perioden niet
gebruikt wordt.
14. Laat al het onderhoud uitvoeren door gekwaliceerd onderhoudspersoneel. Onderhoud is nodig wanneer het apparaat op enige
wijze beschadigd is, zoals het netsnoer of de stekker is beschadigd, er vloeistof in het apparaat is gemorst of voorwerpen in zijn
terechtgekomen, het apparaat aan regen of vocht is blootgesteld, niet normaal werkt, of is gevallen.
15. Breek nooit de aardingspen af. Raadpleeg ons gratis boekje “Schokgevaar en aarding”. Sluit alleen op een voedingsspanning
aan van het type aangegeven op het apparaat naast het netsnoer.
16. Als dit product in een apparatuurrek gemonteerd moet worden, moet voor achterondersteuning worden verzorgd.
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ pro-
ceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the
earth symbol‚ colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that
is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked
with the letter L or the color red.
18. Dit elektrisch apparaat mag niet aan druip- of spatwater worden blootgesteld en er moet op gelet worden dat geen voorwerpen
gevuld met vloeistoffen, zoals vazen, op het apparaat worden geplaatst.
19. De aan/uit-schakelaar van dit apparaat onderbreekt niet beide contacten van het lichtnet. Gevaarlijke spanning kan binnenin het
chassis aanwezig zijn ondanks dat de aan/uit-schakelaar op uit staat. De stekker van het apparaat wordt gebruikt als onderbrekingsmechanisme, het onderbrekingsmechanisme dient eenvoudig bedienbaar te blijven.
20. Blootstelling aan extreem hoge geluidsniveaus kan permanent gehoorverlies veroorzaken. Individuen verschillen in gevoeligheid
voor gehoorverlies door lawaai geïnduceerd, maar bijna iedereen zal enig gehoor verliezen indien voor een bepaalde duur aan
voldoende intens lawaai blootgesteld. De Occupational Safety and Health Administration (OSHA) van de Amerikaanse regering
heeft de volgende blootstellingen aan toelaatbaar lawaainiveau gespeciceerd:
Duur per dag In urenGeluidsniveau dBA, trage reactie
890
692
495
397
2100
1 1⁄2102
1105
1⁄2110
1⁄4 of minder115
Volgens OSHA, kan elke blootstelling boven de bovengenoemde toelaatbare grenswaarden tot enige gehoorverlies leiden. Oordoppen of
-beschermers in de oorkanalen of over de oren moeten bij het bedienen van dit versterkersysteem worden gedragen om een permanent
gehoorverlies te voorkomen, indien blootstelling boven de grenzen zoals hierboven zijn vermeld. Om potentieel gevaarlijke blootstelling
aan hoge geluidsdruk te voorkomen, is het raadzaam om alle personen die aan apparatuur worden blootgesteld die in staat is om hoge
geluidsdruk te produceren, zoals dit versterkersysteem, met gehoorbeschermers te beschermen wanneer dit apparaat in bedrijf is.
BEWAAR DEZE INSTRUCTIES!
ITALIAN
IMPORTANTI NORME DI SICUREZZA:
ATTENZIONE: Durante uso di apparecchiature elettriche vanno osservate alcune precauzioni basilari, tra cui le seguenti:
1. Leggete queste istruzioni.
2. Conservate le istruzioni.
3. Rispettate tutte le avvertenze.
4. Seguite le istruzioni.
5. Non usate questo prodotto vicino all’acqua.
6. Pulite esclusivamente con un panno asciutto.
7. Non ostruite le fessure di ventilazione. Installate il dispositivo seguendo le istruzioni del produttore.
8. Il prodotto va collocato lontano da sorgenti di calore quali radiatori, pompe di calore, stufe o altri dispositivi che generano calore
(compresi gli amplificatori).
9. Non eliminate i dispositivi di sicurezza come spine polarizzate o con messa a terra. La spina polarizzata ha due lame, una
più grande dell’altra. La spina con messa a terra ha due contatti più un terzo per la terra. Il contatto più largo o terzo polo è
indispensabile per la vostra sicurezza. Se la spina fornita non adatta alla vostra presa, mettetevi in contatto con un elettricista
per la sostituzione della presa obsoleta.
10. Fate attenzione a non camminare o incastrare il cavo di alimentazione, soprattutto in prossimità della spina o del punto in cui si
collega all’apparecchiatura.
11. Usate solo accessori originali forniti dal costruttore.
12. L’apparato va usato esclusivamente con il supporto indicato dal produttore o venduto con l’apparato. Se intendete adoperare un
carrello su ruote, fate attenzione quando spostate apparecchio e supporto per evitare che la loro caduta possa causare danni a
cose o persone.
13. Scollegatelo l’apparecchio dalla presa di corrente durante un temporale con fulmini o quando non s’intende usare per un lungo
periodo.
14. L’assistenza va eseguita esclusivamente da personale autorizzato. È necessario ricorrere all’assistenza se il dispositivo ha
subito danni, per esempio si sono rovinati il cavo di alimentazione o la spina, all’interno è caduto del liquido o un oggetto, il
dispositivo è rimasto esposto alla pioggia o all’umidità, non funziona normalmente o è caduto a terra.
15 Non rimuovete lo spinotto della terra. Collegate il dispositivo esclusivamente a una presa di corrente del tipo indicato accanto
alla targhetta posta vicino al cavo di alimentazione.
16. Se questo prodotto deve essere montato a rack, è necessario sostenerlo anche nella parte posteriore.
17. Nota per UK: Se i colori dei fili nel cavo di alimentazione per questa unità non corrispondono con i terminali della vostra spina,
procedere come segue: a) Il filo di colore verde/giallo deve essere collegato al terminale che marcato con lettera E, o simbolo di
terra, o colore verde o verde/giallo. b) Il filo di colore blu deve essere collegato al terminale marcato con la lettera N o di colore
Nero. c) Il filo di colore marrone deve essere collegato al terminale marcato con la lettera L o di colore Rosso.
18. Questo apparato elettrico non deve essere esposto a gocce o schizzi, va in ogni caso evitato di appoggiare oggetti contenenti
liquidi, come bicchieri, sull'apparecchio.
19. L'interruttore on/off in questa unità non interrompe entrambi i lati della rete di alimentazione. All'interno dell'apparecchio può
essere presente elettricità anche con interruttore on/off in posizione off. La spina o il cavo di alimentazione è utilizzato come
sezionatore, il dispositivo di sezionamento deve restare sempre operativo.
20. L’esposizione a livelli di volume molto elevati può causare la perdita permanente dell’udito. La predisposizione alla perdita
dell’udito causata da livelli elevati di volume varia notevolmente da persona a persona, ma quasi tutti subiscono una perdita di
udito almeno parziale se soggetti a volume di livello elevato per un tempo sufficientemente lungo. L’ufficio Lavoro e Salute del
governo degli USA (OSHA) ha elaborato la seguente tabella di tolleranza ai rumori:
Esposizione giornaliera in ore Livello sonoro dBA, Slow response
8 90
6 92
4 95
3 97
2 100
1 1⁄2102
1 110
1⁄4 o minore 115
Secondo l’OSHA, l’esposizione a livelli di volume al di sopra dei limiti stabiliti può causare una perdita almeno parziale dell’udito. Quando
si adopera questo sistema di amplificazione, è necessario indossare auricolari o apposite protezioni per il condotto auditivo, per evitare la
perdita permanente dell’udito se l’esposizione supera i limiti sopra riportati.Per evitare di esporvi al rischio di danni derivanti da elevati livelli
di pressione sonora, si raccomanda di adoperare delle protezioni per gli orecchi quando si usano attrezzature in grado di produrre elevati
livelli sonori, come quest’amplificatore.
CONSERVATE QUESTE ISTRUZIONI!
PORTUGUESE
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
1. Leia estas instruções.
2. Mantenha estas instruções.
3. Preste atenção a todas as advertências.
4. Siga todas as instruções.
5. Não use este aparelho perto d’água.
6. Limpe somente com um pano seco.
7. Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as instruções do fabricante.
8. Não instale perto de nenhuma fonte de calor tais como radiadores, registros de calor, fogões ou outros aparelhos (incluindo
amplicadores) que produzam calor.
9. Não desae o propósito de segurança do plugue polarizado ou do tipo aterrado. Um plugue polarizado tem duas lâminas com uma
mais larga que a outra. Um plugue do tipo aterrado tem duas lâminas e um terceiro plugue terra. A lâmina larga ou o terceiro pino
são fornecidos para sua segurança. Se o plugue disponibilizado não couber em sua tomada, consulte um eletricista para troca da
tomada obsoleta.
10. Proteja o cabo de energia para não ser pisado ou espremido principalmente em plugues, recipientes e o ponto de onde sai do
aparelho.
11. Use apenas conexões/acessórios fornecidos pelo fabricante.
12. Use apenas um carrinho, banqueta, tripé, suporte, ou mesa especicado pelo fabricante, ou vendido com o aparelho. Quando um
carrinho for usado, tome cuidado ao mover a combinação carrinho/aparelho para evitar ferimentos por tombamento.
13. Tire esse aparelho da tomada durante tempestades de raios ou quando for car sem usar por longos períodos de tempo.
14. Entregue todos os consertos apenas a pessoal qualificado. O conserto é necessário quando o aparelho tiver sofrido qualquer
dano, tais como o cabo de energia ou plugue estiverem danicados, líquidos tenham sido derramados ou objetos tenham caído no
aparelho, o aparelho tenha sido submetido à chuva ou umidade, não funcionar normalmente, ou tenha sido deixado cair.
15. Nunca quebre fora o pino terra. Escreva pedindo nosso livreto grátis “Perigos de Choque e Aterramento.” Ligue apenas a um
suprimento de energia do tipo marcado na unidade adjacente ao o de fornecimento de energia.
16. Se este produto for ser montado em uma estante para equipamentos, deve ser montado um suporte traseiro.
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as
follows:
a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚
colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
18. Este aparelho elétrico não deve ser exposto a pingos ou respingos e deve ser tomado cuidado para não colocar objetos contendo
líquidos, tais como vasos, sobre o aparelho.
19. O comutador liga/desliga nesta unidade não interrompe ambos os lados da rede elétrica primária. Energia perigosa pode estar
presente dentro do chassi quando o comutador liga/desliga estiver na posição desligado. O plugue de alimentação ou um dispositivo
de união é usado como dispositivo de desligamento, o dispositivo de desligamento deve permanecer pronto para funcionar.
20. Exposição a níveis de barulho extremamente altos podem causar perda permanente de audição. As pessoas variam
consideravelmente em susceptibilidade a perda de audição causada por ruídos, mas quase todo mundo vai perder algo da audição
se exposto a ruído sucientemente intenso por tempo suciente. A Administração de Segurança Ocupacional e Saúde americana
(OSHA) especicou os seguintes níveis permissíveis de exposição a ruído:
ADVERTÊNCIA: Ao usar eletrodomésticos, precauções básicas devem sempre ser seguidas, incluindo as seguintes:
De acordo com a OSHA, qualquer exposição excedente aos limites permissíveis acima pode resultar em alguma perda de audição. Tampões de
ouvido ou protetores sobre os canais do ouvido ou sobre as orelhas precisam ser usados ao operar este sistema de amplicação para poder evitar
uma perda permanente de audição, se a exposição for em excesso aos limites acima estabelecidos. Para assegurar contra exposição perigosa
potencial a níveis de alta pressão de ruído, é recomendado que todas as pessoas expostas a equipamento capaz de produzir níveis de alta pressão
de ruído tais como este sistema de amplicação estejam protegidas por protetores de ouvido enquanto esta unidade estiver em funcionamento.
Duração Por Dia Em Horas dBA de Nível de Som, Resposta Lenta
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as
follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚
colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that is marked with the letter
N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
15. 不得拔出接地插脚。请写信索取免费手册《 Shock Hazard and Grounding》。使用前,请仔细检查确认所使用的电源电压是否匹配设备
上标注的额定电压。
16. 如果本机装在机柜中 , 其后部也应给予相应的支撑固定。
17.
Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as
follows:
a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚
colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as
follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚
colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that is marked with the letter
N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.
18.
전기기기가비나물방울에노출되지않도록주의하고꽃병과같이용액이들어있는물체를기기위에놓지않도록주의해
주십시오.
19. 본기기의 ON/OFF 스위치는양쪽의주기기전원을차단하지않습니다. ON/OFF 스위치가 OFF 위치에있더라도섀시내부에위험한전기가흐를수있습니다. 기본플러그또는기기커플러는분리장치로사용됩니다. 분리장치는바로사용가능한상태로두어야합니다.
OSHA에 따르면 용인 가능한 위 제한 수치를 초과하여 노출된 경우 일부 청각이 손상될 수 있습니다. 위에 명시된 제한치를 초과하여
노출되는 경우 영구적인 청각 손상을 예방하려면 이 앰프 시스템 사용 시 귀마개 또는 귀 전체를 덮는 보호구를 착용해야 합니다. 잠
재적으로 위험한 높은 음압에 노출되지 않도록 하려면 이 앰프 시스템과 같이 높은 음압을 생성할 수 있는 장비에 노출되는 모든 사람
이 기기가 작동하는 동안 청각 보호구를 착용하는 것이 좋습니다.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired
operation.
Warning: Changes or modications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority
to use the equipment.
Note - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Correct Disposal of this product. This marking indicates that this
product should not be disposed with other house hold wastes
throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems, or contact
the retailer where the product was purchased. They can take this
product for environmental safe recycling.
Logo referenced in Directive 2002/96/EC Annex
IV(OJ(L)37/38,13.02.03 and dened in EN 50419: 2005
The bar is the symbol for marking of new waste and is applied
only to equipment manufactured after 13 August 2005
Forma correcta de deshacerse de este producto. Esta marca indica que este producto
no debe arrojarse junto con otros desperdicios domésticos en ningún lugar de la Unión
Europea. Para evitar posibles daños al medio ambiente o a la salud humana debidos a
desechos no controlados de desperdicios, recíclelo responsablemente para promover
la reutilización sostenible de los recursos materiales. Para devolver su dispositivo
usado, utilice los sistemas de devolución recolección, o contacte con el vendedor
minorista donde compró el producto. Ellos pueden llevar este producto al reciclado
seguro para el medio ambiente.
Logotipo al que se hace referencia en la Directiva 2002/96/EC
AnexoIV(OJ(L)37/38,13.02.03 y denido en EN 50419: 2005
La barra es el símbolo para marcar los nuevos desechos y se aplica
solamente a equipamiento fabricado después del 13 de agosto de 2005
Recyclez correctement ce produit. Cette signalisation indique que ce produit ne
doit pas être jeté avec les autres déchets domestiques dans les pays de l’UE. Pour
éviter toute atteinte à l’environnement ou à la santé humaine par des décharges
sauvages, recyclez ce produit de manière responsable pour encourager la
réutilisation durable des ressources matérielles. Pour retourner votre appareil usé,
veuillez utiliser les systèmes de collecte et de retour, ou contactez le revendeur
à qui vous avez acheté le produit. Il prendra en charge ce produit de manière à
protéger l’environnement.
Logo documenté dans l’annexe de la Directive 2002/96/EC
IV_(OJ(L)37/38,13.02.03 et déni par la norme EN 50419:2005
La barre est le symbole de signalisation des nouveaux déchets qui
s’applique uniquement aux équipements fabriqués après le 13 août 2005
Tuotteen oikea hävittäminen. Tämä merkki ilmaisee, että tuotetta ei saa hävittää muun
talousjätteen mukana EU:n alueella. Jotta estetään mahdolliset valvomattoman jätteiden
hävittämisen haitat ympäristölle tai ihmisten terveydelle, kierrätä tuote vastuullisesti ja
edistä materiaalien kestävää uudelleenkäyttöä. Voit palauttaa käytetyn laitteen käyttämällä
keräysjärjestelmiä tai ottamalla yhteyttä jälleenmyyjään, jolta laite ostettiin. He voivat
toimittaa tuotteen ympäristön kannalta turvalliseen kierrätykseen.
Logo viitattu direktiivin 2002/96/EY liitteen
IV(OJ(L)37/38,13.02.03 mukaisesti, määritelty standardissa EN 50419: 2005
Palkki on uuden jätteen merkintäsymboli ja sitä käytetään vain 13. elokuuta
2005 jälkeen valmistetuissa laitteissa
Juiste verwijdering van dit product. Deze markering geeft aan dat dit product
nergens in de Europese Unie met ander huishoudelijk afval mag worden afgevoerd.
Om mogelijke schade aan het milieu of gezondheid door ongecontroleerde
afvalverwijdering te voorkomen, recycle het op een verantwoorde wijze om het
duurzame hergebruik van materiaalgrondstoffen te bevorderen. Om uw gebruikte
apparaat in te leveren, kunt u gebruik maken van de inlever- en verzamelsystemen
of contact opnemen met de verkoper waar het product is gekocht. Zij kunnen dit
product innemen voor het milieuvriendelijk recycling.
Het logo waarnaar wordt verwezen in de bijlage van Richtlijn 2002/96/EG
IV(OJ(L)37/38,13.02.03 en omschreven in EN 50419: 2005
De balk is het symbool voor het markeren van nieuw afval en wordt
alleen toegepast op apparatuur dat is vervaardigd na 13 augustus 2005
Entsorgen Sie dieses Produkt umweltgerecht. Diese Kennzeichnung bedeutet,
dass das Produkt innerhalb der EU nicht mit dem Hausmüll entsorgt werden darf.
Zur Vermeidung von Umwelt- und Gesundheitsschäden durch unkontrollierte
Entsorgung recyceln Sie das Gerät bitte. Geben Sie das Gerät an einer Sammelstelle
für Elektroaltgeräte ab oder wenden Sie sich an Ihren Fachhändler.
Logo eingetragen in Richtlinie 2002/96/EC AnhangI
IV_(OJ(L)37/38, 13.02.03 und deniert in EN 50419: 2005
Der Balken ist das Symbol zur Kennzeichnung neuen Abfalls und wird nur
auf Geräten angebracht, die nach dem 13. August 2005 gefertigt wurden
Korrekt bortskaffande av denna produkt. Denna märkning betyder att
produkten inte skall bortskaffas tillsammans med annat hushållsavfall i
hela EU. För att förhindra eventuella skador för miljön eller människors
hälsa från okontrollerat bortskaffande av avfall, återvinn det ansvarsfullt för
att främja hållbar återanvändning av materiella resurser. För att returnera
din använda enhet, använd återanvändnings- och uppsamlingssystem,
eller kontakta den återförsäljare där produkten köptes. De kan ta hand om
denna produkt för miljösäker återvinning.
Logotyp som hänvisas till i direktiv 2002/96/EG bilaga
IV(OJ(L)37/38,13.02.03 och denieras i EN 50419: 2005
Stapeln är symbolen för märkning av nytt avfall och är endast
tillämplig på utrustning som tillverkats efter 13 augusti, 2005
Corretto smaltimento di questo prodotto. Questo simbolo indica che questo prodotto
non deve essere smaltito insieme ad altri riuti domestici in tutta Europa. Per
prevenire possibili danni all’ambiente o alla salute umana dovuti allo smaltimento non
regolamentato dei riuti, è necessario riciclarlo responsabilmente al ne di promuovere
il riutilizzo sostenibile delle risorse materiali. Per restituire il dispositivo usato, utilizzare
i sistemi di restituzione e raccolta o contattare il rivenditore presso il quale il prodotto è
stato acquistato. Quest’ultimo può occuparsi del riciclaggio ambientale sicuro di questo
prodotto.
Simbolo presente nell’allegato IV_(OJ(L)37/38,13.02.03 della direttiva 2002/96/
CE e denito nello standard EN 50419: 2005
La barra è il simbolo indicante un nuovo riuto ed è applicata esclusivamente ad
apparecchiature prodotte successivamente al 13 agosto 2005
ENGLISH
FX™2 16, FX™2 24, and FX™2 32 Channel
4-Bus Console Mixers
Congratulations on purchasing the Peavey FX™2 16, FX™2 24, or FX™2 32, four-bus console mixer. These studio-quality mixing
consoles are designed to meet diverse needs and feature Peavey-exclusive technology that enhances live studio reproduction
as well as project studio recording. FX™ Series mixers also feature built-in DSP effects that are useful in real-world recording
and sound reinforcement, while parameter controls allow you to tailor each effect to meet your needs.
Please read this guide carefully to ensure your personal safety as well as the safety of your equipment.
FEATURES:
• Silencer™ mic preamps with current-source dual feedback design
• 12 XLR mic inputs on FX2 16, 20 XLR mic inputs on FX2 24 , 28 XLR mic inputs on FX2 32
• Two stereo channels with direct-to-L/R assignment capability
• Three-band channel EQ on all input channels
• Sweepable mid-frequency control on all mono input channels
• Variable low-cut filter on all mono input channels, off to 300Hz
• Inserts on all mono channels
• Four-bus design with direct group outputs and L/R assignment
• Four monitor sends per channel, pre-fader
• Two effects sends per channel, post-fader
• Pan and PFL on each channel
• Multi-point clip detection
• Signal presence LEDs on every input, group and return
• Mute switches with LED indicator on every input, group and return channel
• 48-volt phantom power switch
• Dual DSP engines for output processing, dual effects and digital I/O
• Output processing includes EQ, Delay and Compressor/Limiter
• Large LCD graphics user interface
• Dual USB ports
• Direct streaming of audio to and from your computer
• Built-in MP3 compression, direct recording and playback via USB removable data storage device
• Media inputs with level control assignable to L/R mix

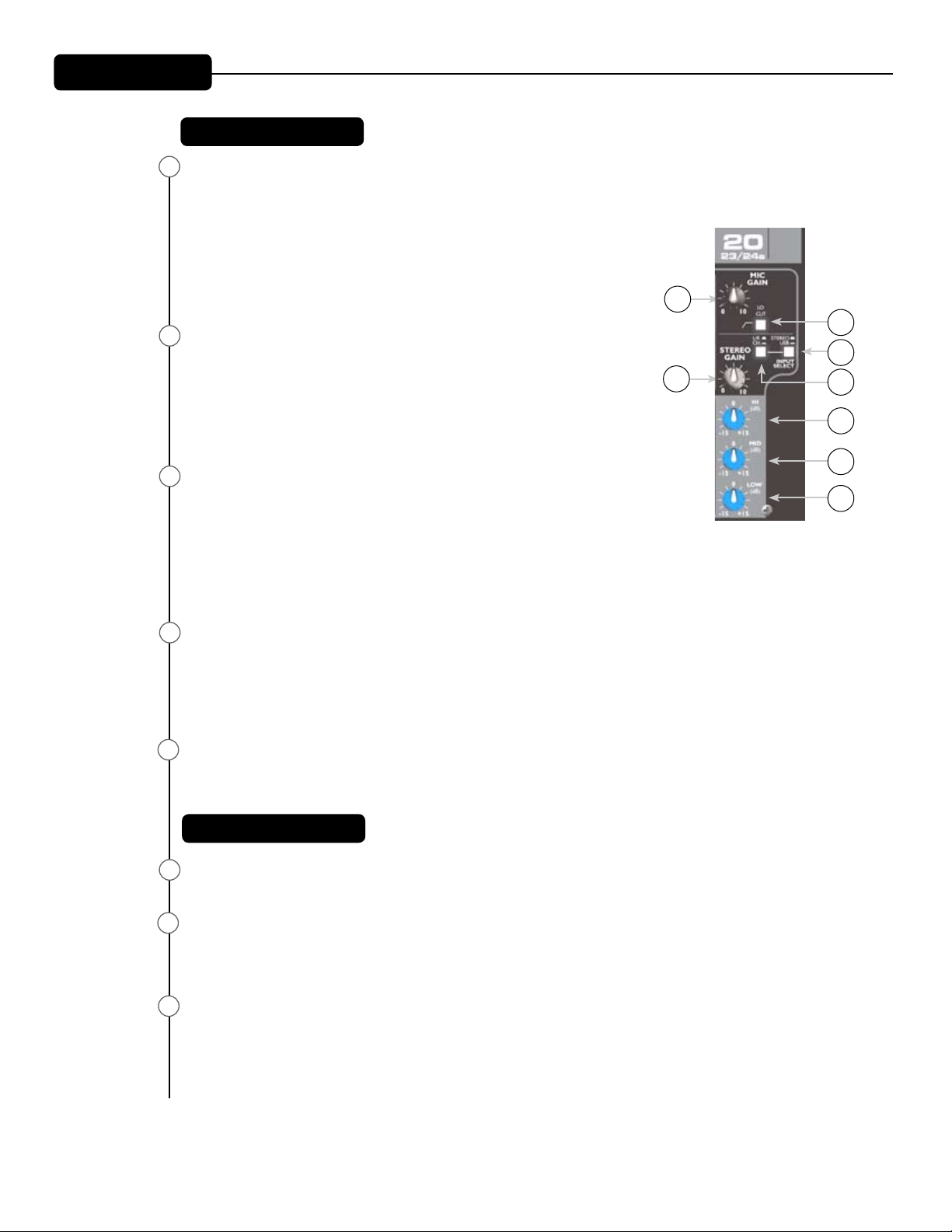

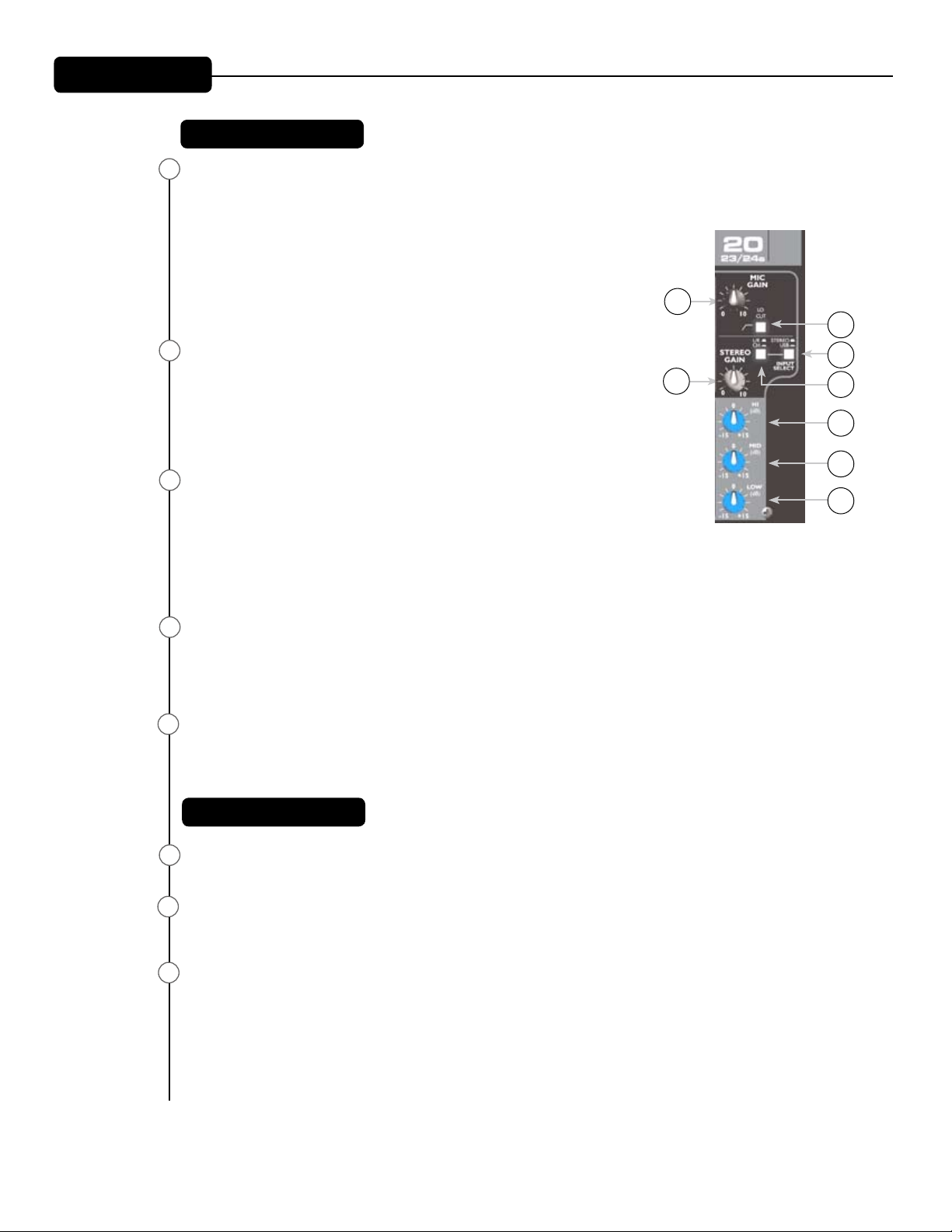

Gain
This control establishes the nominal operating level for the channel. The input
gain can be adjusted over a wide range (0 dB – 60 dB) to compensate for soft
voices or very loud drums. To maximize the signal-to-noise ratio, the gain
should be set to the proper level, with the Channel Fader (13) set to 0. It can be
set by pressing the PFL Switch (12) and adjusting for 0 dB on the output meter.
If the clip LED comes on and remains lit, reduce the gain.
1
2
3
2
Lo Cut
The low-cut lter is variable from off to 300Hz. When engaged‚ it can improve
clarity by removing low frequencies that make a mix sound muddy. This lter
reduces handling and stage noise, breathing noise, and unwanted low frequency energy that can rob your sound system of power. Turning this control up will
remove those frequencies from the system and restore power where needed.
3
Hi EQ
This shelving type tone control adjusts treble frequency levels (±15 dB at 10
KHz), resulting in less noise or more brilliance.
4
Mid EQ
This active tone control is a bandpass (peak/notch) type that varies mid-frequency response by ±15 dB in a range from 100 Hz to 5 kHz. The center frequency is controlled by the Mid Freq (5) control.
5
Mid Freq
This control determines the center frequency of the Mid EQ (4) control. Center
frequency for the bandpass lter can be set from 100 Hz to 5 kHz.
6
Low EQ
This shelving-type tone control adjusts bass frequency levels (±15 dB at 70 Hz),
adding depth to thin signals or clarity to overly thick signals.
Caution: Excessive low frequency boost causes increased power consumption
and increases the possibility of speaker damage.
4
5
6
7
8
9
10
11
12
7
AUX 1-4 Sends
These controls send the channel’s pre-fader, post-EQ signal to each of four aux
buses. These buses are normally used for monitor sends or for feeding a separate mix to external equipment. There are internal jumpers that can be switched
to change the send point to pre-EQ. Unity gain is at the center detent position
with up to 6 dB of gain in the fully clockwise position.
8
AUX 5-6/EFX 1-2 Sends
These controls send the channel’s post-fader signal to each of two aux (effects) buses. These buses are normally used for effects sends or for feeding the
internal effects processors. Unity gain is at the center detent position with up
to 6dB of gain in the fully clockwise position.
13
Front Panel
10
9
Pan
This control determines the signal’s position with respect to the assigned
L/R and Group 1–4 buses. Rotating the control counterclockwise increases
the amount of signal sent to L and odd-numbered groups; rotating clockwise increases the amount sent to R and even-numbered groups. For example, with the channel Bus Assign switch (10) in the 1/2 position, rotating
the control counterclockwise increases the amount of signal sent to Group
1, while rotating clockwise increases the amount sent to Group 2. The C
position sends equal amounts to each.
1/2, 3/4, L/R Bus Assign Switches
These post-fader switches determine where the channel signal is being
sent. For example, to send a signal to Groups 1 & 2, depress the 1/2 button.
The PAN control (9) determines the signal level that is sent to each signal
bus.
1
2
3
4
5
11
Mute Switch/Mute-Clip LED
This switch mutes all Aux, Group and L/R sends from the corresponding
channel. This switch is equipped with a red LED that will illuminate when
the channel is muted. When the MUTE button is out, the LED functions as a
Clip indicator that will illuminate at 2 dB below clipping. Muting the channel
does not prevent the PFL signal from being sent to the PFL/AFL mix when
the PFL Switch (12) is in.
12
PFL Switch/Signal-PFL LED
This switch connects the channel’s pre-fader signal to the PFL/AFL mix.
When the PFL button is in, the channel’s signal can be monitored through
the headphones and/or on the PFL/AFL display. A yellow LED in the Master section will blink to indicate that the signal on the Master LED display
and at the headphone output is PFL. Selecting PFL allows the operator to
monitor a channel even with the channel muted, and is especially useful for
cuing CDs/tapes. When the PFL button is out, the yellow channel LED will
function as a signal presence indicator (-20 dBu).
13
Channel Fader
This control varies the signal level from -∞ to +10 dB and sends the signal
from the channel to the L/R and Group buses and to the Effects Sends. The
optimum setting is the ø (unity gain) position.
6
7
8
9
10
11
12
13
Front Panel
14
15
16
STEREO INPUT CHANNELS
Mic Gain
This control establishes the nominal operating level for the mic input
(XLR) of the channel. The mic gain can be adjusted over a wide range (0
Stereo Input Channels
ONLY
dB – 60 dB) to compensate for soft voices or very loud drums. To maximize the signal-to-noise ratio, the gain should be set to the proper level,
with the Channel Fader (13) set to ø. The mic gain can be set by pressing
the PFL button (12) and adjusting for ø dB on the output meter. If the clip
LED comes on and remains lit, reduce the gain.
14
2
Stereo Gain
This control establishes the nominal operating level for the stereo line
inputs (1/4" jacks) of the channel. The Stereo Gain can be adjusted
over a sufcient range (-∞ to +20 dB) to accommodate almost any
input level. It operates in conjunction with the L/R–CH Switch (16) to
route the stereo signal directly to the L/R buses or through the channel strip.
L/R–CH Switch
This switch establishes the routing of the stereo line input (1/4" jacks)
15
17
16
3
18
6
signal. When the switch is out, the stereo line input signal is routed
directly to the L/R buses, bypassing the channel strip. In this mode, the
mic input (XLR) signal is routed through the channel. When the switch is in, the stereo line input signal is
routed through the channel and the mic input signal is disconnected. The signal level is controlled via the
Stereo Gain control (15).
Input Select Stereo-USB Switch
17
This switch selects the input signal that will feed the stereo line input of the second stereo channel.
When the switch is out, the signal from the stereo line inputs is routed to the Stereo Gain control (15).
When the switch is in, the signal from the device connected to either USB port (60-61) is routed to the
Stereo Gain control (15).
Mid EQ
18
In the Stereo Input channels, this active tone control is a bandpass (peak/notch) type that varies
mid-frequency response by ±15 dB at a center frequency of 850 Hz.
MASTER SECTION
Auxiliary Masters 1-4
19
This control sets the output level of the AUX 1-4 mixes and is adjustable from -∞ to +6 dB.
20
Auxiliary Masters 5-6
This control sets the output level of the various AUX 5-6 mixes and is adjustable from -∞ to +6 dB. These
signals are also sent to the EFX1 and EFX2 internal effects processors, respectively.
21
AFL Switch/AFL-Clip LED
This switch directs the post-fader (AFL) signal to the Headphone output (37) and activates the PFL/
AFL LED display. An adjacent red LED illuminates to signify this selection. If AFL is not selected, the LED
functions as a Clip indicator. Selecting AFL allows monitoring of AUX Masters with the full PFL/AFL Level
Display as well as allowing the operator to hear the output.
Front Panel
22
Phantom Power Switch
This switch applies +48 VDC
voltage to the input XLR connectors to power condenser
microphones requiring phantom
power. This switch is recessed
into the console and requires a
small “tool” such as a pencil or
pen tip to activate. A regular low
impedance dynamic mic such as
the PVM™ 22 will not be harmed.
The Line inputs (49&50) are not
connected to the +48 V supply
and are safe for balanced or unbalanced inputs. An adjacent LED
illuminates when Phantom Power
is activated.
Caution:
If phantom power is used, do not
connect unbalanced dynamic
microphones or other devices to
the XLR inputs. (Some wireless
receivers may be damaged.
Consult their manuals.)
19
44
43
47
45
46
33
27
38
39
28
29
Note:
Make sure the Master Level
Faders (40) are completely down
when switching on the phantom
power and when connecting
microphones to the Mic inputs to
prevent pops from affecting the
loudspeakers.
23
Left, Right, Bus Assign Switches
These post-fader switches
determine where the Group mix
signal is being sent. For example,
if each individual drum mic is
assigned to Group 1, depressing the Left button will send the
drum mix to the Left bus and
to the Left Out (54) on the rear
panel.
24
Mute Switch/Mute-Clip LED
This switch mutes its respective Group send from the Group
channel. This switch is equipped
with a red LED that will illuminate
when the Group is muted. When
the Mute button is out, the LED
functions as a Clip indicator that
will illuminate at 2 dB below
clipping.
22
24
30
21
23
20
25
41
32
42
31
36
35
34
40
26
37
Front Panel
25
26
27
28
AFL Switch/Signal-AFL LED
This switch connects the Group’s post-fader signal to the PFL/AFL mix. When the AFL button is in, the
Group’s signal can be monitored through the headphones and/or on the PFL/AFL display. A yellow LED
in the Master section will blink to indicate that the signal on the Master LED display and the Headphone
Output is the PFL/AFL mix. When the AFL button is out, the yellow group LED will blink as an indication
of signal presence (-20 dBu).
Group Fader
This control varies the signal level from -∞ to +10 dB and sends the signal from the Group to the Left
and/or Right buses and to the Group Output jacks (53). The optimum setting is the ø (unity gain)
position.
TO AUX 1 & TO AUX 2 Controls
These controls determine the level of the respective Effects Return signal that is sent to the respective
AUX bus, allowing musicians/singers to hear internal and/or external effects in their monitors.
NOTE: Due to the creation of an electronic feedback loop, do not use AUX Sends 1 or 2 as the path to
external equipment that is to be sent back to the corresponding AUX mix (1 or 2).
BAL
This control determines the placement of the Effects Return signal's position with respect to the assigned L/R and Group 1-4 buses. Rotating the control counterclockwise (L) sends more signal to the
LEFT output and odd-numbered GROUPS; rotating clockwise (R) sends more signal to the RIGHT output
and even-numbered GROUPS. The C position sends equal amounts to each.
29
EFX LEVEL Control
This control determines the level of the Effects Return signal being sent to its assigned buses. It functions similarly to the Channel Faders (13).
1/2, 3/4, L/R Bus Assign Switches
30
Like the channel assign switches, these buttons determine the bus assignment of the Effects Return
signal. They determine where the signal is being sent.
31
Mute Switch/Mute-Clip LED
This switch mutes its respective Effects Return from being sent to the buses. This switch is equipped
with a red LED that will illuminate when the Effects Return is muted. When the Mute button is out, the
LED functions as a Clip indicator that will illuminate at 2 dB below clipping.
AFL Switch/Signal-AFL LED
32
This switch connects the Effects Return post-fader signal to the PFL/AFL mix. When the AFL button is in,
the Effects Return signal can be monitored through the headphones and/or on the PFL/AFL display. A
yellow LED in the Master section will blink to indicate that the signal on the Master LED display and the
Headphone Output is the PFL/AFL mix. When the AFL button is out, the yellow Effects Return LED will
blink as an indication of signal presence (-20 dBu).
33
Effects 2 Patch Switch
This switch determines whether the Effects 2 processor will be used in the Return 2 or will be patched
to an Input Channel or Group insert point. This switch can also be used to perform the bypass function.
When the effects processor is assigned to the EFX 2 Return, the I/O jack (56) is bypassed. Similarly,
when the effects processor is being patched externally, only the external Stereo Return jacks (57) are
used to return a signal.
34
Media In Level Control
Controls the level of the Media Input signal from the RCA jacks (58) to the Left and Right buses when the
L/R switch (35) is in.
Front Panel
35
36
37
38
Media In L/R Switch
Routes the Media Input signal to the Left and Right buses.
Record Out Control
Controls the Record Output level of the pre-fader Left and Right main output signal to the RCA jacks (59).
Regardless of the position of the L/R–Media Switch (39), when any PFL/AFL switch on the mixer is
activated, this display indicates the signal level being sent to the PFL/AFL bus. The PFL/AFL indicator
ashes if either mode (PFL or AFL) is selected.
Headphone Output Jack
The Headphone Output is a 1⁄4” TRS (Tip= Left; Ring = Right; Sleeve = Ground) jack. The signal sent to
this output is normally the Left/Right mix. When the L/R–Media Switch (39) is engaged, the Media Input
signal is selected and is monitored through headphones. An activated PFL or AFL button (indicated by a
yellow ashing LED) switches the headphone output jack monitor to the selected signal.
Headphone Level
This control sets the Headphone Output level. To avoid damage to your hearing‚ make sure to turn the
control fully counterclockwise before using headphones. Slowly turn the knob clockwise until you reach
a comfortable listening level. Normally, the signal in the headphones is the Left/Right signal. If the
L/R–Media Switch (39) is engaged‚ the Media Input signal is selected and monitored through
headphones. An activated PFL or AFL button (indicated by a yellow ashing LED) switches the headphone level monitoring to the selected signal.
39
L/R–Media Switch
This switch selects the signal that is monitored by the headphones. When out, the Main Left/Right postfader signal is monitored. When in, the Media Input post-fader signal is monitored.
40
Master Level Faders
The Master Faders control the levels sent to the Main Left/Right outputs (54). Best results are obtained
when these controls are set near the 0 point.
41
Left/Right – PFL/AFL Level Displays
These indicators graphically display the level of the signal selected by the L/R–Media Switch (39). When
the switch is in, these indicators show the amount of the post-fader level of the Media Input. When the
switch is out, these indicators show the level of the Main Left and Right outputs. Signal is sampled at
the summing amp and post-master faders to monitor clipping throughout the Left/Right section. The
Clip LED indicator will illuminate when any level in the signal chain approaches (-2 dB) clipping.
NOTE: Clip LED can illuminate before the rest of the array indicating that the summing amp has reached clipping.
42
Power LED
This LED indicates that AC power is supplied to the unit‚ the power switch is on, and the unit is functioning properly.
43
Lamp 12Vdc
These outputs are designed to power gooseneck lamps such as the Peavey ML-1.
DIGITAL PROCESSOR
44
Page Select Switches (A-B-C)
Use these three switches to select the desired digital processor page that is shown in the LCD
Graphics User interface (47) and controlled by the encoders (45) and the soft switches (46).
Front Panel
Software Encoders
45
These encoders allow you to edit the selected parameters as indicated on the LCD (47).
46
Software Switches
These switches select the functions that are indicated on the LCD (47).
LCD
47
The Liquid Crystal Display reveals all of the menus available for editing.
DIGITAL PROCESSING ARENA
This is a brief overview of the digital processing capabilities of your new FX™ 2 mixer. While you can
expect incredible results following this guide, mastering the art of digital processing will be achieved
through experimentation. Keep in mind that until you conrm your changes by pressing "save," no
alterations have been made to the presets. Peavey engineers programmed your mixer with a variety of
the most commonly used presets, which are ready to use right out of the box. However, your FX 2 mixer
will only reach its full digital processing potential through your acquired expertise. Review the process
below and begin exploring the digital mixing world beyond factory presets.
Effects: The Effects section of the FX mixer provides two discrete effects processors, each capable of
chaining two (2) different effects at the same time. EFX1 (left side of screen) is permanently routed to the
Aux5/EFX1 send and return bus. EFX 2 (right side of screen) is routed to the Aux6/EFX2 bus, but can be
routed from the EFX2 Patch Jack on the rear panel and routed to the insert of a single channel or inserted
into a group/bus. Effects that modify amplitude such as compressors, limiters, gates, expanders and deessers, when used individually, work best when inserted into channels or busses.
While they may be edited, the edited versions may not be saved in positions 0-49. Presets 50-99 are
user presets, custom and/or edited presets can be named and saved in these slots. Edited but unsaved
EFX have an “*” next to the preset number.
Selecting an Effects preset: Press the “Effects” button to activate the Effects window. Turn the encoder
knobs until the desired preset number is in the window and press the encoder knob to “select” it. The
“Select” button will turn into a “Recall” button. Pressing it will recall the last used preset. You may press
the “Edit” button to adjust any parameters of the selected preset. You must “Save” a preset to save the
adjusted parameters.
Creating a preset: Press the “Effects” button and turn either data knob to select any preset between 50-
99. Press “select” (ashing) and then “edit #”.
Press the “Type” button and the screen will display the DSP Library of available effects. You may scroll
through the entire list by turning the left data knob.
Rotate the data knob to highlight the effect you
wish and press “select” to add it.
Select a “style” from the available models. Press
select to choose it and then “back” to return to the
main page ... or ... cursor to another effect block and
repeat the process.
Press “edit” to adjust the parameters of the effect
types.
OUTPUT PROCESSING
EDIT
TYPE
MODE
FB
EQ
DLY
LIM
DIGITAL PROCESSING ARENA
Scroll through the parameters with the left knob and adjust the values with the right knob. Rotate the left
encoder knob to view the entire list of parameters available as there may be more than those shown on
the screen. Press “back” when completed.
Press “save” to save the preset. Press “back” to return to the main menu.
If you make a mistake editing a parameter for an effect, you do not have to start over. The “undo” button
will revert the last change to its original setting, much like the undo command in a word processor. To
make further renements to any user-dened preset, you have two choices: press the "back" button
and start completely over, or simply use the soft knobs (45-46) to return to the individual effect within
a preset. Remember, factory presets cannot be altered by the user. If you choose to adjust or build on a
factory preset (which we encourage you to do), your saved settings will be automatically directed to the
next, unused, customized preset.
WARNING: When user-dened, customizable presets are saved, they will automatically replace the
current settings for that preset UNLESS you assign a new preset number. If you overwrite the originally
saved preset settings, the old settings are no longer retrievable.
User Tip: You can select up to two (2) of the internal
effects and arrange them in series in any order using
one instance of any effect in the chain. Since they
are in series, the order will affect the sound quality.
Adjustments to the Wet/Dry proportions can also
make a big difference to the sound of the effect.
IMPORTANT: When a signal passes through a digital
effects processor, a short delay results. When this
same signal returns to the mixer and combines with
the main output, the small delay difference results in
a comb lter. (Short changing delays are the basis of wah-wah effects.) To prevent the comb-lter effect,
increase the delay time simply by including an effect block such as reverb or delay.
Note that many effects like compressor, limiter, gate, chorus, etc., do not work well when used alone on
an effects send. Fortunately, the EFX 2 Patch Jack (56) can be patched directly into an Insert (48) on any
channel or subgroup (Group Inserts (54)). Simply connect the EFX 2 Patch jack (56) to the desired insert
jack with a stereo cable. Then, press the EFX 2 Patch Switch (33) to activate the patch. In this conguration, comb ltering is eliminated because the only signal path is through the processor.
QUICK TIP: From anywhere within the digital arena, you can return to the main effects screen simply by
pressing the Effects Button.
OUTPUT PROCESSING:
The Peavey FX series mixers are equipped with Digital output processing on the Left and Right mains
outputs. The processing may not be switched to the aux busses.
Modes: The FX mixers can operate in any of three (3)
output modes.
Stereo: This is the normal output mode. In this mode,
the output processors are tied together so that what
you edit is applied equally to both channels at the
same time.
Dual Mono: This mode sums the left and right busses
together after the Feedback Ferret into a single mono
output. The L & R outputs get the same mono signal
but are capable of processing each output separately
DIGITAL PROCESSING ARENA
so that an adjustment made to the L output will not make that same adjustment to the R output. This
would be handy should the L & R outputs of your system be set up in an asymmetrical fashion (e.g., one
speaker stack is set up near a corner and the other centered along a wall). This would probably require
different EQ for each speaker to be balanced. It is also appropriate where one output drives a main
speaker cluster and the other output drives a remote speaker (or a different speaker conguration).
Subwoofer: This again combines the L & R busses and installs an electronic crossover in the output section. This crossover may be adjusted so that one output (Left main) drives the low or sub output and the
other (Right main) drives the main or HF output. The Delays and the Limiters may be adjusted independently for the two different outputs. The crossover employs a 4th order set of lters (24 dB/oct) and
Butterworth or Linkwitz-Riley lters may be selected. CD horn compensation is available for Constant
Directivity horns.
PROCESSOR MODULES
Feedback Ferret:
Press the “Output Processing” button.
Turn the left knob to highlight the rst block (the Feedback Ferret block), and select it by pressing the knob.
Press “Type” and use the left knob to select “Feedback Ferret.” Press it again to choose between “Dynamic” and “Static” mode.
Dynamic Mode: Dynamic mode, when on, will detect feedback and eliminate it automatically. Once a feedback elimination lter has been activated, it will be released after a certain amount of time to allow other
feedback frequencies to be detected. If the feedback is severe enough, the feedback elimination lter for
that frequency will lock in place, not allowing it to be released. The only way to release a locked lter is to
select “Clear” on the “Edit” page, which will clear all of the current lters, locked or not.
Static Mode: Unlike Dynamic mode, Static mode involves a setup process and is the recommended mode
for more robust feedback elimination. Once Static mode has been selected, select “Detect” to begin detecting feedback. In order for feedback to be eliminated, feedback must be present, so it is recommended
to increase the gain of the mixer in order to achieve feedback. Once feedback is sufciently present, a
lter should be activated to eliminate the feedback and the number of available lters should decrement
accordingly. Once you are satised with the feedback elimination lters, select “Back” to lock these lters
in place. Once this is accomplished, feedback will no longer be detected and the lters in place will not
release until “Detect” is selected again. A group of lters can be saved in the library by name and recalled
when you play the venue again, although it would be best to repeat the setup process again as things will
always change a little.
PEQ: Highlight the second box from the left and select "type." You can press the “Lib” button to select a
saved setting, or you can edit the existing setting by navigating around the screen.
The left encoder knob selects the band (1-5) to edit. Once you have selected that band, pressing the left
knob will allow you to adjust the center frequency of the lter selected. The right encoder knob toggles
between “bandwidth” and “gain.” Bandwidths between 0.3 octave and 2.0 octaves may be selected as
well as gain levels from -12 dB to +12dB. When you have made your adjustments, you may save them to
the Library by pressing the “Lib” button and selecting “Save current settings.” You can title your settings
by selecting the name button and assigning a name or you can save it over an existing setting. Select a
name or a “free” setting and press “save.”
GEQ: Highlight the second box from the left and select “type.” Scroll to “Graphic EQ” and select by
pressing the left encoder knob.
The left encoder knob controls the selection of the frequency to be modied and the right encoder knob
selects the gain, +/- 12 dB. The left encoder knob can also select the left most slider for gain adjustment
of the GEQ as a whole. Selecting the “Lib” button will allow you to save or recall your settings.
DIGITAL PROCESSING ARENA
Delay: Highlight the third box from the left to select the “Delay” and press the “edit” knob down to ad-
just the amount of delay desired. You can select the “Lib” button to save the current adjustments to the
library or to load from the library. The delay is most often used when remote speakers are set up away
from the regular Main speakers. The number of ms of delay needed is close to the distance in feet plus
20 ms (so that a remote speaker located away from the Mains by 100 feet will need a delay of approximately 120 ms). This should normally be done in the “Dual Mono” output mode.
This delay is very useful in the “Stereo” mode for adding delay to compensate for the distance between
the backline ampliers and the front Main speakers. It is probably best to set this in relationship to the
loudest (peak) sound coming from the backline (usually the snare drum). If the snare drum is 12 feet
from the front of the stage, start with about 12 ms of delay plus 10 - 30 ms for the Haas effect (so between 22 and 42 ms or to taste). By adjusting the backline to the FOH Main speakers, a sort of focus
will take place. The audience will hear the sound as though it is coming from the band itself and not so
much coming from the PA ... a good thing to do!
Limiter: Selecting this function sets a limiter on the L/R outputs of your FX mixer. This helps to prevent the
mixer from clipping as well as overdriving the rest of the output chain. Press “edit” to adjust the parameters
of the output limiter. The threshold should probably be adjusted to max (+10 dB) and the mode adjusted
to “soft knee” in most cases. 50 ms of Attack and 500 ms of Release time are good starting points but may
be adjusted as necessary. If you are “hearing” this limiter actually work, then you are probably driving too
hard and should back off. This limiter is not intended to be a “sonic shaper” (use the “compressor” function
in the “Effects” processors). You may “save” or “load” from the library as necessary.
Digital I/O:
The digital I/O section of the FX mixer consists of the Utility and USB functions.
UTILITY
Screen Adjustment: Turn knob to adjust the contrast of the screen. You may also choose to invert the
screen colors. Press the “save” button to keep your adjustment or “back” to ignore.
Change Security Settings: The user can lock out others from changing effect, output or digital I/O
presets by selecting the appropriate check boxes. Once a box is checked, a password will be required to
make a change to that setting.
Change Password: A password may be set by
turning the left encoder knob to select a character for each of the four placeholders. Once
you have selected the characters, press the
“enter” button and validate your choice. This
password will now be necessary for making
changes to any of the settings that have been
selected in the “Security Settings” above. This
password will also be necessary to do a factory
reset.
Restore Factory Settings: Resets all parameters to factory settings and will erase all user presets and passwords.
USB
The FX2 mixer console allows the user to record or play back MP3’s directly to/from a thumb drive placed
in the USB A port. Note the USB B port directly streams audio in or out and is treated as a “sound card”
by the computer. How you treat this output will depend on the computer you use and the software you
are running to control it. Only one USB output may be connected at a time, and the USB B cable must
be disconnected before a device in the USB A port is accessed, and vice versa.
