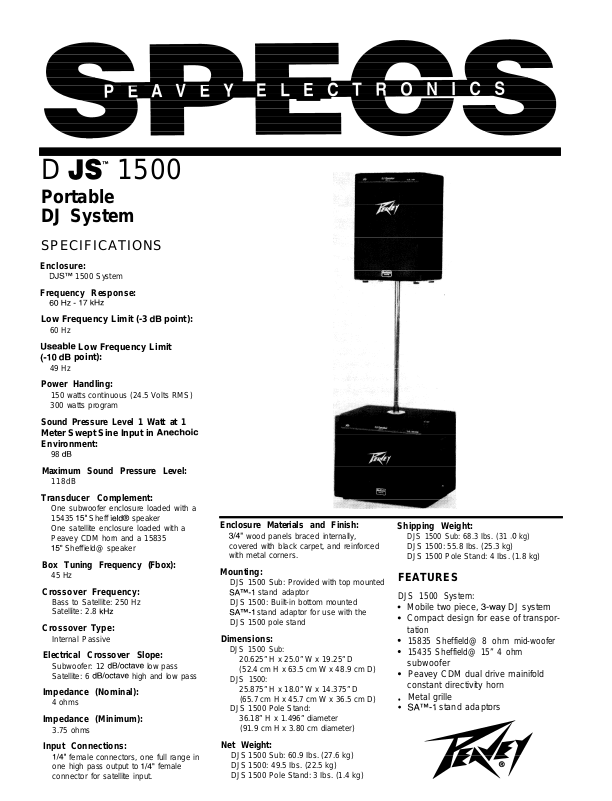

Peavey DJS 1500 DATASHEET

D

JS’”

1500

Portable
DJ System

SPECIFICATIONS

Enclosure:

DJSTM

1500 System

Frequency Response:

60Hz-17kHz

Low Frequency Limit (-3 dB point):

60 Hz

Useable
(-10 dB

Power Handling:

Sound Pressure Level 1 Watt at 1
Meter Swept Sine Input in
Environment:

Maximum Sound Pressure Level:

Transducer Complement:

Box Tuning Frequency (Fbox):

Crossover Frequency:

Crossover Type:

Electrical Crossover Slope:

Impedance (Nominal):

Impedance (Minimum):

Input Connections:

Low Frequency Limit

point):

49 Hz

150 watts continuous (24.5 Volts RMS)

300 watts program

Anechoic

98

dB

118dB

One subwoofer enclosure loaded with a

15435

15”

Sheff

ield8

kHz

speaker

l/4”

female

One satellite enclosure loaded with a

Peavey CDM horn and a 15835

15”

Sheffield@ speaker

45 Hz

Bass to Satellite: 250 Hz
Satellite: 2.8

Internal Passive

Subwoofer: 12 dB/octave low pass

Satellite: 6 dB/octave high and low pass

4 ohms

3.75 ohms

l/4”

female connectors, one full range in
one high pass output to
connector for satellite input.

Enclosure Materials and Finish:

3/4”

wood panels braced internally,
covered with black carpet, and reinforced
with metal corners.

Mounting:

DJS 1500 Sub: Provided with top mounted

SATM-1

stand adaptor
DJS 1500: Built-in bottom mounted

SATM-1

stand adaptor for use with the
DJS 1500 pole stand

Dimensions:

DJS 1500 Sub:

20.625” H x 25.0” W x 19.25” D
(52.4 cm H x 63.5 cm W x 48.9 cm D)

DJS 1500:

25.875” H x 18.0” W x 14.375” D
(65.7 cm H x 45.7 cm W x 36.5 cm D)

DJS 1500 Pole Stand:

36.18” H x 1.496” diameter
(91.9 cm H x 3.80 cm diameter)

Net Weight:

DJS 1500 Sub: 60.9 Ibs. (27.6 kg)
DJS 1500: 49.5 Ibs. (22.5 kg)
DJS 1500 Pole Stand: 3 Ibs. (1.4 kg)

Shipping Weight:

DJS 1500 Sub: 68.3 Ibs. (31 .O kg)
DJS 1500: 55.8 Ibs. (25.3 kg)
DJS 1500 Pole Stand: 4 Ibs. (1.8 kg)

FEATURES

DJS 1500 System:

0

Mobile two piece, 3-way DJ system
Compact design for ease of transpor­tation

15835 Sheffield@ 8 ohm mid-woofer
15435 Sheffield@ 15” 4 ohm

subwoofer

Peavey CDM dual drive mainifold

constant directivity horn

Metal grille

l

0

SATM-1

stand adaptors

Custom fitted chrome plated pole
stand for operating stability
Heavy-duty black carpet covering
Rugged metal corners
Recessed handles in DJS 1500 Sub
Strap handle on DJS 1500 satellite

300 watts program power

DESCRIPTION

The DJS 1500 System is a two-piece,
three-way, highly portable DJ sound
reinforcement system designed for
music playback, dance music, and any
mobile DJ application. This system is
comprised of the compact two-way DJS

1500 satellite enclosure and a solid low
end of the DJS 1500 Sub. The DJS
1500 is a popular combination of a
rugged, high output 15” Sheffield@
15835 woofer and dual drive manifold
Peavey CDM tweeter that makes the
DJS 1500 the ideal choice for public
address and sound reinforcement
systems. The smooth voicing and
accurate tonal balance coupled with a
300 watt program power rating produce

an unequaled value. The DJS features
a full front protective metal grille,

integral SA
rugged metal corners. Heavy-duty black

carpet rounds off this versatile offering.

While the smooth, well-defined sound

of the DJS 1500 projects into the

TM-1

stand adaptor, and

audience (mounting pole included), the
high efficiency DJS 1500 Sub cranks
out an impressive amount of solid low
end. The DJS 1500 Sub is designed
around a specially voiced 15”
Sheffield@ 15435 subwoofer mounted
in a high-density, tuned and ported
cabinet for extended low frequency
output. The 300 watt program rating will
ensure high level operation in the
lowest octave of system operation. A
passive crossover is provided which will
produce a filtered satellite output for the
DJS 1500.

The DJS 1500 Sub is provided

top mount SA

TM-1

stand adaptor and

wit1

carpet covering to provide maximum
protection. The 4 ohm system is an
ideal selection when deep powerful
bass is required in satellite system
configurations.

WARNING: TO PREVENT THE
RISK OF DAMAGE AND IN­JURY, DO NOT USE THE

DJSTM

1500 POLE STAND TO

SUPPORT ANY PRODUCT
WEIGHING MORE THAN 49.5
POUNDS. MAXIMUM SYSTEM
HEIGHT MUST NOT EXCEED
80 INCHES.

ARCHITECTURAL

&

ENGINEERING

SPECIFICATIONS

The loudspeaker system shall have

an operating bandwidth of 60 Hz to

17

kHz.

The output level shall be 98

when measured at a distance of one

meter with an input of one watt. The
nominal impedance shall be 4 ohms.

The continuous power handling shall be

150 watts, maximum program power of
300 watts, with a minimum amplifier
headroom of 3
sions of the DJS 1500 Sub shall be

a

25.0 inches wide by 20.625 inches high

dB.

The outside dimen-

by 19.25 inches deep. The weight shall
be 60.9 Ibs. The outside dimensions of
the DJS 1500 shall be 18.0 inches wide
by 25.875 inches high by 14.375 inches
deep. The weight shall be 49.5 Ibs.

ONE-YEAR
LIMITED WARRANTY

NOTE: For details, refer to the war-

ranty statement. Copies of this state­ment may be obtained by contacting
Peavey Electronics Corporation, P.O.
Box 2898, Meridian, Mississippi 39302-

2898.

dB

100

90

80

100 ohm

31.5 ohm
10 ohm

3.15 ohm

Frequency

dB
dB

dB

Impedance

50Hz100

200 Hz 500 Hz 1

Hz

kHz PkHz

5

kHz10kHz 20 kHz

Fig. 1

Fig. 2
